What kind of oil do you use in a Craftsman lawn tractor?
For the Craftsman 917287052 front-engine lawn tractor, we use standard 4-cycle engine oil; the correct viscosity depends on outdoor temperature. The tractor ships from the factory filled with summer-weight oil, and you switch to a lighter viscosity for cold-weather starting (see the oil viscosity chart in the owner's manual).
What to use (typical viscosities)
Most Craftsman riding lawn mower engines use these common oil grades:
- SAE 30: best for warm weather mowing
- 10W-30: good all-around choice for mixed temperatures
- 5W-30: best for colder weather and easier starting
- Synthetic 5W-30: strong option for wide temperature swings
How to check and fill oil correctly
We recommend checking oil before each use, with the tractor on level ground:
- Park on a flat surface and let the engine cool briefly
- Remove the oil fill cap/dipstick, wipe it clean
- Reinsert fully (per the manual), then remove and read the level
- Add oil slowly until the dipstick reads FULL
- Do not overfill; overfilling can cause smoking and poor running
Quick decision table
| Your mowing conditions | Oil choice that typically fits | Why |
|---|---|---|
| Mostly hot weather | SAE 30 | Holds viscosity well in heat |
| Spring and fall swings | 10W-30 | Covers a broader range |
| Cold starts | 5W-30 | Cranks easier in low temps |
| Wide range, heavy use | Synthetic 5W-30 | Better stability across temps |
Why it matters
Using the right viscosity helps your engine stay lubricated at startup and protected when hot. It also reduces hard-starting in cold weather and helps prevent accelerated wear during mowing season.
Last updated: February 2026
What year did Craftsman make the 917287052?
Craftsman model 917287052 was made across a production run rather than in one single year. The most accurate way to pin down the exact build year for your specific tractor is to use the serial number and date information shown in the owner's manual.
How to find the exact year for your tractor
We recommend checking the model and serial number label (commonly under the seat or on the frame). Once you have the serial number, use the date-coding guidance in the owner's manual to identify the manufacturing date.
- Park on a flat surface, set the parking brake, and remove the key.
- Lift the seat and locate the model/serial label.
- Confirm the model number reads 917287052.
- Write down the full serial number exactly as shown.
- Use the manual’s identification section to decode the build date.
Quick reference: model number vs. serial number
| Item | What it tells you | Where to look |
|---|---|---|
| Model number (917287052) | The tractor design and parts family | ID label under seat or on frame |
| Serial number | The specific unit and its build date code | Same ID label |
Why it matters
The build year affects parts lookups and compatibility for wear items like blades, mandrel components, and electrical parts. For example, when you’re matching deck hardware, using the correct part listing helps you choose the right blade style such as the lawn tractor 42-in deck high-lift blade 532138971 or a mulching option like the husqvarna lawn tractor mulching blade, 21-in 532134149.
Related maintenance tip
If you are already checking the ID label, it is a good time to review seasonal upkeep steps (oil, air filter, blade condition, and deck leveling) in the owner's manual.
Last updated: February 2026

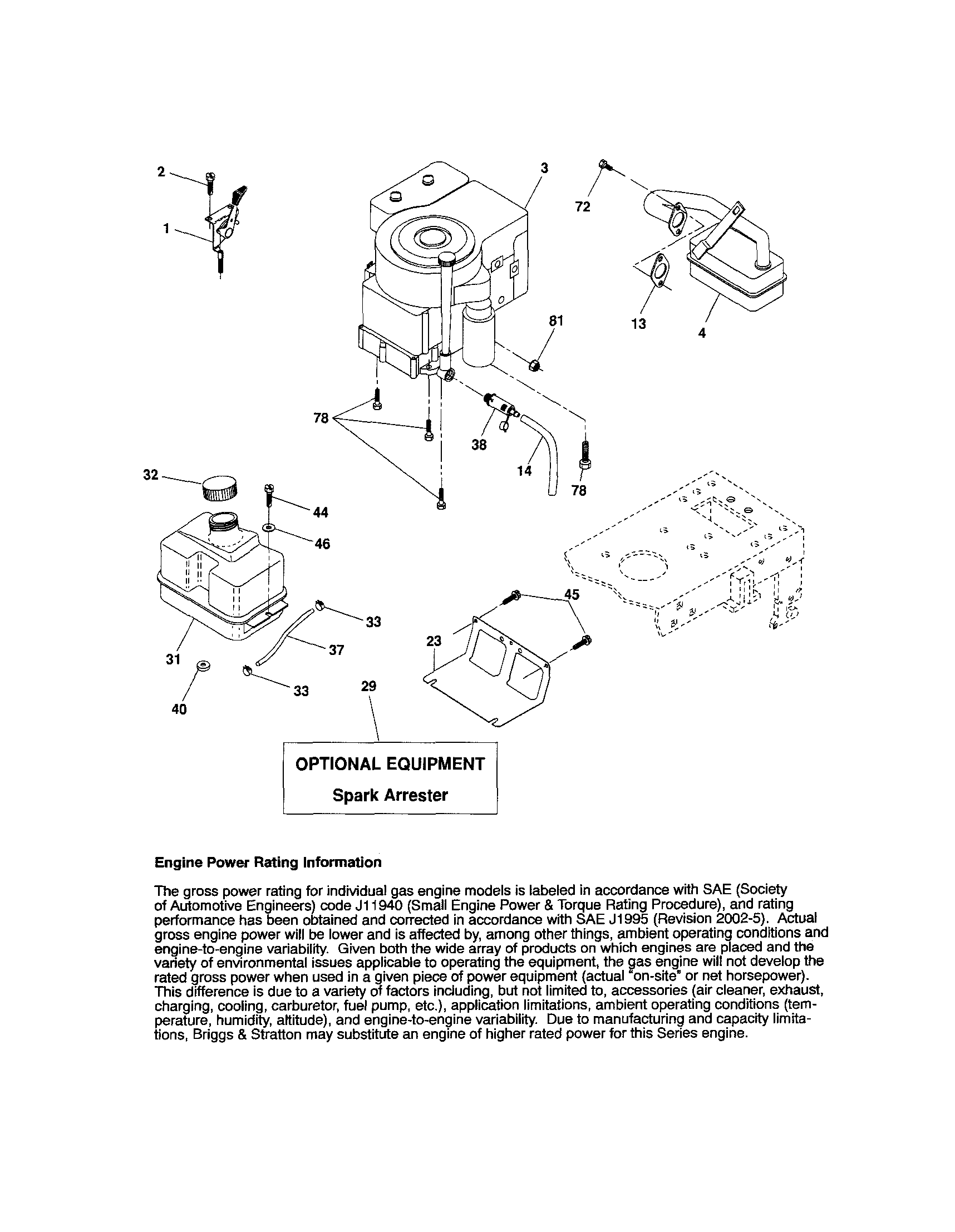

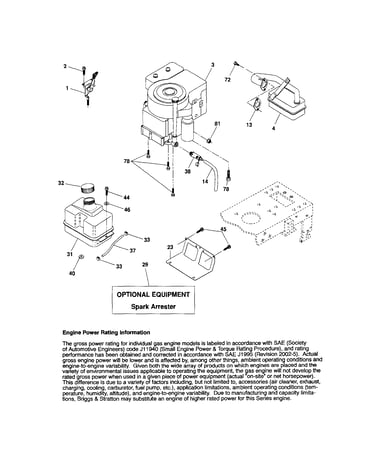

What kind of engine does a Craftsman riding lawn mower have?
For Craftsman lawn tractor model 917287052, the operator’s manual identifies it as an 18.0 HP riding lawn tractor with a low-emission engine (horsepower rated by the engine manufacturer). For the exact engine make and model used on your tractor, match the engine ID label to the specifications in the owner's manual.
How to identify the exact engine on your 917287052
We use the engine’s ID label (not just the tractor model number) to confirm the engine manufacturer and spec.
- Park on a flat surface, set the parking brake, and remove the key
- Let the engine and muffler cool completely
- Open the hood and locate the engine ID label (often on the blower housing or valve cover)
- Record the model, type, and code (or spec number)
- Use those numbers with the engine section of the owner's manual to confirm tune-up parts and settings
What the manual tells you about this tractor’s engine
The manual gives you performance and operating guidance tied to the engine and drivetrain.
| Item | What you can expect on this model |
|---|---|
| Engine rating | 18.0 HP (rated by engine manufacturer) |
| Emissions | Low-emission engine design |
| Starting | Electric start |
| Drive | 6-speed transaxle |
Why it matters
Using the correct engine identification prevents wrong parts and wrong adjustments. Air filter style, spark plug type, fuel mixture settings (especially in cold weather or above 3,000 ft), and even starting behavior can vary by engine spec.
Related parts that often come up during engine and mowing service
These are not engine internals, but they are common wear items you may replace while servicing the tractor:
- Lawn tractor ignition switch 532193350 (no-crank or intermittent start)
- Lawn tractor starter solenoid 582042802 (single click, no crank)
- Husqvarna lawn tractor mulching blade, 21-in 532134149 (cut quality and mulching performance)
Last updated: February 2026
What engine block number is 917287052?
917287052 is a Craftsman lawn tractor model number, not an engine block casting number. To identify the engine block number on your Craftsman 917287052, we use the engine’s ID tag (model, type, and code) or the casting number stamped into the block, then match that to the correct engine parts list in the owner's manual.
Where to find the engine block number
On riding lawn tractors like the Craftsman 917287052, the engine block number is found on the engine itself, not on the tractor frame tag.
- Look for an engine ID label on the blower housing, valve cover, or near the starter
- Write down the engine model, type, and code (often three separate fields)
- Check the engine block for a raised or stamped casting number (usually near the crankcase)
- Compare what you wrote down to the engine identification section in the manual
- If the label is missing, use the casting number plus the engine’s general layout (single-cylinder vs. V-twin) to narrow it down
Quick ID checklist (what to record)
Use this checklist so we can match the correct engine and parts:
| What to record | Example format | Why we need it |
|---|---|---|
| Engine model | 31XXXX | Identifies the engine family |
| Engine type | XXXX-XX | Identifies the exact build configuration |
| Engine code/date | YYMMDDXX | Identifies production run details |
| Block casting number | 12A123 | Helps when the ID label is unreadable |
Why it matters

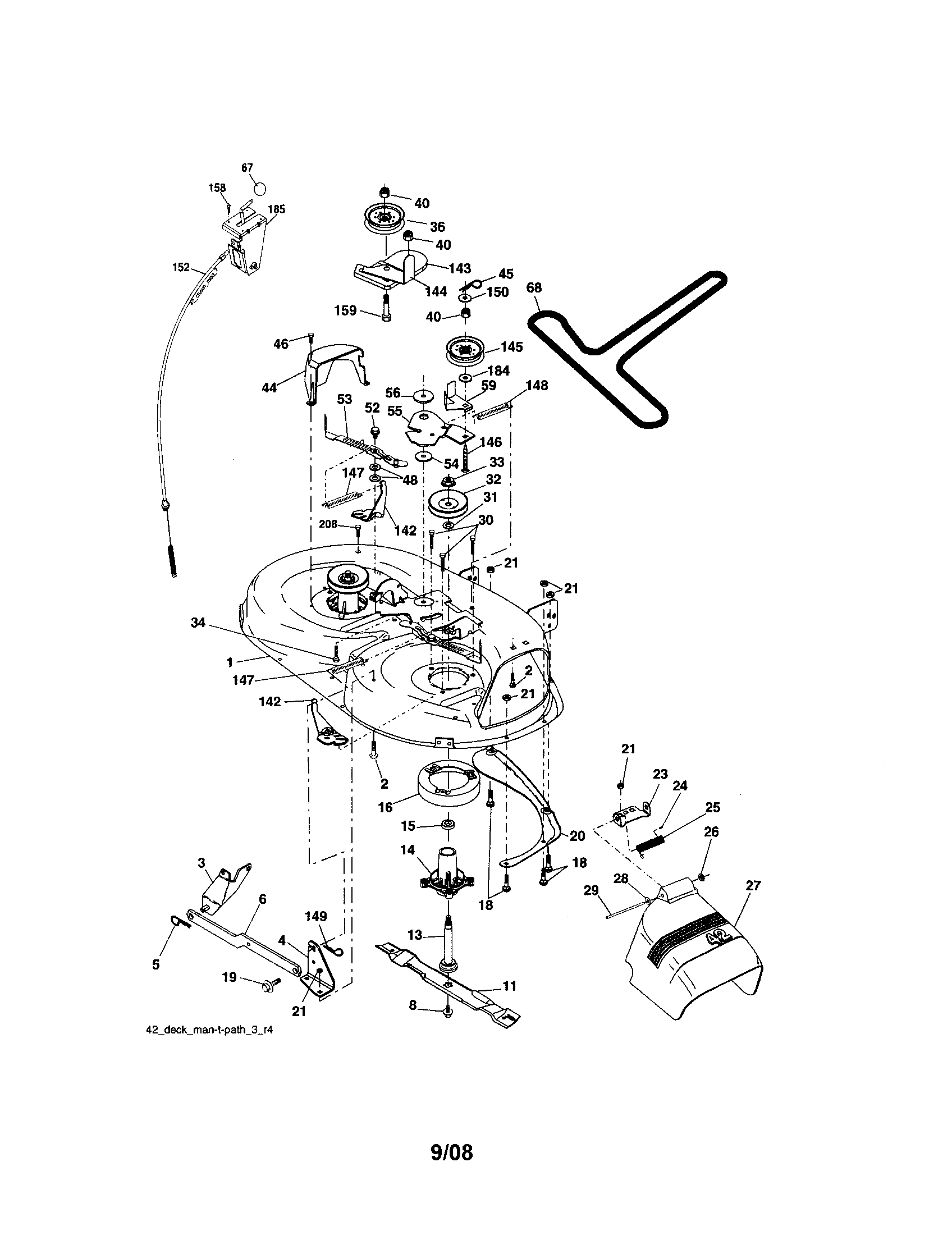

The tractor model number (917287052) identifies the chassis and mower deck system (for example, the 42-inch deck shown in the manual), but engine block numbers are engine-specific. Using the correct engine identification prevents ordering the wrong ignition, starter, carburetor, or gasket parts.
Related parts you might replace during engine-related troubleshooting
If the engine is clicking, not cranking, or intermittently starting, these model-matched electrical parts are common fixes:
Last updated: February 2026
What model number is the Craftsman 917287052 riding mower?
The model number for this Craftsman riding mower is 917.28705 (often written without the dot as 91728705). On Sears PartsDirect, it’s listed under the full model identifier 917287052, which is the model you’ll use to match the correct parts and diagrams. See the owner's manual for where the model label is located.
Where to find the model number on the tractor
Most Craftsman front-engine lawn tractors place the model label in an easy-to-check spot. Look for a sticker or metal tag:
- Under the seat pan or on the seat support
- On the rear fender area near the seat
- On the frame rail near the engine compartment
- Near the transaxle area on the rear frame
- On the underside of the hood (less common)
Why you may see different model number formats
Craftsman model numbers are commonly shown in a few formats depending on the label, manual, or parts listing.
| Where you see it | Example format | What it means |
|---|---|---|
| Operator’s manual cover | 917.28705 | Base model number used in documentation |
| Parts listing / ordering | 917287052 | Full model identifier used to match parts |
| Decal or tag | 917.28705 or 91728705 | Same model; punctuation may vary |
Why it matters (parts and repairs)
Using the exact model identifier helps us match the correct mower deck, electrical system, and chassis components for your tractor. That matters when ordering common wear items like blades, mandrel parts, and ignition components.
If you’re shopping for deck parts for this model, examples from the parts list include:
- Lawn tractor 42-in deck high-lift blade 532138971
- Husqvarna lawn tractor mandrel assembly 532130794
- Lawn tractor ignition switch 532193350
Last updated: February 2026
