Kenmore 11071202010 gas dryer Parts

PF on a Kenmore dryer means Power Failure; it indicates your Kenmore gas dryer model 11071202010 lost power during a cycle (outage, tripped breaker, loose plug) and the cycle was interrupted.

What to do when you see PF

• Press Start to resume the cycle if the load is still damp.
• If the display clears but the dryer will not run, check the house breaker and reset it fully.
• Confirm the dryer is plugged into a properly grounded outlet and the cord is fully seated.
• If PF returns repeatedly, avoid using an extension cord; plug the dryer directly into the wall.
• Review the power and safety notes in the 11071202010 installation guide.

Quick checks: power issue vs. dryer issue

What you notice	Most likely cause	What we recommend
PF appears after a storm/outage	Utility power interruption	Restart cycle; verify outlet power
PF appears when dryer starts heating	Weak connection, breaker issue	Check plug, outlet, breaker; tighten loose connections (electrician)
PF appears randomly with no outage	Intermittent power at outlet	Test outlet; consider electrician evaluation

Why it matters

A PF code is usually not a failed dryer part; it is the dryer telling you the cycle stopped because voltage to the control dropped. Fixing the power source prevents repeated interruptions and helps protect the electronic control.

If the dryer still will not start after PF

If power is stable and the dryer still will not run, a door switch problem can mimic a “no start” condition. On this model, the dryer door switch WP3406107 is a common no-start component to test and replace.

Last updated: February 2026

On a Kenmore dryer like model 11071202010, the model number is printed on the model and serial number plate. We typically find that label inside the door opening on the cabinet frame; check the top, sides, and the door’s inner edge.

Where to look first (fast checklist)

• Open the dryer door and inspect the cabinet frame around the opening
• Check the upper left and upper right areas of the door opening
• Look along the side jambs (both vertical sides)
• Check the inside face of the door near the hinge area
• Wipe lint and dust off the label so the numbers are readable

What the label looks like

The plate is usually a small sticker or metal tag that lists both the model number and serial number. Your installation paperwork also has spaces to record these numbers, which helps confirm you are reading the correct label.

What you need	Example format	Why you need it
Model number	11071202010	Matches the correct Kenmore gas dryer parts list
Serial number	Letters and numbers	Helps identify production details for service

Why it matters

Using the exact model number prevents ordering the wrong parts (for example, a dryer door switch or belt) and helps you follow the correct venting and gas connection requirements in the documentation.

Helpful references

• Use the 11071202010 installation guide to see where the model/serial number plate is referenced and to record the model and serial number.

Last updated: February 2026

The exact drum capacity (in cubic feet) for Kenmore gas dryer model 11071202010 isn’t listed in the installation guide excerpts we have for this model. Most full-size Kenmore 110-series dryers are typically in the about 6.5 to 7.4 cu. ft. range; we recommend confirming the exact figure in the 11071202010 owner’s manual.

How to confirm the exact capacity

Use these quick checks to get the model-specific number without guessing:

• Look in the Specifications section of the 11071202010 owner’s manual.
• Check the model/serial tag on the dryer cabinet (often inside the door opening) and compare to the manual specs.
• If the manual lists drum dimensions instead of capacity, use those values to calculate volume.
• If you’re shopping for parts, match by model number 11071202010 (not just “Kenmore 110”).

Typical capacity range (what it means for loads)

Even without the exact cu. ft. number, capacity mainly affects what you can dry efficiently per cycle.

Capacity class	Typical cu. ft. range	Best for
Standard	6.5 to 7.0	Everyday mixed loads
Large	7.1 to 7.4+	Towels, bedding, larger families

Why it matters

Capacity impacts drying performance and cycle time. Overloading restricts tumbling and airflow, which can cause longer dry times and more wear on drive components like the belt 341241 and the idler system.

Related tips for best real-world drying

• Avoid packing the drum tight; leave room for clothes to tumble.
• Clean the lint screen every load and keep venting clear for proper exhaust.
• If loads seem to take too long, check airflow first before replacing heating parts.
• For gas models, consistent heat also depends on burner ignition components and proper venting.

Last updated: February 2026

On the Kenmore gas dryer model 11071202010, replacing the drum belt means unplugging the dryer, opening the cabinet, moving the idler pulley to release tension, routing the new belt around the drum and motor pulley, then reassembling and test-running to confirm smooth drum rotation. See the 11071202010 installation guide for cabinet access and reassembly details.

Before you start (safety and prep)

• Unplug the dryer from the wall outlet.
• Shut off the gas supply valve to the dryer.
• Let the dryer cool completely.
• Protect the finish by placing a towel on top of the dryer (a common step in the install guide).
• Keep screws grouped by location so reassembly is straightforward.

Belt replacement steps (typical Kenmore 110/Whirlpool-built layout)

1. Remove the lint screen and the screws that secure the lint screen housing (if equipped).
2. Release the top panel (usually with a putty knife at the front seam) and lift it.
3. Remove the front panel (and door switch connector if present) to access the drum.
4. Reach under the drum and push the idler pulley to relieve belt tension; slip the belt off the motor pulley.
5. Lift the drum slightly and pull the old belt out.
6. Install the new belt with the ribbed side against the drum; position it roughly where the old belt rode.
7. Route the belt through the idler pulley and around the motor pulley; rotate the drum by hand 1 to 2 turns to verify the belt tracks correctly.
8. Reinstall the front panel and top, reconnect the door switch, restore gas and power, then run a short timed cycle.

Correct replacement part for this model

Use the model-matched belt: belt 341241.

Check	What you want to see	What it means if not
Drum turns by hand	Smooth, even resistance	Belt misrouted or jammed idler
Start button pressed	Motor runs and drum tumbles	Door switch, belt switch, or motor issue
Noise level	No thumping/squeal	Worn idler, rollers, or blower wheel

Why it matters

A worn or broken belt stops tumbling, which causes long dry times and can overheat loads. Installing the correct belt routing also prevents premature wear on the idler pulley and drive motor.

Last updated: February 2026

To reset your Kenmore gas dryer model 11071202010, we recommend doing a simple power reset: unplug the dryer (or switch the breaker off) for 1 minute, then restore power and try a cycle. This clears many temporary control glitches.

Quick reset steps (safe first)

• Turn the dryer OFF.
• Unplug the power cord (or turn the dryer circuit breaker OFF).
• Wait 60 seconds.
• Restore power.
• Close the door firmly and select a normal timed cycle to test.

If it still will not start after a reset

A “reset” will not fix a failed safety switch or a no-heat gas ignition problem. These checks solve most no-start complaints on this style of Kenmore gas dryer:

• Confirm the door is fully closed; a bad door switch can prevent starting (see dryer door switch WP3406107).
• Make sure the dryer is level; moisture sensing can act erratically if the cabinet is out of level (see 11071202010 installation guide).
• Check airflow: clean the lint screen and make sure the vent is not crushed or kinked behind the dryer.
• If the motor hums but the drum will not turn, inspect the belt and idler (see belt 341241 and dryer idler pulley WP691366).

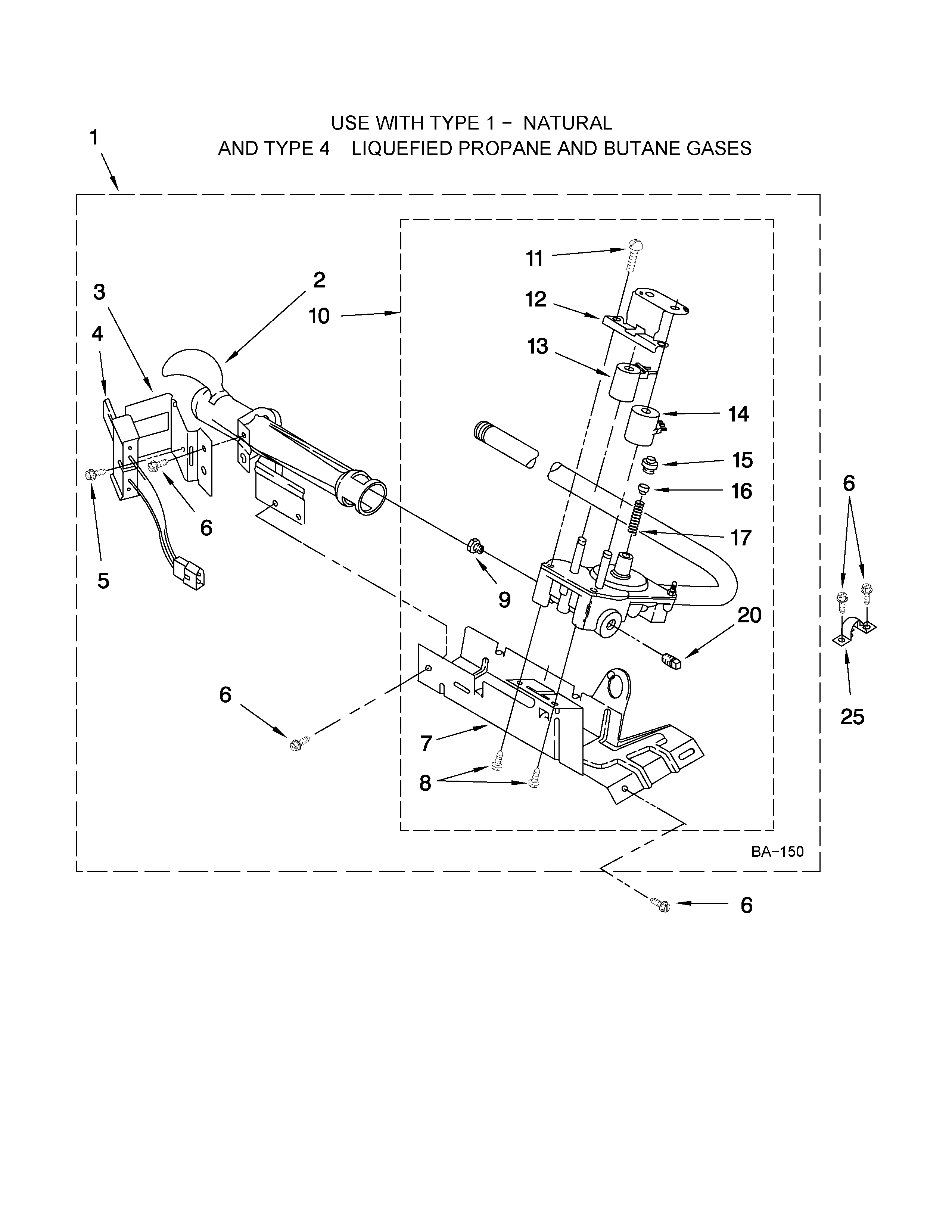

• If the dryer runs but does not heat, ignition components are common suspects (see dryer valve coil kit 279834 and igniter 279311).

What “reset” can and cannot do

Symptom	Reset helps?	What usually fixes it
Control panel acting odd, cycle stops unexpectedly	Yes	Power reset, then retest cycle
Dryer will not start at all	Sometimes	Door switch, thermal cut-off, timer/control
Dryer runs but no heat	No	Gas ignition parts, airflow restriction

Why it matters

On gas dryers, many “won’t start” and “won’t heat” issues are caused by safety interlocks (door switch, thermal cut-off) or airflow problems. Resetting power is a good first step, but verifying door closure, levelness, and venting prevents repeat shutdowns and overheating.

Last updated: February 2026

Kenmore Elite dryer error codes depend on the exact Elite series and control type. Your Kenmore gas dryer model 11071202010 is a Kenmore 110-series style model, so use the Elite code list only if your dryer is labeled “Elite” and matches that control; otherwise use the 110-series code list and the 11071202010 installation guide for model-specific setup and safety details.

Common Kenmore Elite dryer codes (what they mean)

These are widely used on many Kenmore Elite electronic-control dryers:

• PF: Power failure (cycle interrupted)
• F:01: Main electronic control board fault
• F:02: Keypad or user interface fault
• F:20: Heater relay fault (model-dependent)
• F:22 / F:23: Outlet thermistor (temperature sensor) fault
• F:24 / F:25: Inlet thermistor (temperature sensor) fault

Make sure you are using the right code chart

Kenmore uses different code families across Elite, 110-series electronic control, and other platforms.

• If the console or model badge says Elite, use the Elite chart.
• If your model number starts with 110, use the 110-series electronic control chart.
• If you see a code format that does not match (for example, no “F:” codes), switch charts.

Dryer type	Best-matching code resource	Typical code format
Kenmore Elite	Kenmore elite dryer error codes	PF, F:##
Kenmore 110-series electronic control	Kenmore 110 series electronic control model dryer error codes	PF, F:##

Quick checks we recommend before replacing parts

Do these first because many codes are triggered by power or airflow issues.

• Unplug the dryer (or turn off the breaker) for 2 minutes, then restore power.
• Confirm the door closes firmly; a failed door switch can stop operation.
• Clean the lint screen and check the exhaust duct for restrictions.
• Verify proper venting: the dryer must be exhausted outdoors using a 4-inch heavy metal vent (per the installation instructions).

Why it matters

Using the correct code list for your Kenmore series prevents unnecessary part replacement and helps you focus on the real failure area (power, airflow, sensors, or controls).

Last updated: February 2026
