On the GE GYE22HMKBES bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically comes off by releasing its retaining clips and pulling it forward; some versions also use a couple of screws. For model-specific access points and fastener locations, follow the GYE22HMKBES owner's manual.

Before you start (safety and access)

• Unplug the refrigerator or switch off power at the breaker.
• If you need more room, raise the front leveling legs and pull the refrigerator straight out (avoid dragging sideways).
• Protect the floor; the front rollers and cabinet edges can scratch.
• Keep track of any screws so the grille seats flat during reinstallation.

Steps to remove the bottom grille

1. Look for fasteners first: Check the left and right ends of the grille for Phillips screws.
2. Remove screws (if present): Back them out and set aside.
3. Release the clips: Grip the grille near both ends and pull straight outward. If it resists, press along the top edge to pop the clips free, then pull forward.
4. Lift away: Once the clips release, lift the grille off the lower tabs (if your version uses tabs).

Reinstalling the grille

• Align the grille with the lower tabs or locating slots.
• Press along the grille until the clips snap in evenly.
• Reinstall any screws and tighten snugly (do not overtighten into plastic).

Quick troubleshooting if it will not come off

What you notice	Most likely cause	What we do
Grille flexes but will not release	Clips still engaged	Pull from both ends evenly; press along the top edge to release clips
One side comes loose, other stays stuck	Misaligned clip/tab	Push the loose side back in, then pull both sides together
Grille feels “bolted on”	Hidden screws	Recheck both ends and underside for Phillips screws

Why it matters

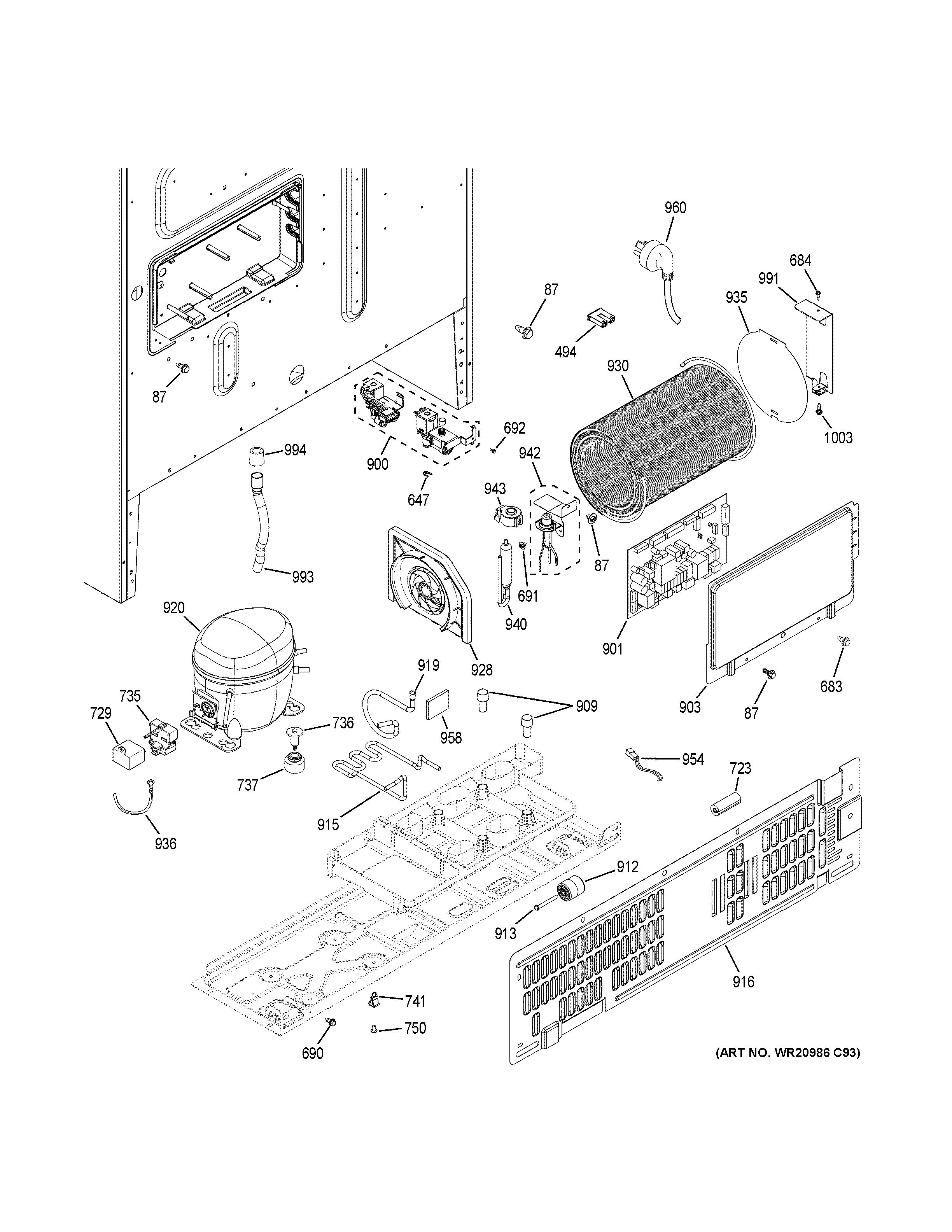

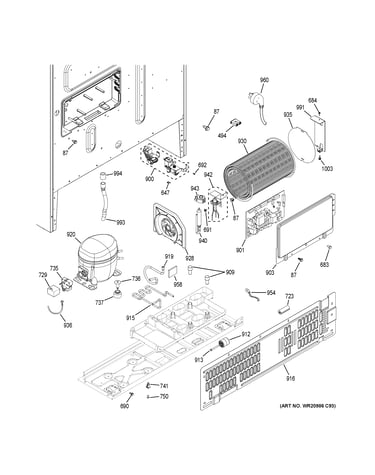

We remove the bottom grille to access cleaning areas and service points (like condenser area access on many refrigerators). A grille that is forced off can crack clips, which can cause rattles and poor fit.

If you need replacement parts for the grille area or other sections of your refrigerator, we list model-matched parts by diagram; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The most common issue we see with GE refrigerators like model GYE22HMKBES is a cooling complaint (fresh food too warm, freezer too warm, or temperatures swinging). In many cases, the cause is restricted airflow or heat not being released properly, not a “bad compressor.”

Most common causes of poor cooling

Start with the simplest, highest-impact checks first:

• Dirty condenser coils: Dust buildup makes the refrigerator run longer and cool worse.
• Airflow blocked inside: Overpacked shelves or blocked vents prevent cold air circulation.

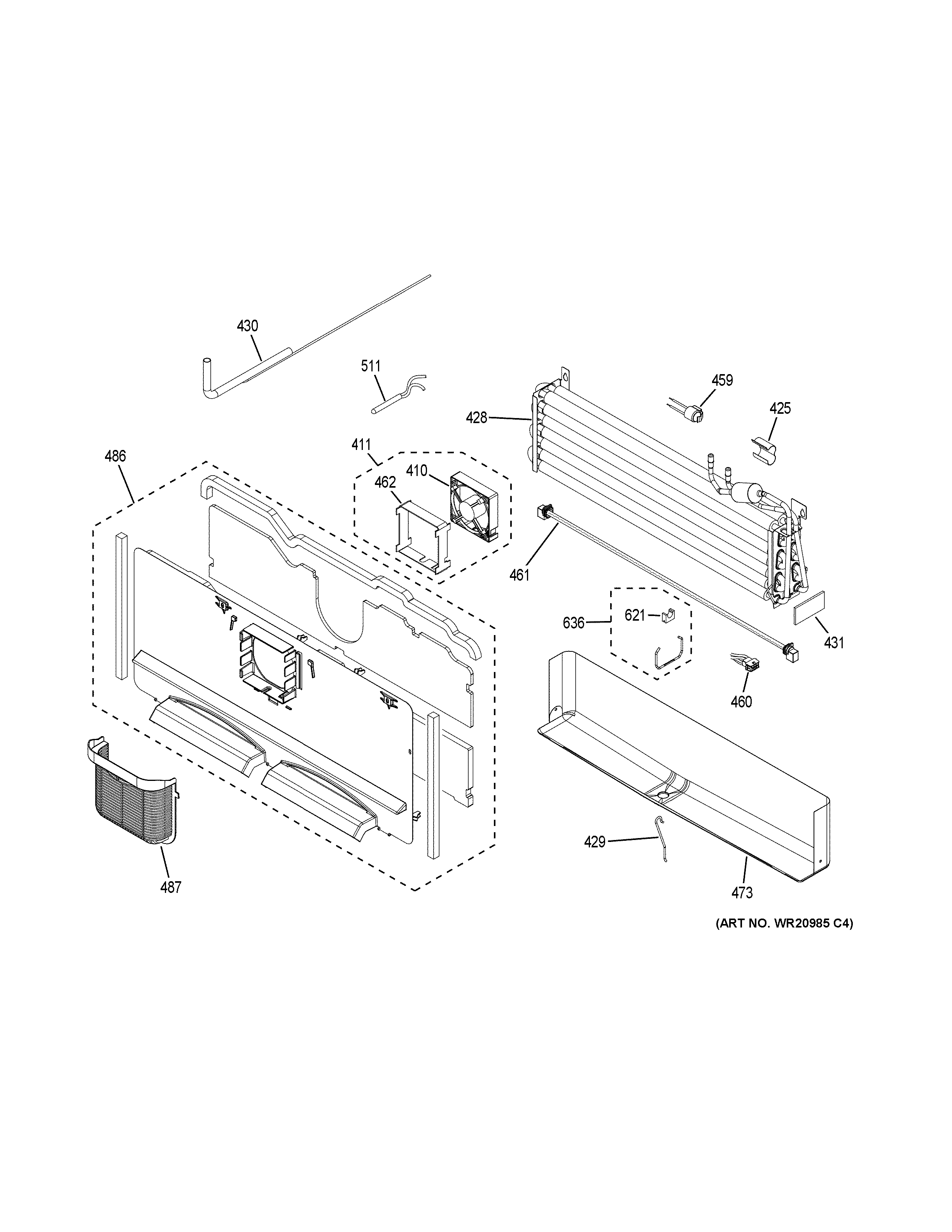

• Evaporator fan problem: If the fan is noisy, intermittent, or not running, cold air will not move correctly.
• Defrost system issue: Frost buildup on the evaporator can choke airflow and warm the refrigerator.
• Door sealing problems: A leaking gasket lets warm, humid air in and forces longer run times.

Quick troubleshooting checklist (10 to 20 minutes)

• Confirm the temperature settings match the recommended ranges in the GYE22HMKBES owner's manual.
• Make sure interior vents are not blocked by food containers.
• Clean the condenser area (unplug first; use a coil brush and vacuum).
• Listen for the evaporator fan (often heard when the doors are closed and the unit is running).
• Check door closure: the doors should shut easily and stay shut; inspect gaskets for gaps.

What “normal” temperatures look like

Use this as a target when diagnosing cooling problems:

Compartment	Typical target	What it suggests if higher
Fresh food section	37°F to 40°F	Airflow restriction, fan/defrost issue, dirty coils
Freezer	0°F to 5°F	Defrost issue, airflow issue, sealed system/compressor concerns

Why it matters

Cooling problems can snowball: restricted airflow and dirty coils make the compressor run longer, increase frost buildup risk, and can lead to food spoilage. Fixing the basics early often restores normal temperatures without major repairs.

Helpful GE refrigerator resources

• GE refrigerator error codes
• How to fix your evaporator cooling fan

If you need replacement parts for your GE GYE22HMKBES, we recommend starting with the model’s parts list, or searching by model number on Sears PartsDirect.

Last updated: February 2026

GE Profile refrigerators typically last 10 to 15 years. With consistent care (cleaning, correct temperatures, and good door sealing), many run longer; the most common life-shorteners are heavy ice maker use, restricted airflow, and dirty condenser coils. For model-specific care steps for GE GYE22HMKBES, use the GYE22HMKBES owner's manual.

Typical lifespan and what affects it

Most GE Profile units land in this range because the sealed system (compressor, condenser, evaporator) is built for long service, while wear items and convenience features tend to drive repairs first.

• 10 to 15 years is the normal service-life window
• Frequent door opening and warm kitchens increase run time and wear

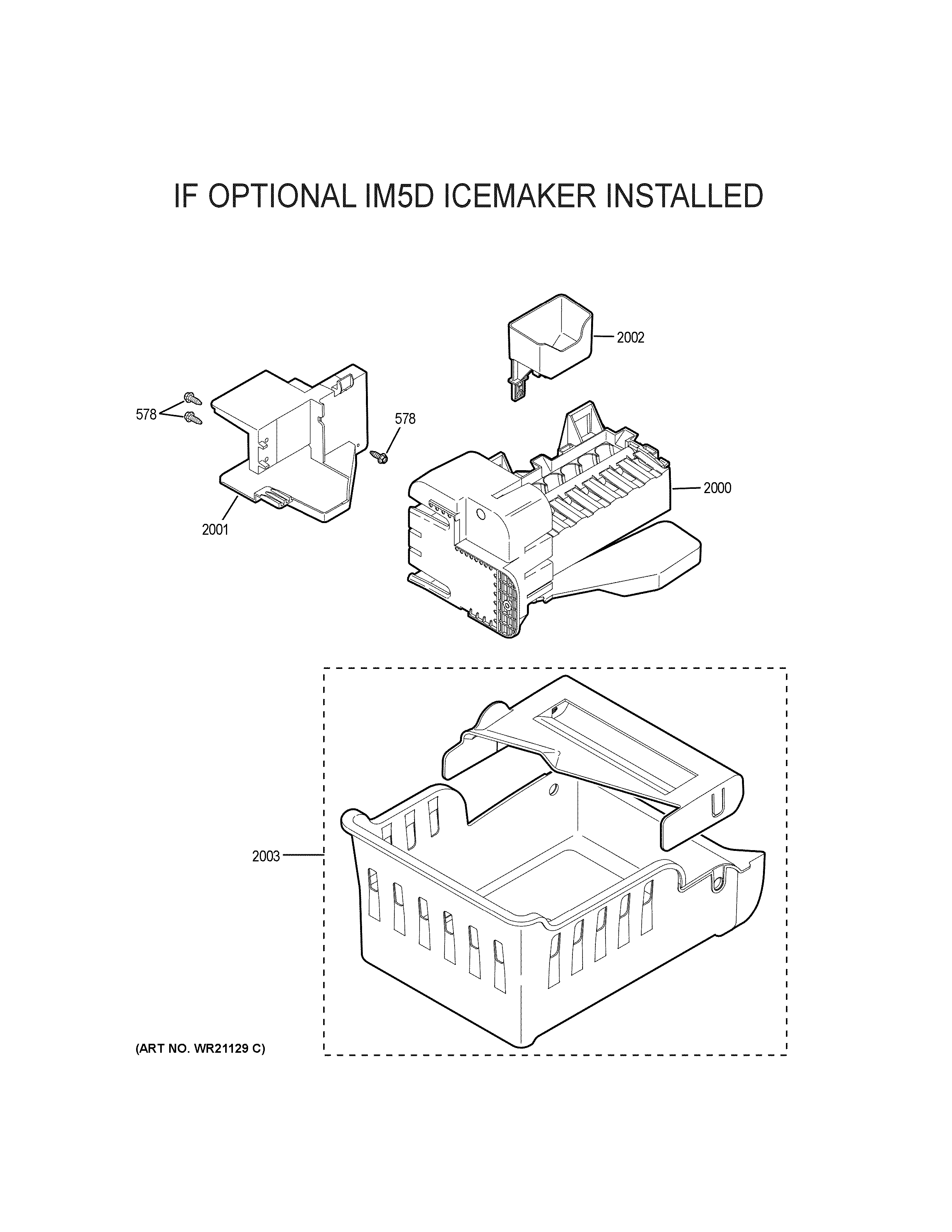

• Ice maker and dispenser components often need attention before the sealed system
• Poor airflow (blocked vents, overpacked shelves) raises temperatures and stress
• Dirty condenser coils increase compressor workload

Maintenance checklist that extends life

Use these habits to reduce breakdowns and keep temperatures stable.

• Keep fresh food near 37°F and freezer near 0°F
• Clean condenser coils regularly (more often with pets)
• Confirm doors close fully; fix gaps and keep gaskets clean
• Replace water filters on schedule to protect the water system
• Leave space around vents; do not pack items tightly against air returns
• Level the refrigerator so doors self-close and seal consistently

Quick “repair vs. replace” guide

This helps decide when a repair makes sense as the refrigerator ages.

Refrigerator age	What we typically see	Usual best move
0 to 5 years	Minor adjustments, occasional parts	Repair/maintain
6 to 10 years	Ice maker, fan, dispenser, gasket issues	Repair if cost is reasonable
11 to 15 years	Multiple issues, higher energy use	Compare repair cost vs. replacement
16+ years	Repeated failures, cooling inconsistency	Replacement is often more practical

Why it matters

A GE Profile refrigerator can cool well for years, but small maintenance items (airflow, coil cleaning, door sealing, filter changes) directly reduce compressor run time. Lower run time means steadier temperatures, fewer ice maker problems, and a longer overall lifespan.

Finding the right parts

When you are ready to repair, we recommend looking up parts by the full model number GYE22HMKBES so you get the correct fit and revision match. Start with the parts list for this model, or search by model on Sears PartsDirect.
