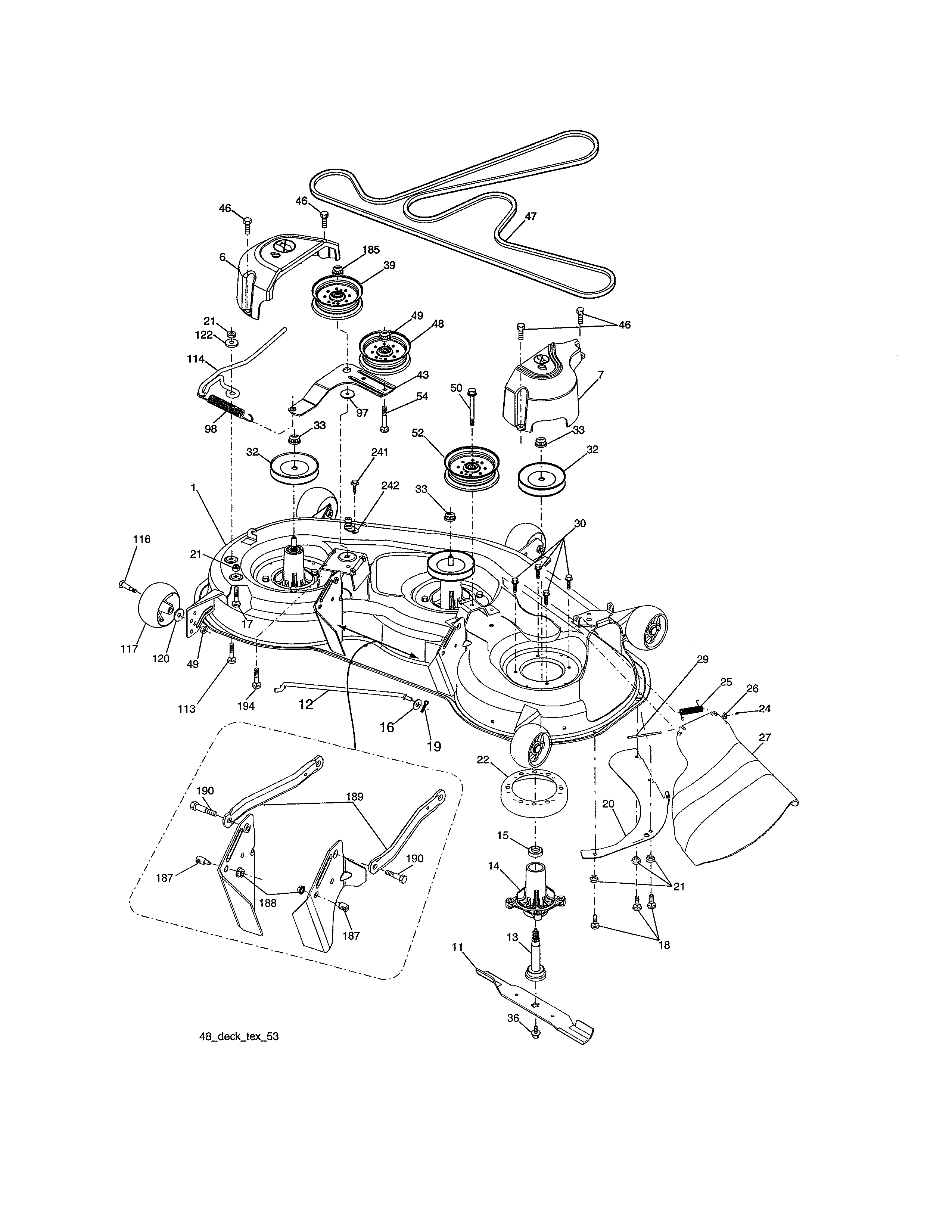

To install a mower deck belt on your Craftsman 917204010 front-engine lawn tractor, we route the belt around the engine pulley and deck pulleys, then reinstall the deck and reattach the engagement hardware so the belt runs inside all belt guides without twisting.

Before you start (safety and setup)

• Park on a flat surface, set the parking brake, and remove the key.
• Disconnect the spark plug wire so the engine cannot start.
• Lower the deck to the lowest cutting height.
• Note the belt routing before removal (a quick photo helps).
• Inspect pulleys and belt keepers for bends or heavy wear.

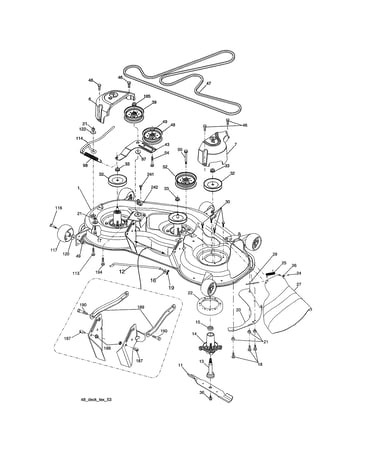

Belt installation steps (typical Craftsman 48-in deck routing)

1. Remove the mower deck (or slide it out far enough to access the belt path).
2. Route the new belt around the deck pulleys, keeping the belt seated fully in each pulley groove.
3. Make sure the belt is positioned inside every belt keeper and guide; the belt should not rub metal.

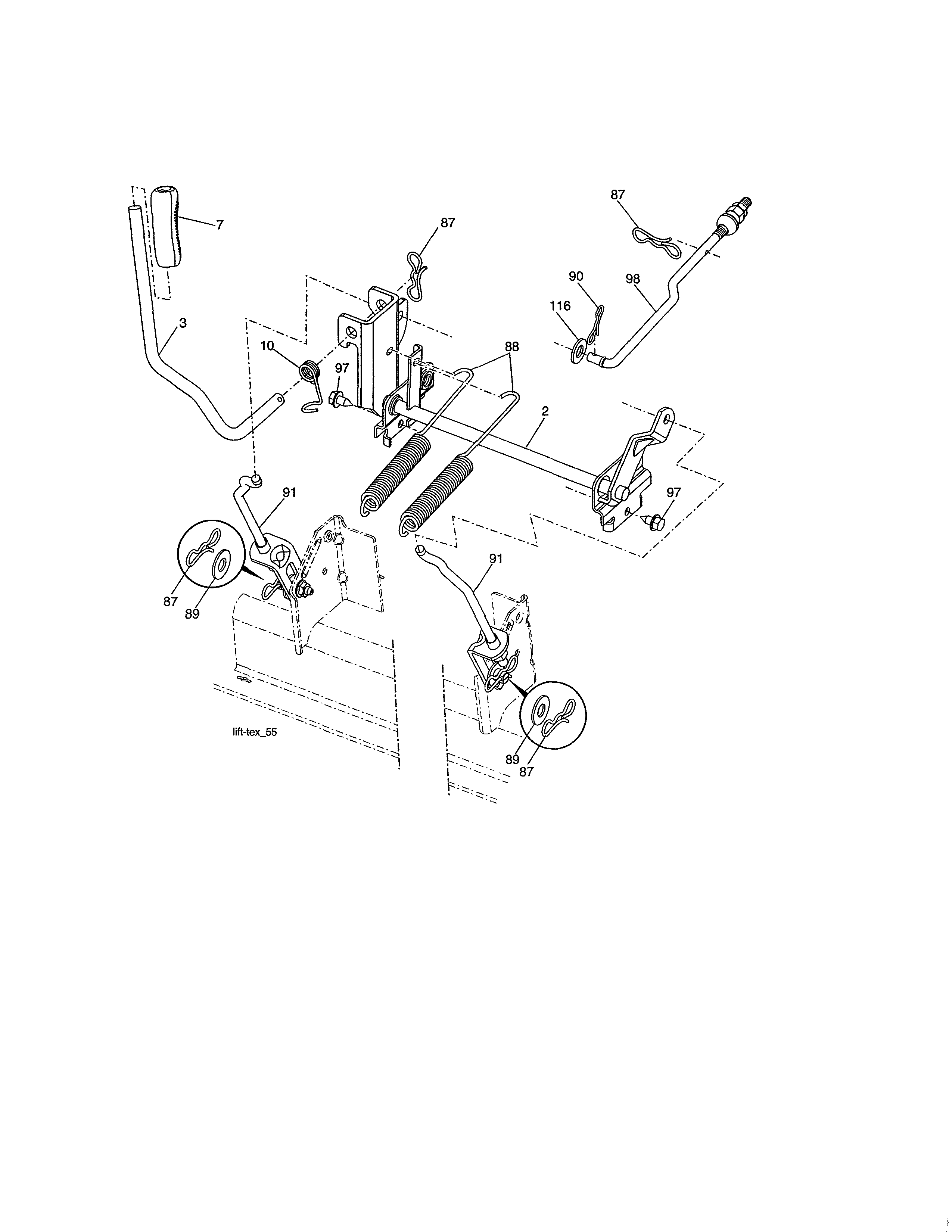

4. Slide the deck back under the tractor and reconnect the deck lift links and front support arms.
5. Reconnect the PTO engagement cable or linkage and confirm it moves freely.
6. Route the belt onto the engine pulley last, then rotate the pulleys by hand to confirm smooth tracking.
7. Reconnect the spark plug wire and test PTO engagement at idle.

Quick checks after installation

• Belt is not twisted (flat side stays flat where required).
• Belt stays centered on idler pulleys when PTO is engaged.
• No squeal, smoke, or burning rubber smell.
• Deck spins up smoothly and cuts evenly.

Common symptoms and what they usually mean

Symptom	Most common cause	What to check
Belt jumps off	Misrouted belt or bent keeper	Belt path and belt guides
Poor blade drive	Worn idler or weak tension	Idler pulleys, spring tension
Squealing	Belt slipping	Oil/grass buildup on pulleys

Why it matters

Correct routing and proper tension prevent premature belt wear, protect spindle bearings, and keep blade speed consistent for a clean cut.

For the exact belt path and deck removal points for model 917204010, use the 917204010 owner’s manual.

Last updated: February 2026

For the Craftsman 917204010 front-engine lawn tractor, we use SAE 5W-30 4-cycle engine oil for most conditions. This viscosity flows well for easier starting and provides reliable lubrication as the engine warms up; confirm the exact oil capacity and service interval in the 917204010 owner's manual.

Recommended oil type and when to use it

• Primary recommendation: SAE 5W-30 4-cycle engine oil
• Use a quality detergent oil rated for small 4-cycle engines
• Change oil on schedule; fresh oil protects the crankshaft, piston, and valve train
• Check level before each mow; low oil can cause hard starting and rapid wear
• Do not overfill; too much oil can cause smoking and poor running

Quick oil selection guide

Situation	What we recommend	Why
Typical spring through fall mowing	SAE 5W-30	Good all-around flow and protection
Cooler weather starts	SAE 5W-30	Easier cranking and faster lubrication
Unsure what is in it now	Drain and refill with SAE 5W-30	Establishes a known baseline

How to check and add oil (safe, basic steps)

1. Park on a level surface, set the parking brake, and let the engine cool.
2. Remove the dipstick, wipe it clean, reinsert, then read the level.
3. Add oil in small amounts, recheck, and stop at the full mark.

Why it matters

Correct oil viscosity helps the engine maintain an oil film under load, reduces heat and friction, and supports consistent starting. Using the right oil and keeping the level correct is one of the simplest ways to extend tractor engine life.

Last updated: February 2026

For the Craftsman front-engine lawn tractor model 917204010, the model number is 917204010. If you are asking about a “42-inch Craftsman riding mower” in general, that 42-inch deck size is used across many Craftsman tractors, so the correct model number is the one printed on your tractor’s model and serial tag (not the deck size).

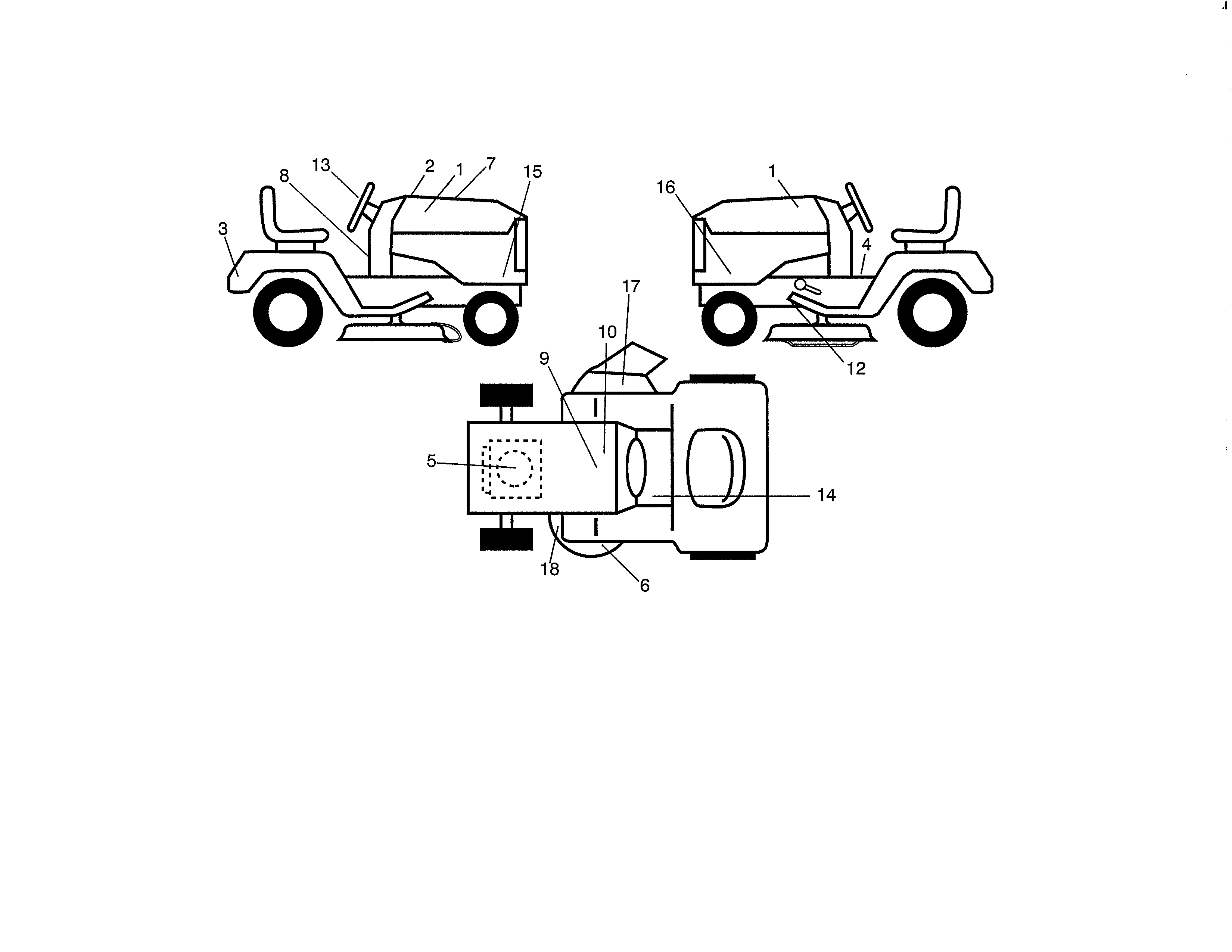

Where to find the model number on your tractor

Check these common locations on Craftsman riding mowers and tractors:

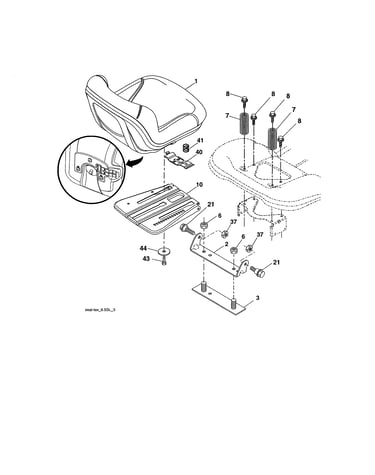

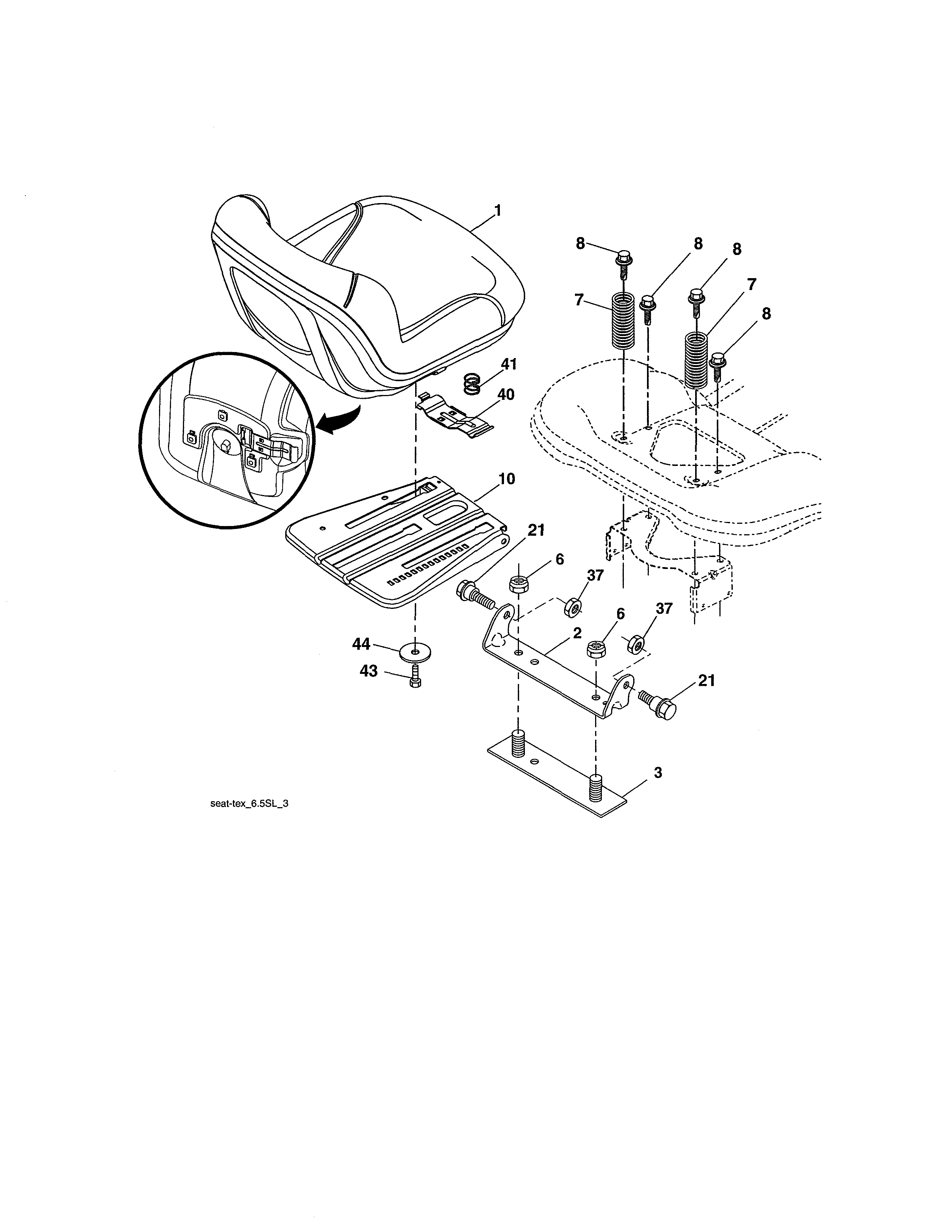

• Under the seat on the frame or seat pan
• On the rear fender area near the seat

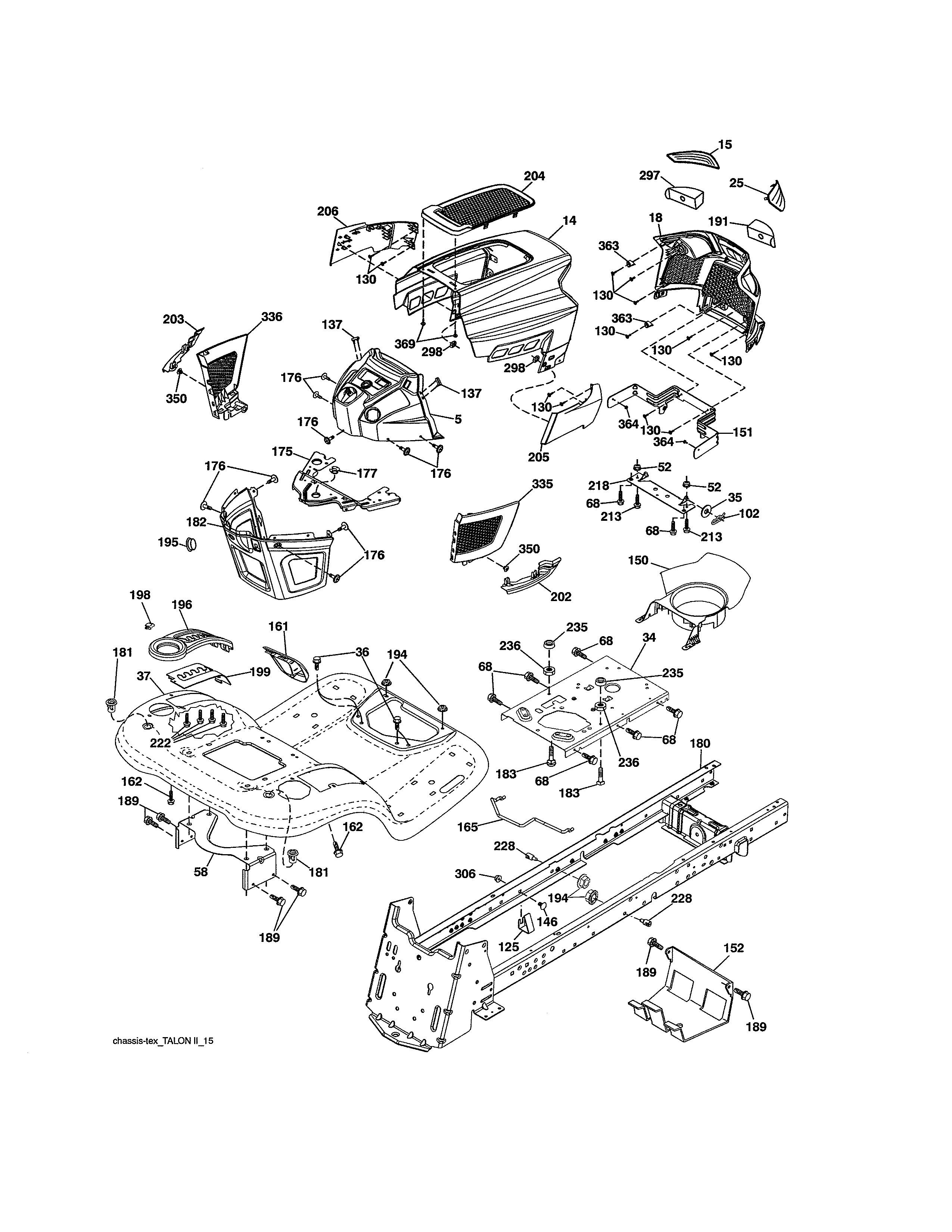

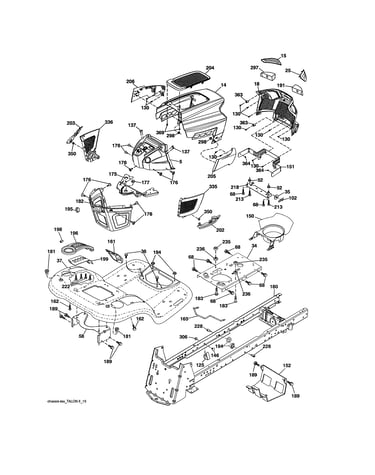

• On the left or right side of the frame near the engine
• Near the footrest area on the frame rail
• In the documentation for your exact tractor

For diagrams and model-specific identification details, use the owner's manual.

Why “42” is not a model number

“42” usually describes the cutting deck width, not the tractor’s model identifier. Two Craftsman tractors can both be 42-inch models but use different engines, belts, spindles (mandrels), wiring, and PTO systems.

Quick ID guide

What you see	What it means	What to use for parts
42"	Deck size	Model number from the ID tag
917.XXXXXX	Craftsman model format	Use the full number (example: 917204010)
Serial number	Production identifier	Helpful for verification, not the model

Why it matters (parts fit and repairs)

Using the exact model number helps us match the right Craftsman parts and specs, especially for:

• Ground drive belt routing and length

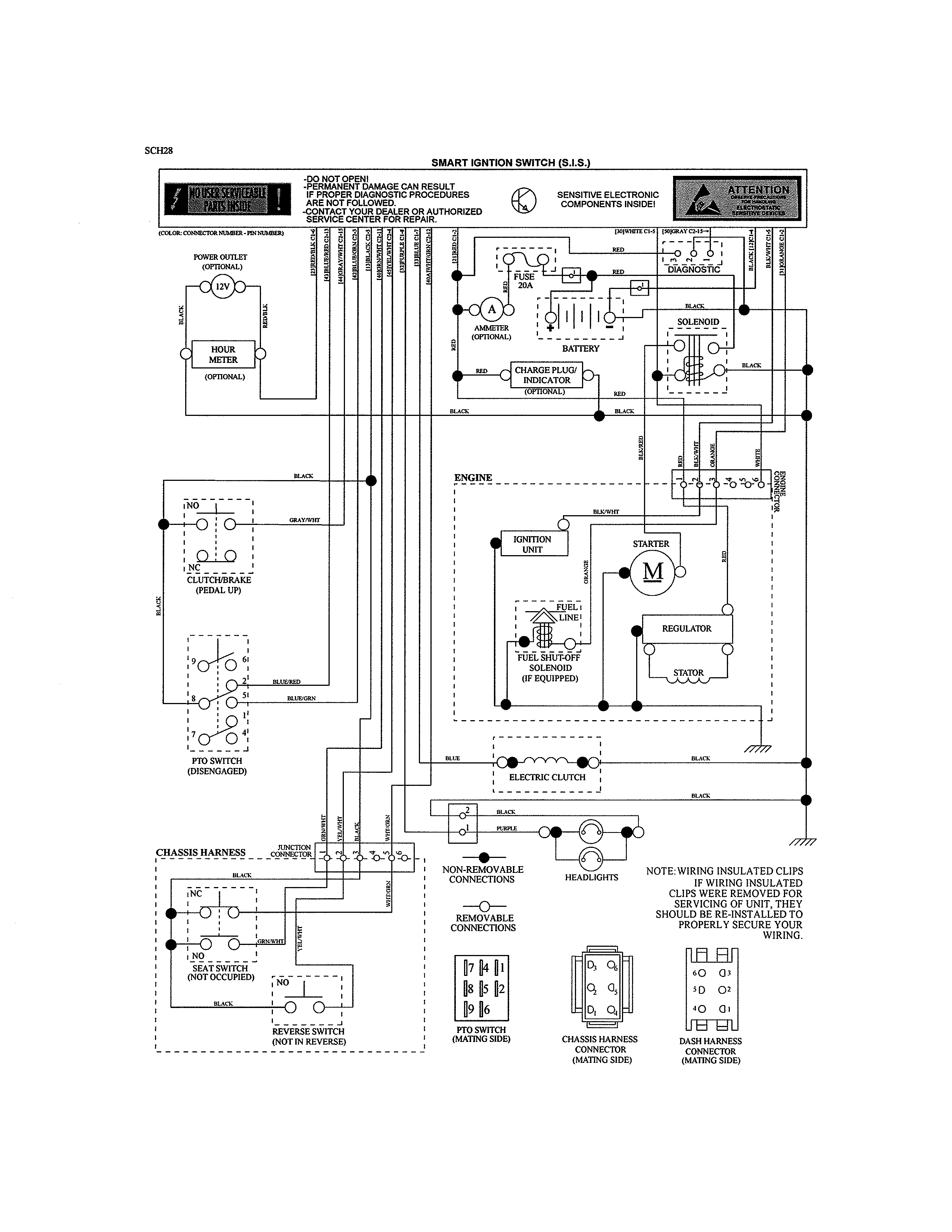

• PTO switch and electric clutch compatibility
• Deck components such as mandrel housings and idler pulleys
• Steering links, axle parts, and bearings

If you are servicing the mower deck on model 917204010, a common deck component is the lawn tractor mandrel housing 587819701.

Last updated: February 2026

For the Craftsman 917204010 lawn tractor, the belt size depends on which belt you’re replacing (ground drive vs. blade/deck drive). A common belt listed for this model’s ground drive or blade drive application is 1/2-inch wide x 92-2/5 inches long; confirm the routing and belt type in the 917204010 owner’s manual before ordering.

Identify which belt you need

This tractor typically uses more than one belt, and the correct length changes by application.

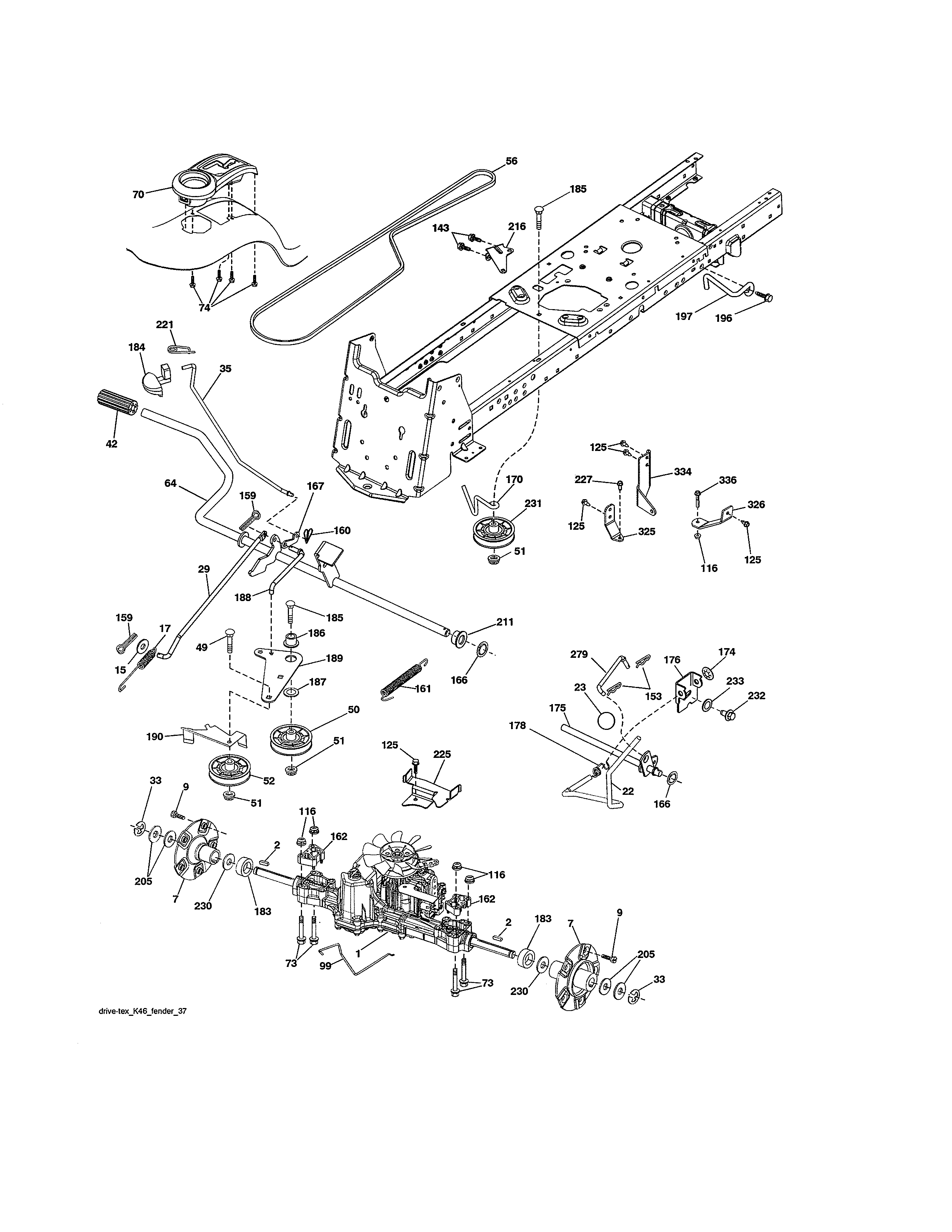

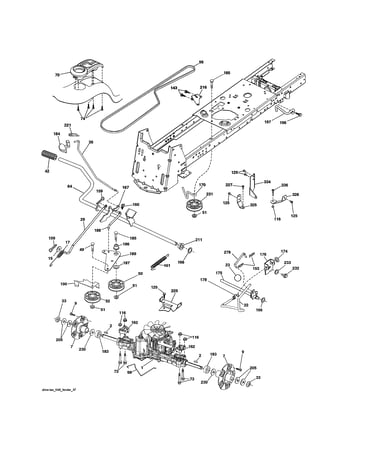

• Ground drive belt: transfers power to the transmission so the tractor moves
• Blade/deck drive belt: spins the mower blades through the deck pulleys
• Deck belt routing matters: the same width belt can be wrong if the path differs

A model-matched option we list is the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201.

Quick check before you buy

Use these checks to avoid ordering the wrong belt length.

• Match the belt’s job (drive vs. deck) to the symptom (won’t move vs. blades won’t spin)
• Compare the old belt’s width (most are 1/2-inch on tractors like this)
• Inspect pulleys and idlers for wobble or binding
• Verify belt routing diagram and tensioner position in the manual
• Replace damaged idlers if they’re noisy or seized

Common related parts to inspect

What you notice	Likely area to inspect	Example part on this model
Belt slips, squeals, or jumps	Idler pulley, belt guides	Ground drive idler pulley (if equipped)
Uneven cut or vibration	Deck spindle/mandrel	Mandrel housing
Belt keeps coming off	Bent brackets, misrouted belt	Deck lift and guide hardware

Why it matters

Using the correct belt length and routing on the Craftsman 917204010 keeps proper tension on the pulleys, prevents premature belt wear, and helps protect the electric clutch and mandrel bearings from overload.

Last updated: February 2026

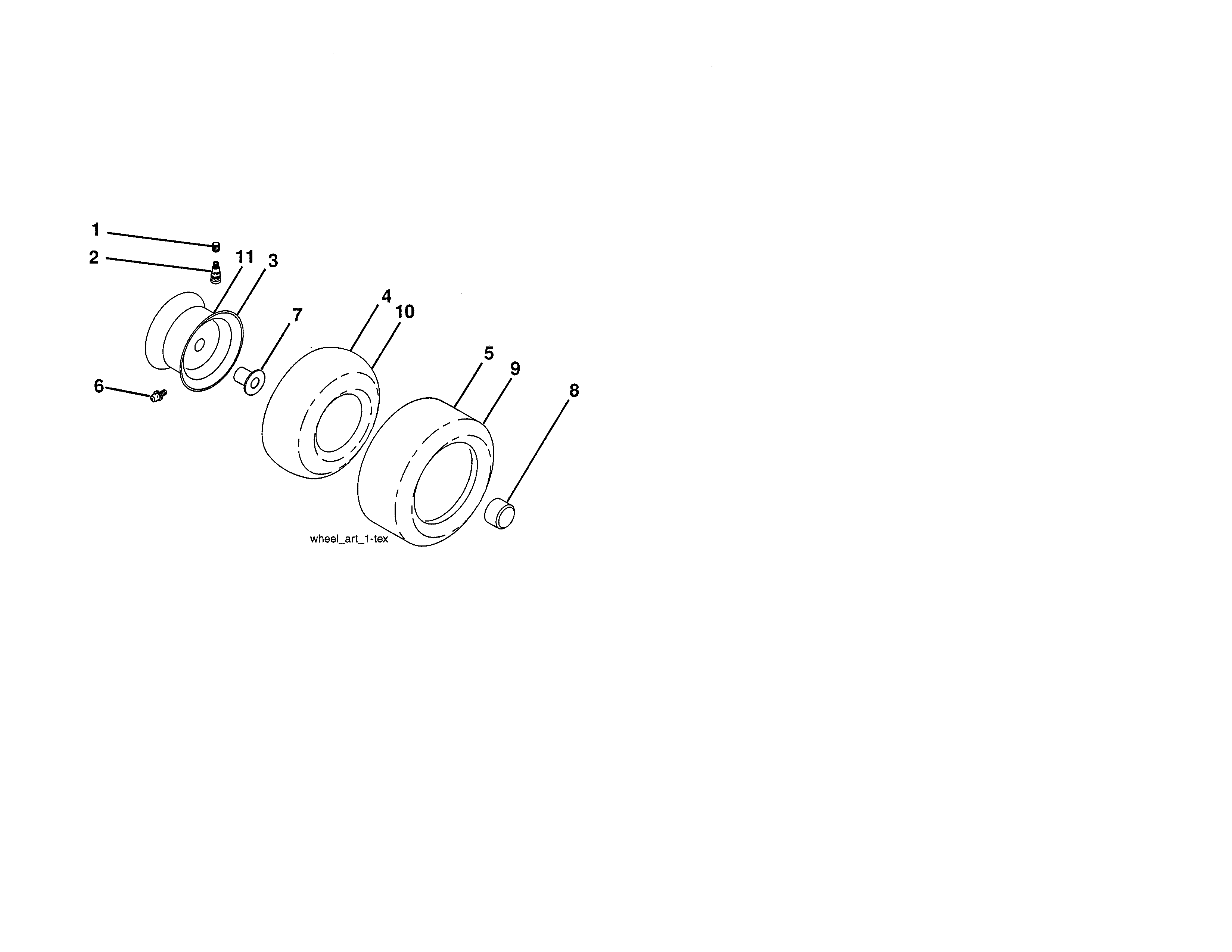

The Craftsman 917204010 front-engine lawn tractor uses 16 x 6.5-8 front tires. Rear tire size varies by configuration, so we recommend matching the size printed on your existing rear tire sidewall and confirming the approved sizes in the 917204010 owner's manual.

Tire sizes to look for

Check the tire sidewall first; it is the fastest way to match what is on your tractor now.

• Front tire size: 16 x 6.5-8
• Rear tire size: read the sidewall on your rear tires (example formats include 20 x 10-8 or similar)
• Match the rim diameter exactly (the last number, such as 8)
• Keep the tire width close to original to prevent rubbing on steering and frame parts
• Replace tires in pairs when tread wear is uneven

What the numbers mean

Most lawn tractor tire sizes are shown as overall diameter x width - rim diameter (in inches).

Marking	Meaning	Example
First number	Tire diameter	16
Middle number	Tire width	6.5
Last number	Rim diameter	8

Quick fit and safety checks

Before ordering replacement tires or wheels, we use these checks to avoid steering issues and deck interference:

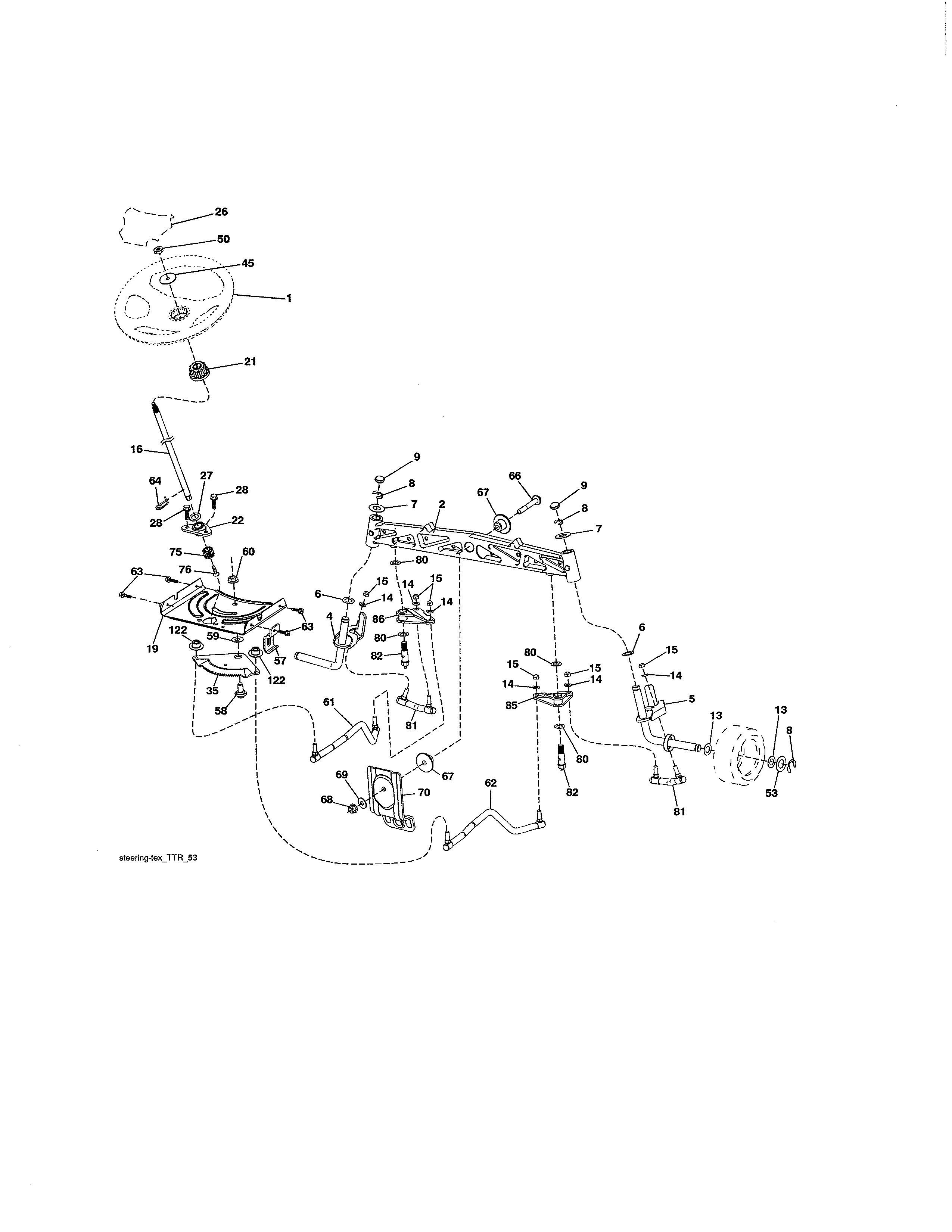

• Turn the steering fully left and right; confirm the tire does not rub the axle, drag link, or frame
• Verify the valve stem clears the wheel and is accessible for inflation
• Set both front tires to the same PSI to reduce “wandering” steering
• Inspect front-end hardware while you are there; replace missing caps such as the lawn tractor axle cap 532104757 if needed

Why it matters

Correct tire sizing keeps the tractor level for an even cut, protects steering components, and prevents rubbing that can damage the tire sidewall.

Last updated: February 2026

Craftsman model 917204010 was made during the LT1000-era production run, which commonly falls in the late 1990s through the mid-2000s. The exact build year is identified from the tractor’s product identification label (typically under the seat or on the frame) and confirmed in the 917204010 owner's manual.

How to find the exact year on your tractor

Use the model and serial information from the ID label; that serial is what ties your unit to a specific manufacturing date.

• Park on a level surface, set the parking brake, and remove the key
• Lift the seat and look for a model/serial label on the seat pan or frame rail
• Write down the model number (917204010) and the serial number exactly as shown
• Check the manual’s identification section for where the label is located and how to record it
• If the label is missing or unreadable, check for a secondary label on the frame near the rear wheels

What “917” means (and what it does not)

Many Craftsman riding mowers with model numbers starting with 917 were sold through Sears and share platforms across multiple years. The prefix helps identify the product family, but it does not give a single, guaranteed model year by itself.

What you have	What it tells you	What you still need
Model number: 917204010	The exact model family and configuration	The serial number to pinpoint year
Serial number	The manufacturing date code	Nothing else; this is the key
Owner’s manual	Where to find ID info and specs	Serial number from your tractor

Why it matters

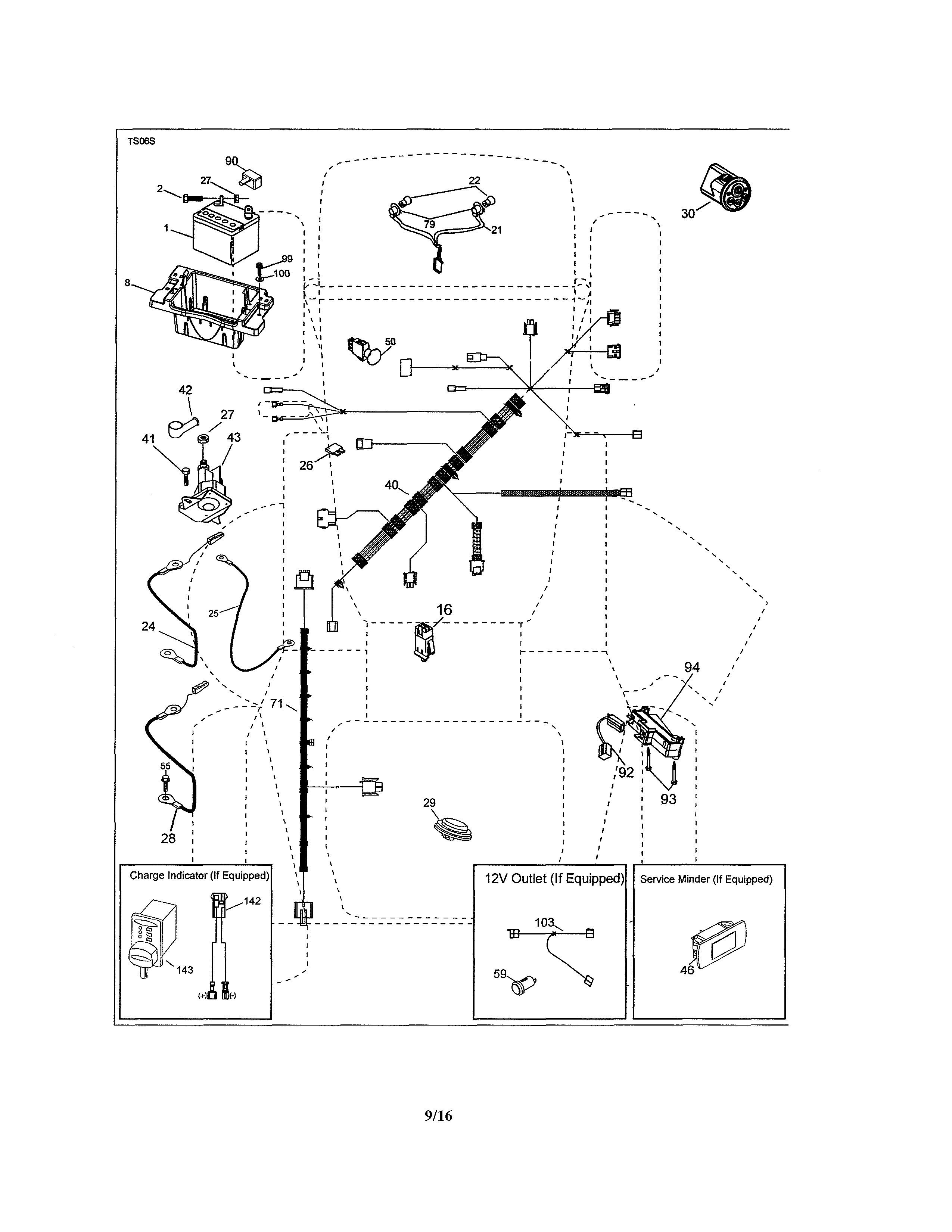

Knowing the exact year helps us match the right Craftsman parts and specs for your tractor’s deck, drive system, and electrical components. It also prevents ordering the wrong belt length or ignition parts when there were mid-run design changes.

Last updated: February 2026

On the Craftsman 917204010 mower deck, the V-shaped (grooved) side of the belt rides in V-groove pulleys, and the flat/back side of the belt rides against flat idler pulleys. This keeps the belt tracking correctly and prevents slipping or premature wear.

Quick rule to follow

• Grooved pulley (looks like a V): belt grooved side goes against it
• Flat pulley (smooth face, often an idler): belt flat/back side goes against it
• If the belt is twisted or riding on an edge, the routing is wrong

How to confirm the correct belt routing on your deck

Use the belt routing diagram in the 917204010 owner's manual. Then verify these basics:

• The belt sits fully down in every V-groove pulley (not riding high).
• The belt runs straight between pulleys (no sideways pull).
• The idler pulley arm moves freely and applies tension.
• The belt is not pinched under belt keepers or guards.
• The PTO is disengaged before you roll the belt on by hand.

Common symptoms when the belt is flipped or misrouted

What you notice	What it usually means
Belt squeals when blades engage	Belt on wrong pulley face or low tension
Blades stop in heavy grass	Belt slipping or routed wrong
Belt jumps off	Twisted belt, missing keeper clearance, or worn idler
Belt edges fray quickly	Belt riding on pulley edge or misalignment

Why it matters

Correct belt orientation keeps the mower deck spinning at the right speed, reduces heat and glazing, and protects pulleys, idlers, and spindle bearings from extra load.

Last updated: February 2026

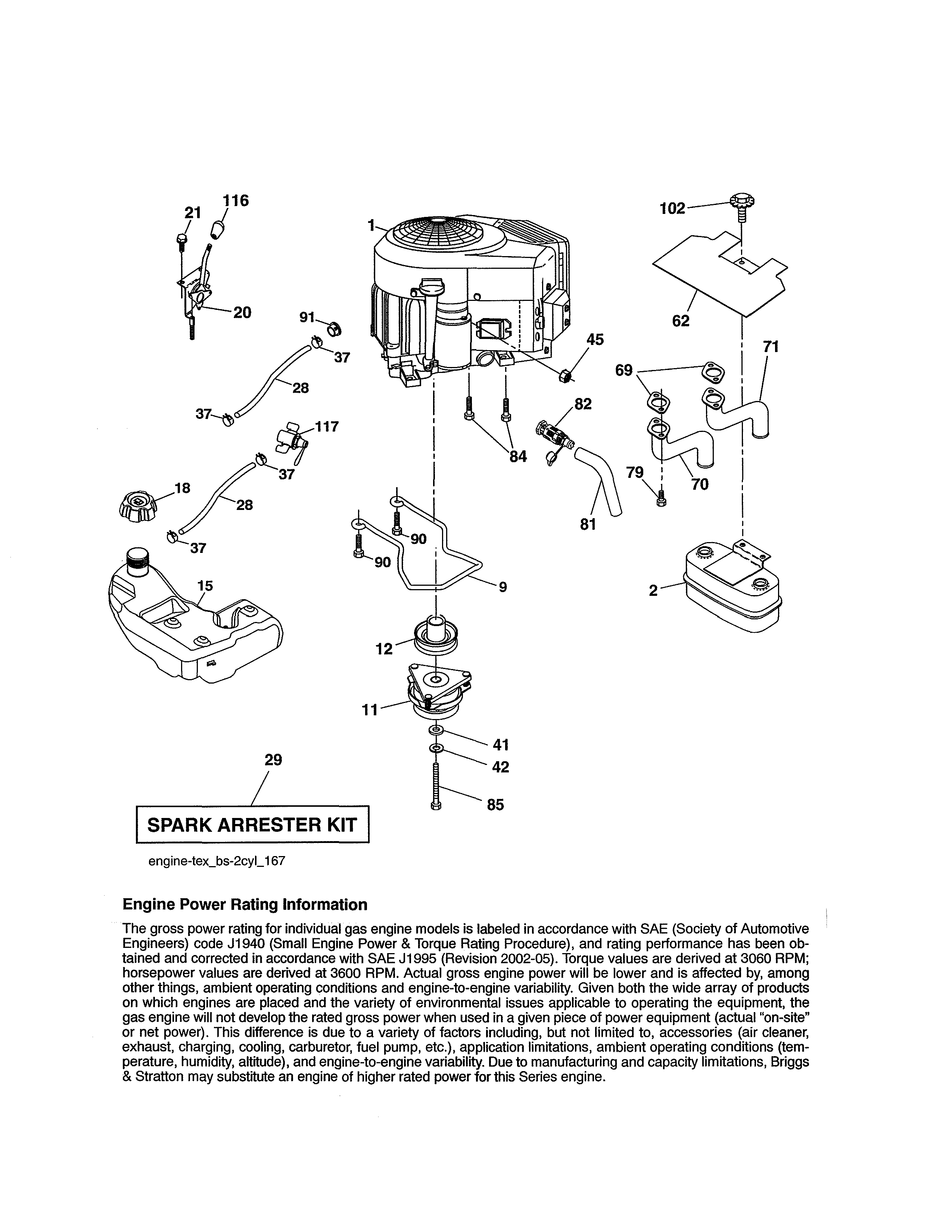

Craftsman 420cc engines are supplied by the engine manufacturer used on a specific mower or tractor model and production run; “420cc” is only the displacement size. On Craftsman model 917204010, verify the actual engine brand and displacement by reading the engine ID label and cross-checking the specifications in the 917204010 owner's manual.

How to identify who made your engine

Use the engine’s identification label, not the hood decal or advertised horsepower.

• Locate the engine ID label or metal tag (often on the blower housing, valve cover area, or near the starter)
• Write down the engine brand, model number, and serial number exactly as shown
• Use the engine model number to match the correct parts list for tune-up and repairs
• Compare the engine information to the engine/specifications section in the 917204010 owner's manual
• Order maintenance parts by engine model (air filter, spark plug, fuel filter, oil filter)

What “420cc” tells you (and what it does not)

Label item	What it tells you	What it does not tell you
420cc	Engine displacement	The engine manufacturer
Brand name	Who built the engine	The exact build configuration
Model and serial	Exact engine version	The tractor model number

Why it matters

The engine maker and engine model determine the correct service procedures and parts. This prevents wrong-fit items during common repairs like starting issues, charging problems, or fuel system service.

Last updated: February 2026
