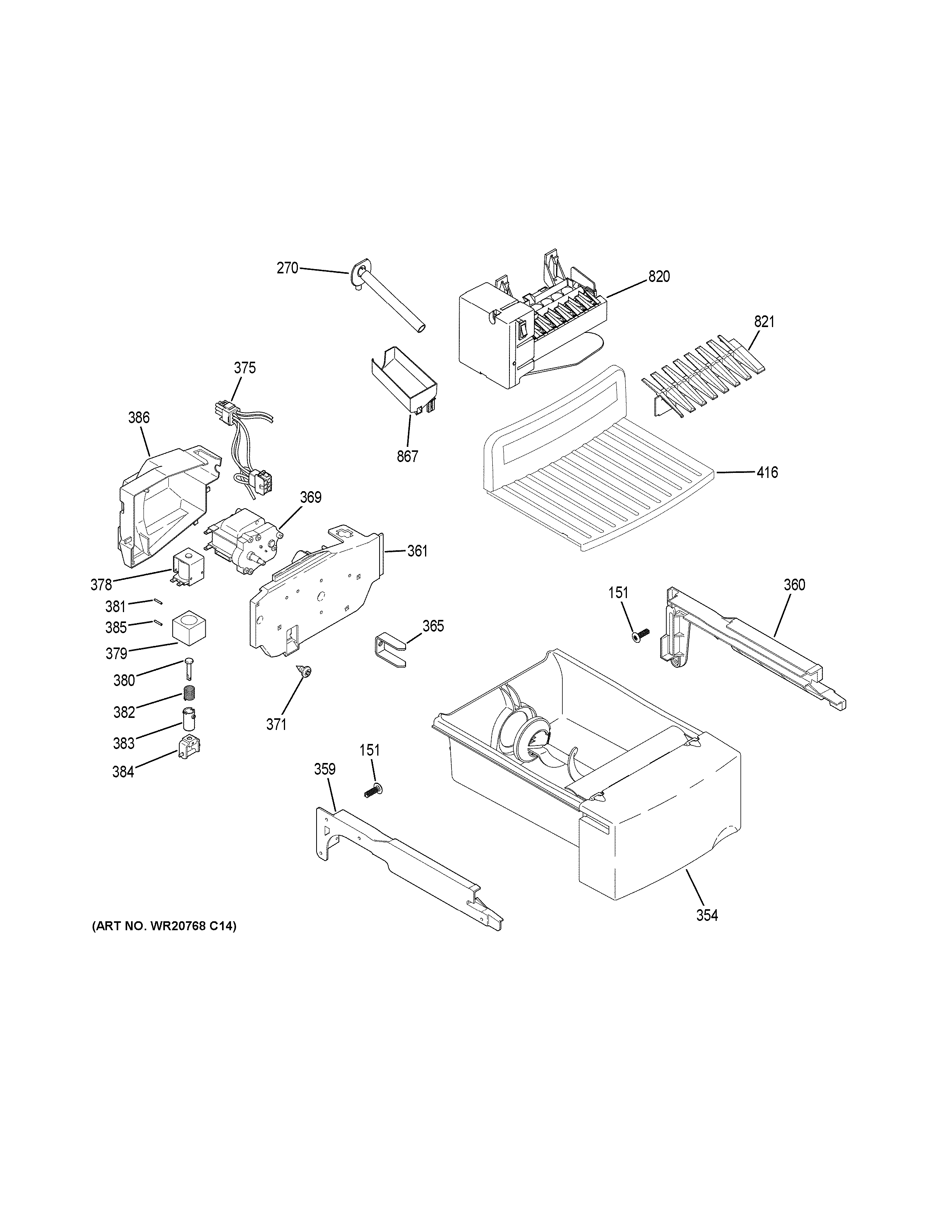

On the GE PZS22MSKKHSS, the practical “reset” for the ice maker is turning the ice maker power switch OFF, then back ON. After restoring power, allow time for the freezer to cool; the ice maker fills when it reaches about 15°F and a new install can take 12 to 24 hours to start making ice.

Reset steps (power switch method)

• Open the freezer and access the ice bin area.
• Set the ice maker power switch to OFF.
• Wait about 60 seconds.
• Set the power switch back to ON.
• Reinstall the bin and close the door fully.
• Discard the first few batches of ice to clear the water line.

If your model has a tilt-out ice bin, tilt the bin out to reach the switch, then return the bin fully before closing the door (details are shown in the PZS22MSKKHSS owner's manual).

What to check if it still will not make ice

Quick checks

• Feeler arm movement: Make sure nothing blocks the feeler arm sweep; a blocked arm stops ice production.
• Bin seating: Push the ice bin firmly into place; if it will not go all the way back, remove it and rotate the drive mechanism 1/4 turn, then reinstall.
• Time and temperature: After a reset, give it time; ice production starts after the freezer is cold enough.
• Water supply: Confirm the household water supply valve is open and the line is not kinked.
• Filter restriction: A clogged filter can reduce flow; replace the GE refrigerator water filter XWFE if it is overdue.

Common symptoms and likely causes

Symptom	Most likely cause	What we do next
No ice at all	Ice maker switched OFF, bin not seated, no water supply	Reset switch, reseat bin, verify water
Small or hollow cubes	Low water flow (filter or valve)	Replace filter, check inlet valve
Ice clumps in bin	Normal partial melting and refreezing	Break up clumps, keep bin seated

Why it matters

Resetting the power switch clears many “no ice” situations caused by an accidental OFF setting or a stalled cycle; checking bin seating, feeler arm movement, and water flow prevents repeat failures and protects dispenser parts.

Last updated: February 2026

The most common issue we see with GE refrigerators like model PZS22MSKKHSS is poor cooling (food not staying cold enough). It is usually caused by restricted airflow, dirty condenser coils, or a failed cooling-air component such as the evaporator fan motor.

Quick checks that fix many cooling complaints

• Confirm the temperature settings are at the normal presets (freezer 0°F and refrigerator 37°F) as shown in the PZS22MSKKHSS owner's manual.
• Give the refrigerator up to 24 hours to stabilize after changing settings or restoring power.
• Make sure air vents and louvers are not blocked; avoid packing items tightly against the air tower or air tunnel.

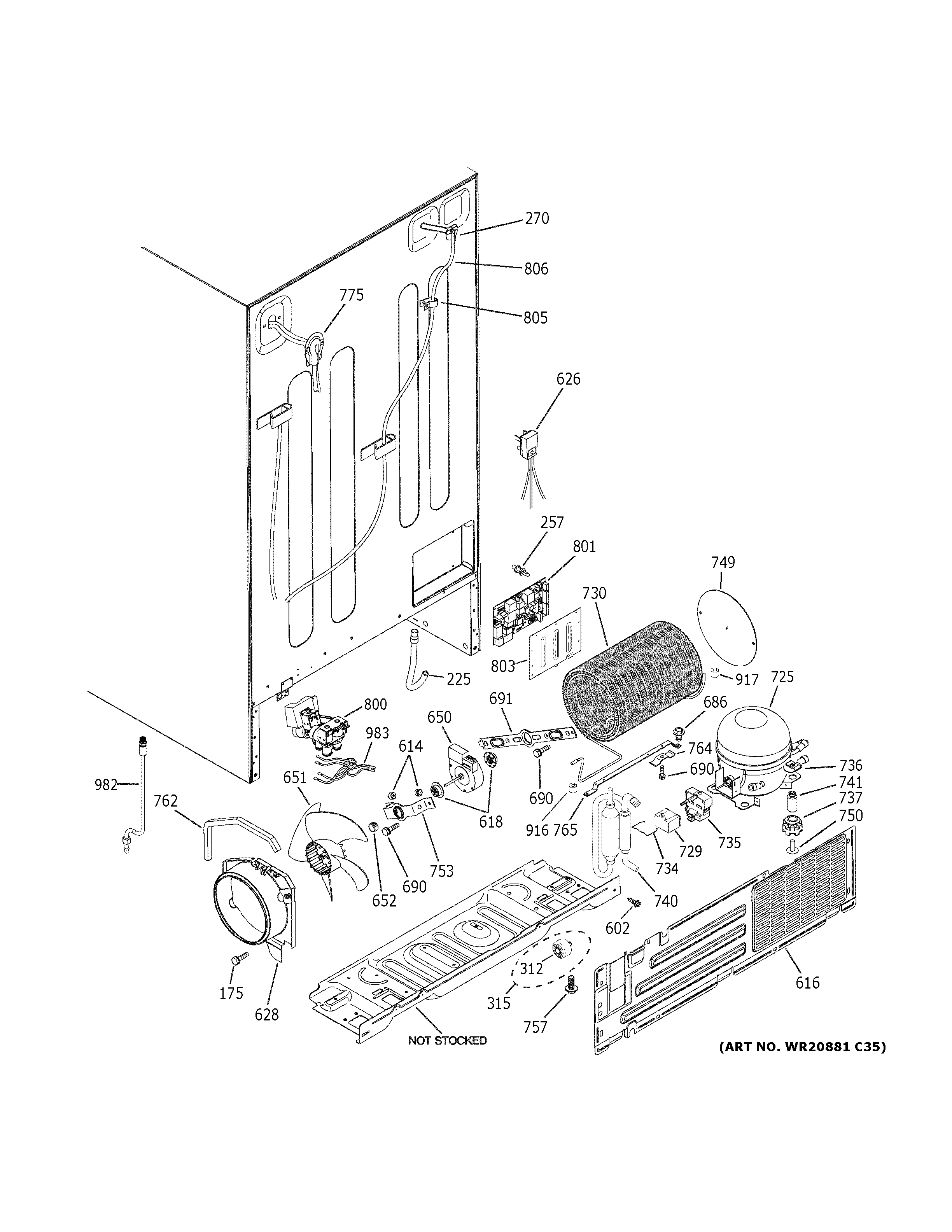

• Clean dust from the condenser area (unplug first) and verify the condenser fan area is clear.

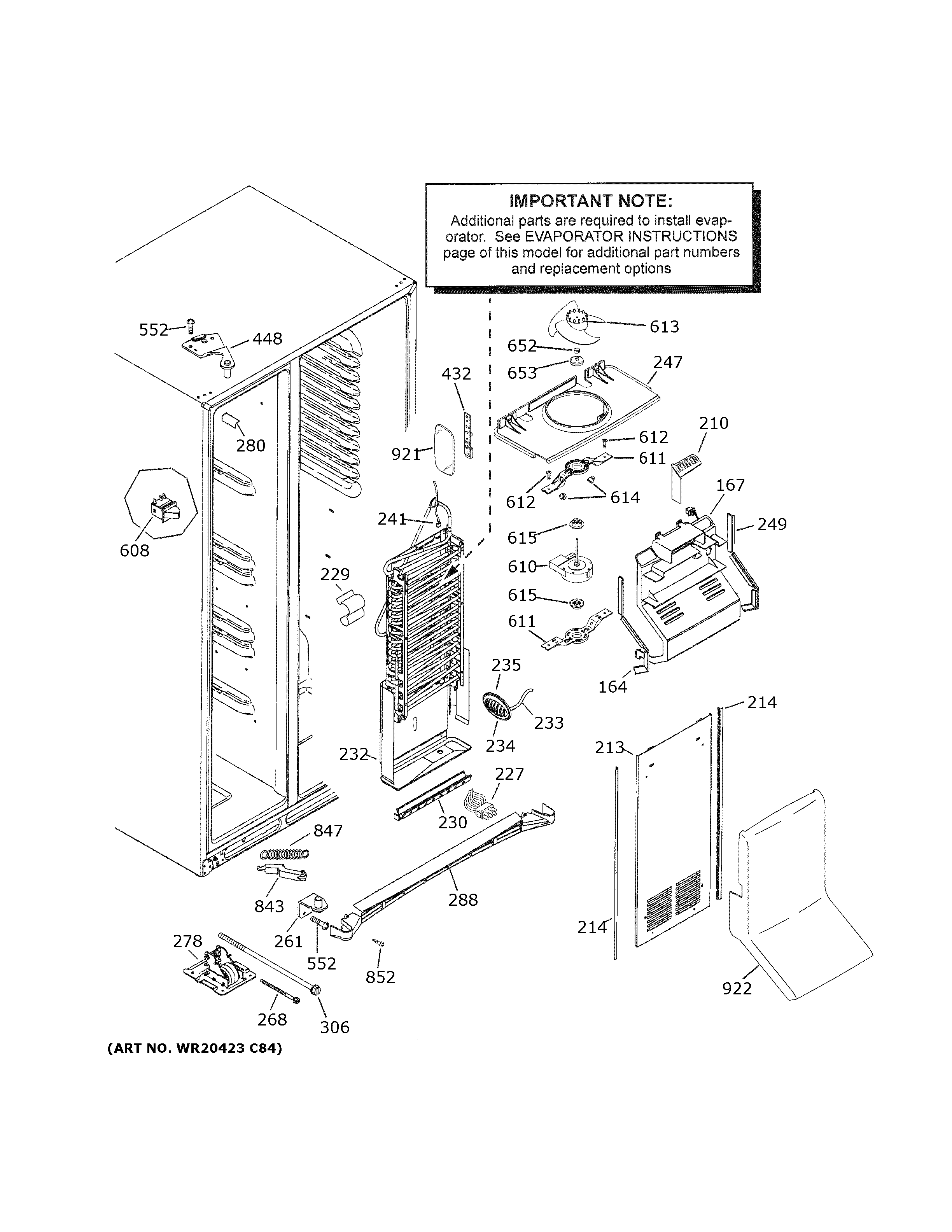

• Listen for the evaporator fan; if the freezer is cold but the fresh food section is warm, airflow is often the problem.

Common causes and what you typically notice

Symptom	Most likely cause	What to do first
Fresh food warm, freezer cold	Weak/no airflow from evaporator fan	Check for fan noise; inspect for ice buildup; consider refrigerator evaporator fan motor WR60X10307 if the fan is not running
Both sections warm	Dirty condenser coils, sealed system issue, control issue	Clean coils; verify fans run; check for error indications
Temps swing, food freezes then warms	Sensor or control reacting incorrectly	Check settings; inspect sensor wiring; consider GE profile refrigerator temperature sensor WR55X10025 if temps are erratic
Frost buildup, reduced cooling over time	Defrost system problem	Look for heavy frost on freezer back panel; defrost components may be involved

Why it matters

Cooling problems can spoil food quickly and force the compressor to run longer than normal. Keeping airflow paths clear and maintaining the condenser area helps the PZS22MSKKHSS hold steady temperatures and reduces wear on key parts.

Last updated: February 2026

GE side-by-side refrigerators, including model PZS22MSKKHSS, are a solid choice for everyday reliability and convenience: they typically offer strong temperature control, easy access to both fresh food and freezer sections, and popular features like an ice maker and water dispenser. Use the PZS22MSKKHSS owner's manual to match features and care steps to your exact unit.

What “good” usually means for a side-by-side

Most owners judge a refrigerator on consistent cooling, usable storage, and low-hassle maintenance. For GE side-by-side models, these are common strengths:

• Spacious, easy-to-organize layout with adjustable shelving
• Convenient in-door ice and water access
• Bright interior lighting that makes items easier to find
• Widely available replacement parts for common wear items
• Straightforward care routines (cleaning, filter changes, vacation prep)

Tradeoffs to expect

Side-by-side designs also come with a few typical compromises. These are normal and not model-specific defects:

• Narrower shelf width than many French door refrigerators (pizza boxes and wide platters can be tricky)
• Ice makers can sound loud during harvest cycles
• Ice production can feel slow if the freezer is warm, the filter is restricted, or water pressure is low

Quick feature and fit comparison

Category	Side-by-side (like PZS22MSKKHSS)	French door (typical)
Freezer access	Eye-level shelves	Pull-out drawer
Wide-item storage	More limited	Usually better
Ice and water	Often through the door	Often through the door
Organization style	Tall, narrow zones	Wider shelves

Why it matters

If you use the freezer daily and want quick access to frozen foods, a GE side-by-side is often a better fit than a bottom-freezer style. If you regularly store wide trays, large platters, or pizza boxes, the side-by-side layout can feel restrictive.

Tips to keep performance “good” over time

• Replace the water filter on schedule; a restricted filter can reduce water flow and ice production
• If you are out of filters, use a bypass so the dispenser and ice maker can still operate (see refrigerator water filter bypass WR17X33825)
• Keep door seals clean and closing tightly
• Avoid overpacking vents so air can circulate
• Follow the vacation steps in the manual (unplug, doors open, ice maker off, water supply off)

Last updated: February 2026

GE side-by-side refrigerator model PZS22MSKKHSS does not use a “Dual-Dispense AutoFill pitcher” accessory; it dispenses water through the door and stores chilled water in an internal reservoir. For the correct water-storage and dispenser details for your exact configuration, use the PZS22MSKKHSS owner's manual.

What you can measure on your refrigerator

If you are trying to confirm “how big” the water container is on this model, you are typically looking at the internal reservoir, not a removable pitcher.

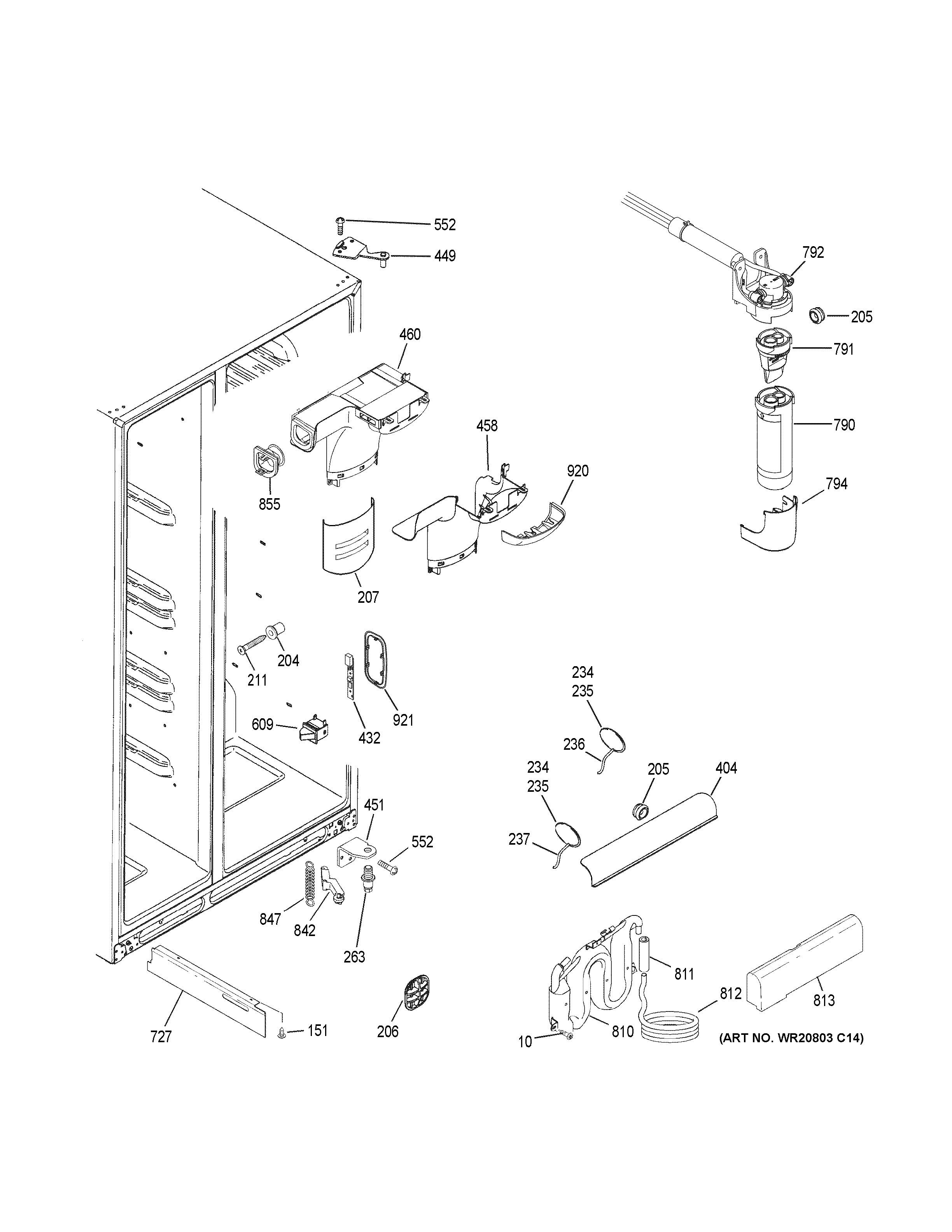

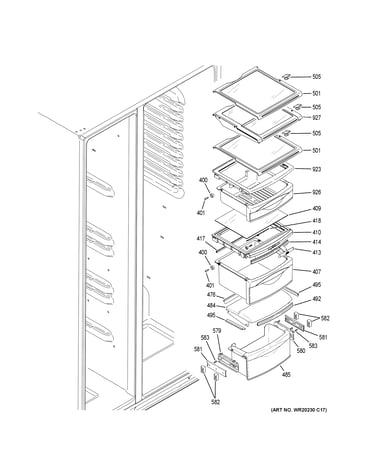

• Remove the fresh food shelves as needed and locate the reservoir (usually behind a cover or along the back wall)
• Measure length, width, and depth with a tape measure
• Note how it mounts (screws, clips, or tubing connections)
• Compare your measurements before ordering any replacement part
• If water is warm or slow, address flow and cooling issues first

Item people mean by “pitcher”	Where it is	Removable	What it affects
Door dispenser cup area	Freezer door	No	Dispensing only
Water reservoir (tank)	Fresh food section	No	Chilled water supply
AutoFill pitcher	Some GE models	Yes	Auto-fill convenience

If you are having dispenser or fill problems

These checks apply directly to PZS22MSKKHSS water dispensing performance.

• Replace a clogged filter; use the correct refrigerator water filter XWFE
• Purge air after a filter change by dispensing several minutes of water
• Confirm household water pressure is in the normal range for refrigerators (commonly 20 to 120 psi)
• If water will not dispense or only trickles, test the refrigerator water inlet valve WR57X30890
• If the dispenser area is icing up, inspect the chute door and seals

Why it matters

AutoFill pitcher capacity only matters on models that include that feature. On PZS22MSKKHSS, water taste, flow rate, and temperature depend on the filter, inlet valve, and reservoir, not a removable pitcher size.

Last updated: February 2026
