Model #LGBD2435NB0A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Frigidaire LGBD2435NB0A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

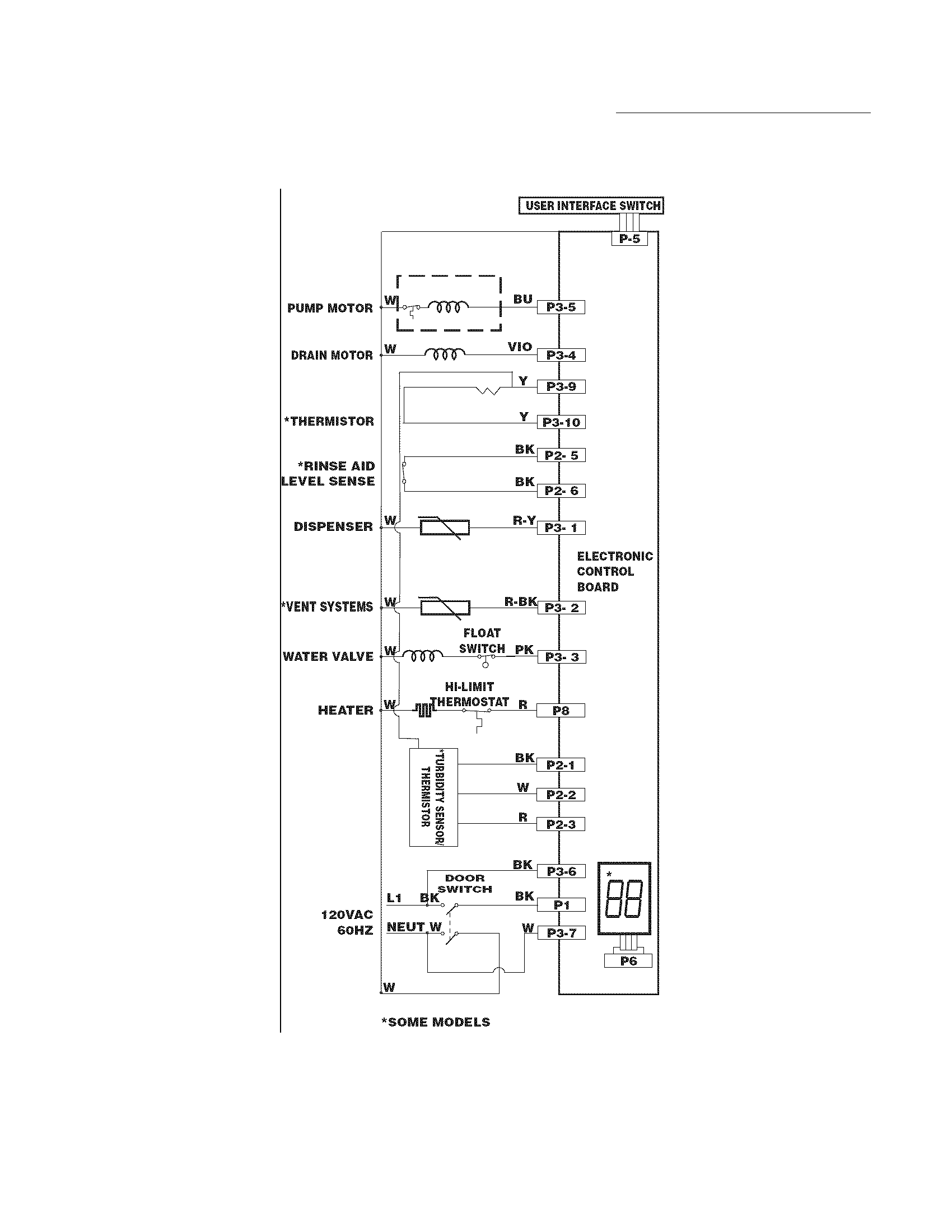

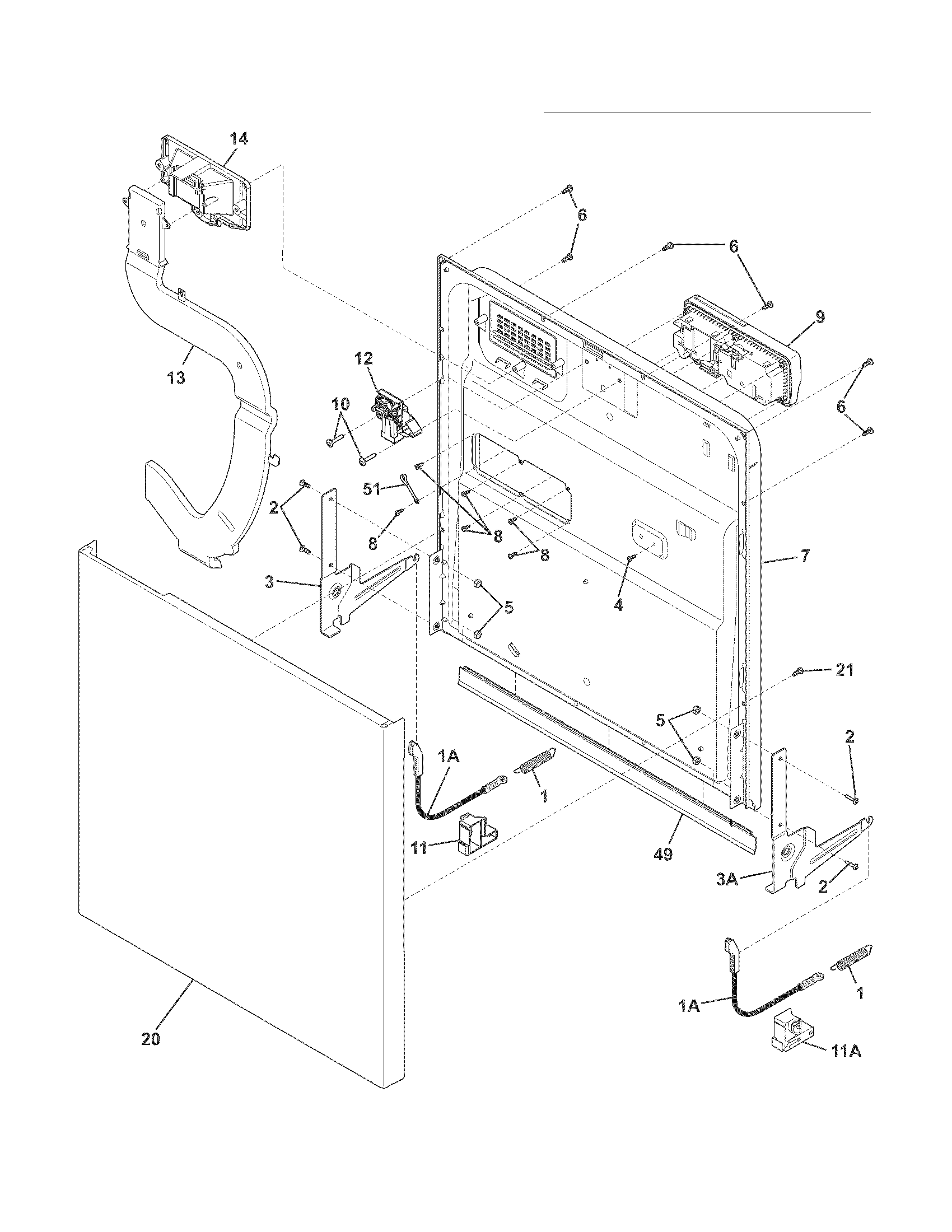

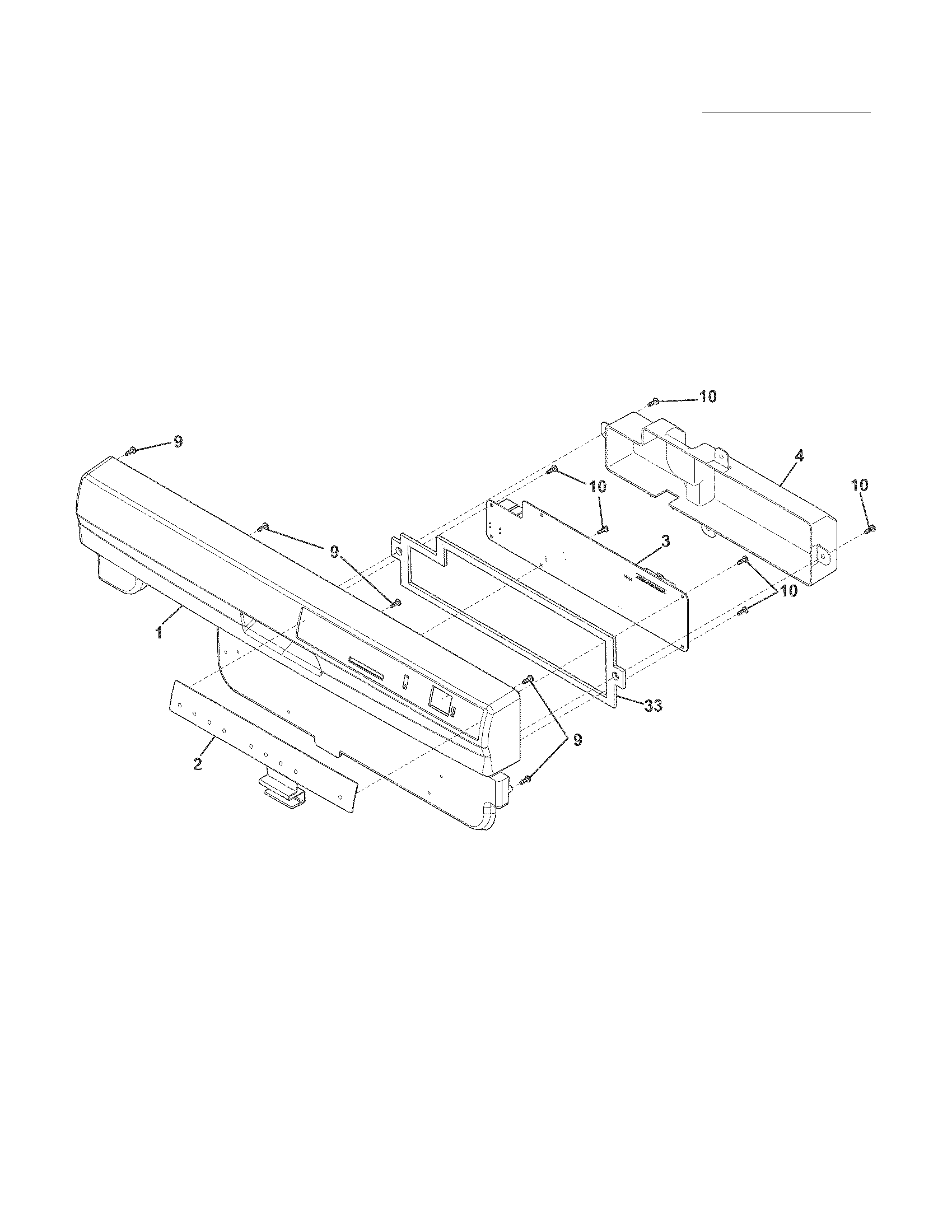

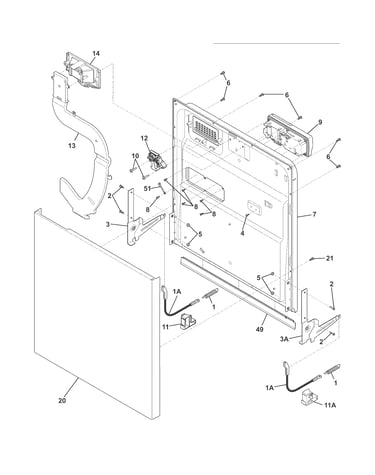

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual
?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 118 parts

Dishwasher Spray Arm, Lower (replaces 154568001, 154568002, 5304506526)#24

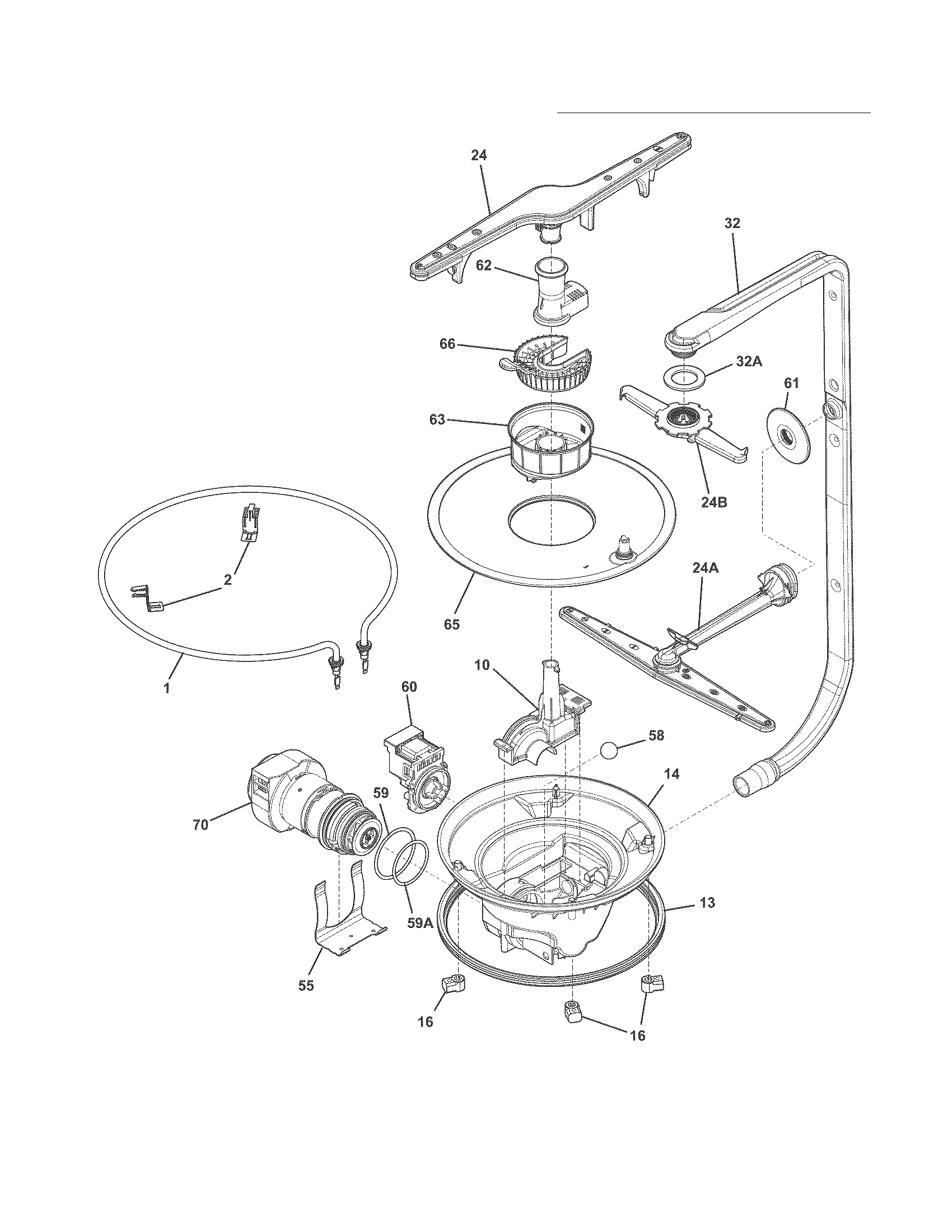

Motor & pump Diagram

Dishwasher spray arm

Part #154568002
Replaced by #5304517203
?
Manufacturer substitution
This part replaces 154568002. Substitute parts can look different from the original.
BEST SELLER
In Stock
$30.04 |
14% OFF
Phone Price: $35.04
Dishwasher Door Seal (replaces 154845301)#3

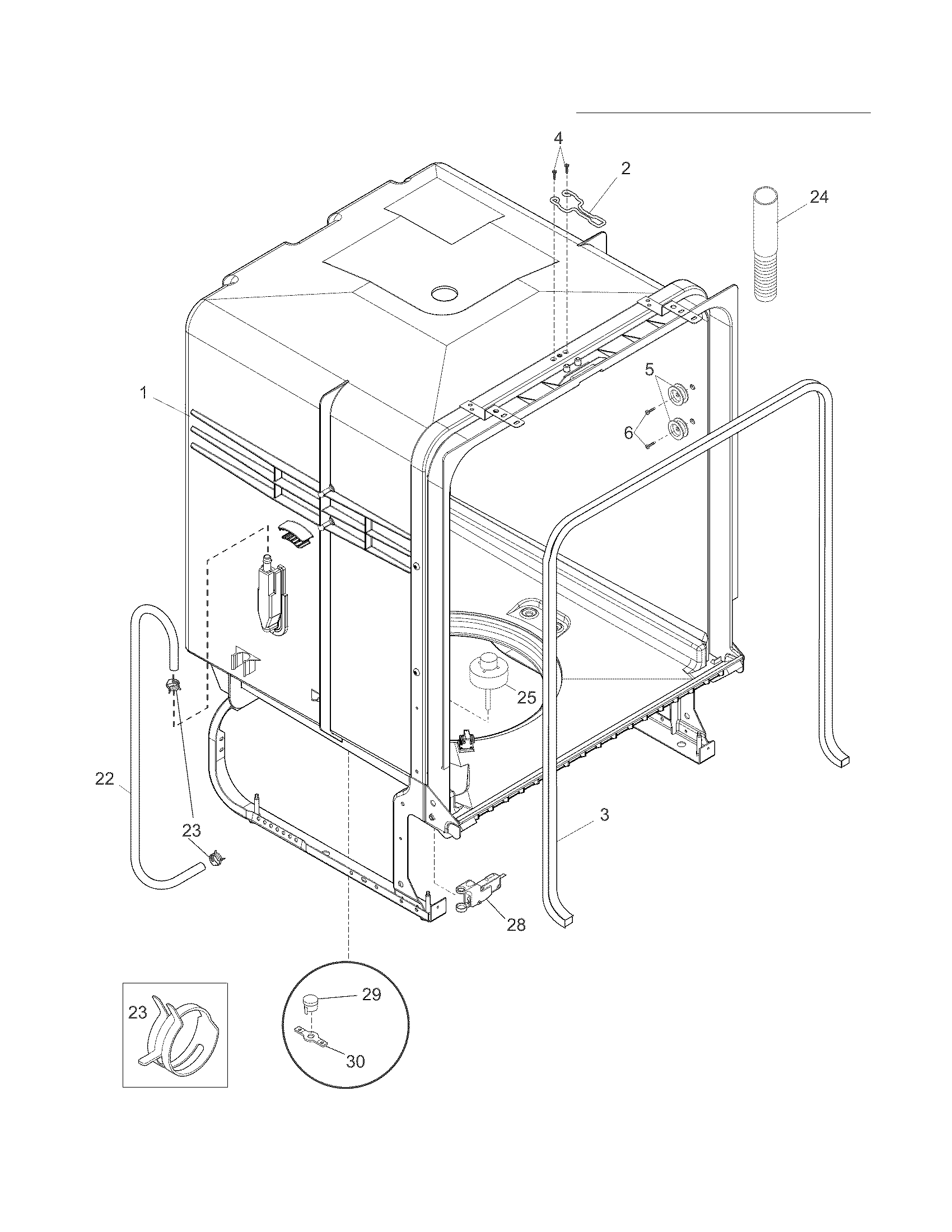

Tub Diagram

Gasket

Part #154845301
Replaced by #154827601
?
Manufacturer substitution
This part replaces 154845301. Substitute parts can look different from the original.
BEST SELLER
In Stock
$21.98 |
29% OFF
MSRP: $31.00
Dishwasher Lower Spray Arm Support (replaces 5304506515)#62

Motor & pump Diagram

Dishwasher lower spray arm support

Part #154294102
Replaced by #5304518968
?
Manufacturer substitution
This part replaces 154294102. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.88 |
10% OFF
Phone Price: $9.88
Dishwasher Pump and Motor Assembly (replaces 154588701, 154792801, 154794401)#70

Motor & pump Diagram

Dishwasher pump and motor assembly (replaces 154588701, 154792801, 154794401)

Part #154844301
BEST SELLER
In Stock
$130.33 |
7% OFF
Phone Price: $140.33
Dishwasher Water Inlet Valve (replaces 154359802, 154476101)#3

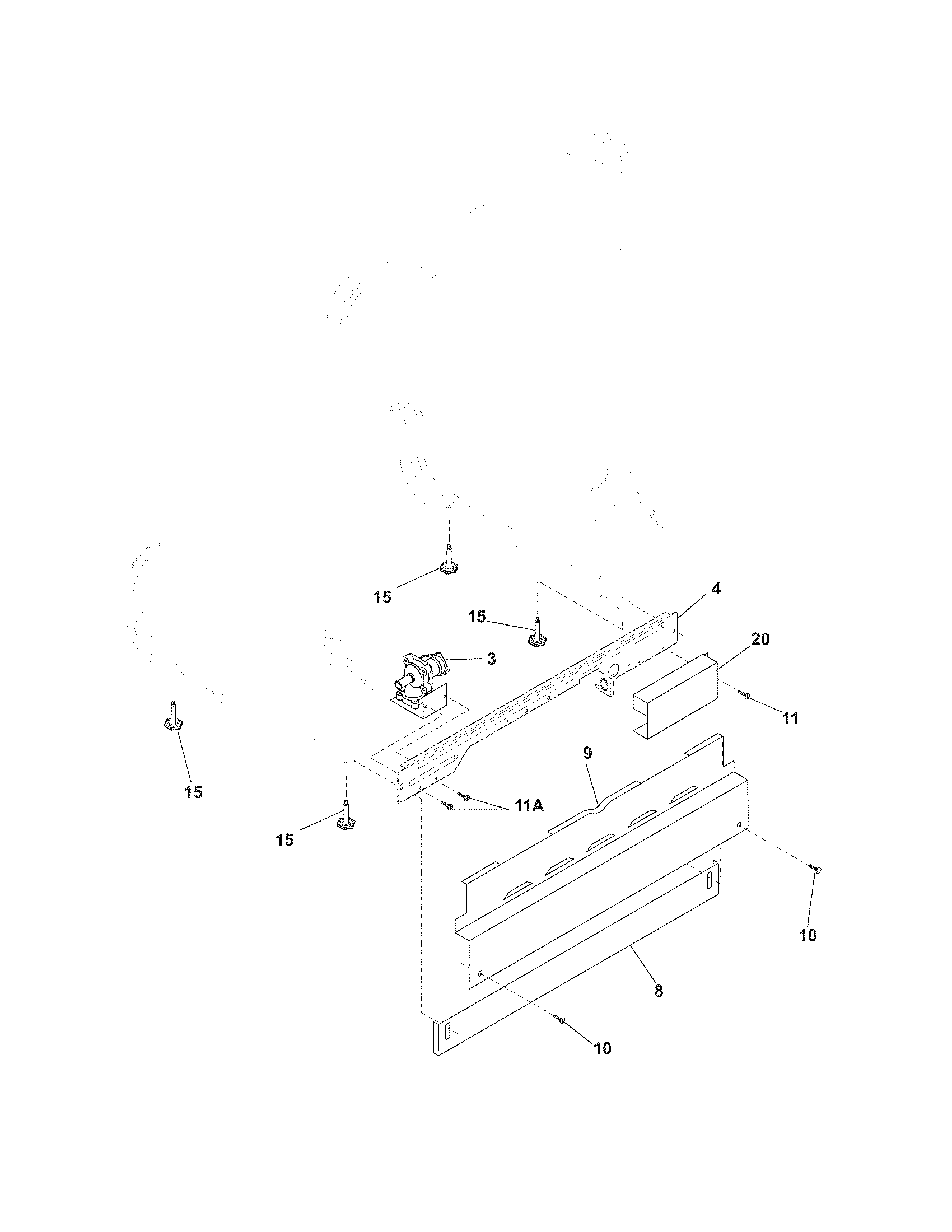

Frame Diagram

Dishwasher water inlet valve (replaces 154359802, 154476101)

Part #154637401
BEST SELLER
In Stock
$51.21 |
9% OFF
Phone Price: $56.21
Dishwasher Drain Hose (replaces 154753201)#24

Tub Diagram

Drain hose

Part #154753201
Replaced by #807117001
?
Manufacturer substitution
This part replaces 154753201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$31.82 |
14% OFF
Phone Price: $36.82
Dishwasher Splash Shield Kit (replaces 154685101, 154685404)#NI

Tub Diagram

Gasket

Part #154685101
Replaced by #154701001
?
Manufacturer substitution
This part replaces 154685101. Substitute parts can look different from the original.
BEST SELLER
In Stock
$24.52 |
17% OFF
Phone Price: $29.52
Dishwasher Heating Element Nut (replaces 154106201, 5303351029)#NI

Motor & pump Diagram

Dishwasher heating element nut (replaces 154106201, 5303351029)

Part #154106202
BEST SELLER
In Stock
$7.99 |
11% OFF
Phone Price: $8.99
Dishwasher Toe Panel (replaces 154322903, 154589403)#8

Frame Diagram

Dishwasher toe panel (replaces 154322903, 154589403)

Part #154745503
This item is not returnable
In Stock
$17.19 |
10% OFF
Phone Price: $19.19
Dishwasher 4-Wire Tine Row, Right (Gray) (replaces 154740404)#13B

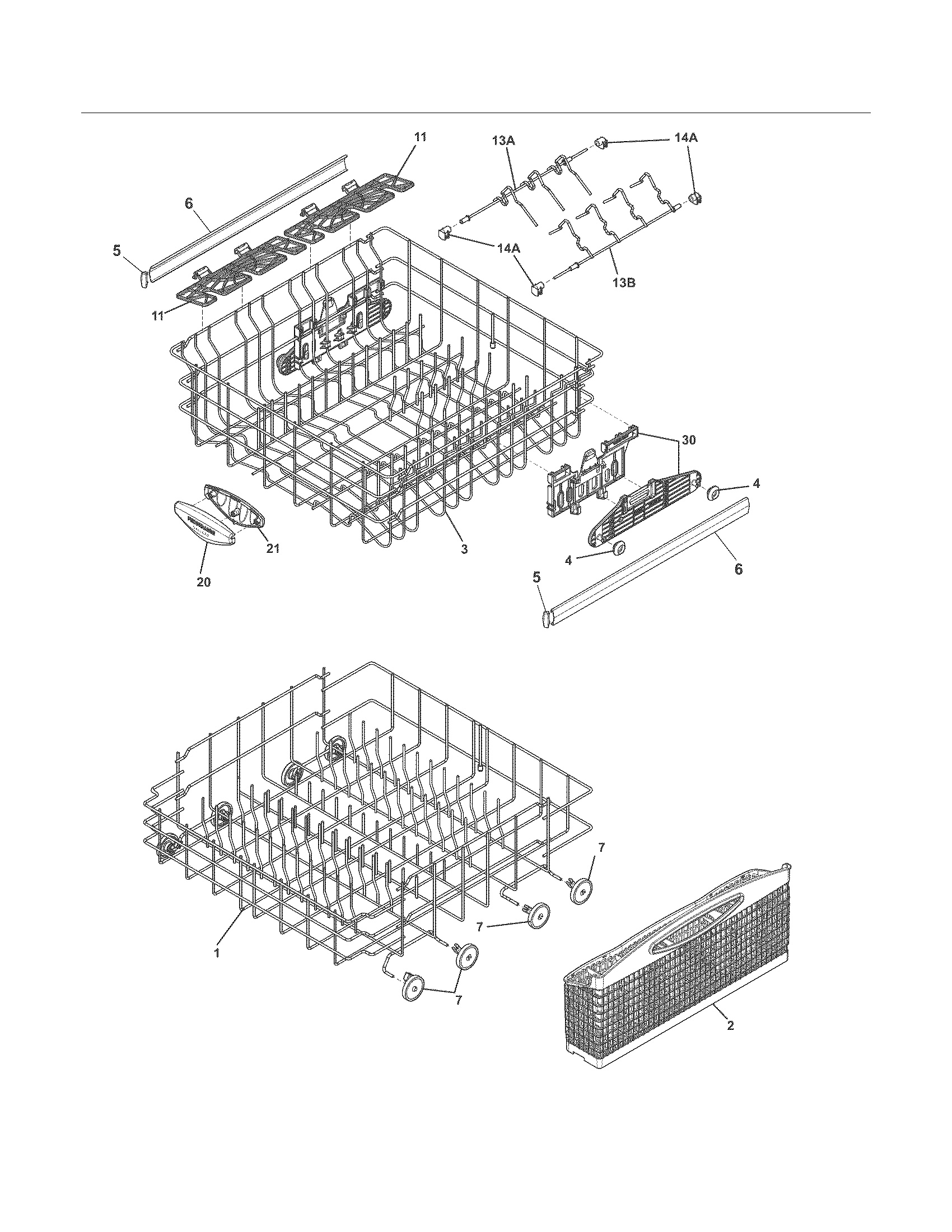

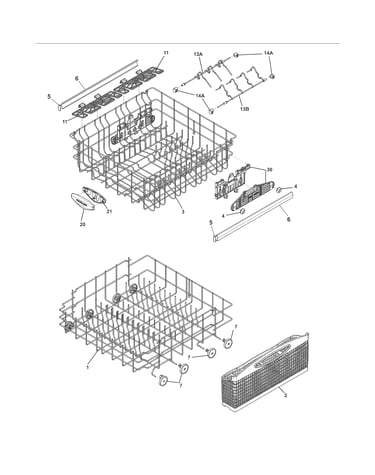

Racks Diagram

Multifence 4

Part #154740402
Replaced by #5304506535
?
Manufacturer substitution
This part replaces 154740402. Substitute parts can look different from the original.
This item is not returnable
In Stock
$23.09

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Why does my dishwasher stop mid-cycle?

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Read more

Why can't I adjust the dishwasher rack height?

Main cause: damaged rack height adjuster
Read more

Why is my dishwasher leaking?

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Read more

Why won't my dishwasher drain?

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Read more

Why won't my dishwasher fill?

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Read more

Why is my dishwasher noisy?

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Read more

Why does my dishwasher door drop open too fast?

Main causes: broken door spring, damaged or broken door hinge
Read more

Why don't my dishes get dry?

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
Read more

Why won't my dishwasher start?

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Read more
