Maytag MFF2055FRZ00 refrigerator

Maytag MFF2055FRZ00 refrigerator Parts

Here are the diagrams and repair parts for Maytag MFF2055FRZ00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MFF2055FRZ00 Refrigerators

  • Whirlpool Everydrop 1 Refrigerator Water Filter for Maytag MFF2055FRZ00 - Part EDR1RXD1

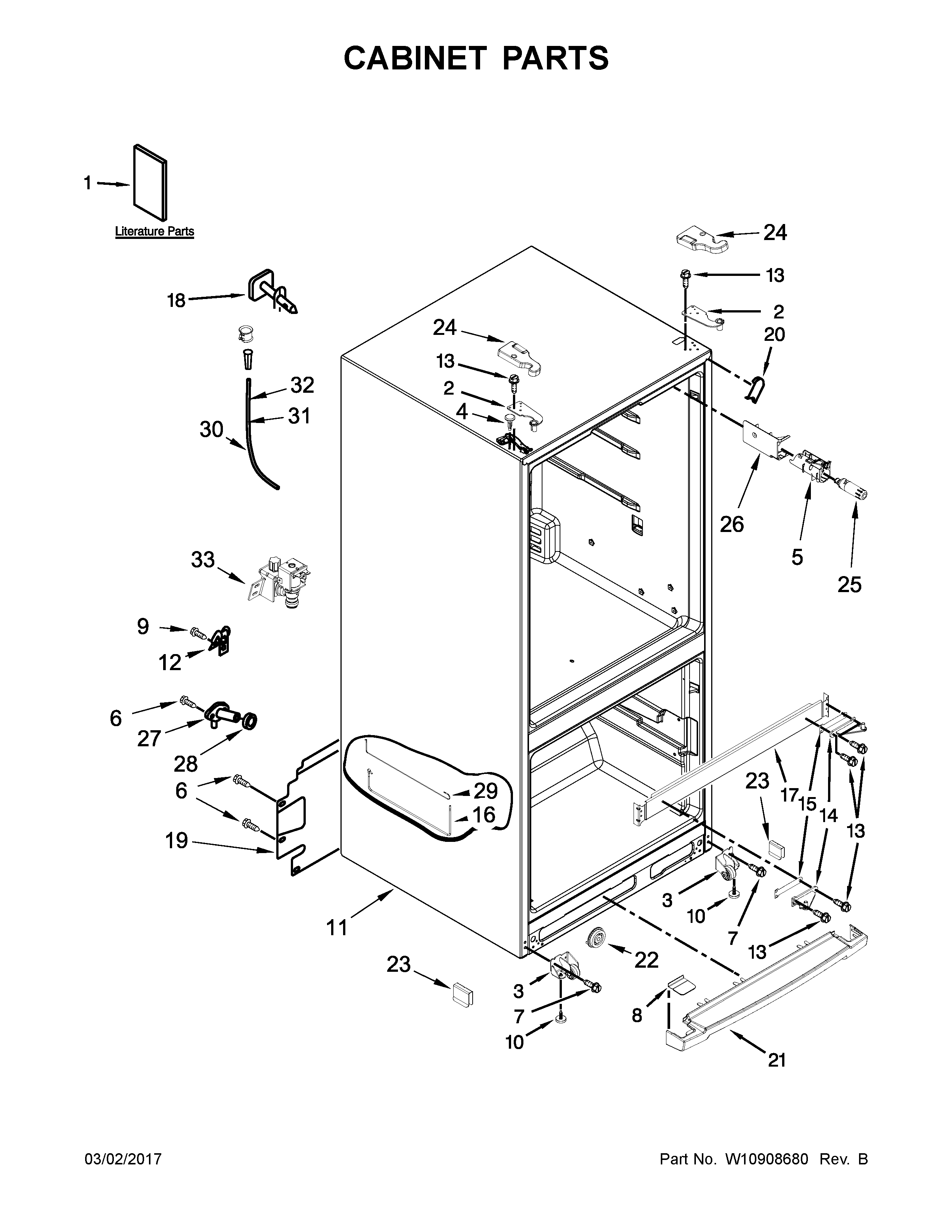

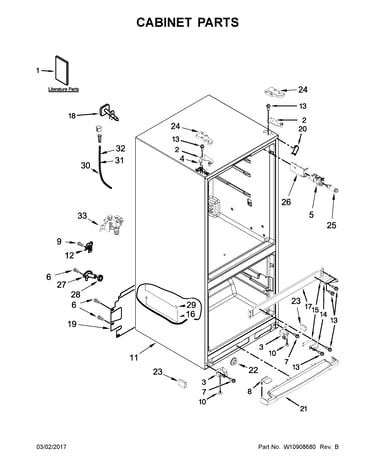

    Cabinet parts diagram

    Refrigerator Filter

    Part #W10569758

    Replaced by #EDR1RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10569758. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $75.20
    7% OFF Phone Price : $81.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Carbon Air Filter for Maytag MFF2055FRZ00 - Part W10311524

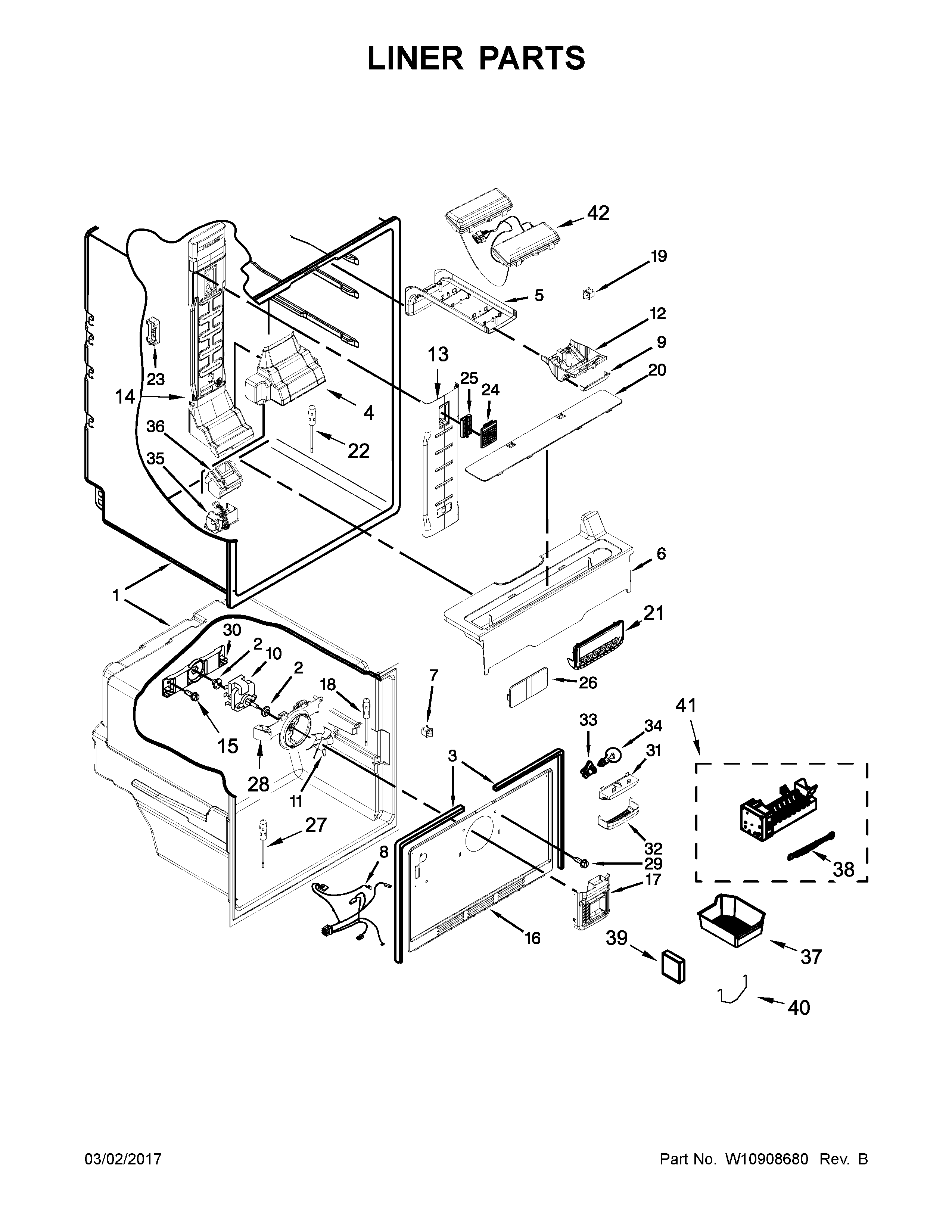

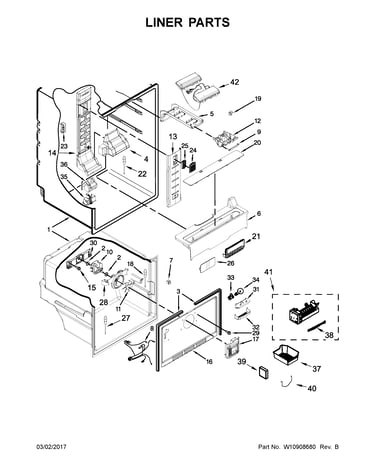

    Liner parts diagram

    Refrigerator Air Filter

    Part #W10315189

    Replaced by #W10311524

    Info Icon
    Manufacturer substitution
    This part replaces W10315189. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $14.77
    Minus Item
    Qty
    Plus Item
  • Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool for Maytag MFF2055FRZ00 - Part 4317943

    Liner parts diagram

    Refrigerator Ice Maker Assembly

    Part #W10632400

    Replaced by #4317943

    Info Icon
    Manufacturer substitution
    This part replaces W10632400. Substitute parts can look different from the original.
    In Stock
    $112.07
    10% OFF Phone Price : $124.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Maytag MFF2055FRZ00 - Part W11396033

    Liner parts diagram

    Light Swit

    Part #12466105

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces 12466105. Substitute parts can look different from the original.
    In Stock
    $25.16
    19% OFF Phone Price : $31.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermistor for Maytag MFF2055FRZ00 - Part W11724692

    Liner parts diagram

    Refrigerator Thermistor

    Part #W10438761

    Replaced by #W11724692

    Info Icon
    Manufacturer substitution
    This part replaces W10438761. Substitute parts can look different from the original.
    In Stock
    $51.69
    10% OFF Phone Price : $57.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Maytag MFF2055FRZ00 - Part W11384469

    Liner parts diagram

    Refrigerator Light Switch

    Part #1118894

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 1118894. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Maytag MFF2055FRZ00 - Part WP2163777

    Liner parts diagram

    Fan Blade

    Part #2200509

    Replaced by #WP2163777

    Info Icon
    Manufacturer substitution
    This part replaces 2200509. Substitute parts can look different from the original.
    In Stock
    $43.27
    12% OFF Phone Price : $49.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for Maytag MFF2055FRZ00 - Part WP488729

    Cabinet parts diagram

    Refrigerator Screw

    Part #2262176

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 2262176. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Maytag MFF2055FRZ00 - Part WPW10464673

    Liner parts diagram

    Refrigerator Evaporator Motor

    Part #W10464673

    Replaced by #WPW10464673

    Info Icon
    Manufacturer substitution
    This part replaces W10464673. Substitute parts can look different from the original.
    In Stock
    $157.34
    7% OFF Phone Price : $169.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Closer for Maytag MFF2055FRZ00 - Part WPW10470155

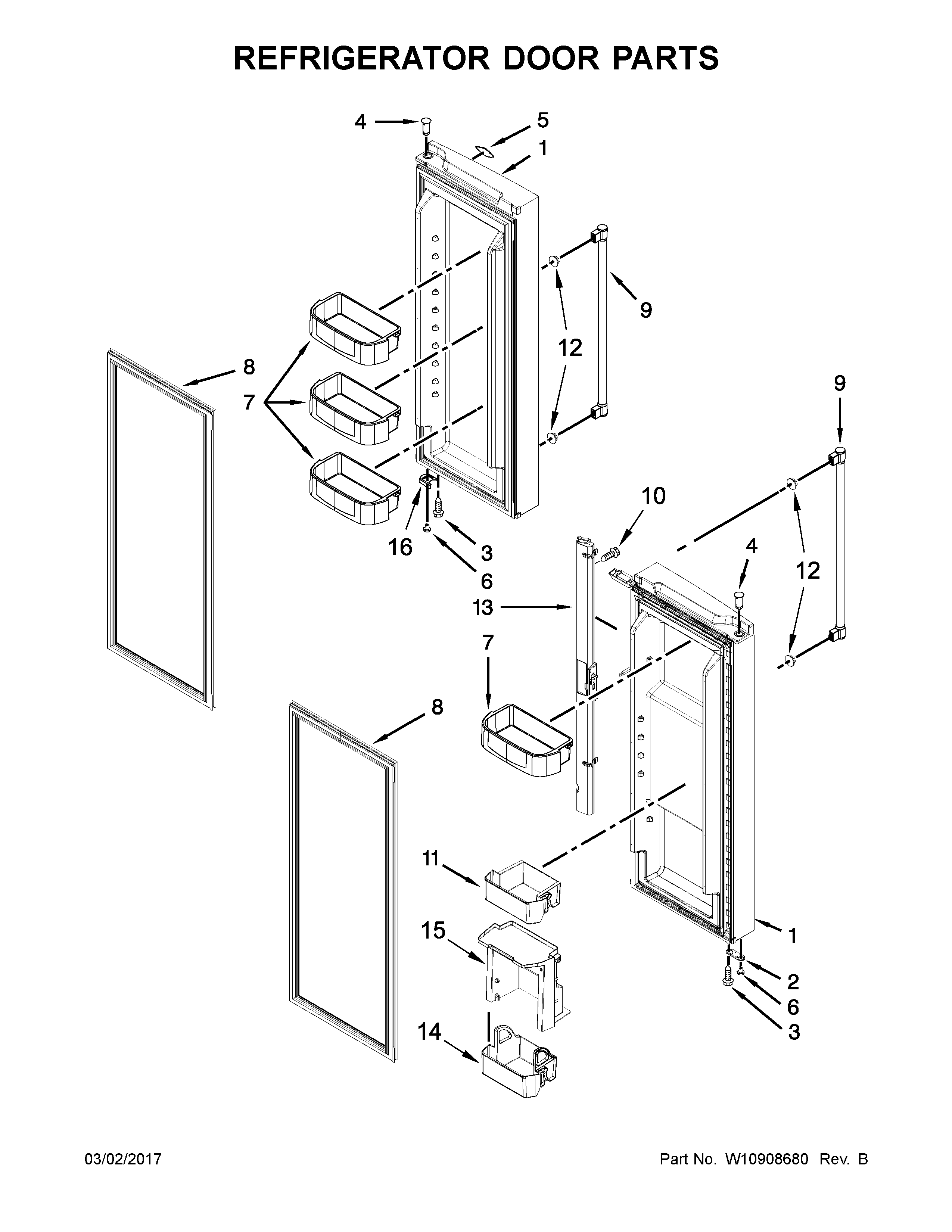

    Refrigerator door parts diagram

    Refrigerator Door Cam

    Part #W10470155

    Replaced by #WPW10470155

    Info Icon
    Manufacturer substitution
    This part replaces W10470155. Substitute parts can look different from the original.
    In Stock
    $8.18
    11% OFF Phone Price : $9.18Info Icon
    Minus Item
    Qty
    Plus Item

Maytag Refrigerator MFF2055FRZ00 FAQs

A bottom-freezer design (like the Maytag MFF2055FRZ00) puts fresh food at eye level, but the tradeoffs are more bending for frozen items, less convenient access to bulky freezer goods, and sometimes more frost or drawer-fit issues if the door is opened often. See the MFF2055FRZ00 owner’s manual for model-specific use and storage guidance.

Common disadvantages you may notice
  • You often have to bend or squat to reach frozen foods, especially items stored at the bottom of the drawer.
  • Freezer drawers can hide items; food can get buried and forgotten.
  • Large boxes and tall items may be harder to fit because of drawer height and bin shapes.
  • If the freezer is packed, the drawer can feel heavy and may not glide smoothly.
  • Frequent freezer use can let in humid air, which can increase frost and sticking over time.
Bottom freezer vs top freezer: quick comparison
Feature Bottom freezer Top freezer
Fresh-food access Easier (less bending) More bending
Frozen-food access More bending Easier
Organization Drawer can bury items Shelves are more visible
Bulky frozen storage Can be tighter Often easier
What we recommend to reduce the downsides
  • Use bins or baskets to group foods (breakfast items, meats, vegetables).
  • Keep heavier items higher in the drawer when possible.
  • Avoid overpacking so the drawer closes fully and seals well.
  • If odors build up from stored foods, replace the refrigerator air filter W10311524 on schedule.
  • If you notice moisture or frost, check that packages are not blocking the door from closing.
Why it matters

Most “bottom freezer problems” are really access and organization issues. Setting up the freezer so you can see and reach items quickly helps reduce door-open time, improves temperature stability, and can cut down on frost and food waste.

Last updated: January 2026

A bottom-freezer refrigerator like the Maytag MFF2055FRZ00 typically lasts 15 to 20 years with normal household use. Keeping airflow clear, maintaining door seals, and staying on top of filter changes helps you reach the upper end of that range.

Typical lifespan and what affects it

Most bottom-mount (bottom-freezer) refrigerators run longer when the sealed system stays healthy and the unit can breathe.

  • Maintenance habits (cleaning, filter changes, defrost care)
  • Condenser airflow (dust buildup and tight cabinetry raise run time)
  • Door seal condition (warm air leaks force longer compressor cycles)
  • Water and ice maker use (more components, more wear)
  • Power quality (surges can damage controls)
Quick expectations by refrigerator style
Refrigerator type Typical life expectancy Notes
Top-freezer 10 to 15 years Simplest design, fewer components
Bottom-freezer 15 to 20 years Often efficient, but more features vary
Side-by-side 15 to 20 years More doors and dispensing features can add wear
Maintenance that helps you get 15 to 20 years

These steps reduce compressor run time and prevent common cooling complaints.

  • Vacuum dust from the condenser area and keep vents unobstructed
  • Confirm doors close fully and the cabinet is level
  • Replace the air filter on schedule (odor control helps overall performance)
  • Keep freezer drawers and slide rails moving smoothly and not overloaded
  • Follow cleaning and temperature recommendations in the MFF2055FRZ00 owner's manual
Why it matters

A refrigerator that runs hot or leaks air can cycle longer, which accelerates wear on the compressor, evaporator fan motor, and electronic controls. Small maintenance steps often prevent the “not cooling enough” problems that lead to early replacement.

Last updated: January 2026

The most common Maytag refrigerator problems are cooling complaints (refrigerator not cold enough, temperature swings, running constantly) and ice maker issues. On the Maytag MFF2055FRZ00, these symptoms are most often tied to airflow and maintenance items like dirty condenser coils, a weak evaporator fan, or restricted water flow to the ice maker. See the MFF2055FRZ00 owner's manual for model-specific operating and care details.

Most common issues we see (and what to check first)
  • Dirty condenser coils: Causes poor cooling and long run times.
  • Evaporator fan problem: Warm fridge section, weak airflow, or unusual fan noise.
  • Door not sealing: Frost buildup, moisture, and temperature instability.
  • Ice maker not making ice: Often water supply, filter restriction, or valve issues.
  • Airflow restriction inside: Overpacked shelves can block vents and reduce cooling.
Quick troubleshooting checklist (10 to 20 minutes)
  • Confirm controls are set near 37°F fresh food and 0°F freezer.
  • Clean condenser coils and verify the condenser fan area is clear.
  • Check door gaskets for gaps, tears, or areas that do not grip paper.
  • Listen for the evaporator fan when the compressor is running.
  • If ice is slow or hollow, verify household water supply is fully open.
Common symptoms and likely causes
Symptom Most likely cause Part that often relates
Fridge warm, freezer OK Airflow/damper or evaporator fan issue Refrigerator electronic damper W11087463 or refrigerator evaporator motor WPW10464673
Runs constantly Dirty coils, door seal leak, warm room, frequent openings Door gasket (inspect)
Ice maker not working Water supply restriction or valve issue Refrigerator inlet valve WPW10279909 or refrigerator ice maker assembly 4317943
Bad odors Food spills, old filter, poor circulation Refrigerator air filter W10311524
Why it matters

Cooling and ice maker problems usually get worse over time. Catching airflow issues early helps protect food, reduces energy use, and can prevent strain on major components like the compressor.

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
