Bottom-Mount Refrigerator

Model # RF220NCTASR/AA-01 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF220NCTASR/AA-01 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

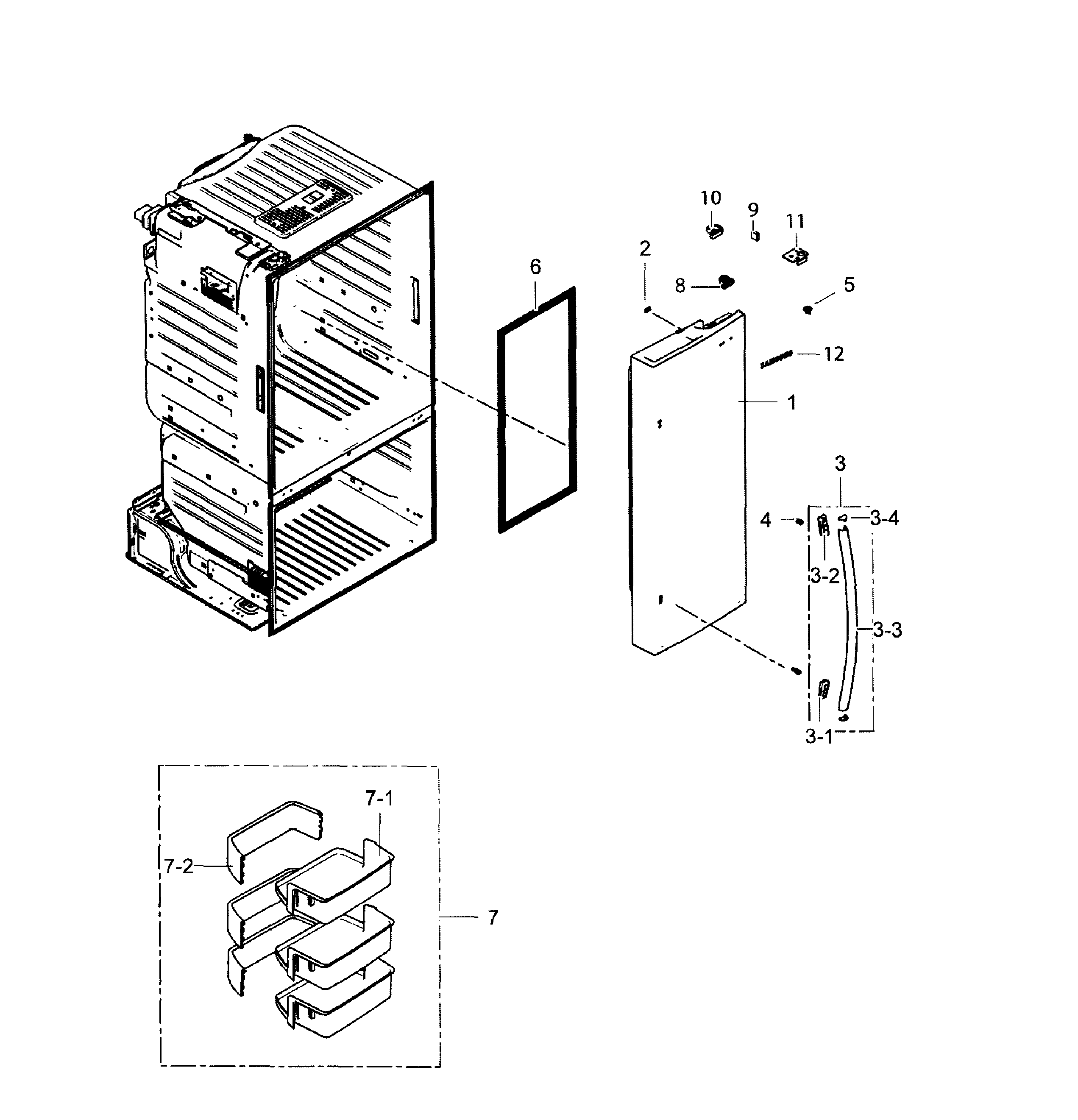

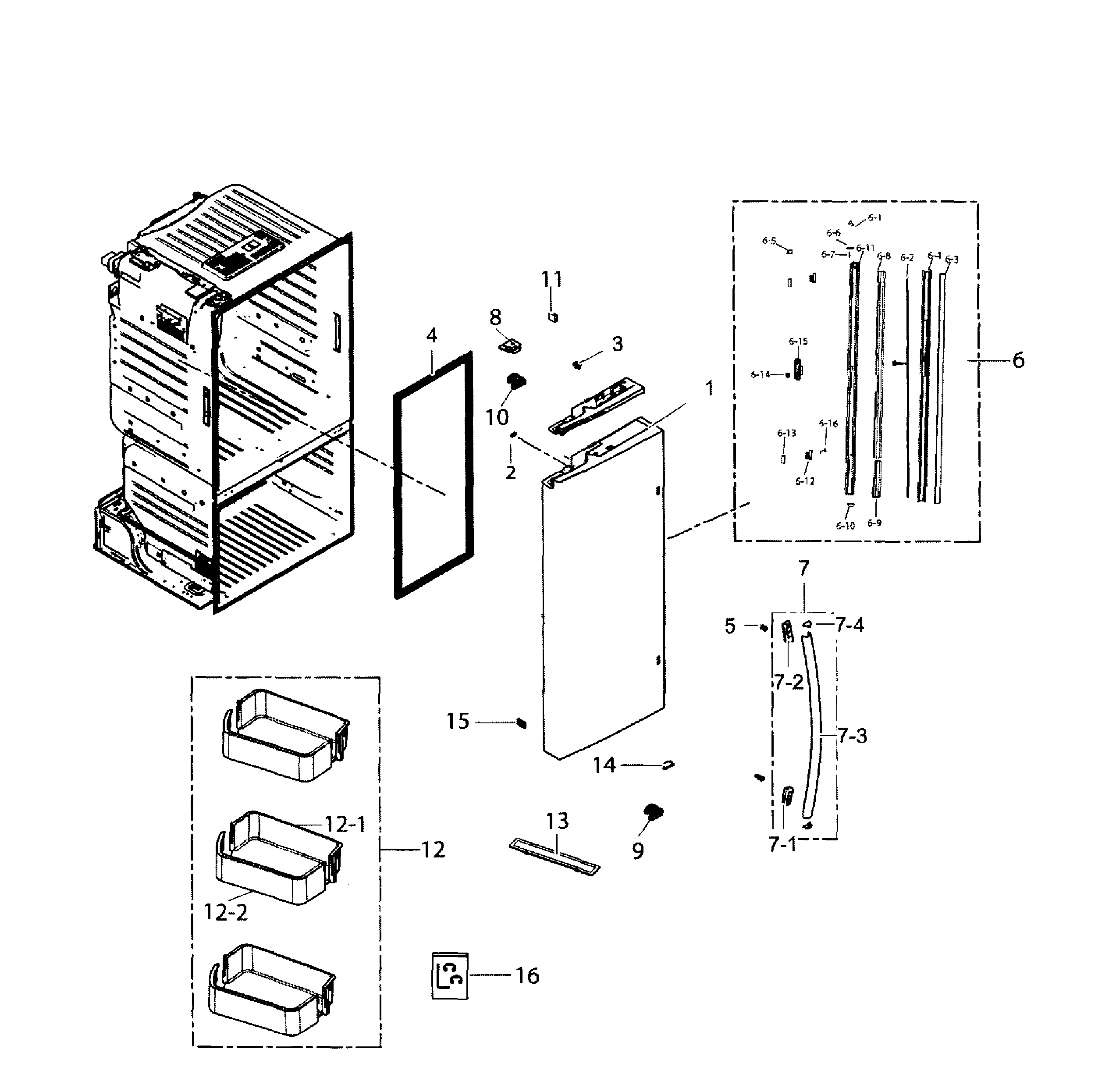

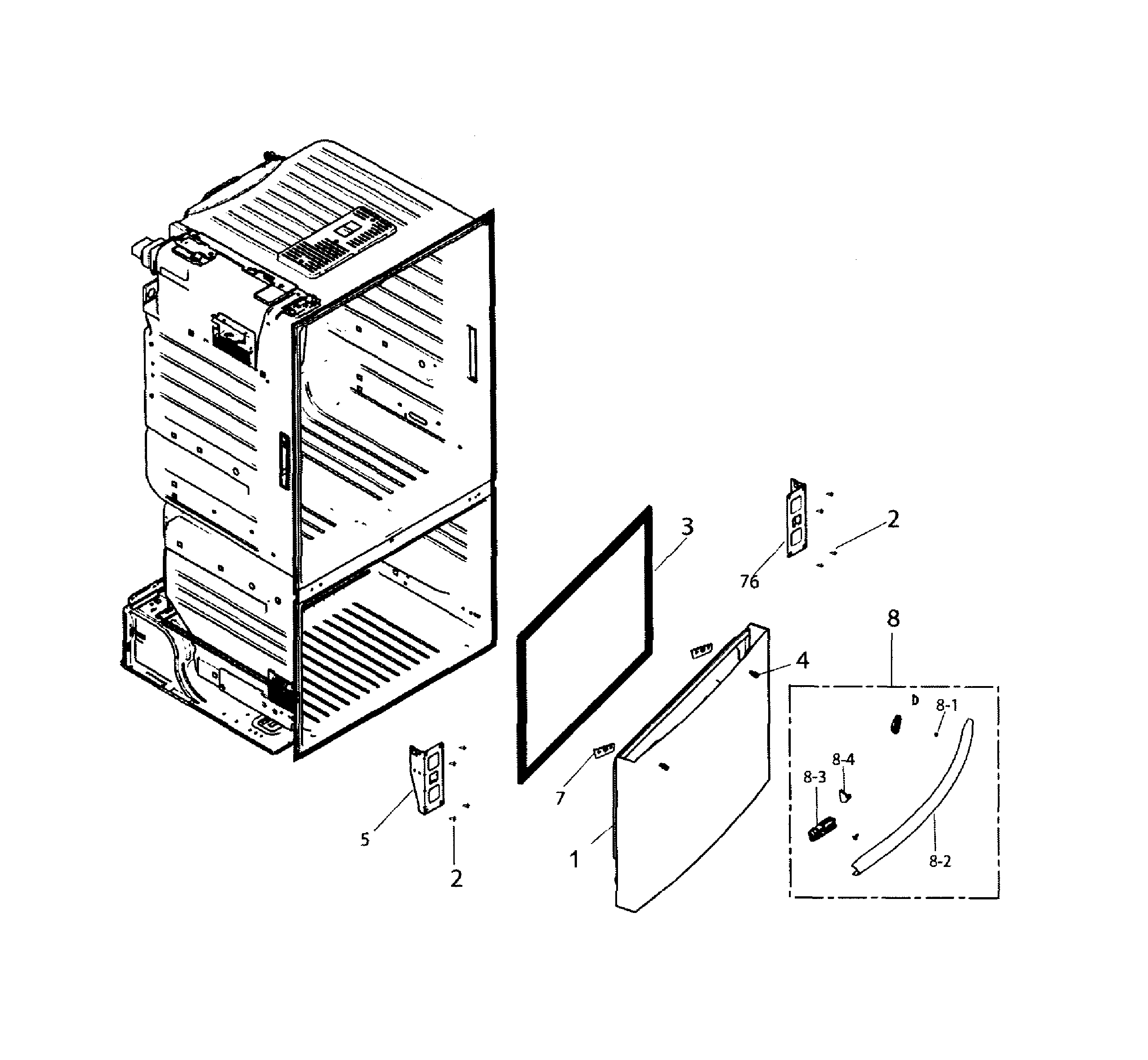

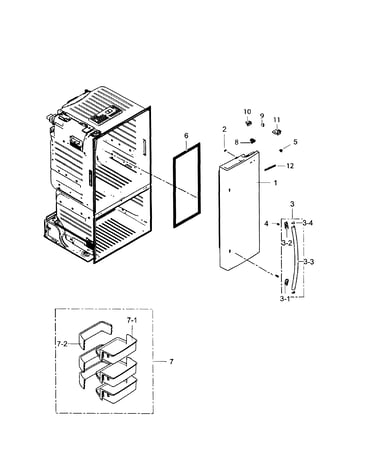

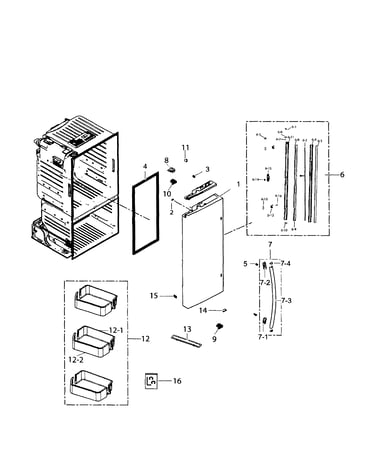

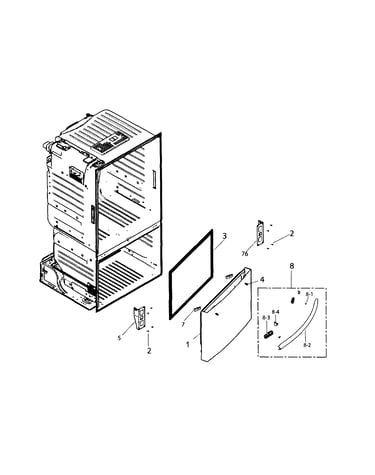

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRF220NCTASR/AA-01 Refrigerators

  • Refrigerator Temperature Sensor DA32-10104N
    Refrigerator temperature sensor

    Part #DA32-10104N

    BEST SELLER
    $30.86 |
    18% OFF Phone Price : $37.81
    In Stock
  • Refrigerator Ice Maker DA97-07603A
    #16

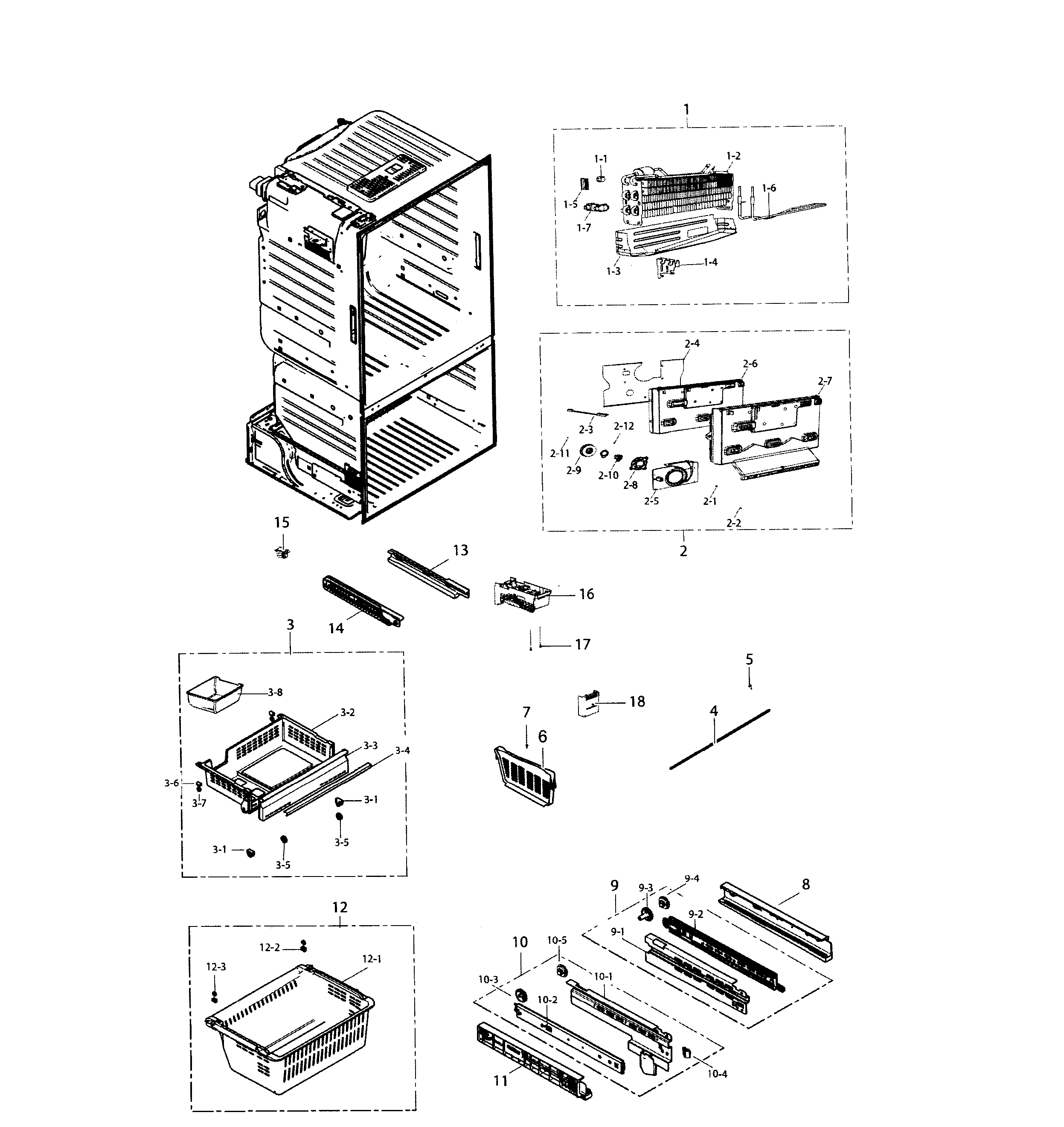

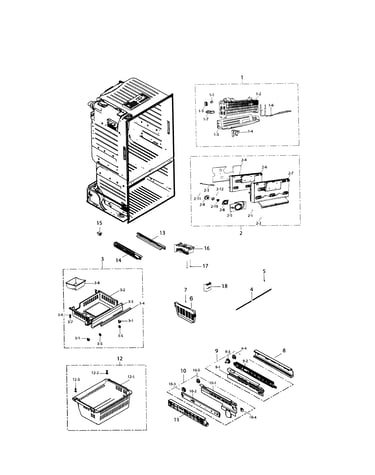

    Freezer diagram

    Refrigerator ice maker

    Part #DA97-07603A

    Replaced by #DA97-07603B

    ?
    Manufacturer substitution
    This part replaces DA97-07603A. Substitute parts can look different from the original.
    BEST SELLER
    $186.81 |
    9% OFF Phone Price : $204.59
    In Stock
  • Samsung Refrigerator Door Hinge, Left DA61-08309A
    #2-1

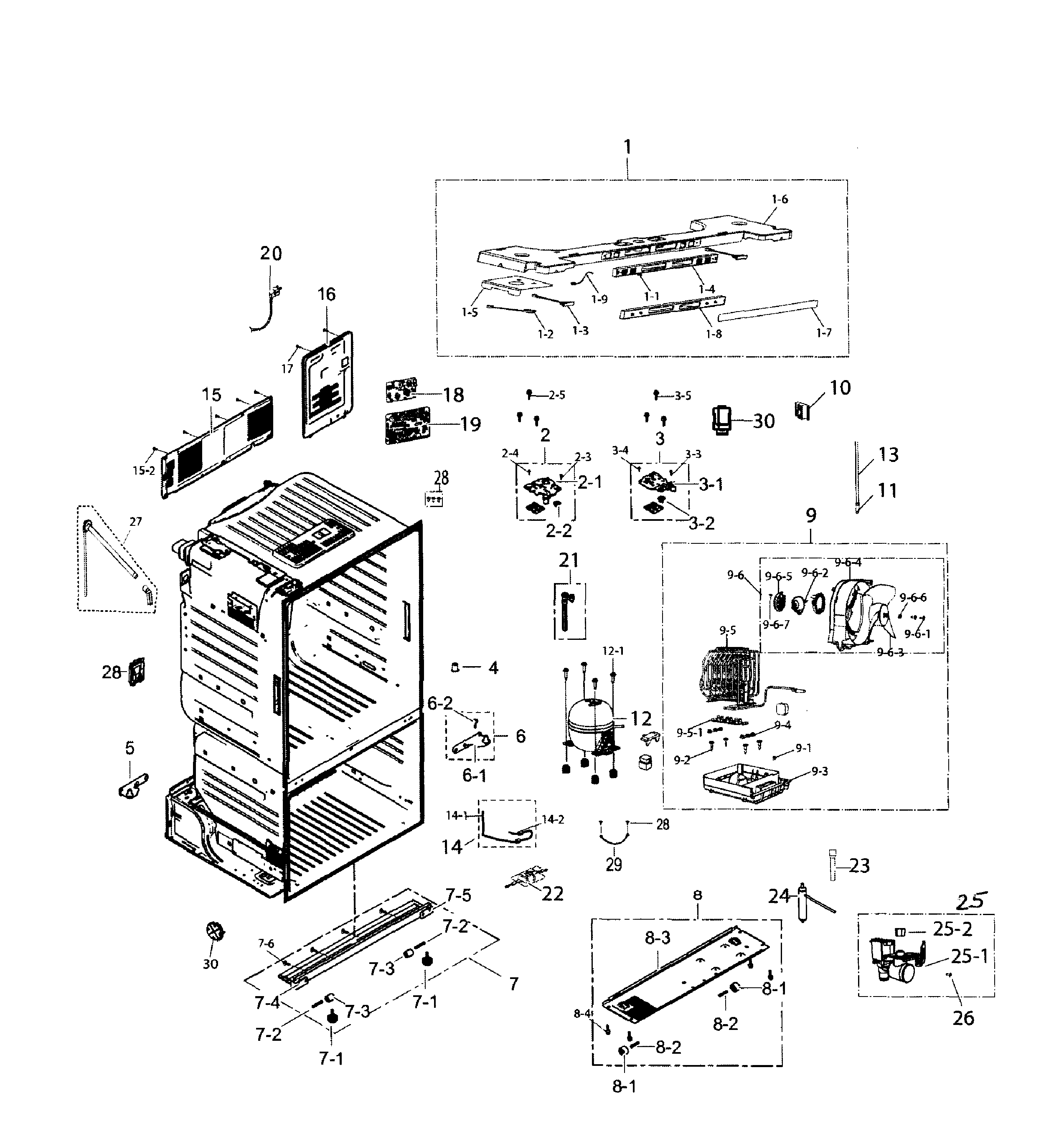

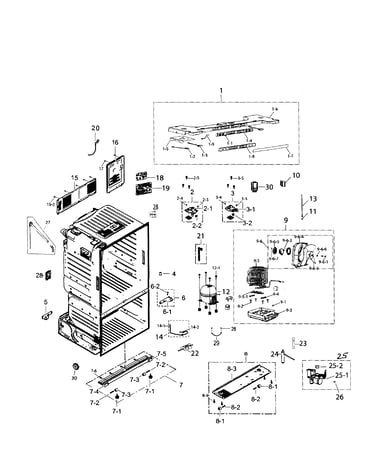

    Cabinet diagram

    Samsung refrigerator door hinge, left

    Part #DA61-08309A

    BEST SELLER
    $53.80 |
    12% OFF Phone Price : $61.41
    Back Order
  • Refrigerator Support DA97-12842B
    #9-6

    Cabinet diagram

    Refrigerator support

    Part #DA97-12842B

    Replaced by #DA97-15765C

    ?
    Manufacturer substitution
    This part replaces DA97-12842B. Substitute parts can look different from the original.
    BEST SELLER
    $150.37 |
    5% OFF Phone Price : $157.99
    In Stock
  • Refrigerator Filter Dryer DA62-01469H
    #24

    Cabinet diagram

    Refrigerator filter dryer

    Part #DA62-01469H

    Replaced by #DA81-06007A

    ?
    Manufacturer substitution
    This part replaces DA62-01469H. Substitute parts can look different from the original.
    BEST SELLER
    $82.37 |
    7% OFF Phone Price : $88.37
    In Stock
  • Refrigerator Evaporator Cover DA97-13192A
    #2

    Freezer diagram

    Refrigerator evaporator cover

    Part #DA97-13192A

    Replaced by #DA97-13192B

    ?
    Manufacturer substitution
    This part replaces DA97-13192A. Substitute parts can look different from the original.
    BEST SELLER
    $197.01 |
    6% OFF Phone Price : $209.01
    In Stock
  • Refrigerator Shelf Support End Cap DA61-04809A
    #8-6

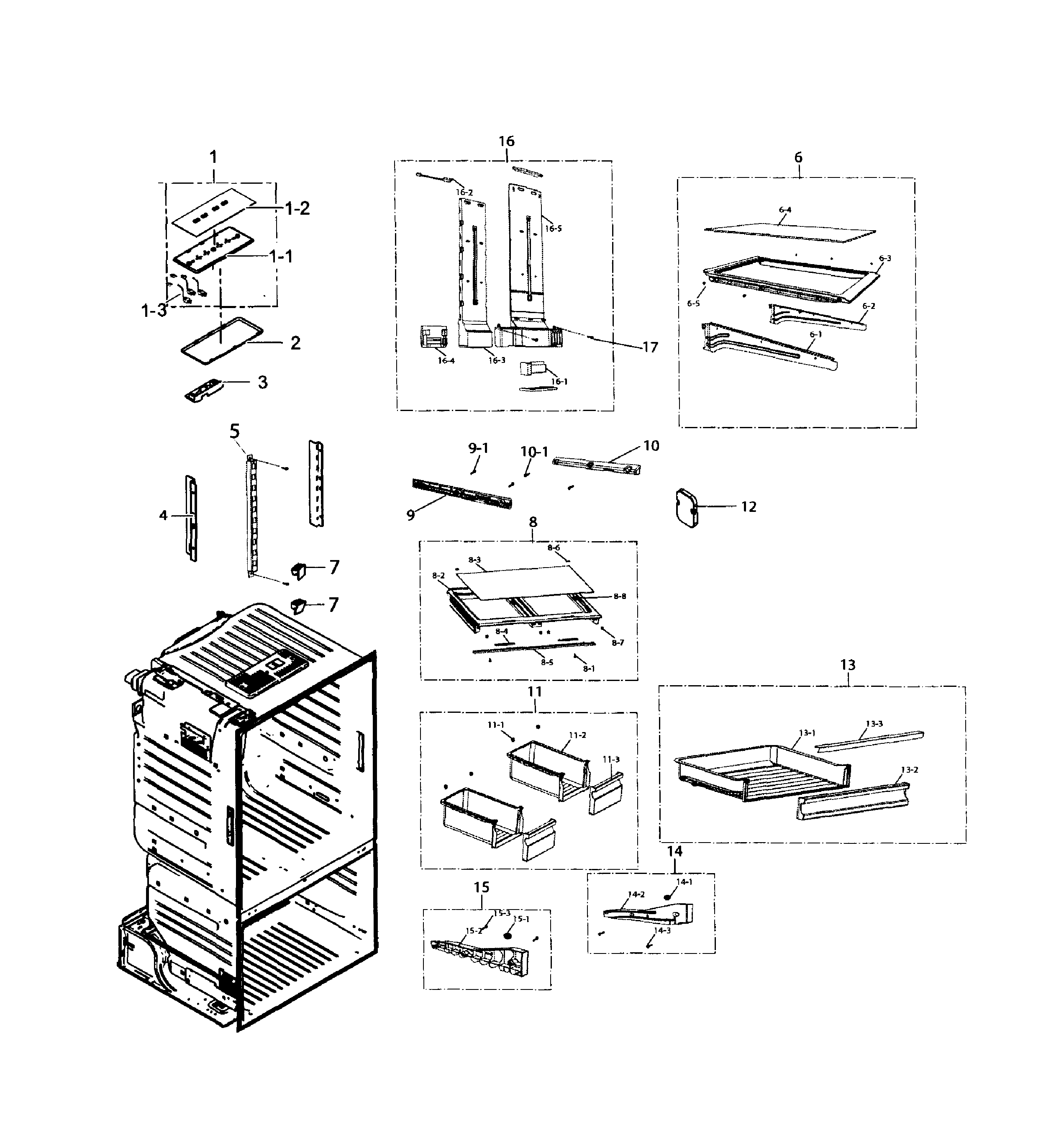

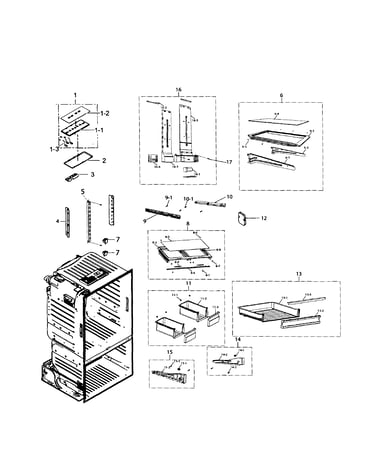

    Refrigerator diagram

    Refrigerator shelf support end cap

    Part #DA61-04809A

    BEST SELLER
    This item is not returnable
    $2.50 |
    29% OFF Phone Price : $3.50
    In Stock
  • Refrigerator Shelf Support, Right DA61-08786A
    #10

    Refrigerator diagram

    Refrigerator shelf support, right

    Part #DA61-08786A

    BEST SELLER
    This item is not returnable
    $11.93 |
    14% OFF Phone Price : $13.93
    In Stock
  • Refrigerator Door Handle Mounting Stud DA61-03734A
    Refrigerator door handle mounting stud

    Part #DA61-03734A

    Replaced by #DA61-11161A

    ?
    Manufacturer substitution
    This part replaces DA61-03734A. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.00 |
    14% OFF Phone Price : $7.00
    In Stock
  • Refrigerator Water Inlet Valve DA62-01477A
    #25-1

    Cabinet diagram

    Refrigerator water inlet valve

    Part #DA62-01477A

    BEST SELLER
    $84.68 |
    7% OFF Phone Price : $90.68
    In Stock
