Kenmore 11060852990 electric dryer Parts

To tell what Kenmore dryer model you have, locate the model and serial number plate on the dryer and record the full model number. For Kenmore model 11060852990, the plate lists the complete model and serial numbers you need for parts, specs, and service.

On most Kenmore electric dryers like 11060852990, the model/serial plate is typically in one of these spots:

• Inside the dryer door opening (around the door frame)
• On the back panel
• Near the lint screen housing area (depending on design)

If the label is hard to read, wipe it gently with a damp cloth and use a flashlight to confirm every digit.

Record these items exactly as shown on the plate:

• Model number (example: 11060852990)
• Serial number (unique to your unit)
• Date of purchase (helpful for maintenance records)

The model number narrows your dryer to the correct parts list and diagrams. The serial number helps identify production details that can affect which version of a part fits.

Kenmore model numbers often start with a 3-digit prefix that points to the manufacturing source. Use the full model number for ordering parts.

Use the instructions and label location guidance in the 11060852990 owner's manual to confirm the model/serial plate location and record the numbers correctly.

Last updated: February 2026

For Kenmore electric dryer model 11060852990, replacing the heating element typically costs $50 to $120 for the part and $150 to $350 total if you hire a technician (parts plus labor). If you DIY, your cost is usually the element plus any damaged wiring or safety fuses.

• Heating element part: usually $50 to $120
• Optional related parts (common on no-heat repairs): $15 to $60
• Professional labor (service call plus install): usually $100 to $250
• Total professional repair: usually $150 to $350

On this Kenmore model, we often see heat problems tied to more than just the element. If the dryer overheated from restricted airflow, a safety device can open and must be replaced.

• Dryer element 279838 (main heat source)
• Cut-off kit 279816 (thermal safety parts often replaced after overheating)
• Dryer heating element wire kit 279457 (used when terminals are heat-damaged)
• Dryer thermostat WP3977767 (high-limit temperature control)

A new heating element can fail early if the vent is crushed, kinked, or packed with lint. The manual recommends keeping the venting clear and notes that lint can build up inside the dryer over time; internal lint removal is typically handled by a qualified service person. Use the 11060852990 owner's manual for venting and care guidance.

• Confirm the dryer tumbles but produces no heat (different issue than a no-start).
• Clean the lint screen and verify strong airflow at the outside vent hood.
• Inspect the power supply: many electric dryers can run on 120V but need full 240V to heat.
• If the dryer overheated, plan on replacing the thermal cut-off kit along with the element.

Last updated: February 2026

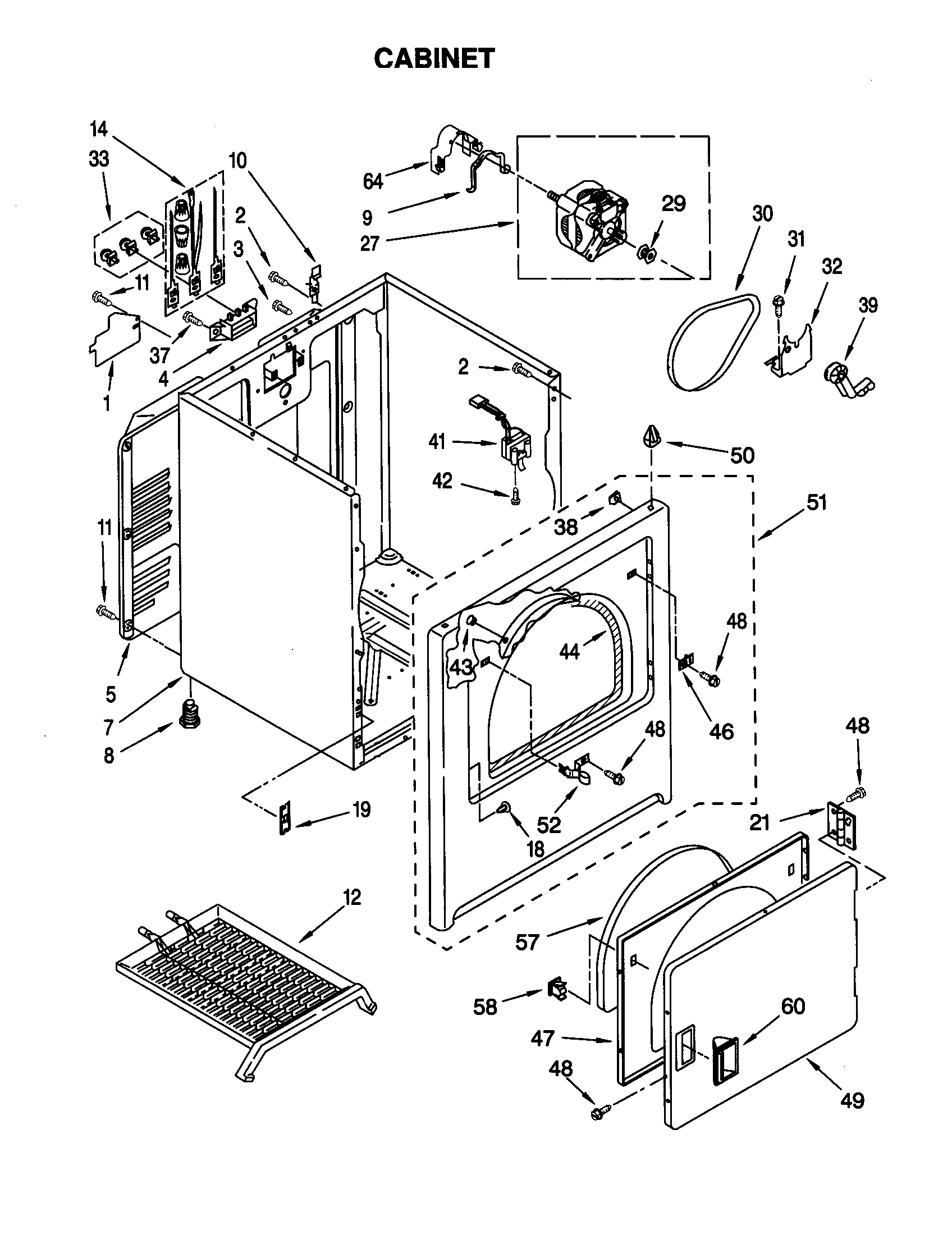

To replace the belt on your Kenmore electric dryer model 11060852990, we disconnect power, open the cabinet to access the drum, remove the old belt, route the new belt around the drum and motor drive, then reassemble and test for smooth drum rotation. Use the 11060852990 owner's manual for safety and cabinet access guidance.

• Phillips and 1/4-in nut driver (common for Kenmore cabinet screws)
• Work gloves
• Vacuum (to remove lint while the dryer is open)
• Replacement belt: drum belt 341241

1. Unplug the dryer (or switch off the breaker).
2. Remove the lint screen, then remove the screws that secure the top (locations vary by revision).
3. Lift the top and support it.
4. Remove the front panel (disconnect the door switch harness if needed), then lift the front panel off the lower hangers.
5. Release belt tension by pushing the idler pulley toward the motor and slip the belt off the motor pulley.
6. Lift the drum slightly and pull the old belt out.
7. Install the new belt:

• Loop the belt around the drum with the ribbed side against the drum.
• Route the belt through the idler pulley and around the motor pulley (a “snake” path that creates tension).

8. Spin the drum by hand a full turn to confirm the belt tracks straight and the idler moves freely.
9. Reassemble the cabinet, reconnect the door switch, restore power, and run a short timed dry test.

• Vacuum lint from the base and blower area.
• Check the idler pulley for wobble or squeal; replace if worn.
• Inspect the drum seals and front bearing surfaces for rubbing.

A correctly routed belt keeps proper tension on the drum, prevents squealing and slipping, and helps protect the motor and idler pulley from premature wear.

Last updated: February 2026

The Kenmore electric dryer model 11060852990 is a 29-inch wide dryer. For the exact overall cabinet dimensions (height and depth), we recommend confirming the measurements listed in the 11060852990 owner's manual, since clearances and venting setups can affect the space you need.

From the documentation for this Kenmore dryer series:

• Width: 29 inches (model family is labeled “29-inch wide electric dryers”)
• Type: Electric dryer
• Space planning: Allow extra room for the power cord, vent connection, and airflow

Most full-size 29-inch Kenmore and Whirlpool-built electric dryers fit within these common ranges (your exact height and depth can vary by console style and exhaust routing):

• Height: about 43 to 44 inches
• Depth: about 27 to 29 inches (not including the vent elbow)
• Depth with venting: often 1 to 3 inches more, depending on the elbow/periscope setup

Correct sizing prevents crushed or kinked venting, helps the dryer sit level, and reduces drying time. The manual also highlights installation checks like keeping the vent uncrushed and leveling the cabinet, which directly affects performance and noise.

• Measure width, height, and depth of the cabinet, then add space for the vent elbow.
• Plan clearance so the vent is not forced into a tight bend.
• If you are tight on depth, consider a low-clearance vent option (the manual shows common vent system styles).

Last updated: February 2026
