Craftsman 917271632 lawn tractor Parts

For a Craftsman riding mower like model 917271632, we look up the model number on the tractor’s ID label, then use that exact number to match the correct parts list and diagrams. On most Craftsman lawn tractors, the label is on the frame under the seat or on the underside of the seat; confirm the exact location in the 917271632 owner's manual.

Where to find the model number on a Craftsman lawn tractor

Check these common ID-label locations first:

• On the frame directly under the seat (lift the seat to view)
• On the underside of the seat pan
• Near the rear fender area close to the seat mounting points
• On the frame rail near the battery tray (varies by build)

How to use the model number to look up parts

Once you have the model number, use it exactly as printed (including dots or dashes if shown on the label).

• Enter 917271632 to pull the correct Craftsman parts diagrams

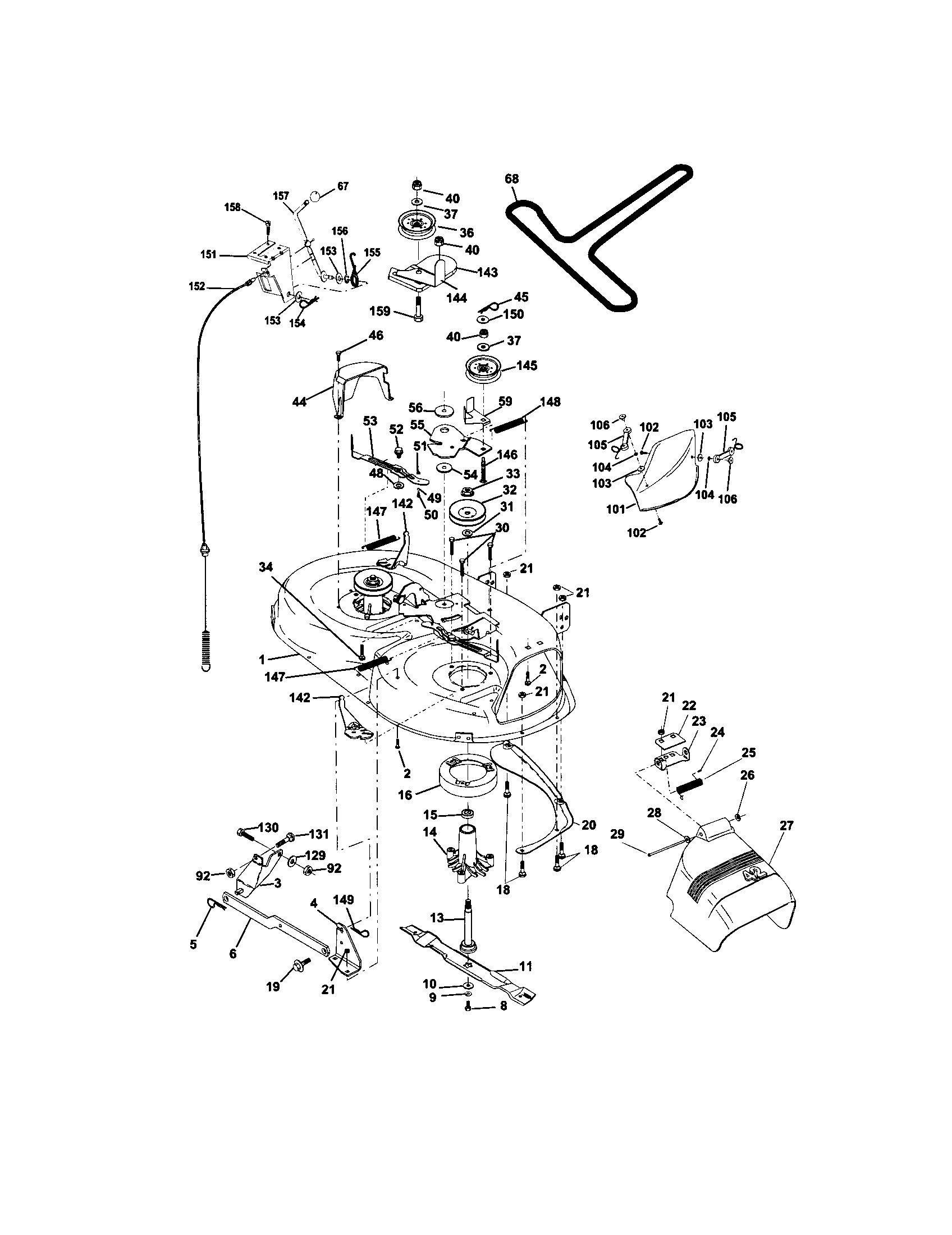

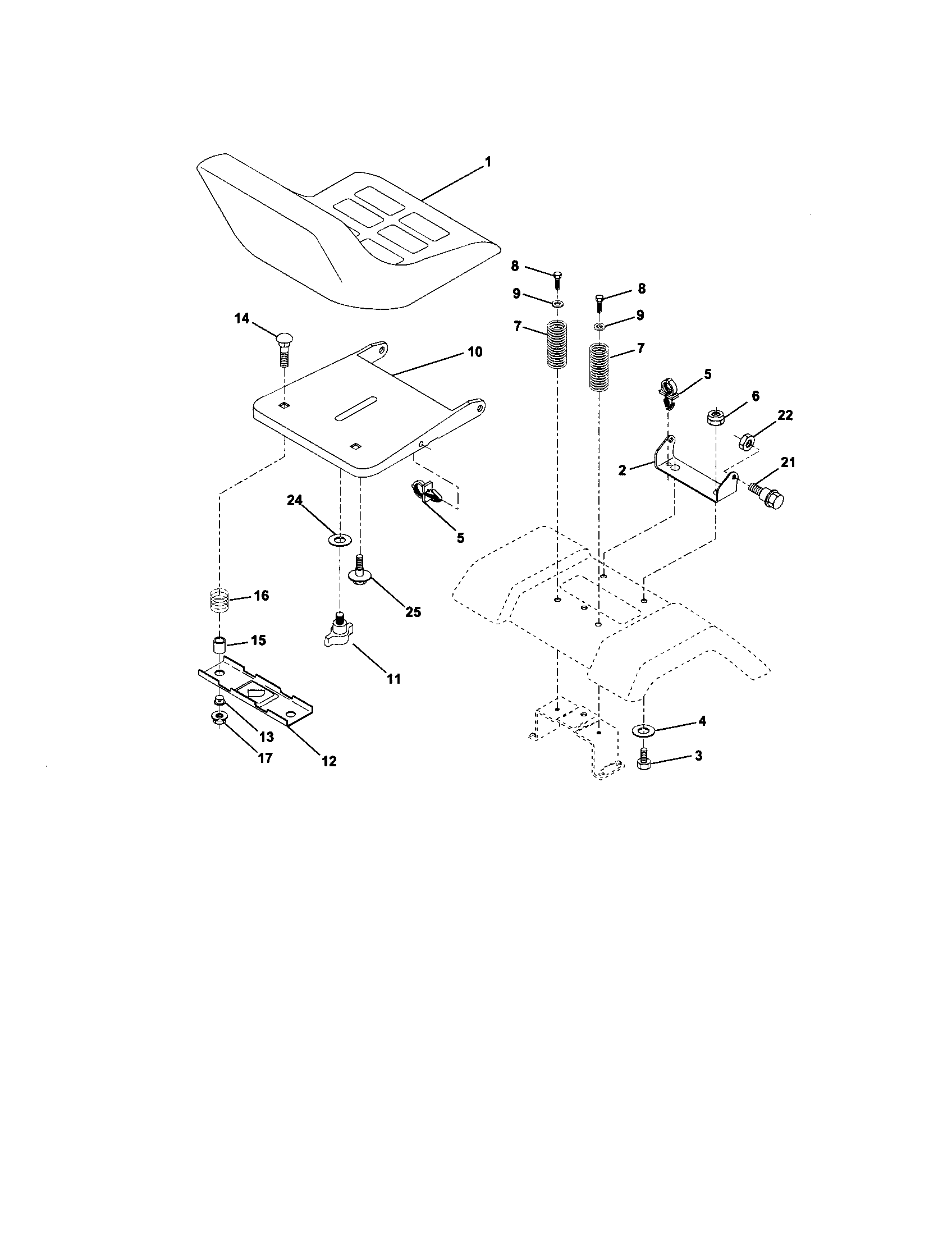

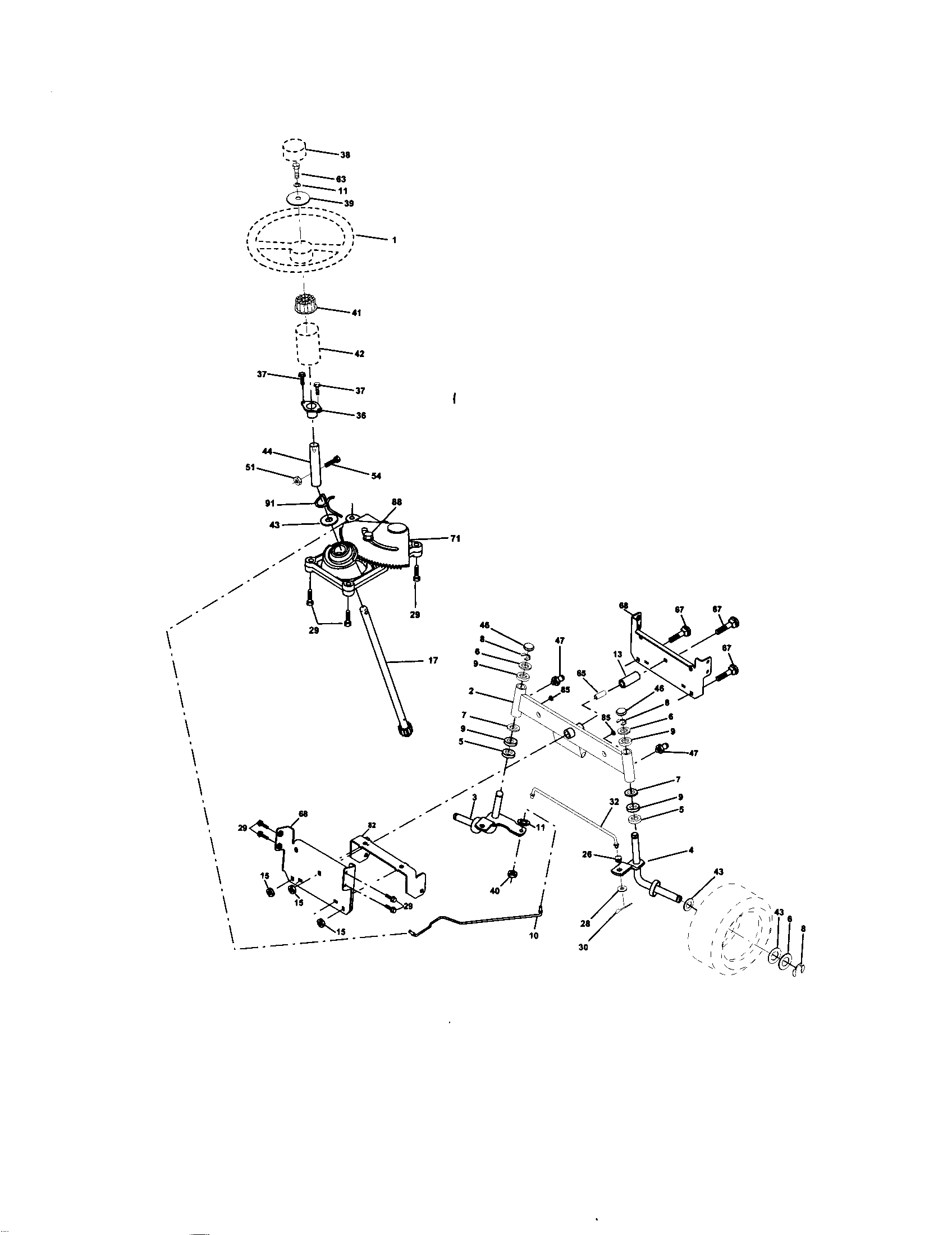

• Match the diagram section (mower deck, steering, drive, engine, seat) to your repair
• Use the diagram callouts to confirm the correct part ID before ordering

Quick checklist before ordering

• Verify the model number is 917271632 (not a similar 917.xxxxxx number)
• Write down the product number and any serial number from the same label
• Compare your deck size and configuration to the diagram notes in the manual

Common mix-ups (and how to avoid them)

What you see	What it usually means	What to do
Multiple 917 numbers on paperwork	Paperwork may list a family/series	Use the number on the tractor ID label
A number with dots (example: 917.271632)	Same model, different formatting	Enter it without punctuation if needed
Parts “almost fit”	Wrong model variant	Re-check the ID label and diagram callouts

Why it matters

Craftsman riding mowers often share similar frames and decks across model families; using the exact model number ensures you get the right belt length, blade style, and hardware for your specific build.

Last updated: February 2026

For Craftsman lawn tractor model 917271632, we recommend using the model-specific parts diagrams and parts list to match the exact replacement part to your tractor’s deck, drive, steering, or engine system. The fastest way to confirm fit is to cross-check the diagram callout with the part listing and your owner's manual.

The quickest way to find the right part

• Confirm the full model number on the tractor’s ID tag: 917271632
• Use the parts diagrams to identify the exact assembly (mower deck, transaxle, steering, etc.)
• Match the diagram key number to the part listing description
• Compare your old part’s markings and measurements (length, hole pattern, belt width)
• Order by the exact part ID when available (this avoids look-alike parts)

Common parts customers replace on this model

These are examples of parts available for model 917271632 that often come up during maintenance and repairs:

What you are fixing	Common symptom	Example part on this model page
Mower deck cutting	Uneven cut, poor mulching, vibration	Husqvarna lawn tractor mulching blade, 21-in 532134149

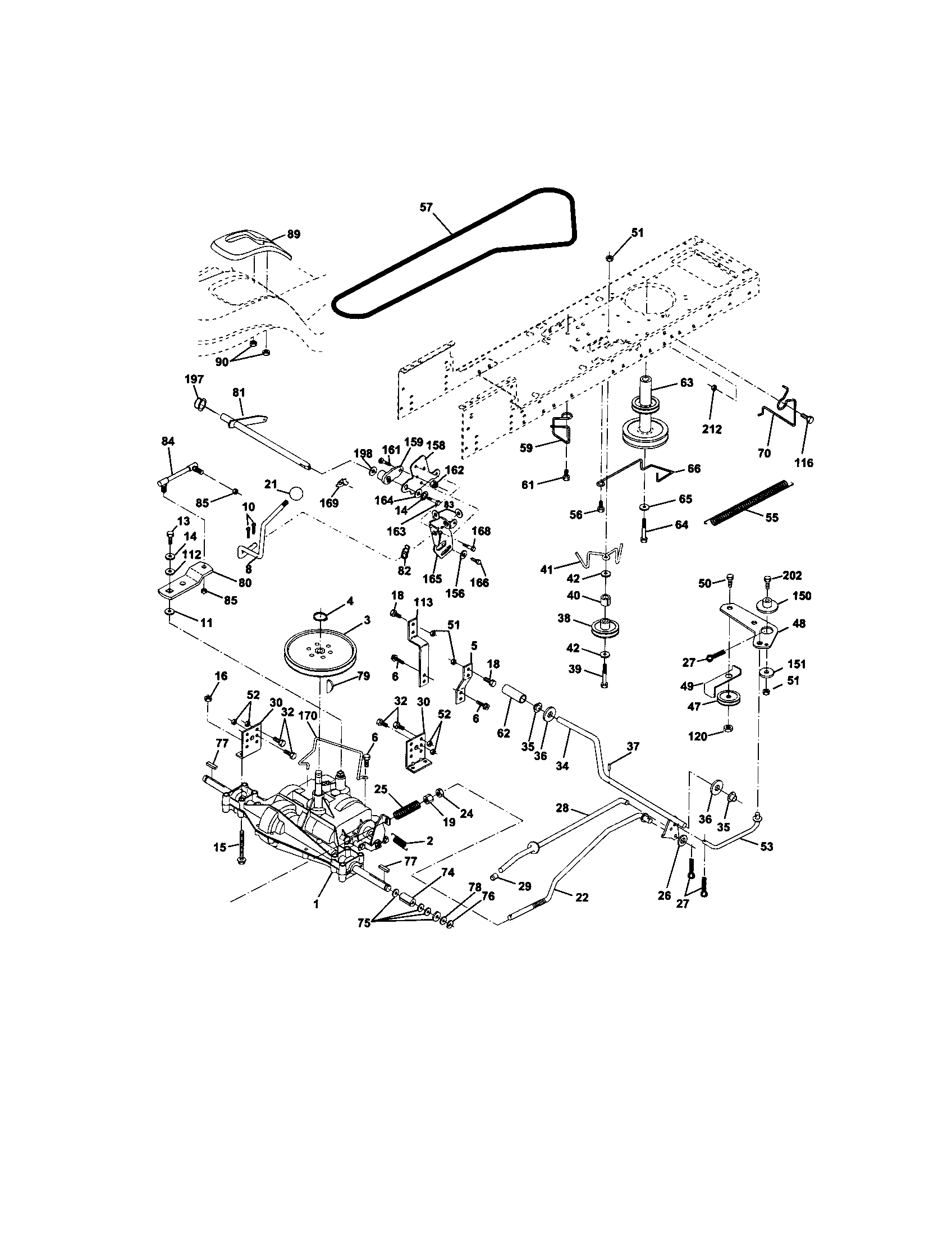

Ground drive	Slipping, no movement, squeal	V-belt 532138255
Starting and keys	Lost key, worn key	Molded ignition key 532140403

Tips to avoid ordering the wrong part

• Do not order by tractor series name alone; 917271632 is the match that matters
• For belts, measure the old belt and confirm routing; a belt that is slightly off can slip or jump
• For blades, confirm deck compatibility and blade mounting style before ordering
• For hardware (nuts, clips, caps), match thread size and type; many look similar but fit differently

Why it matters

Riding mower parts are highly model-specific; using the correct diagram callout and model number prevents fit issues, reduces downtime, and helps protect key systems like the mower deck mandrels and the ground drive.

Last updated: February 2026

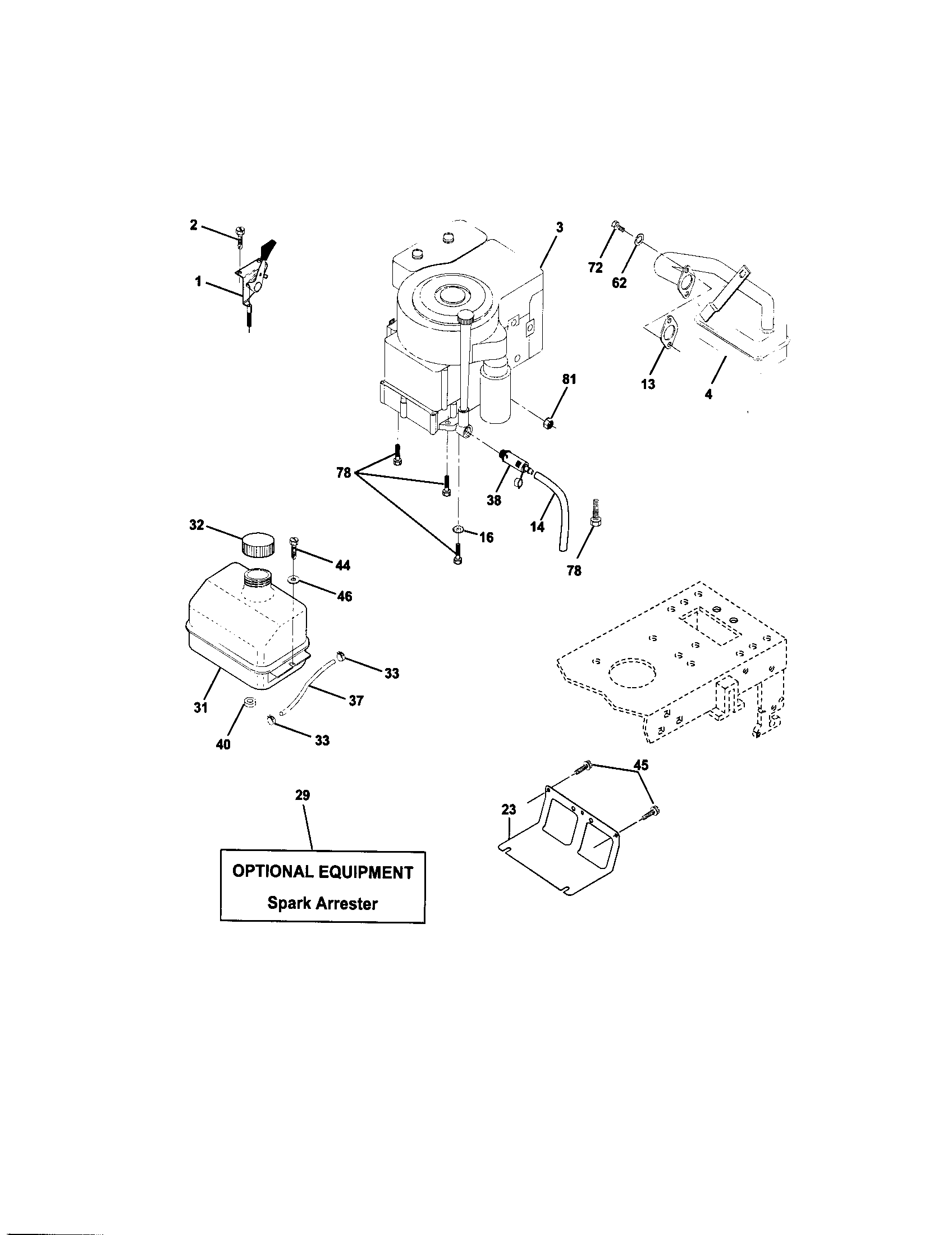

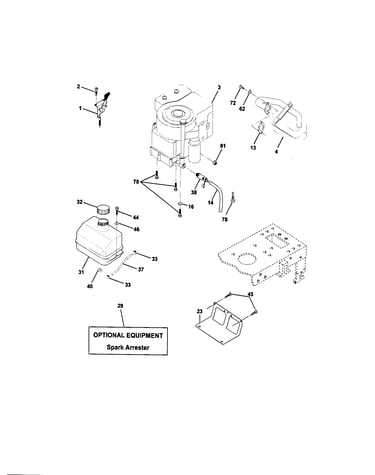

Craftsman uses engines from multiple manufacturers across different mower and tractor models. For Craftsman lawn tractor model 917271632, our 917271632 owner's manual identifies it as a 16.5 HP tractor but does not name a specific engine brand; the exact engine maker is best confirmed by the engine ID label on your tractor.

How to identify the engine brand on your 917271632

Check the engine itself, not the hood or tractor decals. Use these quick checks:

• Look for an engine data plate (often on the blower housing, valve cover area, or near the starter)
• Record the engine model, type, and code/spec numbers
• Match the label format to common makers (Briggs & Stratton, Kohler, Kawasaki are common across the category)
• If the label is dirty, wipe it and use a flashlight; numbers are often lightly stamped
• Use the engine numbers when ordering engine-specific items (spark plug, air filter, fuel filter)

Why the engine brand can vary (and why it matters)

Craftsman is a brand used across many production years and suppliers. The tractor model number (917271632) tells us the chassis and configuration; the engine brand determines the correct tune-up parts and some service procedures.

What we can confirm from the manual for model 917271632

The manual confirms key tractor configuration details that help narrow parts and service steps:

Item	What we know for 917271632	Why it matters
Tractor type	Front-engine lawn tractor	Helps match maintenance and repair procedures
Power rating	16.5 HP	Useful for general capability and service context
Mower deck	42-inch mower	Helps match deck parts like blades and mandrels

Related parts you may need once you identify the engine

If you are troubleshooting starting or doing seasonal maintenance, these model-matched parts are commonly involved:

• Molded ignition key 532140403 if the key is worn or missing
• V-belt 532138255 if the tractor will not drive properly
• Husqvarna lawn tractor mulching blade, 21-in 532134149 for deck cutting performance (verify blade style and quantity for your deck setup)

Why it matters

Ordering the right engine parts depends on the engine brand and engine model code, while ordering many tractor and deck parts depends on the tractor model number 917271632.

Last updated: February 2026

Craftsman lawn tractor model 917271632 does not have a single built-in “model year”; it identifies the tractor family and parts list. To determine the year your specific tractor was built, we use the date code on the product identification label and confirm it against the information in the owner's manual.

How to find the build date on your tractor

On most Craftsman front-engine lawn tractors, the build date is shown on the product ID label (often under the seat, on the frame near the rear fender, or near the engine area).

• Locate the product identification label (model and serial information)
• Write down the serial number and any date code printed on the label
• Look for a 6-digit date-style code (common formats vary by production run)
• Compare what you find to the identification guidance in the owner's manual
• Use the confirmed date to choose the right parts (belts, blades, steering, and chassis items)

Common date-code patterns you may see

Different production runs can use different formats. Here are the most common patterns we see on riding mowers and lawn tractors:

What you see on the label	What it usually means	Example interpretation
6 digits that look like MMDDYY	Month, day, year	072811 = July 28, 2011
4 digits that look like YYWW	Year and week of year	1128 = 2011, week 28
Serial number only	Year is embedded in serial	Use the manual’s ID section

Why it matters

The correct year or build date helps match parts that changed during production, especially on deck and drive components. For example, the correct ground drive belt length and deck hardware can vary by build.

If you are replacing wear items, we recommend matching by model number 917271632 plus the exact part ID. Common examples include the v-belt 532138255 and the molded ignition key 532140403.

Last updated: February 2026

Common problems on the Craftsman 917271632 lawn tractor include no-start or weak-crank issues, loss of power, excessive vibration, uneven cutting, and mower blades that will not rotate. Our owner's manual troubleshooting chart points to frequent causes like dirty air filters, stale fuel, low oil, loose or worn blades, and belt or mandrel problems.

Most common symptoms and what usually causes them

• Engine cranks slowly or will not start: weak battery, dirty terminals, loose wiring, bad solenoid or starter
• Loss of power: dirty air filter, low or dirty oil, stale fuel, clogged cooling fins, carburetor out of adjustment
• Excessive vibration: worn, bent, or loose blade; bent blade mandrel; loose hardware
• Poor or uneven cut: deck out of level, grass buildup under the deck, bent mandrel, worn blade
• Blades will not rotate: obstruction in clutch mechanism, worn drive belt, frozen idler pulley, frozen blade mandrel

Quick checks we recommend before replacing parts

1. Park on a flat surface, set the parking brake, remove the key, and let hot parts cool.
2. Inspect under the mower deck for packed grass and debris; clean it out.
3. Check blade tightness and condition; a bent blade can cause vibration and a rough cut.
4. Verify the deck is level and tire pressure is even side-to-side.
5. If blades do not engage, inspect the belt path and pulleys for binding.

Parts that commonly solve these problems on model 917271632

If your symptoms match the items above, these model-matched parts are common fixes:

Symptom	Likely wear item	Example part for this model
Blades will not rotate	Mower drive belt worn/damaged	V-belt 532138255
Excessive vibration or uneven cut	Bent or worn blade	Husqvarna lawn tractor mulching blade, 21-in 532134149
Loud deck noise, poor cut, vibration	Worn mandrel components	Husqvarna lawn tractor mandrel assembly 532130794

Why it matters

Catching these issues early helps protect the mower deck, mandrels, and engine. For example, running with a loose blade or worn belt can quickly turn a simple maintenance fix into a larger repair.

Last updated: February 2026
