Craftsman 917271645 lawn tractor Parts

Craftsman model 917271645 is a specific model number used on the tractor’s documentation and parts breakdown; the most reliable way to pin down the exact build year for your unit is to use the manufacturing date information on the tractor’s ID/serial label and confirm it against the owner's manual.

Look for the product identification label (commonly under the seat, on the rear fender pan, or near the frame). Once you find it, use these checks:

• Record the model number (should read 917.271645).
• Record the serial number exactly as printed.
• Look for a date code or manufacture date line on the label.
• If the label is dirty or faded, clean it gently and take a photo for zooming.
• Match what you find to the identification guidance in the owner's manual.

The documentation for this tractor identifies it as an electric start 42-inch mower automatic lawn tractor and lists the model as 917.271645. That confirms you have the correct model family for parts and diagrams, even if the label is missing or hard to read.

Craftsman tractors can look very similar across multiple production runs, but parts can change by year and serial range (for example, deck hardware, mandrel components, belts, and electrical parts). Using the exact build information helps ensure you order the right replacement parts the first time.

• Mower deck mandrel and pulley setup

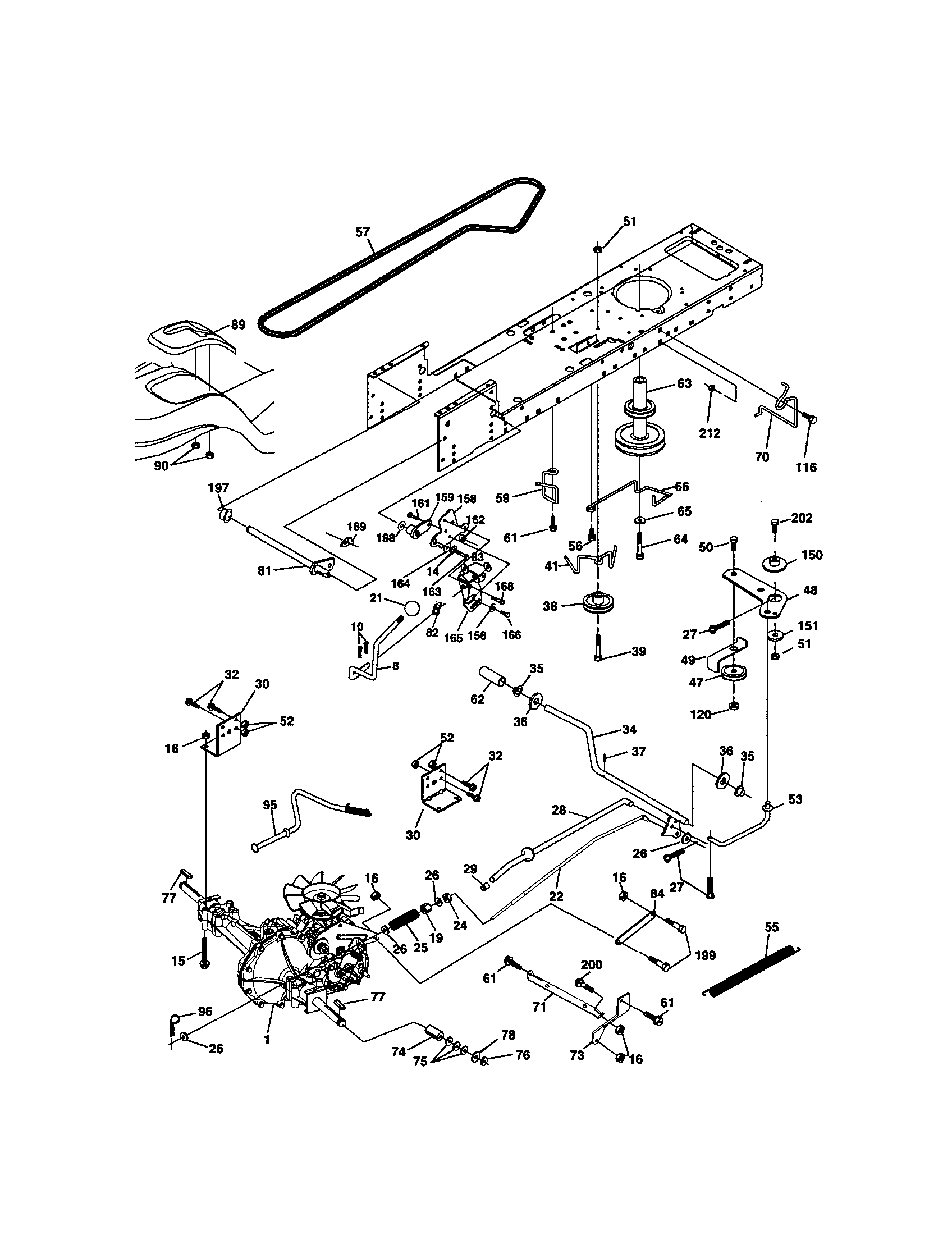

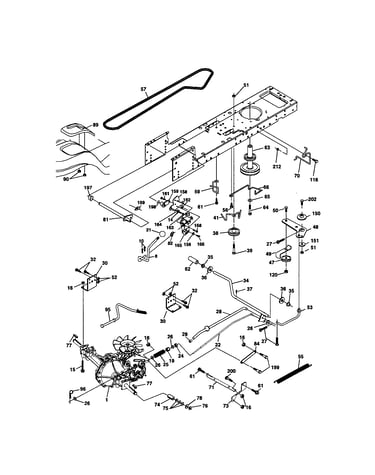

• Ground drive belt routing and length

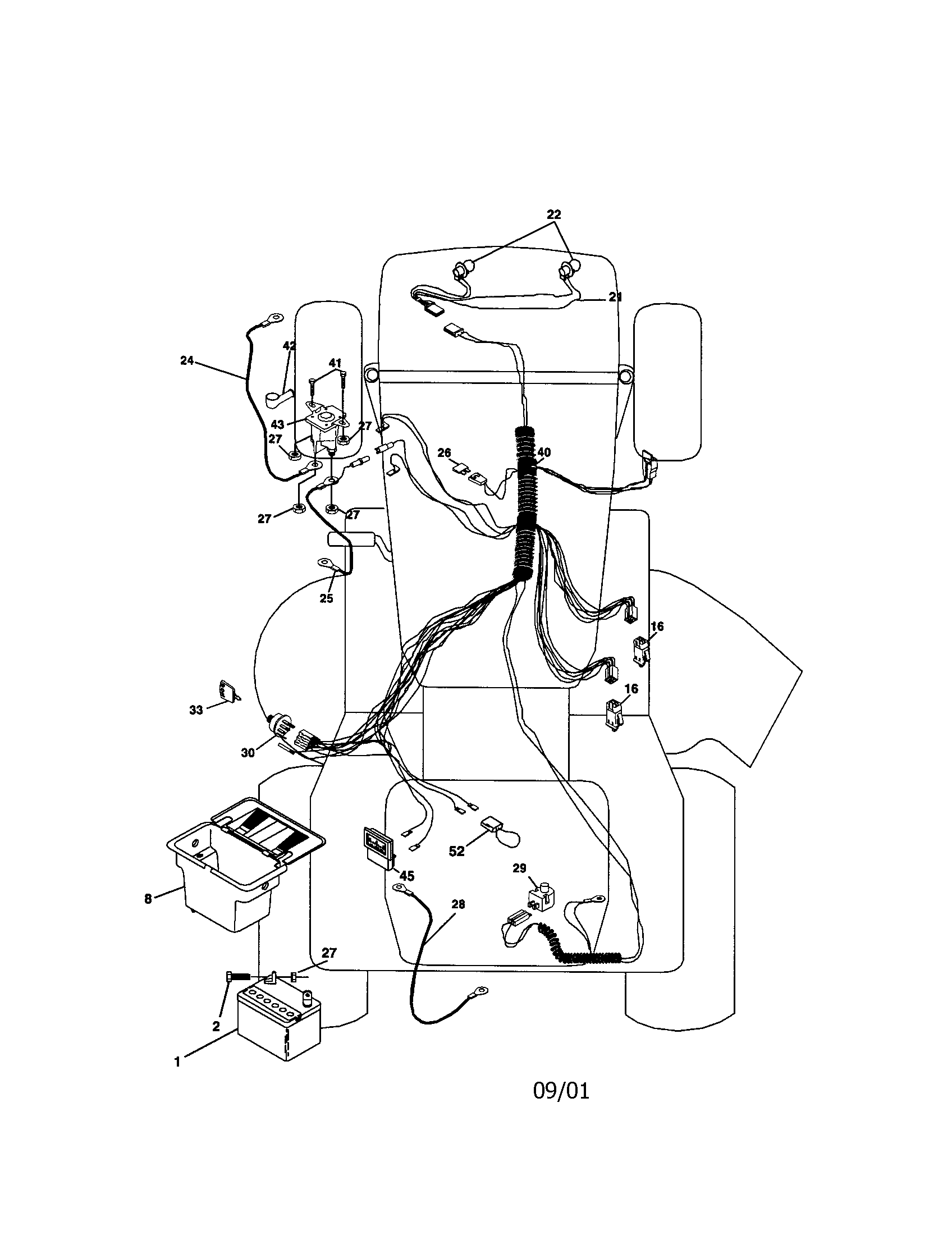

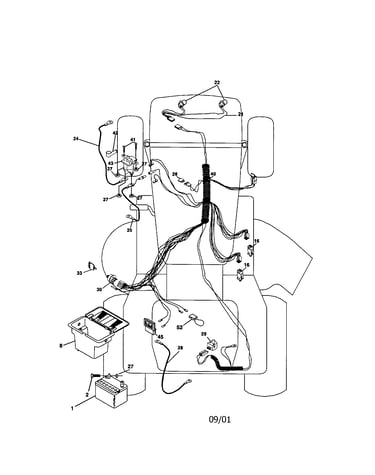

• Starter solenoid and wiring connectors

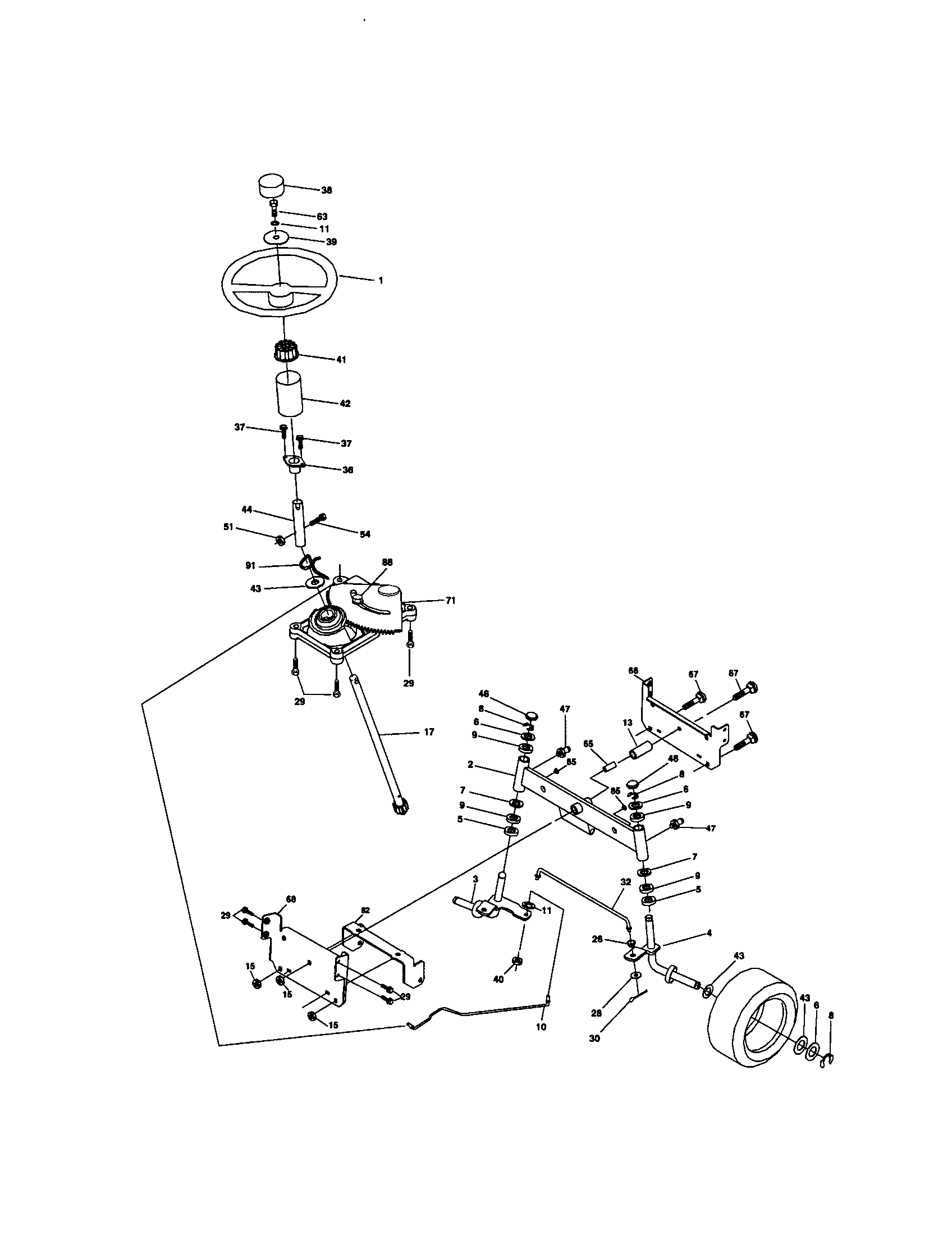

• Steering linkage and front axle hardware

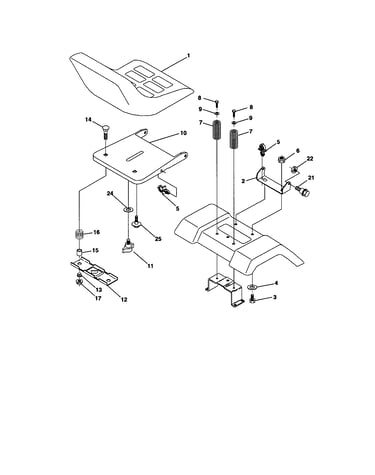

• Seat switch and safety interlock components

Last updated: February 2026

For the Craftsman 42-inch riding mower shown in this parts list, the model number is 917.271645 (often written without the dot as 917271645). You’ll see this model number on the tractor’s ID label and on the cover of the 917271645 owner's manual.

Check these common locations on Craftsman riding mowers:

• Under the seat on the fender pan
• On the frame near the engine compartment
• On the rear of the tractor near the hitch plate
• On a label under the hood (varies by build)

Craftsman model numbers are commonly shown in two formats; both refer to the same tractor.

Using the exact model number ensures you get the right diagrams and parts for your 42-inch mower deck and engine setup. For example, this model’s 42-inch deck uses parts such as the husqvarna lawn tractor mulching blade, 21-in 532134149 and the vented mandrel shaft assembly 532137646, which are matched to the deck design listed for model 917.271645.

Before ordering, we recommend confirming:

• The model number matches 917.271645 on the ID label
• The deck size is 42 inches
• The part description matches what you’re replacing (blade, mandrel, belt, etc.)

Last updated: February 2026

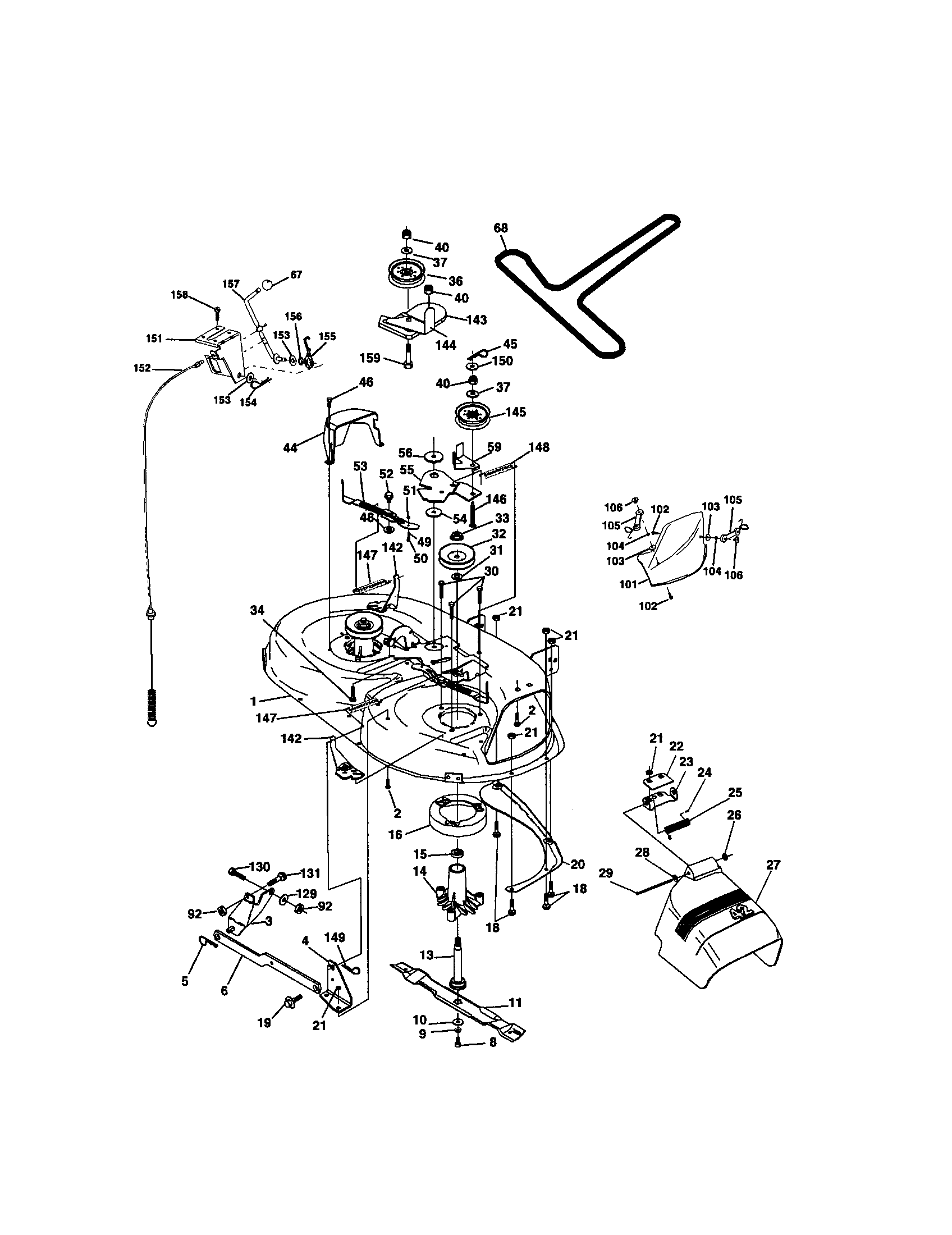

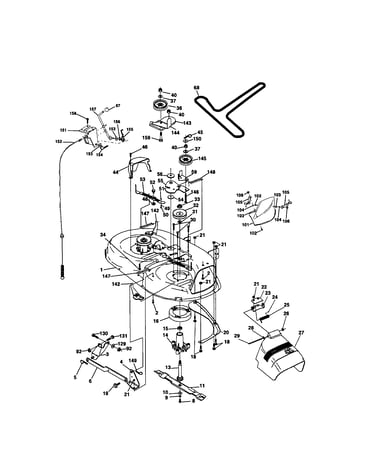

The Craftsman lawn tractor model 917271645 uses a 42-inch mower deck (42-inch cutting width). You can confirm the deck configuration and related deck parts in the owner's manual.

On model 917271645, the manual’s mower deck parts list calls out a “Mower Deck Assembly, 42"” (deck assembly part number 165892). That deck assembly size corresponds to the tractor’s deck cut width.

• Look under the tractor for the deck tag or stamping that lists deck size.
• Measure blade tip-to-tip across the deck (with the engine off and key removed).
• Count blades: most 42-inch decks use two blades.
• Match your blade and mandrel parts to the 42-inch deck diagram.
• Compare your deck shell shape and discharge opening to the manual’s illustration.

These parts are listed for the 917271645 mower deck in the manual and are commonly replaced during deck service:

Deck size affects blade selection, belt routing, leveling specs, and cut quality. Ordering the wrong deck parts (especially blades, mandrel components, or deck shell parts) can cause poor cutting performance and fit issues.

Last updated: February 2026

For a Craftsman riding lawn tractor like model 917271645, a full engine replacement typically costs about $800 to $2,500 installed (engine plus labor). The biggest cost drivers are the engine type, whether the replacement is a direct bolt-on, and how much teardown is required.

• Engine type and horsepower: single-cylinder engines usually cost less than V-twins.
• Shaft size and crank orientation: mismatches add parts and labor.
• Wiring and charging system: adapting connectors, regulator, or alternator adds time.
• Fuel system condition: old fuel lines, dirty tank, or carb issues can add parts.
• Deck and chassis access: some tractors require more disassembly to pull the engine.

Many “dead engine” symptoms are caused by starting or safety interlock issues, not a failed engine. We recommend checking these first:

• Battery charge and cable connections
• Starter solenoid operation (a click with no crank is a common clue)
• Seat switch and brake/attachment interlock function
• Engine turns freely by hand (with ignition disabled)
• Fuel quality and basic tune-up items

If you are troubleshooting a click-no-crank condition, use our DIY steps in riding lawn mower engine clicks but doesnt turn over video.

Even when you replace the engine, you often end up renewing wear items that affect drive and cutting performance:

• Lawn tractor ground drive belt, 1/2 x 82-in 532140294 if the tractor has loss of drive or a slipping transmission belt
• Solenoid with brass plunger 532146154 if the starter circuit is intermittent
• Husqvarna lawn tractor mulching blade, 21-in 532134149 if blades are worn or damaged

An engine swap is one of the highest-cost repairs on a riding mower. Verifying the starting system and safety interlocks first can prevent replacing a good engine and can get your Craftsman 917271645 back to mowing faster.

For model-specific safety and service guidance, follow the procedures in the owner's manual.

Last updated: February 2026

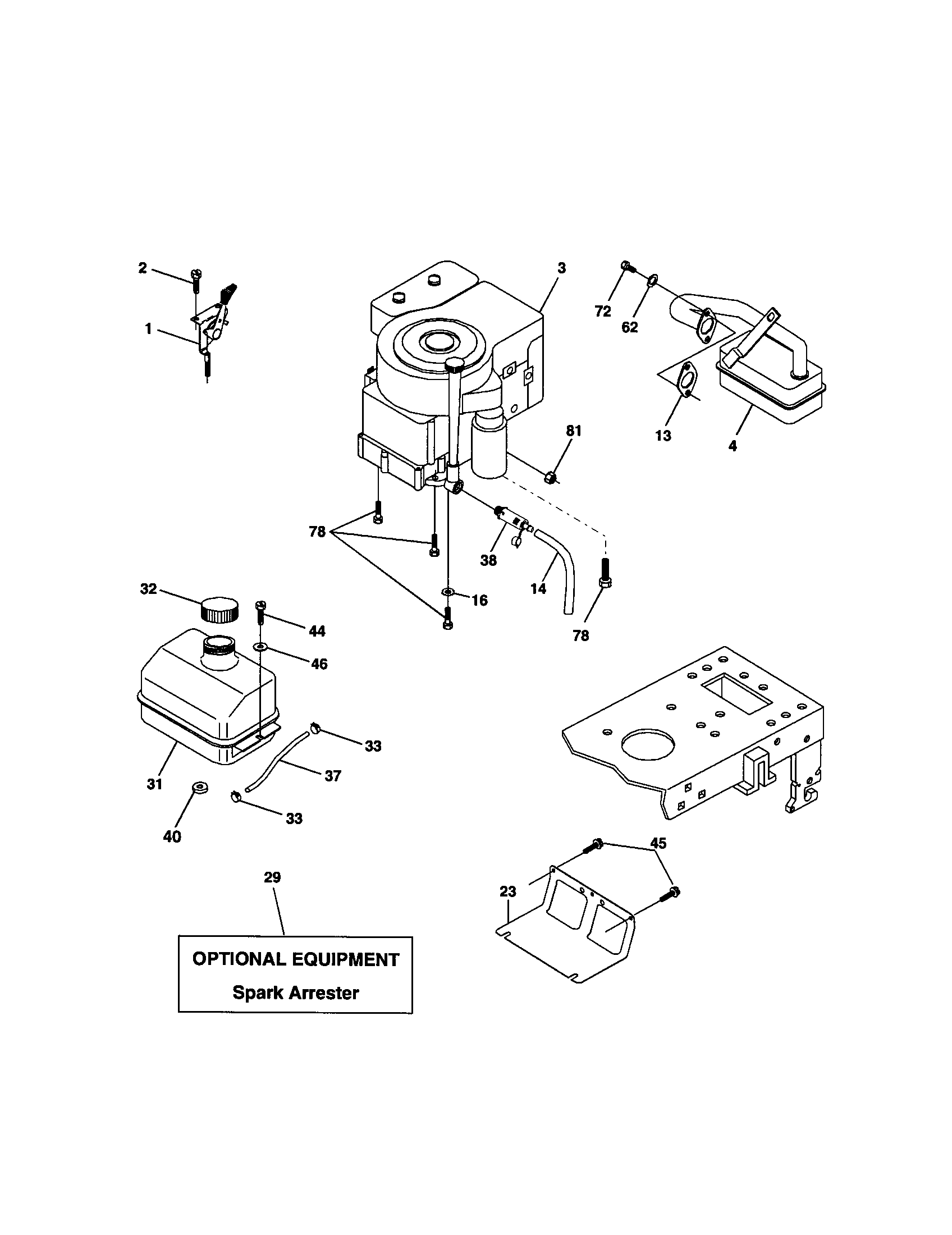

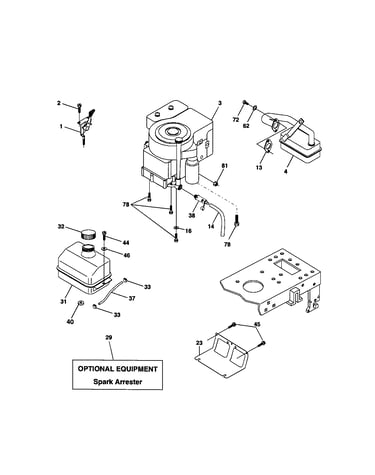

Craftsman lawn tractor model 917271645 uses a single-cylinder, gasoline engine (electric start). The exact engine manufacturer, horsepower, and the engine model/type/code are identified on the engine ID label and in the Product specifications section of the 917271645 owner's manual.

Use the engine ID label first; it is the most precise way to match tune-up and repair parts.

• Engine model (example format: “31xxxx”)
• Type (build configuration)
• Code (date code)
• Displacement (cc) and emissions family (often on a second label)
• Horsepower rating listed in the tractor specs

On most Craftsman front-engine tractors, the label is easy to spot once the hood is raised.

• Raise the hood and look on the blower housing (recoil shroud area)
• Check near the valve cover or above the spark plug
• Look for a metal tag or durable sticker with model/type/code
• Clean gently with a rag so the numbers stay readable

Many Craftsman tractors share the same 42-inch platform, but engine variations change the correct maintenance parts and starting components. If you are diagnosing a click-no-crank issue, the starter circuit commonly involves the solenoid with brass plunger 532146154.

Last updated: February 2026
