KitchenAid KDTM384ESS0 dishwasher Parts

On KitchenAid dishwasher model KDTM384ESS0, the most commonly replaced parts are the wash and drain components (valves, pumps, hoses), door sealing and latching parts, and rack hardware that wears from daily loading. Regular filter cleaning and correct installation practices help prevent repeat failures; see the KDTM384ESS0 owner’s manual for care steps.

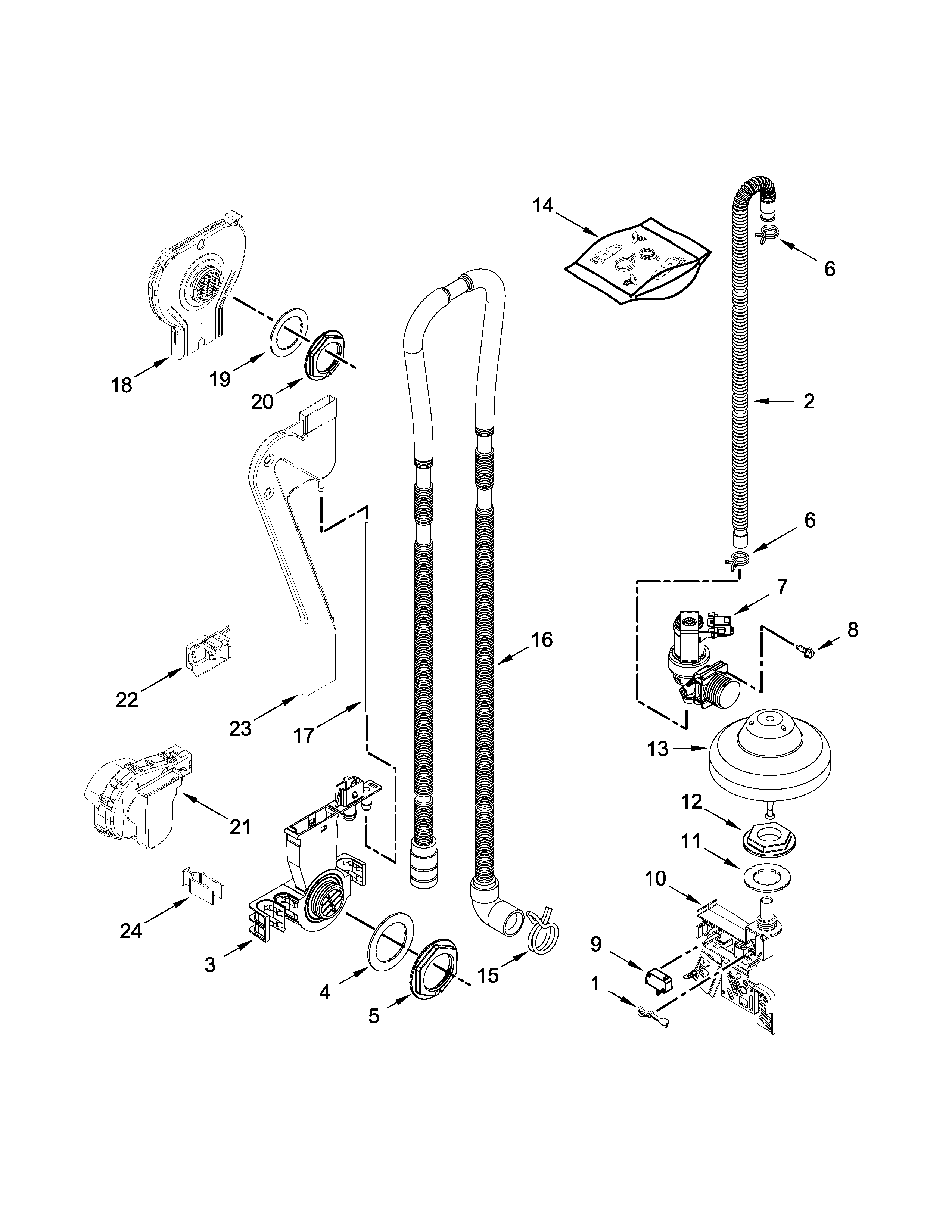

• Water fill problems: dishwasher water inlet valve W11175771 (no fill, slow fill)
• No heat or poor drying: heating element (long dry times, cool water)

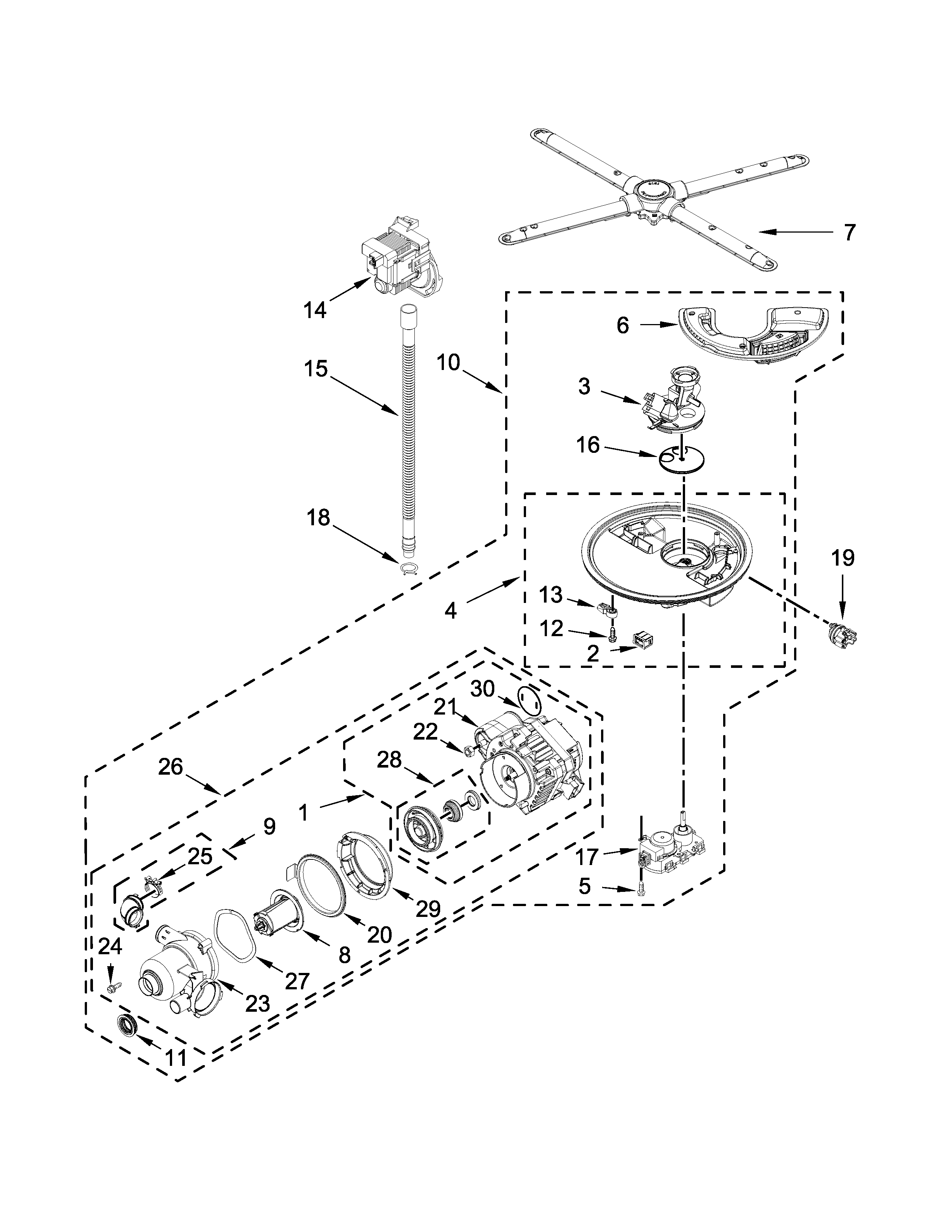

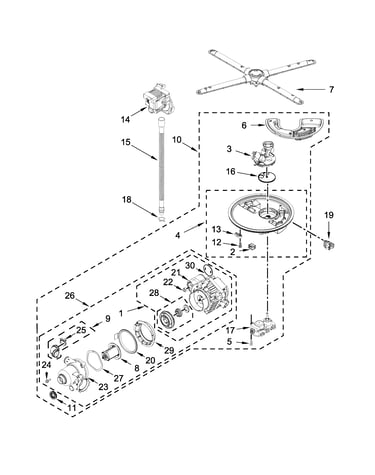

• Won’t drain: drain hose, drain path clogs, pump issues

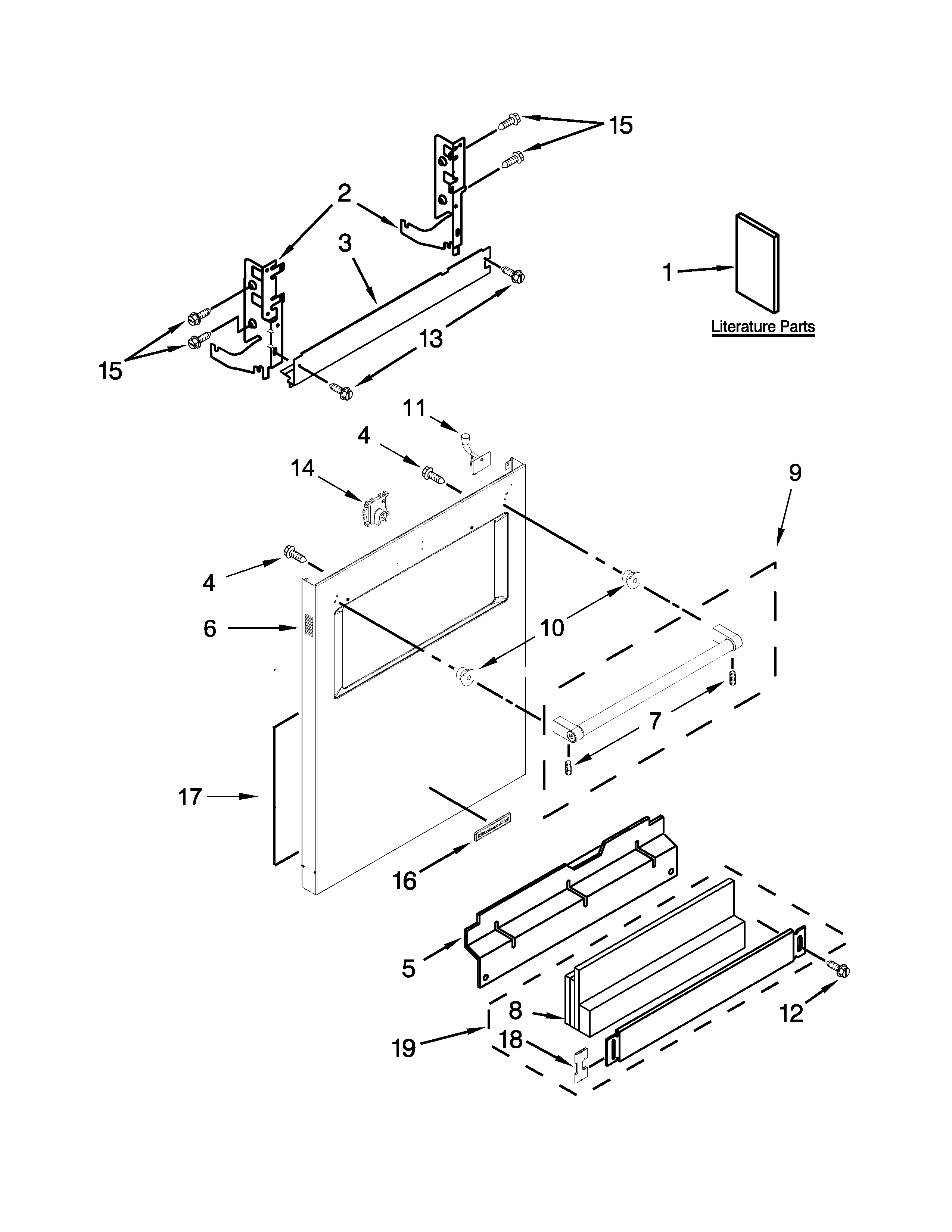

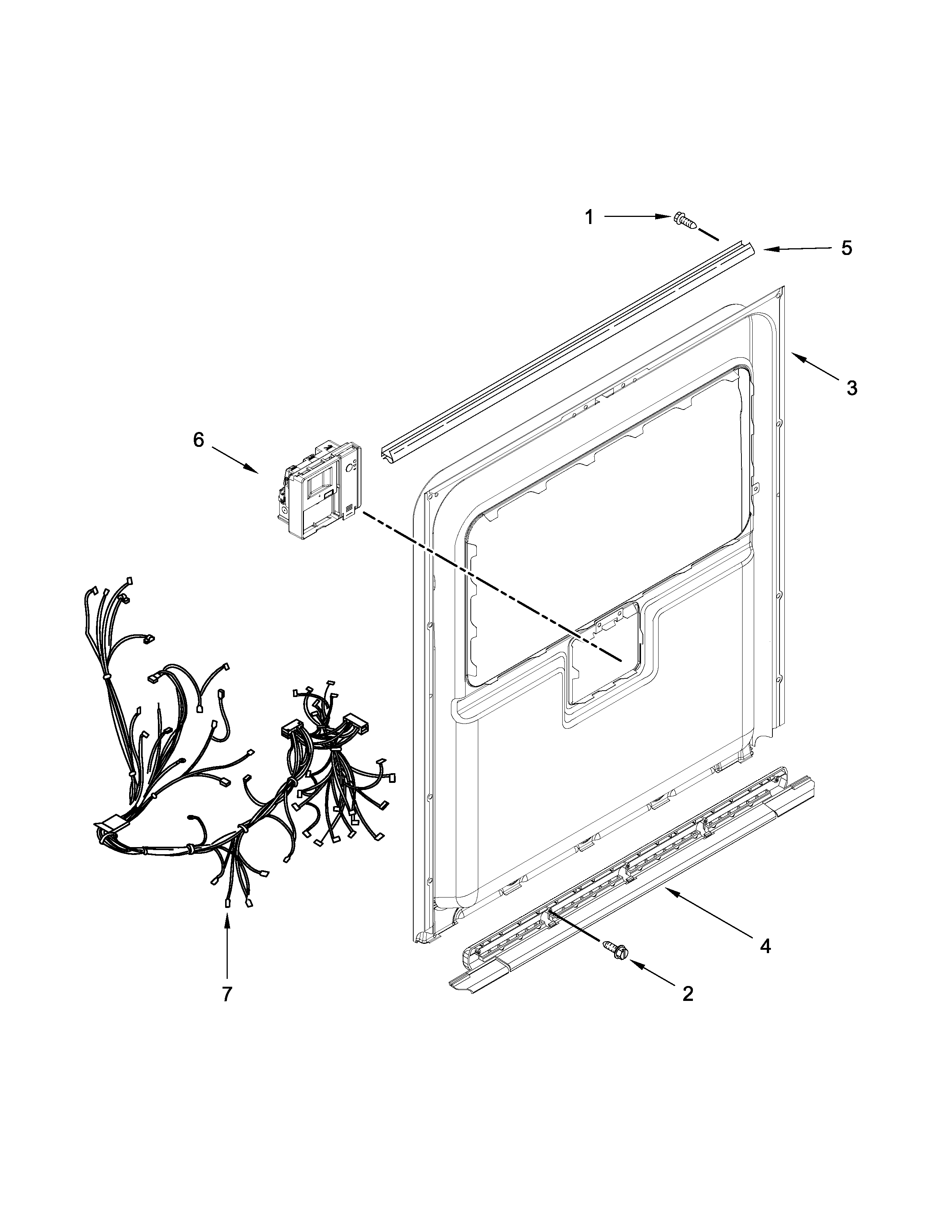

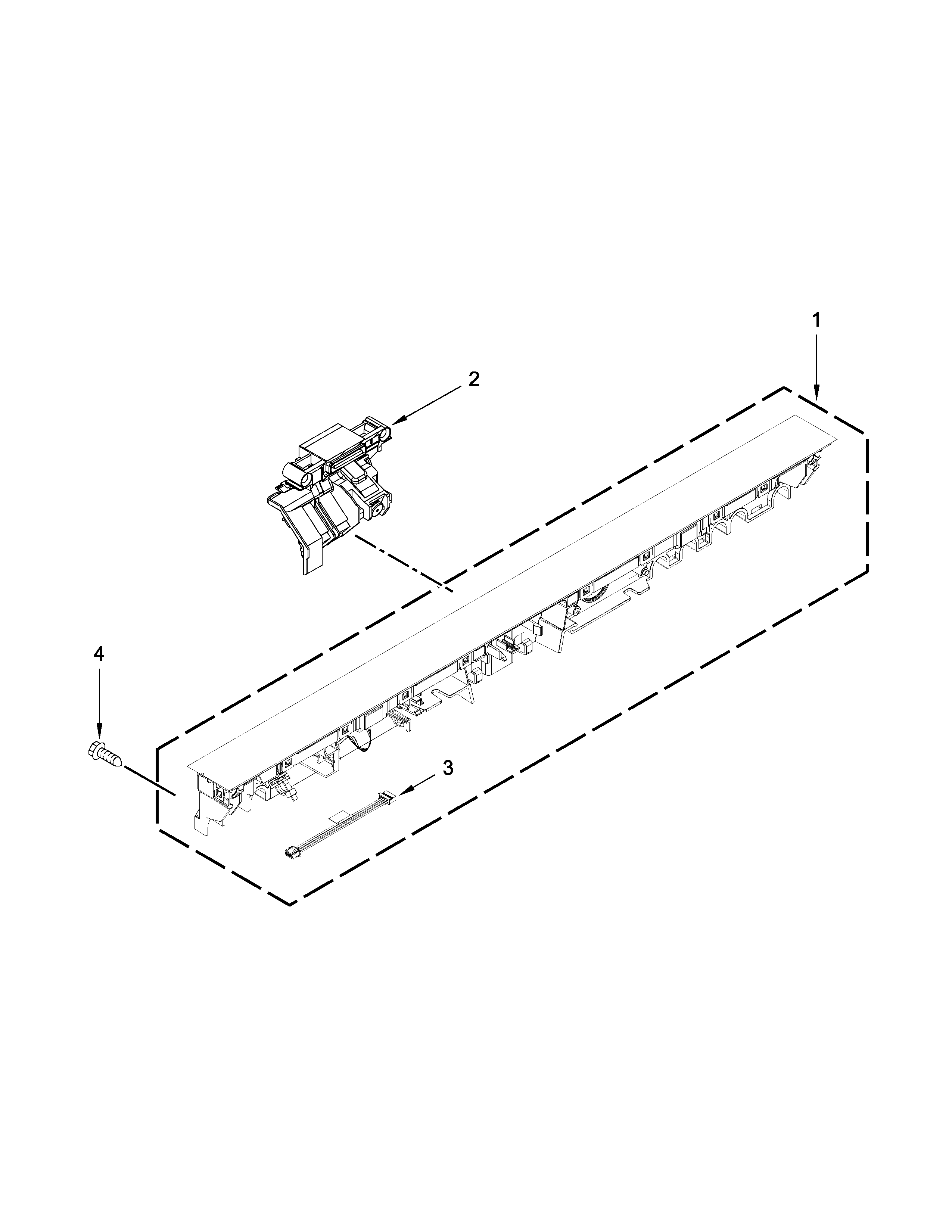

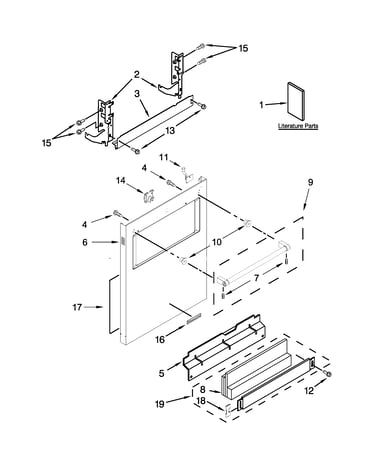

• Door won’t latch or leaks: latch, lower door seal, door balance parts

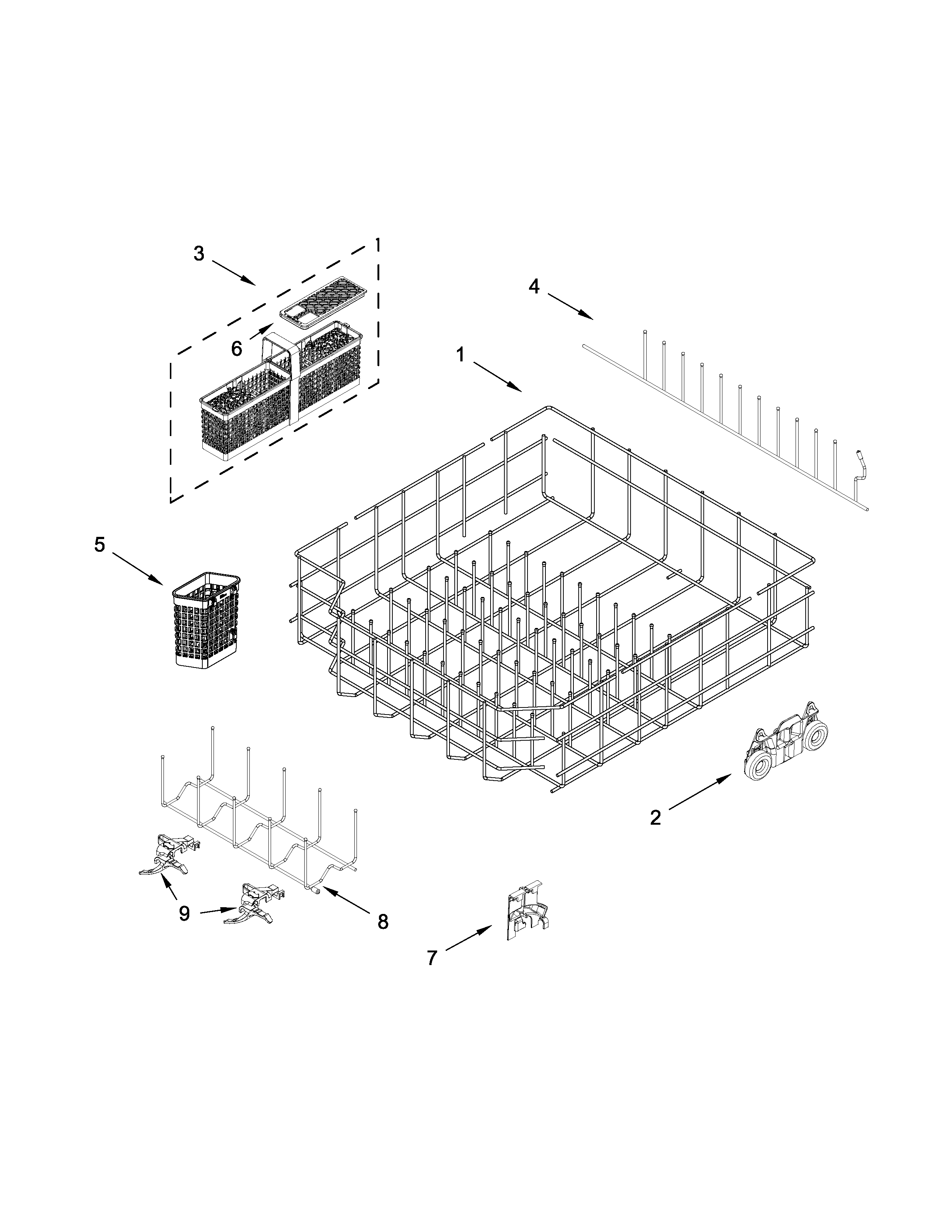

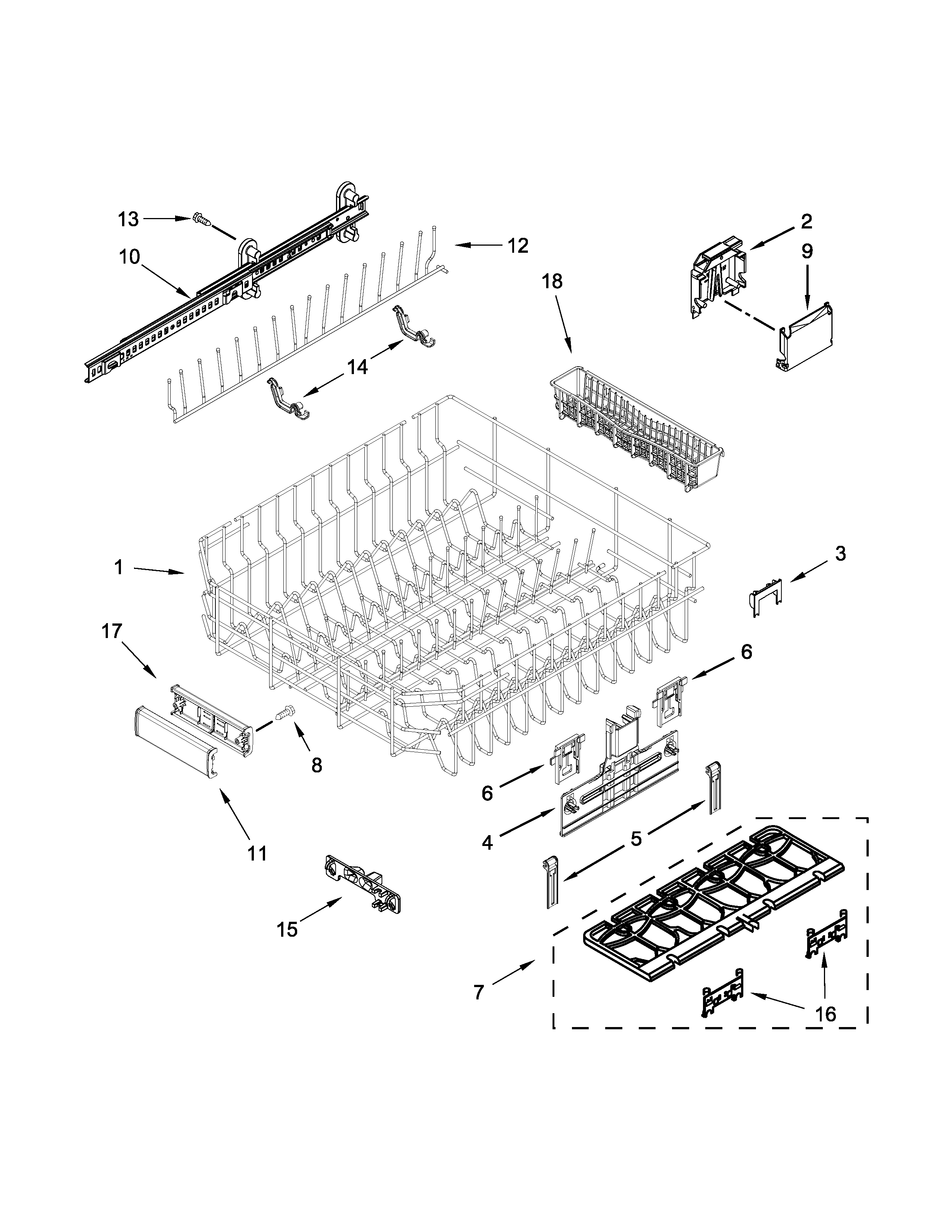

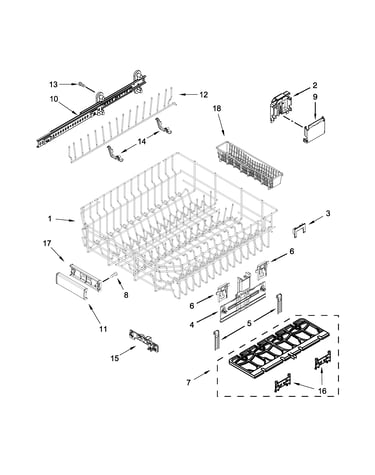

• Rack won’t roll or adjust: rollers, adjusters, slide rails, clips

These are common wear items we see replaced on this model:

• Clean and reinstall the filters correctly; the upper filter must lock in place (it should not spin freely).
• Confirm the drain hose is routed correctly (high loop under the counter or air gap when required).
• Make sure the drain connection ties in above the drain trap.
• Avoid blocking the detergent dispenser with tall items in the rack.
• Use the installation requirements for electrical and hose routing in the KDTM384ESS0 installation guide.

Dishwashers often show the same symptoms for different causes (for example, “not drying” can be heat-related, filter-related, or loading-related). Starting with filter care and correct drain routing reduces clogs, standing water, odors, and repeat leaks.

Last updated: February 2026

The most common issues we see with KitchenAid dishwashers like model KDTM384ESS0 are cleaning problems (food left on dishes), draining problems (water left in the tub), and “won’t start” complaints caused by the door not latching or the Start/Resume sequence not being completed. For model-specific operating checks, use the KDTM384ESS0 owner's manual.

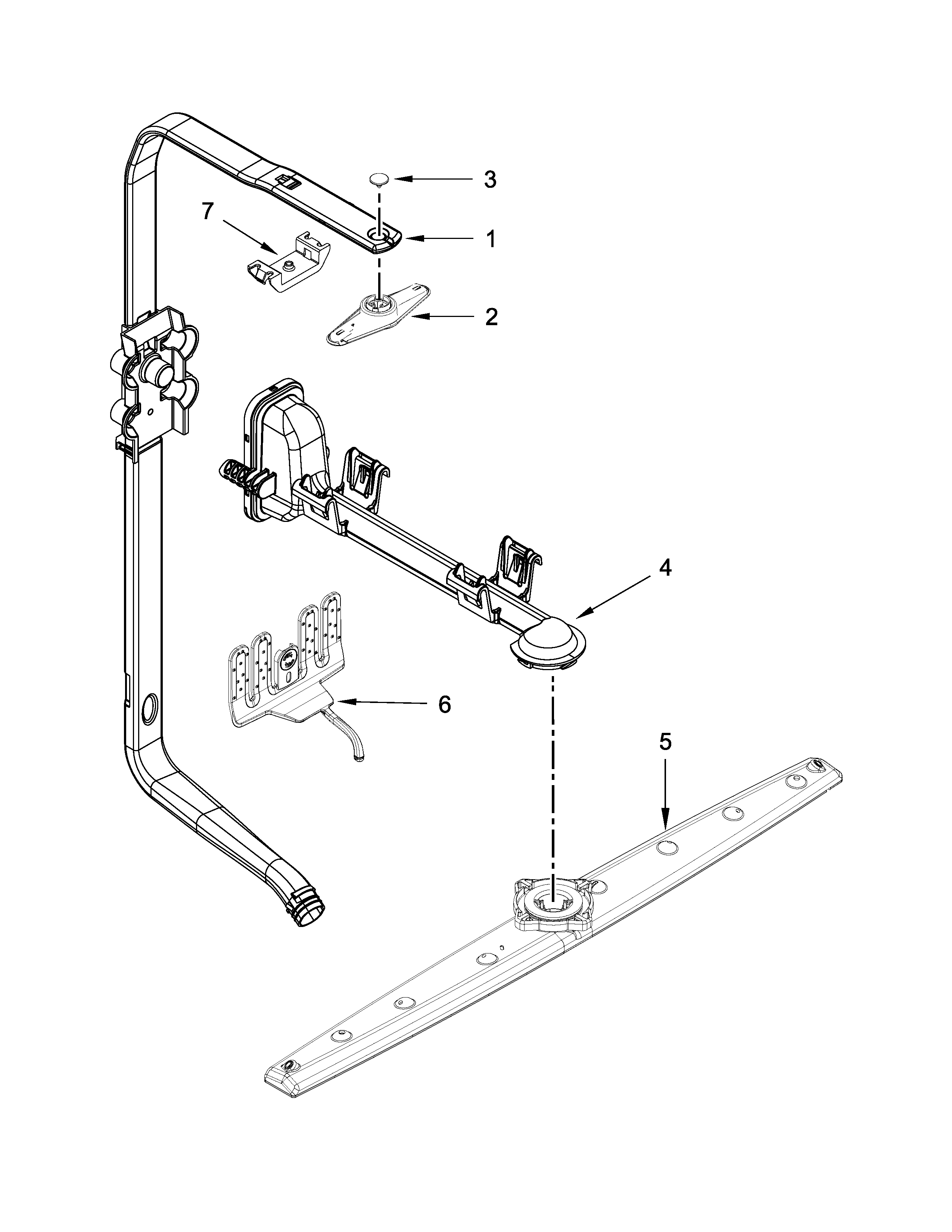

• Not cleaning well: clogged filter area, blocked spray arms, or loading that blocks water flow (especially around the rear wash system and spray arms).
• Not draining: restriction in the drain path (air gap or garbage disposal inlet), kinked drain hose, or a drain pump issue.
• Won’t start or stops right away: door not fully closed and latched, Start/Resume light blinking, or the door not being closed before the countdown ends.
• Not drying: heat option not selected, rinse aid empty, or heater circuit problem.
• Leaks: door seal wear, loose hose connections, or a tub-to-pump seal issue.

These steps solve a large share of “common problems” without replacing parts:

• Close the door firmly until it latches; if the Start/Resume light is blinking, close the door and press START/RESUME.
• If the control counts down and beeps, close the door before the countdown ends so the cycle can begin.
• Confirm large dishes are not interfering with the wash system at the back of the tub.
• Run hot water at the sink before starting to improve wash performance.
• Clean the dishwasher and remove debris that can restrict water flow.

If the symptom matches, these are frequent repair items for this platform:

Most “KitchenAid dishwasher problems” are really water flow, heat, or door-latch confirmation issues. When the door is not latched or water cannot circulate and heat correctly, you get the most common complaints: dirty dishes, standing water, and cycles that will not start.

Last updated: February 2026

Yes. For KitchenAid dishwasher model KDTM384ESS0, we can replace many common parts ourselves if we shut off power and water first and follow the step-by-step procedures in the KDTM384ESS0 installation guide. For electrical or leak-related repairs, we use extra caution and test operation after reassembly.

Many mechanical rack and door items are straightforward; electrical and water-supply components take more skill.

• Good DIY: rack rollers, rack adjusters, door latch alignment checks
• Intermediate: door balance and spring tension adjustments, drain hose routing
• Advanced: control board diagnostics, inlet valve replacement, motor or sump repairs
• Stop and call service: tripping breaker, burning smell, active leaking you cannot locate quickly

The installation instructions emphasize safe electrical connection and basic “does not operate” checks.

• Turn off the dishwasher circuit at the breaker (or unplug if corded)
• Shut off the water supply valve
• Protect the pump area when working with the door open so screws do not fall into the sump
• Avoid pinching or kinking the water line, drain hose, or power cord when sliding the unit
• Plug only into a grounded 3-prong outlet (no adapter or extension cord)

If the symptom matches, these model-listed parts are typical DIY wins:

DIY replacement can restore cleaning and reliability quickly, but dishwashers combine water, electricity, and tight cabinet clearances. Following the correct attachment, leveling, and post-repair test steps helps prevent leaks, door issues, and repeat failures.

Last updated: February 2026

A KitchenAid dishwasher typically lasts 10 to 14 years. For your KitchenAid KDTM384ESS0, lifespan depends most on how often you run it, water quality, and routine care; longer, energy-saving cycles (often 2 to 3 hours) are normal and help reduce wear from repeated starts.

• Water quality: hard water speeds up mineral buildup and can reduce cleaning and drying performance
• Maintenance habits: regular cleaning helps prevent drain and wash issues
• Loading and detergent use: overloading and excess detergent can cause poor wash results and residue
• Door use: slamming or forcing the door can stress the latch and hinges
• Cycle selection: frequent heavy cycles add heat and run time, increasing overall wear

• Clean the filter and sump area on a regular schedule
• Use rinse aid consistently for better drying and to reduce hard-water deposits
• Run hot water at the sink before starting a cycle so the dishwasher fills with hotter water
• Keep spray arms clear of labels, seeds, and debris
• Fix small leaks quickly to prevent corrosion and electrical damage

Planning around a 10 to 14 year lifespan helps you decide when a repair makes sense. If the dishwasher is cleaning well and not leaking, routine maintenance and correct use often extend service life and reduce the chance of costly failures.

For model-specific operating and care details, follow the maintenance and cycle guidance in the KDTM384ESS0 owner’s manual.
