Dishwasher Detergent Dispenser W10861000

★★★★★★★★★★
5
7
4
3
3
0
2
1
1
2

Part #W10861000

Online price
$124.49
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

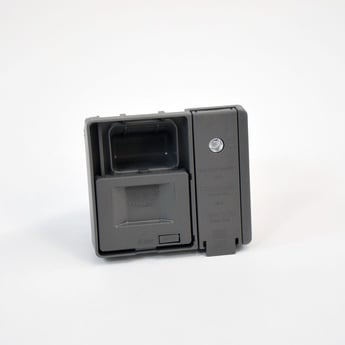

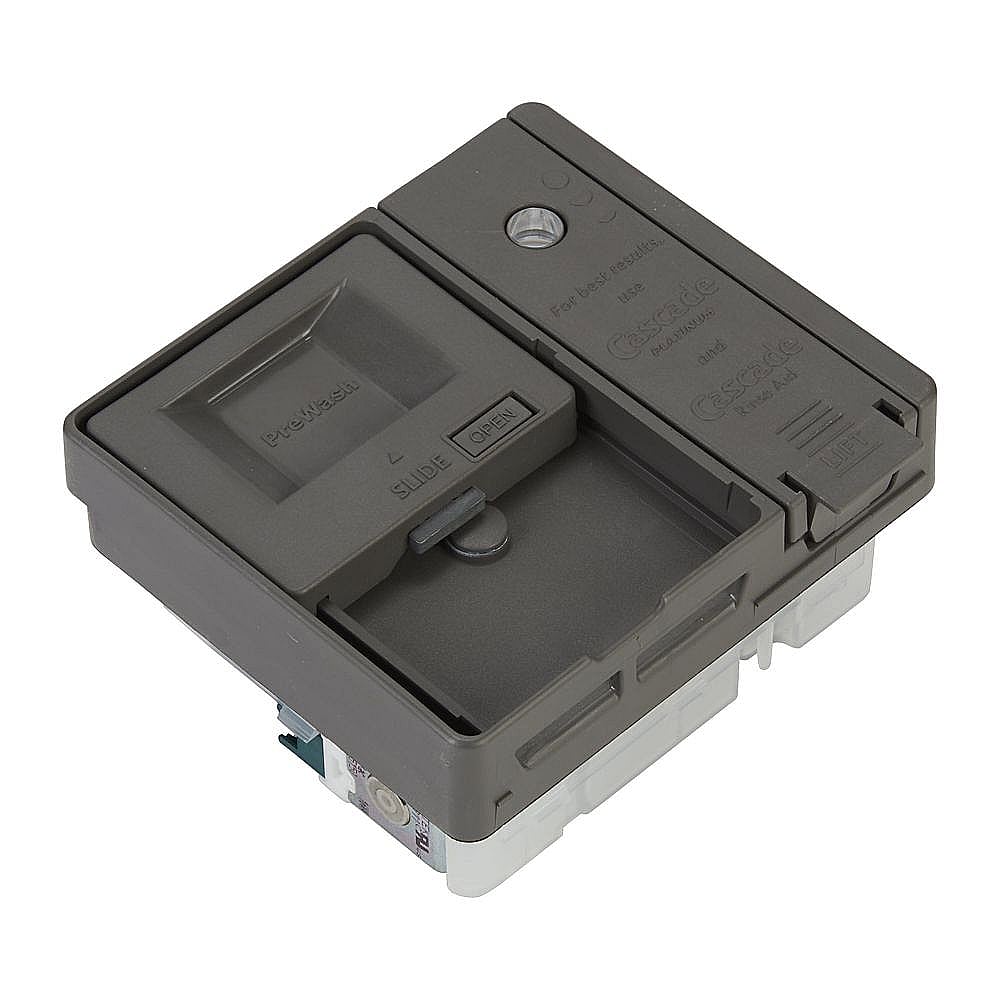

Detergent dispenser W10861000 is an original equipment manufacturer (OEM) part that fits some Whirlpool, KitchenAid, Maytag and Amana dishwashers.

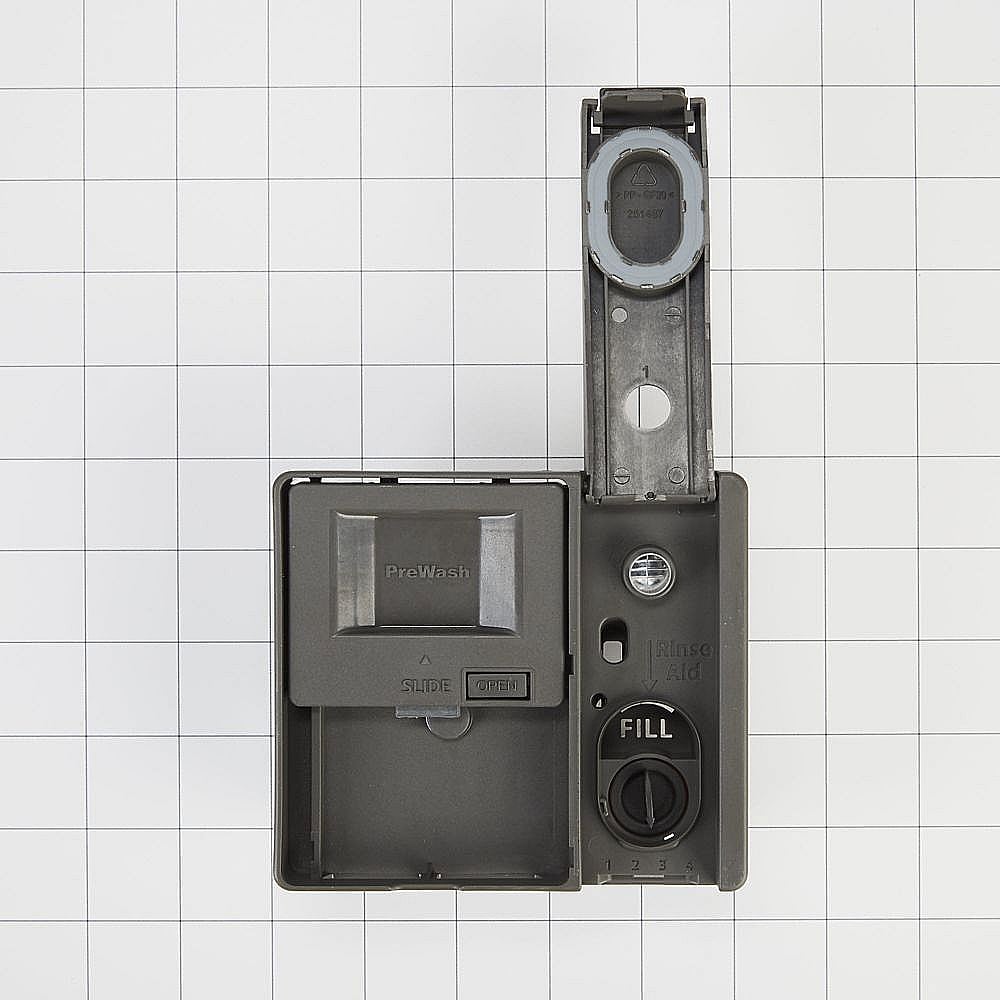

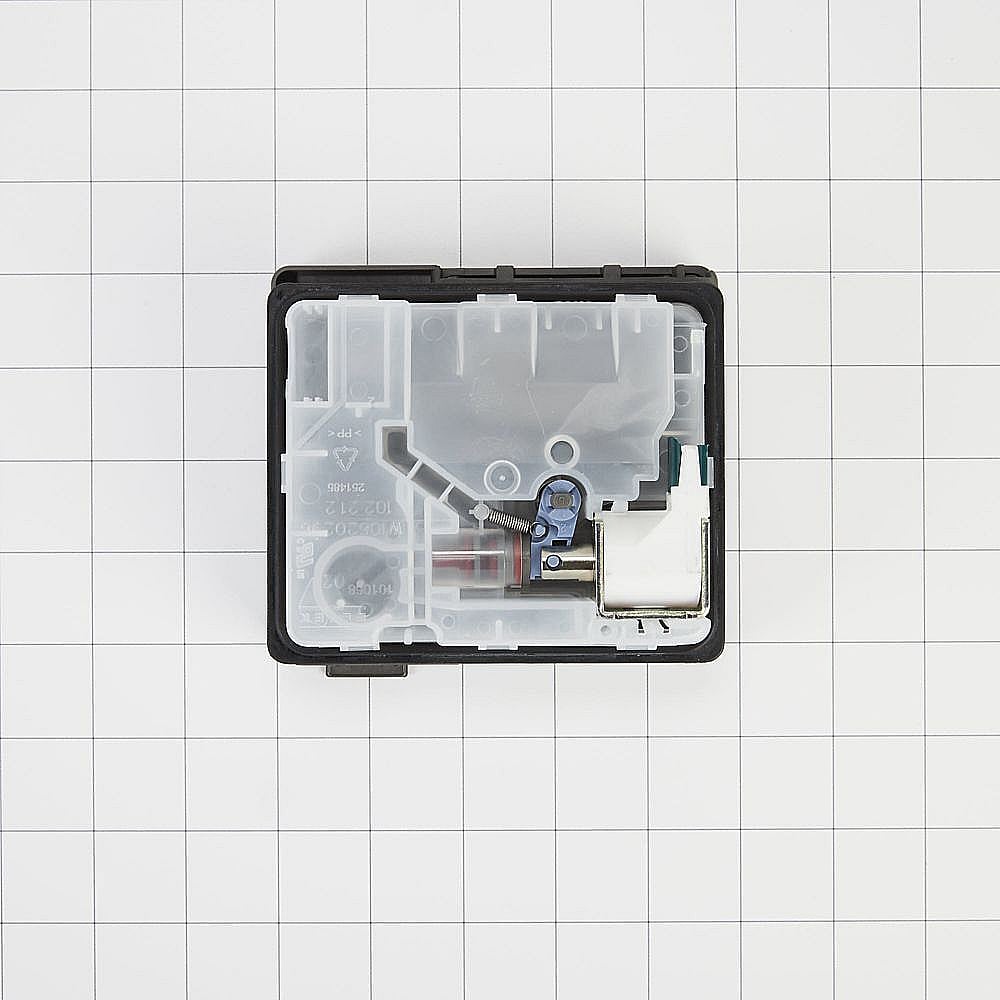

Detergent dispenser W10861000 attaches to the inner door panel and holds the dishwasher detergent and rinse aid in covered compartments.

This dishwasher detergent dispenser measures approximately 5 inches wide and 4.5 inches high.

Replaces original dishwasher detergent dispenser part numbers W10620296 and W10620298.

Fits some dishwashers in these series: Whirlpool WDF and WDT; KitchenAid KDFE, KDPE, KDPM, KDFE and KDTE; Maytag MDB; and Amana ADB1700.

Top models using the same part

Model NameModel NumberDiagram Name
Model #MDB7959SHZ0 Maytag dishwasherMDB7959SHZ0
Inner door parts
Model #ADB1700ADB3 Amana dishwasherADB1700ADB3
Inner door parts
Model #ADB1700ADS3 Amana dishwasherADB1700ADS3
Inner door parts
Model #KDTM354DSS5 KitchenAid dishwasherKDTM354DSS5
Inner door parts
Model #MDB7949SDE2 Maytag dishwasherMDB7949SDE2
Inner door parts
Model #KDFE104HWH1 KitchenAid dishwasherKDFE104HWH1
Inner door parts
Model #KDTE234GBL1 KitchenAid dishwasherKDTE234GBL1
Inner door parts
Model #MDB8989SHZ0 Maytag dishwasherMDB8989SHZ0
Inner door parts
Model #KDTE104EWH3 KitchenAid dishwasherKDTE104EWH3
Inner door parts
Model #MDB8959SFH1 Maytag dishwasherMDB8959SFH1
Inner door parts

Reviews

1-8 of 13 reviews
Chis5172
CoReviews 1Votes 0
★★★★★★★★★★
• 1 year ago
Chis5172• 1 year ago
Easy to install

You tube description very helpful. Easy to install and working perfectly.

Response from Sears PartsDirect:
MSO OFFLINE • 1 year ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears Parts Direct for your part needs!

Dick
PittsburghReviews 1Votes 0
★★★★★★★★★★
• 1 year ago
Dick• 1 year ago
Hasn't been installed yet.

Hasn't been installed yet. However, having watched a repairman installing one before, it looks straight forward.

Steve
Anchorage, AKReviews 1Votes 0
★★★★★★★★★★
• 1 year ago
Steve• 1 year ago
Good to go

Watched a YouTube video on the installation and it was super easy. Dishes are cleaner for sure now.

Irrsinn
San DiegoReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Irrsinn• 2 years ago
Perfect part

Perfect fit, super easy install. The dish washer works like new!!

Craig R
Carol Stream, ILReviews 1Votes 0
★★★★★★★★★★
• 3 years ago
Craig R• 3 years ago
Sears could improve the experience by.....

letting you know that the directions are on YouTube and where. I'll do it for them:

https://www.youtube.com/watch?v=nUeHU43LAiM&t=99s

Sears, you've got good directions on line, make them easy for customers to find and I won't have to call someone to have them tell me. You save money, I save time, and we are both happier.

Once you watch the directions, it's reasonably easy to install. The biggest sticking point is removing it from the door. Essentially there are 8 tabs (three each top and bottom, one each on each side) and you have to at least push away the top three and on side to start the tray removal and then work your way around. The video suggests using a putty knife and this is a good idea. I did it alone but if you have an extra pair of hands to hold the putty knife while you work around the other parts you might be well served.

Once it is removed, it's pretty easy to put back in. My dishwasher was slightly different in the way the wiring was attached and I didn't have to remove the handle like it said in the video but these are trivial differences. Now that it's installed, it works perfectly and I am not aware of how long it was probably failing before I replaced it.

I think that anyone with even low repair skills could figure this out and complete the repair. The video is good and helped a lot.

George--
Houston TXReviews 1Votes 3
★★★★★★★★★★
• 4 years ago
George--• 4 years ago
Fairly simple repair

Installing the detergent dispenser is a fairly simple repair as it is just inside the dishwasher door. You will need to have or buy a torx (star shaped) screwdriver. Then it is simply a matter of unplugging and removing the old dispenser, and inserting and connecting the new one.

A repair service was going to charge $400 for this repair, and I was able to do it for about $80 for the new detergent dispenser and another $20 for the torx screwdriver set.

Fixer dude
MaineReviews 1Votes 0
★★★★★★★★★★
• 4 years ago
Fixer dude• 4 years ago
OEM part at better prices

Had the part I needed at an approximate 30% better cost than direct from the manufacturer.

RonF
Oceanport, NJReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
RonF• 2 years ago
Installation

This part came with no instructions. You can find a video on youtube, but you have to pick the correct one: https://www.youtube.com/watch?v=XKsaHkjpjwI

Response from Sears PartsDirect:
SHS Social Care • 2 years ago

Hello, thank you for taking the time to share your experience we greatly appreciate it and value your feedback. Thanks.
