A Whirlpool dishwasher like model WDT540HAMZ0 usually leaks from the bottom of the door when water is being pushed or splashed past the door seal. The most common causes are a clogged filter, a spray arm spraying toward the door, oversudsing from the wrong detergent, or the dishwasher not sitting level.

Quick checks that fix most door-bottom leaks

• Stop using hand soap or “too much” detergent; switch to fresh automatic dishwasher detergent.

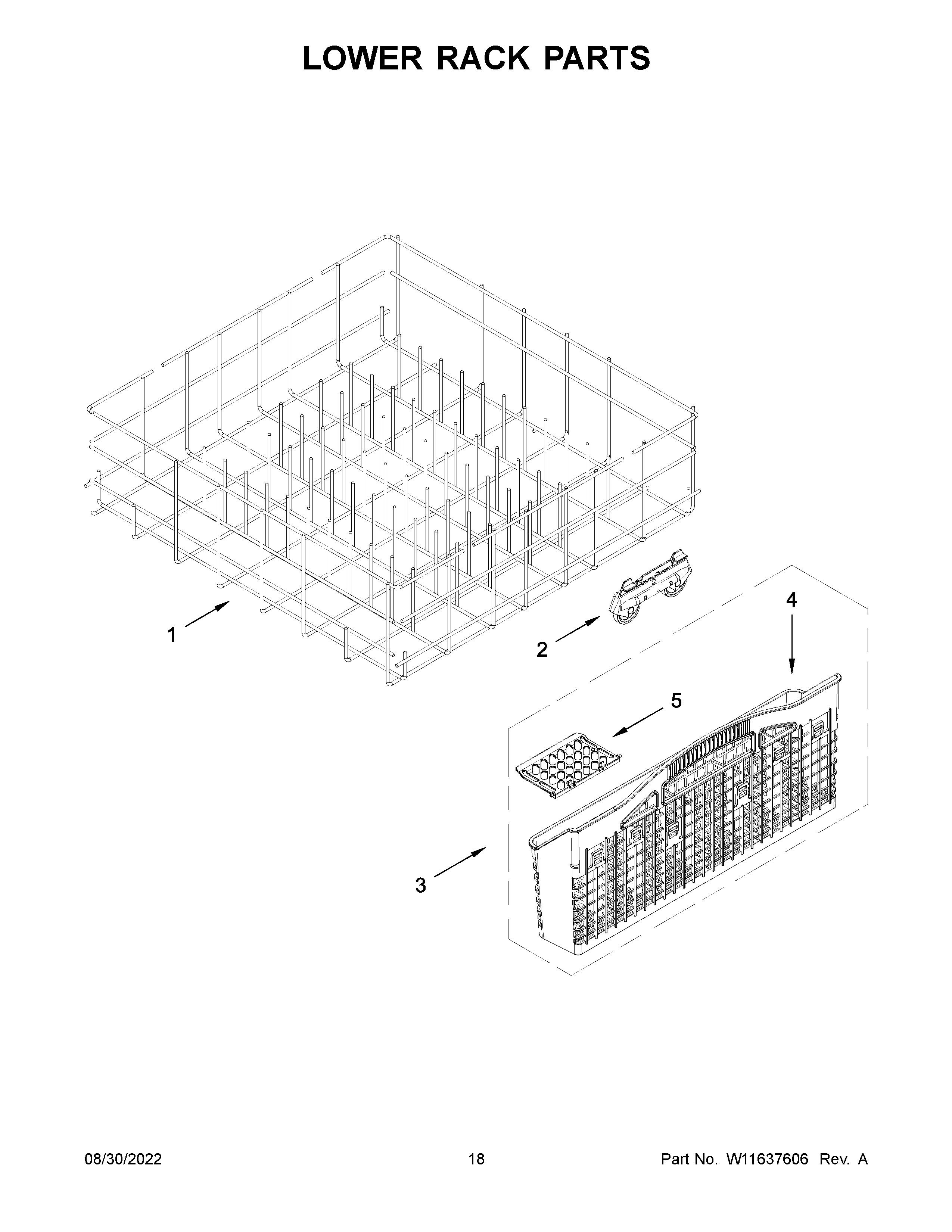

• Pull out the lower rack and inspect the lower spray arm for cracks, splits, or clogged jets; clean the holes.
• Clean the filter area so water can circulate and drain normally (a restricted filter can increase turbulence).
• Confirm the unit is level left-to-right and slightly tipped back; a forward tilt can let water ride the inner door.
• Reduce tall items near the front corners that can deflect spray into the door seam.

Parts to inspect on WDT540HAMZ0

If cleaning and loading changes do not stop the leak, these model-matched parts are common suspects:

Symptom you see	Most likely area	Model-matched part to check

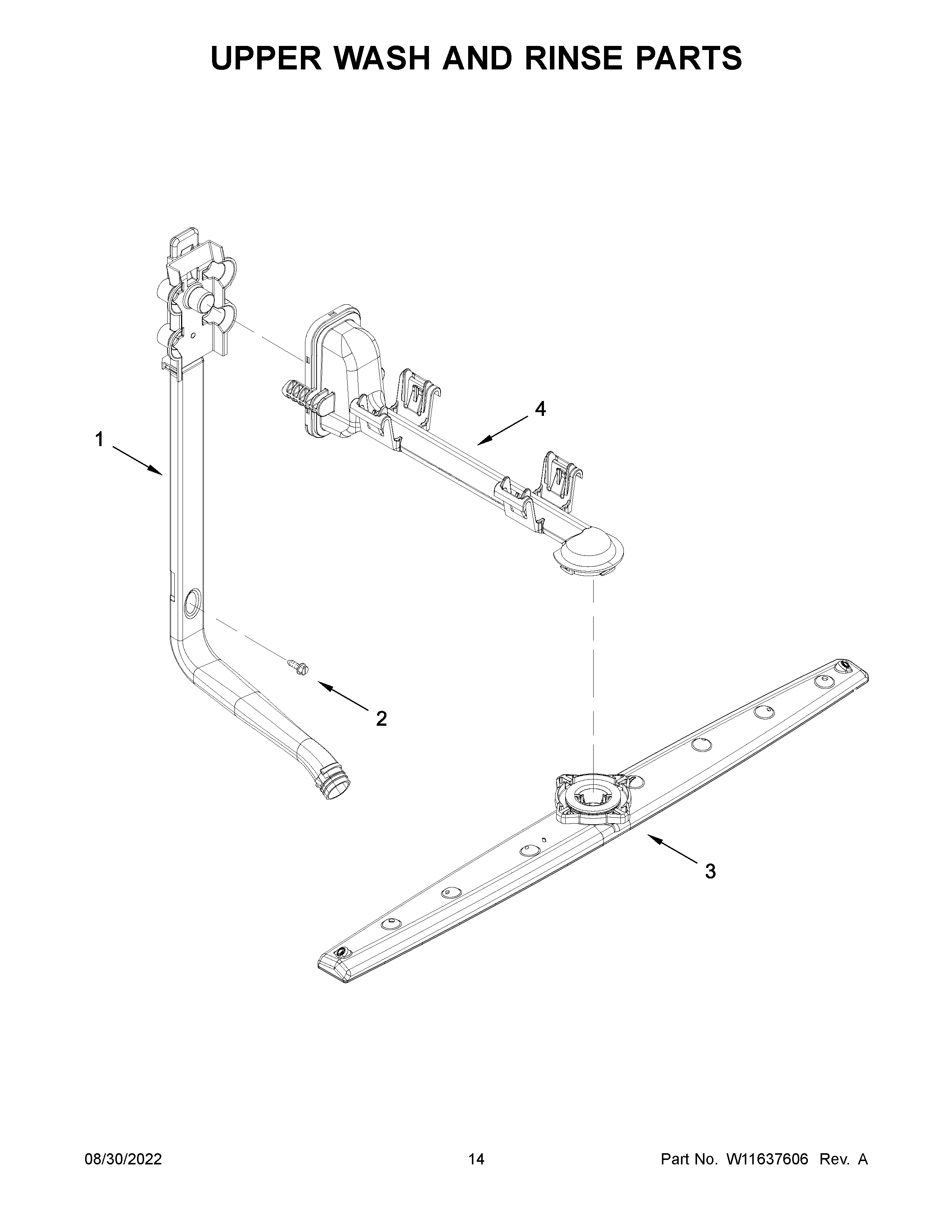

Water seems to “spray” out during wash	Spray pattern hitting door	Dishwasher spray arm WPW10491331
Leak happens with poor wash and standing water	Sump or filter restriction	Dishwasher filter WPW10463906

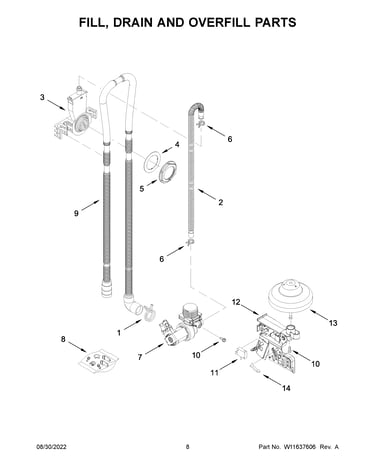

Leak shows up after draining or you smell dirty water	Drain path backing up	Dishwasher drain hose 8269144A

Why it matters

A door-bottom leak is often a spray control or water-management issue, not just a bad seal. Fixing the root cause (spray direction, filtration, leveling, and suds control) prevents repeat leaks and helps the dishwasher heat and dry properly.

Safety notes before you troubleshoot

• Turn off power at the breaker before removing panels or handling wiring.
• Shut off the water supply if you plan to disconnect hoses.
• If you see water near the control area or wiring, stop and have a technician inspect it.

Last updated: February 2026

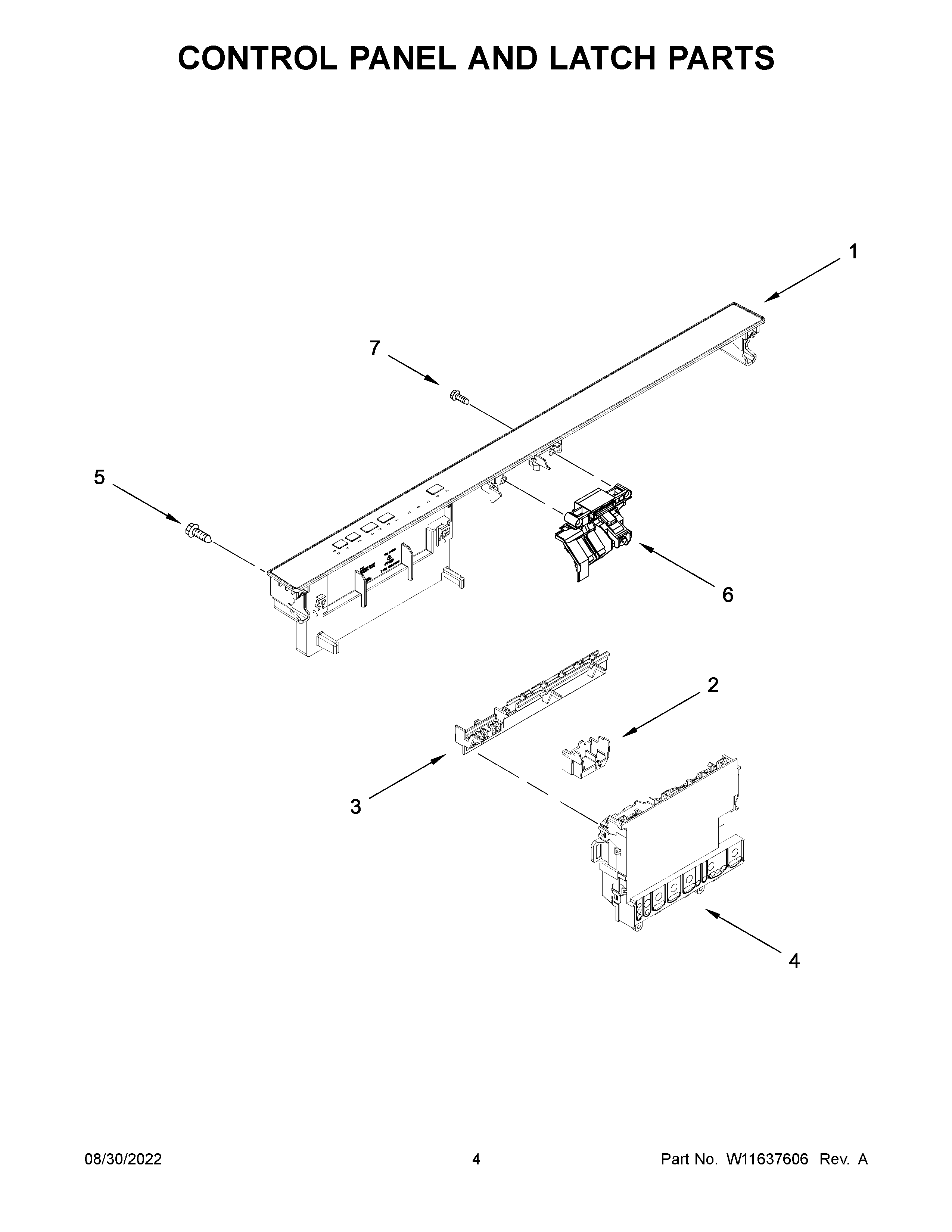

For a Whirlpool dishwasher like model WDT540HAMZ0, replacing the control panel typically costs about $150 to $350 total: roughly $150 to $250 for the control board/control panel part plus $0 to $150+ labor if you hire service. Exact cost depends on which control component failed and whether you DIY.

What usually drives the price

• Which part is actually bad: user interface (buttons/console) vs. electronic control board
• Service call and labor: many shops charge a trip/diagnostic fee plus installation time
• Related issues: moisture intrusion, loose harness connections, or a door latch problem can mimic control failures
• Availability: OEM parts in stock tend to keep turnaround time and labor lower

Quick checks before you buy a control

1. Reset power: turn off the breaker for 2 minutes, then restore power.
2. Confirm the door is latching: a weak latch can prevent the controls from responding.
3. Look for stuck keys: a jammed button can make the panel seem dead.
4. Inspect for moisture around the console area (dry it out and re-test).
5. Check wiring connections to the control area for looseness or corrosion.

Common “control panel” fixes for WDT540HAMZ0

Symptom	Most common cause	Typical fix path
No lights, no response	No power, door not latched, failed control	Verify power, check latch, then control diagnosis
Lights on, won’t start	Door latch switch issue, keypad issue	Check latch first, then console/keypad
Random beeping or stopping	Moisture, wiring, control fault	Dry/inspect wiring, then control diagnosis

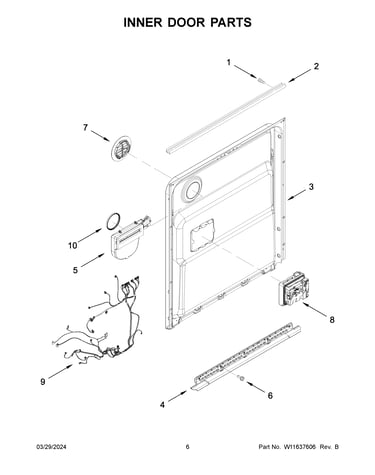

If the dishwasher will not start or the panel seems unresponsive, we often recommend checking the door latch first because it is a frequent, lower-cost cause: dishwasher door latch WPW10653840.

Why it matters

Replacing the wrong “control panel” component can add cost fast. A quick latch and wiring check helps you avoid buying an electronic control when the real issue is a simple interlock or connection problem.

Last updated: February 2026

A Whirlpool dishwasher like model WDT540HAMZ0 typically lasts 10 to 12 years with normal household use. Consistent cleaning, correct detergent use, and fixing small problems early (draining, heating, or washing issues) are the biggest factors in reaching the high end of that range.

What affects dishwasher life the most

• Water quality (hard water speeds up mineral buildup on the heater and spray system)
• How often you run it (multiple loads daily shortens life vs. light use)
• Maintenance habits (filter cleaning and clearing clogs)
• Heat and drying performance (a weak heater can lead to poor cleaning and extra wear)
• Leaks and drainage issues (standing water strains pumps and seals)

Maintenance that helps you reach 10 to 12 years

• Clean the filter regularly; replace it if it is damaged or won’t come clean (see dishwasher filter WPW10463906).
• Keep the spray arm holes clear; replace a cracked or warped arm (see dishwasher spray arm WPW10491331).
• Run a monthly cleaning cycle (dishwasher cleaner or a manufacturer-approved method).
• Use the right detergent amount; too much can cause residue, too little can cause poor cleaning.
• Check the drain path if you see water left in the tub; a restricted hose or weak pump shortens component life.

Common “end-of-life” symptoms and likely parts

Symptom	What it often points to	Example part for WDT540HAMZ0
Dishes not drying, water stays cool	Heating problem	Element assembly W10518394

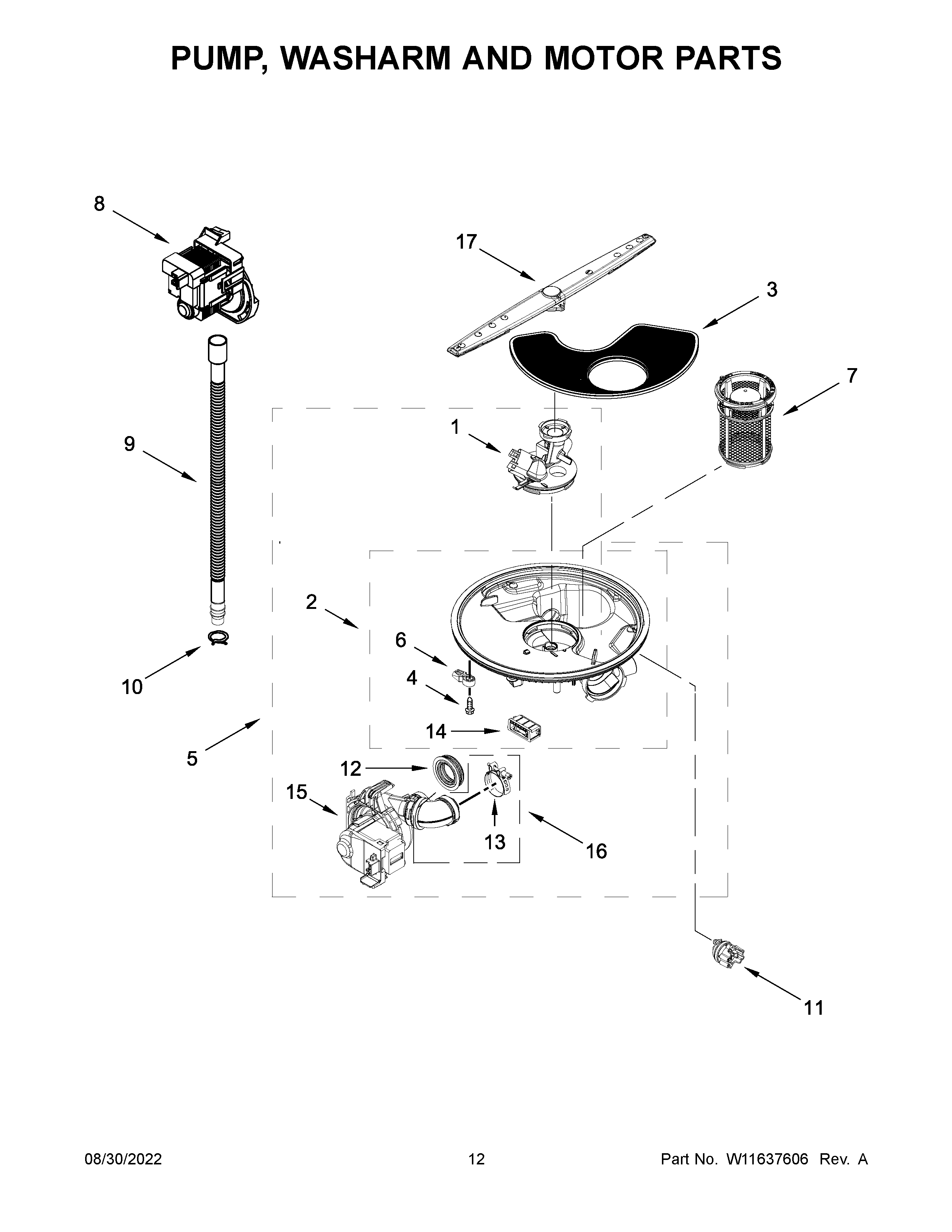

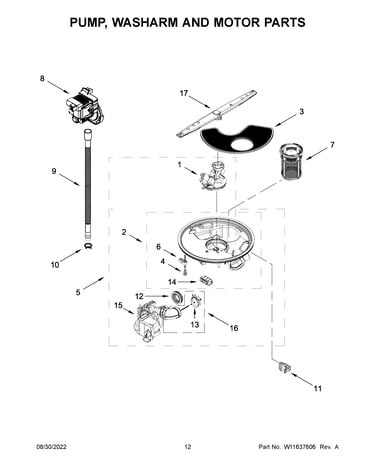

Water left in bottom after cycle	Drain restriction or pump issue	Dishwasher drain pump W10876537
Poor wash, gritty residue	Filtration or spray issue	Dishwasher filter WPW10463906
Won’t fill or fills slowly	Water supply/valve issue	Valve-water W11175771

Why it matters

A dishwasher that is maintained and repaired early usually costs less to keep running and cleans better over its full lifespan. Simple items like filters, spray arms, and drain components often restore performance before bigger assemblies are affected.

Last updated: February 2026

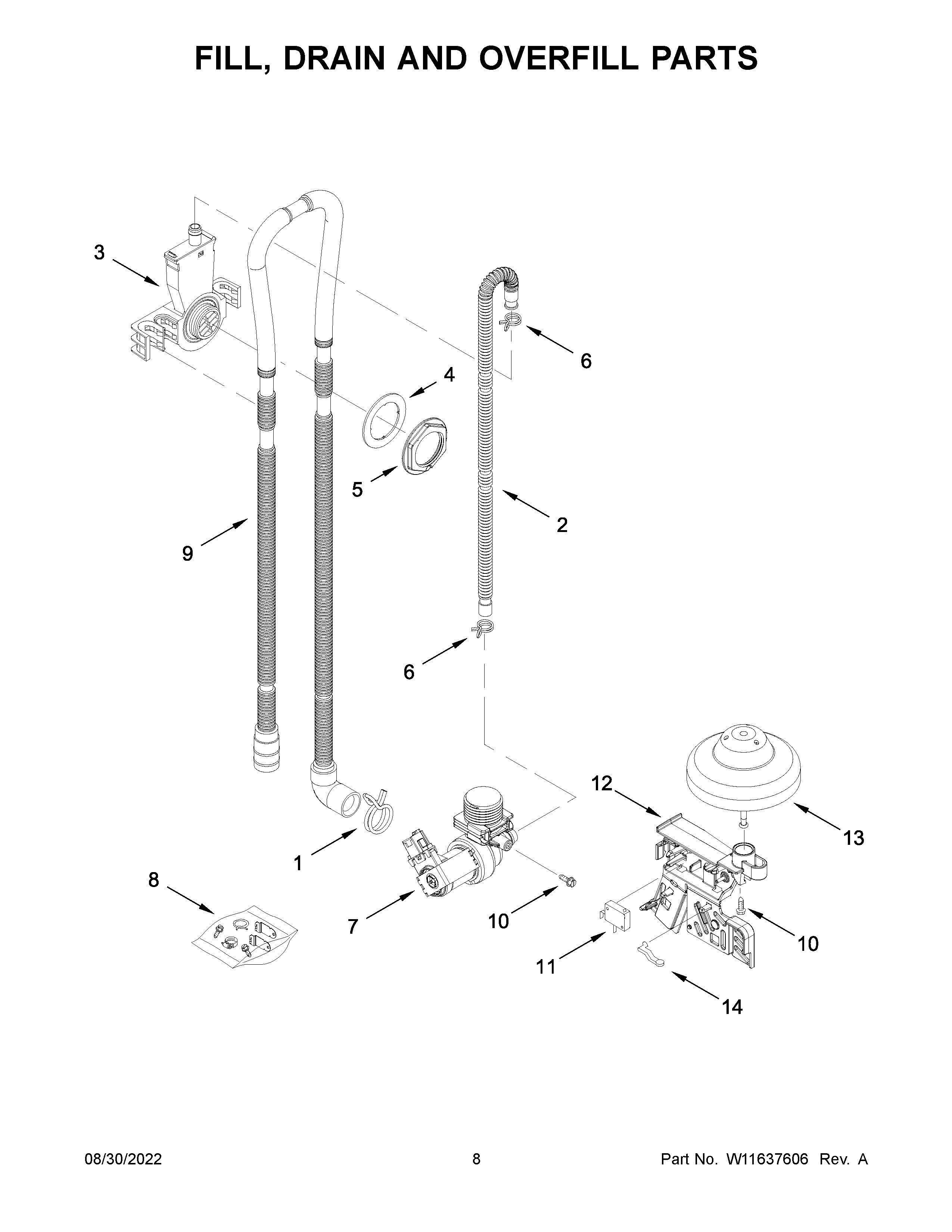

The most common problem we see on Whirlpool dishwashers like model WDT540HAMZ0 is not draining (water left in the tub). In most cases, the root cause is a restriction in the filter area or drain path, or a weak drain pump that cannot push water out consistently.

Quick checks that fix many “won’t drain” complaints

• Cancel the cycle and let the unit attempt a drain; listen for the drain pump running.
• Remove and clean the filter area; food debris here can block flow back to the sump.
• Check the sink drain/disposer inlet and the dishwasher drain connection for a clog.
• Inspect the drain hose for kinks, crushing, or a low spot that traps water.
• Verify the high loop (or air gap, if used) is in place to prevent backflow.

Other very common Whirlpool dishwasher issues

Even when draining is fine, these are the next most frequent complaints and what usually causes them:

Symptom	Most common cause	Part often involved on WDT540HAMZ0
Poor cleaning	Clogged spray arm holes, low water fill, weak wash circulation	Dishwasher spray arm WPW10491331, valve-water W11175771
Leaking	Door not latching fully, tub seal/sump seal seepage, hose connection leak	Dishwasher door latch WPW10653840, dishwasher sump and seal assembly WPW10482462
Not drying well	Heater issue, venting issue, rinse aid use/loading	Element assembly W10518394, vent assembly w/ fan W11649995

Why it matters

Drain and circulation problems tend to snowball: standing water can redeposit soil, cause odors, and strain the pump and motor. Catching a clogged filter, restricted hose, or failing pump early helps prevent repeat wash failures and reduces the chance of leaks.

When a part replacement is likely

If the drain path is clear but the dishwasher still leaves water behind, a failing pump is a common next step.

• Hums but does not move water: drain pump may be jammed or weak.
• Drains sometimes, not always: pump can be intermittently failing.
• Drains slowly with no clogs found: pump output may be reduced.

A common replacement for drain-out problems is the dishwasher drain pump W10876537.

Last updated: February 2026
