Model # 2335208610 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335208610 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

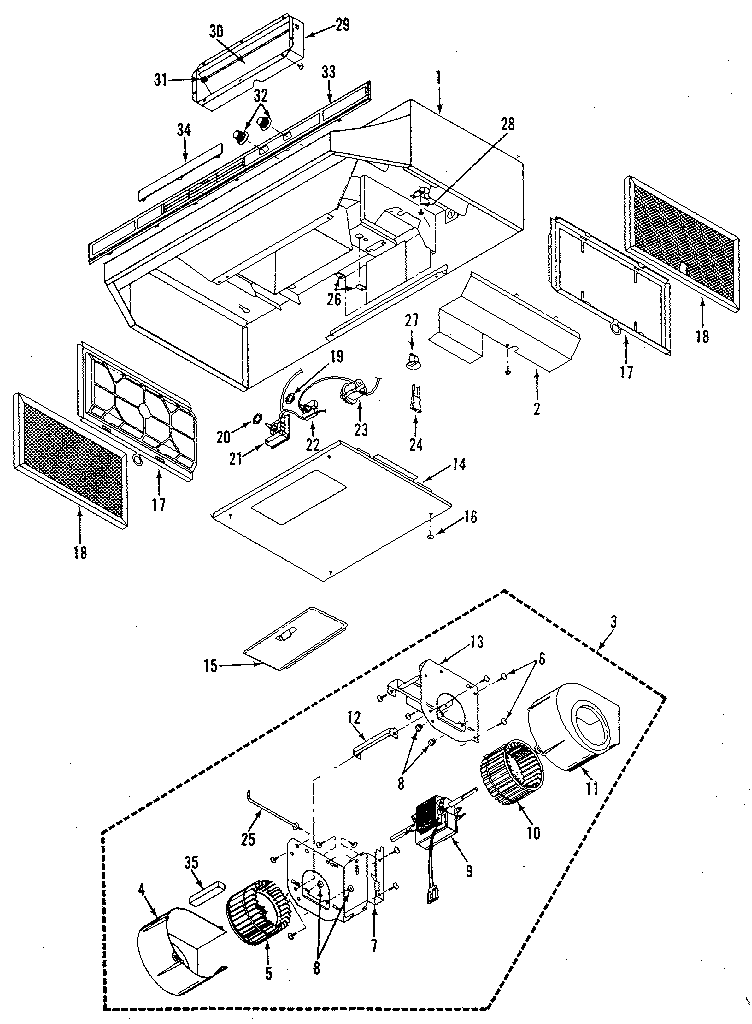

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Light Lens 99110490
#15

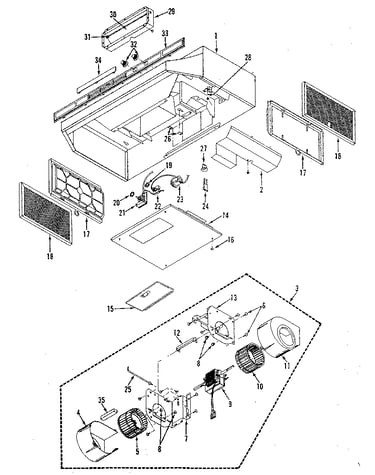

Range hood diagram

Light lens

Part #99110490

Replaced by #S97013316

?
Manufacturer substitution
This part replaces 99110490. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.53
11% OFF Phone Price : $18.53
In Stock
Damper 97006544
#29

Range hood diagram

Damper

Part #97006544

Replaced by #S97005544

?
Manufacturer substitution
This part replaces 97006544. Substitute parts can look different from the original.
This item is not returnable
$27.91
15% OFF Phone Price : $32.91
In Stock
Switch 97007499
#22

Range hood diagram

Switch

Part #97007499

Replaced by #S97016438

?
Manufacturer substitution
This part replaces 97007499. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Hood Vent Damper Cover 98005221
#30

Range hood diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Hood Clockwise Blower Cover 99110519
#11

Range hood diagram

Range hood clockwise blower cover

Part #99110519

Replaced by #S99110519

?
Manufacturer substitution
This part replaces 99110519. Substitute parts can look different from the original.
In Stock
Range Hood Fan Motor 99080156
#9

Range hood diagram

Range hood fan motor

Part #99080156

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit 97007893
#18

Range hood diagram

Filter kit

Part #97007893

The manufacturer no longer makes this part, and there's no substitute part

Cover 99080467
#34

Range hood diagram

Cover

Part #99080467

Replaced by #S99090457

?
Manufacturer substitution
This part replaces 99080467. Substitute parts can look different from the original.
This item is not returnable
In Stock
Foam Seal 98100441
#35

Range hood diagram

Foam seal

Part #98100441

Replaced by #S99100441

?
Manufacturer substitution
This part replaces 98100441. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retainer Rod 99420468
#25

Range hood diagram

Retainer rod

Part #99420468

Replaced by #S99420458

?
Manufacturer substitution
This part replaces 99420468. Substitute parts can look different from the original.
This item is not returnable
In Stock
