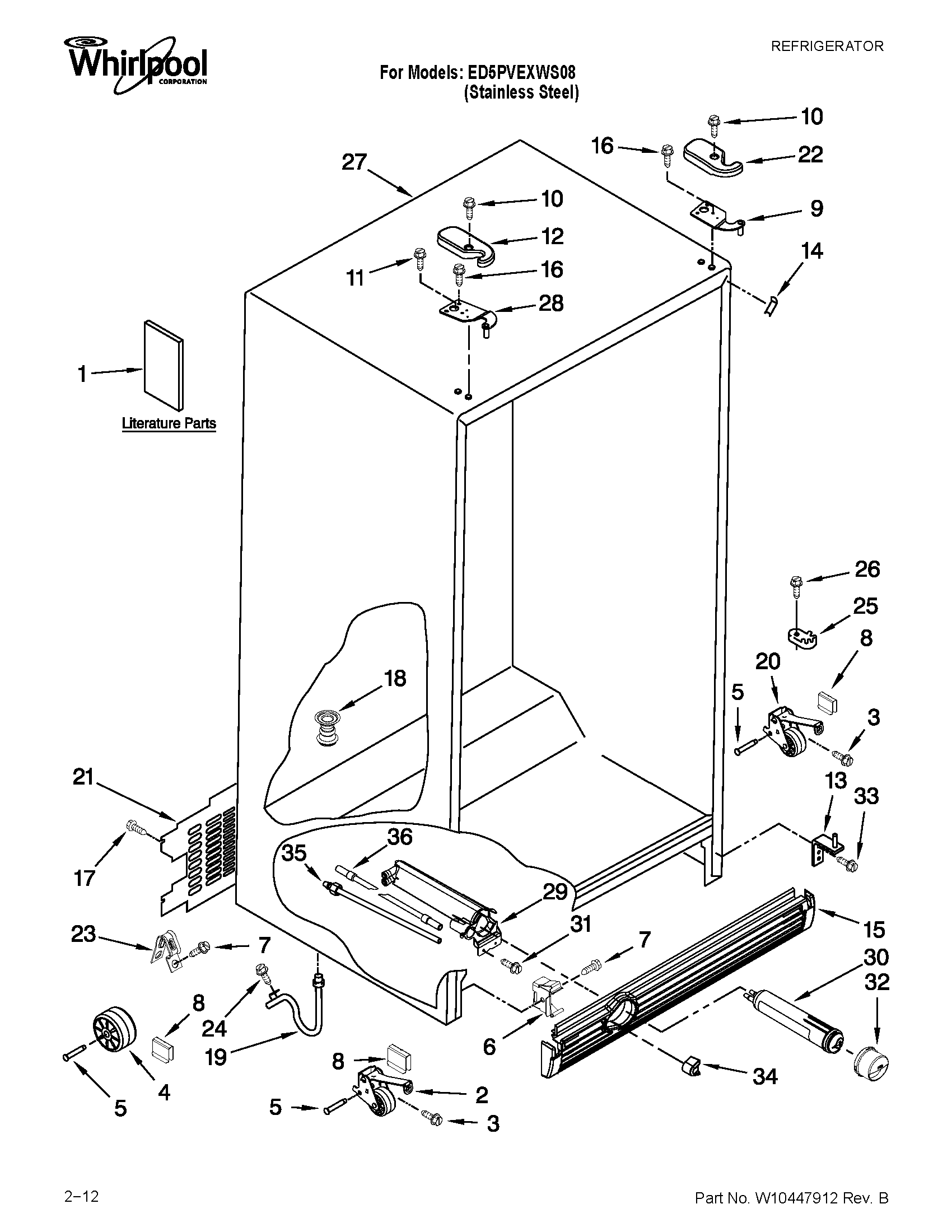

Whirlpool ED5PVEXWS08 refrigerator Parts

The Whirlpool ED5PVEXWS08 is a full-size side-by-side refrigerator; units in this series are typically about 25 cu. ft. of total capacity. For the exact capacity and the cabinet dimensions for your specific refrigerator, use the specs section in the ED5PVEXWS08 owner's manual.

What “big” usually means (capacity vs. dimensions)

When customers ask how big a refrigerator is, they usually mean one of these:

• Capacity (cu. ft.): how much food it holds
• Overall dimensions: height, width, depth (important for fit)
• Door swing and clearance: space needed to open doors and pull out bins
• Interior layout: shelf and bin configuration

Typical size ranges for a 25 cu. ft. side-by-side

Most Whirlpool side-by-side refrigerators around 25 cu. ft. fall into these common ranges (your exact measurements can vary by trim and handle style):

Spec	Typical range	Why you care
Total capacity	~24 to 26 cu. ft.	Storage planning
Width	~35 to 36 in.	Fits between cabinets
Height	~69 to 71 in.	Fits under soffits
Depth	~33 to 35 in.	Walkway and counter alignment

How we recommend measuring for fit

Use a tape measure and record these before ordering parts or planning a replacement:

• Width at the widest point (often the hinge side)
• Height from floor to top of hinge cover
• Depth with doors closed (include handles if they stick out)
• Clearance behind the unit for airflow and water line
• Door swing clearance so drawers and door bins open fully

Why it matters

Capacity tells you how much the ED5PVEXWS08 can hold, but dimensions and clearances determine whether it fits your kitchen opening and whether doors, shelves, and bins operate normally.

Last updated: February 2026

Yes. For Whirlpool model ED5PVEXWS08, we recommend DIY replacement for many non-sealed-system parts (bins, shelves, gaskets, ice maker, water filter) as long as you unplug the refrigerator first and follow the steps in the ED5PVEXWS08 owner's manual. Leave sealed-system and refrigerant work to a qualified technician.

What you can usually replace yourself

These repairs are typically straightforward and low-risk for a side-by-side refrigerator:

• Water filter and filter cap
• Ice maker and ice bin components

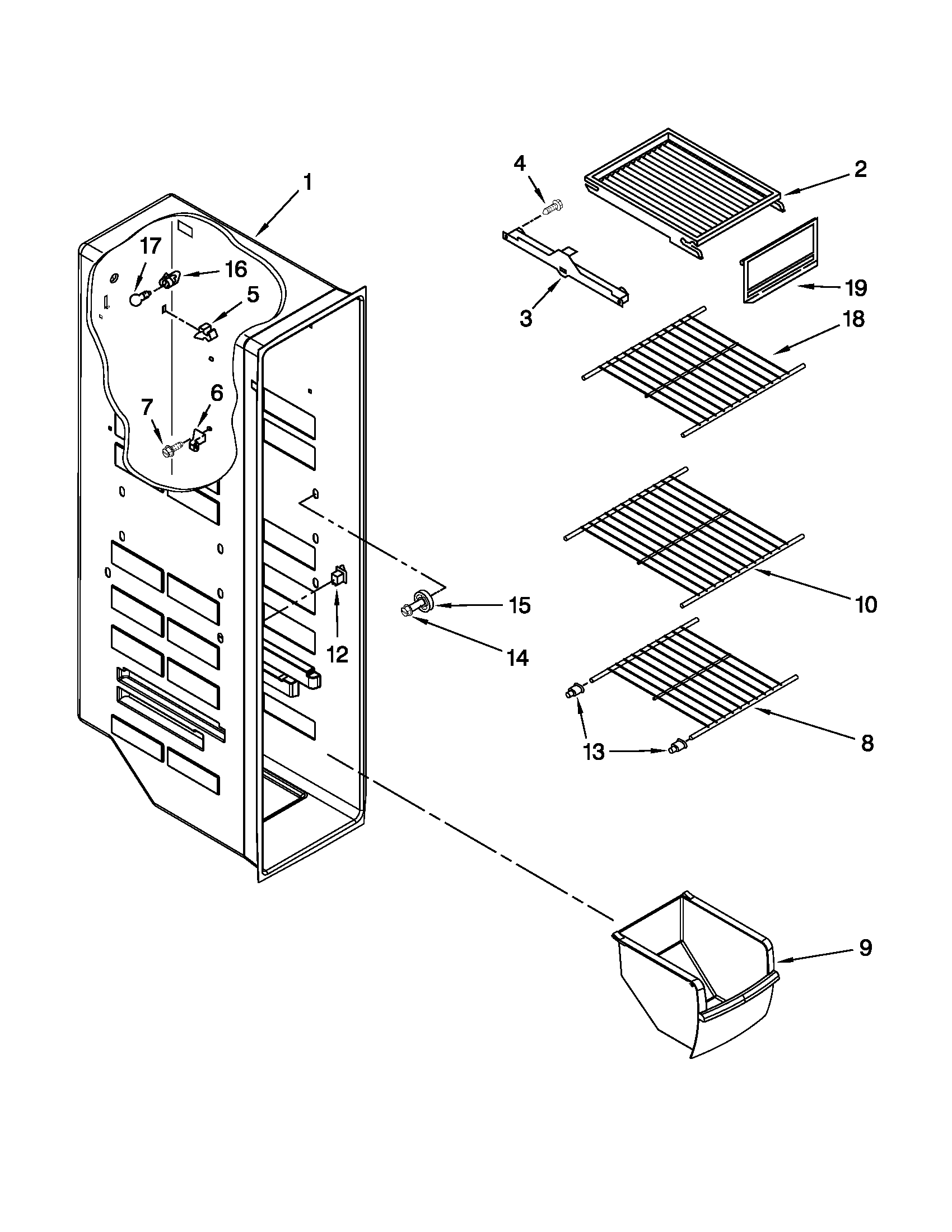

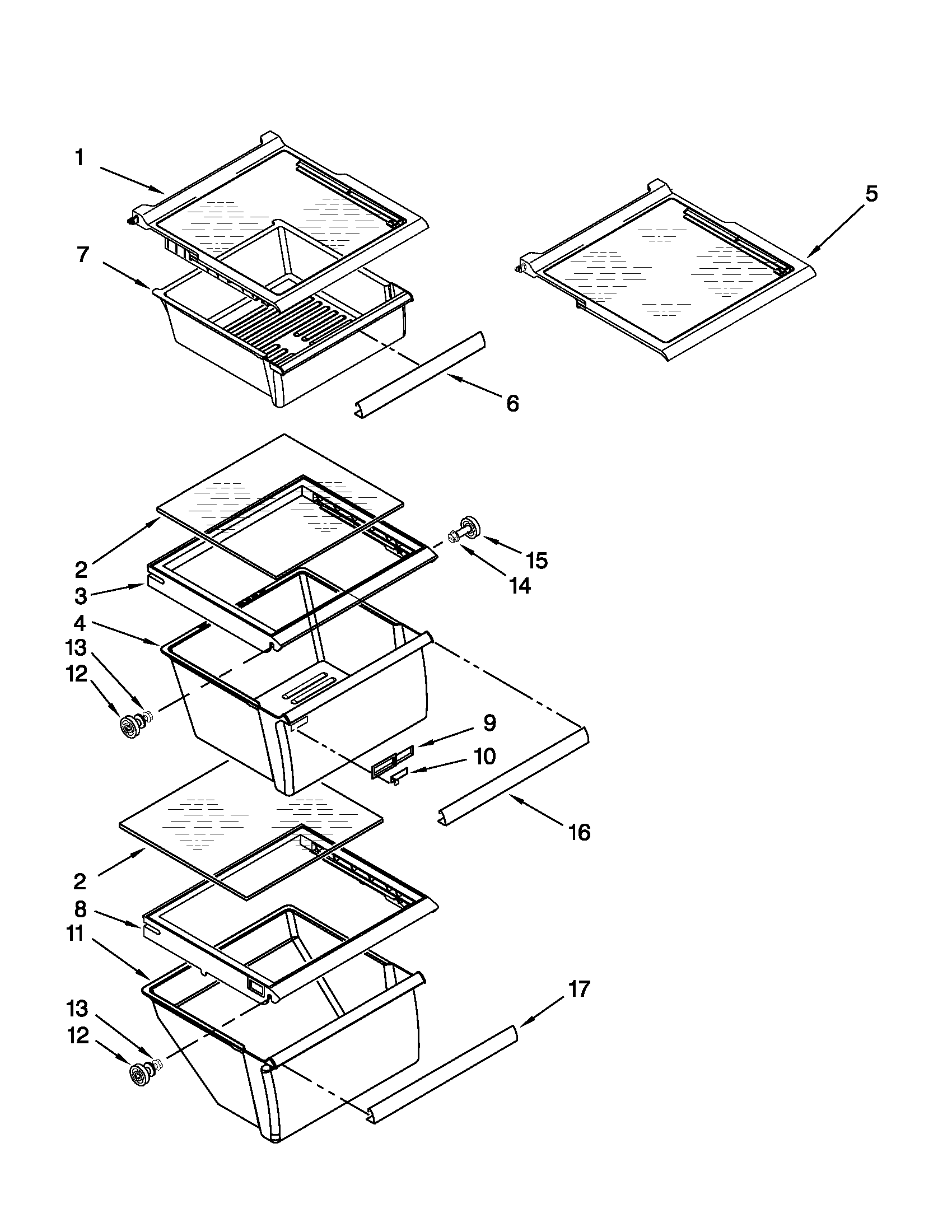

• Door bins, shelves, and crisper/meat pans

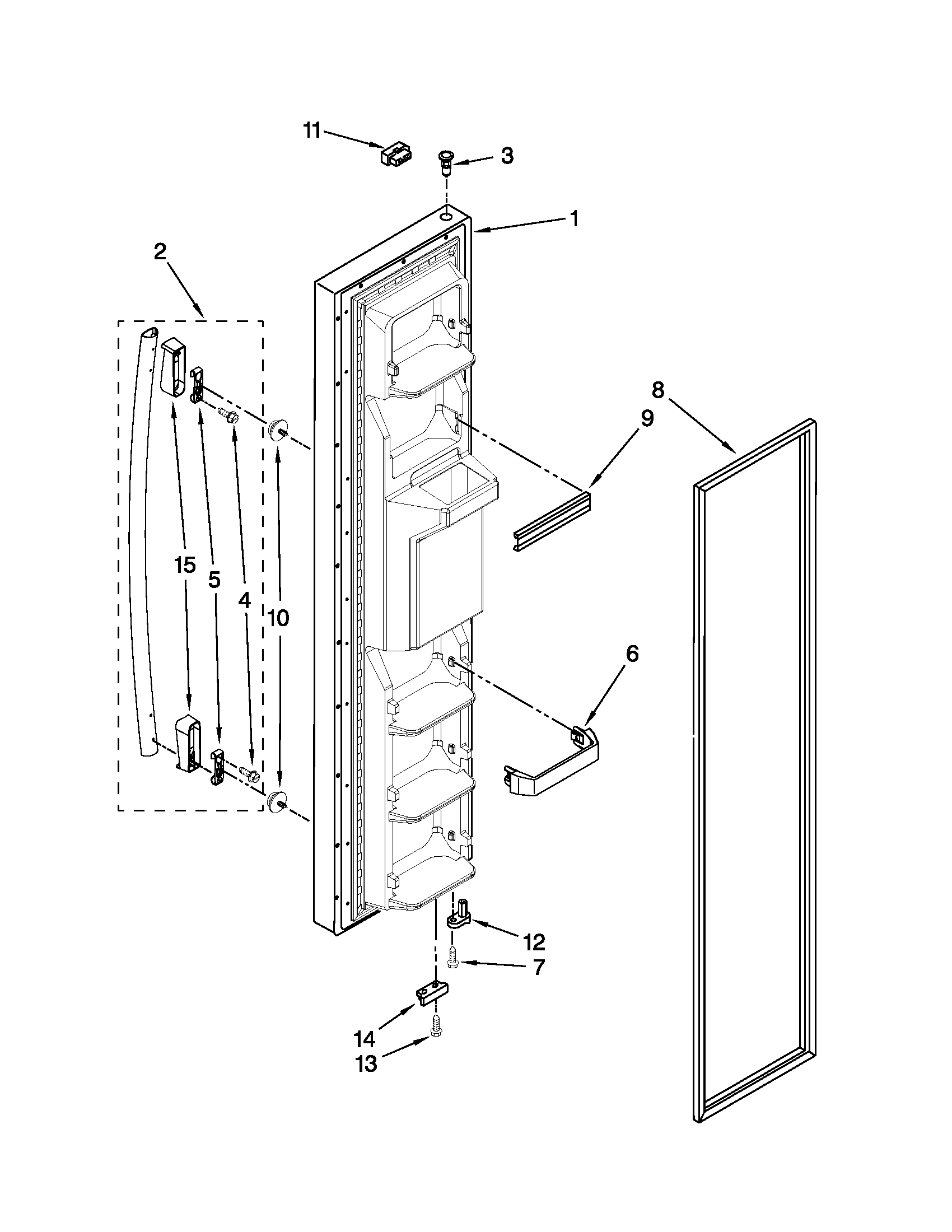

• Door gasket and door cam parts
• Water inlet valve (if you can safely shut off the water supply)

Helpful model-matched examples include the refrigerator water filter EDR3RXD1 and the refrigerator ice maker WPW10190965.

Repairs to avoid as DIY

Some repairs involve refrigerant handling, specialized tools, or higher electrical risk:

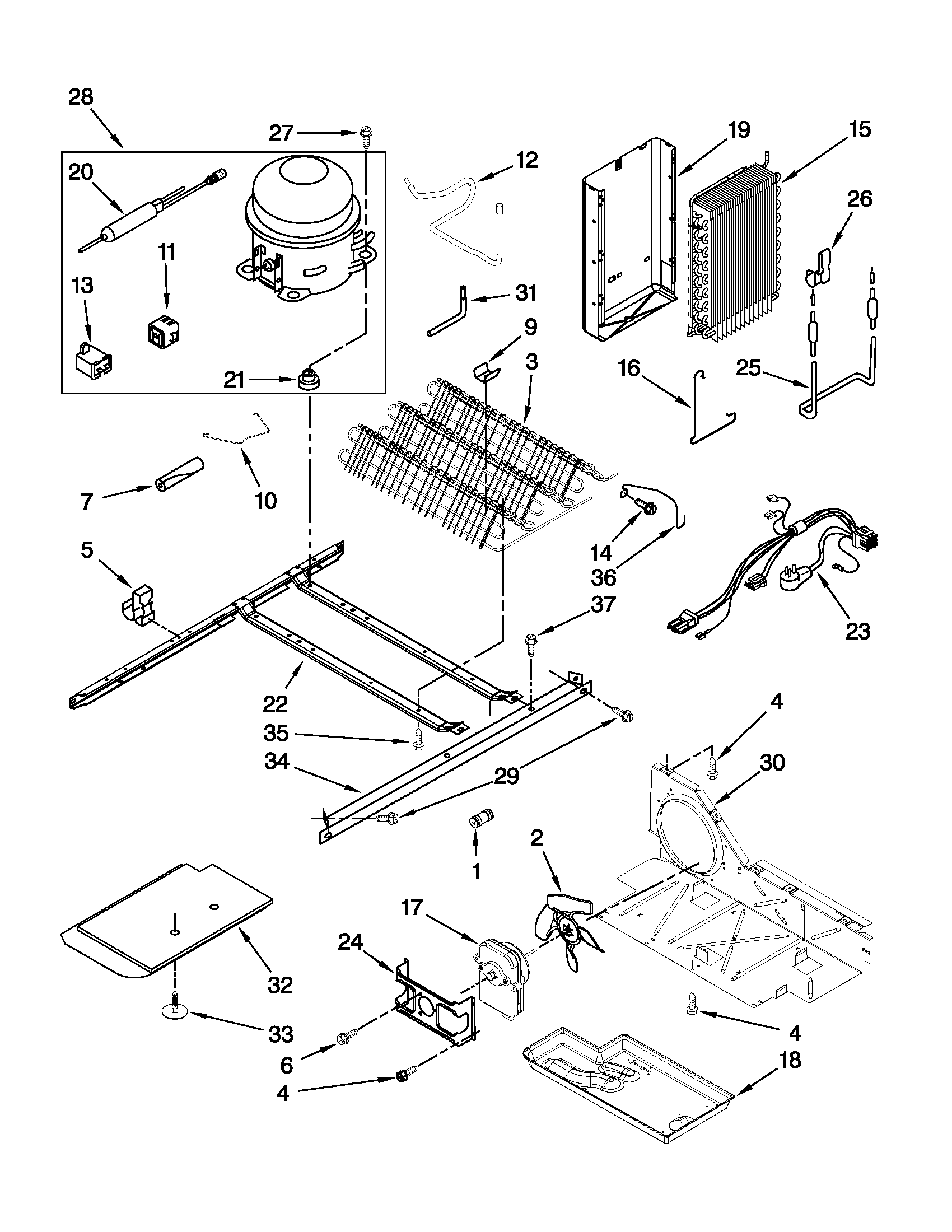

• Compressor, evaporator, condenser, and other sealed-system components
• Refrigerant leaks or recharging
• Complex wiring or control diagnosis when you are not comfortable using a meter

Quick decision guide

Repair type	Typical DIY?	Why
Shelves, bins, pans	Yes	No electrical or water connections
Water filter	Yes	Tool-free on most Whirlpool designs
Ice maker	Often	Moderate disassembly, basic wiring plug
Water inlet valve	Often	Requires water shutoff and leak checks
Compressor/evaporator	No	Sealed system and refrigerant safety

Why it matters

Choosing the right DIY level helps prevent water leaks, food-temperature issues, and repeat failures. Simple parts swaps can restore performance quickly, while sealed-system work done incorrectly can cause bigger cooling problems.

For step-by-step help on filter service, use how to replace the water filter in a Whirlpool refrigerator.

Last updated: February 2026

The most common problems we see on Whirlpool refrigerators like model ED5PVEXWS08 are cooling issues (warm fridge or freezer, running constantly) and ice maker or water dispenser problems. These are often caused by airflow restrictions (dirty condenser coils), a defrost problem, or a water-supply component starting to fail.

Most common symptoms and what they usually point to

• Fridge warm, freezer OK: restricted airflow, evaporator frost buildup, or a control/thermostat issue
• Freezer warm, fridge warm: dirty condenser coils, condenser fan problem, or sealed-system/compressor concerns
• Ice maker not making ice: no water supply, frozen fill tube, or ice maker failure
• Water dispenser slow or not dispensing: clogged filter, air in the line, or inlet valve issue
• Unit runs all the time: dirty coils, door not sealing, or temperature control problems

Quick checks we recommend first (fast, no parts)

1. Confirm temperatures: freezer near 0°F, fresh food near 37°F.
2. Clean condenser coils: dust buildup is a top cause of poor cooling and long run times.
3. Check door sealing: look for gaps, torn gasket, or doors not closing fully.
4. Listen for fans: you should typically hear airflow when the compressor is running.
5. If water or ice is weak: replace the filter and purge air from the dispenser.

Parts that commonly solve these problems on ED5PVEXWS08

Problem area	Common fix	Example model-matched part
Water tastes bad, slow flow, no ice due to restriction	Replace water filter	Refrigerator water filter EDR3RXD1
No water to dispenser or ice maker	Test/replace inlet valve	Refrigerator water inlet valve W10408179
Frost buildup, warm temps, defrost failure symptoms	Check defrost heater/thermostat	Refrigerator defrost heater WP2323198 and refrigerator defrost bi-metal thermostat WPW10225581
Temperature control issues	Check thermostat/control	Refrigerator thermostat WP2198202

Why it matters

Cooling and ice maker complaints often share the same root causes: restricted airflow, poor heat removal, or inconsistent water supply. Fixing the basic maintenance items first prevents unnecessary part replacement and helps the refrigerator hold safe food temperatures.

Helpful model-specific references

• Use the ED5PVEXWS08 owner's manual for temperature setting guidance, control features, and maintenance intervals.
• For display or diagnostic issues, use Whirlpool refrigerator error codes.

Last updated: February 2026

In a Whirlpool side-by-side refrigerator like model ED5PVEXWS08, the most commonly replaced parts are the ones that handle water flow, door sealing, temperature control, defrosting, and ice making. These parts wear out first because they move, cycle on and off, or clog over time.

Most common refrigerator parts to replace

• Refrigerator water filter (clogs and reduces water flow)
• Door gasket (air leaks cause warm temps, frost, and long run times)
• Water inlet valve (weak or no water to dispenser or ice maker)
• Ice maker (no ice, small cubes, or leaking)
• Defrost parts (heater and defrost thermostat; frost buildup and warm fridge)
• Temperature control parts (thermostat or control board; inconsistent temps)

Common replacements for ED5PVEXWS08 (examples)

These are examples of popular replacement parts we see for this model:

Symptom	Likely part category	Example part for this model
Slow water, bad taste/odor	Filtration	Refrigerator water filter EDR3RXD1
No water to dispenser or ice maker	Water supply control	Refrigerator water inlet valve W10408179

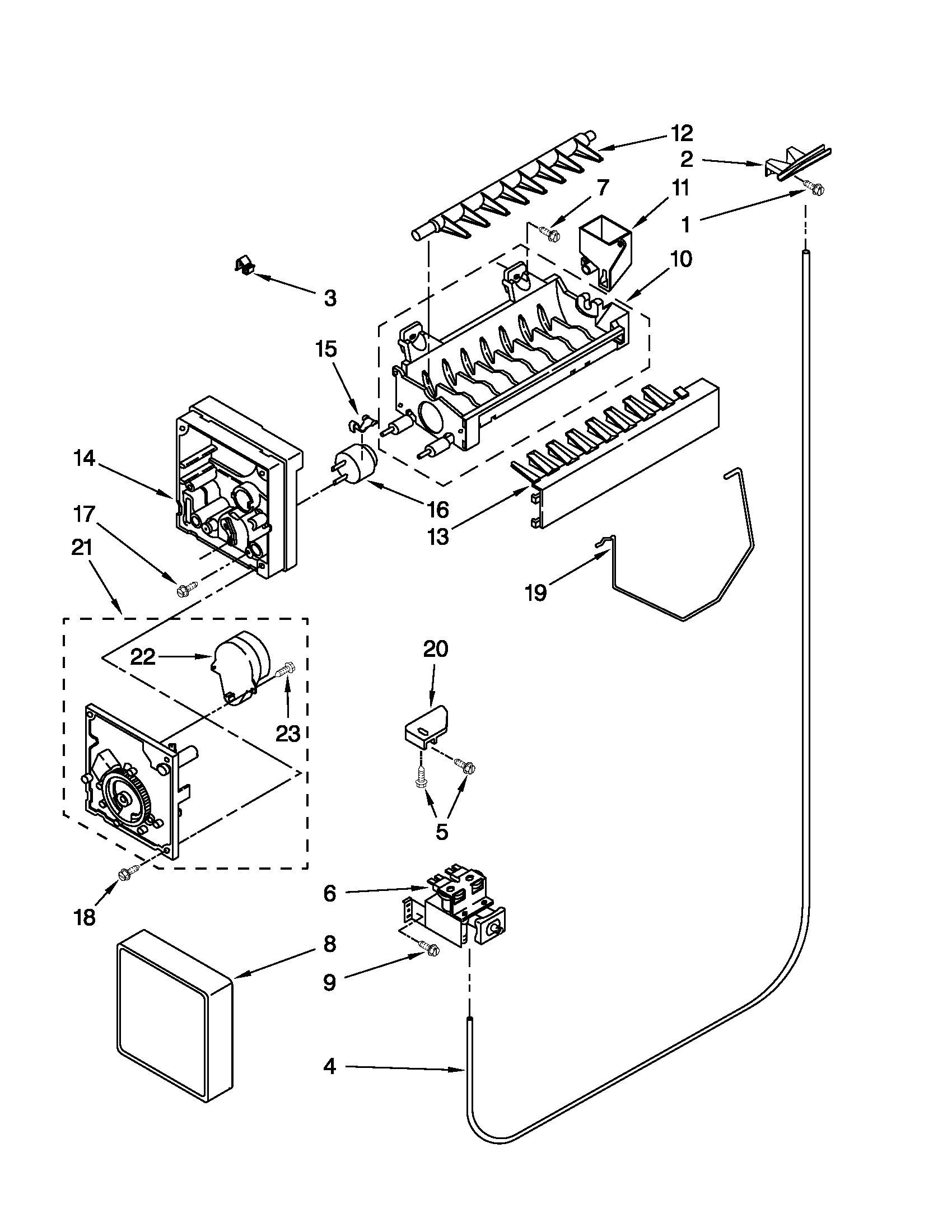

No ice or irregular ice	Ice maker assembly	Refrigerator ice maker WPW10190965
Frost on freezer back wall, warm fridge	Defrost system	Refrigerator defrost heater WP2323198 and refrigerator defrost bi-metal thermostat WPW10225581
Door won’t close smoothly	Door hardware	Refrigerator door cam (black) WP2182179

Quick troubleshooting before you buy a part

• Replace the water filter first if water flow is weak or ice is hollow.
• Check door gasket contact all the way around; look for gaps, tears, or warping.
• Listen for the evaporator fan in the freezer; no airflow often points to a cooling or defrost issue.
• If the freezer is cold but the fridge is warm, check for blocked vents and heavy frost buildup.
• If the ice maker is dead, confirm the shutoff arm is down and the freezer is near 0°F.

Why it matters

Replacing the right “high-wear” part first (filter, gasket, inlet valve, ice maker, defrost components) restores cooling performance and prevents secondary problems like frost buildup, water leaks, and compressor overwork. For model-specific locations and procedures, use the ED5PVEXWS08 owner's manual.

Last updated: February 2026

On our Whirlpool ED5PVEXWS08 side-by-side refrigerator, water leaking from the bottom is typically caused by a clogged or frozen defrost drain (defrost water overflows) or a leak in the water supply system (filter, tubing, or inlet valve). Start by identifying whether the leak is tied to defrosting or to ice maker and dispenser use.

Quick checks to pinpoint the source

• Freezer floor ice sheet: points to a defrost drain restriction.
• Leak after dispensing water or making ice: points to the water circuit.
• Puddle near the back: often supply line or inlet valve seepage.
• Drips at the filter area: filter not seated, cap issue, or housing leak.
• Heavy frost: can increase defrost water and trigger overflow.

Common causes and fixes

Likely cause	What you’ll notice	What to do
Defrost drain clogged or frozen	Water under drawers, ice on freezer bottom	Thaw and flush the drain until it runs to the drain pan
Filter not seated or leaking	Drips near filter location	Reinstall filter; replace if cracked or overdue
Water inlet valve leaking	Slow seep near back even when idle	Inspect fittings; replace valve if it seeps
Loose or cracked water line	Puddles after moving fridge	Tighten connections; replace damaged tubing

Clear a clogged defrost drain (safe DIY)

• Unplug the refrigerator.
• Remove items from the freezer bottom; locate the drain trough under the evaporator cover area.
• Melt ice with warm water (no sharp tools).
• Flush the drain with hot water using a turkey baster until it flows freely.
• Verify water reaches the drain pan underneath.

For panel access and component locations on this model, use the ED5PVEXWS08 owner's manual.

When a part is the likely fix

• If the leak is at the valve or fittings: refrigerator water inlet valve W10408179
• If the leak is at the filter area: refrigerator water filter EDR3RXD1

Why it matters

Stopping the leak prevents floor damage and helps avoid recurring ice buildup that can reduce cooling performance.

Last updated: February 2026

To order parts for your Whirlpool ED5PVEXWS08 side-by-side refrigerator, we use your model number to match the exact replacement part, then you can purchase it online or by phone. If your refrigerator is under Whirlpool warranty, we handle verification and help arrange service when needed.

The fastest way to order the right part

• Find the full model number ED5PVEXWS08 on the refrigerator’s model tag.
• Use the model number to look up the correct part category (water filter, ice maker, door gasket, shelves).
• Match by part ID and part number to avoid ordering a look-alike.
• If you are replacing a water filter, confirm the filter type and housing style before checkout.
• Use the diagrams and part lists in the ED5PVEXWS08 owner's manual to confirm location and naming.

Common parts customers order for this model

Here are examples of model-matched parts that are commonly replaced:

What you are fixing	What to order	Example part ID
Bad tasting water, slow dispensing	Refrigerator water filter	EDR3RXD1
No ice or small/irregular cubes	Refrigerator ice maker	WPW10190965
Water not dispensing or not filling ice maker	Refrigerator water inlet valve	W10408179
Frost buildup or warm freezer	Defrost heater or defrost thermostat	WP2323198 / WPW10225581

If you already know the part you need, ordering the refrigerator water filter EDR3RXD1 by part ID is the most reliable way to get the correct fit.

Warranty and service ordering

If your appliance is under the Whirlpool manufacturer’s warranty, we order the part through the warranty process and can schedule a certified technician when required. This prevents installing a non-matching part and helps avoid repeat failures.

Why it matters

Ordering by model number and part ID helps ensure proper fit, correct connections (water line and electrical), and normal performance for key systems like the ice maker and water dispenser.

Last updated: February 2026
