Kenmore 66515831794 dishwasher Parts
Here are the diagrams and repair parts for Kenmore 66515831794 dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 66515831794 Dishwasher

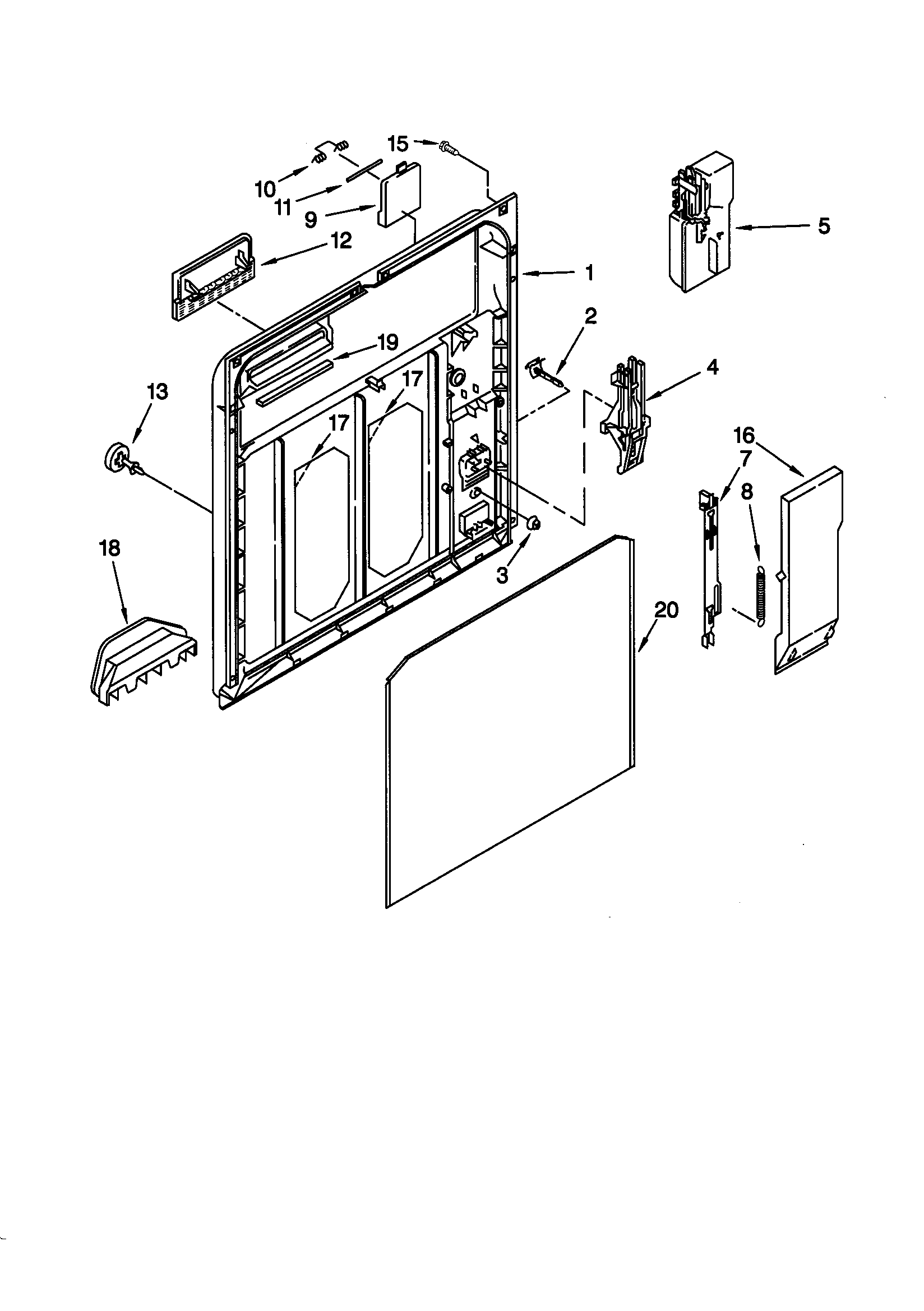

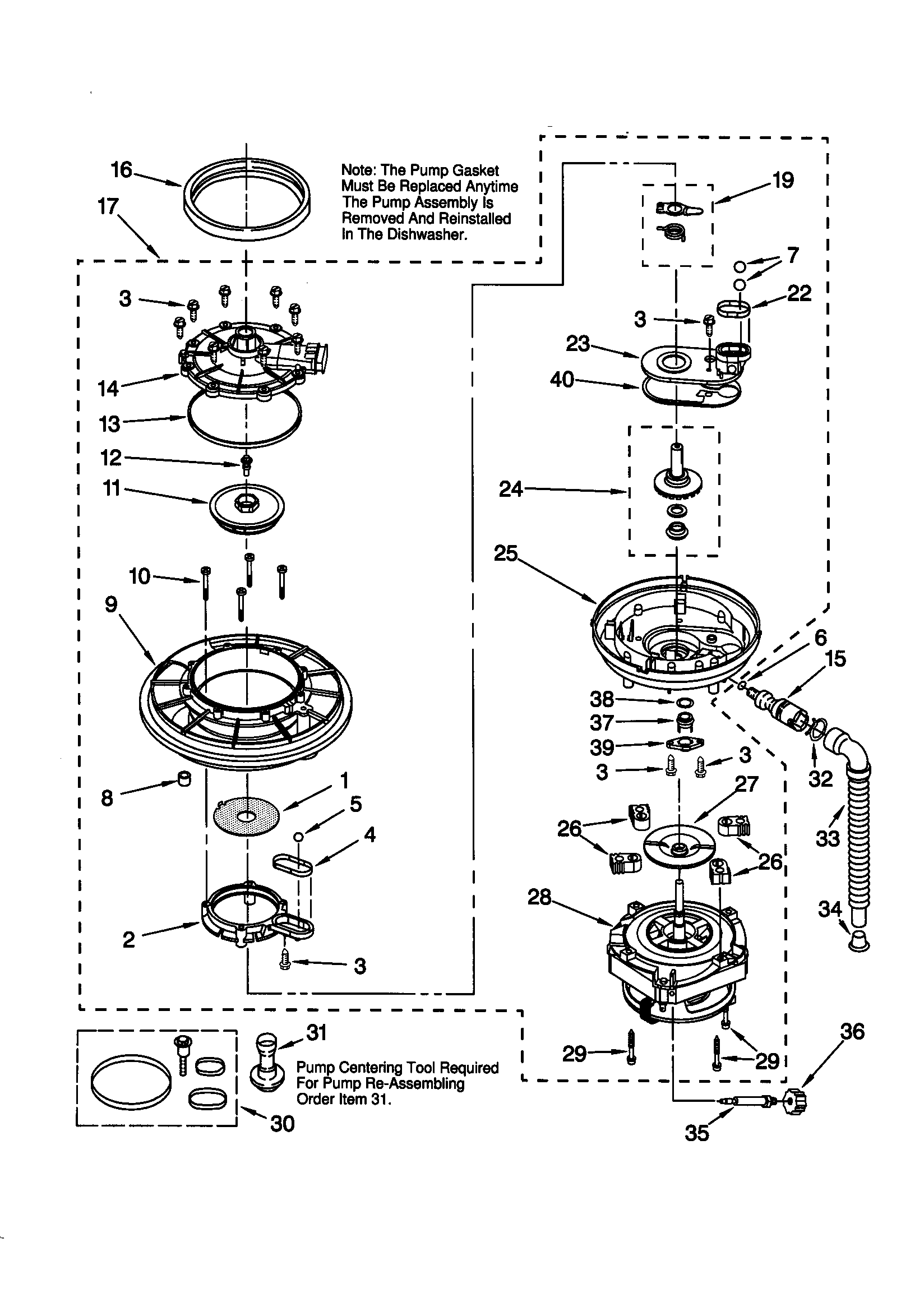

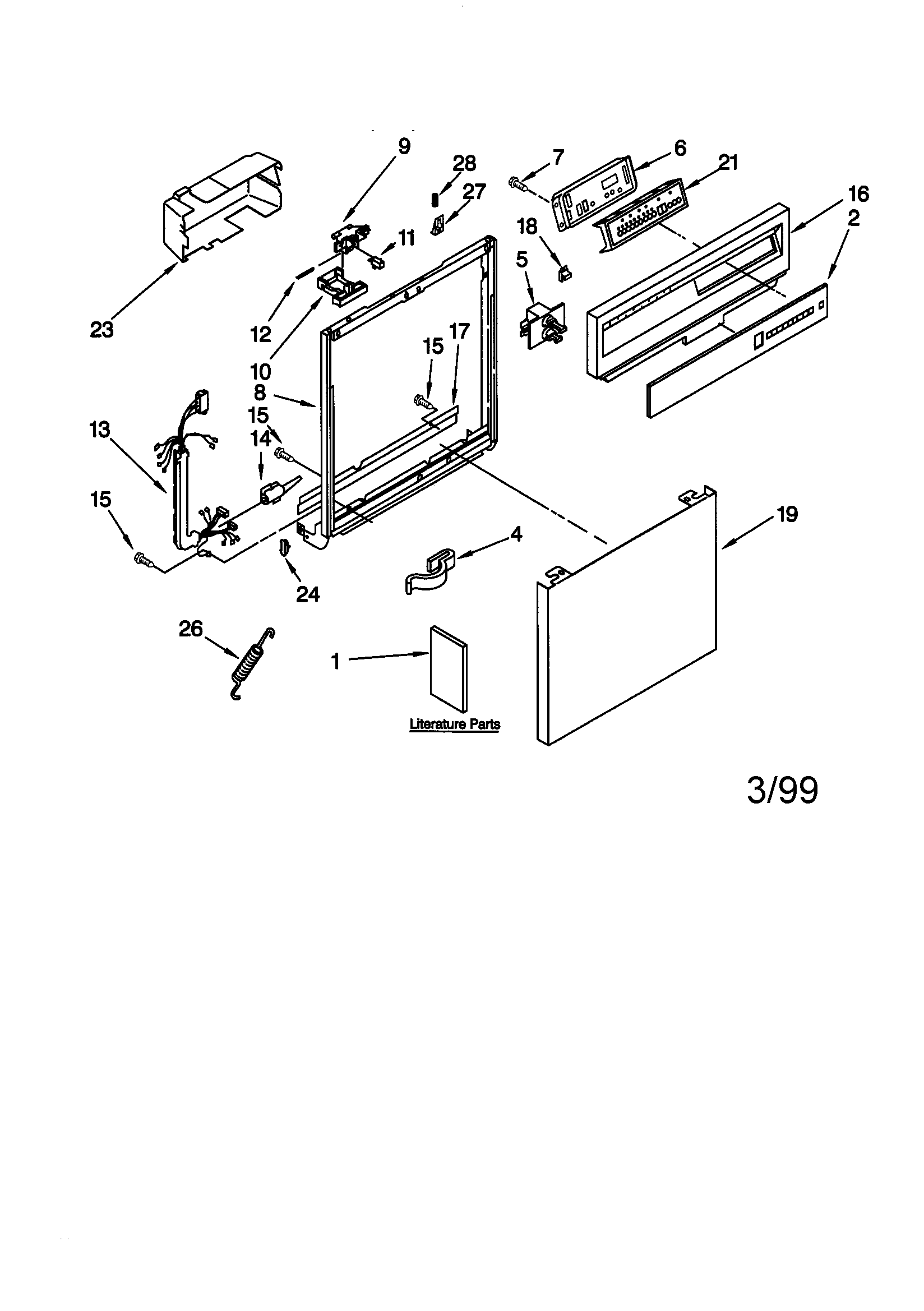

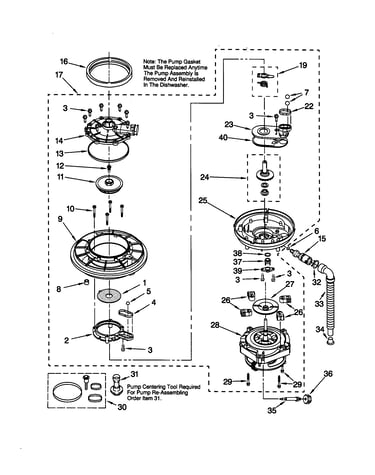

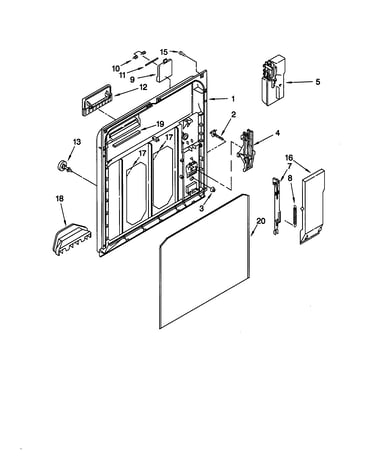

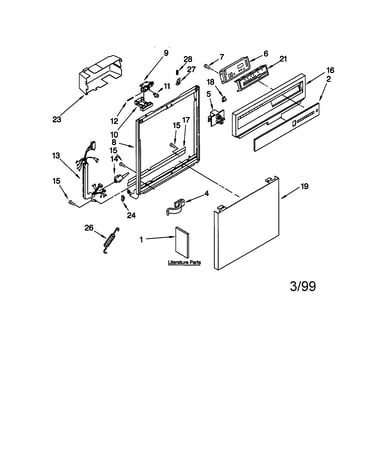

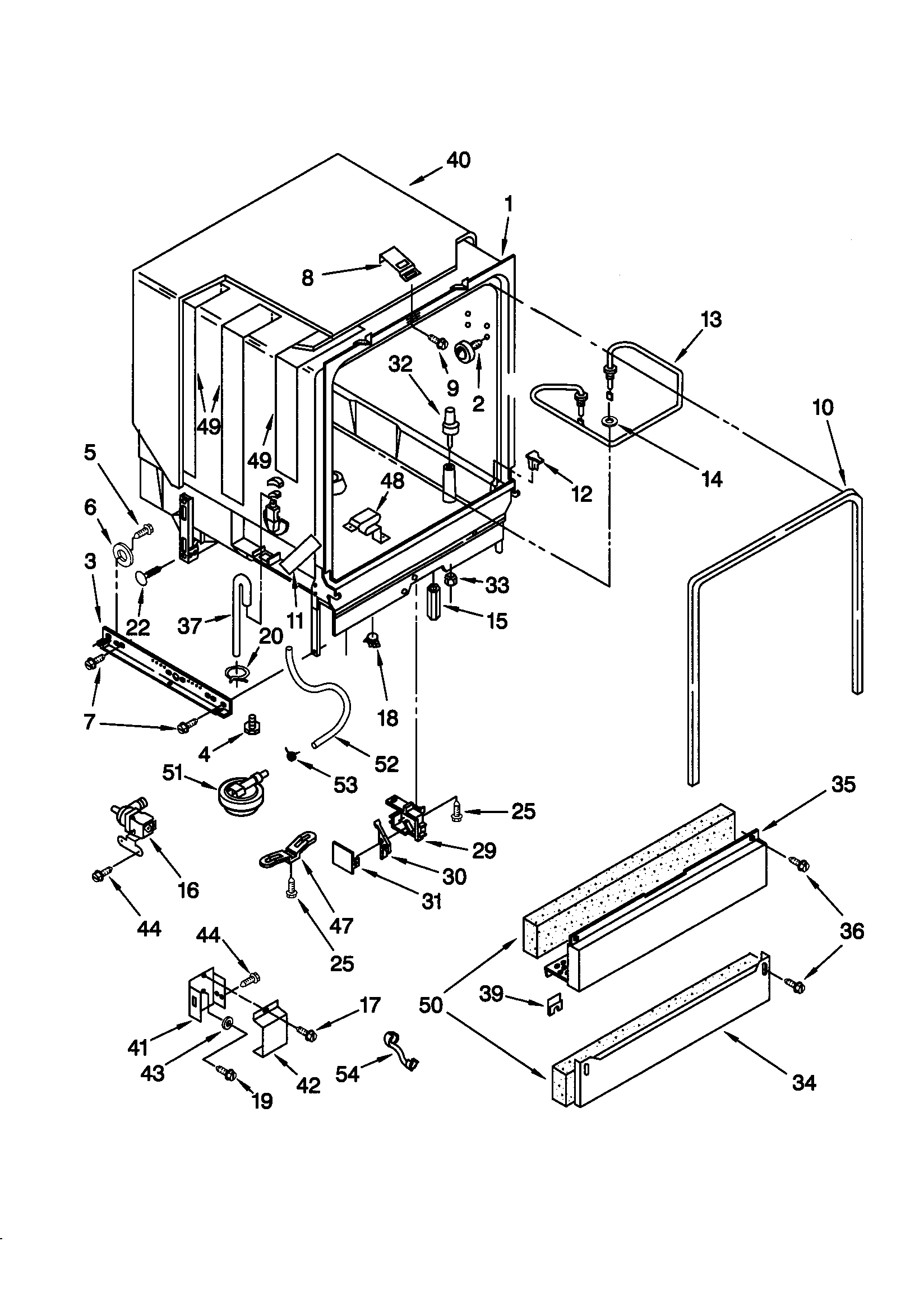

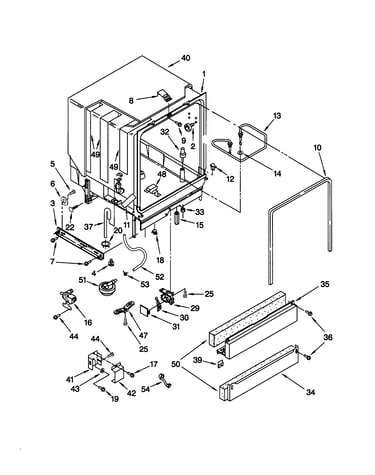

Tub assembly diagram
Dishwasher Thermostat
Part #661566Replaced by #WP661566
Manufacturer substitutionThis part replaces 661566. Substitute parts can look different from the original.In Stock$13.3946% OFF Was : $24.73
Qty
Tub assembly diagram
Dishwasher Door Seal
Part #3376927Replaced by #WPW10509257
Manufacturer substitutionThis part replaces 3376927. Substitute parts can look different from the original.In Stock$42.7612% OFF Phone Price : $48.76QtyUpper dishrack and water feed diagram

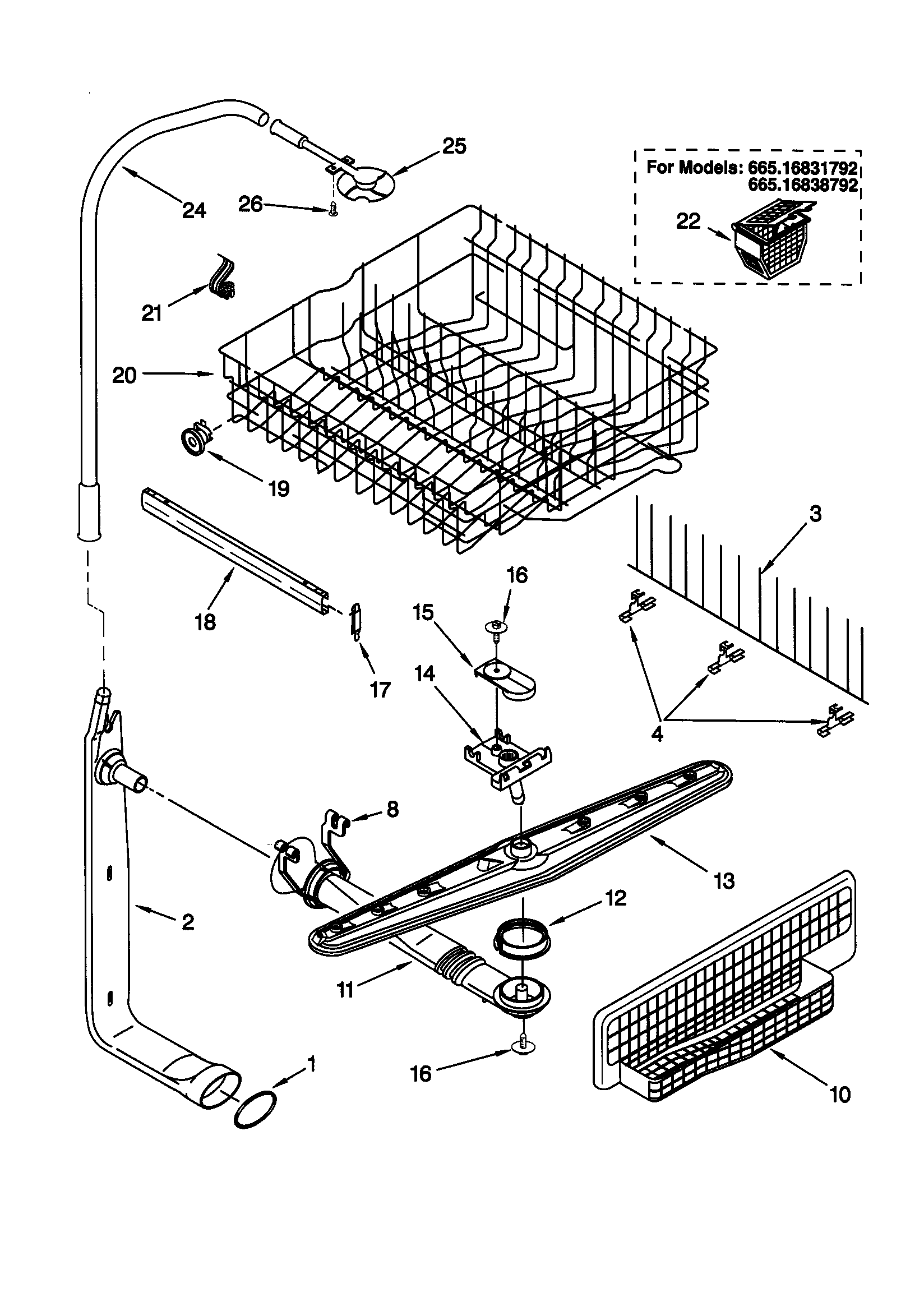

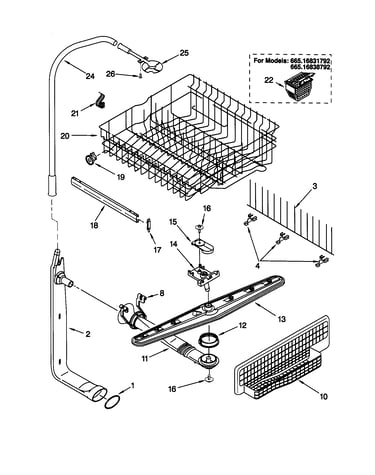

Dishwasher Spray Arm
Part #3378147Replaced by #675808
Manufacturer substitutionThis part replaces 3378147. Substitute parts can look different from the original.In Stock$34.2515% OFF Phone Price : $40.25QtyUpper dishrack and water feed diagram
Mount
Part #9742994Replaced by #WP8539324
Manufacturer substitutionThis part replaces 9742994. Substitute parts can look different from the original.In Stock$9.719% OFF Phone Price : $10.71QtyDishwasher Lower Spray Arm Seal
Part #3376846Replaced by #WP3376846

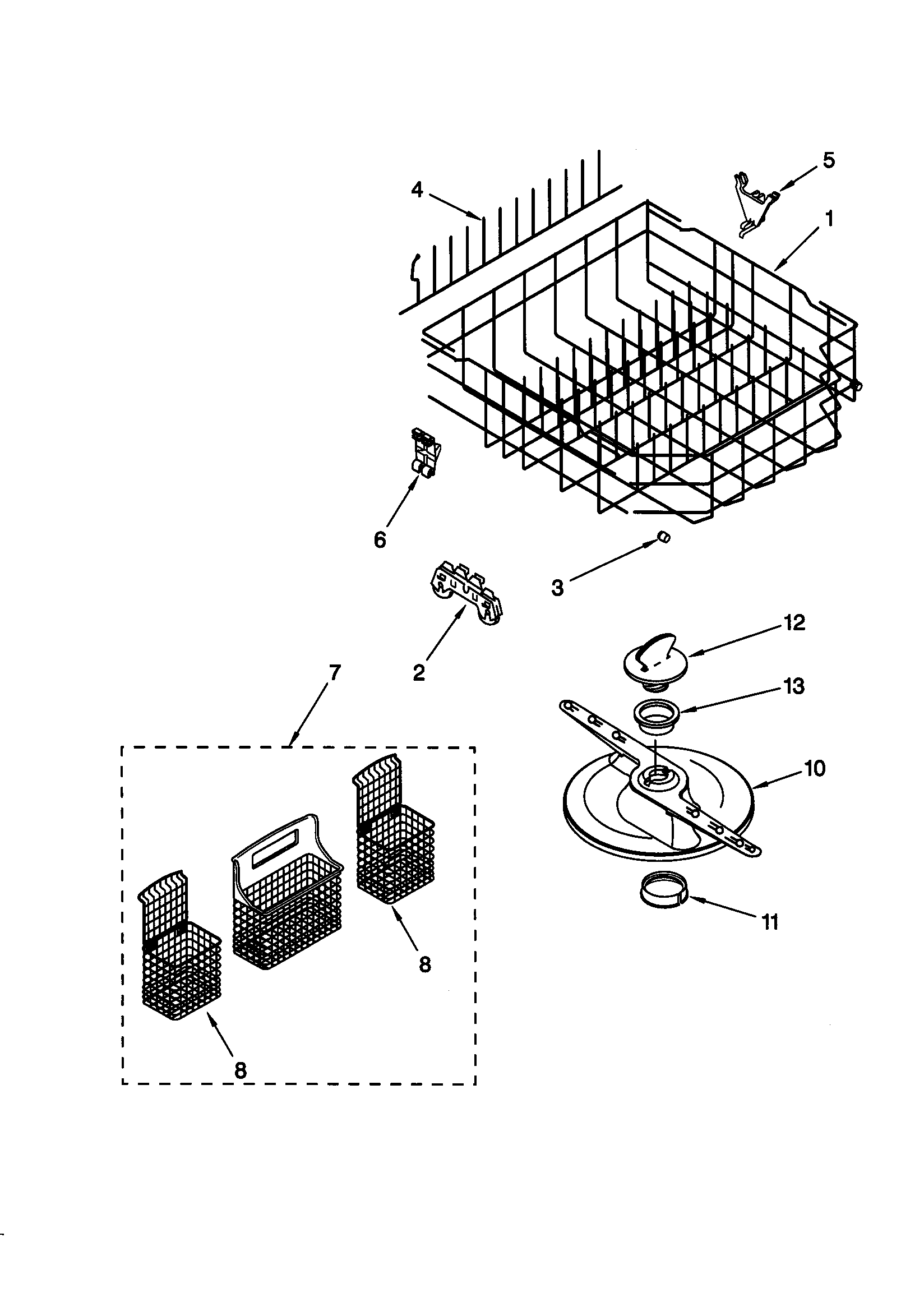

Manufacturer substitutionThis part replaces 3376846. Substitute parts can look different from the original.In Stock$9.0810% OFF Phone Price : $10.08QtyLower dishrack diagram

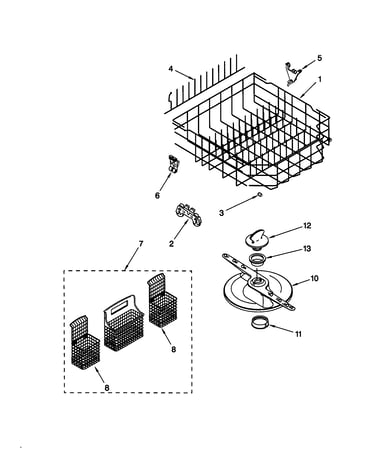

Dishwasher Lower Spray Arm Bearing
Part #9742946Replaced by #WP9742946
Manufacturer substitutionThis part replaces 9742946. Substitute parts can look different from the original.In Stock$17.4210% OFF Phone Price : $19.42Qty#NI
All parts diagram
Adhesive
Part #675652Replaced by #W10841140
Manufacturer substitutionThis part replaces 675652. Substitute parts can look different from the original.In Stock$16.1411% OFF Phone Price : $18.14Qty#NI
All parts diagram
Glisten
Part #4319102Replaced by #W10549851
Manufacturer substitutionThis part replaces 4319102. Substitute parts can look different from the original.This item is not returnableIn Stock$20.0623% OFF Phone Price : $26.06QtyTub assembly diagram
Dishwasher Heating Element Rubber Washer
Part #717273Replaced by #WP717273
Manufacturer substitutionThis part replaces 717273. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2416% OFF Phone Price : $6.24QtyUpper dishrack and water feed diagram
Track
Part #9742998Replaced by #WP3385089
Manufacturer substitutionThis part replaces 9742998. Substitute parts can look different from the original.In Stock$40.7913% OFF Phone Price : $46.79Qty
