For the Maytag MVWB765FW3 washer, the exact button or dial sequence to enter diagnostic mode is not listed in the available model-specific Use & Care information; we recommend using the tech sheet/service procedure for your unit. Start by reviewing the MVWB765FW3 use & care manual for control-panel basics and troubleshooting steps.

• Touch POWER to wake the control.
• Confirm the lid is fully closed; the washer will not run with the lid open.
• If the washer is mid-cycle, touch START/PAUSE and wait for the basket to stop before trying anything else.
• Avoid opening the lid during Sensing; it can restart the sensing process.
• If the washer will not start and the lid lock light is flashing, inspect the lid strike area for obstruction.

Because Maytag uses different console designs across model families, MVWB765FW3 may use one of these common approaches:

• Cycle knob rotation pattern (a timed sequence of turns)
• 3-button sequence (press and release 3 buttons in a repeating pattern within a short time window)
• Display confirmation such as all console lights flashing or a segment test

If your washer does not respond, power it off, wait 30 seconds, then try again with a steady rhythm.

If you are trying to diagnose a no-start, no-fill, or lid-lock issue, the lid lock is a frequent checkpoint on this design. If the lid will not lock or unlock correctly, we typically inspect the wiring connection and the lock mechanism itself.

• Suggested part to check: washer lid lock assembly W10810403

Running the correct diagnostic routine helps you pull stored fault codes and run component tests (lid lock, drain pump, inlet valve) so you replace only the part that is actually failing.

Last updated: January 2026

For the Maytag MVWB765FW3, the most common service-type problems we see are “won’t drain” or “won’t spin.” On this model, those symptoms are often tied to an off-balance load, excess suds from non-HE detergent, or a lid lock issue that prevents high-speed spin. See the MVWB765FW3 use & care manual for model-specific troubleshooting.

• Confirm the lid fully closes; the washer won’t run or fill with the lid open.
• Use only HE detergent and measure carefully; too many suds can slow or stop draining and spinning.
• Redistribute the load evenly around the agitator; avoid single heavy items.
• Select Drain & Spin to remove water, then retry the cycle.
• Check the drain hose setup; kinks or an incorrect standpipe height can cause slow draining.

If the checks above don’t help, these model-compatible parts are common suspects:

• Washer lid lock assembly W10810403: if the lid lock fails, the control may stop the cycle or refuse to spin.

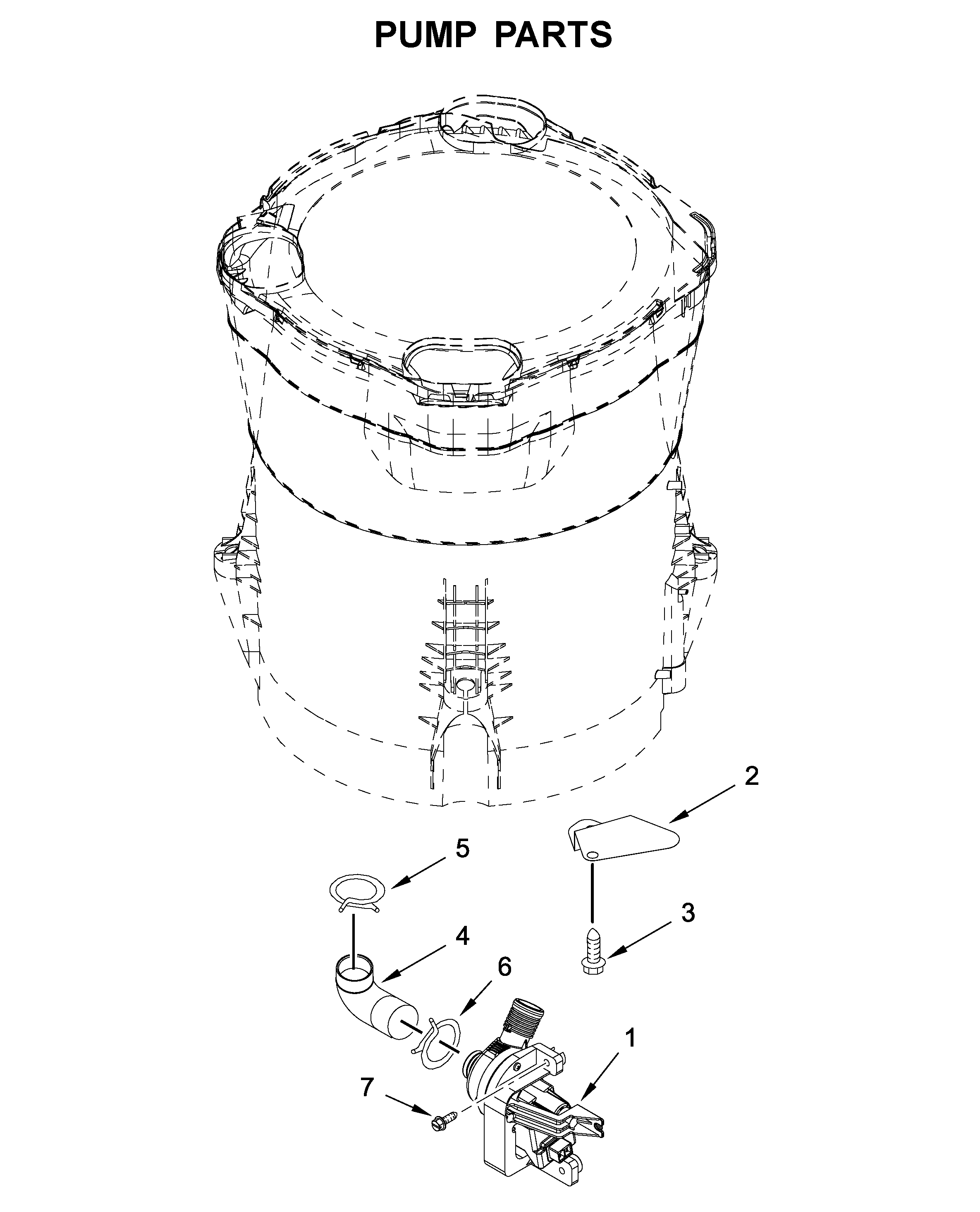

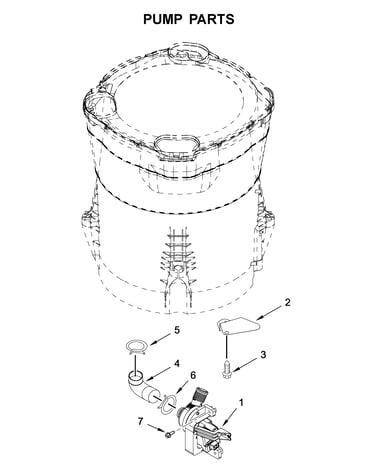

• Washer drain pump W10876600: a weak or jammed pump can leave water in the tub and prevent spin.
• Washer tub-to-pump hose W10802689: a restriction or collapse in this hose can slow draining.

This high-efficiency top-load washer must drain properly and confirm the lid is locked before it can ramp up to high-speed spin. Fixing the root cause helps prevent repeat cycle failures, odors from standing water, and extra wear on the drive system.

Last updated: January 2026

For a Maytag top-load washer like model MVWB765FW3, we can’t give a single guaranteed lifespan from model-specific documentation because it depends heavily on use and care. What we can confirm is that this model’s warranty includes coverage up to 10 years on certain components, and good maintenance often helps the washer run reliably for many years.

The MVWB765FW3 Use & Care Guide includes a limited warranty that can help set expectations for major components.

• Second through tenth year limited warranty applies to the drive motor and wash basket (side walls only) (labor not included)
• First year limited warranty covers parts and labor
• Warranty coverage is not the same as expected service life, but it does indicate which components are designed for long-term support

For the exact warranty wording and maintenance schedule, use the MVWB765FW3 use & care manual.

These are the biggest factors we see that shorten or extend life on high-efficiency top-load washers like MVWB765FW3:

• Overloading or tightly packing the basket (more strain on drive and suspension)
• Using non-HE detergent or too much detergent (suds, residue, longer cycle corrections)
• Skipping routine cleaning (odor and buildup)
• Unlevel installation (vibration and off-balance wear)
• Delaying small repairs (a minor drain or lid-lock issue can turn into repeated cycle failures)

The MVWB765FW3 manual specifically recommends practices that reduce wear and odor.

• Use only HE detergent and measure carefully
• Run Clean Washer with affresh® about every 30 washes (or monthly)
• Leave the lid open between uses to help the tub dry
• Load items in loose heaps evenly around the agitator
• Inspect inlet hoses regularly; replace about every 5 years

If you’re deciding whether to repair or replace, separating “warranty coverage” from “expected lifespan” helps. On MVWB765FW3, consistent cleaning, correct loading, and prompt fixes usually prevent vibration, draining issues, and cycle interruptions.

Last updated: January 2026

For Maytag top-load washer model MVWB765FW3, we can confirm the cabinet dimensions from the installation instructions: 27 inches deep, 27 1/2 inches wide, and 43 1/2 inches high. The installation document does not list the wash capacity in cubic feet for this model.

These measurements come from the installation requirements section of the MVWB765FW3 installation guide.

Even with the correct cabinet size, fit issues usually come from clearances, hoses, and the drain setup.

• Measure the opening at the narrowest point (trim and baseboards count)
• Allow room behind the washer for inlet hoses and the drain hose bend
• Confirm the standpipe or laundry tub height and that the drain hose is not shoved too far down
• Check that the floor is level and solid to reduce vibration and “walking”
• Verify a grounded outlet is within reach of the power cord

“Size” is often used to mean tub capacity (cu. ft.), but that specification is not shown in the model-specific installation instructions or the extracted manual text we have for MVWB765FW3.

Using the correct width, depth, and height helps prevent a tight install that can kink hoses, restrict draining, or increase vibration during high-speed spin.
