Bosch SHU5316UC/11 dishwasher Parts
Here are the diagrams and repair parts for Bosch SHU5316UC/11 dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

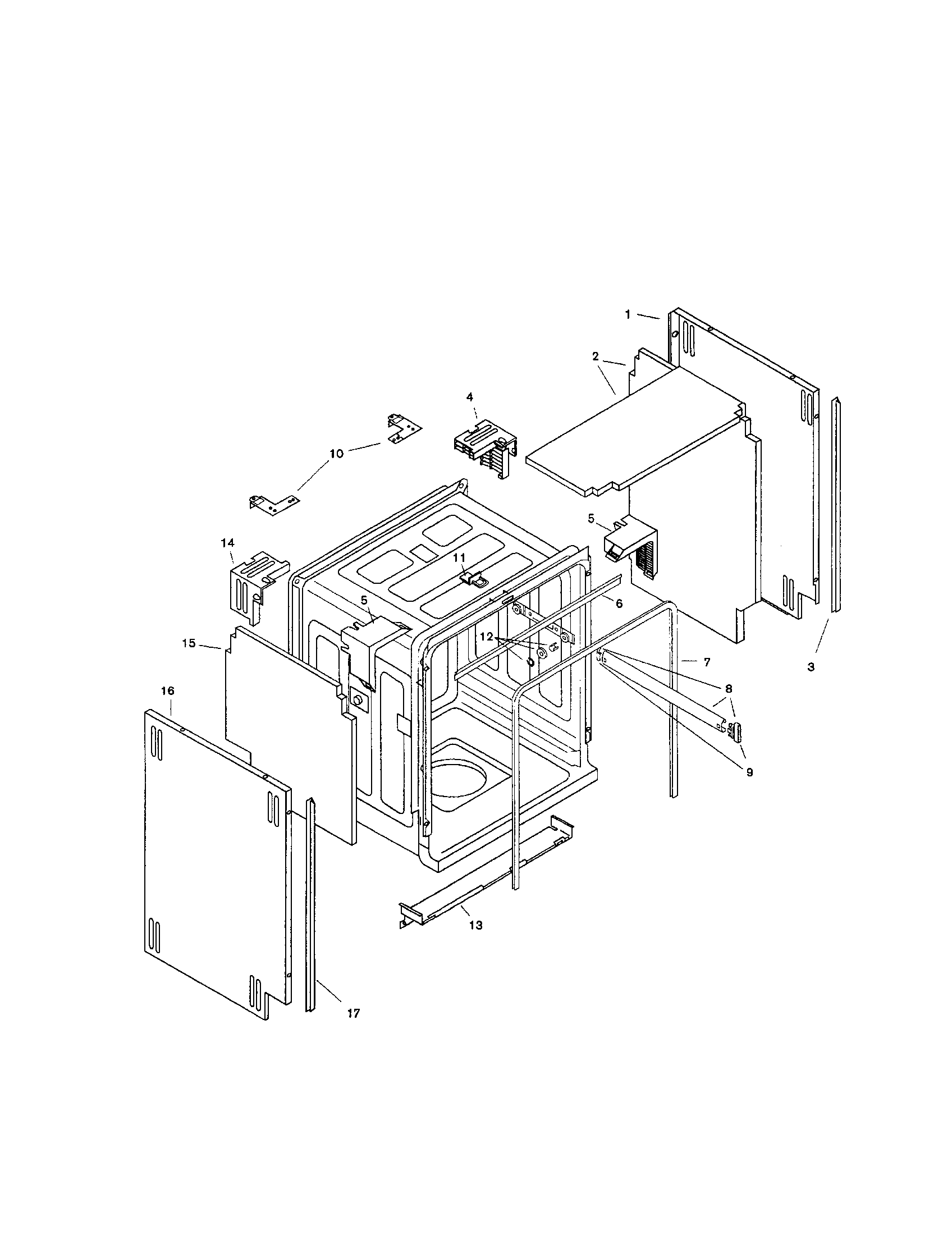

SELECT DIAGRAM

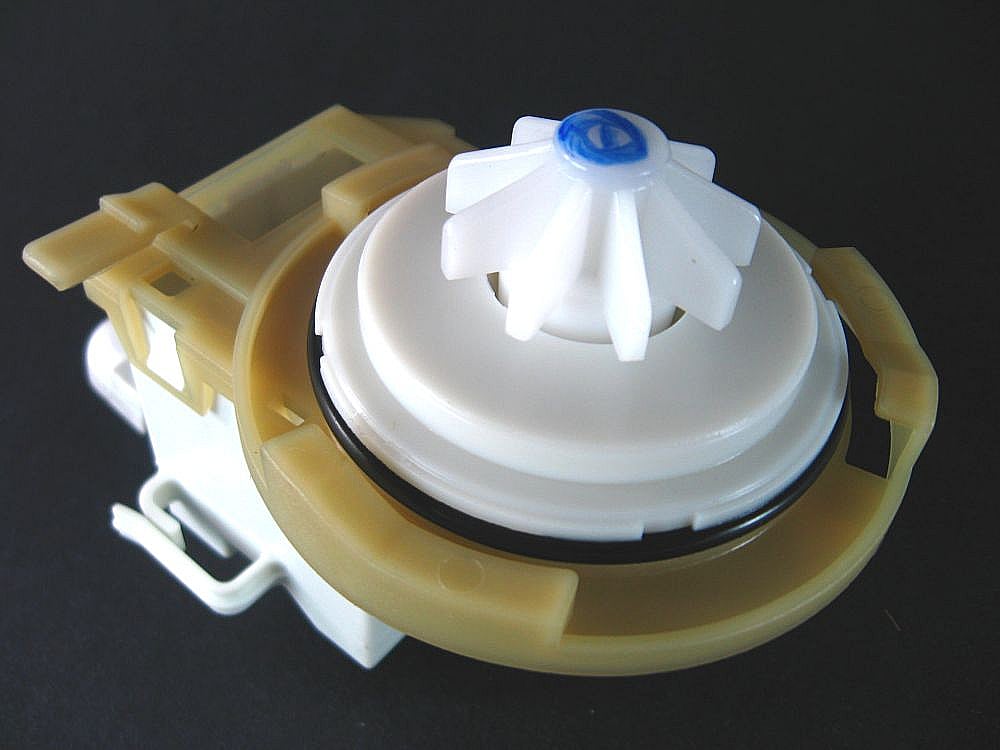

Browse Parts for SHU5316UC/11 Dishwasher

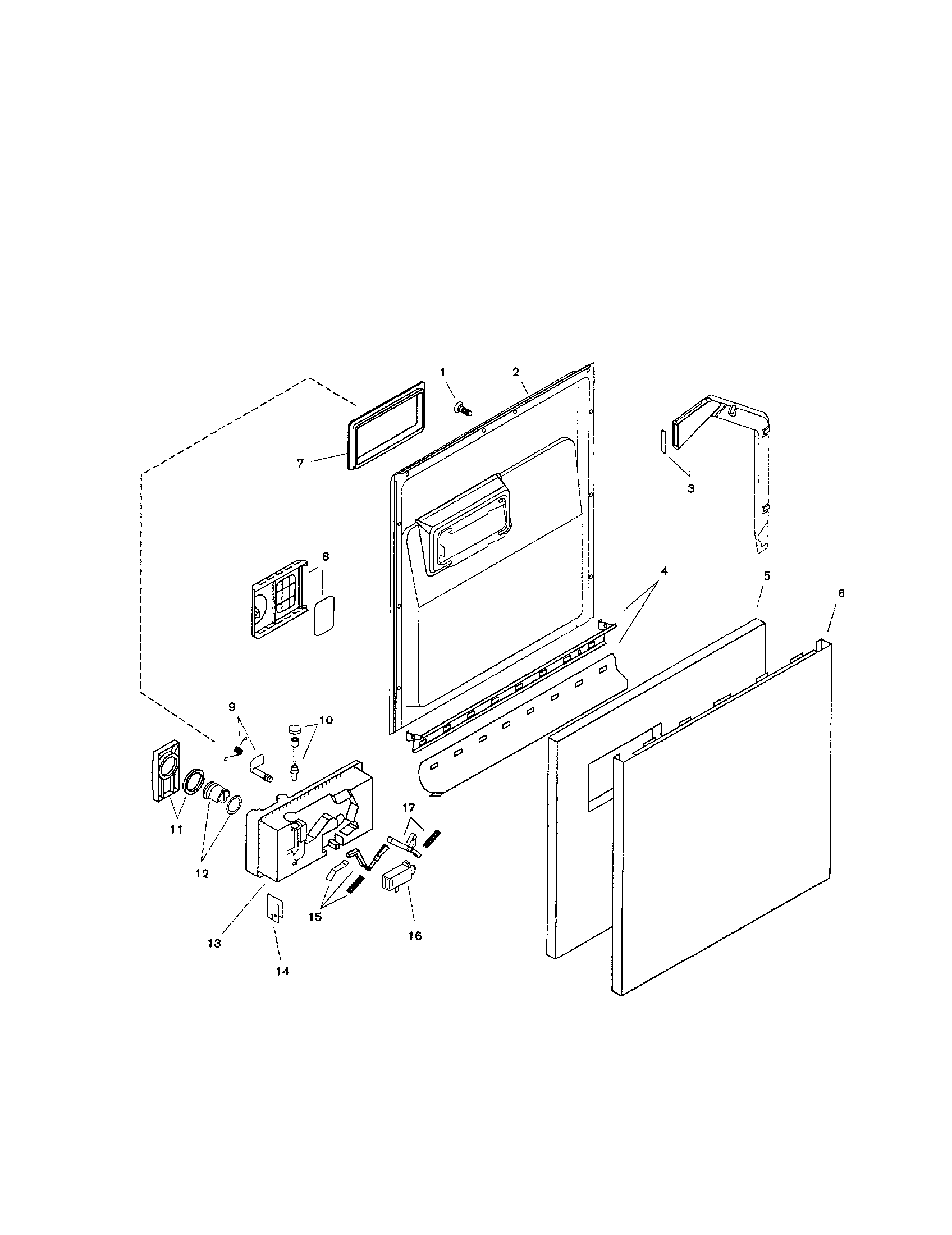

Door assembly diagram
Dishwasher Door Panel
Part #166623Replaced by #00166623
Manufacturer substitutionThis part replaces 166623. Substitute parts can look different from the original.This item is not returnableIn Stock$22.0021% OFF Phone Price : $28.00
Qty
Fascia panel diagram
Wiring Harness
Part #266753Replaced by #00266753

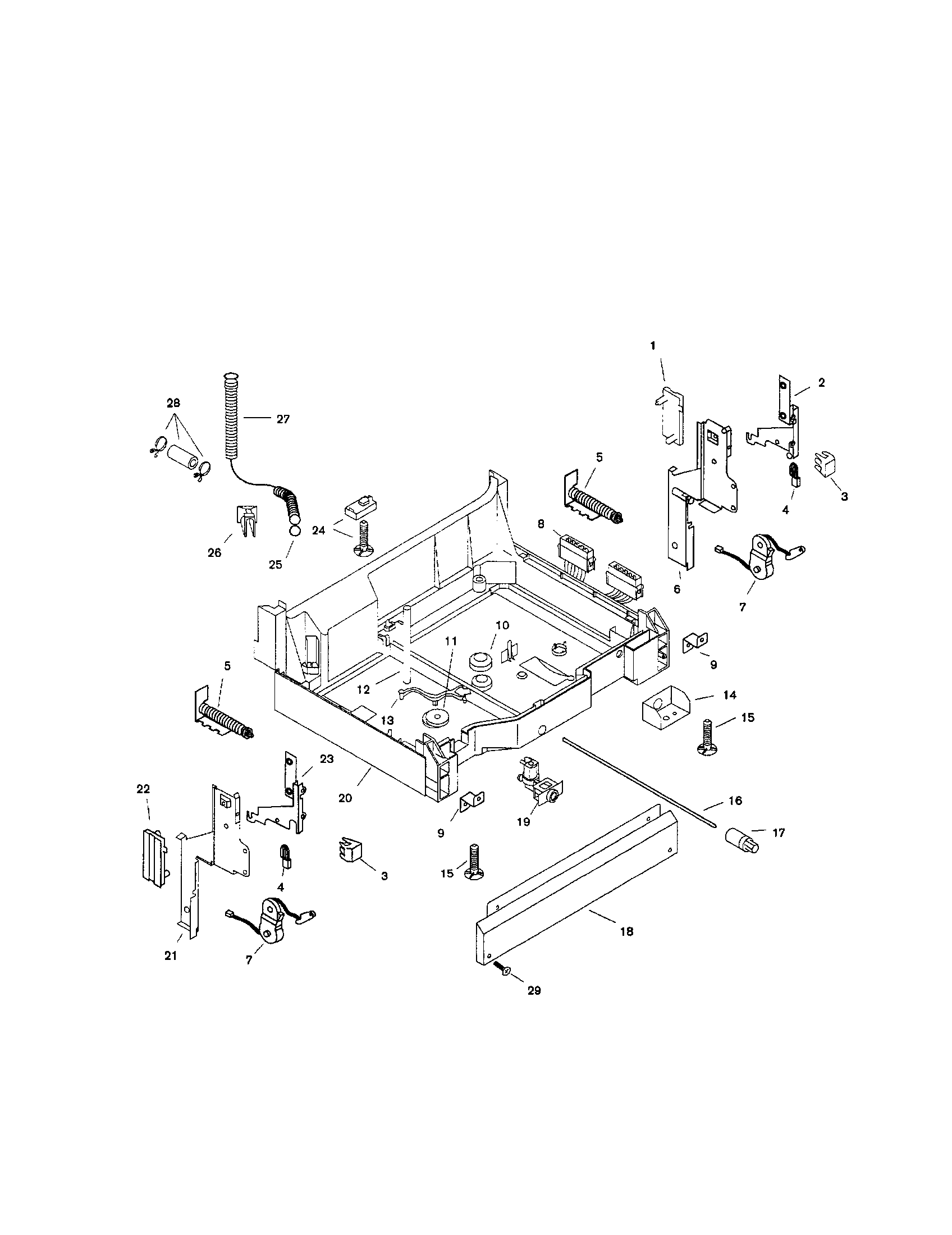

Manufacturer substitutionThis part replaces 266753. Substitute parts can look different from the original.In Stock$123.159% OFF Phone Price : $135.15QtyBase diagram
Hinge Cap
Part #165295Replaced by #00165295

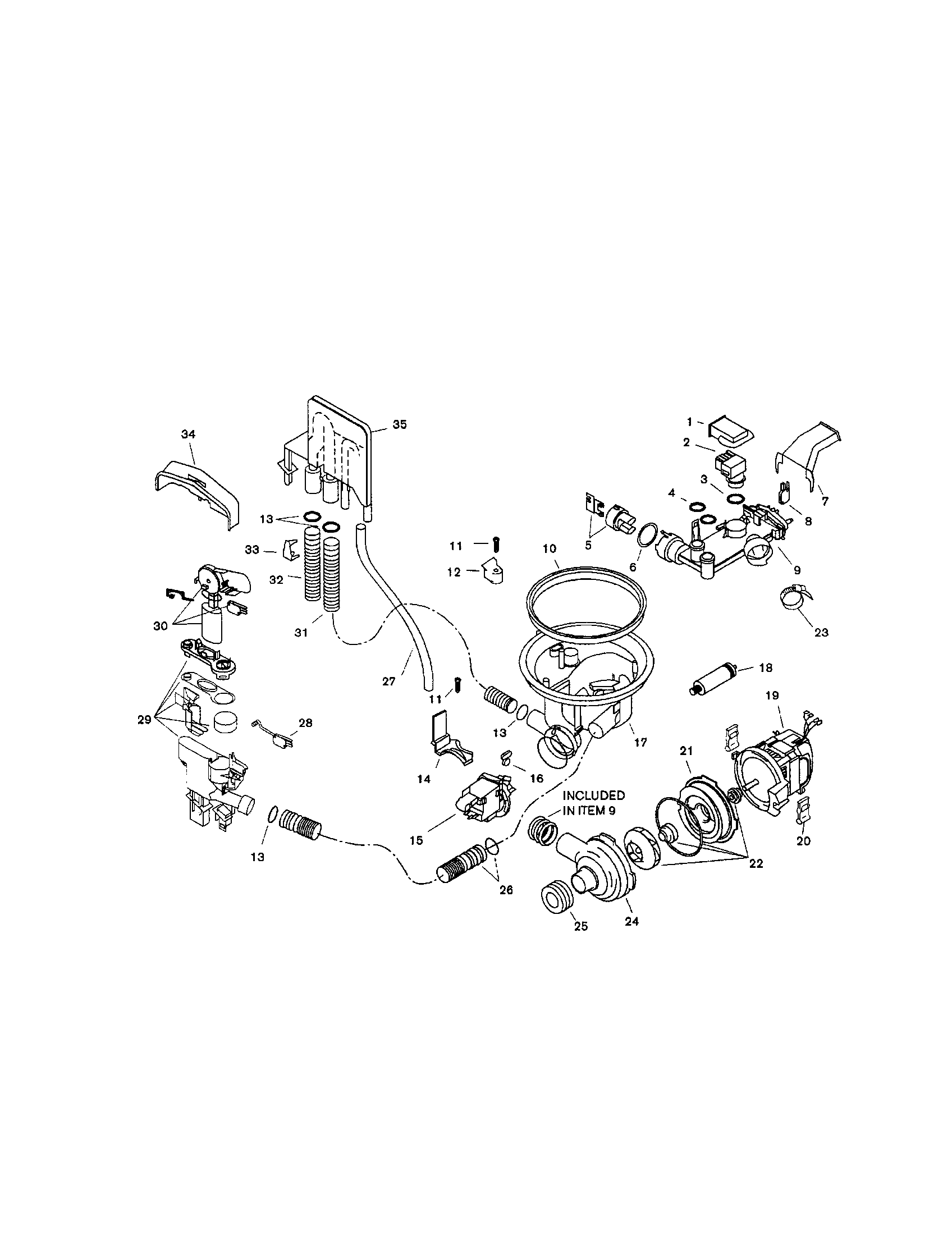

Manufacturer substitutionThis part replaces 165295. Substitute parts can look different from the original.In Stock$52.09QtyComponent assemblies diagram
Dishwasher Screw
Part #167241Replaced by #00167241

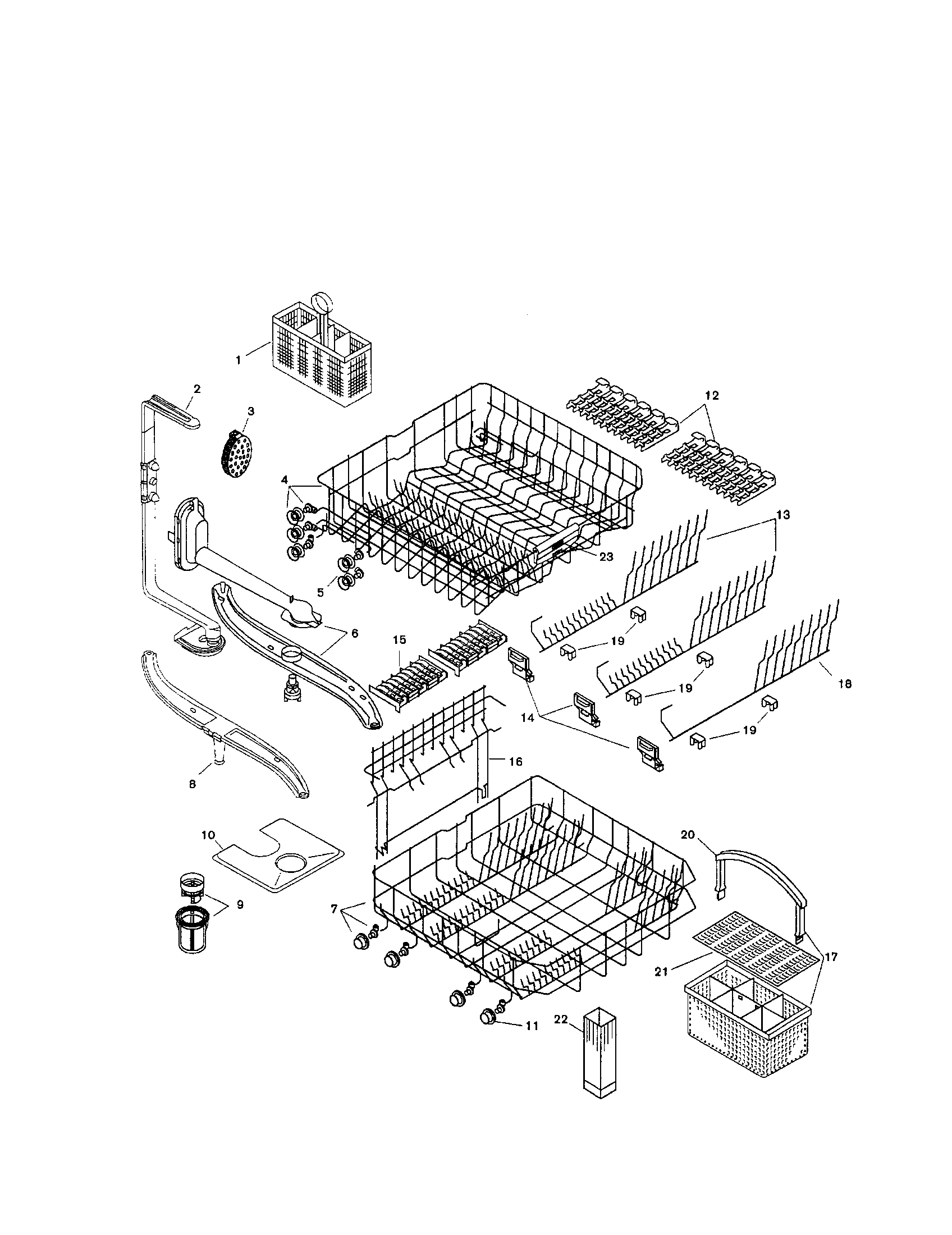

Manufacturer substitutionThis part replaces 167241. Substitute parts can look different from the original.In Stock$35.00QtyRacks diagram
Basket Lid
Part #093045Replaced by #00093046
Manufacturer substitutionThis part replaces 093045. Substitute parts can look different from the original.In Stock$66.908% OFF Phone Price : $72.90QtyRacks diagram
Silverware
Part #093047Replaced by #00093046
Manufacturer substitutionThis part replaces 093047. Substitute parts can look different from the original.In Stock$66.908% OFF Phone Price : $72.90QtyDoor assembly diagram
Lever
Part #166632Replaced by #00166632
Manufacturer substitutionThis part replaces 166632. Substitute parts can look different from the original.In Stock$20.3323% OFF Phone Price : $26.33QtyComponent assemblies diagram
Bearing So
Part #266158Replaced by #00267619
Manufacturer substitutionThis part replaces 266158. Substitute parts can look different from the original.In Stock$115.499% OFF Phone Price : $127.49QtyRacks diagram
Clip
Part #167291Replaced by #00167291
Manufacturer substitutionThis part replaces 167291. Substitute parts can look different from the original.In Stock$44.82QtyComponent assemblies diagram
Dishwasher O-ring
Part #165280Replaced by #00165280
Manufacturer substitutionThis part replaces 165280. Substitute parts can look different from the original.In Stock$37.85Qty
