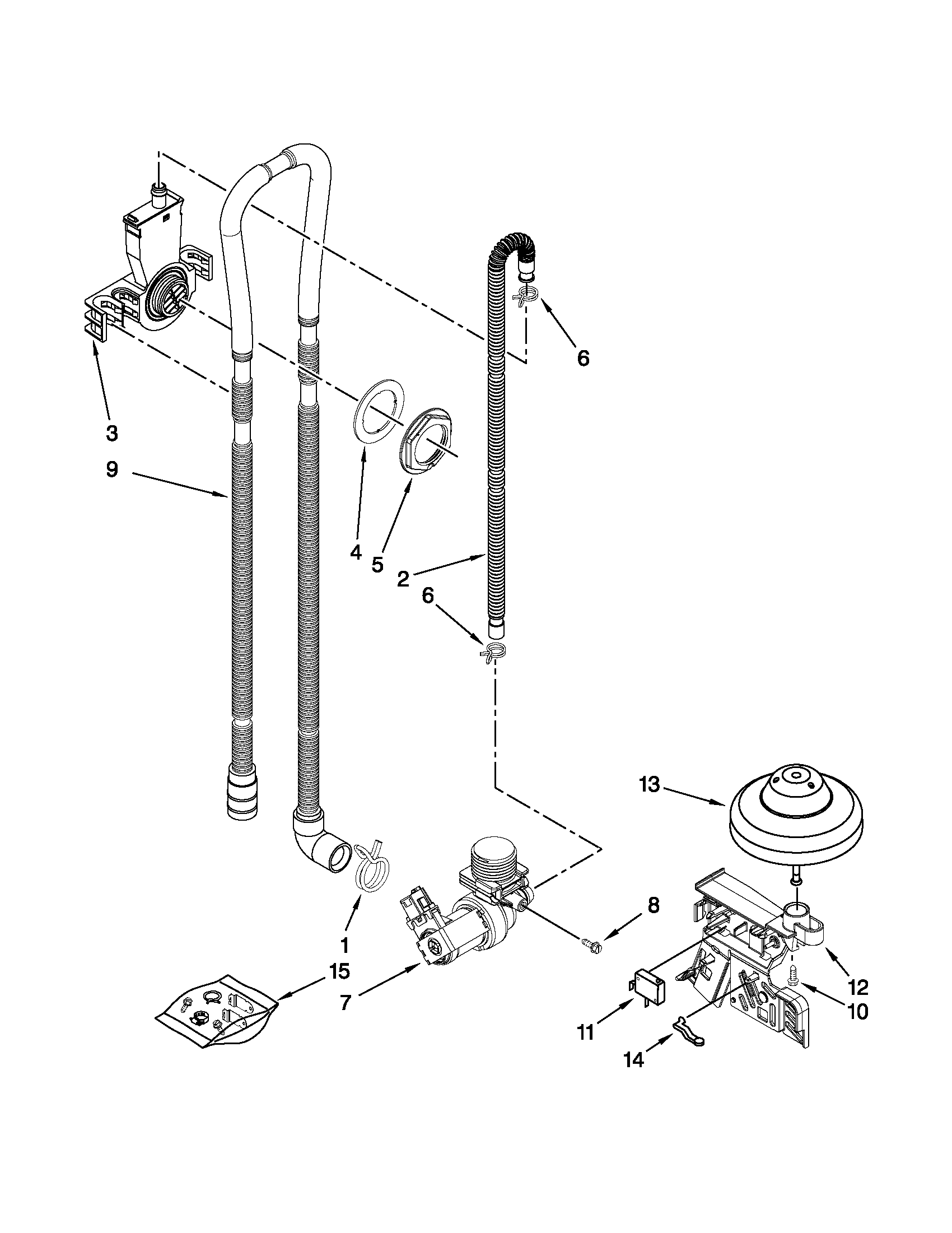

Whirlpool WDT710PAYM5 undercounter dishwasher Parts

To identify your Whirlpool dishwasher model, open the door and look for the rating label inside the tub near the door opening. On Whirlpool model WDT710PAYM5, the model and serial number are located near the door on the right-hand or left-hand side of the interior.

• Open the dishwasher door fully.
• Check the inner tub frame near the door opening.
• Look on the right-hand side first, then the left-hand side.
• Find the label that lists Model and Serial.
• Write the model number exactly as shown (letters and numbers).

Most Whirlpool undercounter dishwashers use a small printed sticker or metal-look label. It typically includes:

• Model number
• Serial number
• Electrical ratings (volts/amps)

Whirlpool dishwashers can look nearly identical across multiple model numbers, but parts like the control panel, pump, or heating element can differ. Using the exact model number helps us match the correct diagrams and parts the first time.

Confirm the model number against your paperwork and then use the WDT710PAYM5 owner’s manual to reference features, cycle options, and troubleshooting guidance.

Last updated: February 2026

A bottom-of-door leak on your Whirlpool WDT710PAYM5 dishwasher usually happens when water is being pushed or splashed toward the door faster than the door area can contain it, or when the door is not closing and latching tightly. We use the WDT710PAYM5 owner’s manual to confirm proper door closing and basic operating checks.

• Door not fully latched: Make sure the door closes firmly and the latch engages.
• Rack or basket interference: Items sticking out can prevent a tight seal.

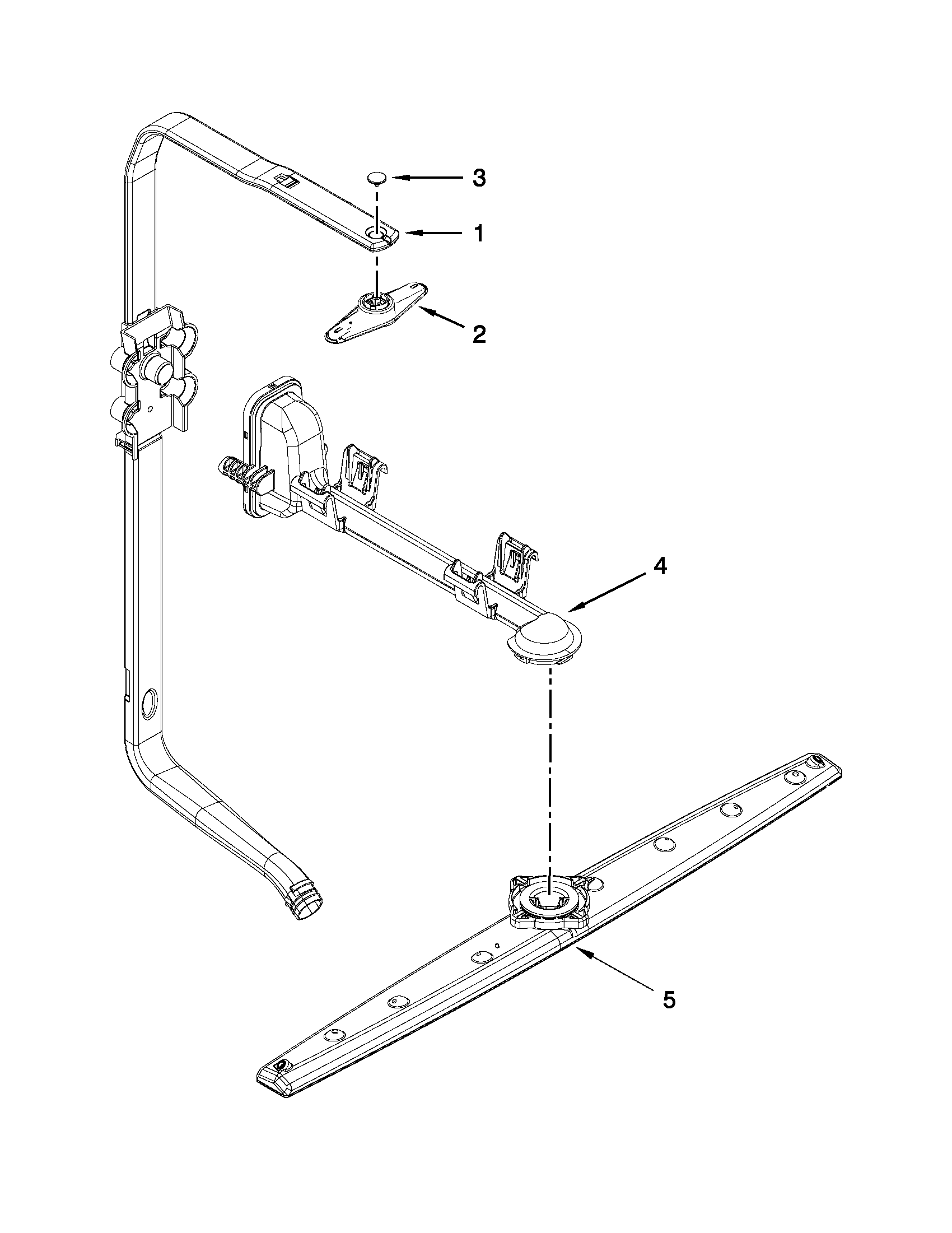

• Spray arm issue: A cracked, loose, or clogged spray arm can create a strong spray pattern toward the door.
• Over-sudsing: Hand soap or too much detergent can create foam that escapes at the door.
• Loading problems: Tall pans or utensils can deflect spray directly at the door.

1. Stop the cycle and open the door carefully; wipe up any standing water.

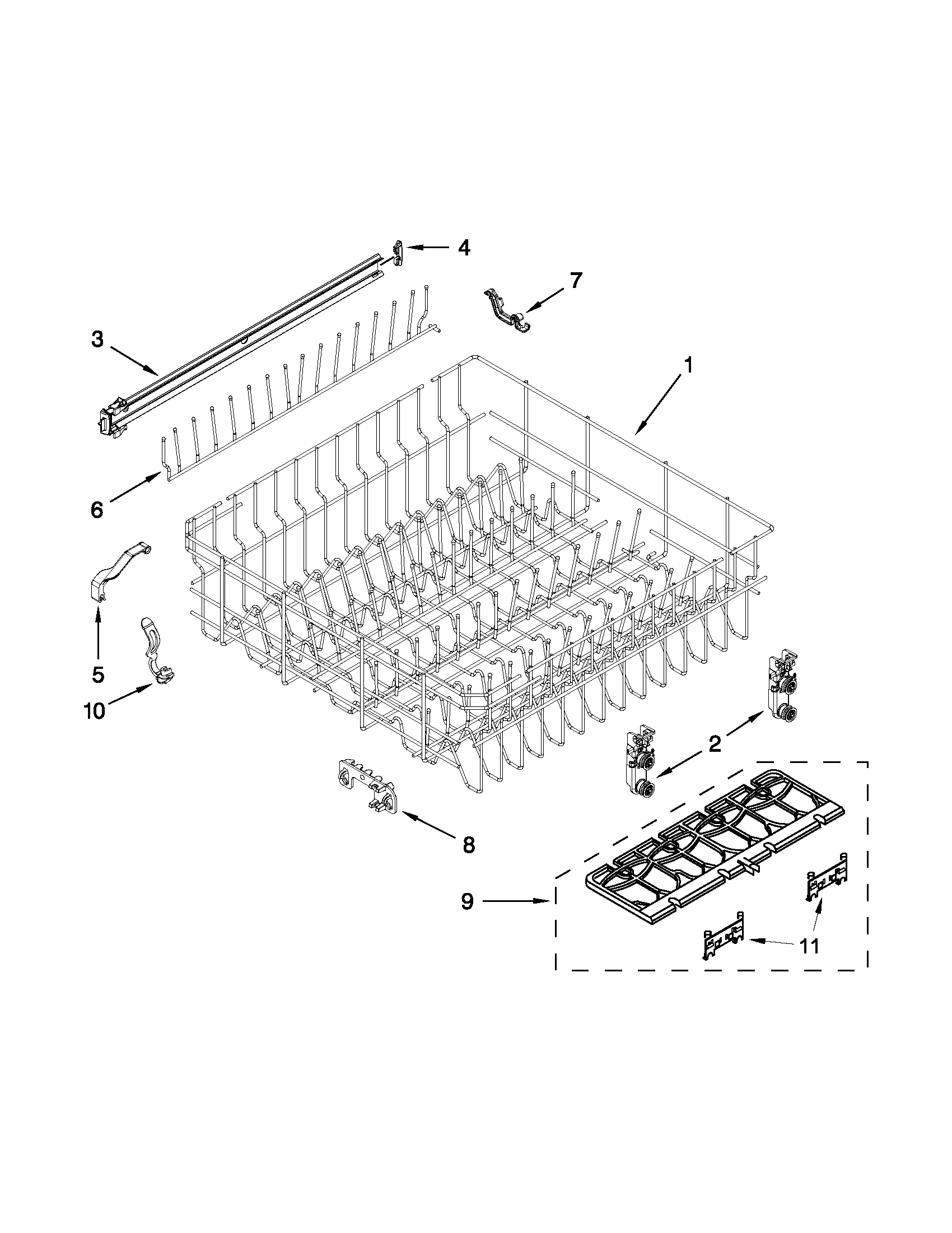

2. Check the racks: slide them in fully and confirm nothing hits the inner door.
3. Inspect the spray arm for splits, warping, or blocked holes; if it is damaged, replace the dishwasher spray arm WPW10491331.
4. Use the right detergent: dishwasher detergent only; avoid pre-rinsing with dish soap that can leave suds.
5. Run a short cycle empty to see if the leak returns; this helps separate loading issues from a mechanical issue.

A door-area leak can soak the toe-kick area and floor, and repeated leaking can lead to corrosion and electrical issues over time. Fixing the spray pattern and ensuring a tight latch prevents repeat leaks.

Last updated: February 2026

A Whirlpool dishwasher typically lasts 10 to 12 years with normal household use. For your Whirlpool WDT710PAYM5, routine care like keeping filters clean, using the right detergent, and fixing small problems early helps you reach (and often exceed) that average; see the WDT710PAYM5 owner's manual for model-specific care and operating guidance.

• Water quality and hard water buildup (scale can reduce cleaning performance and strain components)
• How often you run it (multiple loads daily shortens life compared to a few loads per week)
• Loading habits (overloading can block spray arms and reduce wash performance)
• Filter and sump cleanliness (debris can restrict water flow and contribute to drain issues)
• Prompt repairs (a small leak or poor draining can lead to bigger failures)

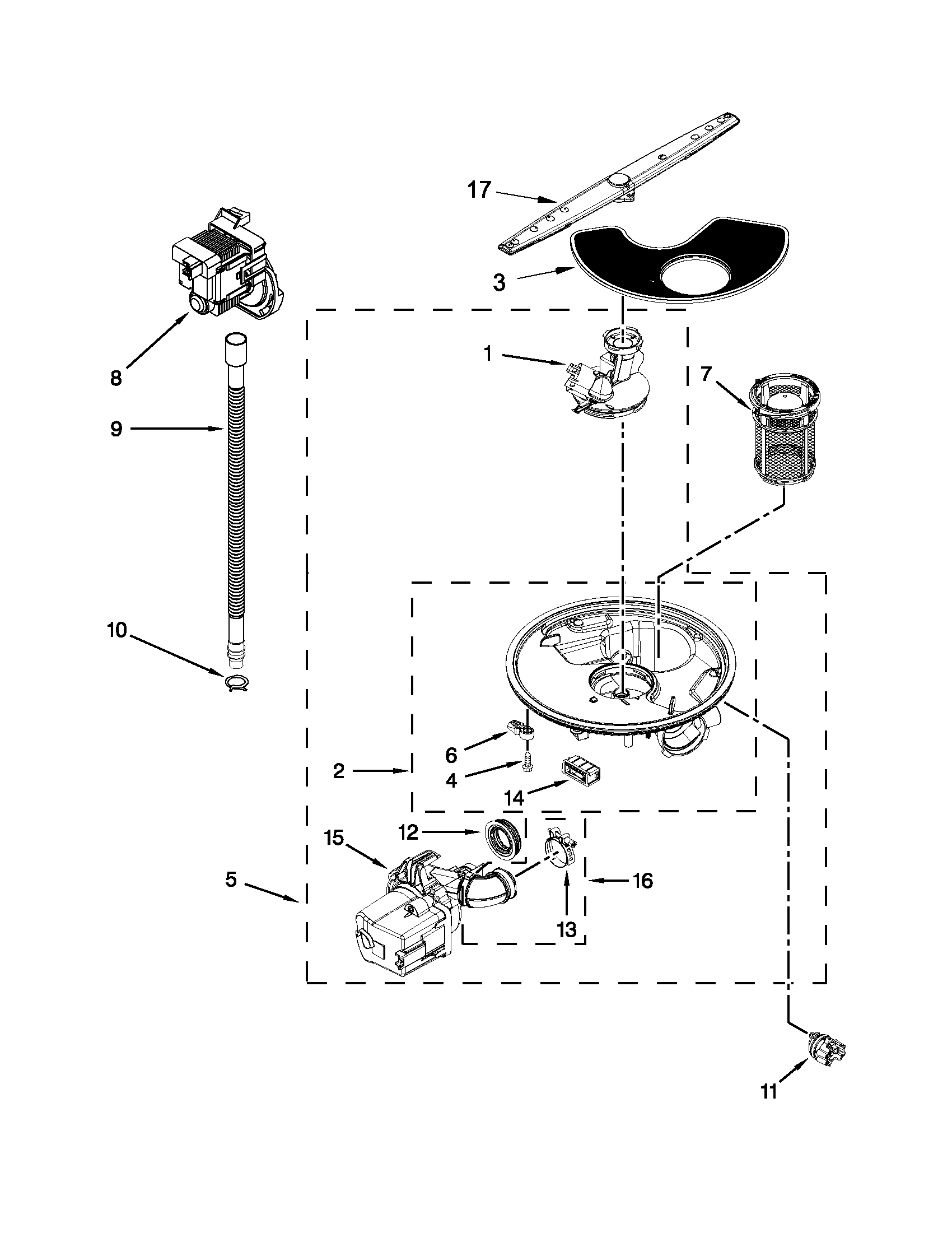

• Clean the filter regularly; replace it if it is damaged (example part: dishwasher filter W10872845).
• Make sure spray arms spin freely and holes are not clogged (example part: dishwasher spray arm WPW10491331).
• Use a quality dishwasher detergent and avoid overfilling rinse aid.
• Run hot water at the sink before starting a cycle to improve wash results.
• Check for slow draining and address it early (example part: dishwasher drain pump WPW10348269).

Dishwashers usually fail gradually, not all at once. When you keep water flowing correctly (filter, spray arm, drain path) and avoid chronic overloading, you reduce stress on the pump, heater, and seals, which are common wear points over time.

Last updated: February 2026

On a Whirlpool WDT710PAYM5 dishwasher, an F3 error typically points to a water-heating temperature problem (the dishwasher is not sensing the expected temperature rise during the heat portion of the cycle). The most common causes are the heater circuit, wiring, or the temperature-sensing circuit.

• Reset power: turn the breaker off for 1 minute, then back on.
• Confirm the cycle actually includes heating (many cycles pause and change stages normally).
• Run hot water at the sink until it is hot before starting the dishwasher.
• Make sure the door closes tightly and latches; a poor latch can interrupt heating stages.
• Check the home electrical supply: a tripped breaker or blown fuse can cause odd mid-cycle behavior.

For cycle behavior and troubleshooting steps specific to this model, use the WDT710PAYM5 owner’s manual.

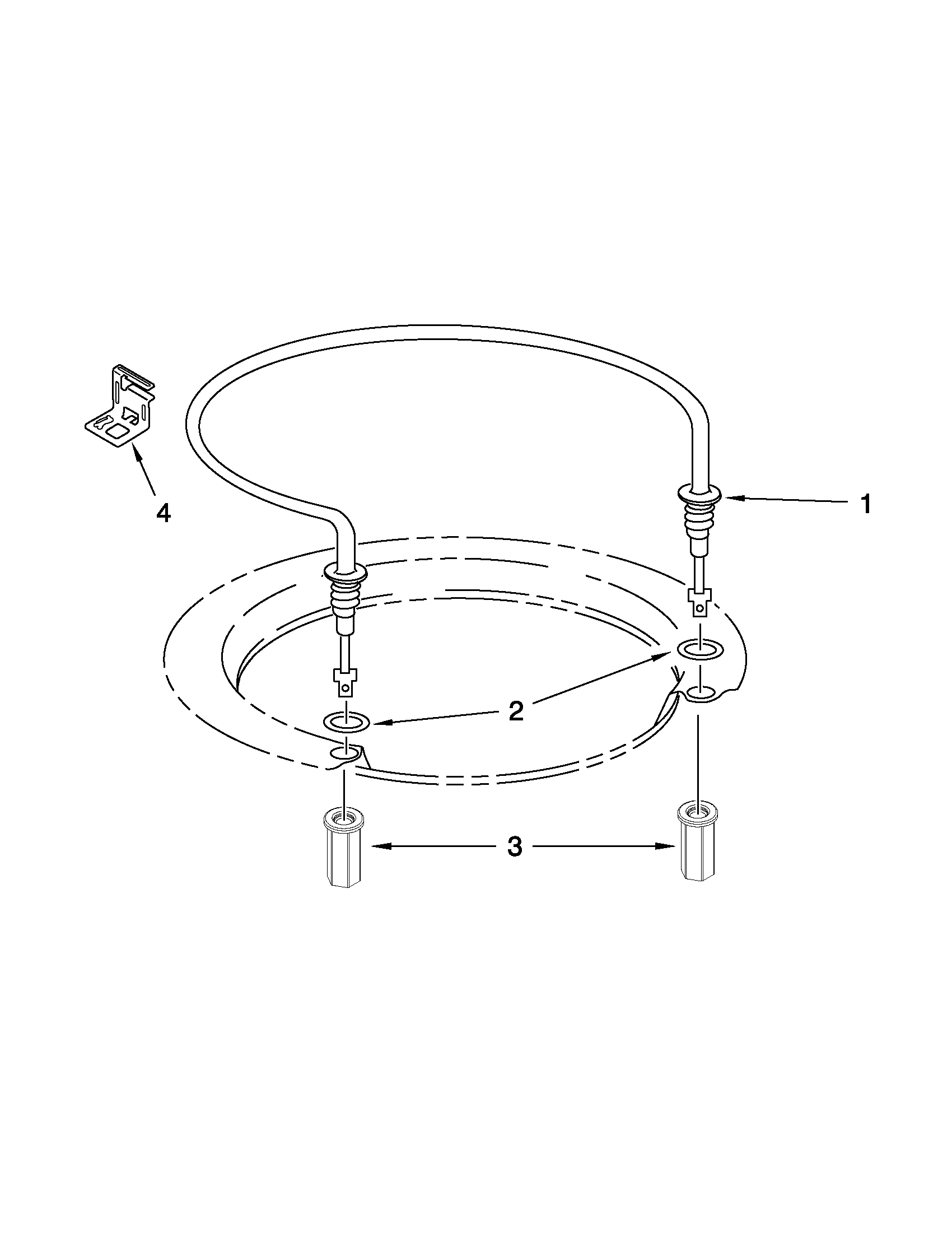

If the dishwasher fills and washes but the water never heats, these are the most common repair paths:

When the dishwasher cannot heat water correctly, it can leave detergent undissolved, reduce cleaning performance, and prevent proper drying. Fixing the heating or sensing issue restores normal wash temperatures and cycle completion.

If you are comfortable with electrical testing, shut off power at the breaker and follow the wiring and component access steps in the WDT710PAYM5 installation guide. A fluctuating temperature-sensing circuit or a heater circuit issue can both trigger an F3-style heating fault.

Last updated: February 2026
