Model # MDBH979SAM1 Official Maytag undercounter dishwasher

Here are the diagrams and repair parts for Official Maytag MDBH979SAM1 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

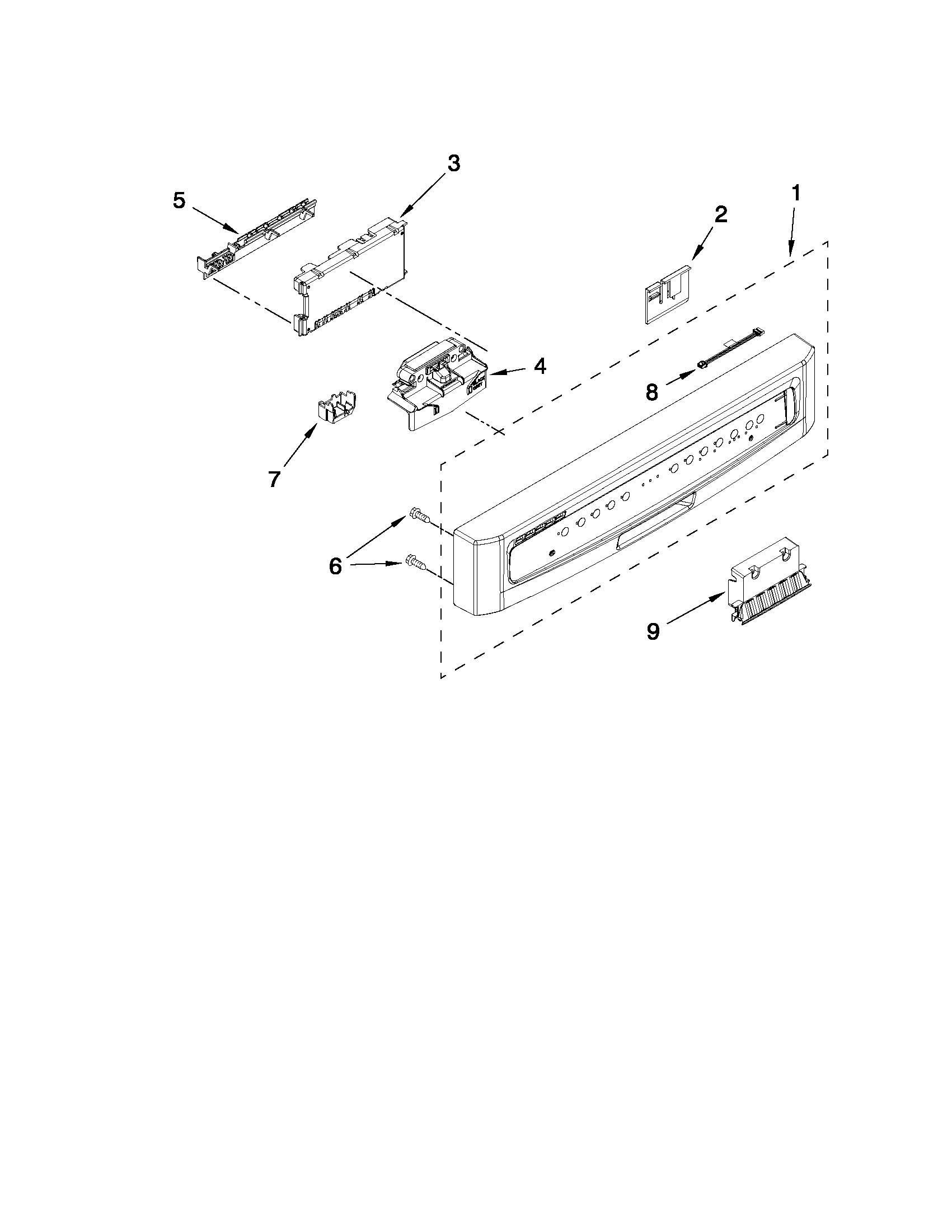

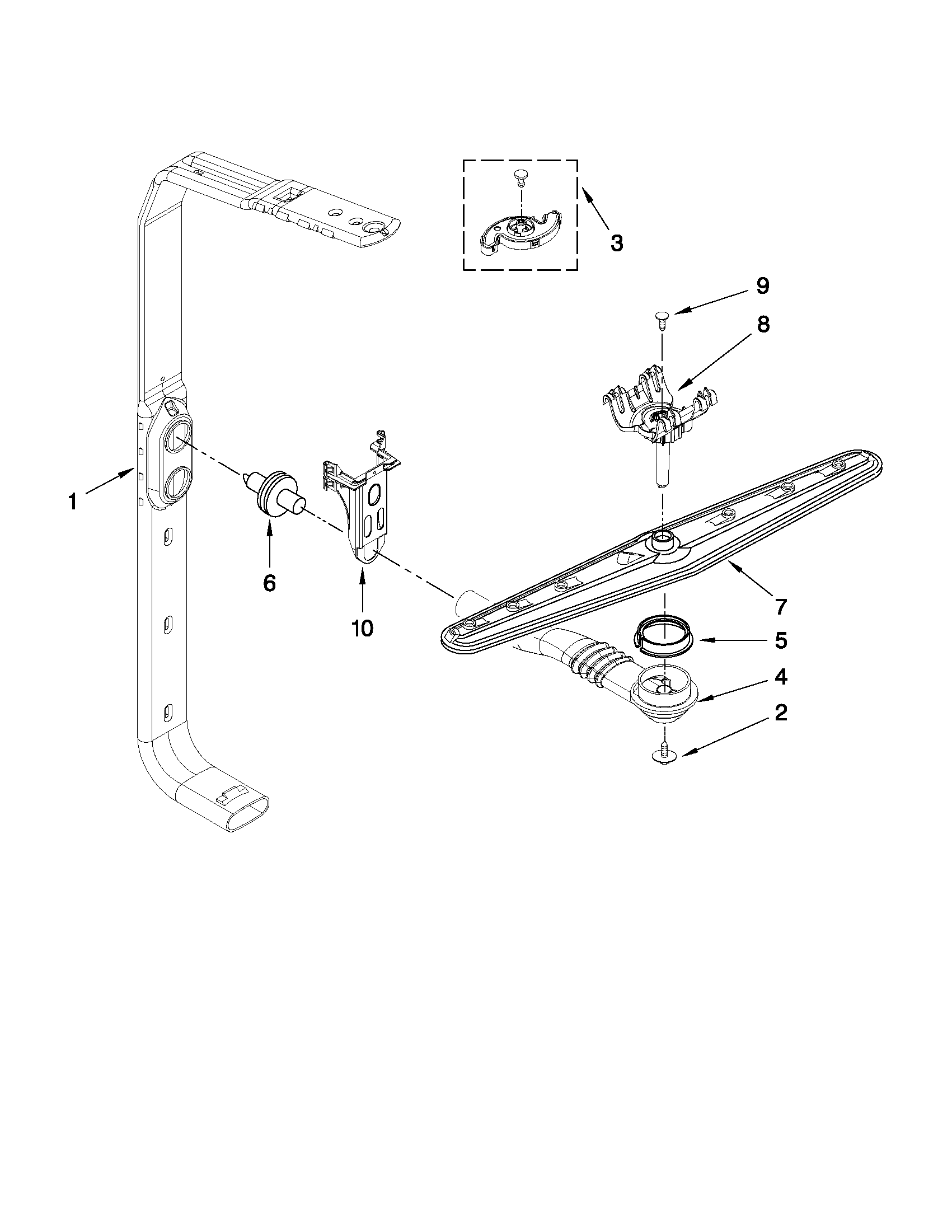

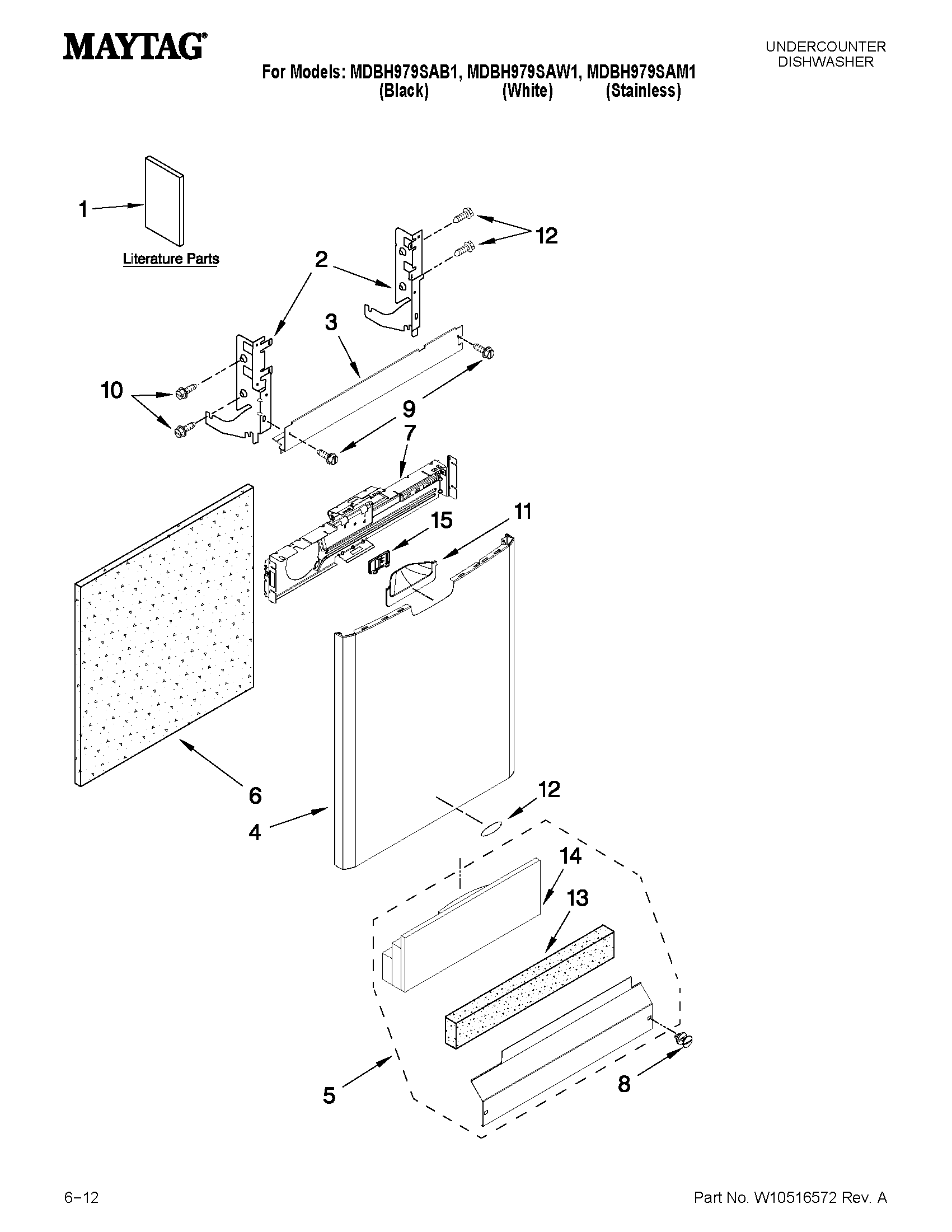

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Dishwasher Dishrack Wheel W10195416
#2

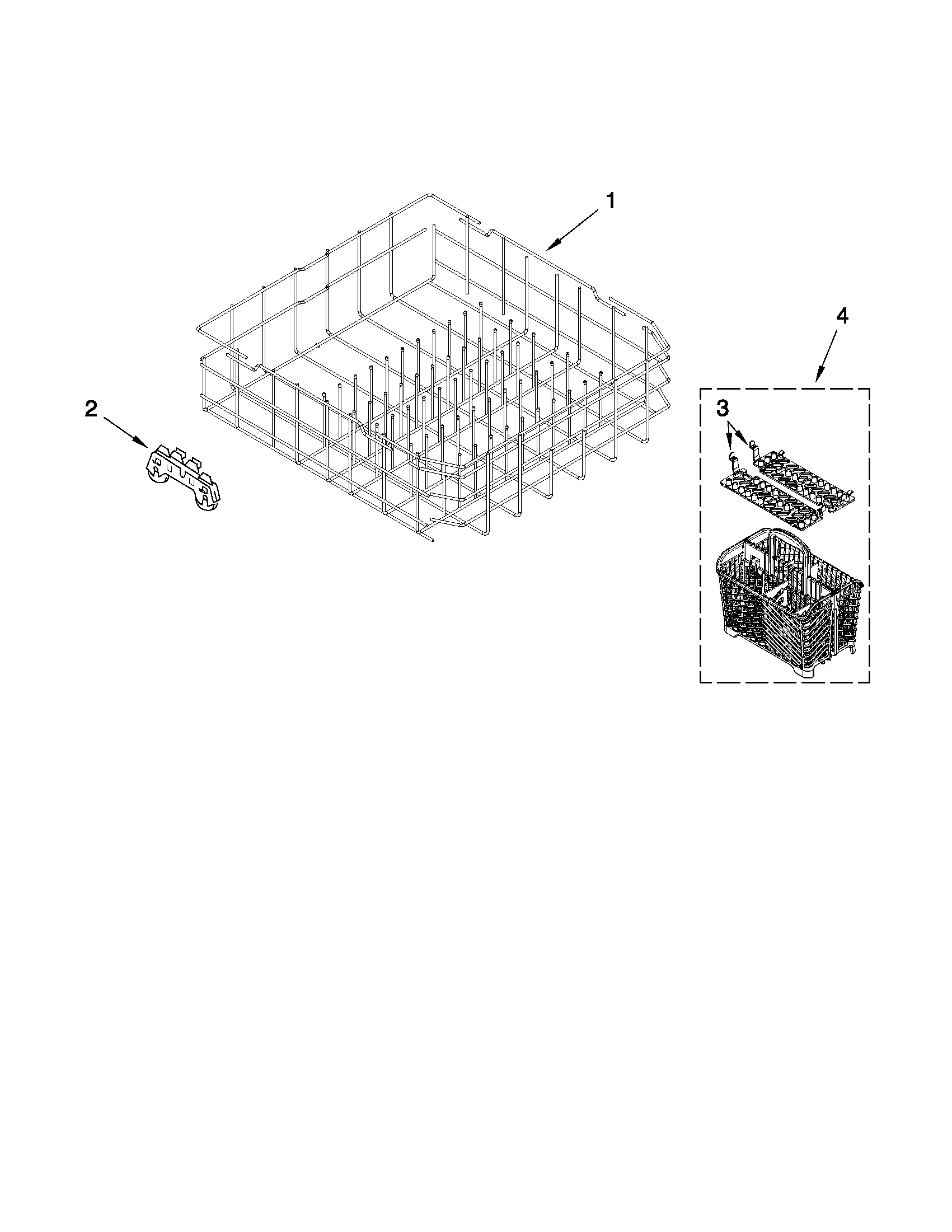

Lower rack parts diagram

Dishwasher dishrack wheel

Part #W10195416

Replaced by #W10195416V

?
Manufacturer substitution
This part replaces W10195416. Substitute parts can look different from the original.
BEST SELLER
$25.08
32% OFF MSRP : $37.00
In Stock
Dishwasher Drain Pump 8558995
#15

Pump and motor parts diagram

Dishwasher drain pump

Part #8558995

Replaced by #WPW10348269

?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
BEST SELLER
$78.59
6% OFF Phone Price : $83.59
In Stock
Dishwasher Door Seal W10300924
#3

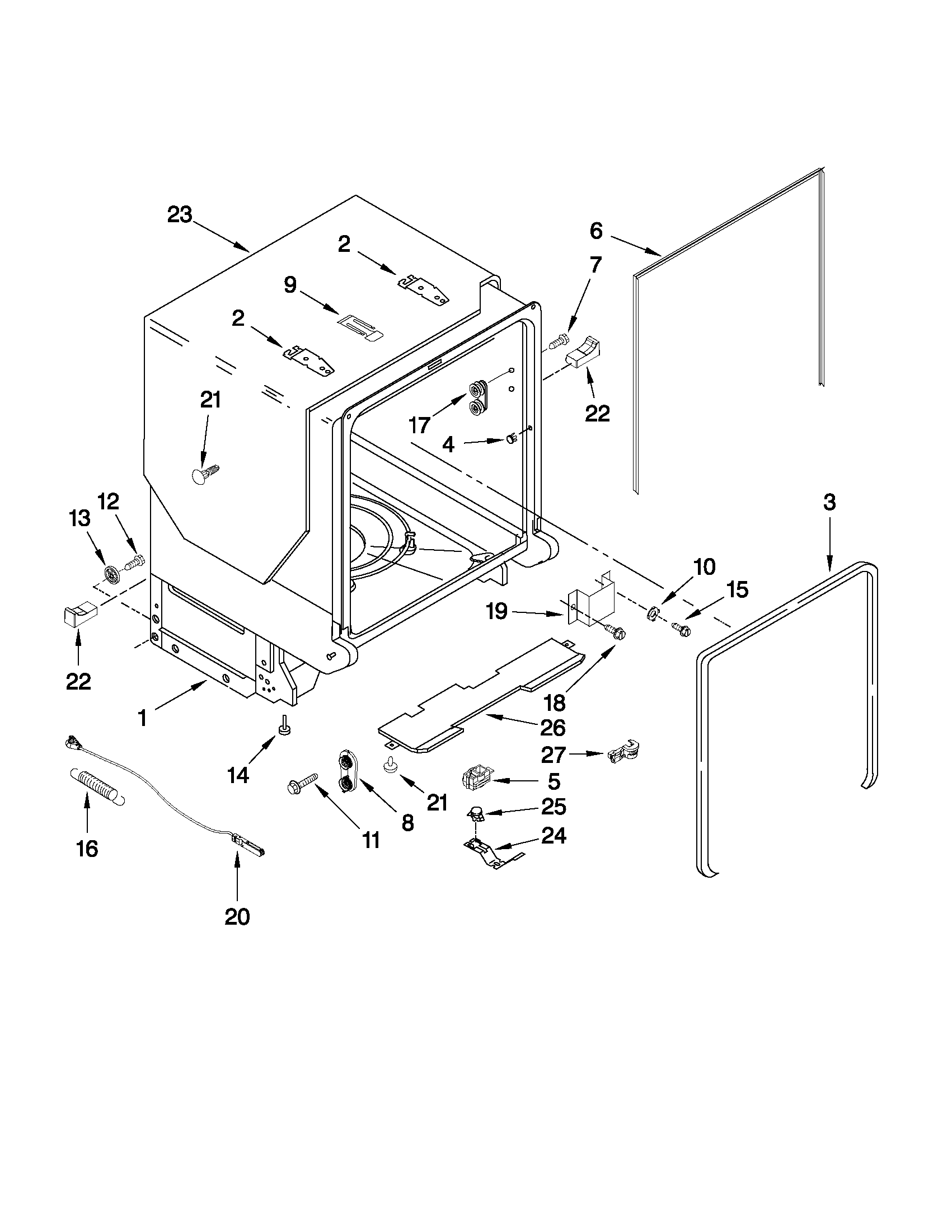

Tub and frame parts diagram

Dishwasher door seal

Part #W10300924

Replaced by #W11177741

?
Manufacturer substitution
This part replaces W10300924. Substitute parts can look different from the original.
BEST SELLER
$56.21
20% OFF MSRP : $70.00
In Stock
Dishwasher Door Balance Link W10158291
#20

Tub and frame parts diagram

Dishwasher door balance link

Part #W10158291

Replaced by #8194001

?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
BEST SELLER
$23.76
17% OFF Phone Price : $28.76
In Stock
Dishwasher Heater W10329322
#1

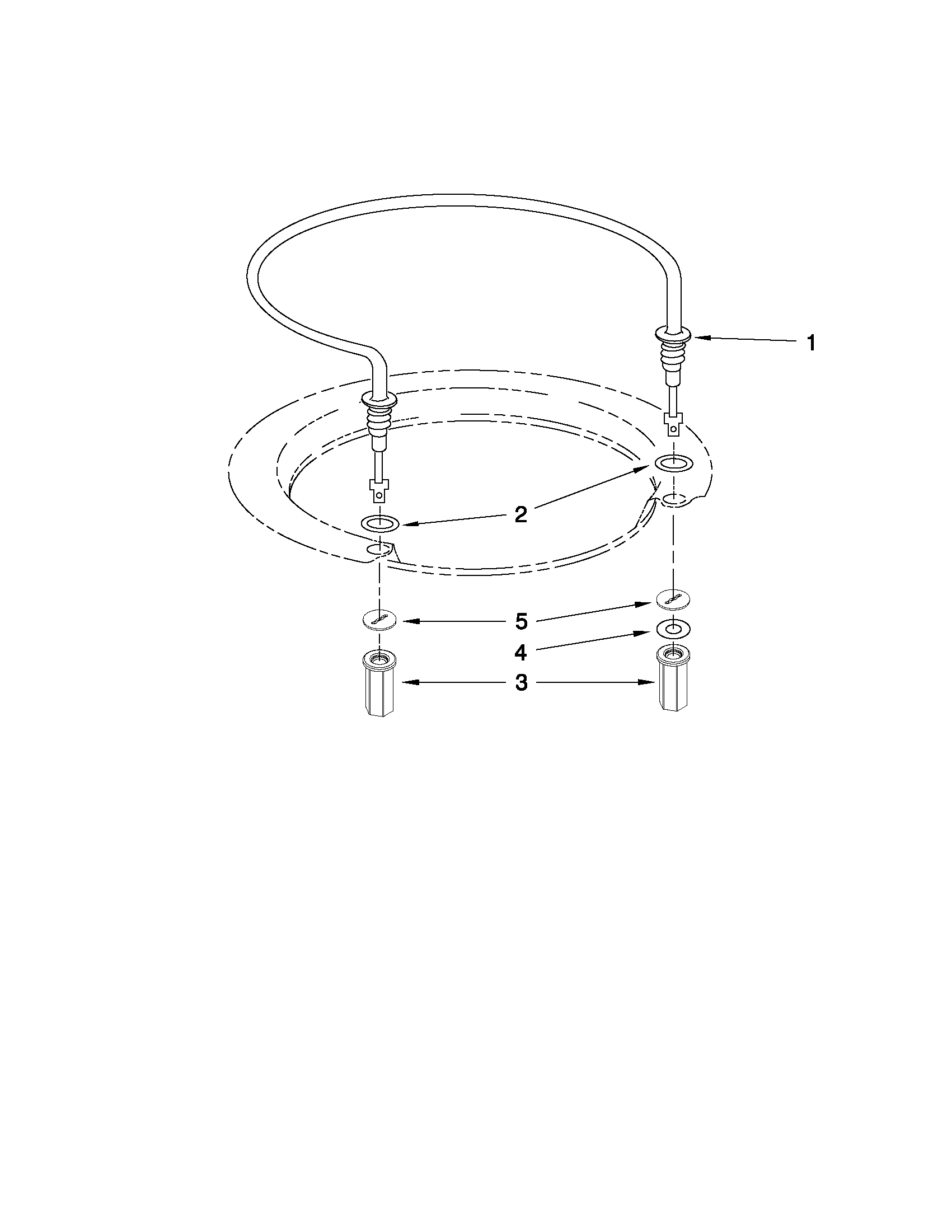

Heater parts diagram

Dishwasher heater

Part #W10329322

Replaced by #W10703867

?
Manufacturer substitution
This part replaces W10329322. Substitute parts can look different from the original.
BEST SELLER
$66.88
27% OFF MSRP : $92.00
In Stock
Dishwasher Water Inlet Valve W10195047
#7

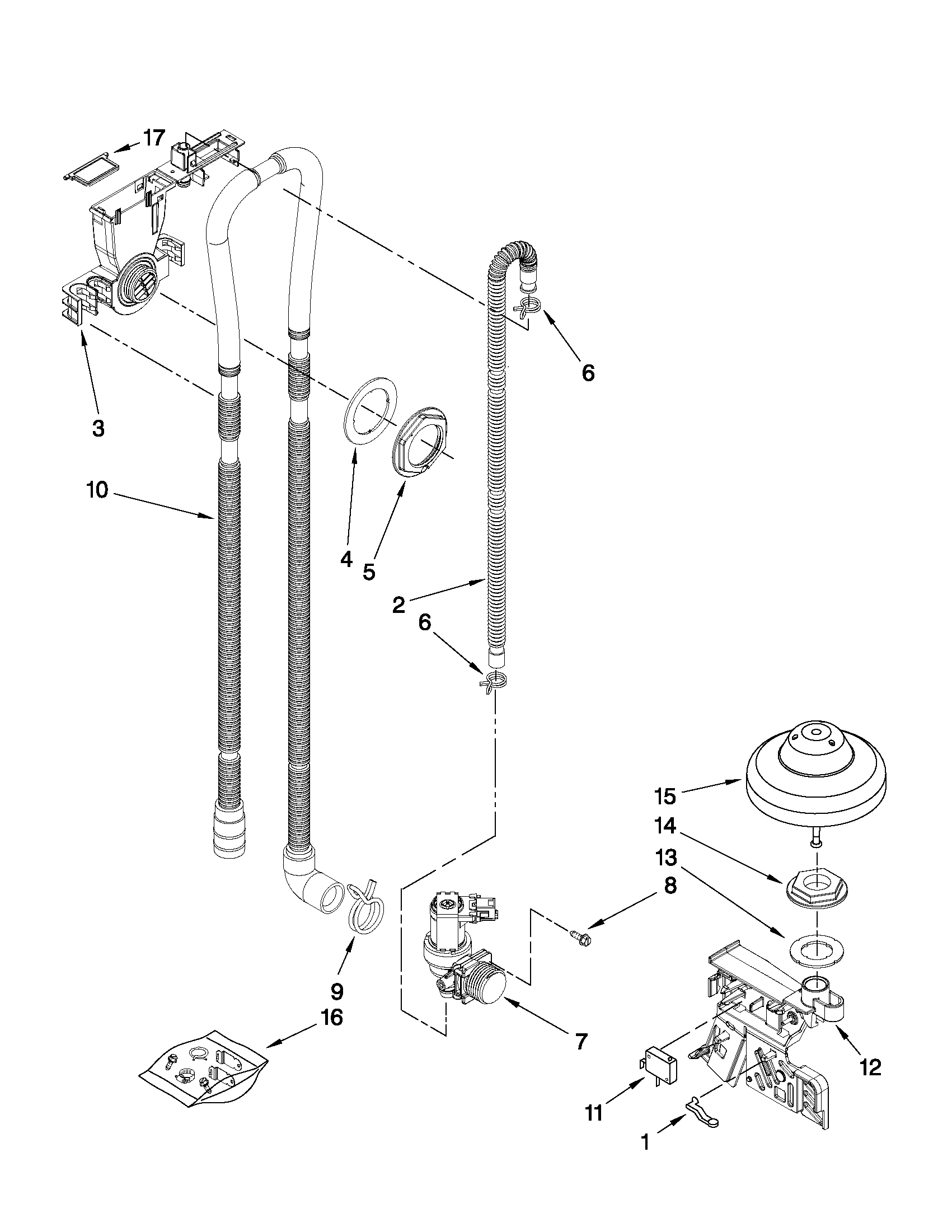

Fill, drain and overfill parts diagram

Dishwasher water inlet valve

Part #W10195047

Replaced by #W11175771

?
Manufacturer substitution
This part replaces W10195047. Substitute parts can look different from the original.
BEST SELLER
$53.27
22% OFF MSRP : $68.00
In Stock
Dishwasher Door Seal, Lower W10497235
#4

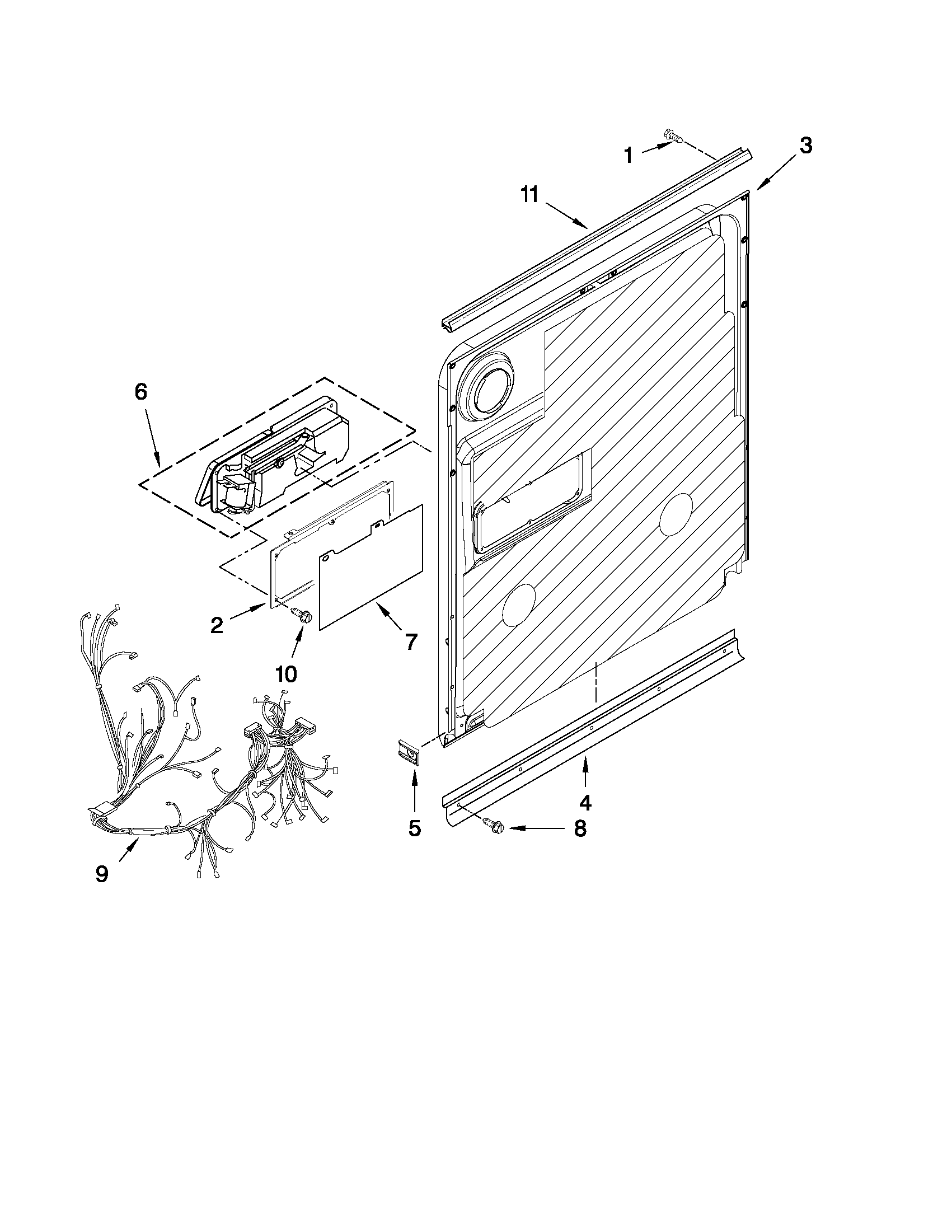

Inner door parts diagram

Dishwasher door seal, lower

Part #W10497235

Replaced by #WPW10497235

?
Manufacturer substitution
This part replaces W10497235. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.77
66% OFF MSRP : $17.00
In Stock
Dishwasher Drain Hose 8269144
#17

Pump and motor parts diagram

Dishwasher drain hose

Part #8269144

Replaced by #8269144A

?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
BEST SELLER
$31.24
14% OFF Phone Price : $36.24
In Stock
Dishwasher Dishrack Slide Rail W10195623
#4

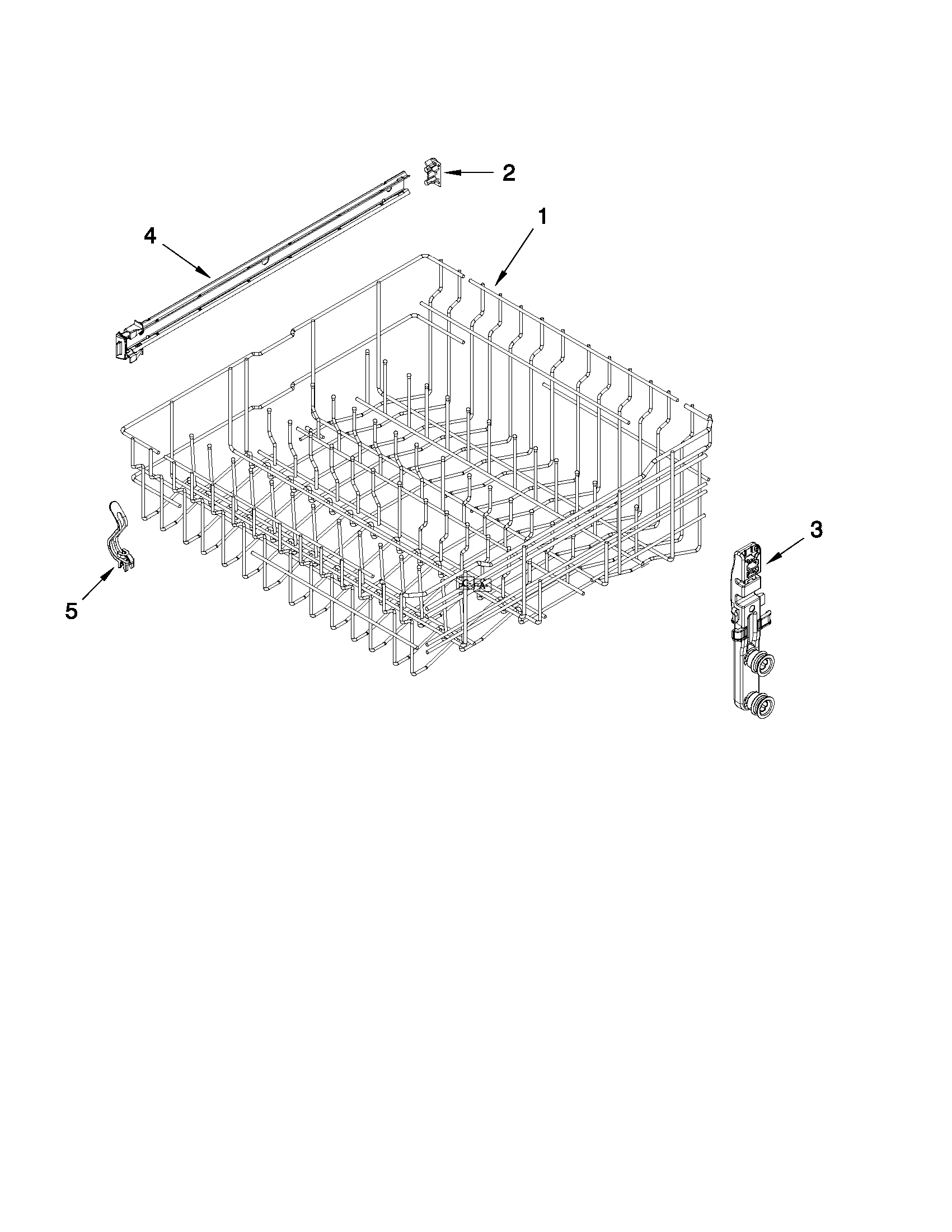

Upper rack and track parts diagram

Dishwasher dishrack slide rail

Part #W10195623

Replaced by #WPW10195623

?
Manufacturer substitution
This part replaces W10195623. Substitute parts can look different from the original.
BEST SELLER
$37.48
34% OFF MSRP : $57.00
In Stock
Dishwasher Tub Gasket W10179427
#6

Tub and frame parts diagram

Dishwasher tub gasket

Part #W10179427

Replaced by #W10864081

?
Manufacturer substitution
This part replaces W10179427. Substitute parts can look different from the original.
BEST SELLER
$55.30
25% OFF MSRP : $74.00
In Stock
