Whirlpool WDF520PADW0 dishwasher Parts

WDF520PADW0 is the model number for a Whirlpool built-in dishwasher. We use this exact model number to match the correct replacement parts, installation details, and operating instructions for your specific dishwasher, since similar-looking Whirlpool dishwashers can use different components.

What this model number tells you

You will use WDF520PADW0 to:

• Identify the correct parts for repairs (heating, draining, filling, door latching)
• Pull the right operating and care instructions in the WDF520PADW0 owner’s manual
• Confirm installation requirements in the WDF520PADW0 installation guide
• Provide accurate information when scheduling service or ordering parts

Where to find the model and serial label

On Whirlpool dishwashers like WDF520PADW0, the model and serial tag is typically located:

• Inside the tub opening near the door
• On the right-hand side of the interior frame, or sometimes the left-hand side
• On a label you can read when the door is open

Common parts people replace on WDF520PADW0

If you are troubleshooting symptoms, these are frequent repair categories for this model:

Symptom	Common part category	Example part for this model

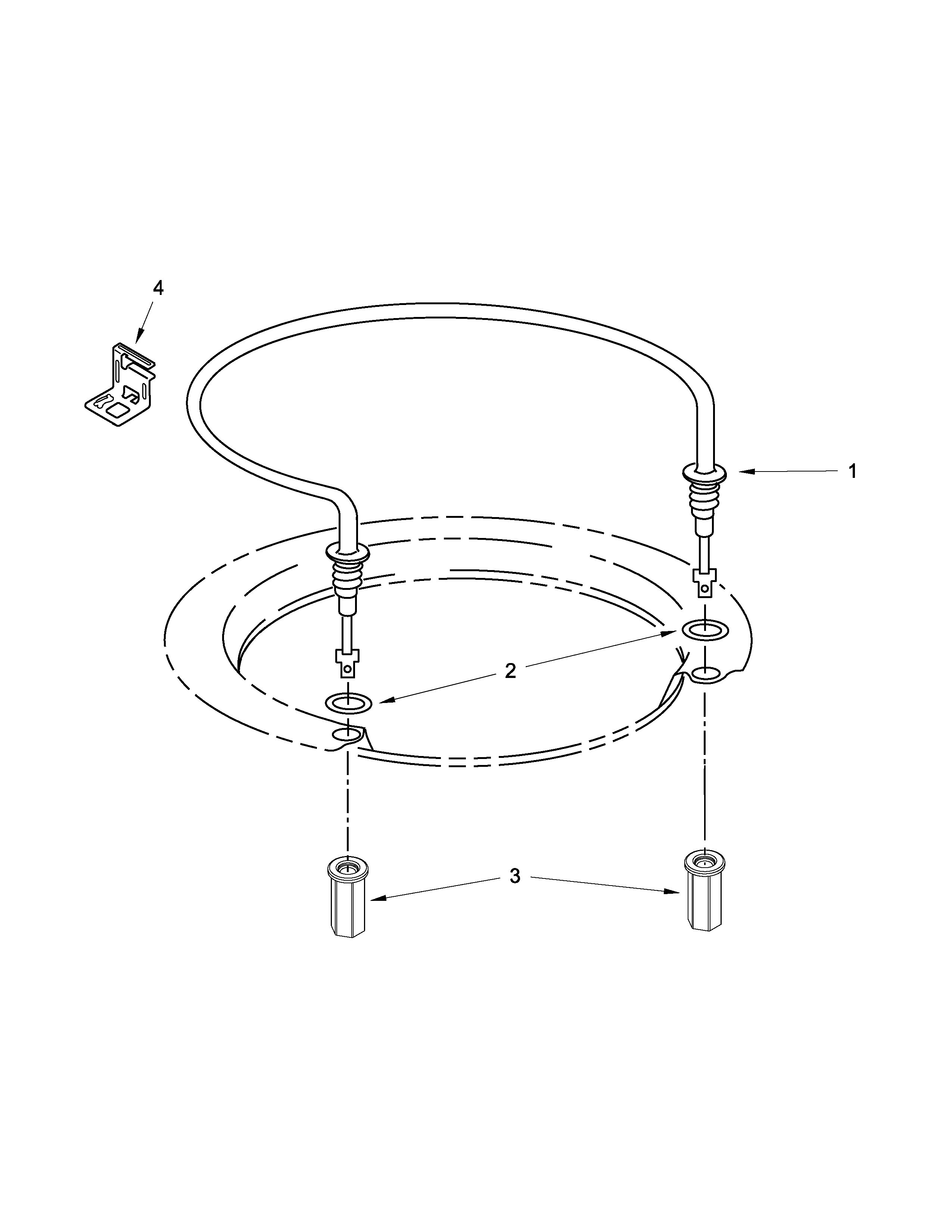

Not drying or poor heating	Heating circuit	Element assembly W10518394
Not draining	Drain system	Dishwasher drain pump WPW10348269
Not filling	Water supply	Dishwasher water inlet valve W11175771
Won’t start or won’t latch	Door switch/latch	Dishwasher door latch WPW10653840

Why it matters

Using the exact model number (WDF520PADW0) prevents ordering the wrong Whirlpool dishwasher parts and helps you follow the correct cycle, care, and troubleshooting steps for your unit.

Last updated: February 2026

A Whirlpool dishwasher like model WDF520PADW0 typically lasts 10 to 12 years with normal household use. Consistent cleaning, correct loading, and fixing small problems early (drain issues, poor drying, unusual noise) are what most often determine whether it reaches the high end of that range.

What shortens or extends dishwasher life

We see the biggest lifespan differences come from day-to-day conditions more than the brand name.

• Hard water without regular cleaning (scale buildup on the heater and internal parts)
• Overloading or blocking spray arms (poor cleaning, extra strain on the pump)
• Skipping rinse aid and using too much detergent (spotting, residue, and extra rewash cycles)
• Letting drain problems continue (standing water stresses seals and pumps)
• Improper installation (can increase noise and vibration over time)

Maintenance habits that add years

The WDF520PADW0 user guide emphasizes loading correctly, keeping filters installed properly, and using rinse aid for drying and spotting control. Use these habits as your baseline; see the WDF520PADW0 user guide for model-specific care and operating details.

• Scrape off hard food and debris before loading
• Confirm spray arms spin freely before starting a cycle
• Use rinse aid and the Heat Dry option when you need better drying
• Keep the filter area clean and make sure filters are seated correctly
• Unload the bottom rack first to reduce water drips onto clean items

Quick “repair vs. replace” guide

What you’re seeing	Most common cause	Typical next step
Not drying well	No rinse aid, loading, heater issue	Adjust settings; check heating system
Not draining	Clog, hose issue, drain pump	Clear blockage; inspect drain components
Loud thumping	Items hitting spray arm	Reload so dishes do not contact
Won’t start	Door not latching, control issue	Check latch and power/reset steps

Why it matters

A dishwasher near the end of its expected lifespan can still run well, but small symptoms often signal wear in high-use systems like heating, draining, and circulation. Addressing those early helps prevent repeat cycle failures and water-related damage.

Last updated: February 2026

Drain and wash-performance problems are the most common issues we see on Whirlpool dishwashers, including Whirlpool model WDF520PADW0. In practice, many complaints trace back to restricted water flow from a dirty filter area, blocked spray arms, or loading that prevents water from reaching soiled surfaces (see the WDF520PADW0 owner’s manual).

Most common problems (and what they usually point to)

• Standing water or not draining: Food debris in the filter/sump area, a kinked drain hose, or a weak drain pump.
• Not cleaning well: Spray arms blocked by dishes, overlapping bowls trapping soil, or low fill from a water supply issue.
• Not drying well: Rinse aid not used, Heat Dry not selected, or plastics and concave-bottom cups holding water.
• Won’t start or stops mid-cycle: Door not fully latched, normal cycle pauses, or a tripped breaker.
• Noises (thumping/clattering): Items touching or interfering with the wash arms.

Quick checks that fix many “common problems”

• Load with soiled surfaces facing down and inward; avoid overlapping items.
• Confirm spray arms spin freely and holes are not clogged.
• Clean and reinstall the filter correctly; inspect the sump area for debris.
• Use rinse aid and select Heat Dry when you need better drying.
• Verify the door closes and latches firmly; check household power and the water shutoff valve.

Parts that often relate to these symptoms on WDF520PADW0

Symptom	What to inspect first	Example part

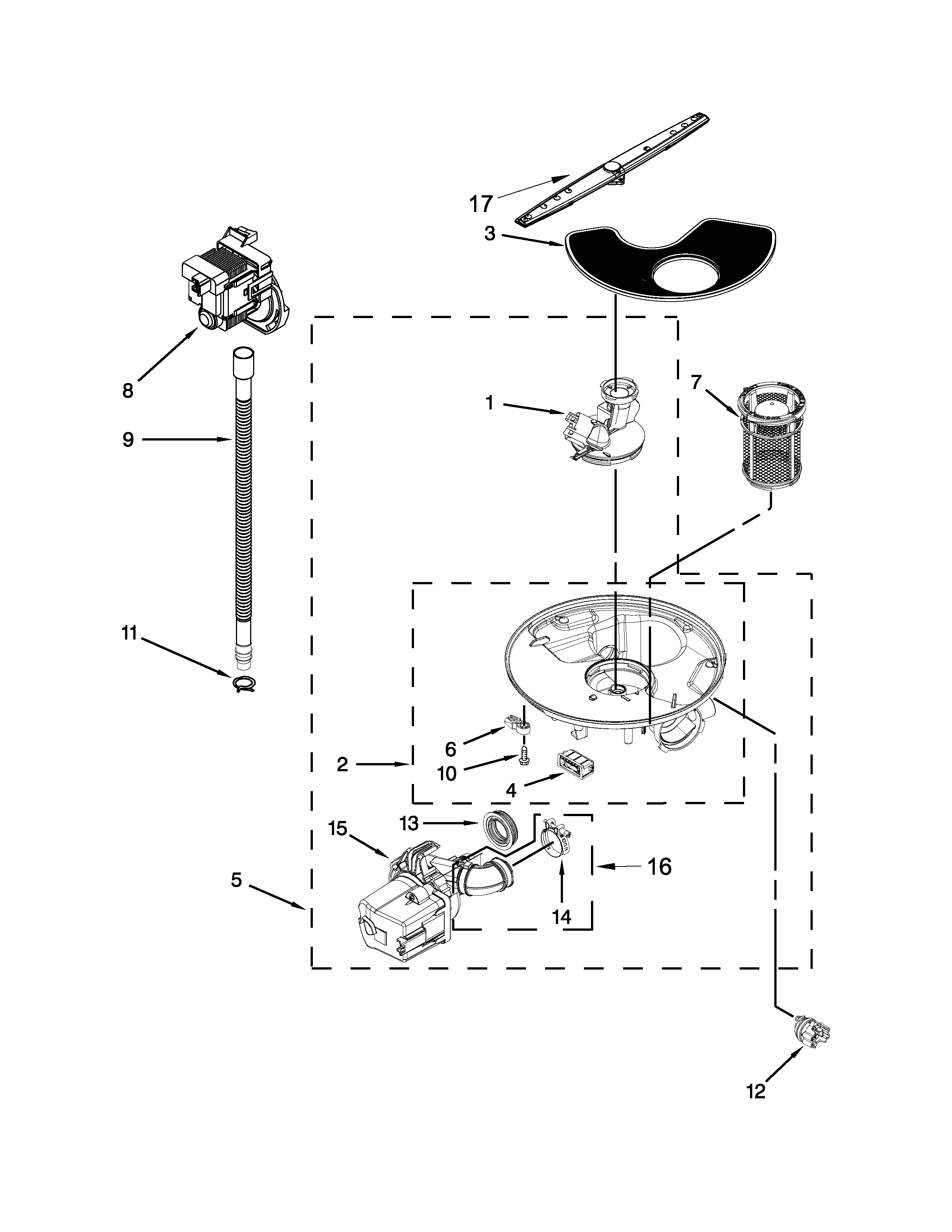

Not draining	Drain path, check valve, pump	Dishwasher drain pump WPW10348269
Poor cleaning or low fill	Water supply into tub	Dishwasher water inlet valve W11175771
Odors, redepositing soil	Filter and sump area	Dishwasher filter WPW10463906

Why it matters

Dishwashers clean by moving the right amount of water through the spray system, then draining it efficiently. When circulation or draining is restricted, you get poor cleaning, odors, longer cycles, and wet dishes even when the controls and heater are working.
