Frigidaire FGGS3065PFC gas range Parts

On the Frigidaire FGGS3065PFC gas range, the model and serial tag is typically on the frame at the front of the range; you can see it by opening the oven door and looking along the bottom edge of the oven opening, or by checking the lower drawer area. The FGGS3065PFC owner's manual also references the “serial plate location.”

• Open the oven door; inspect the front frame around the oven opening (especially the bottom lip).
• Pull out the bottom drawer (warming or storage drawer); look on the frame just above the drawer opening.
• Check the side trim near the front legs if the tag is not visible from the front.
• Use a flashlight; the tag is often small and can be hard to read.
• Write down both the model number and serial number; you will need both for parts and service.

Most Frigidaire ranges use a printed rating plate that includes:

We use the exact model number to match the correct Frigidaire gas range parts (for example, burner components, igniters, or an oven temperature sensor). Even small model-number differences can change which parts fit.

Last updated: February 2026

Yes. For your Frigidaire gas range model FGGS3065PFC, using the full model number is the fastest way to pull up the correct parts list and diagrams so you can match the exact replacement part to your range’s configuration.

• Find the complete model number on the range’s serial plate (the manual shows where to record it). See the FGGS3065PFC owner’s manual.
• Enter FGGS3065PFC exactly as shown (letters and numbers) when searching for parts.
• Use the parts diagram sections to identify the part by location (cooktop, burner, oven, control panel).
• Confirm the part name and ID before ordering, especially for similar-looking burner and ignition parts.
• If you are installing or replacing gas-related components, follow the steps and safety notes in the FGGS3065PFC installation guide.

These are examples of parts that are easy to mis-match without the exact model number:

Frigidaire ranges often use multiple burner sizes (BTU ratings) and different ignition and gas components across similar model families. Searching by FGGS3065PFC helps ensure the part you choose fits, mounts correctly, and performs as designed.

Last updated: February 2026

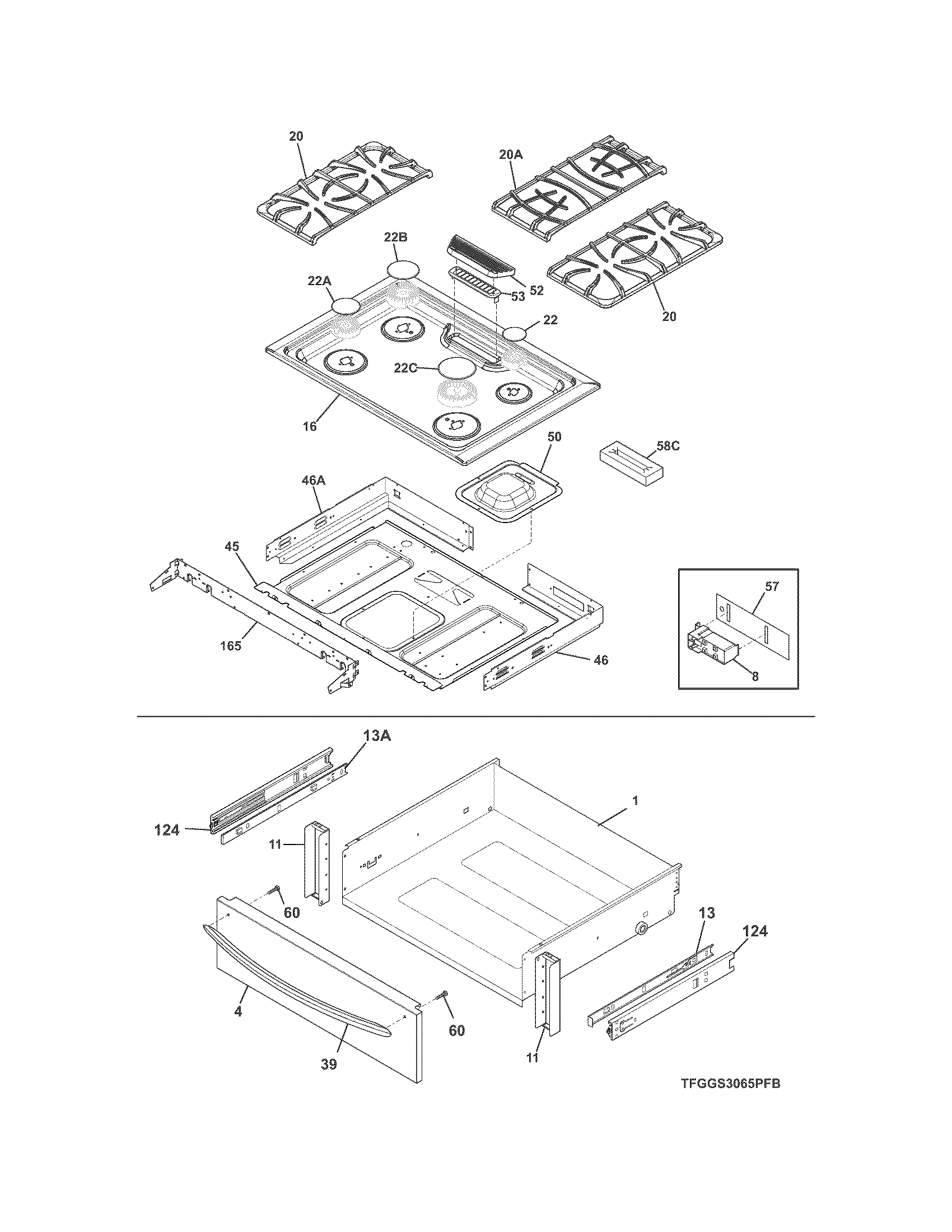

To remove the cooktop (main top) on your Frigidaire FGGS3065PFC gas range, we shut off gas and power first, then remove the grates and burner pieces so the top can be lifted or unfastened safely. Use the steps and diagrams in the FGGS3065PFC owner’s manual.

• Turn all burner knobs to OFF and let the range cool completely.
• Shut off the gas supply at the range shutoff valve.
• Disconnect electrical power (unplug or switch off the circuit breaker); many ranges use electric spark ignition.
• Remove anything stored on or above the range.
• If your repair involves internal gas components (manifold, regulator, valves), we use a qualified technician.

• Lift off all burner grates.
• Remove the burner caps and set them aside.
• Remove any burner heads/bases if your design allows them to lift off after the caps are removed.
• Look for mounting screws under the front lip or around burner areas; remove them if present.
• Lift the cooktop from the front edge and support it (some tops hinge up; others lift off once fasteners are removed).

• Recheck for hidden screws near the front corners or under trim.
• Make sure all burner parts are fully removed and not “locking” the top in place.
• If the cooktop is stuck from spills, gently work around the seam; do not pry hard enough to bend the top.

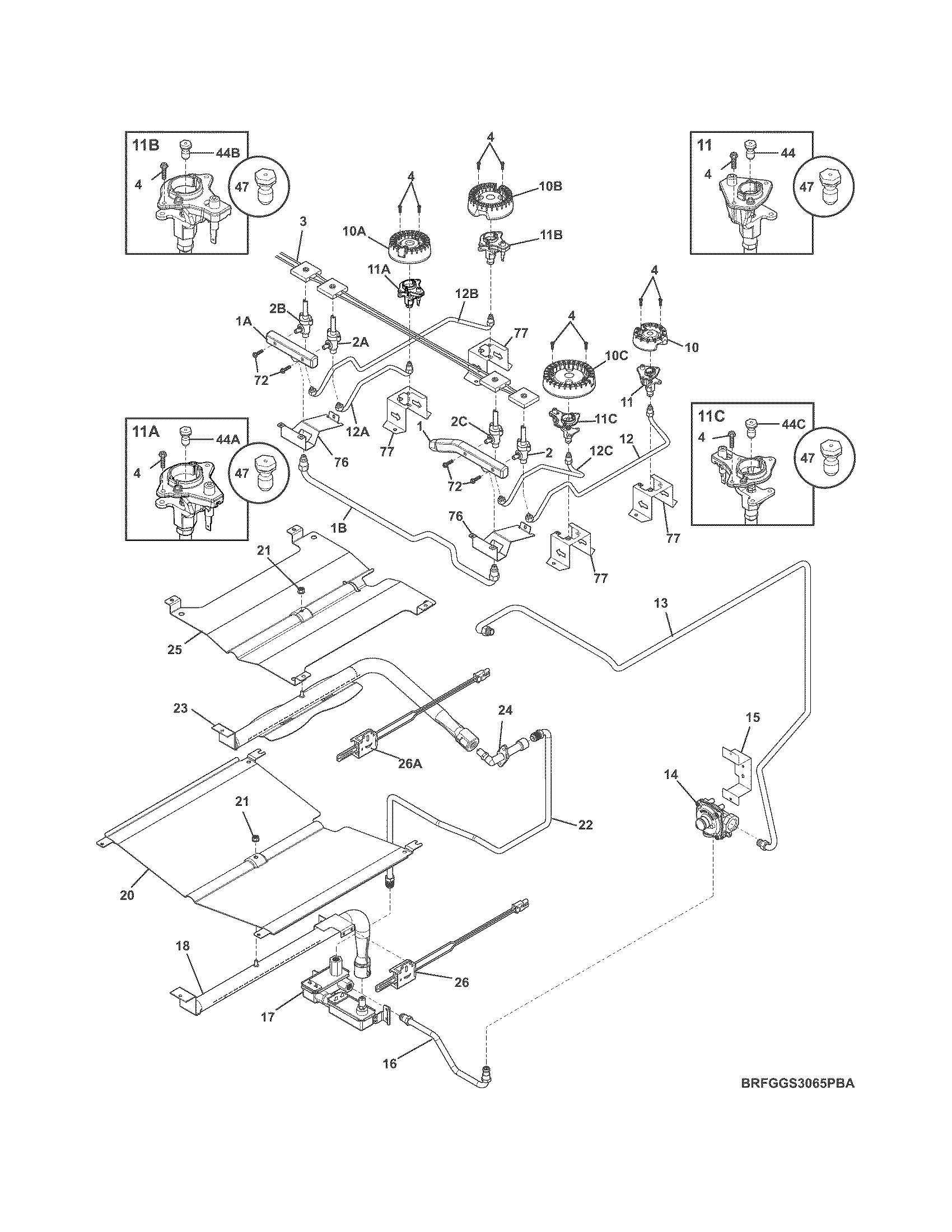

• If you are removing the top to access ignition parts, confirm which burner components you have (for example, a range surface burner igniter and orifice holder 316540700 assembly).

Removing the cooktop the right way prevents gas leaks, avoids damaging igniters and wiring, and keeps burner alignment correct so you get a steady flame and reliable ignition.

Last updated: February 2026

If your Frigidaire FGGS3065PFC gas range smells like gas, treat it as a safety issue first. A gas odor can come from an unlit burner, incomplete ignition, or a supply connection or valve problem; follow the “What to do if you smell gas” steps in the FGGS3065PFC owner’s manual immediately.

• Turn all surface burner knobs to OFF.
• Do not try to light any burner or the oven.
• Do not operate electrical switches or use a phone inside the home.
• Leave the area and call your gas supplier from a neighbor’s phone; follow their instructions.
• If you cannot reach the gas supplier, call the fire department.

Once the area is safe and your gas supplier or a qualified technician says it is OK to proceed, these are the most common range-related causes:

• Burner didn’t ignite fully: gas flows but the flame did not establish.
• Dirty or misaligned burner parts: clogged ports, a shifted burner head, or a cap not seated flat.
• Weak ignition system: clicking but inconsistent lighting can leave brief gas odor.
• Oven ignition or valve issue: delayed ignition can cause a stronger odor when starting bake.

• Confirm each burner cap sits flat and centered; for example, a mismatched cap size can affect flame.
• Look for food spills or grease around burner ports and the igniter area.
• If the odor happens mainly during baking, stop using the oven and schedule service.

A persistent gas smell can signal unburned gas or improper combustion. Addressing it quickly protects your home and helps your Frigidaire range heat and ignite reliably.

Last updated: February 2026
