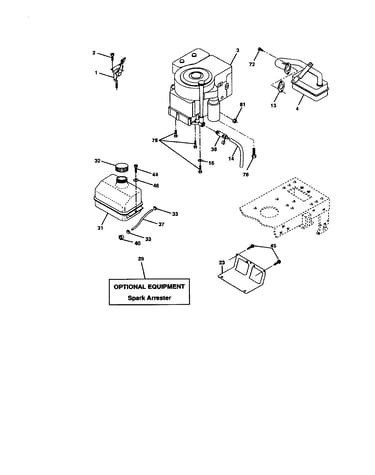

What are the parts of a tractor engine?
On the Craftsman lawn tractor model 917272672, the engine is a single-cylinder gasoline engine system made up of core internal parts (block, piston, crankshaft, valves) plus supporting systems for fuel, ignition, lubrication, cooling air flow, and exhaust. For model-specific maintenance specs, use the 917272672 owner's manual.
Main tractor engine parts (what they do)
These are the most common engine components you will hear referenced when diagnosing starting, power, smoke, or oil-leak issues:
- Cylinder/block: the main engine housing where combustion happens
- Piston and piston rings: create compression and transfer power to the crankshaft
- Connecting rod: links the piston to the crankshaft
- Crankshaft: converts piston motion into rotating power
- Camshaft, valves, and valve train: control air/fuel intake and exhaust flow
- Flywheel and ignition system: creates spark timing and helps smooth engine rotation
- Carburetor or fuel delivery parts: meters fuel into the engine
- Lubrication system: oil sump, oil passages, and (if equipped) oil filter
- Air intake and filtration: air filter and intake path to protect the engine
- Exhaust system: muffler and related hardware to route exhaust and reduce noise
What we can confirm for model 917272672
The owner’s manual for Craftsman 917272672 provides model-specific operating and maintenance details (oil type/amount, fuel type, spark plug spec, service intervals), but it does not list every internal engine component as a separate “parts list” in the text excerpt.
Quick spec examples from this model’s manual
| Item | Spec used on 917272672 |
|---|---|
| Fuel type | Regular unleaded gasoline |
| Spark plug | Champion RC12YC (gap .030 in) |
| Oil type (typical) | SAE 30 above 32°F; SAE 5W-30 below 32°F |
Why it matters
Knowing which “engine part family” you are dealing with helps you troubleshoot faster. For example, hard starting often points to fuel/ignition/air issues, while knocking noises more often point to internal rotating parts.
If you’re chasing a specific symptom (won’t start, loses power, smokes, leaks), we recommend matching the symptom to the correct system in the 917272672 owner's manual before buying parts.
Last updated: January 2026
What kind of engine does a Craftsman riding lawn mower have?
For Craftsman lawn tractor model 917272672, the owner’s manual identifies it as a 17.5 HP riding tractor with a low-emission gasoline engine (electric start). The manual does not specify the exact engine brand or model, so the best match is the engine currently installed on your tractor.
How to identify the exact engine on model 917272672
We recommend confirming the engine make and model from the engine itself, then using that information for tune-up parts (spark plug, air filter, fuel filter) and service specs.
- Look for an engine ID label on the blower housing, valve cover, or near the starter
- Record the engine make (commonly Briggs & Stratton, Kohler, or similar)
- Record the engine model, type, and code (or spec number)
- Compare those numbers to the maintenance section in the 917272672 owner’s manual
- If the label is missing, use the tractor model number 917272672 plus the engine’s physical features (single-cylinder, air-cooled) to narrow it down
Model-specific specs we can confirm from the manual
The manual for 917272672 provides operating and maintenance specs that apply regardless of the engine brand.
| Spec (917272672) | Value |
|---|---|
| Horsepower rating | 17.5 HP |
| Fuel type | Unleaded regular gasoline |
| Fuel capacity | 1.25 gallons |
| Spark plug (listed) | Champion RC12YC (0.030 in gap) |
Why it matters
Knowing the exact engine make/model helps you buy the correct maintenance parts and avoid hard-starting, rough running, or power loss under load. It also ensures you use the right oil type and service intervals for your conditions.
Last updated: January 2026
What year is my Craftsman mower serial number lookup?
For Craftsman lawn tractor model 917272672, we can’t reliably determine the exact build year from the serial number alone because Craftsman serial formats vary by manufacturer and production run. The most dependable approach is to use the identification label details and the guidance in the 917272672 owner's manual.
Where to find the ID label on model 917272672
Most often, the model and serial label is on the tractor frame in the operator area.
- Lift the seat and look on the frame or under the seat pan
- Check the rear fender area near the seat
- Clean the label so every digit and letter is readable
- Copy the serial number exactly (include letters and leading zeros)
- Take a clear photo for reference
Why “MMDDYY” serial decoding may not apply
Some Craftsman products use a date-style code, but it is not a universal rule for all 917.xxxxxx tractors.
- Some serials include a date code; others are factory tracking codes
- The same model family can be built in different plants with different formats
- Engine numbers can identify the engine, but not always the tractor’s build year
Quick reference
| Label item | What it identifies | Best use |
|---|---|---|
| Model number (917272672) | Tractor configuration | Correct parts lookup |
| Serial number | Production tracking | Sometimes helps, not definitive |
| Engine model/type code | Engine identification | Engine parts and service |
If you need the year for parts or service
For parts ordering, we recommend using the model number first and then matching by diagram and description.
- Use 917272672 to select the correct parts diagrams
- Match the part by location (mower deck, drive system, steering)
- Compare belt routing and blade style before ordering

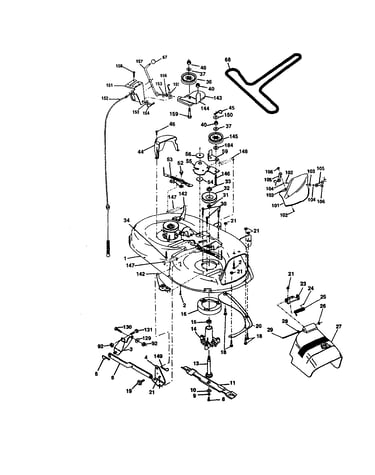

- If you’re servicing the mower deck, a common wear item shown for this model is the lawn tractor v-belt 532144959 (verify by belt routing and deck configuration)
Why it matters
Using an assumed “serial number year” can lead to the wrong belt, blade, or mandrel parts. Model-based identification is the most accurate way to keep your Craftsman tractor running safely and cutting correctly.
Last updated: January 2026
Where can I find the Craftsman push mower model number?
For Craftsman model 917272672, we can confirm from the 917272672 owner’s manual that it’s a front-engine riding lawn tractor (not a walk-behind push mower). The manual doesn’t specify the exact label location on the tractor, so you’ll need to locate the product identification label on the machine.
Where to look on Craftsman 917272672 (riding lawn tractor)
On riding tractors like model 917272672, the model and serial information is typically printed on a product identification label attached to the tractor frame or body. Common places to check include:
- Under the seat area (lift the seat pan)
- On the rear fender or rear frame
- On a frame rail near the engine compartment
- Near the footrest area on the frame
- Near the steering column or dash support area
If you actually have a Craftsman push mower
If your equipment is a walk-behind push mower, the label location is different from this 917272672 tractor. On many Craftsman push mowers, the model/serial label is commonly found:
- On top of the mower deck near the engine
- On the rear of the deck near the discharge opening
- On the rear housing behind the engine
What to record from the label
| What to write down | Example format | Why it matters |
|---|---|---|
| Model number | Letters and numbers | Matches the correct parts diagrams |
| Product number (if shown) | Often a second identifier | Helps narrow exact configuration |
| Serial number | Usually the longest number | Useful for service and verification |
Why it matters
Craftsman model numbers are format-sensitive; using the exact model number from the label is the most reliable way to match the correct blade, belt, or safety switch for your specific machine type.
Last updated: January 2026
