KitchenAid KUDE20FBWH0 undercounter dishwasher

KitchenAid KUDE20FBWH0 undercounter dishwasher Parts

Here are the diagrams and repair parts for KitchenAid KUDE20FBWH0 undercounter dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

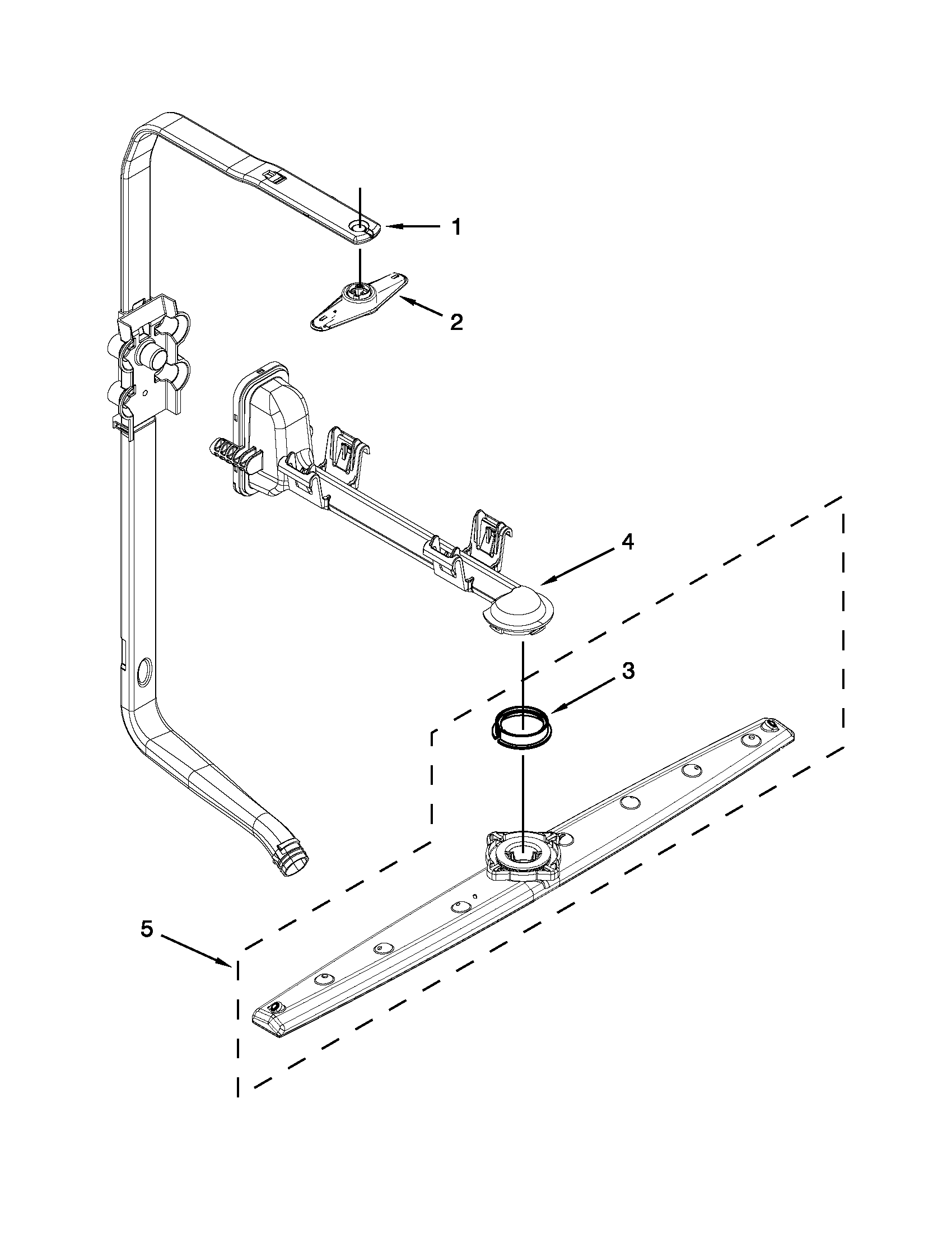

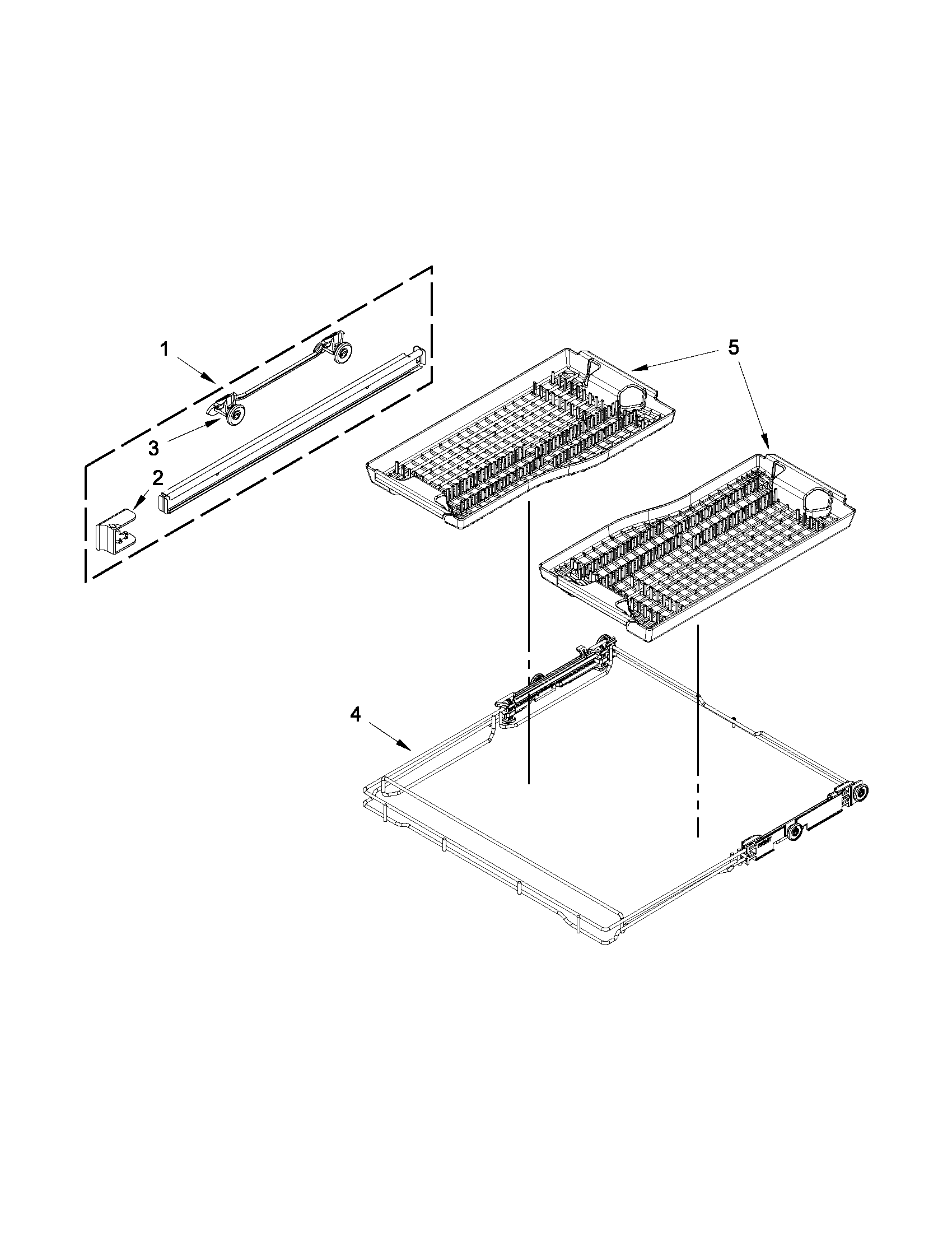

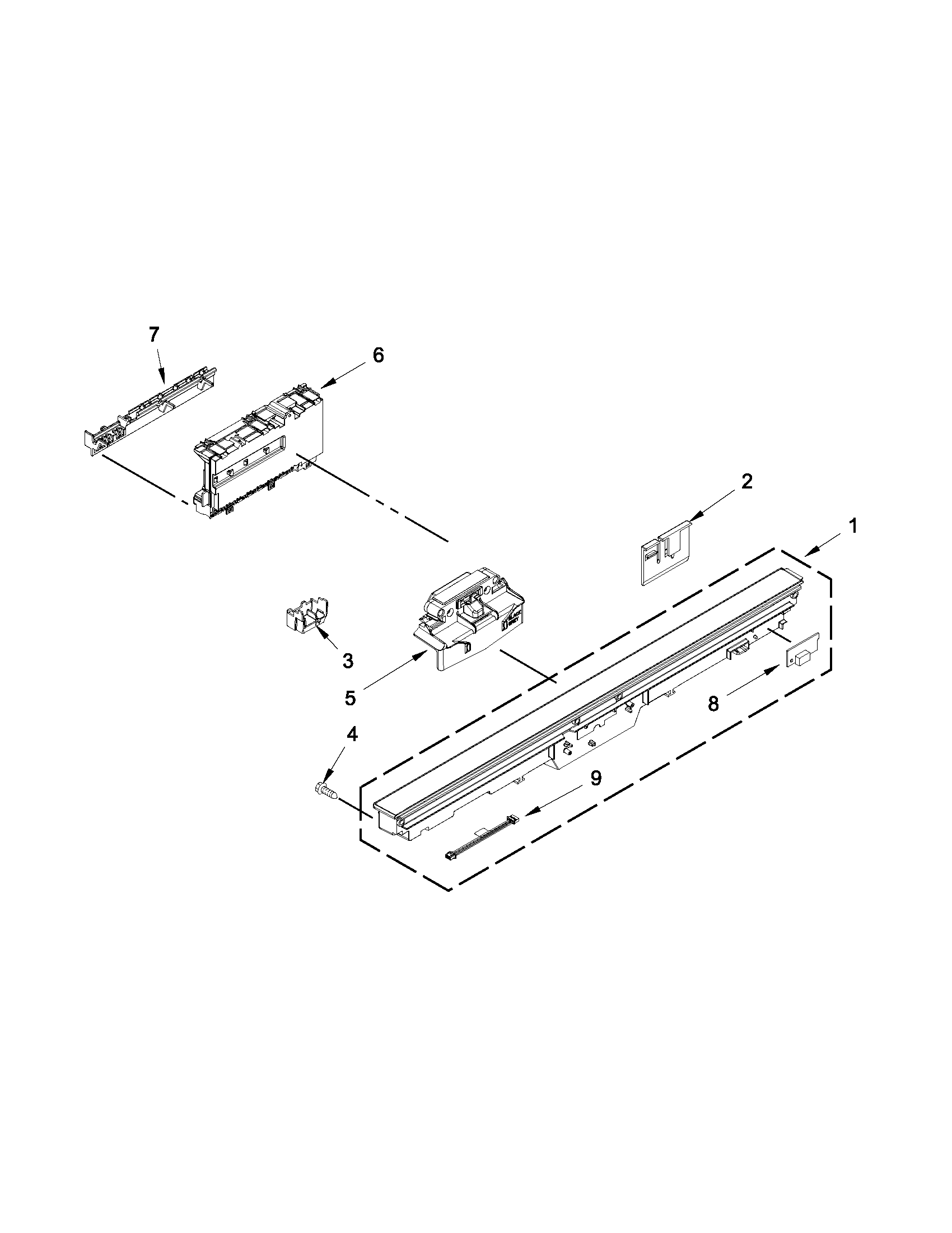

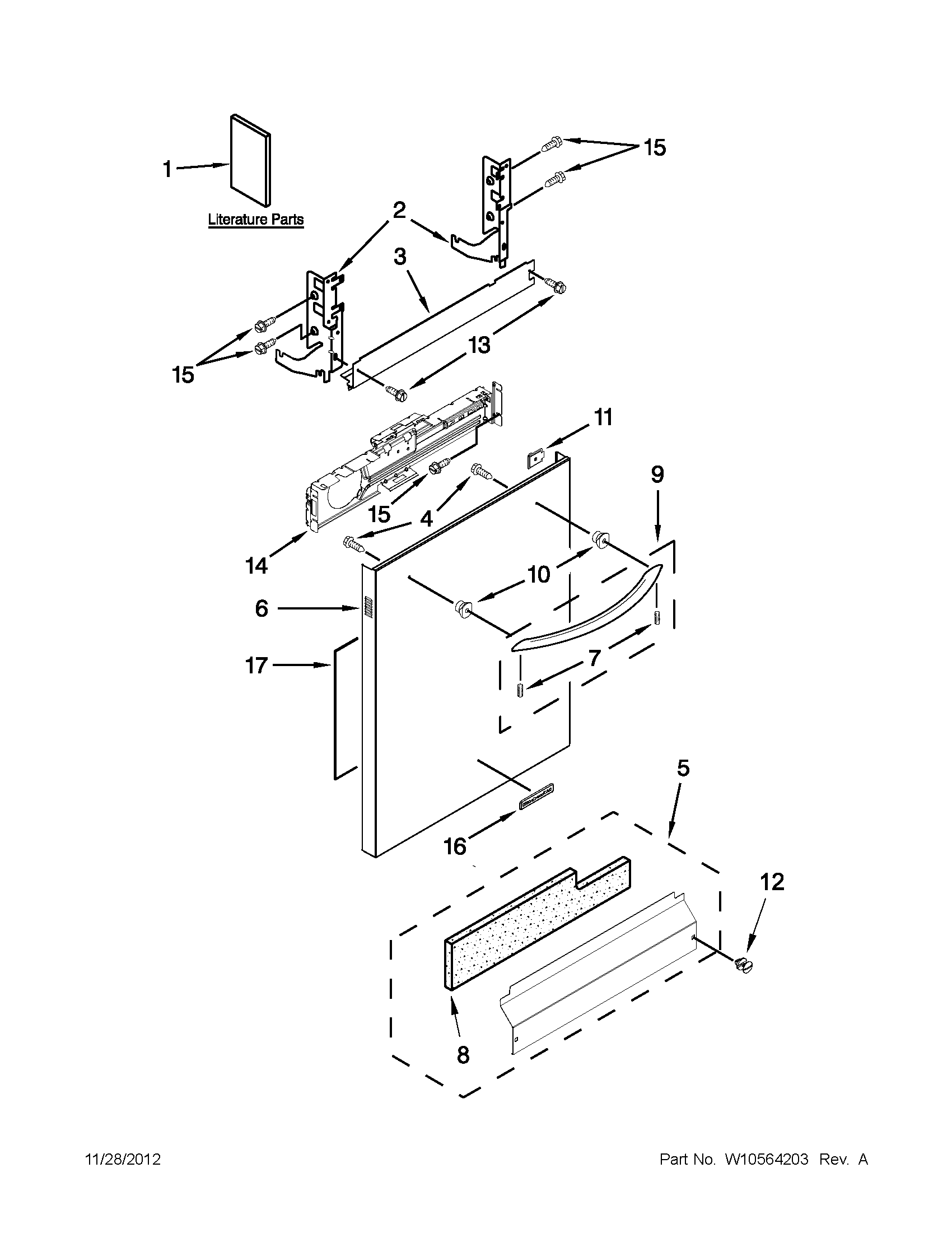

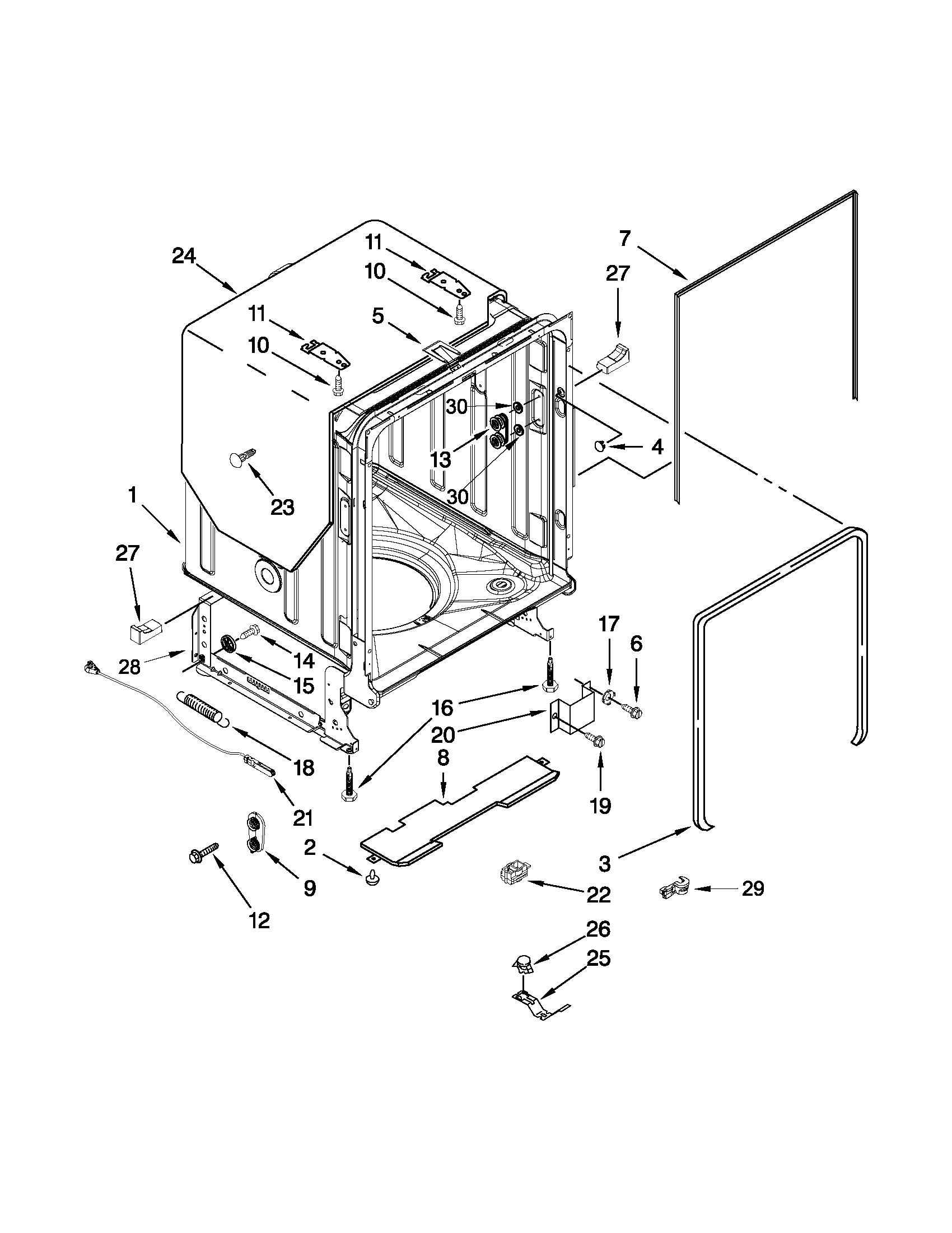

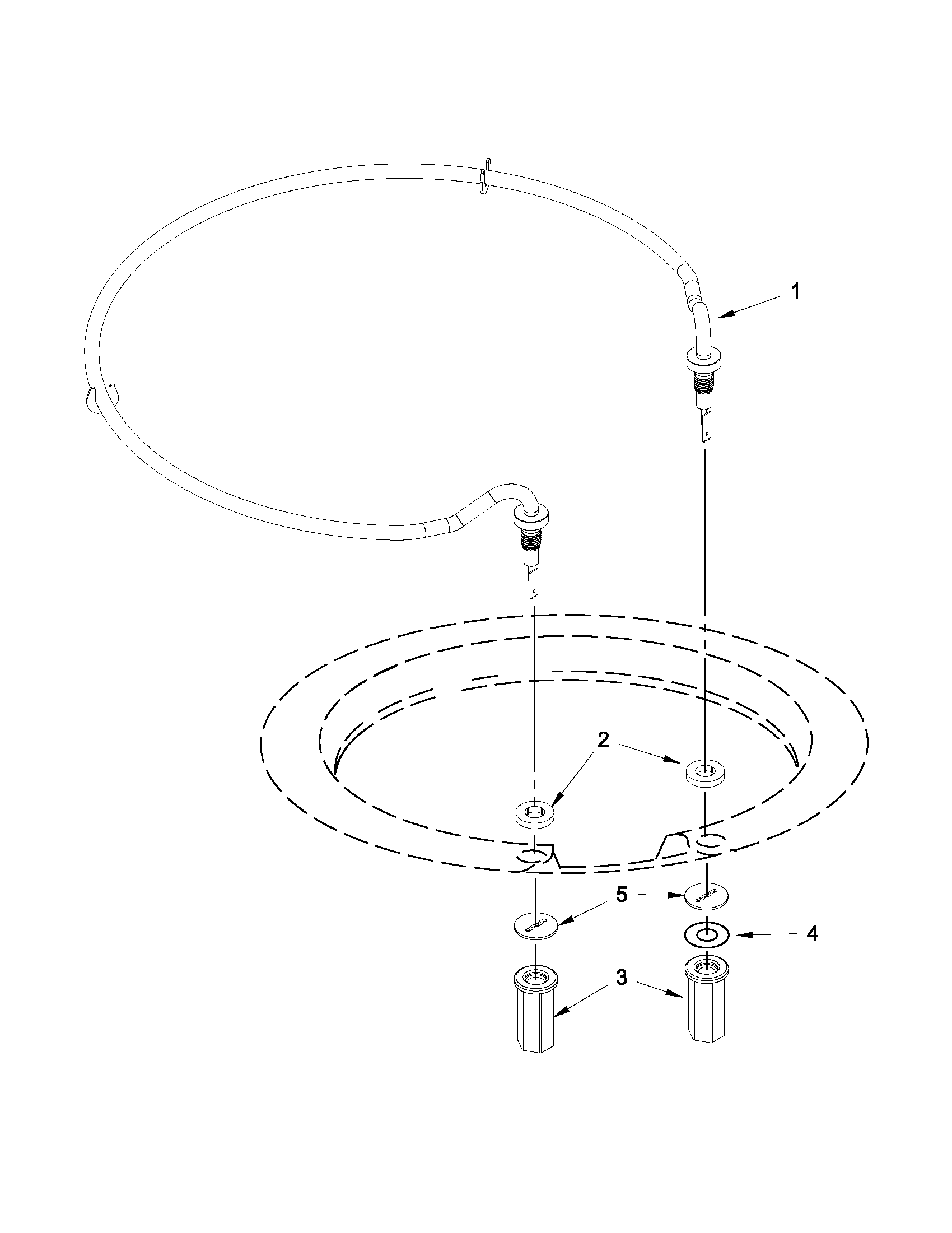

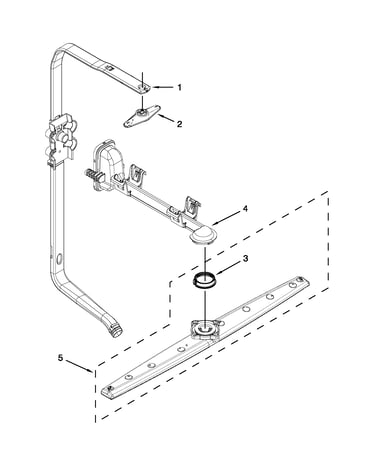

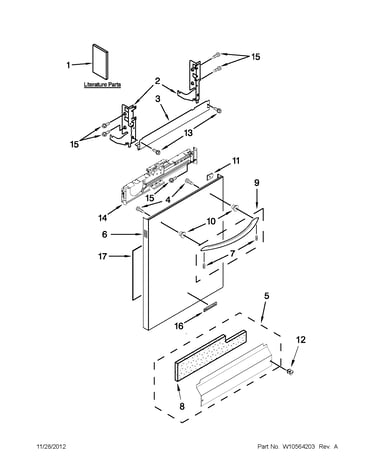

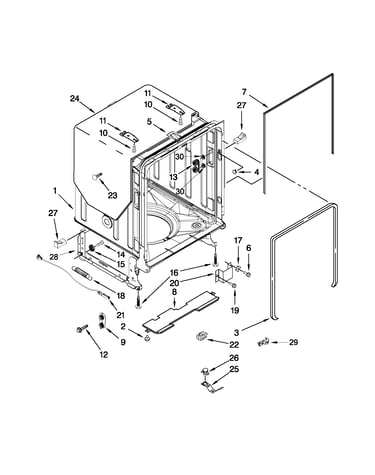

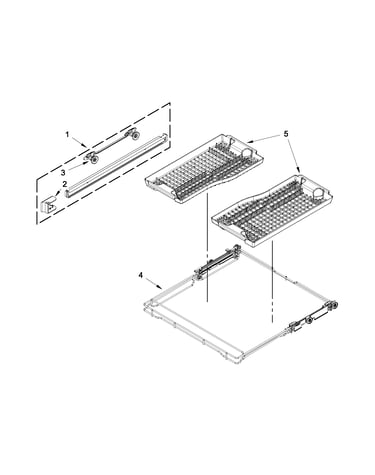

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KUDE20FBWH0 Undercounter Dishwasher

  • Dishrack Adjuster Kit - Dishwasher Rack Component By Whirlpool for KitchenAid KUDE20FBWH0 - Part W10712395

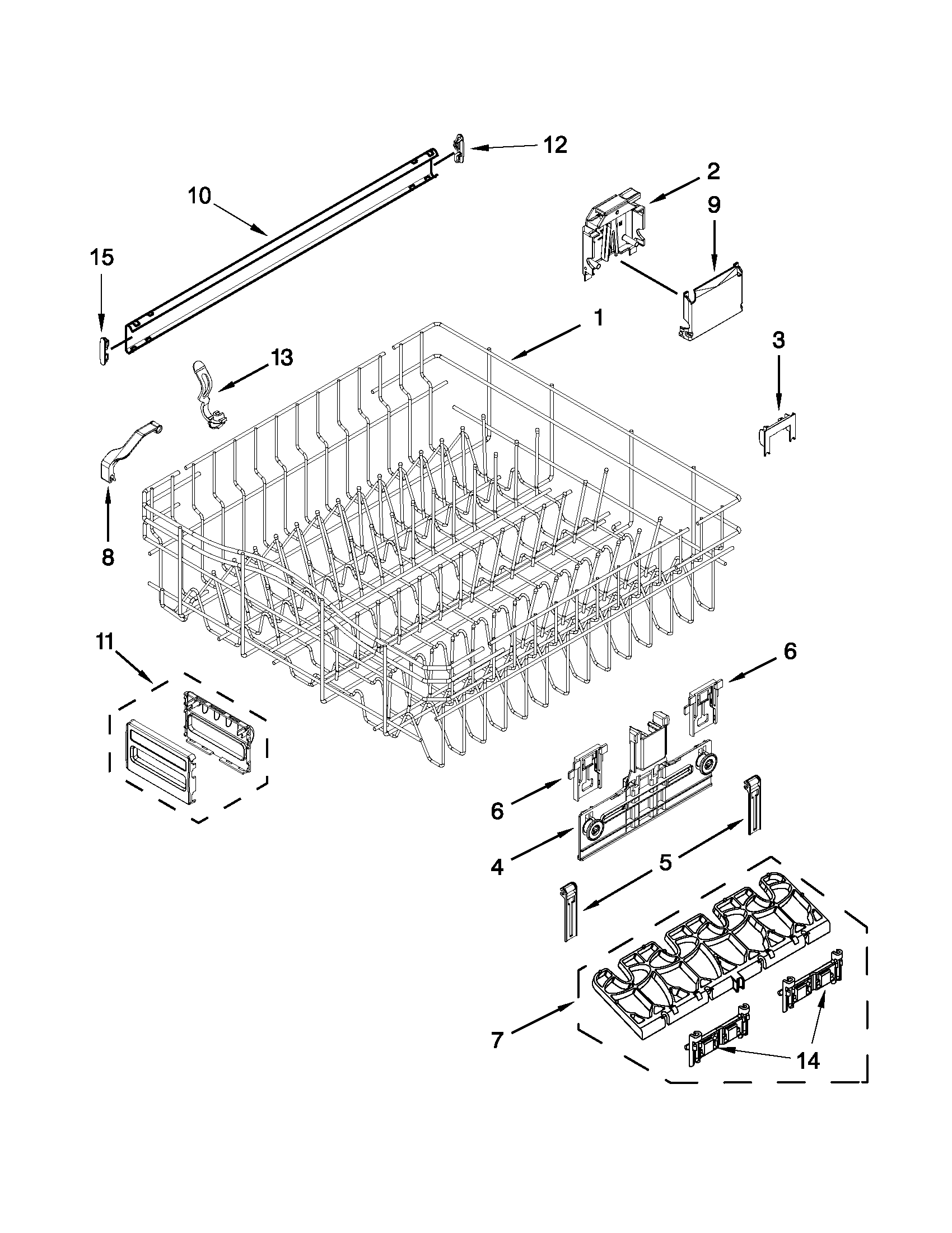

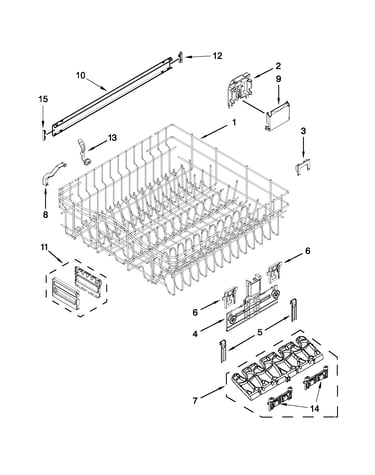

    Upper rack and track parts diagram

    Dishrack Adjuster Kit - Dishwasher Rack Component By Whirlpool

    Part #W10712395
    In Stock
    $43.01
    12% OFF Phone Price : $49.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Lower Dishrack Wheel Assembly (w10195416v) - Dishwasher Mobility Part By Whirlpool for KitchenAid KUDE20FBWH0 - Part W10195416V

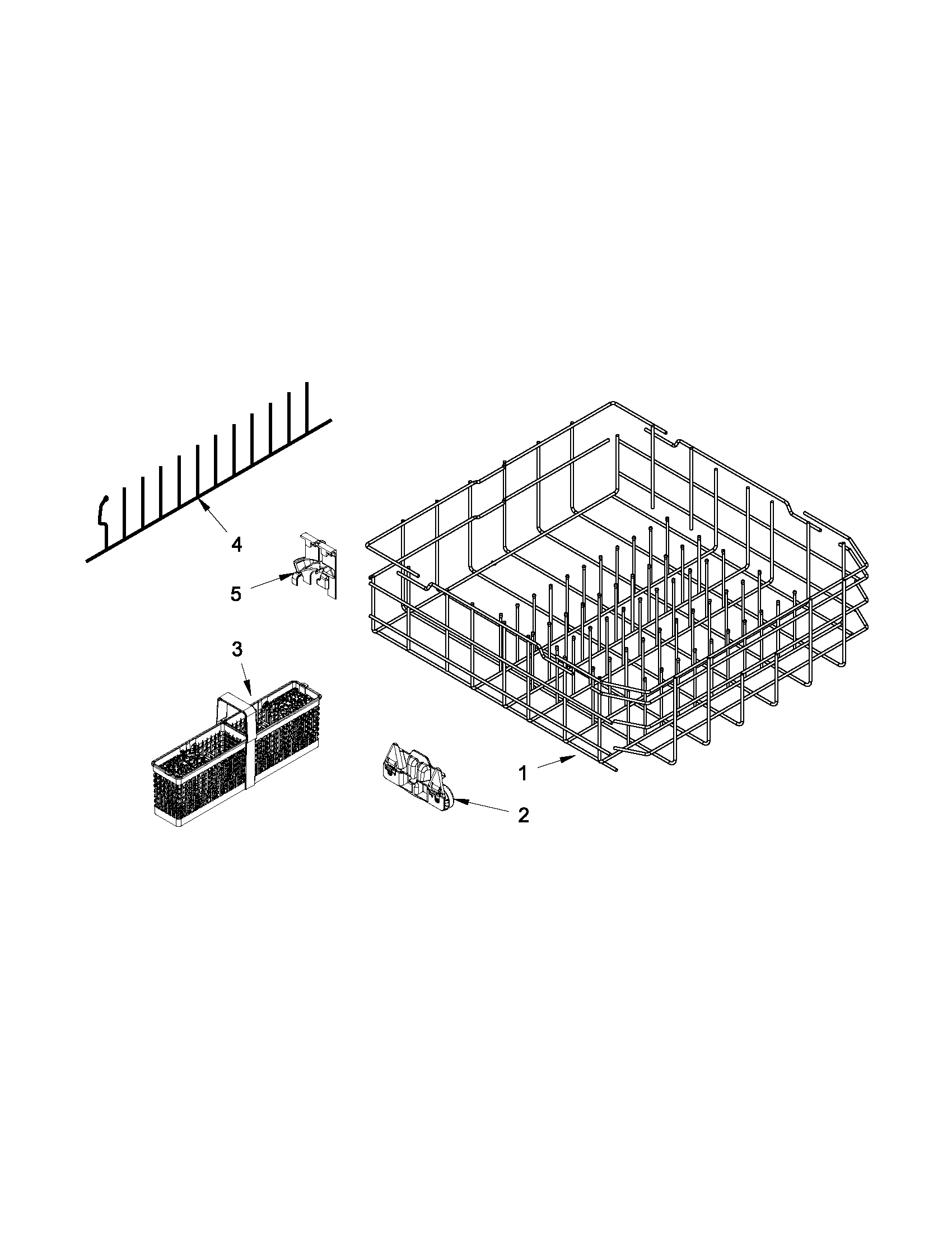

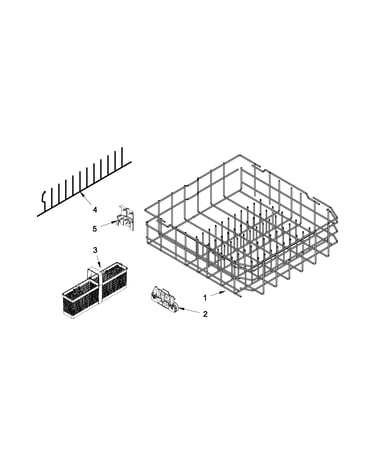

    Lower rack parts diagram

    Whirlpool Dishwasher Dishrack Wheel

    Part #W10195416

    Replaced by #W10195416V

    Info Icon
    Manufacturer substitution
    This part replaces W10195416. Substitute parts can look different from the original.
    In Stock
    $28.33
    17% OFF Phone Price : $34.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Dishrack Slide Rail Stop, Upper for KitchenAid KUDE20FBWH0 - Part WP8565925

    Upper rack and track parts diagram

    Stop

    Part #W10082860

    Replaced by #WP8565925

    Info Icon
    Manufacturer substitution
    This part replaces W10082860. Substitute parts can look different from the original.
    In Stock
    $7.37
    12% OFF Phone Price : $8.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Pump Grommet for KitchenAid KUDE20FBWH0 - Part WPW10538166

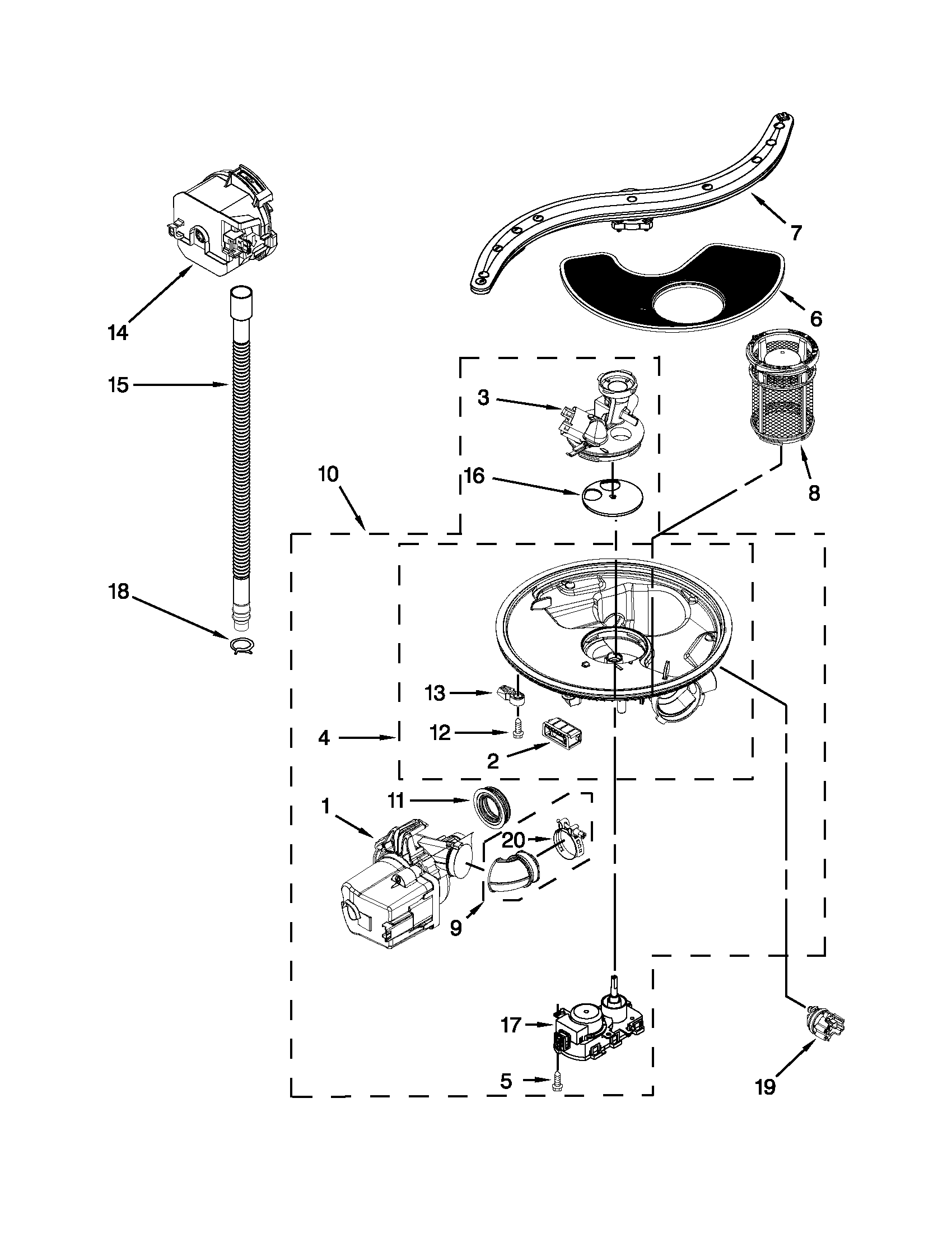

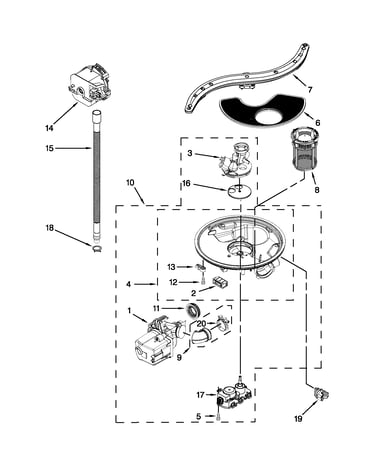

    Pump, washarm and motor parts diagram

    Dishwasher Pump Grommet

    Part #W10195068

    Replaced by #WPW10538166

    Info Icon
    Manufacturer substitution
    This part replaces W10195068. Substitute parts can look different from the original.
    In Stock
    $21.34
    22% OFF Phone Price : $27.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Water Inlet Valve for KitchenAid KUDE20FBWH0 - Part W11175771

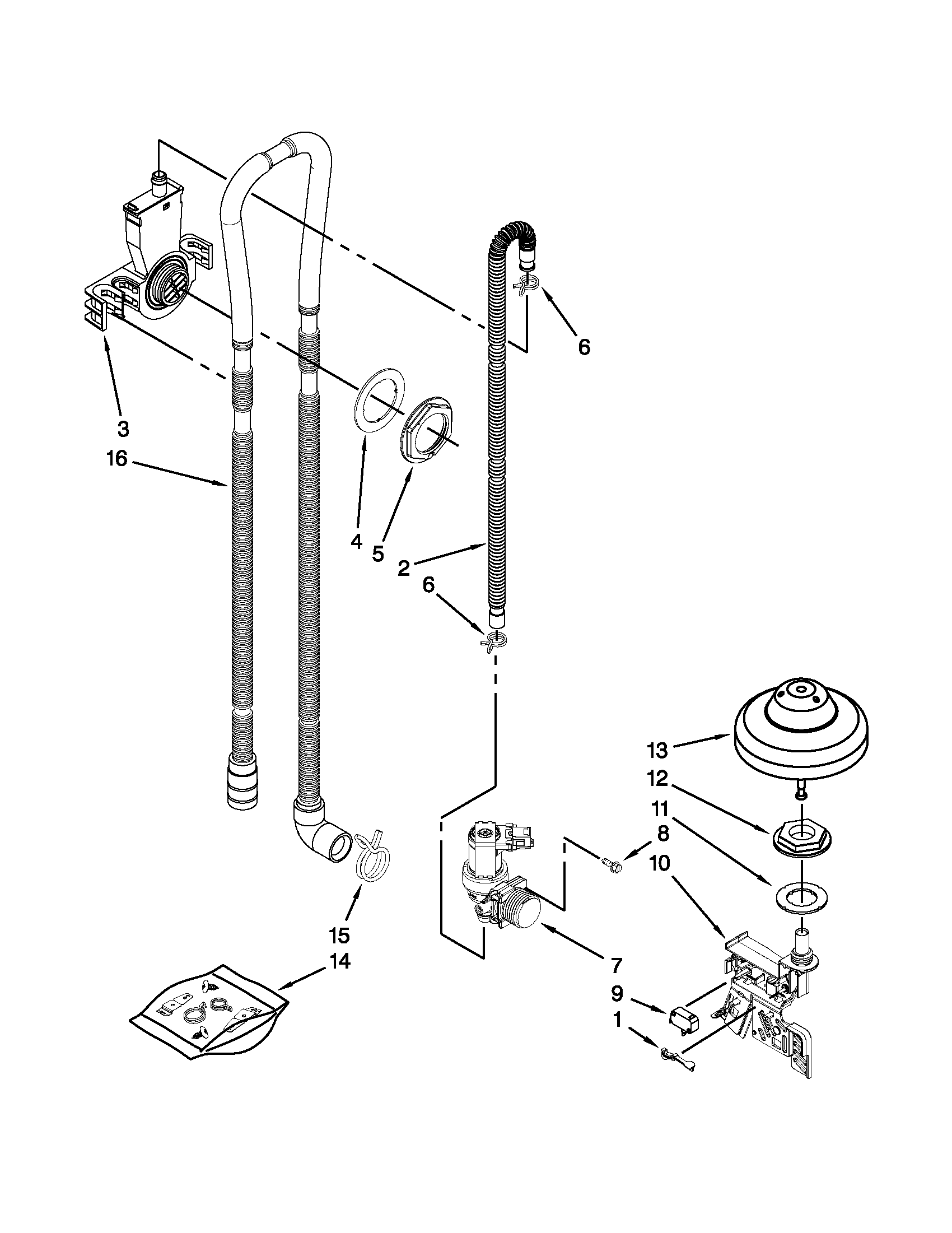

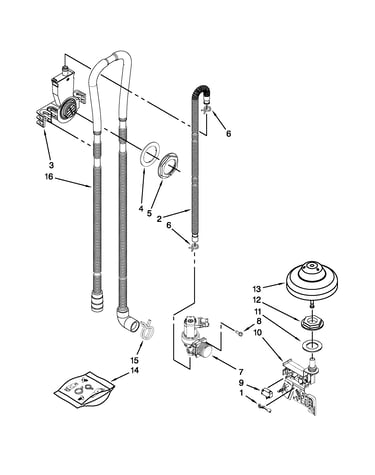

    Fill, drain and overfill parts diagram

    Dishwasher Water Inlet Valve

    Part #W10195047

    Replaced by #W11175771

    Info Icon
    Manufacturer substitution
    This part replaces W10195047. Substitute parts can look different from the original.
    In Stock
    $51.97
    10% OFF Phone Price : $57.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Circulation Pump-to-sump Hose for KitchenAid KUDE20FBWH0 - Part W10445975

    Pump, washarm and motor parts diagram

    Dishwasher Circulation Pump-to-sump Hose

    Part #W10445975
    In Stock
    $47.21
    24% OFF Was : $61.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Hose for KitchenAid KUDE20FBWH0 - Part 8269144A

    Pump, washarm and motor parts diagram

    Dishwasher Drain Hose

    Part #8269144

    Replaced by #8269144A

    Info Icon
    Manufacturer substitution
    This part replaces 8269144. Substitute parts can look different from the original.
    In Stock
    $19.77
    9% OFF Phone Price : $21.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Diverter Motor for KitchenAid KUDE20FBWH0 - Part W10537869

    Pump, washarm and motor parts diagram

    Dishwasher Diverter Motor

    Part #W10476222

    Replaced by #W10537869

    Info Icon
    Manufacturer substitution
    This part replaces W10476222. Substitute parts can look different from the original.
    In Stock
    $55.50
    10% OFF Phone Price : $61.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Door Seal, Lower for KitchenAid KUDE20FBWH0 - Part WPW10497235

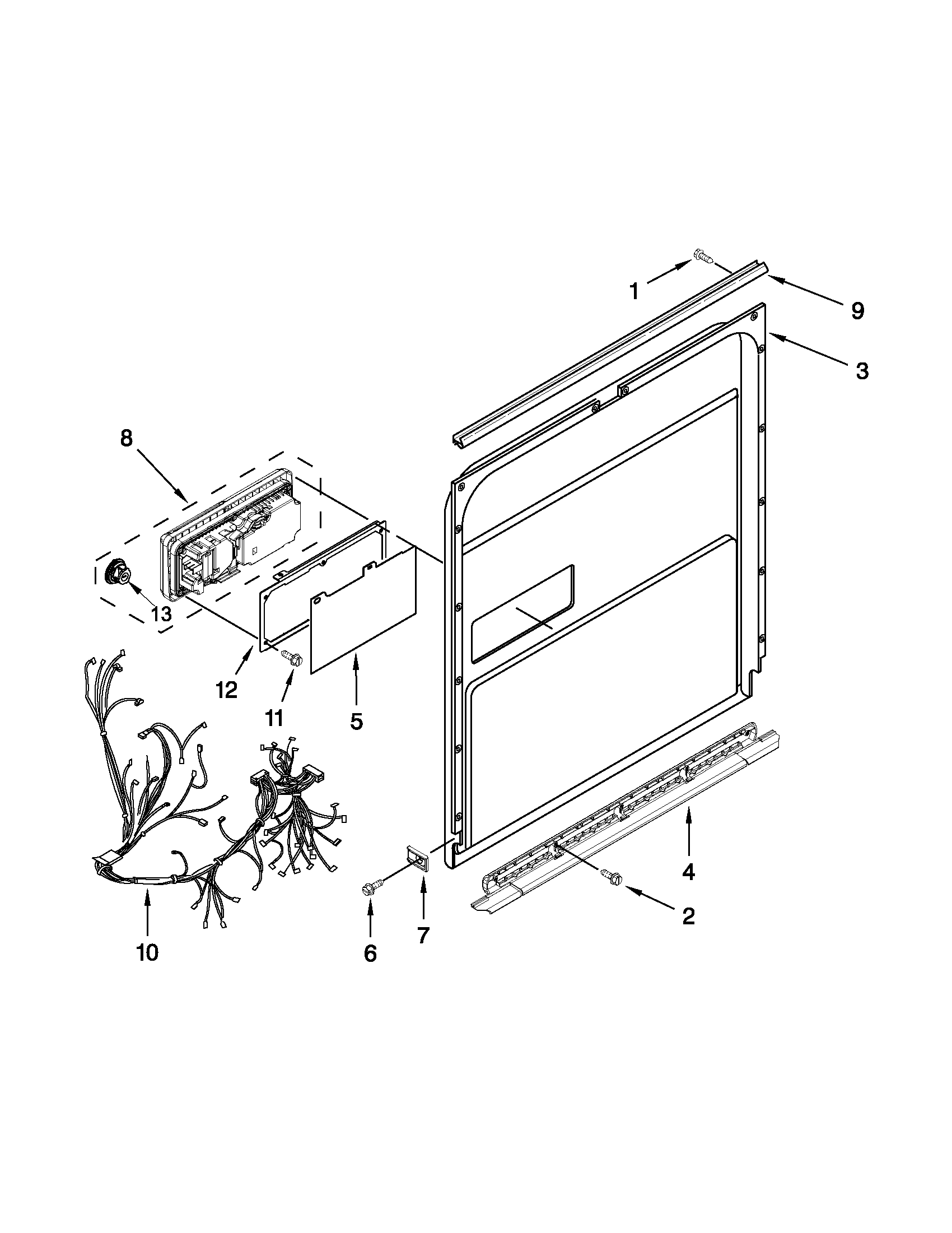

    Inner door parts diagram

    Dishwasher Door Seal, Lower

    Part #W10497235

    Replaced by #WPW10497235

    Info Icon
    Manufacturer substitution
    This part replaces W10497235. Substitute parts can look different from the original.
    In Stock
    $6.91
    13% OFF Phone Price : $7.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Dishrack Adjuster Arm Positioner Clip for KitchenAid KUDE20FBWH0 - Part WPW10195840

    Upper rack and track parts diagram

    Dishwasher Adjuster Positioner Clip

    Part #W10195840

    Replaced by #WPW10195840

    Info Icon
    Manufacturer substitution
    This part replaces W10195840. Substitute parts can look different from the original.
    In Stock
    $24.96
    19% OFF Phone Price : $30.96Info Icon
    Minus Item
    Qty
    Plus Item
