Maytag MED6630HW0 dryer Parts

A Maytag dryer like model MED6630HW0 typically lasts 10 to 15 years with normal household use. Consistent airflow maintenance (lint screen and venting) and quick repairs when symptoms start are the biggest factors in getting to the high end of that range. See the care and maintenance guidance in the MED6630HW0 use and care guide.

What affects dryer lifespan the most

• Vent airflow: restricted venting increases heat stress and run time.
• Lint screen habits: cleaning before every load reduces overheating risk.
• Load size: overloading strains the motor, belt, and drum support system.
• Heat system health: weak heat or cycling issues can shorten component life.
• Noise and vibration: early attention prevents secondary damage.

Maintenance schedule we recommend

Task	How often	Why it helps
Clean lint screen	Every load	Keeps airflow strong and drying times down
Check outside exhaust hood airflow	Monthly	Catches clogs and crushed venting early
Clean the full vent run	Every 2 years	Reduces long dry times and overheating
Level the dryer	As needed	Helps the drum and rollers wear evenly

Parts that commonly extend service life

If your MED6630HW0 starts squealing, thumping, or taking longer to dry, replacing worn wear-items is often a cost-effective way to keep it running:

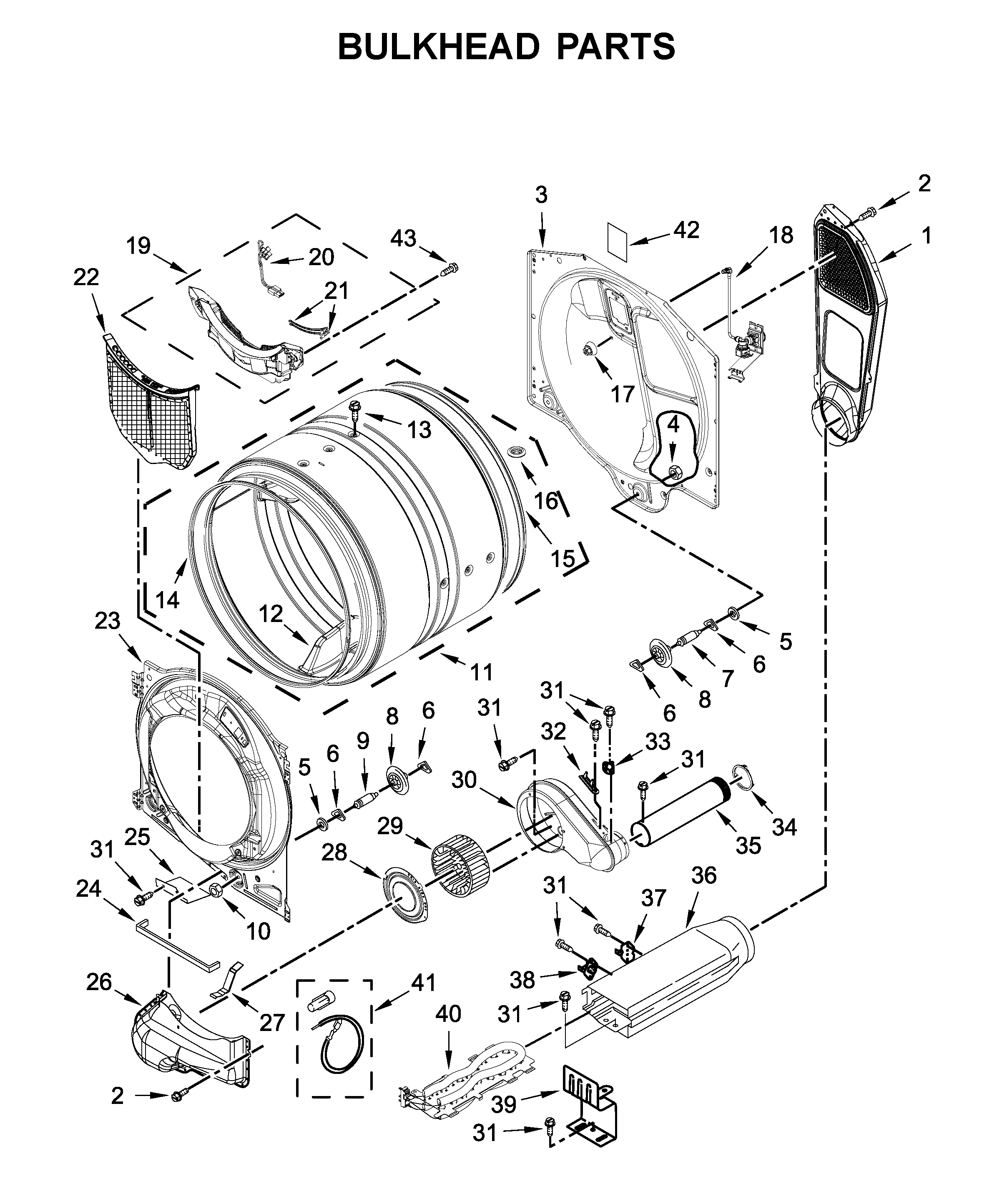

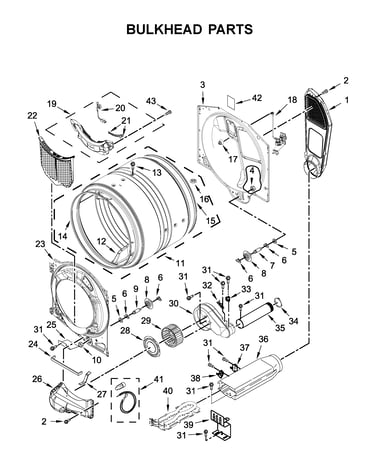

• Dryer drum support roller WPW10314173 (supports the drum as it turns)
• Dryer idler pulley W10837240 (keeps proper belt tension)
• Dryer lint screen W11758174 (a damaged or clogged screen can hurt airflow)

Why it matters

A dryer that maintains proper airflow and tumbles smoothly dries faster, runs cooler, and puts less strain on the motor, heater, and controls. That directly translates into fewer breakdowns and a longer overall lifespan.

Last updated: January 2026

To tell how old your Maytag dryer is, we use the serial number date code on your Maytag MED6630HW0. Find the model/serial tag (commonly in the door opening) and decode the manufacturing date from the serial number format shown in the MED6630HW0 use and care guide.

Where to find the model and serial number

On the MED6630HW0, the rating plate is typically located in the door opening (door well area). Once you have the serial number, write it down exactly as shown.

• Open the dryer door and check the inner door frame/door opening
• Look for a sticker or metal tag with MODEL and SERIAL
• Copy the full serial number (letters and numbers)
• Take a photo so you can zoom in and avoid mix-ups
• If the label is worn, use a flashlight at an angle to make it easier to read

How the “age” is determined

For this model, the exact year and month are determined by the serial number’s date code. The MED6630HW0 documentation we have here does not list a universal “one-size-fits-all” decoding chart in the text excerpt, because Maytag serial formats can vary by production run.

Quick decode checklist

• Confirm you are reading the serial number, not the model number
• Look for a date code embedded in the serial (often early in the string)
• Match the code to the Maytag format for that serial style
• If you need the most accurate result, compare the serial format to the examples in the MED6630HW0 installation instructions

Why it matters

Knowing the manufacture date helps us narrow down the correct parts and service approach for your MED6630HW0, especially for wear items and maintenance intervals.

What you’re trying to do	Why the manufacture date helps
Order replacement parts	Confirms the correct version for your production run
Plan maintenance	Helps time vent cleaning and inspections
Decide repair vs. replace	Puts the dryer’s age in context with typical dryer lifespan

Last updated: January 2026

For the Maytag MED6630HW0 dryer, the most common issue we see is poor drying or no heat caused by restricted airflow (lint screen or venting problems). Airflow restriction can also trigger the Check Vent indicator and lead to overheating-related shutdowns.

Most common issues (and what they look like)

• Clothes take too long to dry: lint screen clogged, vent run too long, crushed/kinked vent, or blocked outside hood.
• No heat but drum turns: power supply issue (electric models often use two breakers/fuses) or a heating circuit problem.
• Dryer will not start: door not fully closed, Start/Pause not held long enough, or a power supply problem.
• Thumping/squealing/grinding: worn drum support rollers or an idler pulley issue.
• Stops early or dries unevenly on Sensor cycles: load not contacting moisture sensor strips, dryer not level, or airflow problems.

Quick checks we recommend first (MED6630HW0)

Use these steps before replacing parts; they solve a large share of “Maytag dryer problems.”

• Clean the lint screen before every load; wash it with a nylon brush periodically if residue builds up.
• Run the dryer 5 to 10 minutes and check strong airflow at the outside exhaust hood.
• Confirm you are using 4-inch heavy metal venting and minimizing elbows and long runs.
• Avoid tightly packing loads; items need to tumble freely.
• If the Check Vent light comes on, treat it as an airflow warning, not a cycle setting.

For model-specific operating and airflow guidance, follow the venting and troubleshooting sections in the MED6630HW0 use & care manual.

When parts are commonly involved

If airflow is good and symptoms persist, these are frequent wear items on many Maytag dryers, including MED6630HW0:

Symptom	Common wear item	Example compatible part for this model
Squealing, rumbling, thumping	Drum support rollers	Dryer drum support roller WPW10314173
Drum not turning, squeal	Idler pulley	Dryer idler pulley W10837240
Poor Sensor drying	Moisture sensor	Dryer moisture sensor WP3387223

Why it matters

Good airflow protects the heating system, improves dry times, and helps prevent nuisance shutdowns. It also reduces strain on components like the blower wheel and thermostats.
