Kenmore 66515779990 dishwasher Parts

The Kenmore dishwasher model 66515779990 is a standard built-in dishwasher size; most units in this class fit a 24-inch-wide cabinet opening and stand about 34 to 35 inches tall with leveling legs. For the exact cutout and leveling range, use the 66515779990 installation guide.

Typical size you can plan around

Most Kenmore built-in dishwashers like model 66515779990 are designed for standard kitchen openings:

• Width: about 24 inches (fits a 24-inch opening)
• Height: typically adjustable around 34 to 35 inches using leveling legs
• Depth: typically around 24 inches to the door, plus handle if equipped
• Clearance: allow room for the door to open fully and racks to slide out

What to measure (so it fits the first time)

Measure your space before ordering panels, brackets, or planning a replacement:

• Cabinet opening width (inside-to-inside)
• Countertop-to-floor height at the front and back of the opening
• Depth to the back wall (watch for plumbing and the drain hose loop)
• Door swing clearance to nearby drawers and islands

Measurement	Where to measure	What you’re checking
Opening width	Inside cabinet walls	Standard 24-inch fit
Opening height	Floor to underside of counter	Leveling leg adjustment range
Opening depth	Front of cabinet to back wall	Space for unit plus hoses

Why it matters

Dishwasher “size” is really about the cabinet cutout and hookup routing. The installation instructions for this Kenmore model call out key install requirements such as a high drain loop (20 inches) and proper electrical and water supply setup, which can affect how the dishwasher sits in the opening. Use the 66515779990 installation guide to match your measurements to the required clearances.

Last updated: January 2026

On Kenmore dishwasher model 66515779990, a “hard reset” is typically done by clearing the current cycle and restoring control-panel operation. Use Cancel/Drain to clear selections; if the controls are locked, turn off Lock (often tied to No Heat Dry) and then restart the cycle per the 66515779990 owner's manual.

Quick reset steps (most common)

• Press Cancel/Drain to stop the current cycle and clear indicators.
• Wait for the unit to finish draining; a small amount of water remaining is normal.
• Select your desired cycle and options.
• Press Start to begin.

If the buttons do nothing (control lock is on)

Your dishwasher can disable all buttons when Lock On is lit. To restore control:

• Press and hold No Heat Dry for 4 seconds to turn Lock off.
• Confirm the Lock light turns off.
• Then press Cancel/Drain once to clear options before starting a new cycle.

Symptom	What it usually means	What to do
Cycle won’t cancel	Unit is still draining or paused	Let drain finish, then reselect cycle and press Start
Lights flash when you press a pad	Controls are locked	Hold No Heat Dry 4 seconds to unlock
Dishwasher won’t run at all	Power, door latch, or cycle not set	Verify breaker, door fully latched, cycle selected

Why it matters

Resetting the control correctly prevents starting a new wash with a partially canceled cycle, which can cause poor cleaning, standing water, or confusing indicator lights.

Related help

• For model-family troubleshooting and light patterns, use our Kenmore 665 model dishwasher error codes.

Last updated: January 2026

On Kenmore dishwasher model 66515779990, the filter is located on the bottom of the tub, typically around the sump area beneath the lower spray arm. You access it by removing the lower rack and lifting or twisting out the filter screen or filter basket (see the 66515779990 owner's manual).

How to find and access the filter

1. Turn off power at the breaker (recommended) and open the door.

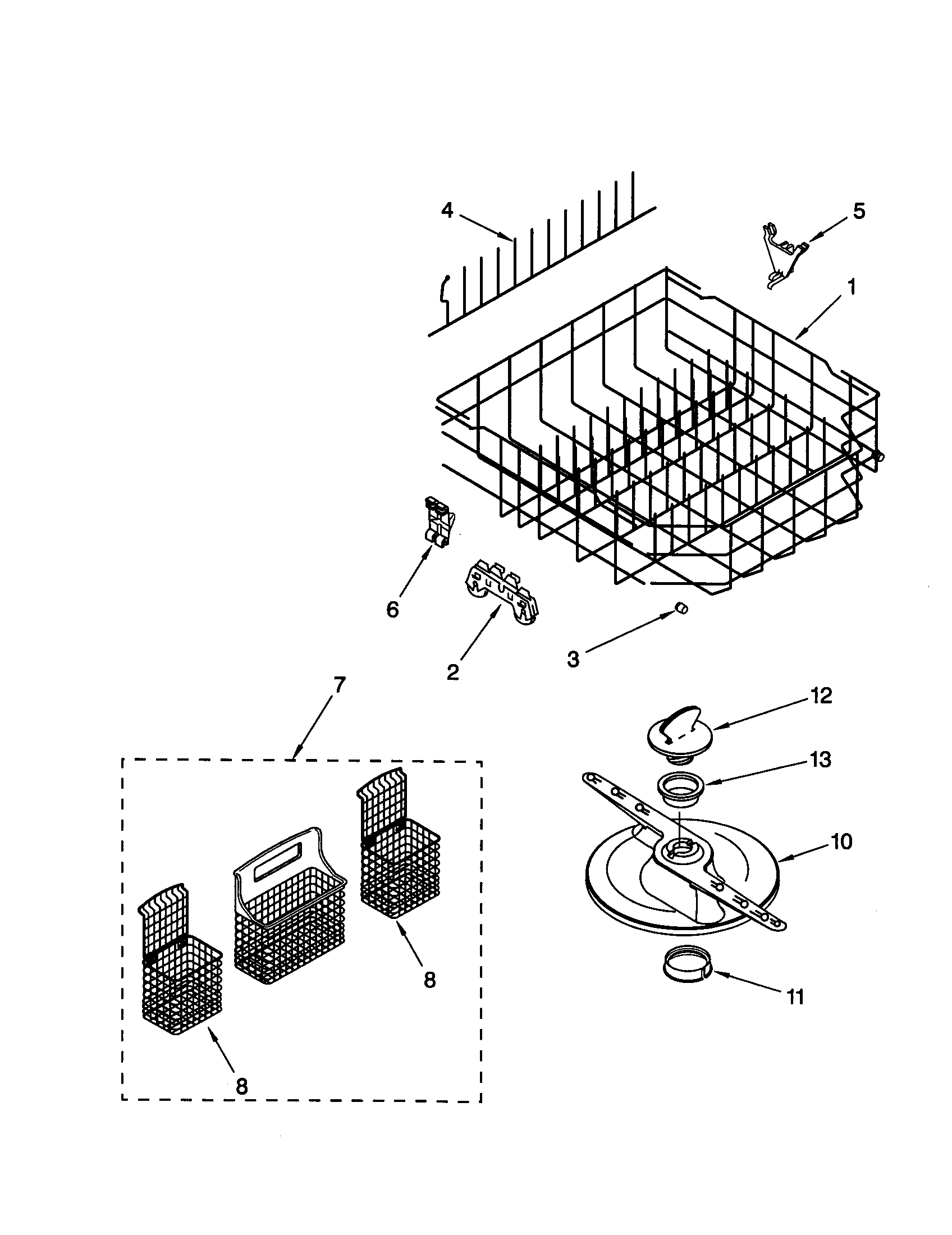

2. Pull out the lower rack.
3. Look at the tub floor under the lower spray arm; the filter area is usually centered or slightly toward the back.
4. Remove the lower spray arm if it blocks access.
5. Lift out or unlock the filter screen or filter basket, then rinse it clean.

Quick checklist before you start

• Let the heating element cool if the dishwasher recently ran
• Remove large food debris by hand first
• Rinse the filter with warm water; use a soft brush if needed
• Reinstall the filter fully seated so it does not rattle
• Run a short rinse cycle to confirm normal wash sound and spray

What you are looking for (common filter styles)

Most Kenmore Quiet Guard style dishwashers use one of these setups at the tub bottom:

Filter style	What it looks like	How it comes out
Filter basket/screen	Mesh or perforated plastic cup	Lifts out after unlocking or unseating
Flat screen over sump	Low-profile screen plate	Lifts out or releases with tabs/screws

Why it matters

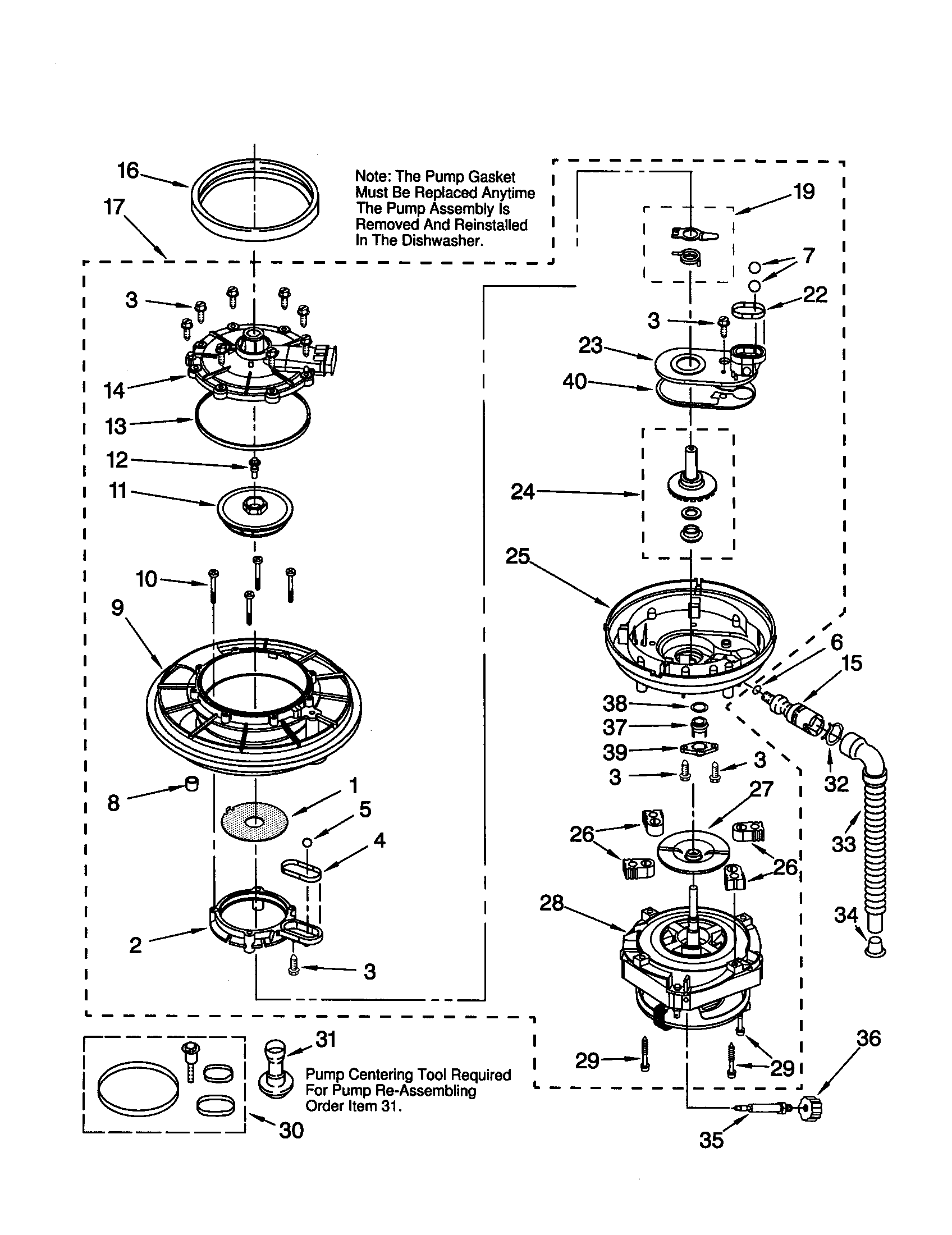

A clogged or mis-seated filter can reduce water flow to the spray arms, causing poor cleaning, gritty residue, and louder operation. Keeping the filter area clear also helps protect the pump and impeller from debris.

Related parts that affect filtering and wash performance

If cleaning the filter does not help, these model-related parts often tie into similar symptoms:

• Dishwasher spray arm 675808 (spray holes clogged or arm not spinning)
• Dishwasher lower spray arm seal WP3376846 (leaks or poor pressure at the arm)
• Dishwasher drain hose WP3374077 (slow drain can leave debris behind)

Last updated: January 2026

Common problems on the Kenmore 66515779990 dishwasher include not starting or stopping mid-cycle, not filling, running too long, poor cleaning from spray issues, and leaks around the door or tub area. Many of these trace back to power, water supply, loading, or worn wash-system parts. See the 66515779990 owner's manual troubleshooting section for model-specific checks.

Most common symptoms and what usually causes them

• Won’t start or stops during a cycle: door not fully latched, cycle not selected correctly, power issue, or motor overload reset
• Won’t fill: overfill protection float stuck or restricted
• Runs too long: incoming water not hot enough, so the dishwasher extends time to heat
• Poor cleaning: clogged or damaged spray arm, blocked filters, overloading, or low water temperature
• Leaks: door seal wear, loose clamps/hoses, or a mis-seated component after service

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes tightly and latches; a weak latch can interrupt operation.
2. Verify power at the breaker and that the cycle is selected correctly.
3. Make sure the water shut-off valve is fully open.
4. Press the overfill float down and confirm it moves freely.
5. Run a complete cycle and inspect for leaks at the door and under the unit.

Parts that commonly solve these issues on model 66515779990

Symptom	Part to inspect	What it affects

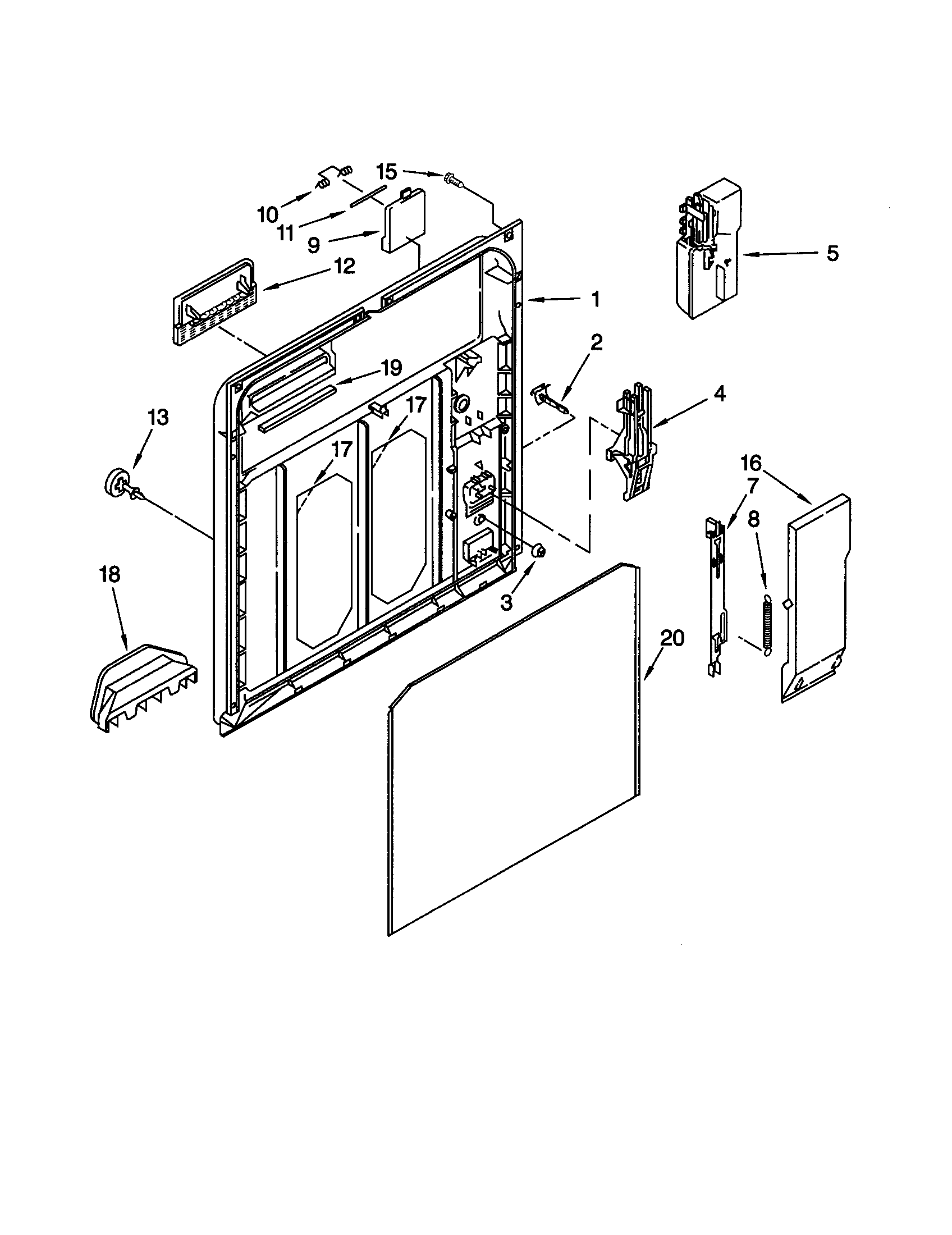

Leaking at the door	Dishwasher door seal WPW10509257	Seals the door to prevent water escaping
Not starting or stopping	Dishwasher door latch WP3380854	Confirms the door is closed so the unit can run
Poor wash coverage	Dishwasher spray arm 675808	Distributes water for cleaning
Drain or water issues	Dishwasher drain hose WP3374077	Routes drain water out; kinks/clogs can cause problems

Why it matters

Catching the root cause early prevents repeat cycles, water damage, and poor cleaning. For example, a stuck float can stop filling, and low inlet water temperature can make cycles seem “endless.”

Helpful DIY reference

For fault lights and code-based troubleshooting, use Kenmore 665 model dishwasher error codes.

Last updated: January 2026
