Kenmore Elite 66513943K010 undercounter dishwasher Parts

Your Kenmore Elite dishwasher model number is printed on the rating label located just inside the dishwasher door opening (typically along the left side). Match that exact model number to the parts list for the most accurate fit and diagrams for your unit.

Where to find the model number

Check these common spots on Kenmore Elite undercounter dishwashers:

• Inside the door opening on the left side (most common)
• Along the inner door edge near the latch area
• On the tub frame just behind the door seal
• On a label that also lists the serial number

For the exact label location and what the label looks like, use the 66513943K010 owner's manual.

How to read the label (and why it matters)

The rating label usually includes both a model number and a serial number. We use the model number to ensure parts like a drain pump, water inlet valve, or dishrack components match your exact build.

Quick check

• Model number: identifies the design and parts compatibility
• Serial number: identifies production details (helpful for revisions)

If the label is hard to read

Try these steps before you write it down:

• Wipe the label gently with a damp cloth and dry it
• Use a flashlight at an angle to reduce glare
• Take a close-up photo and zoom in
• Copy the model number exactly, including all letters and digits

Common examples (format only)

What you see	What it means
665.1394...	Kenmore model family prefix (common on many Kenmore dishwashers)
66513943K010	A complete model number used to match the correct parts list

Why it matters

Using the exact model number prevents ordering the wrong part and helps us pull the right diagrams for items like the dishwasher filter, spray arm, or pump and motor assembly.

Last updated: February 2026

Yes. You can still get replacement parts for Kenmore dishwashers, including the Kenmore Elite 66513943K010, by matching parts to your exact model number and then choosing the correct component (rack parts, drain parts, fill parts, or controls). Your 66513943K010 owner's manual is the best reference for identifying features and maintenance items.

What to check first (so you get the right part)

• Confirm the full model number: 66513943K010 (use the complete suffix).
• Identify the symptom: not draining, not filling, poor cleaning, door not closing, rack not rolling.
• Compare the part type to the problem area: tub, sump, pump, inlet, heater, rack hardware.
• If you are installing a dishwasher or replacing hoses/wiring, follow the clearances and routing guidance in the 66513943K010 installation guide.
• For electrical testing, use proper tools and safe practices before replacing controls or motors.

Common Kenmore dishwasher parts that are still widely available

Many repairs on this model use standard, high-demand components. Examples from the 66513943K010 parts list include:

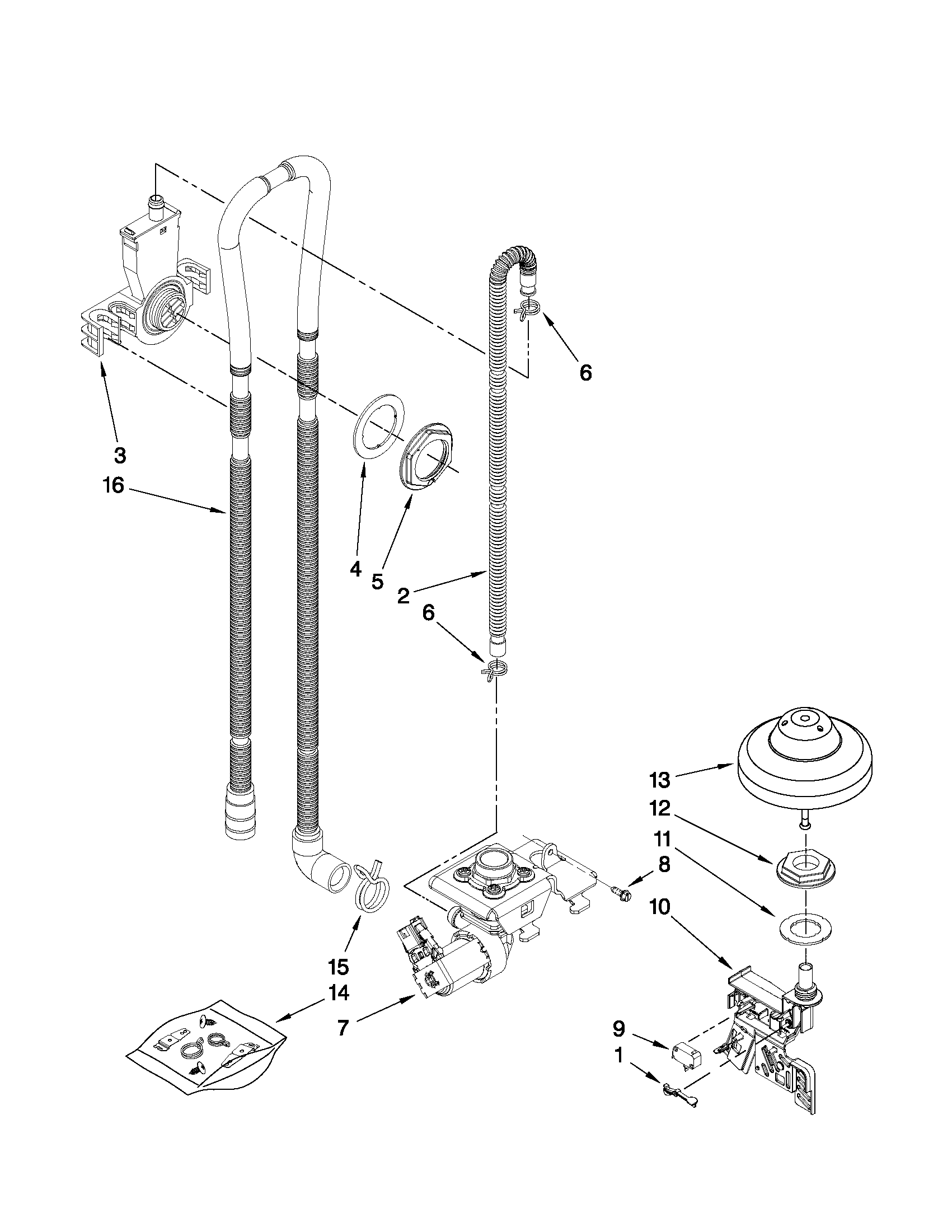

• Dishwasher drain pump WPW10348269 for drain problems
• Dishwasher water inlet valve (fill issues)
• Dishwasher heater (drying or heating issues)
• Dishwasher filter (soil and odor issues)
• Rack hardware such as rollers, adjusters, and rail stops

Quick symptom-to-part starting points

Symptom	Most likely area	Example part type
Water left in bottom	Drain system	Drain pump, drain hose
No water entering	Fill system	Water inlet valve
Dishes not drying	Heating system	Heater
Upper rack won’t stay level	Rack hardware	Adjuster kit, positioner clip

Why it matters

Kenmore dishwashers are built with serviceable components, so using the exact model number and the correct installation steps prevents leaks, wiring issues, and repeat failures. The installation guide also calls out important routing rules, such as keeping drain lines and wiring away from the motor and ensuring the motor does not contact the floor.

Last updated: February 2026

Common problems we see with the Kenmore Elite 66513943K010 dishwasher include not starting or pausing mid-cycle, not filling, not draining (water left in the tub), poor cleaning from loading or filtration issues, and cycles that run unusually long. Many of these tie back to door latching, water supply, drainage restrictions, or detergent and suds issues described in the 66513943K010 owner's manual.

Most common symptoms and what they usually mean

• Dishwasher does not run or Start/Resume blinks: door not fully closed and latched, or the cycle needs to be resumed.
• Will not fill: water supply valve is off, float is stuck, or suds are detected.
• Water remains in tub (won't drain): kinked drain hose, disposer knockout plug not removed, or a drain obstruction.
• Detergent remains in dispenser: dishes blocking the dispenser door, or the cycle did not complete.
• Food soils remain on dishes: improper loading, filter not installed or dirty, water temperature too low, or not enough detergent for hard water.

Quick checks you can do first (no parts required)

1. Confirm the door closes freely and latches; re-load tall items so they do not interfere with the wash system at the back.
2. If Start/Resume is blinking, close the door and press START/RESUME.
3. Verify power at the breaker or fuse.
4. Turn the water supply on fully; make sure the float moves freely.
5. Check the drain hose for kinks and clear the disposer inlet (including the knockout plug if newly installed).

Parts that commonly solve these problems

If the basic checks do not fix it, these model-matched parts are frequent solutions:

Symptom	Common part to inspect/replace	What it affects
Won't drain, water in tub	Dishwasher drain pump WPW10348269	Pumps water out through the drain hose
Won't fill or fills poorly	Dishwasher water inlet valve W11175771	Controls water entering the tub

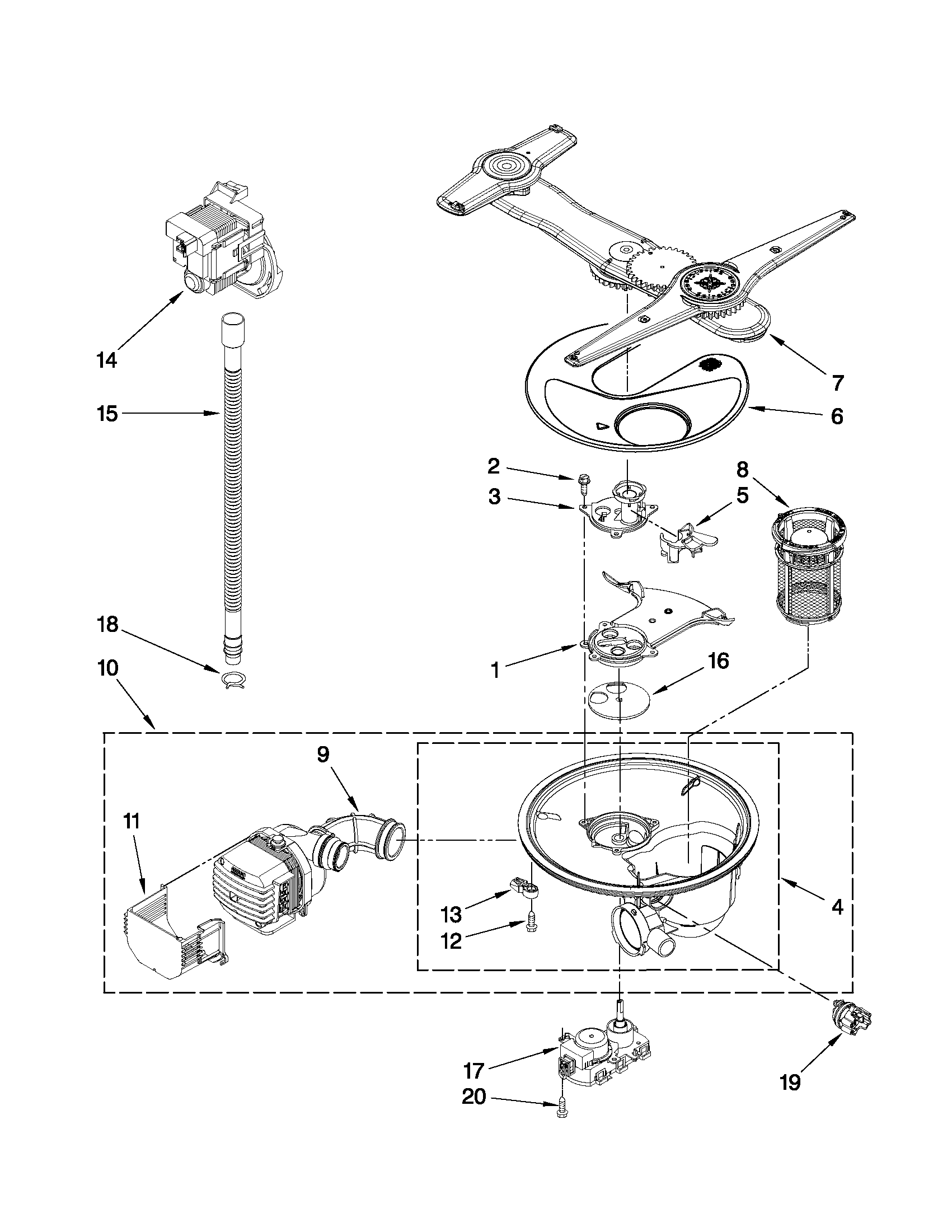

Poor cleaning, odd wash performance	Dishwasher filter W10872845	Keeps soil from recirculating

Why it matters

Catching the root cause early prevents repeat wash failures, reduces standing water and odors, and helps protect the pump, heater, and control system from strain caused by suds, low water flow, or restricted drainage.

Last updated: February 2026

For Kenmore Elite dishwasher model 66513943K010, the installation opening is 23 7/8 inches wide, 24 inches deep, and 33 7/8 inches high (floor to underside of countertop). Use these measurements to confirm the cabinet cutout before leveling and securing the dishwasher. See the 66513943K010 installation guide.

What to measure (and where)

Use a tape measure and check the opening in multiple spots (front and back) because cabinets can be out of square.

• Width: inside left cabinet wall to inside right cabinet wall
• Depth: from the back wall to the front edge of the cabinet opening
• Height: finished floor to the underside of the countertop
• Clearance: confirm the motor area has clearance above the floor (do not install over carpet)
• Centering: verify the tub is centered so the door doesn’t rub when opened

Quick reference table

Measurement	Target opening for 66513943K010	Why it matters
Width	23 7/8 in.	Prevents binding and allows proper mounting
Depth	24 in.	Ensures the unit sits flush without kinking lines
Height	33 7/8 in.	Allows leveling legs to fit under the counter

Why it matters

Correct opening dimensions help prevent door interference, vibration, and installation issues like pinched drain hoses or water lines. After the dishwasher is in place, the install steps also call for leveling, centering, and securing the unit to keep it from tipping when the door is opened.

Last updated: February 2026

A Kenmore Elite dishwasher like model 66513943K010 typically lasts 10 years under normal household use. Consistent cleaning, correct loading, and fixing small issues early (drain problems, poor drying, leaks) are what most often determine whether it reaches or exceeds that 10-year mark.

Typical lifespan and what affects it

Most dishwashers fall into a similar life range, but real-world lifespan depends on usage and maintenance.

• Typical lifespan: 10 years
• Heavy use (multiple loads daily): tends to shorten lifespan
• Hard water and poor filtration: increases wear on the pump, heater, and spray system
• Skipping filter cleaning: leads to clogs, odors, and poor wash performance
• Ignoring small leaks: can damage wiring, the motor area, and surrounding cabinetry

Maintenance that extends dishwasher life

These steps prevent the most common failures we see in undercounter dishwashers.

• Clean the filter and sump area regularly; see the 66513943K010 owner's manual for the exact filter access and cleaning routine.

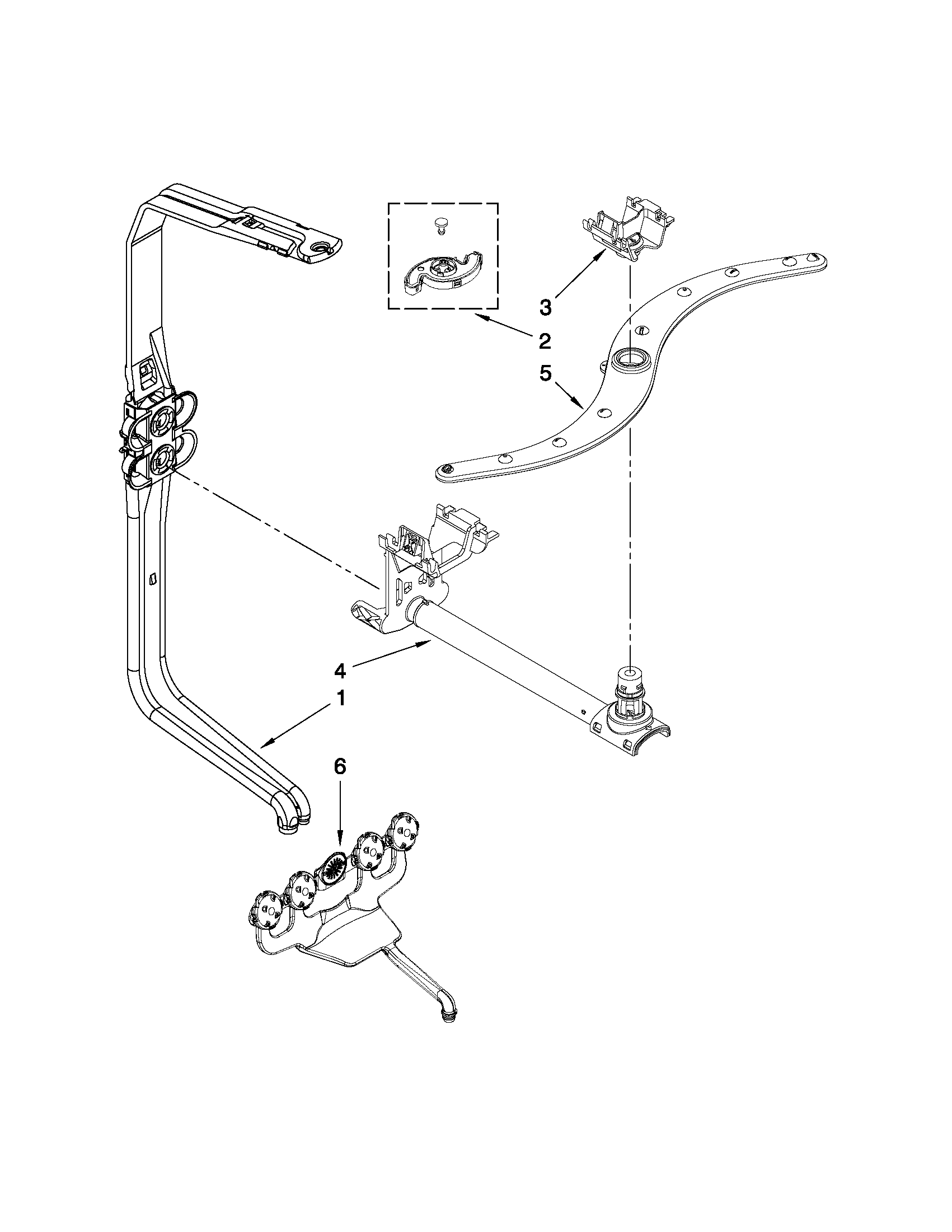

• Keep the spray arms clear of debris and mineral buildup.
• Use the right detergent amount; too much can cause residue, too little can reduce cleaning.
• Run hot water at the sink before starting a cycle to improve wash performance.
• Check the door seal area for food particles that can cause leaks.

Quick maintenance schedule

Task	Frequency	Why it helps
Clean filter	Weekly to monthly	Prevents drain clogs and odors
Inspect spray arms	Monthly	Restores water flow and cleaning
Wipe door seal	Monthly	Reduces leak risk
Run a cleaning cycle	Monthly	Helps control grease and mineral buildup

Parts that commonly impact lifespan

If performance drops, these parts are frequent root causes on many Kenmore Elite dishwashers.

• Not draining: drain hose, air gap (if used), or drain pump
• Not filling: water supply, inlet screen, or water inlet valve
• Poor drying: heater circuit, rinse aid use, or heater

If you are troubleshooting a no-drain condition, the dishwasher drain pump WPW10348269 is a common repair part for this model.

Why it matters

A dishwasher that is maintained and repaired early usually costs less to keep running and avoids secondary damage (like moisture reaching wiring or the motor area). The installation clearances and routing guidance in the 66513943K010 installation guide also help prevent long-term issues such as hose kinks and wire chafing.

Last updated: February 2026

To reset the control on your Kenmore Elite dishwasher model 66513943K010, press CANCEL/DRAIN twice, then select a new cycle and press START/RESUME. This clears the current cycle and reboots the control so you can restart from the beginning (see the 66513943K010 owner's manual).

Quick reset steps (control reset)

• Open the door slightly to pause the cycle; wait for spraying to stop
• Press CANCEL/DRAIN two times
• Close the door within about 3 seconds so the drain/reset can run
• Let the unit drain; the Cancel/Drain light typically goes out after about 2 minutes
• Choose your new cycle and options, then press START/RESUME

What “reset” means on this dishwasher

On the 66513943K010, a reset is usually one of these actions:

What you want to do	What to press	What happens
Stop the current cycle and drain	CANCEL/DRAIN once	Starts a drain cycle if water is in the bottom
Reset the control so you can restart	CANCEL/DRAIN twice	Clears the cycle and lets you select a new one
Turn button sounds on or off	Hold HIGH TEMP for 3 seconds	Toggles sound setting

If the dishwasher still will not start after resetting

These checks solve most “won’t run” complaints after a reset:

• Make sure the door is fully latched; a weak latch feel can prevent START/RESUME
• Confirm the control panel responds (lights change when you press keys)
• Check that the tub is not overfilled with standing water; a drain problem can block a new cycle
• Inspect the sink drain/disposal connection for a clog if it will not drain
• If you hear humming but no draining, the drain system may need attention (common suspect is the dishwasher drain pump WPW10348269)

Why it matters

Resetting the control the correct way prevents partial cycles, standing water, and false “stuck” symptoms. It also helps you separate a simple control interruption from a real drain or door-latch issue.

Last updated: February 2026

Yes, repairing a Kenmore Elite dishwasher model 66513943K010 is usually worth it when the problem is a wear item (rack parts, drain hose, inlet valve) or a single failed component; it is less cost-effective when multiple major parts (pump and motor, electronic control) are involved.

Quick decision checklist

• Age: Under 10 years old typically favors repair; over 10 years old depends on the part cost.
• Symptom scope: One clear failure (leak, no drain, no fill) favors repair.
• Repair cost: If the repair is under ~50% of replacement cost, repair is the better value.
• DIY comfort: Simple mechanical swaps (rollers, hoses) are good DIY candidates.
• Performance issues: Hard water residue and odors often improve with cleaning and maintenance.

Common repairs that are usually worth it (this model)

These are frequent, targeted fixes for 66513943K010 that can restore normal operation without replacing the dishwasher:

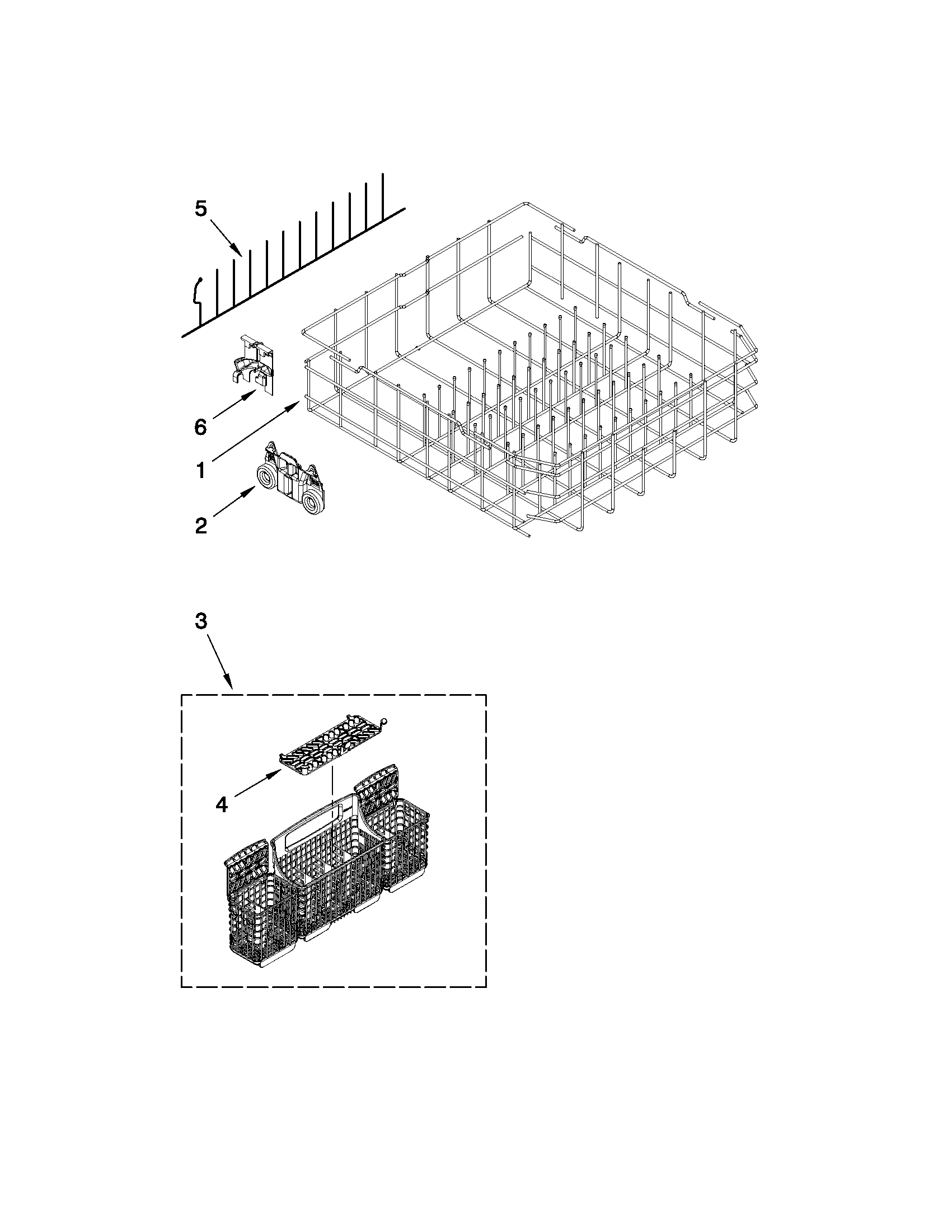

• Rack problems: dishwasher dishrack roller assembly, lower WPW10195417, dishrack adjuster kit (W10712394) - dishwasher rack component by whirlpool W10712394
• Won’t drain: dishwasher drain pump WPW10348269 or a damaged drain line such as dishwasher drain hose 8269144A
• Won’t fill or fills slowly: dishwasher water inlet valve W11175771

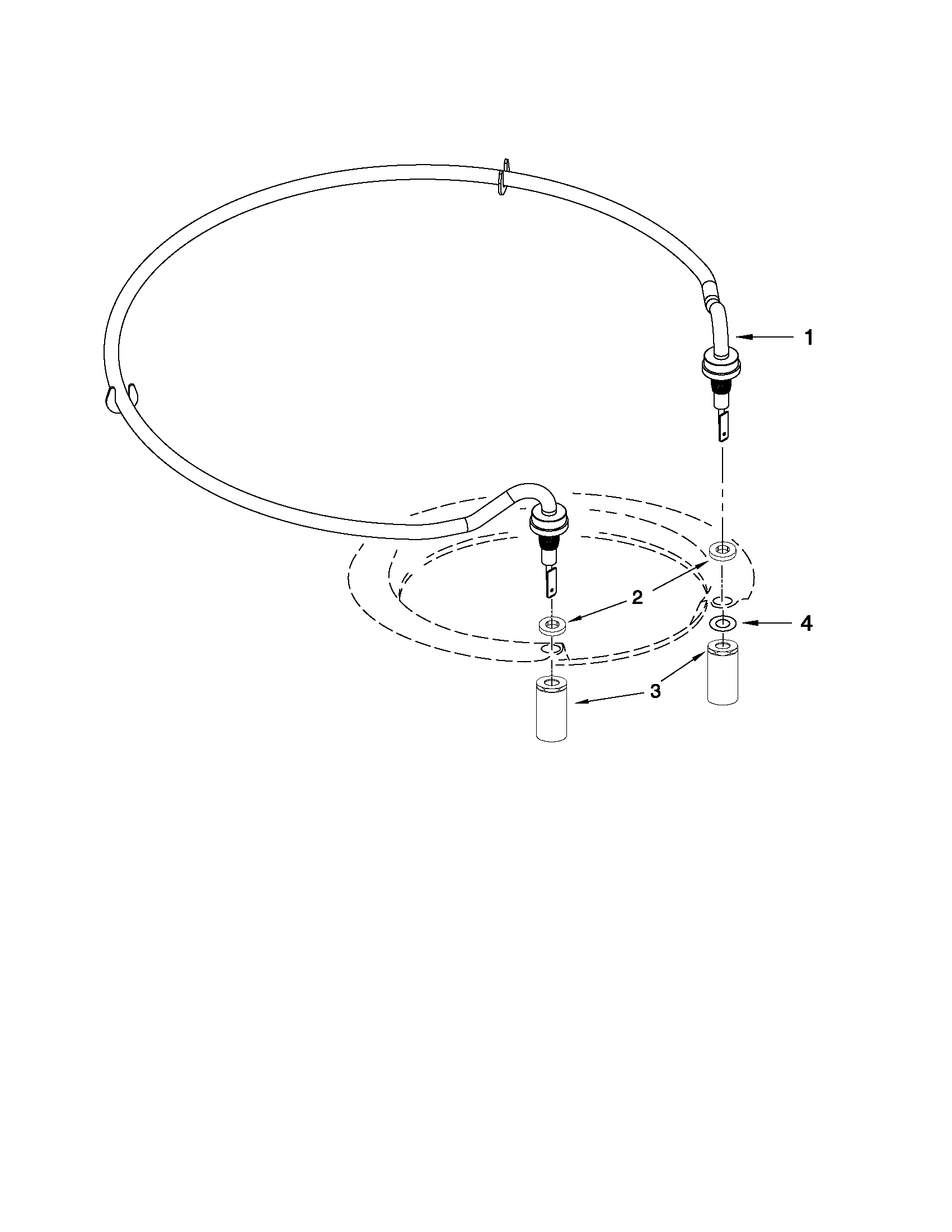

• Poor drying: dishwasher heater W10703867

Issue	Typical fix	Repair value
Rack won’t roll or sags	Roller/adjuster parts	High
Standing water	Drain pump or drain hose	Medium to high
No water entering	Water inlet valve	Medium to high
Poor drying	Heater	Medium

When replacement makes more sense

Replacement is the better call when the dishwasher has repeated failures or needs multiple high-cost electrical or drive components.

• Pump and motor plus another major part (stacked costs)
• Control problems that point to the dishwasher electronic control WPW10352582 plus additional wiring or UI issues
• Rust-through leaks or tub damage (repairs can approach replacement cost)

Why it matters

A focused repair keeps your Kenmore Elite 66513943K010 running for years at a lower total cost, while avoiding the downtime and installation work of a full replacement. For maintenance-related complaints (hard water residue, odors), the 66513943K010 owner’s manual outlines cleaning and usage practices that often solve the problem without parts.

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s higher-end line; it’s positioned above standard Kenmore models and typically focuses on upgraded cleaning performance, quieter operation, and more premium design features. For your Kenmore Elite dishwasher model 66513943K010, the best way to confirm the exact features is to compare the cycle and option list in the 66513943K010 use and care guide.

What “high end” usually means for Kenmore Elite dishwashers

Kenmore Elite models are built to deliver a more premium ownership experience than entry-level dishwashers. In real-world terms, that usually shows up as:

• More wash options and targeted cycles for heavy soil and delicate items
• Better filtration and soil handling for cleaner wash water
• Quieter sound levels than basic models
• More flexible rack features (height adjustment, fold-down tines)
• Higher-quality fit and finish (controls, handle, rack hardware)

Quick comparison: Kenmore vs Kenmore Elite

Feature area	Standard Kenmore	Kenmore Elite
Cleaning system	Solid baseline	Enhanced wash and filtration focus
Noise level	Moderate	Typically quieter
Rack flexibility	Basic	More adjustability and premium rack parts
Controls and styling	Simple	More premium look and options

Parts that support “premium” rack features

If your dishwasher has adjustable racks or upgraded rack hardware, these common rack components are often part of that higher-end feel:

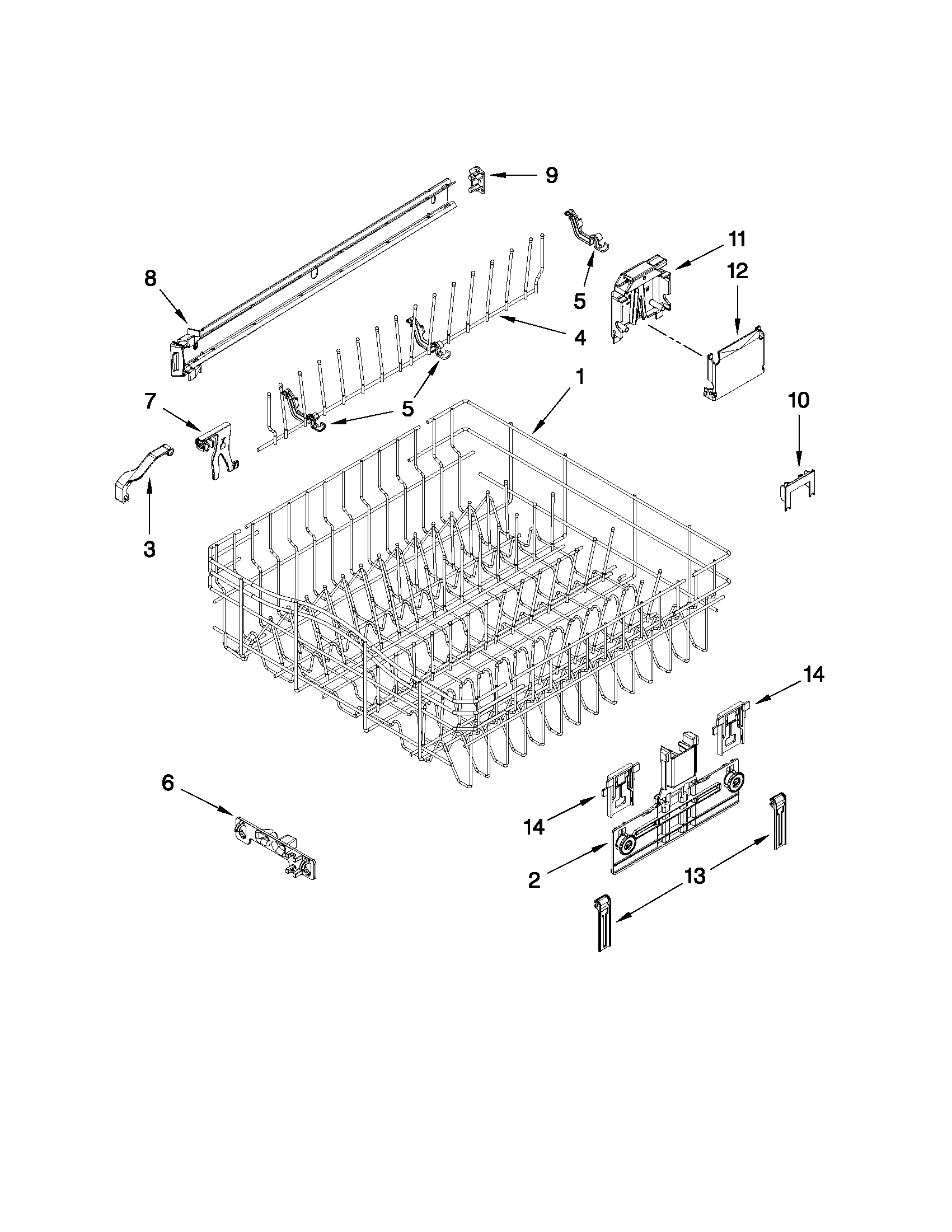

• Dishrack adjuster kit (W10712394) - dishwasher rack component by whirlpool W10712394 for upper rack height/position adjustment
• Dishwasher dishrack roller assembly, lower WPW10195417 for smoother lower rack rolling
• Dishwasher dishrack slide rail stop, upper WPW10195622 to keep the upper rack from sliding off the rails

Why it matters

Knowing whether your 66513943K010 is “high end” helps when you’re choosing replacement parts (rack adjusters, rollers, filters) and when you’re comparing expected performance like cleaning results and noise. The feature list in the manual is the most accurate way to judge where your specific model sits.

Last updated: February 2026
