Kenmore 66515112K214 undercounter dishwasher Parts

Yes, repairing a Kenmore dishwasher model 66515112K214 is worth it when the fix is a common wear item (drain pump, inlet valve, heater, hose, filter) and the total repair cost stays well below the price of a replacement. We use the 66515112K214 owner's manual to match symptoms to the right repair.

Quick way we decide: repair vs replace

• Repair when the dishwasher still cleans well, the tub is solid, and the problem is isolated (no heat, won’t drain, won’t fill, leaking at a hose).
• Replace when you have repeated major failures (multiple leaks, persistent electrical issues, or several expensive parts at once).
• Repair is especially practical when you can do basic DIY safely (cleaning filters, checking hoses, replacing a pump).

Typical repairs that are usually worth it

These are common, targeted fixes for this Kenmore undercounter dishwasher:

• Not draining: check the drain path; replace the dishwasher drain pump WPW10348269 if the pump hums or won’t move water.
• Not filling: verify water supply; replace the dishwasher water inlet valve W11175771 if it won’t open.
• Poor cleaning: clean the filter and spray arm; inspect the dishwasher spray arm WPW10491331 for clogs or cracks.
• No heat or poor drying: test the heater circuit; replace the element assembly W10518394 if it’s open.

Cost and effort comparison (rule-of-thumb)

Situation	What it usually means	Best choice
One failed part (pump, valve, heater, hose)	Isolated wear item	Repair
Multiple parts failing in one year	Broader wear or water damage	Lean replace
Leak plus electrical symptoms	Higher risk, more labor	Lean replace
Dishwasher is otherwise reliable	Normal aging	Repair

Why it matters

A focused repair restores cleaning and prevents secondary damage (standing water, odors, leaks). The manual also highlights safe operation, including avoiding contact with the heating element during or right after a cycle.

Safety and installation notes that affect “worth it”

From the install guidance, we follow these basics before any repair:

• Use a grounded electrical supply.
• Keep drain and water lines from contacting the motor/legs.
• Do not install over carpet; keep the unit protected from freezing.
• Confirm the cabinet opening and leveling so the door seals correctly.

Last updated: February 2026

On the Kenmore dishwasher model 66515112K214, an E25 error typically points to a drain problem, most often a blocked drain pump area or an issue with the pump cover/filter area that prevents proper draining.

What to check first (fast, no tools)

• Cancel the cycle and let the unit try to drain.
• Remove the lower rack and look for standing water in the sump.
• Check for food debris, glass, labels, or twist ties around the sump area.
• Make sure the filter and any covers are seated and locked correctly.
• Verify the sink drain or garbage disposer inlet is not clogged.

Drain system checks (most common causes)

E25 is usually triggered when water cannot leave the tub at the expected rate. Work through these in order:

• Drain hose routing: Look for kinks, crushing, or a low loop that is missing.
• Air gap (if used): Check for blockage at the countertop air gap.
• Pump obstruction: Debris in the pump impeller area can stop draining.
• Drain pump failure: If the pump hums but does not move water, the pump can be jammed or worn.

If you determine the pump is not moving water and the hose path is clear, the most likely replacement part is the dishwasher drain pump WPW10348269.

Quick comparison: blockage vs. failed pump

Symptom	More likely cause	What we do next
Drains slowly, improves after cleaning	Blockage in sump/filter/hose	Clean filter area and check hose routing
Loud buzzing/humming, little or no water movement	Jammed pump impeller	Inspect pump area for debris
No sound from pump during drain	Electrical/control/pump issue	Check wiring, then test/replace pump

Why it matters

A dishwasher that cannot drain can leave dirty water in the tub, reduce wash performance, and cause repeated error codes. Clearing the restriction early also helps protect the drain pump from overheating and premature wear.

Safety and model-specific guidance

Before accessing internal components, disconnect power at the breaker. For electrical and installation-related requirements and safe access steps, follow the 66515112K214 installation guide and the 66515112K214 owner's manual.

Last updated: February 2026

Yes. We still carry replacement parts for Kenmore dishwashers, including model 66515112K214, for many common repairs like draining problems, poor cleaning, and drying issues. The key is matching parts to your exact model number and using the diagrams and procedures in the 66515112K214 owner's manual.

Parts you can still replace on 66515112K214

These are some of the most commonly replaced dishwasher parts we see for this model:

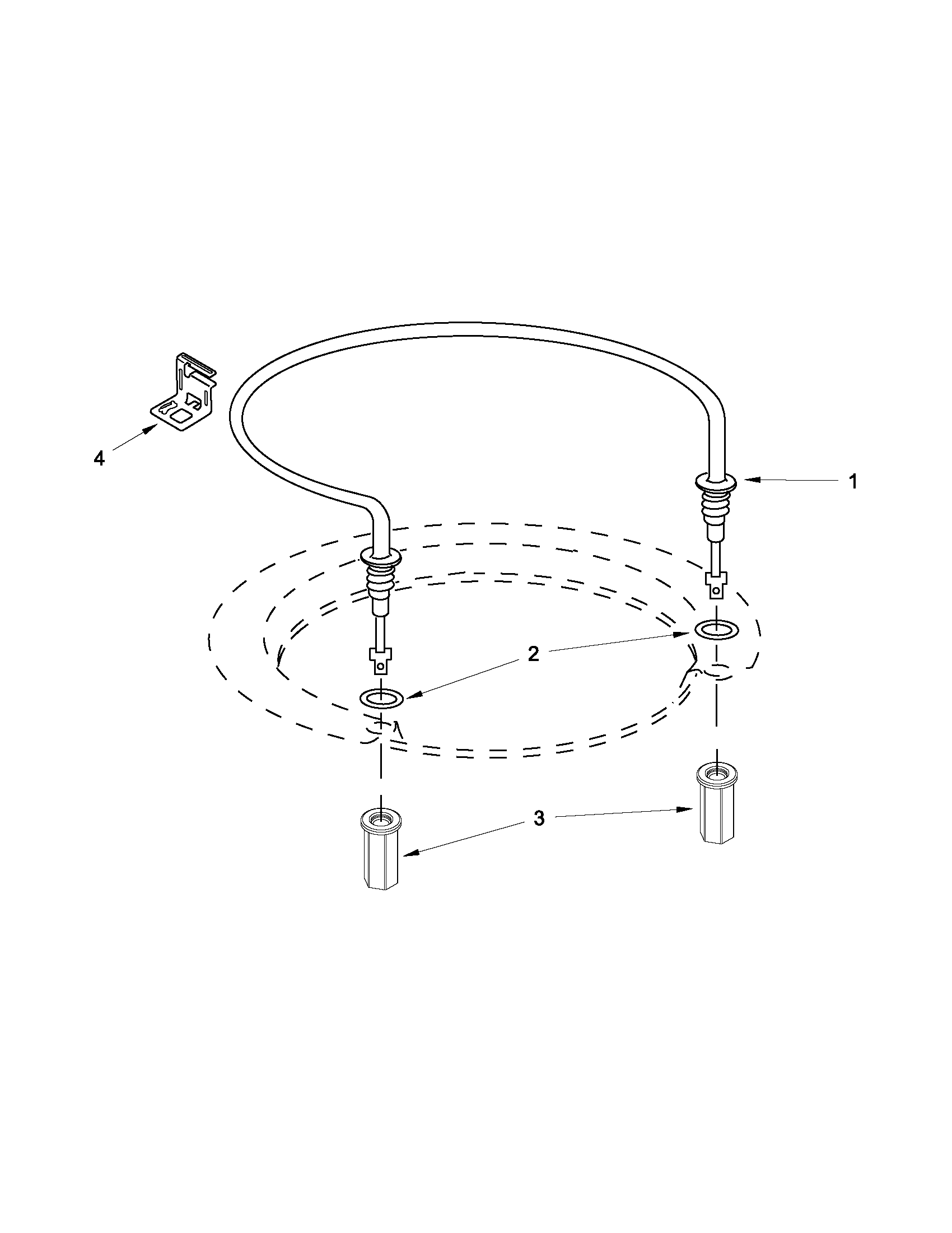

• Heating and drying: element assembly W10518394 (helps heat wash water and improve drying)
• Not draining: dishwasher drain pump WPW10348269 and dishwasher drain hose 8269144A
• Not filling or filling slowly: dishwasher water inlet valve W11175771
• Poor wash coverage: dishwasher spray arm WPW10491331
• Cloudy dishes or debris: dishwasher filter W10872845 or dishwasher filter WPW10463906

How to make sure you order the right part

Kenmore dishwashers often share components across production runs, so the safest approach is to confirm by model number and part ID.

• Use the full model number from the rating label: 66515112K214
• Match the part ID (not just the description)
• Compare your original part’s shape, ports, and electrical connectors
• Check whether your dishwasher uses a hardwire connection or power cord setup
• Follow the removal and installation steps in the 66515112K214 installation guide

Quick symptom-to-part guide

Symptom	Most likely area to check	Example part for this model
Water left in tub	Drain system	Drain pump, drain hose
Dishes not getting clean	Filtration or spray	Filter, spray arm
No water entering	Fill system	Water inlet valve
Poor drying	Heating	Element assembly

Why it matters

Using the exact model number and correct Kenmore-compatible part prevents fit issues, leaks, and repeat failures. It also helps you follow the correct safety steps (power, water, and drain connections) during service.

Last updated: February 2026
