Craftsman 502254180 8-hp lawn mower Parts
Here are the diagrams and repair parts for Craftsman 502254180 8-hp lawn mower, as well as links to manuals and error code tables, if available.
View engineBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 502254180 Riding Mowers & Tractors

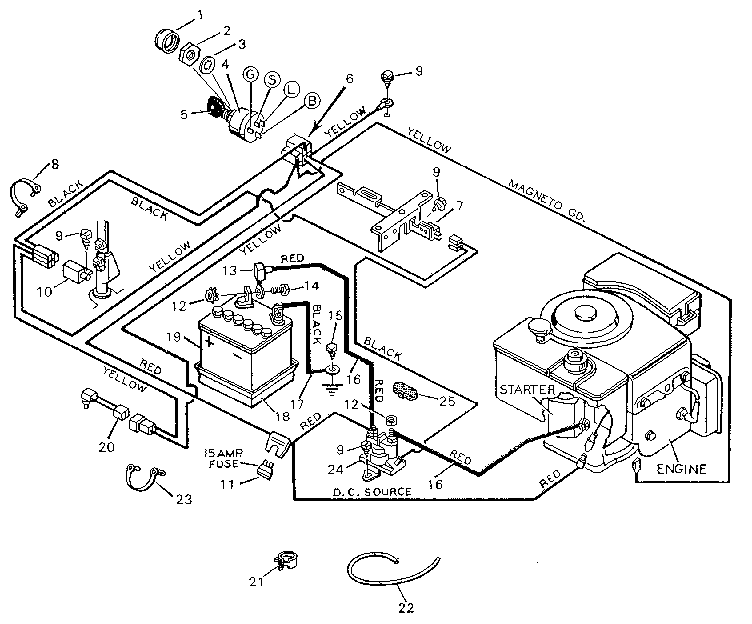

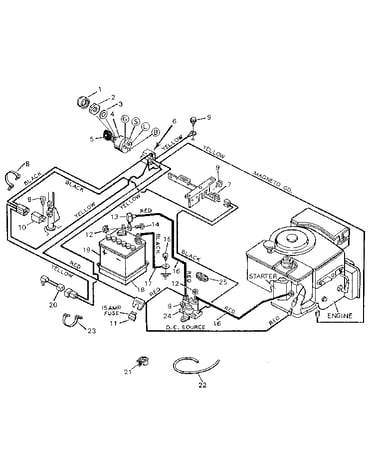

Wiring system diagram
Ignition Switch
Part #21064Replaced by #532365402
Manufacturer substitutionThis part replaces 21064. Substitute parts can look different from the original.In Stock$36.3814% OFF Phone Price : $42.38
Qty

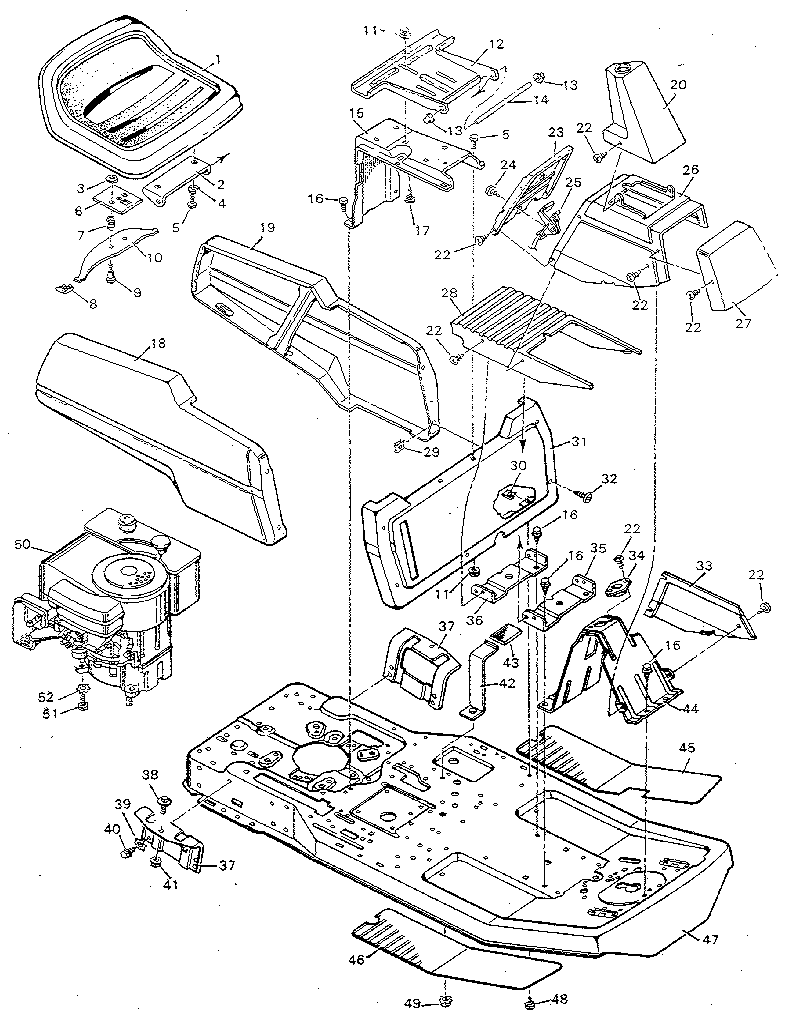

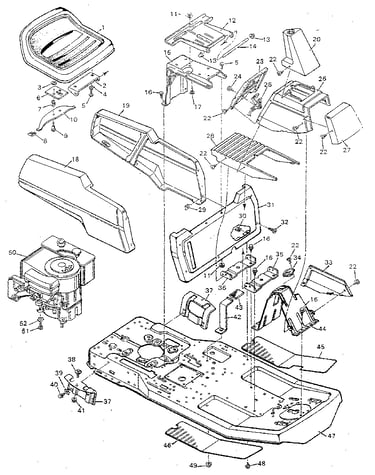

Body chassis diagram
Bolt
Part #25X6Replaced by #817000616
Manufacturer substitutionThis part replaces 25X6. Substitute parts can look different from the original.In Stock$30.6416% OFF Phone Price : $36.64QtyScrew
Part #26X216Replaced by #26X216MA

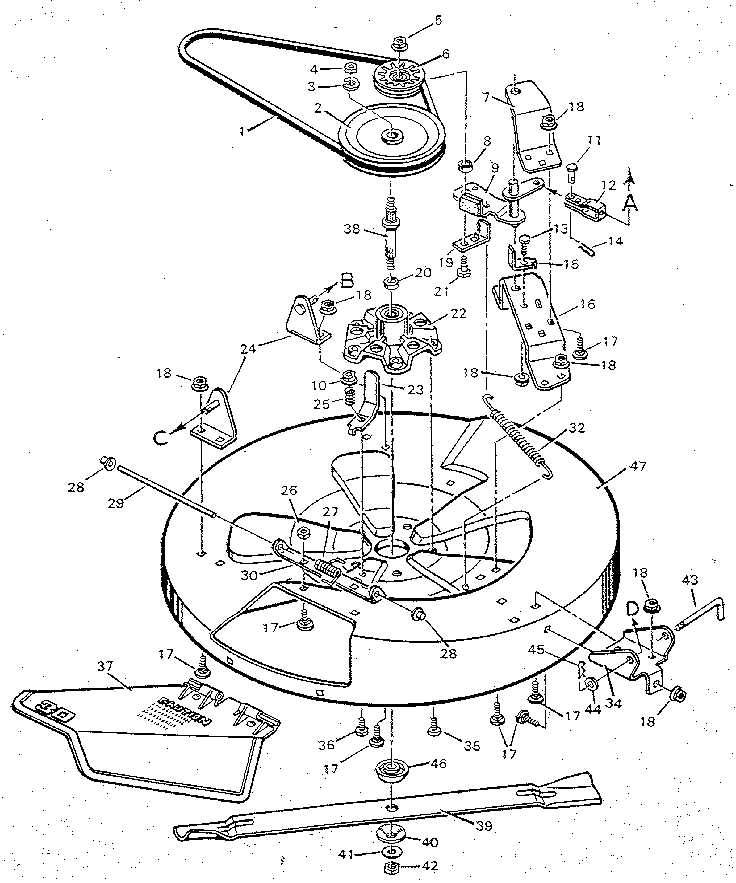

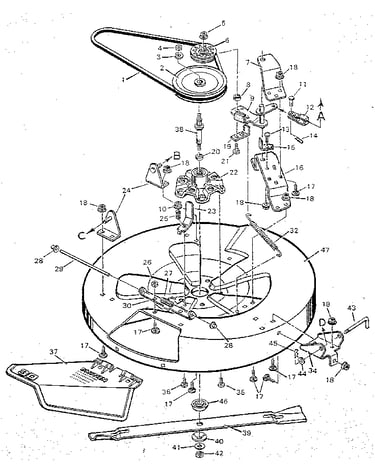

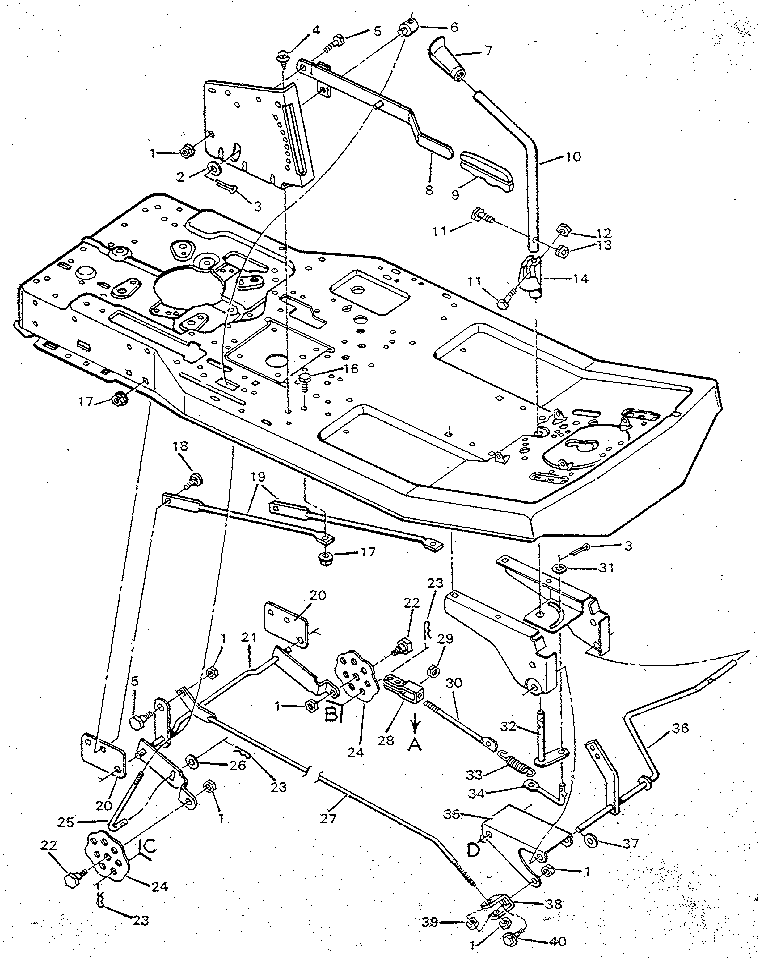

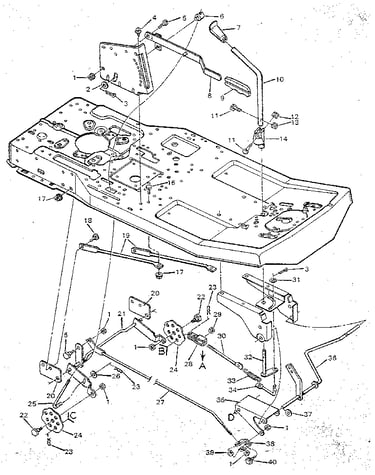

Manufacturer substitutionThis part replaces 26X216. Substitute parts can look different from the original.In Stock$13.23QtyMower housing diagram
Nut
Part #15X100Replaced by #15X100MA
Manufacturer substitutionThis part replaces 15X100. Substitute parts can look different from the original.This item is not returnableIn Stock$6.86QtyMower housing diagram
Blade
Part #56060HTReplaced by #56246E701MA
Manufacturer substitutionThis part replaces 56060HT. Substitute parts can look different from the original.In Stock$41.07QtyMower housing diagram
Jackshaft
Part #91921Replaced by #491921MA
Manufacturer substitutionThis part replaces 91921. Substitute parts can look different from the original.In Stock$30.93QtyMower housing diagram
Adapter
Part #91926Replaced by #92466MA

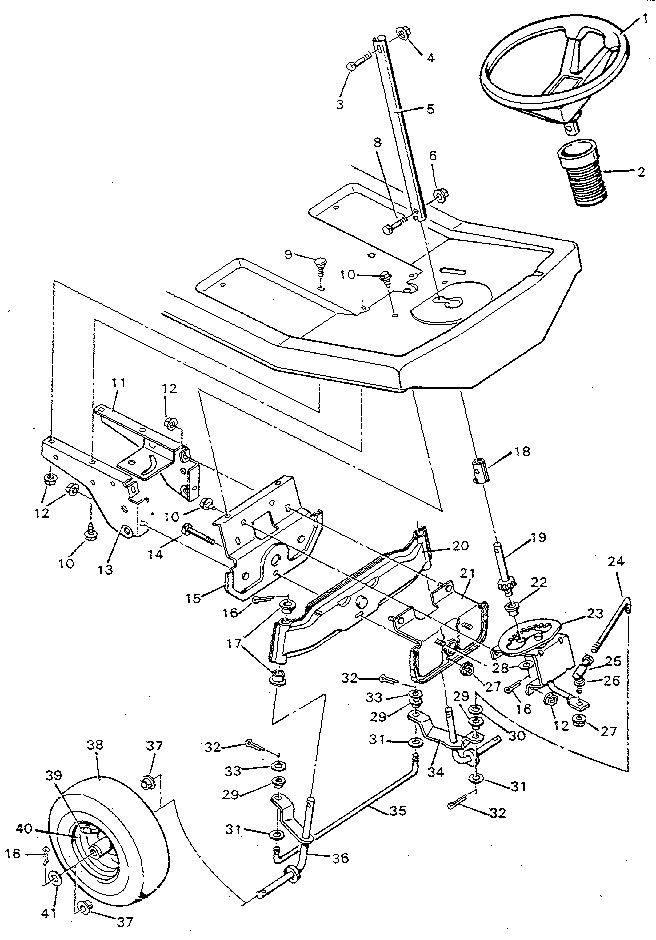

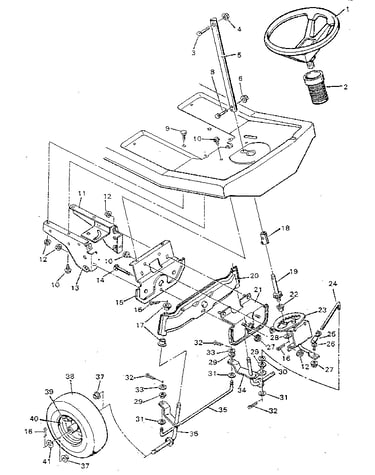

Manufacturer substitutionThis part replaces 91926. Substitute parts can look different from the original.In Stock$40.14QtySteering system diagram
Wheel
Part #91638E601Replaced by #92303601MA
Manufacturer substitutionThis part replaces 91638E601. Substitute parts can look different from the original.In Stock$222.91QtyWiring system diagram
Key
Part #91275Replaced by #691959

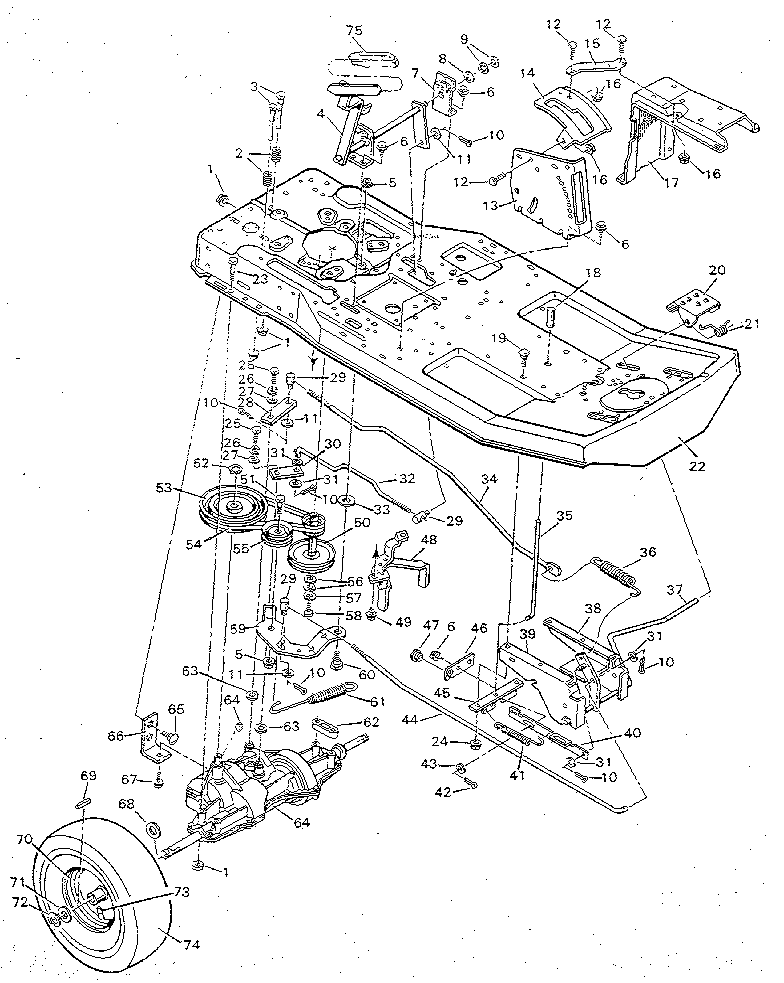

Manufacturer substitutionThis part replaces 91275. Substitute parts can look different from the original.In Stock$36.34QtyDrive system diagram
Washer
Part #17X115Replaced by #17X115MA
Manufacturer substitutionThis part replaces 17X115. Substitute parts can look different from the original.In Stock$12.77Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace the starter solenoid on a riding lawn mower
Replace the starter solenoid if it doesn't click when you turn the ignition key.…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower fuel filter
Help your mower run better by replacing the fuel filter during your riding mower's annual tune-up.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to connect cables safely to jump-start your mower’s battery.…
