Whirlpool ED5FHAXVA00 refrigerator Parts

The Whirlpool side-by-side refrigerator model ED5FHAXVA00 is typically in the 25 cubic feet class (total capacity). For the exact total, plus the refrigerator and freezer split for your specific configuration, use the capacity/specifications section in the ED5FHAXVA00 owner's manual.

What to look for in the specs

Capacity is usually listed as a total, then broken into fresh food (refrigerator) and freezer volumes.

• Total capacity (cu. ft.): overall interior storage volume
• Refrigerator capacity (cu. ft.): fresh food side volume
• Freezer capacity (cu. ft.): freezer side volume
• Usable space can be reduced by ice bin size, shelving layout, and door bins

Typical capacity range for this style

Most Whirlpool side-by-side refrigerators in this platform fall into a narrow range.

Spec	Typical range	What it represents
Total capacity	24 to 26 cu. ft.	Combined refrigerator + freezer
Freezer capacity	8 to 10 cu. ft.	Freezer-side storage
Refrigerator capacity	14 to 18 cu. ft.	Fresh food-side storage

How to confirm the exact number on your unit

Use one of these reliable methods:

• Check the specifications/capacity section in the ED5FHAXVA00 owner's manual
• Look for the model and serial label inside the refrigerator compartment; some labels include capacity
• If you are comparing fit or storage, measure shelf width/depth and door bin space, not just cubic feet

Why it matters

Capacity helps you compare replacement refrigerators, plan food storage, and choose correctly sized accessories (bins, pans, and ice storage). It also helps with airflow planning because overpacking can block vents and reduce cooling performance.

Last updated: January 2026

The most common issues we see on the Whirlpool ED5FHAXVA00 side-by-side refrigerator involve cooling problems, ice maker or water dispenser failures, and door sealing or alignment concerns. Many of these symptoms trace back to airflow, defrost, or water-supply components and can be diagnosed with a few quick checks.

Common problems and what they usually point to

• Not cooling well (fresh food warm, freezer OK or both warm): dirty condenser area, evaporator fan issue, defrost problem, or temperature control issue

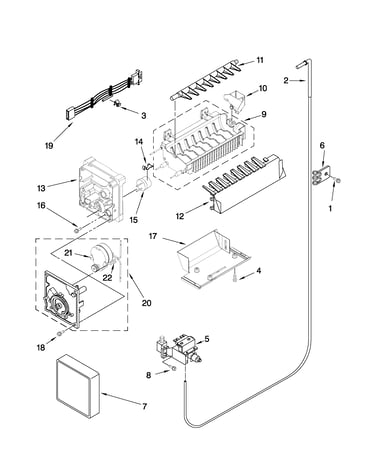

• Ice maker not making ice: water supply restriction, inlet valve problem, ice maker module failure, or frozen fill tube
• Water dispenser slow or not dispensing: clogged water filter, air in the line, kinked tubing, or inlet valve issue
• Frost buildup on freezer back wall: defrost heater or defrost control/thermostat problem
• Doors not closing or leaking air: gasket not sealing, hinge/cam wear, or cabinet not level

Quick checks we recommend first

1. Confirm controls are set correctly and allow 24 hours after any adjustment.
2. Clean the condenser area and make sure airflow around the grille is not blocked.
3. If water or ice is affected, replace the filter and purge air from the dispenser.
4. Listen for the evaporator fan in the freezer; it should run when the compressor is running.
5. Inspect door gaskets for gaps, tears, or areas that do not grip a paper strip.

Parts commonly involved on this model

Symptom	Common part to check	Example part for ED5FHAXVA00
Poor water flow or bad-tasting water	Water filter	Refrigerator water filter EDR3RXD1
No ice and no water fill	Water inlet valve	Refrigerator inlet valve W10408179

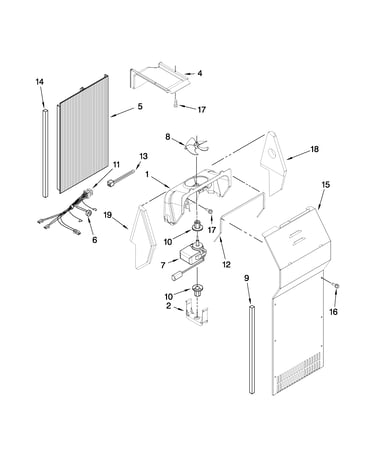

Warm temps, weak airflow	Evaporator fan motor	Refrigerator evaporator fan motor WP2315549
Heavy frost, warm fridge	Defrost heater	Refrigerator defrost heater WP2323198

Why it matters

Cooling, ice, and water issues often share the same root causes: restricted airflow or restricted water flow. Addressing the basic maintenance items first (cleaning and filter changes) prevents repeat failures and helps you avoid replacing the wrong part.

For model-specific operating details and diagnostic steps, use the ED5FHAXVA00 owner's manual.

Last updated: March 2026

A Whirlpool side-by-side refrigerator like model ED5FHAXVA00 typically lasts 13 years with normal household use. Keeping airflow clear, doors sealing tightly, and the water system maintained (filter and valve) helps you reach that lifespan and avoid premature cooling or ice maker problems.

What affects lifespan most

• Condenser cleanliness: dust buildup makes the compressor run hotter and longer.
• Door seal condition: air leaks cause longer run times and frost issues.
• Defrost performance: a failed heater or thermostat can lead to ice buildup and warm temps.
• Water system health: restricted filters and weak inlet valves strain the ice maker.
• Temperature settings and loading: overpacking blocks vents and reduces airflow.

Maintenance schedule we recommend

Task	How often	What it prevents
Replace water filter	Every 6 months	Slow dispensing, small/slow ice, off taste/odor
Vacuum condenser area	Every 6 to 12 months	Overheating, poor cooling, high energy use
Check door gaskets for gaps/tears	Every 6 months	Frost, moisture, warm spots
Confirm freezer is near 0°F and fridge near 37°F	Monthly	Food spoilage, ice maker issues

Parts that commonly impact longevity on this model

If you are troubleshooting performance issues, these model-matched parts are often involved:

• Refrigerator water filter EDR3RXD1 (clogs reduce water flow)
• Refrigerator inlet valve W10408179 (weak valve causes no ice or slow fill)
• Refrigerator evaporator fan motor WP2315549 (failed fan causes warm fridge section)
• Refrigerator defrost heater WP2323198 (failed heater leads to frost buildup)

Why it matters

Most “end of life” symptoms are actually repairable wear items. Catching airflow, sealing, and defrost problems early helps ED5FHAXVA00 cool consistently and reduces stress on the sealed system.

For model-specific care and operating guidance, follow the ED5FHAXVA00 owner's manual.
