How do you know if a thermal fuse is blown on an Amana dryer?
On an Amana NGD5800HW0 dryer, a blown thermal fuse commonly shows up as a dryer that will not start, or a dryer that runs but has no heat. The sure way to know is to unplug power and test the fuse for continuity with a multimeter; no continuity means it is blown.
- Dryer will not run at all (no motor)
- Drum turns but there is no heat (especially noticeable on heated cycles)
- Cycle seems normal but clothes stay damp because heat is not being produced
- You may also find the underlying cause is restricted airflow (lint buildup or a crushed vent)
Before testing, disconnect power. If this is a gas model, shut off the gas supply valve before opening the cabinet.
- Unplug the dryer (and shut off gas for gas models).
- Access the thermal fuse location shown in the NGD5800HW0 owner’s manual.
- Pull the wires off the fuse terminals.
- Test across the fuse terminals with a multimeter.
| Meter result | What it means | What to do next |
|---|---|---|
| Beep or near 0 ohms | Fuse is good | Keep troubleshooting heat or run issues |
| No beep or OL/infinite | Fuse is blown | Replace the fuse and fix the overheating cause |
A thermal fuse is a safety device; it opens when the dryer overheats. Overheating is often caused by poor airflow.
- Clean the lint screen thoroughly
- Check the vent hose for kinks, crushing, or excessive length
- Clear lint from the exhaust duct and outside vent hood
- Make sure the blower area is not packed with lint (a damaged blower can reduce airflow; see dryer blower wheel WP697772)
- If the dryer is not heating, also verify basics from the troubleshooting section (for gas: gas valve open; for electric: correct power supply and both breakers/fuses OK)
If your NGD5800HW0 is not heating, follow a step-by-step diagnostic path in gas dryer wont heat troubleshooting video.
Last updated: February 2026
How much does it cost to replace drum bearings on a dryer?

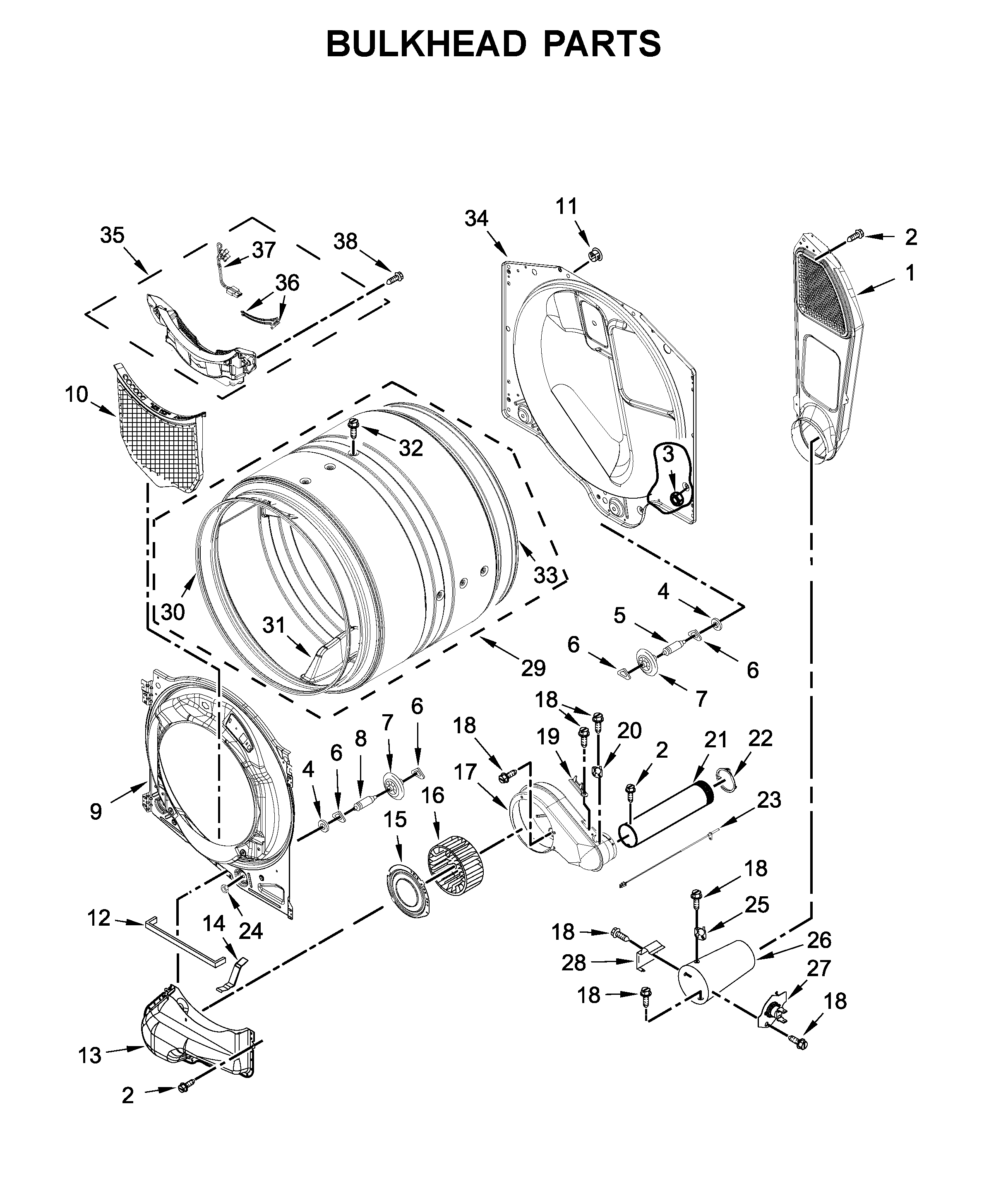

On an Amana dryer like model NGD5800HW0, “drum bearing” noise is usually caused by worn drum support rollers, the idler pulley, or related hardware; typical total repair cost runs about $150 to $400 with service, or $40 to $120 in parts if you do it yourself using the correct components and steps in the NGD5800HW0 installation guide.
Most “bearing” jobs on this style of dryer are really a drum support and belt-drive service.
- Service call/diagnosis: often $75 to $150
- Labor (1 to 2 hours typical): often $100 to $250
- Parts: commonly $40 to $120 (more if multiple wear items are replaced)
- Extra cost drivers: seized roller shafts, damaged drum, or heavy lint buildup inside the cabinet
These are the wear items we most often see replaced together to stop squealing, grinding, or thumping.
| Symptom | Most likely wear item | Example part for this model |
|---|---|---|
| Squeal or chirp | Idler pulley | Dryer idler pulley W10837240 |
| Thump, rumble, or rhythmic bump | Drum support rollers | Dryer drum support roller WPW10314173 |
| Intermittent scraping, poor airflow, longer dry times | Blower wheel damage (sometimes from lint or debris) | Dryer blower wheel WP697772 |
| “While we’re in there” refresh | Rollers, belt, idler, clips | Dryer repair kit (model-compatible) |
| Option | Typical out-of-pocket | Best when |
|---|---|---|
| DIY replacement | $40 to $120 parts | You’re comfortable opening the cabinet and reassembling correctly |
| Professional service | $150 to $400 total | You want diagnosis, fast turnaround, and warranty on labor |
Worn rollers or an idler pulley can quickly lead to belt wear, overheating, and longer dry times. Keeping airflow strong also protects the dryer; our owner’s manual emphasizes good venting and lint removal to maintain efficient drying.
Last updated: February 2026
How to find model number on Amana dryer?
On an Amana dryer like model NGD5800HW0, the model number is printed on the appliance’s rating label. We most often see that label on the door opening (door jamb) or on the cabinet near the front; check a few common spots until you find it.
Check these locations in this order:
- Inside the dryer door opening on the cabinet frame (door jamb)
- On the back panel near the top
- On a side panel near the front edge
- Behind the lower access panel (if your design has one)
- In the console area (less common)
The rating label usually lists several identifiers. Copy them exactly (including any letters and zeros):
- Model number (example format: NGD5800HW0)
- Serial number (used to identify production date and version)
- Type (sometimes shown on Amana and Whirlpool-built dryers)
- Gas or electric information (helpful when ordering parts)
Use this to avoid ordering the wrong item.
| You’re looking at | Example | Used for |
|---|---|---|
| Model number | NGD5800HW0 | Finding diagrams, compatible parts, manuals |
| Part ID | WP8577274 | Ordering a specific replacement part |
| Part number | 8577274 | Manufacturer reference for the same part |
We use the exact model number to match the correct Amana dryer parts, wiring layout, and service procedures. Even small model-number differences can change the drum support, igniter style, or sensor setup.
Your NGD5800HW0 owner’s manual also shows where to find product identification information and how to use the dryer safely.
Last updated: February 2026
