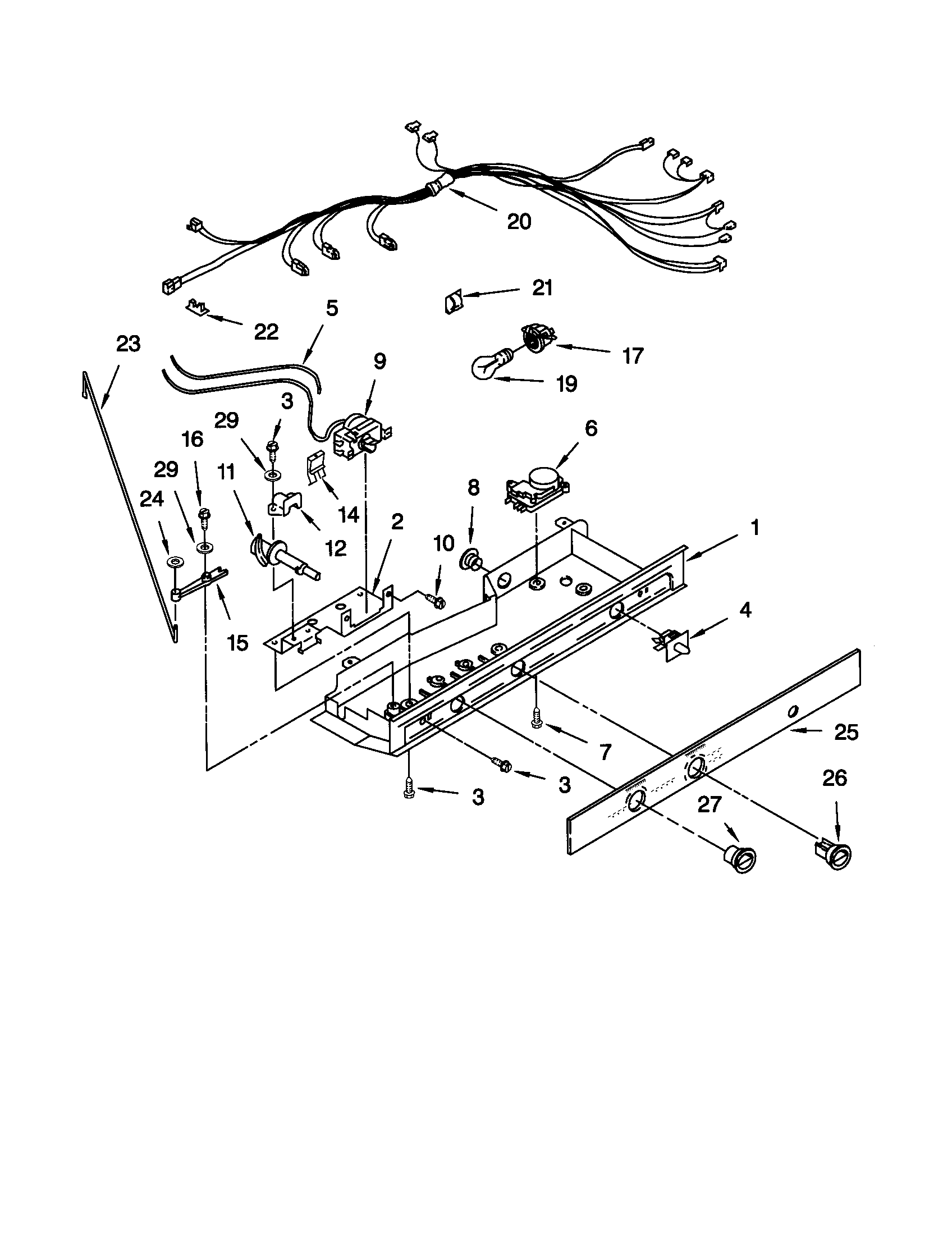

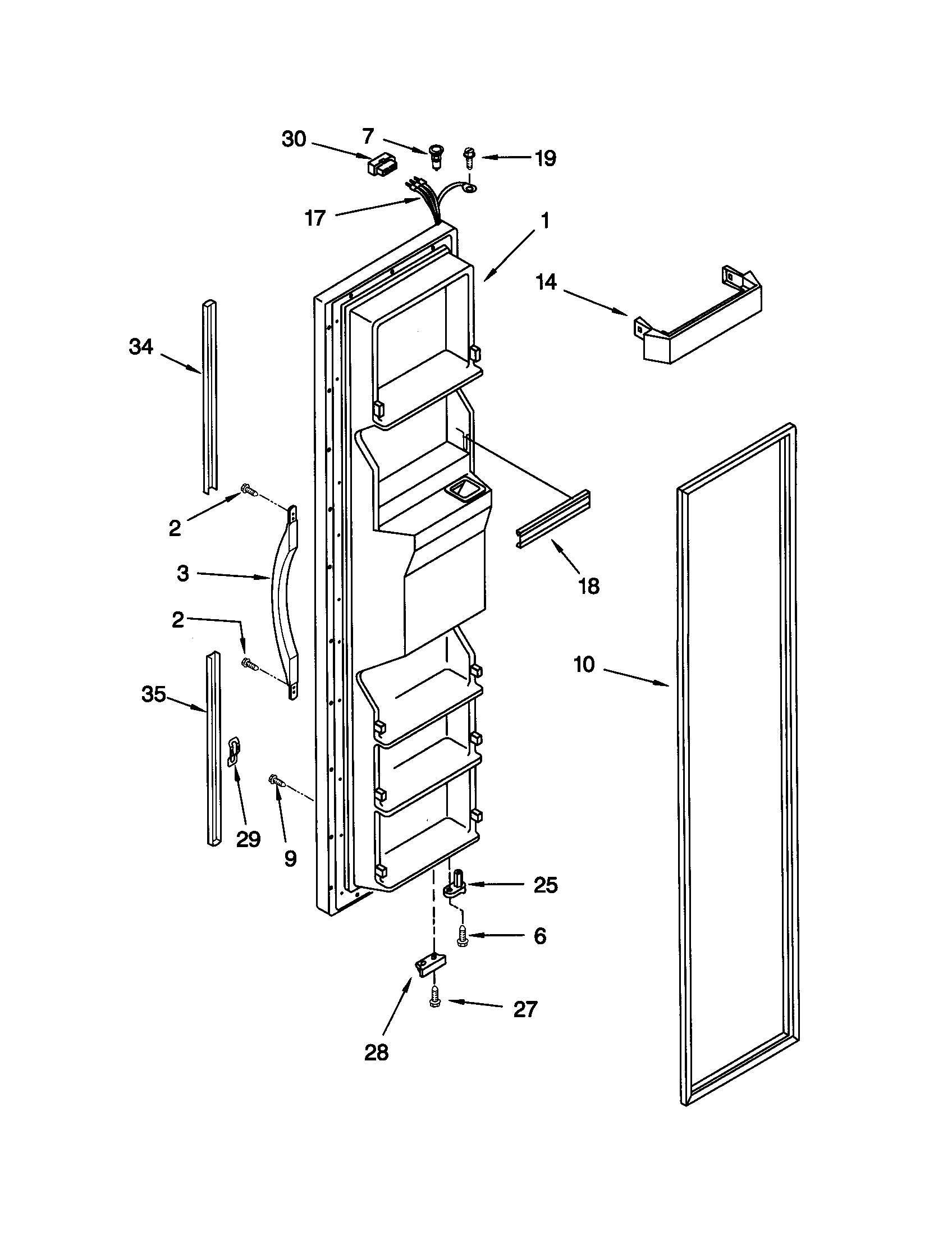

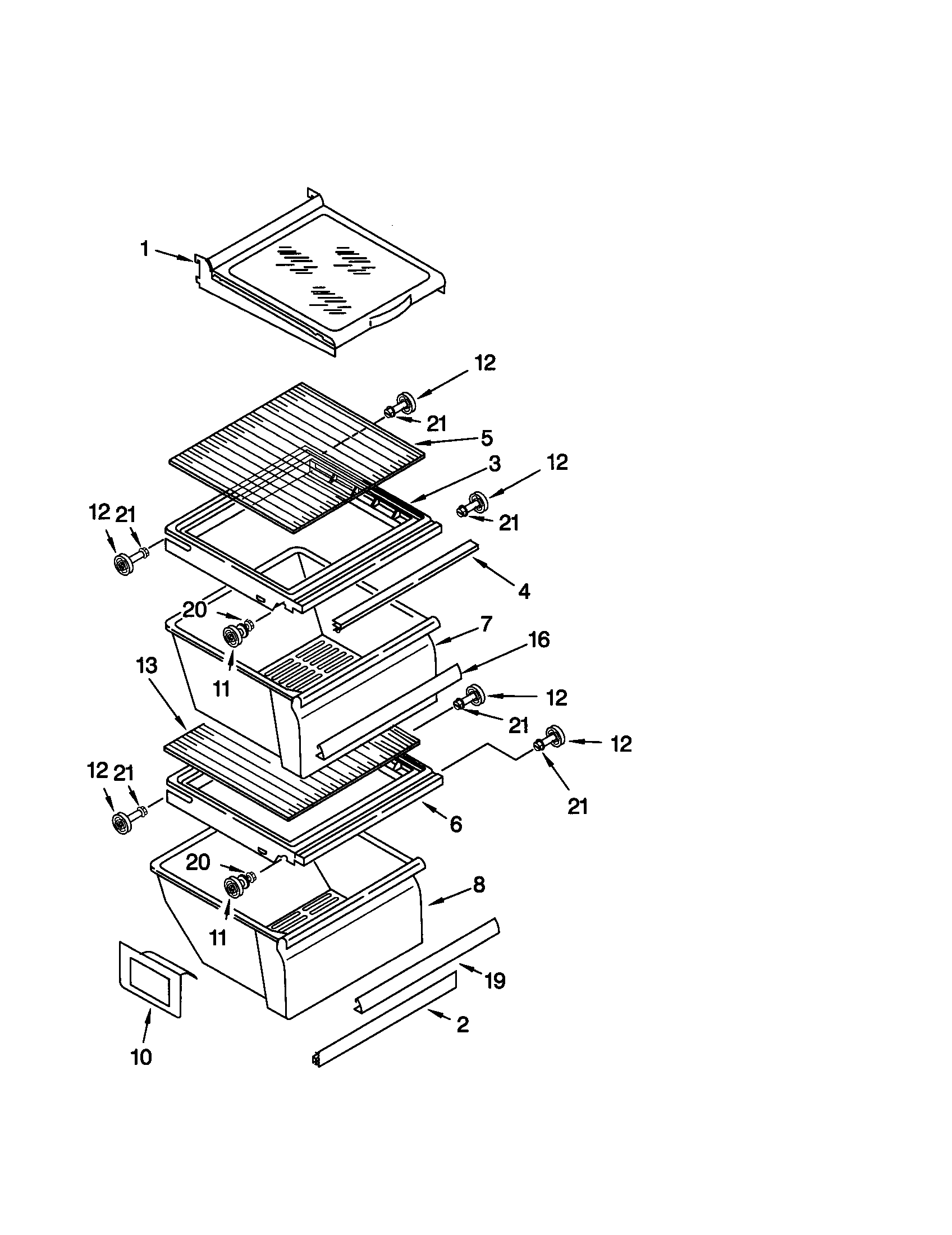

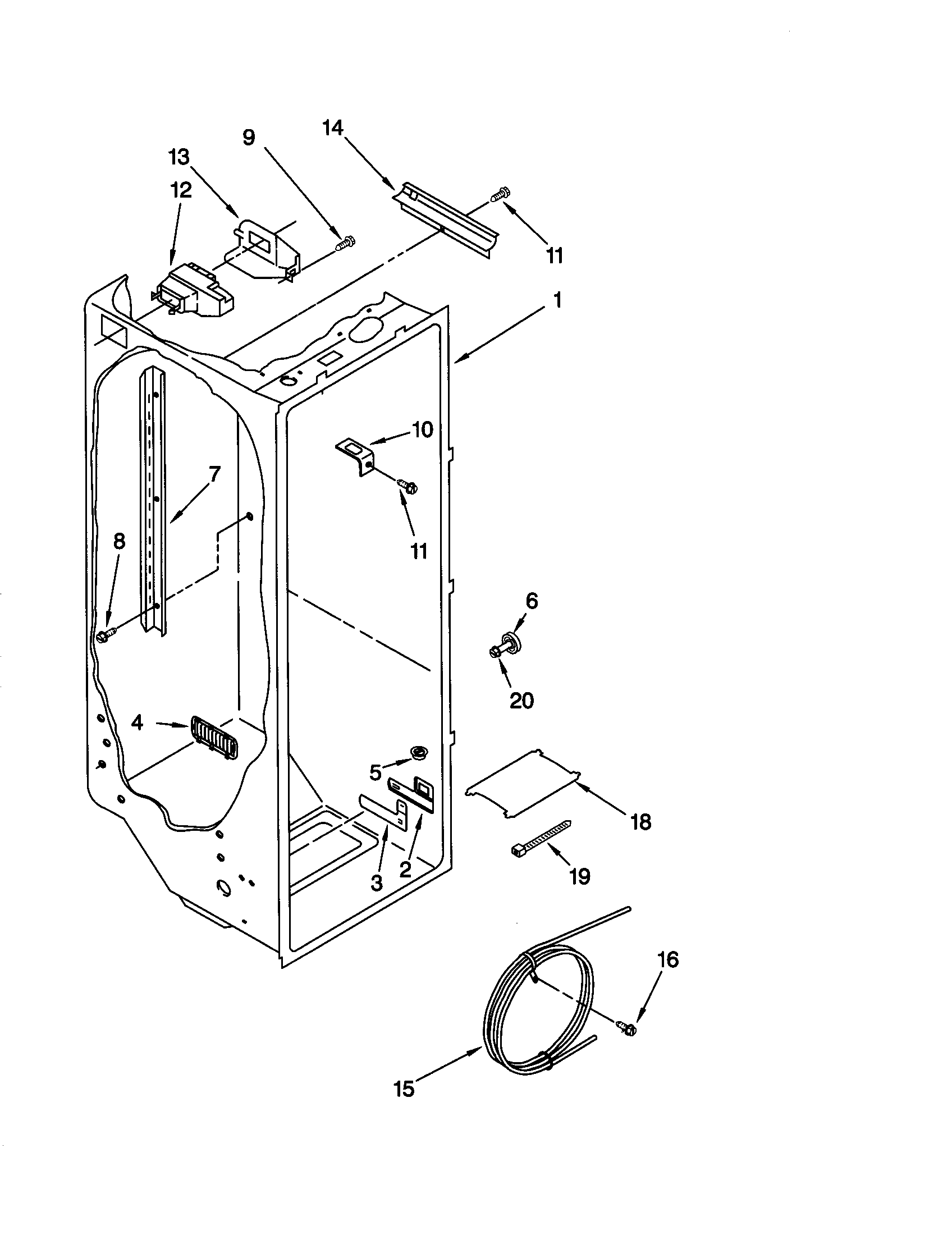

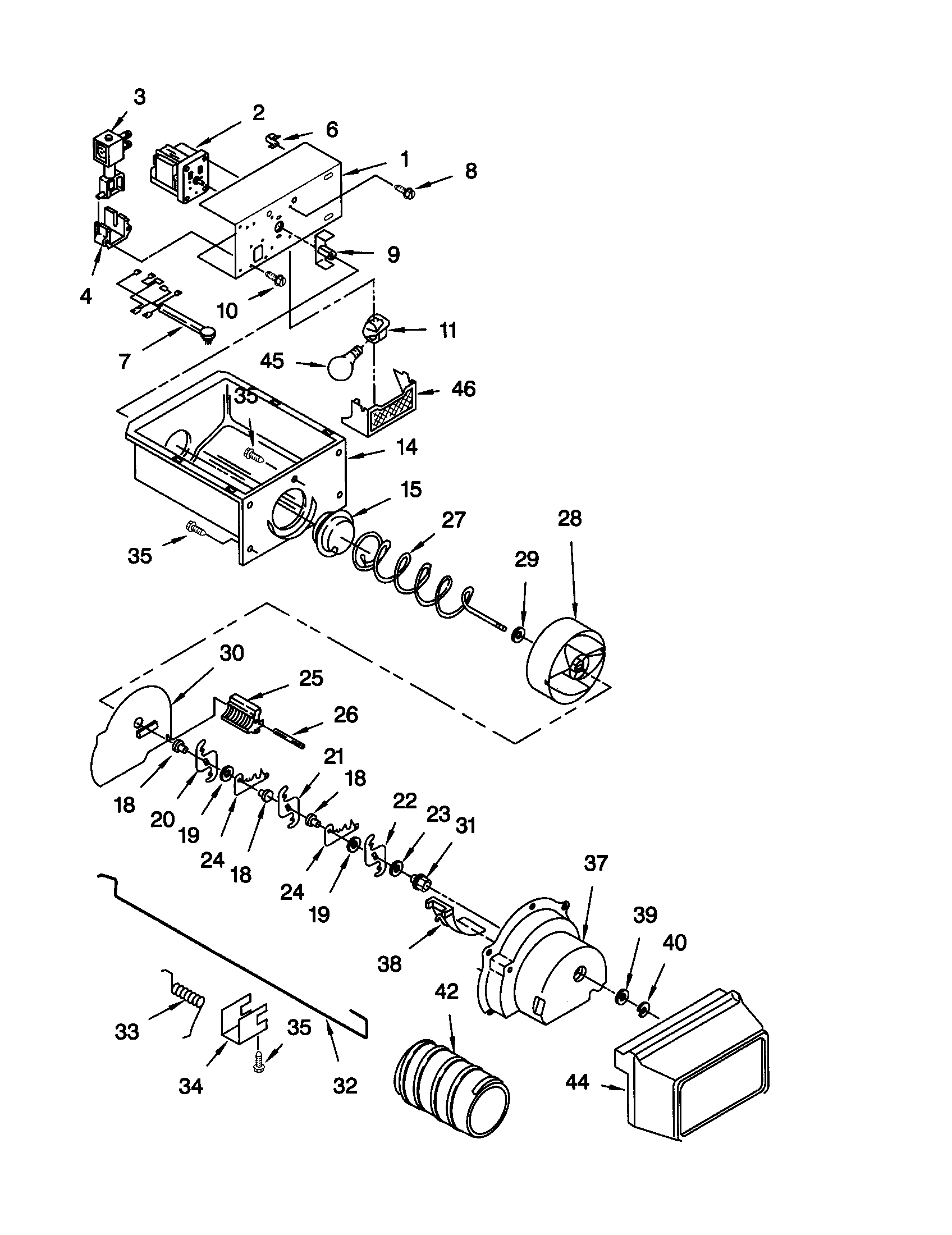

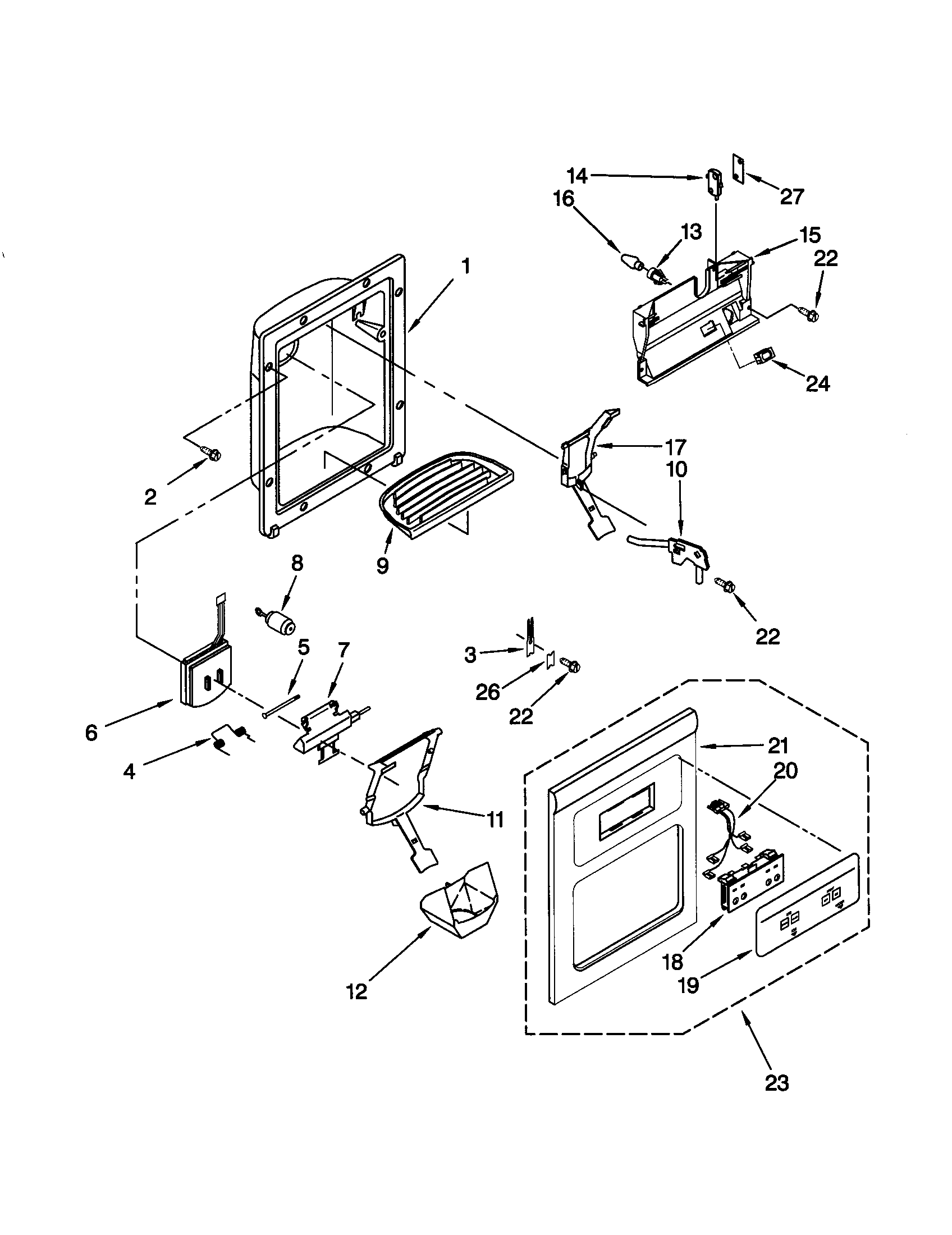

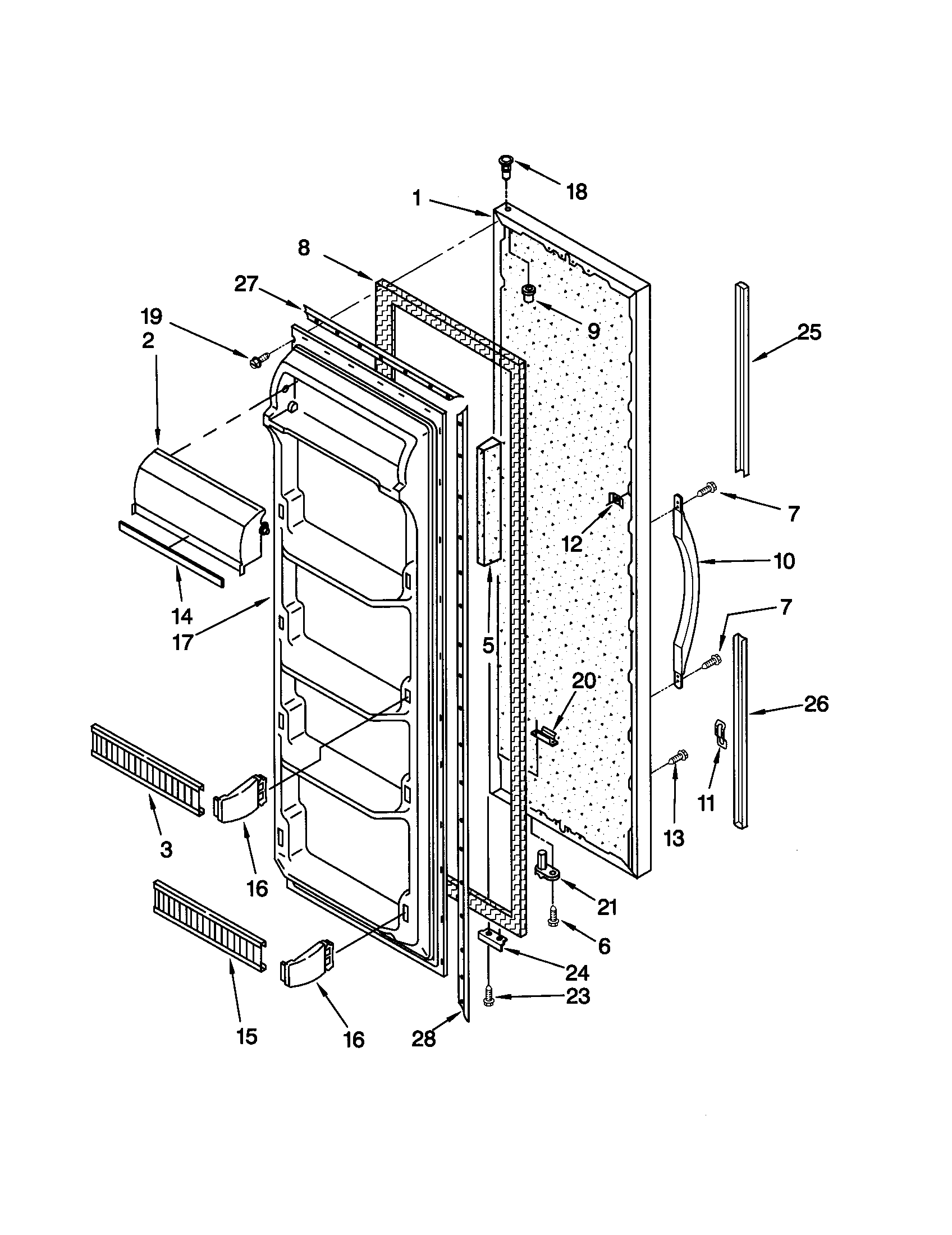

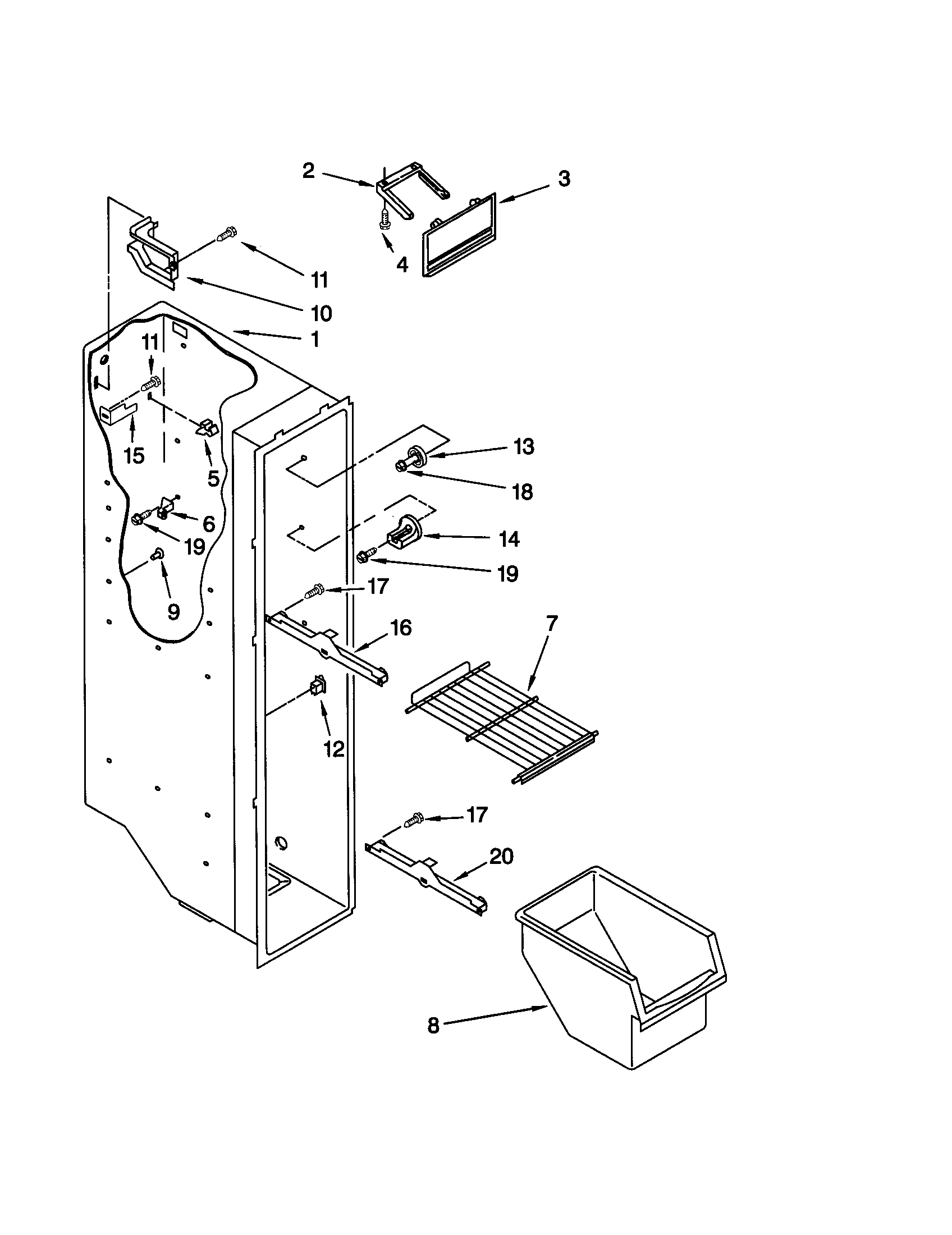

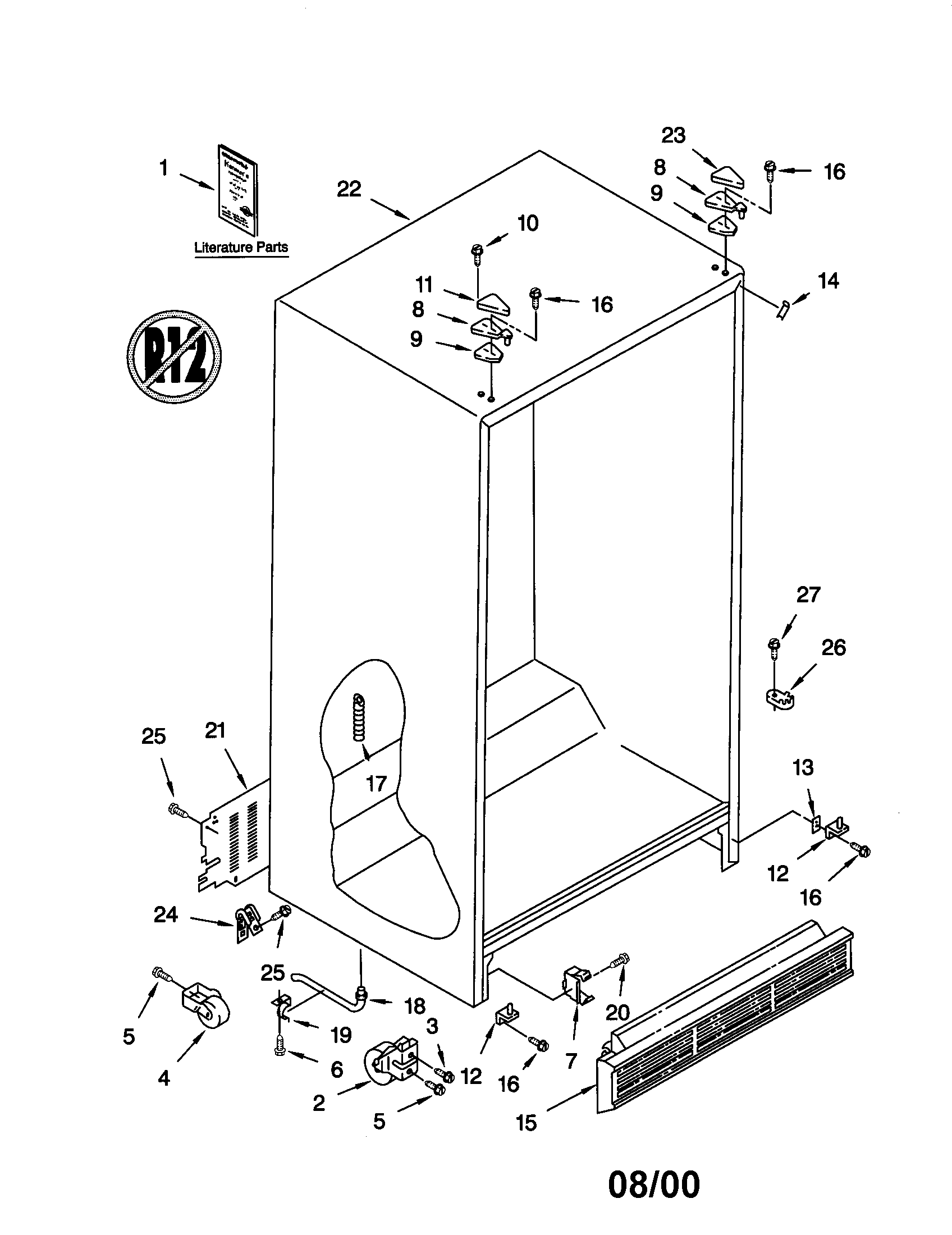

Kenmore 10650022003 side-by-side refrigerator Parts

On Kenmore side-by-side refrigerator model 10650022003, an ice maker usually stops working because water is not reaching the ice mold, the freezer is not cold enough, or the ice maker mechanism is jammed or failed. We recommend checking the basics first, then testing the ice maker and water supply components.

Quick checks (most common fixes)

• Confirm the ice maker is turned ON (bail arm up or switch off means no ice).
• Make sure the freezer is cold enough; target 0°F to 5°F.
• Verify the household water shutoff is fully open and the supply line is not kinked.
• Check for a frozen fill tube (ice blockage where water enters the ice maker).
• Dump the bin and look for clumped cubes that can stall the ejector.
• Replace the water filter if flow is weak (follow the steps in the 10650022003 owner's manual).

What to test next (in order)

1. Water flow at the dispenser (if equipped): weak or no water points to a supply, filter, or inlet valve issue.
2. Fill tube: thaw any ice plug with a hair dryer on low (do not overheat plastic).
3. Ice maker module: if it never cycles or won’t harvest, the assembly is often the fix.

Common symptom-to-cause guide

Symptom	Most likely cause	What we do next
No ice, no sound	Ice maker switched off or failed module	Confirm ON; consider ice maker assembly - refrigerator ice maker by whirlpool 4317943
Ice maker cycles but no water fills	Frozen fill tube or bad inlet valve	Thaw tube; diagnose inlet valve
Small cubes or slow production	Low water pressure or restricted filter	Replace filter; check supply line
Overflowing or hollow cubes	Water fill problem or temperature issue	Verify freezer temp; check fill tube

Why it matters

An ice maker depends on steady water flow and proper freezer temperature. Fixing a restriction early helps prevent repeated ice jams, leaks at the fill tube, and inconsistent cube size.

Helpful DIY guidance

For prevention tips and common causes, use common refrigerator ice maker problems and solutions.

Last updated: February 2026

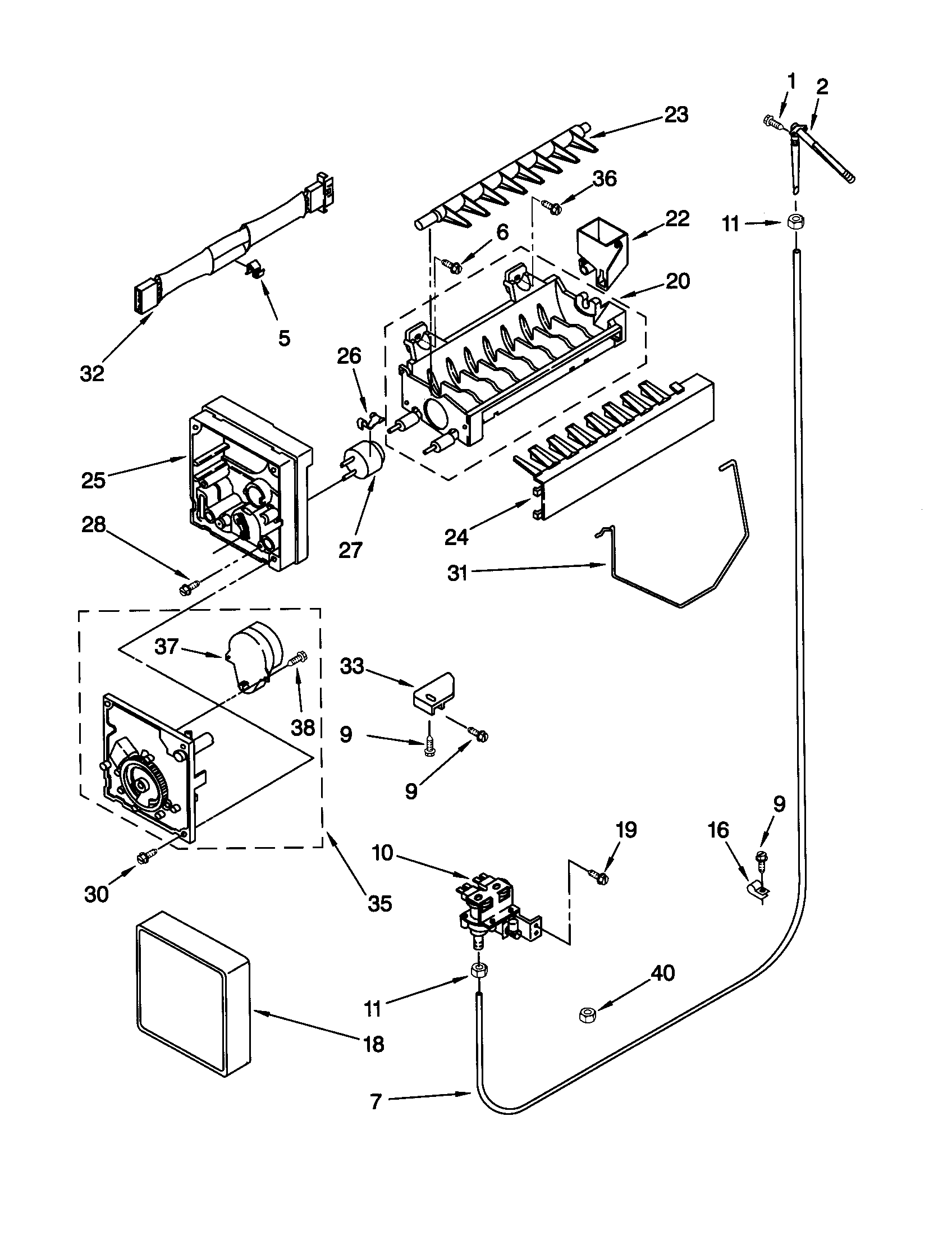

To remove the ice maker on Kenmore model 10650022003, we typically loosen the two top mounting screws, remove the bottom screw, then lift the ice maker up slightly and tilt it forward to release it from the freezer wall. Use the steps in the 10650022003 owner's manual for your exact screw locations.

Before you start

• Unplug the refrigerator or switch off power at the breaker.
• Turn off the water supply to the refrigerator.
• Empty the ice bin and remove it for working room.
• Protect the freezer liner; avoid prying with sharp tools.
• Keep a towel handy for a small amount of water in the fill tube.

Step-by-step: removing the ice maker

1. Remove the ice bin.
2. Locate the mounting screws holding the ice maker to the freezer side wall.
3. Loosen (do not fully remove) the two upper screws.
4. Remove the lower mounting screw.
5. Lift the ice maker up to clear the upper screw heads, then tilt the unit forward and pull it out.
6. Disconnect the wiring harness plug (do not pull on the wires).

If you are replacing the ice maker

For this model, the replacement is commonly the ice maker assembly - refrigerator ice maker by whirlpool 4317943.

What you see	What it usually means	What to do next
Ice maker feels stuck to the wall	Ice buildup around the mounting area	Defrost the area with the door open for 10 to 15 minutes, then retry
Harness will not unplug	Locking tab not fully released	Press the tab firmly, then pull the connector straight out
Water line/fill tube is frozen	Low airflow or defrost issue	Clear the ice, then check freezer temp and airflow

Why it matters

Removing the ice maker the right way prevents cracked freezer liners, stripped screw holes, and damaged wiring. It also helps ensure the replacement ice maker seats correctly so it can fill, harvest, and dispense ice normally.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10650022003, the model number is printed on the appliance identification label. The label is most often found inside the fresh food compartment on a side wall or ceiling area, near the crisper drawers, or around the door opening.

Most common label locations to check

Look for a white or silver sticker that lists model and serial information.

• Inside the refrigerator section on the left or right interior wall
• On the ceiling of the fresh food compartment (near the light housing)
• Around the door frame (door jamb) when you open the refrigerator door
• Behind the crisper drawers (check the side walls just above them)
• Less common: on the exterior back panel near the bottom

For the exact location and what the label looks like for your unit, use the 10650022003 owner's manual.

What the label typically includes

The same sticker usually includes both identifiers, which helps when ordering Kenmore parts.

Item on label	What it’s used for	Example format
Model number	Matching parts and diagrams	10650022003
Serial number	Production info and service history	Letters plus numbers

Why it matters

We use the full model number to match the correct refrigerator parts (for example, an ice maker assembly, thermostat, or door gasket). Even small model-number differences can change which Whirlpool-built Kenmore components fit and wire up correctly.

Quick tip before ordering parts

• Write down the full model number exactly as shown
• Take a clear photo of the label for reference
• Use the model number when selecting parts like the ice maker assembly - refrigerator ice maker by whirlpool 4317943

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10650022003 side-by-side refrigerator often reaches the upper end of that range when airflow, seals, and cooling components are kept in good shape. For model-specific care and cleaning intervals, use the 10650022003 owner's manual.

Typical lifespan ranges (what we see most often)

Lifespan depends on usage, kitchen temperature, and maintenance, but these ranges are realistic for most households:

• 10 to 15 years: common for many modern refrigerators
• 15 to 20 years: achievable with consistent maintenance and timely repairs
• Under 10 years: usually tied to poor airflow (dirty condenser area), door seal leaks, or unresolved cooling issues

Condition	What it usually leads to	What to do
Clean condenser area, doors sealing well	Longer compressor life	Clean, level, and keep vents clear
Warm kitchen, packed compartments	More run time and wear	Improve airflow, avoid blocking vents
Repeated frost buildup or warm temps	Higher strain on cooling system	Diagnose defrost or fan problems

Maintenance that extends refrigerator life

These steps reduce run time and prevent temperature swings that wear out the compressor and fans:

• Clean dust from the condenser area regularly (frequency depends on pets and dust)
• Keep door gaskets clean and pliable; confirm the doors close fully
• Set temperatures correctly (about 37°F fresh food, 0°F freezer)
• Leave space for airflow around the cabinet and don’t block interior vents
• Fix small issues early (slow ice production, warming, unusual noises)

Parts that commonly affect longevity

When these parts fail, the refrigerator often runs longer than it should, which shortens overall life:

• Refrigerator door gasket 2188404A: prevents warm air leaks and frost buildup

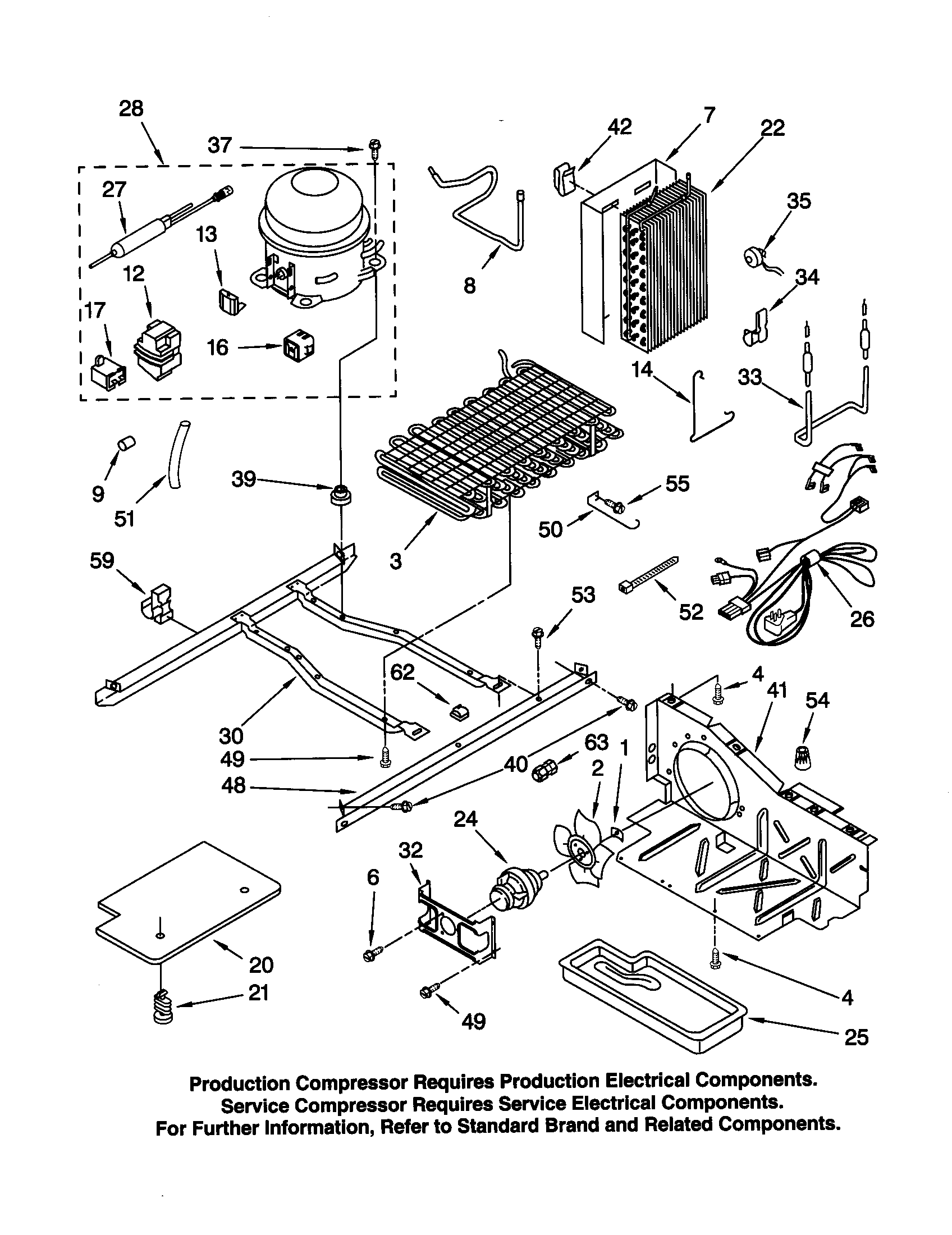

• Condenser motor W10822259: moves air across the condenser to remove heat
• Refrigerator thermostat WP2198202: helps regulate cooling cycles
• Evaporator motor 4389144: circulates cold air through the compartments

Why it matters

A refrigerator that runs constantly because of airflow restrictions or air leaks can still “work,” but it typically uses more energy and puts extra wear on the compressor and fan motors. Basic upkeep is the simplest way to get the full expected lifespan.

Last updated: February 2026

For Kenmore model 10650022003, the most reliable way to get cubic feet is to read the capacity from the refrigerator’s rating plate and confirm it in the 10650022003 owner's manual. Model numbers can hint at size, but the rating plate gives the exact listed capacity for your unit.

Fast ways to find cubic feet (best to least)

• Check the rating plate inside the fresh food section (often on a side wall, ceiling, or near the crisper area); it typically lists capacity in cu. ft.
• Use the manual/specs for model 10650022003 in the 10650022003 owner's manual
• Compare by product type: most Kenmore side-by-side refrigerators are commonly in the 20 to 26 cu. ft. range
• Avoid guessing from the model number alone; Kenmore model numbers are not a consistent “capacity code” across all series

Where to look for the rating plate

Common locations on a Kenmore side-by-side refrigerator:

• Left or right interior wall of the refrigerator compartment
• Ceiling area near the light housing
• Behind or beside the crisper drawers
• On the freezer compartment wall (less common)

If the rating plate is missing or unreadable

Use these practical checks to narrow it down:

What you can measure	What it tells you	How accurate it is
Interior shelf width and depth	Helps estimate overall size class	Medium
Exterior width (often ~33 in or ~36 in)	Helps group typical capacities	Medium
Manual/spec sheet for 10650022003	Lists the manufacturer-stated capacity	High

Why it matters

Cubic feet affects how much food you can store, but it also helps when choosing compatible accessories and troubleshooting airflow and temperature issues (for example, overpacking can restrict vents and reduce cooling performance).

Last updated: February 2026

Kenmore model numbers are read left to right; the first 3 digits (the prefix) identify who manufactured the appliance, and the remaining digits identify the design series and specific version. For your Kenmore side-by-side refrigerator, the model number is 10650022003; the 106 prefix is the key identifier.

Where to find the model number on a refrigerator

Check these common locations on Kenmore side-by-side refrigerators:

• Inside the fresh food compartment on a side wall
• On the ceiling of the fresh food compartment near the light
• On the door frame behind the crisper drawers
• On the hinge-side door jamb area
• On the back of the cabinet near the lower service area

For diagrams and the exact label location for this unit, use the 10650022003 owner's manual.

How to interpret the digits (what each section means)

Model numbers are structured so parts lookup and service info match the exact build.

Section	Example from your model	What it tells us
Manufacturer prefix	106	Who built the Kenmore unit
Base model / series	50022	Design family and feature set
Version / variation	003	Production variation (color, revision, options)

Why it matters when ordering parts

Using the full model number prevents mismatches in fit, wiring, and mounting.

• Ice maker and dispenser parts can vary by revision
• Thermostats and defrost controls can be different across close model numbers
• Door hardware and gaskets can change by production run
• Wiring harness connectors may not match if the suffix is wrong

If you are troubleshooting an ice maker issue, matching the model number helps confirm the correct replacement, such as the ice maker assembly - refrigerator ice maker by whirlpool 4317943.

Quick tips for a clean, accurate read

• Copy the model number exactly as printed (all digits)
• Also record the serial number (helps date the unit)
• Avoid using only the prefix (for example, “106”) when ordering parts

Why it matters

Kenmore used multiple manufacturers over the years; the prefix is the fastest way to route you to the right parts diagrams and repair information for your exact refrigerator.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10650022003 are cooling issues, water leaks, ice maker failures, and unusual noises. These usually trace back to airflow restrictions (dirty coils or a failed fan), defrost system trouble, or worn dispenser and door-seal components; start with the checks in the 10650022003 owner's manual.

Most common symptoms and what they usually mean

• Not cooling or weak cooling: dirty condenser coils, failed evaporator fan, or defrost frost buildup
• Freezer cold but fresh food warm: airflow problem (often evaporator fan or iced-over evaporator)
• Water under the refrigerator: clogged defrost drain or a leaking water line/reservoir
• Ice maker not making ice: water supply issue, frozen fill tube, or failed ice maker module
• Clicking, buzzing, or rattling: fan blade hitting ice, failing fan motor, or items vibrating on the cabinet

Quick checks we recommend first (before replacing parts)

1. Confirm temperatures: set freezer near 0°F and refrigerator near 37°F.
2. Clean condenser coils: dust buildup reduces cooling and can increase noise.
3. Listen for fans: you should typically hear a steady fan sound with doors closed.
4. Check door sealing: look for gaps, torn gasket areas, or moisture/frost around the door.
5. Inspect for ice buildup: heavy frost on the freezer back panel points to a defrost problem.

Parts that commonly solve these problems on 10650022003

Symptom	Common suspect	Example part for this model

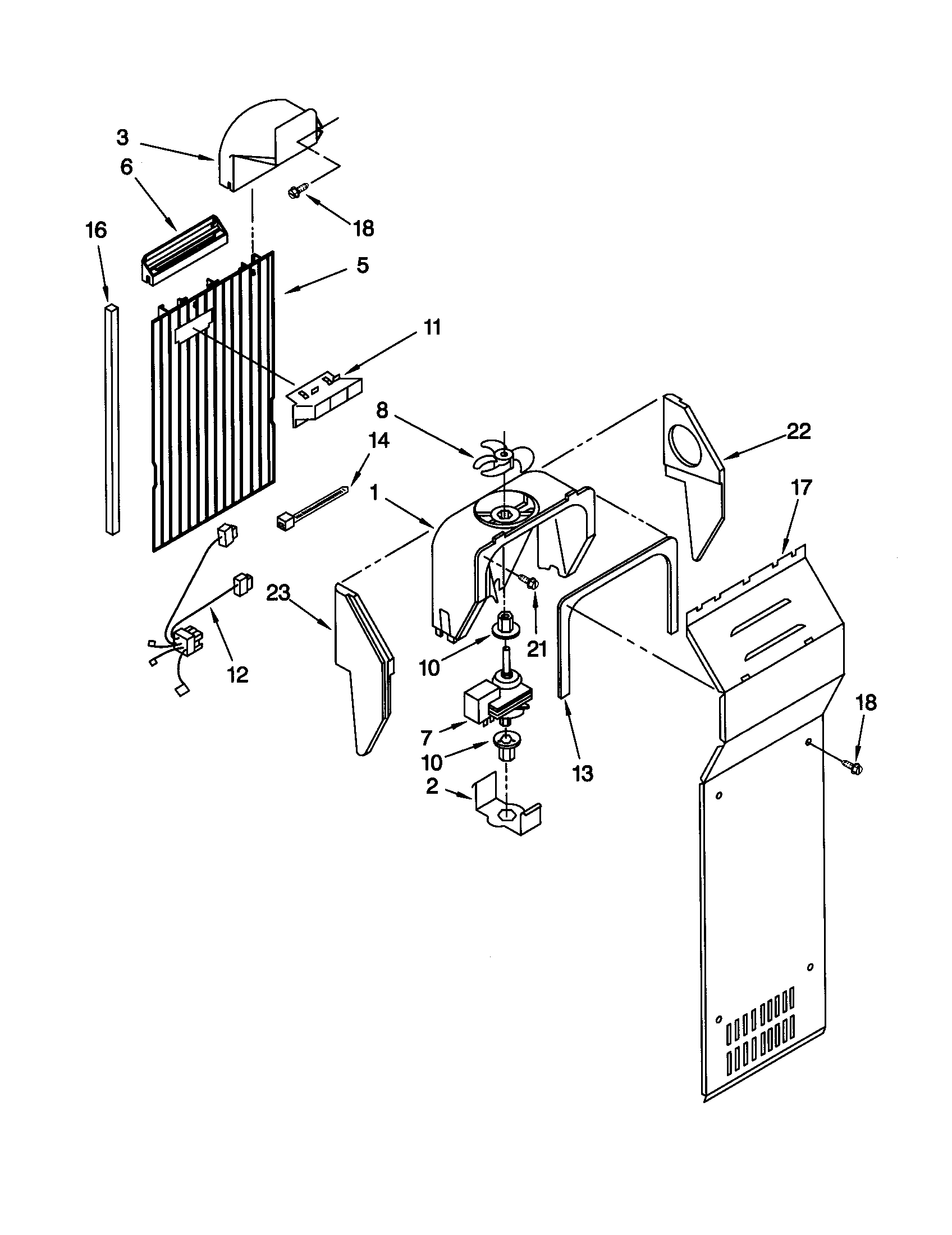

Warm temperatures, poor airflow	Evaporator fan blade or motor	Refrigerator evaporator fan blade WP2169142, evaporator motor 4389144
Frost buildup, warming over time	Defrost control components	Refrigerator defrost bi-metal WPW10225581
Ice maker not working	Ice maker assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Door not closing right, popping open	Hinge cam/bushing wear	Refrigerator door cam (black) WP2182179

Why it matters

Cooling, ice, and leak complaints are often connected. A simple airflow restriction can cause temperature swings, which can also trigger frost buildup, water puddles during defrost, and ice maker performance problems.

Related DIY help

• Use Kenmore 106 model refrigerator error codes if your display is showing a fault code.
• For dispenser-related issues, follow how to disassemble a Kenmore refrigerator dispenser.

Last updated: February 2026

To tell the age of your Kenmore refrigerator model 10650022003, use the serial number on the model and serial tag; it contains (or is paired with) a manufacturing date code tied to the unit’s actual manufacturer. Start by finding the tag, then use the 10650022003 manual to confirm tag location and recording details.

Where to find the model and serial tag

On Kenmore side-by-side refrigerators, the tag is typically in one of these spots:

• Inside the fresh food compartment on a side wall
• On the ceiling of the fresh food compartment near the light
• Behind the crisper drawers on an interior wall
• On the hinge-side door frame (fresh food door)
• On the back exterior panel (less common)

How to determine the manufacture date from the serial number

Use this process to identify the year (and often the month) of manufacture:

• Write down the full model number (10650022003) and the full serial number exactly
• Look for a printed MFG DATE on the tag; if present, that is the manufacture date
• If no date is printed, identify the manufacturer listed or implied on the tag (Kenmore units are commonly built by Whirlpool, LG, Frigidaire/Electrolux, or GE)
• Decode the serial number using that manufacturer’s date-code format
• Keep the serial number handy for parts ordering because production changes can affect fit

Quick label scenarios

What you see on the tag	What it means	What to do
“MFG DATE” printed	Date is stated directly	Use that date as the unit’s age
Serial includes letters plus numbers	Date is encoded	Decode using the manufacturer’s serial format
Only model and serial shown	Date is still encoded	Determine manufacturer, then decode

Why it matters

Knowing the manufacture date helps us match the correct replacement parts and troubleshooting steps for your exact production run. If you’re diagnosing temperature swings, a common control component on this model is the refrigerator thermostat WP2198202 (part number 2198201).

Last updated: February 2026
