Yes, replacing the engine on your Craftsman 917288210 lawn tractor is worth it when the tractor’s deck, chassis, and driveline are still solid and you want more years of reliable mowing. It is not worth it when the deck is rusted through, the tractor has major drivetrain wear, or the total repair cost is close to a replacement tractor.

Quick decision checklist

• Worth it if the mower deck is straight, spindles are serviceable, and the tractor starts, steers, and drives well.
• Worth it if you can do the swap yourself and only need normal wear items (belts, blades, pulleys).
• Not worth it if the deck is cracked/rusted through or the tractor has chronic electrical or transmission problems.
• Not worth it if you also need multiple high-cost assemblies (chassis, axle, hood, fuel tank) at the same time.
• Not worth it if you cannot safely perform the work (fuel handling, lifting, wiring).

Cost and condition guide (practical rule)

Use this simple comparison to decide.

What you’re comparing	Usually points to engine replacement	Usually points to replacing the tractor
Deck and cut quality	Deck is sound; cut issues are normal wear (blades, leveling)	Deck is heavily rusted, bent, or structurally failing
Starting and electrical	One clear failure (engine seized, low compression)	Multiple issues (wiring damage, repeated no-starts, safety switch problems)
Parts you’ll also need	A few common parts (belt, blade, pulley)	Several major assemblies plus engine

Parts that commonly get replaced along with an engine

If the tractor is otherwise in good shape, these are the typical “while you’re in there” items that restore performance and reduce vibration:

• Lawn tractor starter solenoid 582042802 (common no-crank or click symptoms)
• Lawn tractor ignition switch 532193350 (intermittent start/run issues)

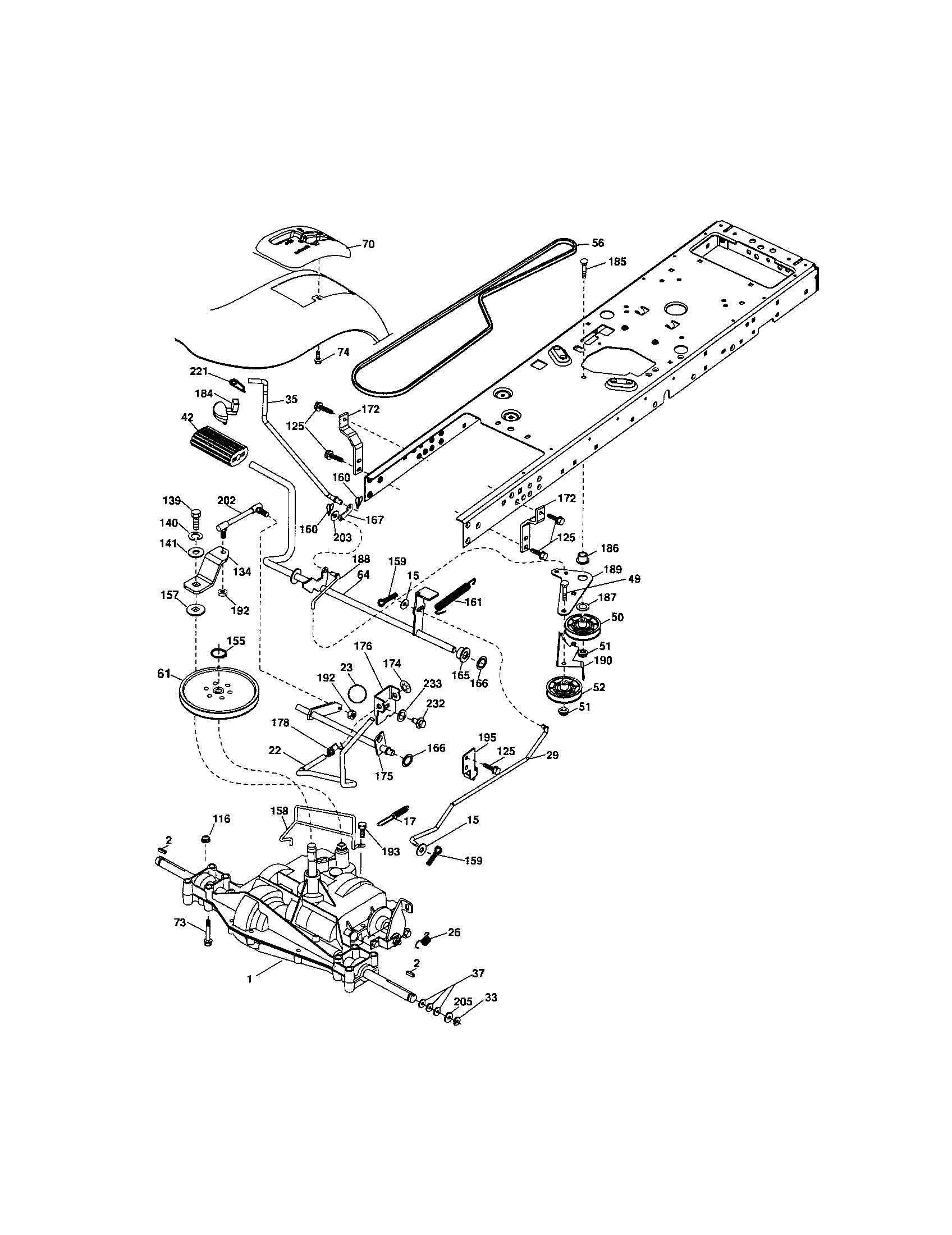

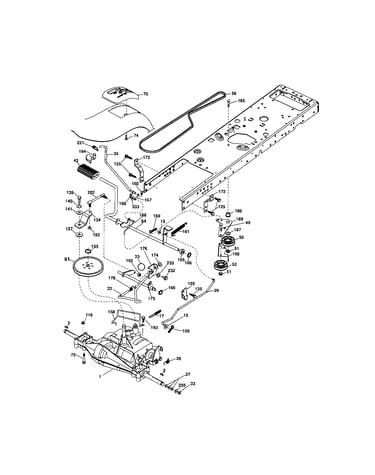

• Husqvarna lawn tractor belt, 1/2 x 101-1/6-in 592855001 (ground drive or blade drive belt wear)

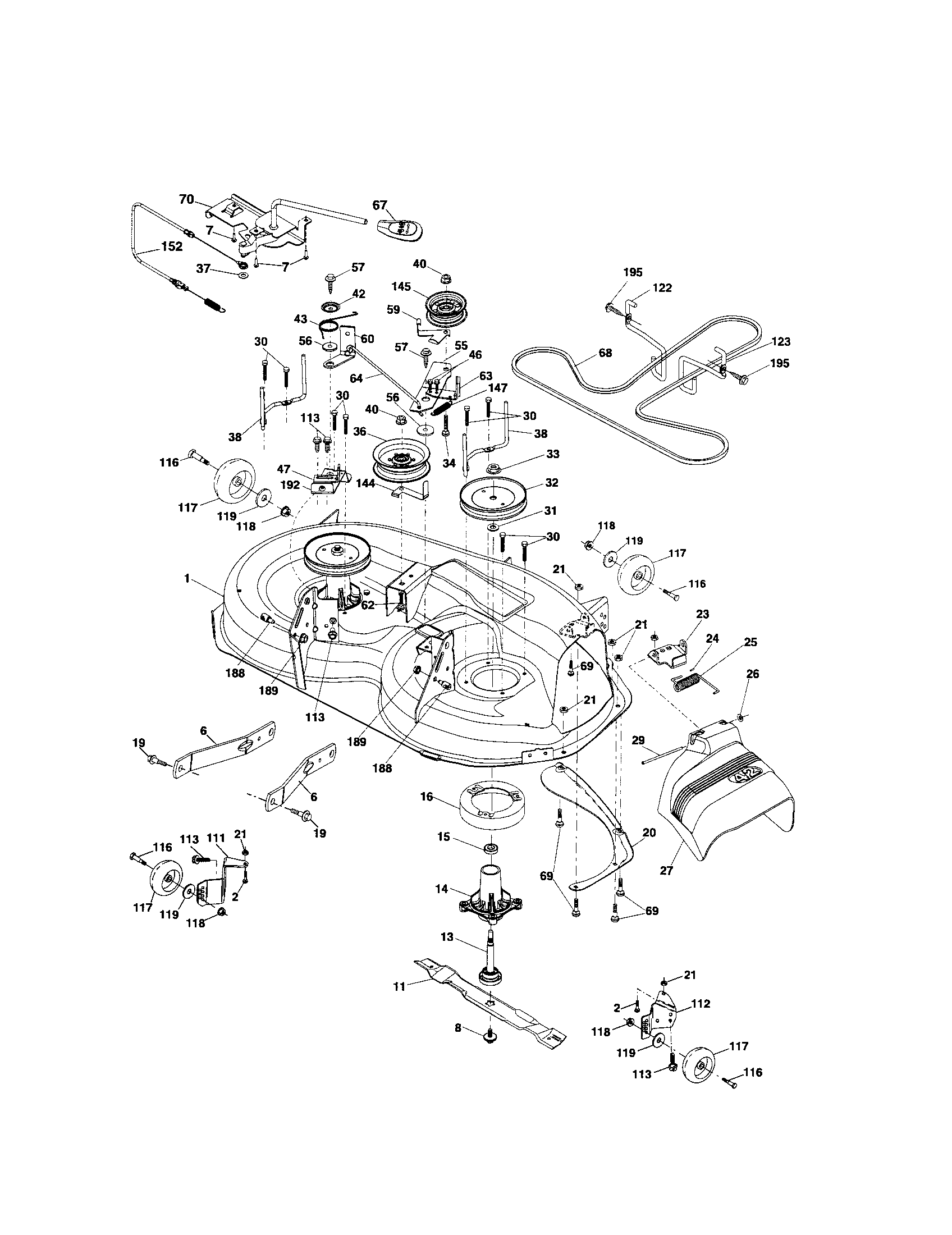

• Lawn tractor 42-in deck high-lift blade 532138971 (cut quality and vibration)
• Lawn tractor mandrel housing 587819701 (if a spindle/mandrel is noisy or bent)

Why it matters

An engine swap only pays off when the rest of the machine can safely deliver power to the deck and wheels. A worn blade, bent mandrel, or loose hardware can cause excessive vibration and poor cutting even with a brand-new engine; our owner's manual outlines safe service practices and blade handling.

You can order the replacement parts for your Craftsman 917288210 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The Craftsman riding mower model 917288210 uses a low-emission 20.0 HP engine (as rated by the engine manufacturer) paired with a 42-inch mower deck. For the exact engine identification details used on your tractor, we recommend checking the engine section in the owner's manual.

How to identify the exact engine on your 917288210

Even when horsepower and deck size are known, the exact engine make and model is best confirmed from the tractor and engine labels.

• Look for the engine ID label on the engine shroud or valve cover area.
• Record the engine model, type, and code (or spec number).
• Match those numbers to the engine information listed in the manual.
• If the label is dirty, wipe it clean; avoid spraying water directly into electrical areas.
• Use the recorded engine ID when ordering tune-up parts (filters, spark plug, belts).

Common specs you can expect on this model

Based on the operator manual details for this Craftsman lawn tractor, these are the key configuration points most owners use for parts matching and service planning:

Item	What you have on 917288210	Why it matters
Engine rating	20.0 HP, low-emission	Helps match service parts and performance expectations
Deck size	42-inch mower deck	Determines blade and deck belt fit
Starting	Electric start	Points to battery, solenoid, and ignition circuit parts
Drive	6-speed transaxle	Affects drive belt routing and shifting adjustments

Why it matters

The exact engine model determines the correct maintenance parts (air filter, fuel filter, spark plug) and helps troubleshoot starting or running problems. If your tractor clicks or cranks but will not start, the ignition and starting circuit parts are also common service items.

Parts that often relate to engine starting issues

• Lawn tractor starter solenoid 582042802
• Lawn tractor ignition switch 532193350

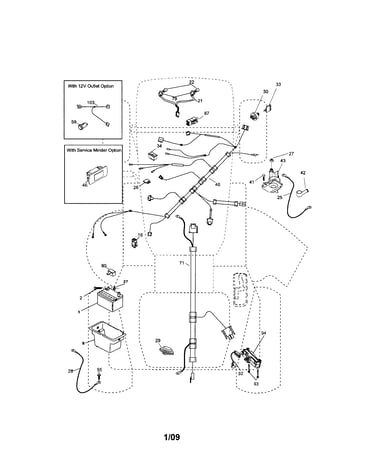

• Husqvarna lawn tractor ignition harness 532401098

You can order replacement parts for your Craftsman 917288210 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For a Craftsman lawn tractor like model 917288210, the model number does not contain the build year. To identify the year, we use the product serial number from the tractor’s ID tag and decode it using the format shown in your owner's manual.

Where to find the serial number

Look for the product identification label in common locations such as:

• Under the seat pan (lift the seat)
• On the frame rail near the engine
• Near the rear fender or footrest area
• On or near the transaxle mounting area

How the serial number date code is commonly read

Many Craftsman-built riding mowers use a 6-digit date code within the serial number that reads:

• MM = month
• DD = day
• YY = year

Example

If the date code is 072811, that decodes to July 28, 2011.

Date code	Month	Day	Year	Build date
072811	07	28	11	July 28, 2011
031509	03	15	09	March 15, 2009

Quick checks to avoid a wrong year

Before you settle on a year, we recommend these quick confirmations:

• Make sure you are reading the serial number, not the model number (917288210).
• Look for a 6-digit run that matches MMDDYY.
• If the serial includes letters, focus on the numeric date block.
• Compare the decoded year to the tractor’s features (electric start, 42-inch deck, 6-speed transaxle) listed for this model in the manual.

Why it matters

Knowing the correct year helps us match the right diagrams and replacement parts for your 42-inch mower deck and drive system, such as a blade, belt, or ignition component. You can order parts for model 917288210 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

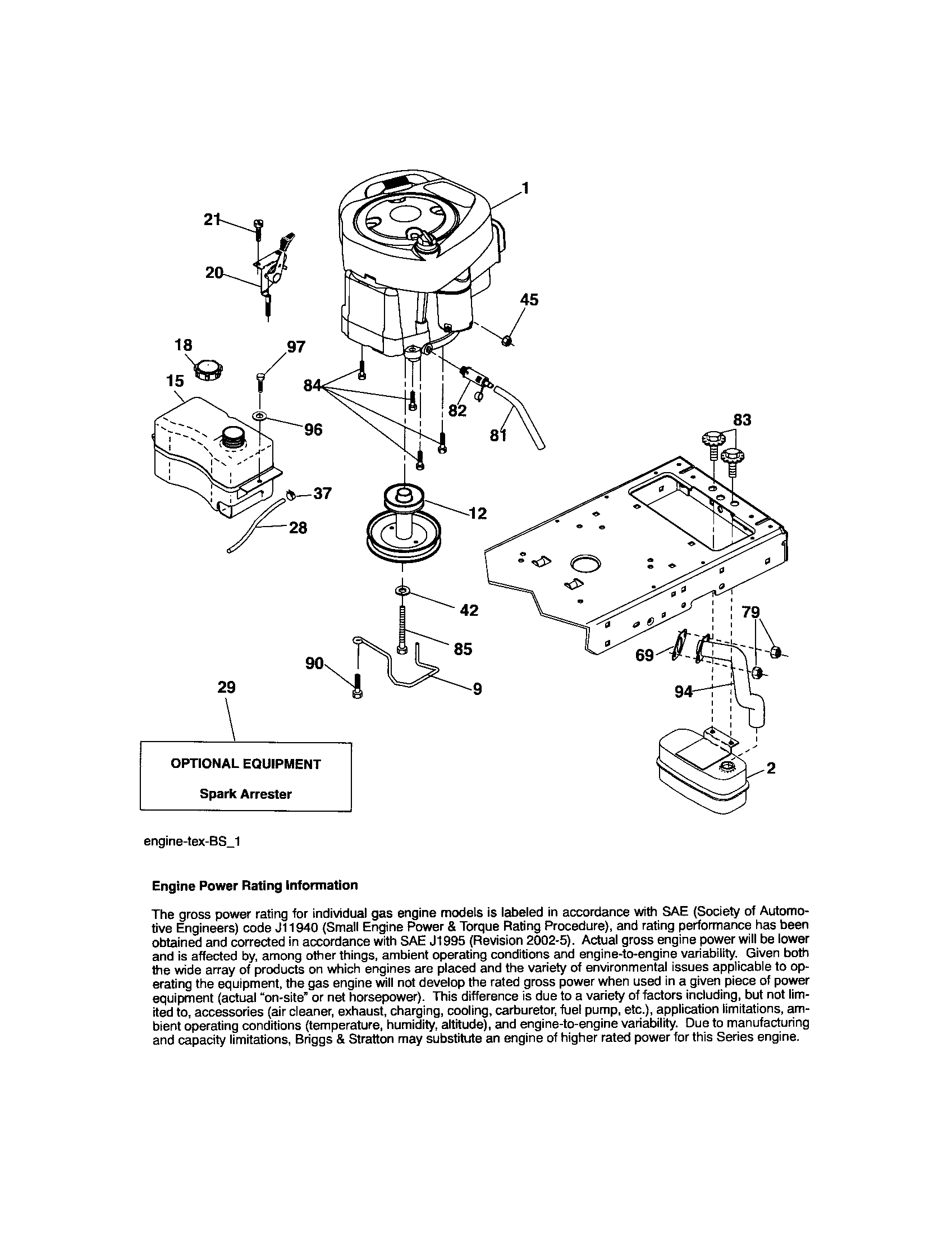

On your Craftsman lawn tractor model 917288210, the engine model number is typically stamped into the engine itself (not on the mower deck or hood). Look on the top area of the engine near the cylinder head or valve cover; on many V-twin engines, it’s stamped into the metal on either the left or right side.

Where to look first (fastest checks)

• Check the top of the engine near the cylinder head(s) for a stamped number
• Look along the valve cover area on both sides of a V-twin
• Check near the starter area and flywheel shroud for an engine ID label
• Wipe off dirt and oil; the stamping is often shallow and hard to see
• Use a flashlight at a low angle to make stamped characters stand out

What number you actually need

You may see several identifiers. Use this quick guide:

What you see	What it’s used for	Where it’s commonly found
Tractor model number (917288210)	Ordering tractor parts (deck, chassis, steering, etc.)	Frame tag under seat or on frame
Engine model/type/code	Ordering engine-specific parts and tune-up items	Stamped on engine or on an engine label
Serial number	Identifying production run	Frame tag or engine label

Why it matters

The tractor model number (917288210) helps match Craftsman riding mower and tractor parts like blades, belts, and deck hardware. The engine model number is what ensures you get the correct engine parts and service items, especially when multiple engines were used across similar tractor platforms.

Helpful references

• Use the diagrams and identification info in the owner's manual to confirm tractor labeling locations and safe access steps.
• If you’re troubleshooting a no-start or click condition while you’re checking engine IDs, follow riding lawn mower engine clicks but doesnt turn over video.

You can also order replacement parts for your 917288210 from the parts list for this model, or search by model number on Sears PartsDirect.
