Whirlpool
Bottom-Mount Refrigerator

Model # WRF560SMYM04 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRF560SMYM04 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

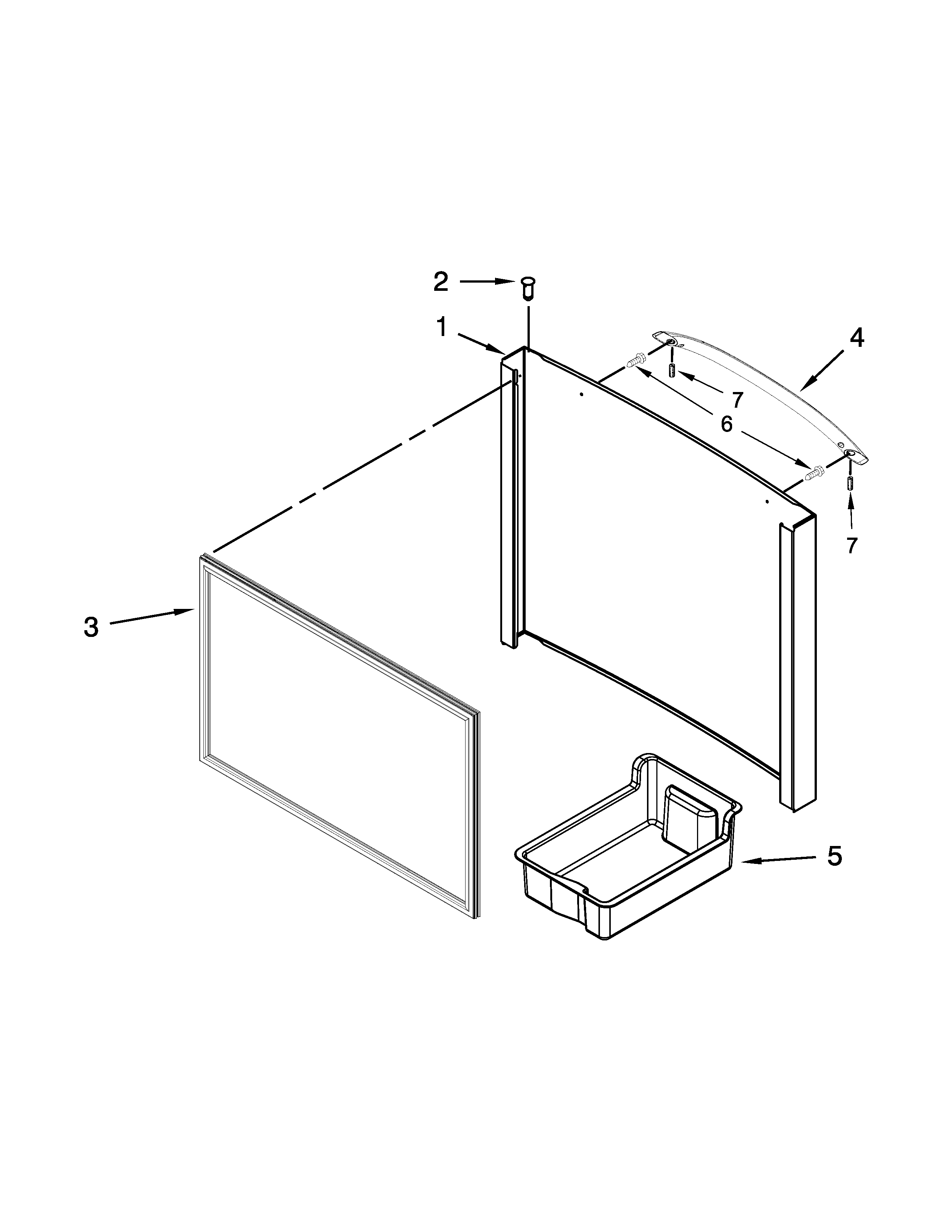

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |

Whirlpool EveryDrop 1 Refrigerator Water Filter (replaces 9981, W10295370A, W10569761, W10735398)
#4

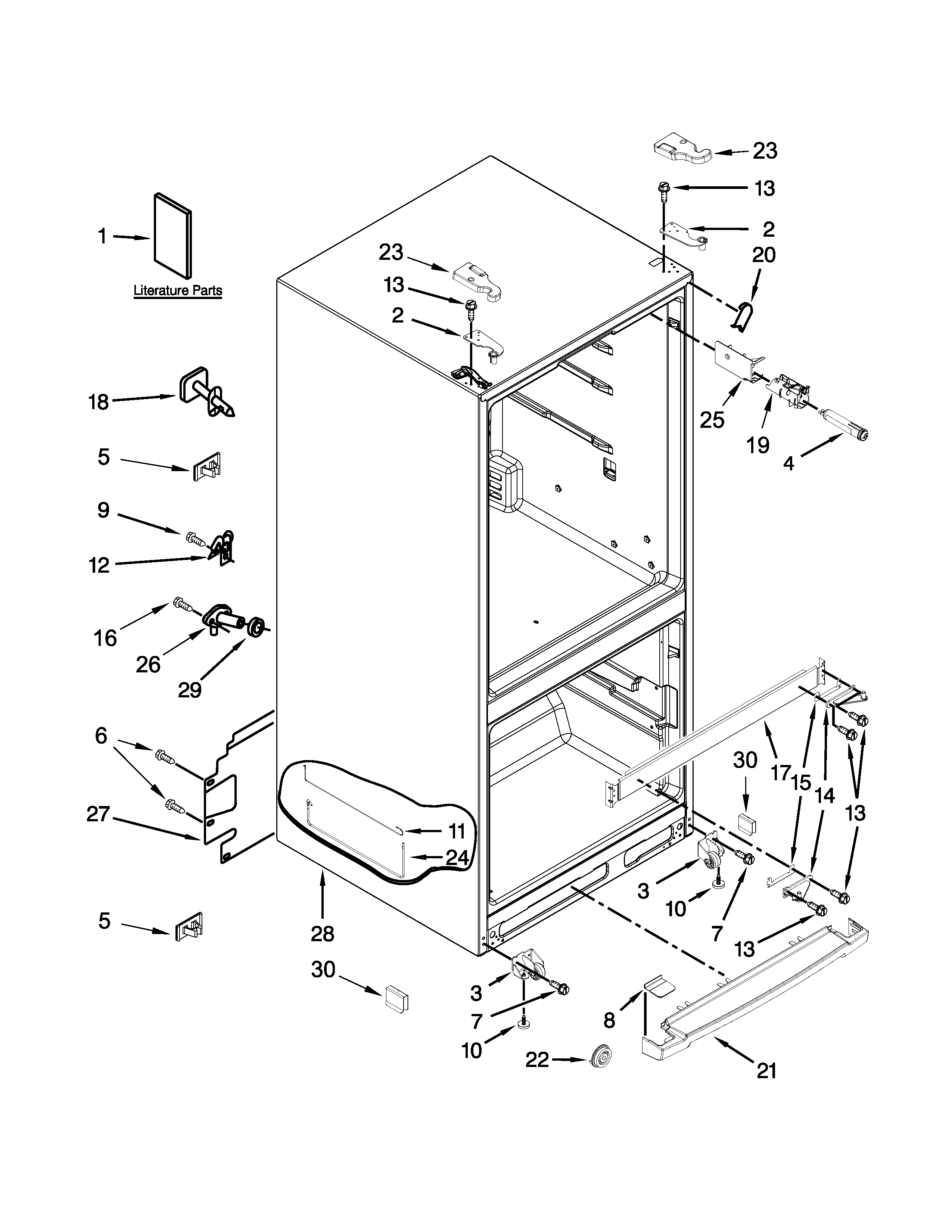

Cabinet parts diagram

Refrigerator filter

Part #W10569758

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10569758. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
23% OFF MSRP : $78.00
In Stock
Refrigerator Ice Maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114R, M626687, W10122496, W10190952, W10281545, W10632400)
#100

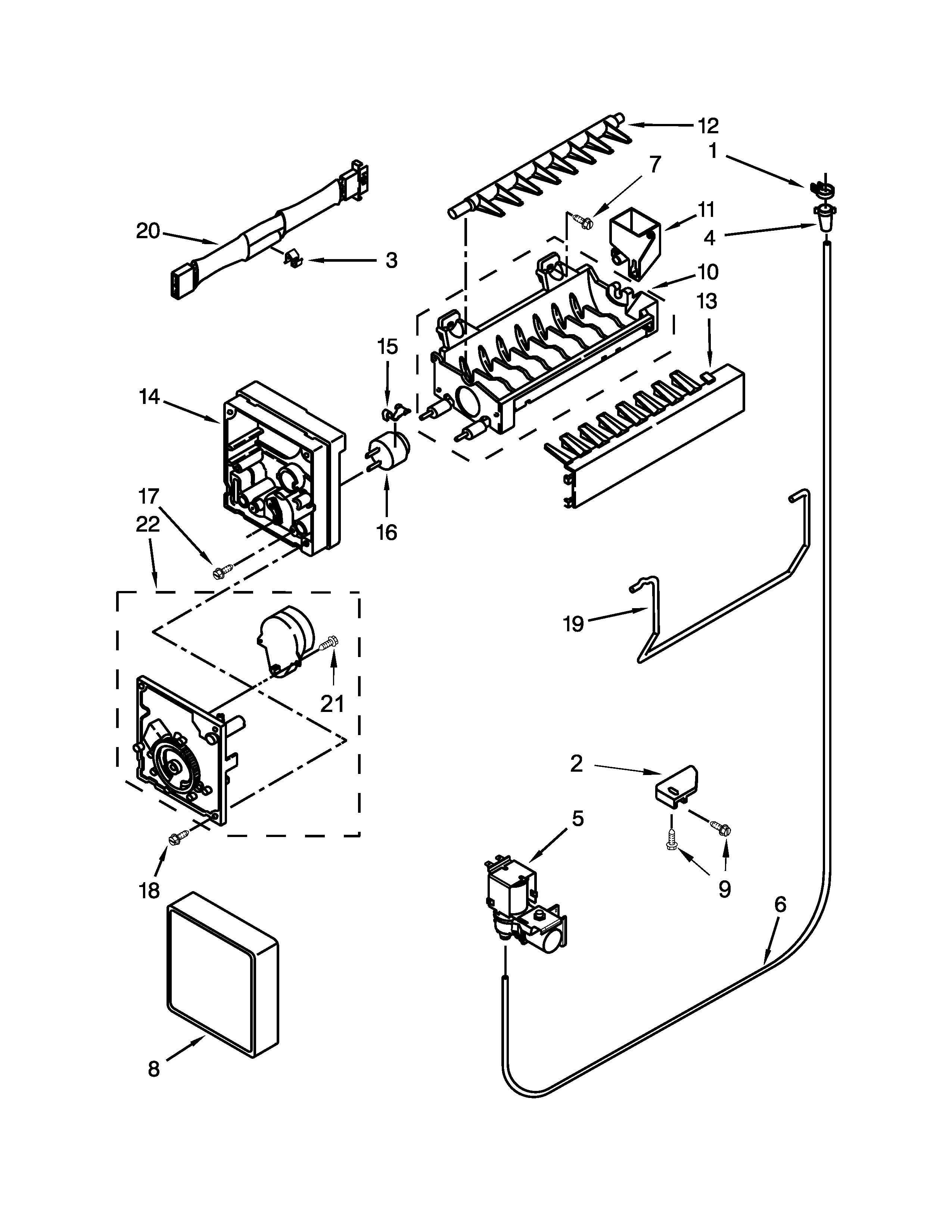

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10632400

Replaced by #4317943

?
Manufacturer substitution
This part replaces W10632400. Substitute parts can look different from the original.
BEST SELLER
$117.08
16% OFF MSRP : $140.00
In Stock
Refrigerator Door Switch (replaces W11234536, W11428639, WP1118894, WPC3680310)
#19

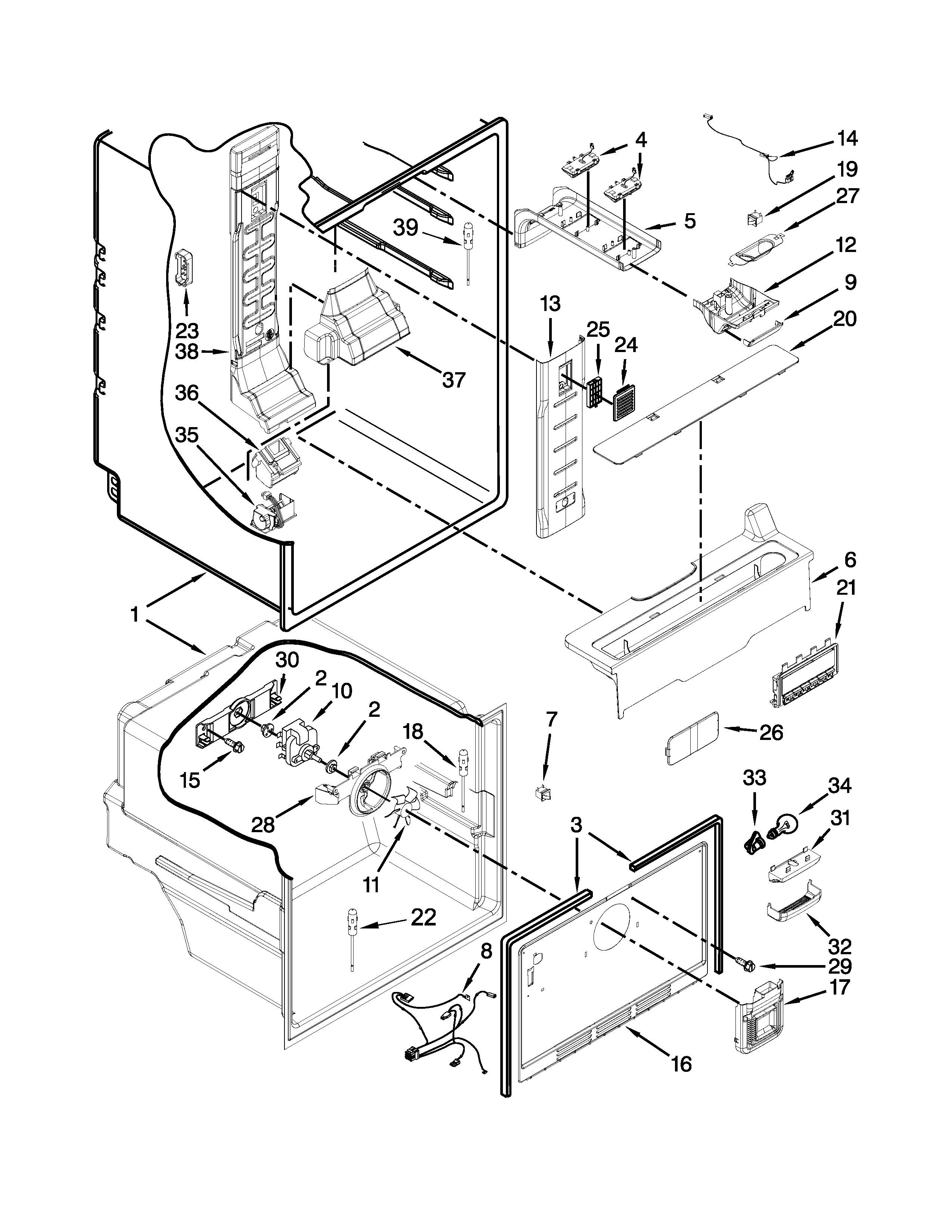

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$33.96
13% OFF Phone Price : $38.96
In Stock
Refrigerator FreshFlow Produce Preserver Refill, 2-pack (replaces W10346771)
#24

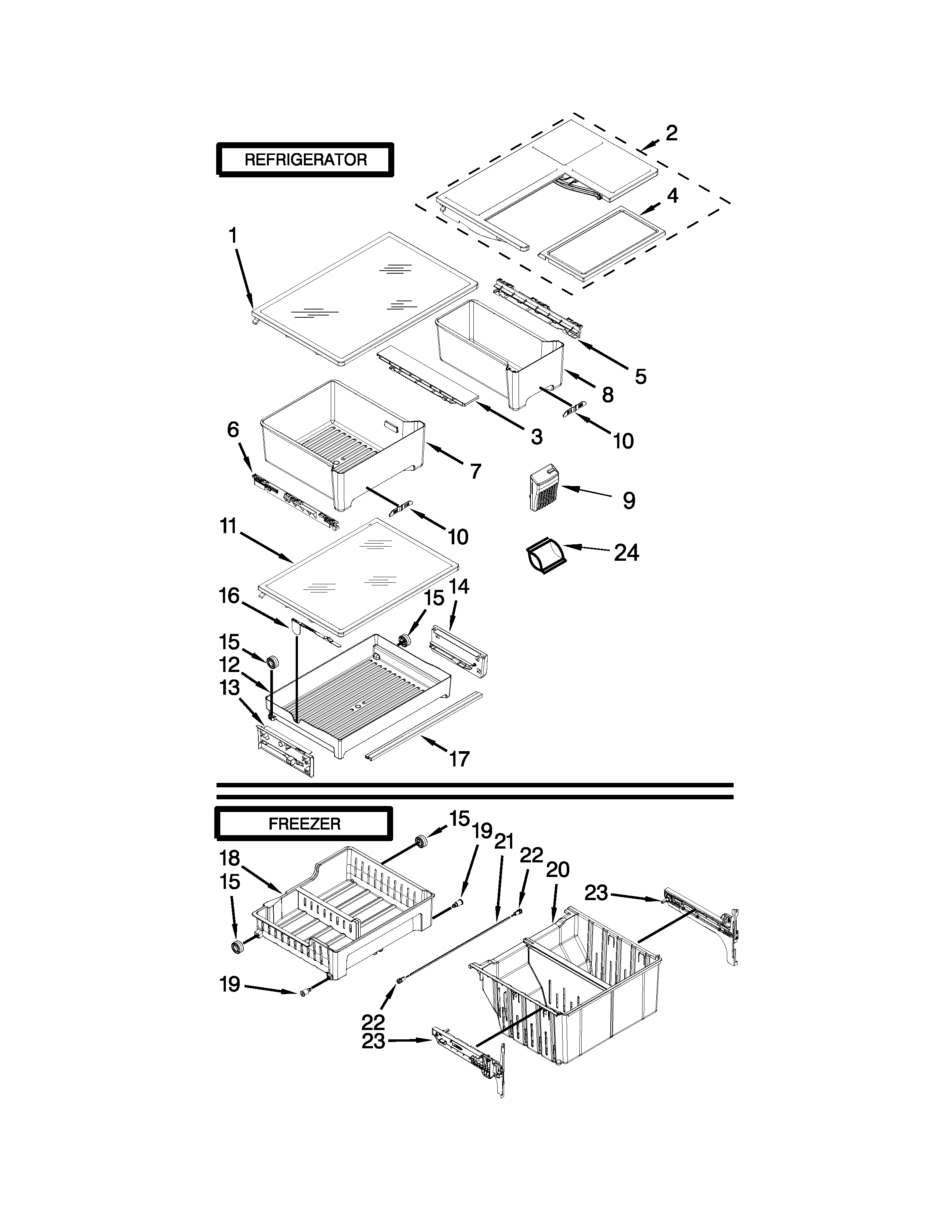

Shelf parts diagram

Refrigerator preserver

Part #W10346771

Replaced by #W10346771A

?
Manufacturer substitution
This part replaces W10346771. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$23.49
18% OFF Phone Price : $28.49
In Stock
Refrigeration Appliance Run Capacitor (replaces W10662129)
#30

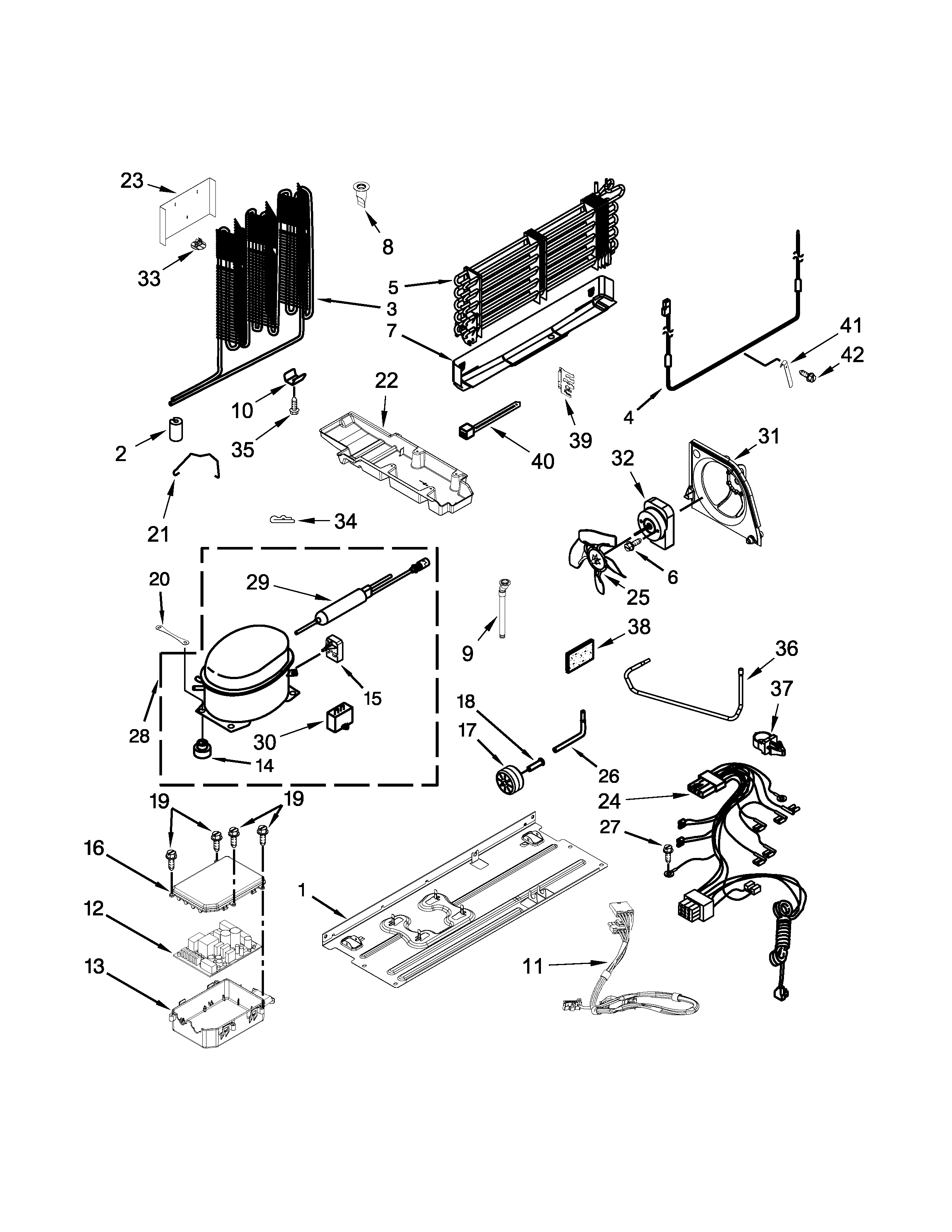

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$69.27
7% OFF Phone Price : $74.27
In Stock
Refrigerator Door Assembly, Right (Stainless) (replaces W10413519)
#1E

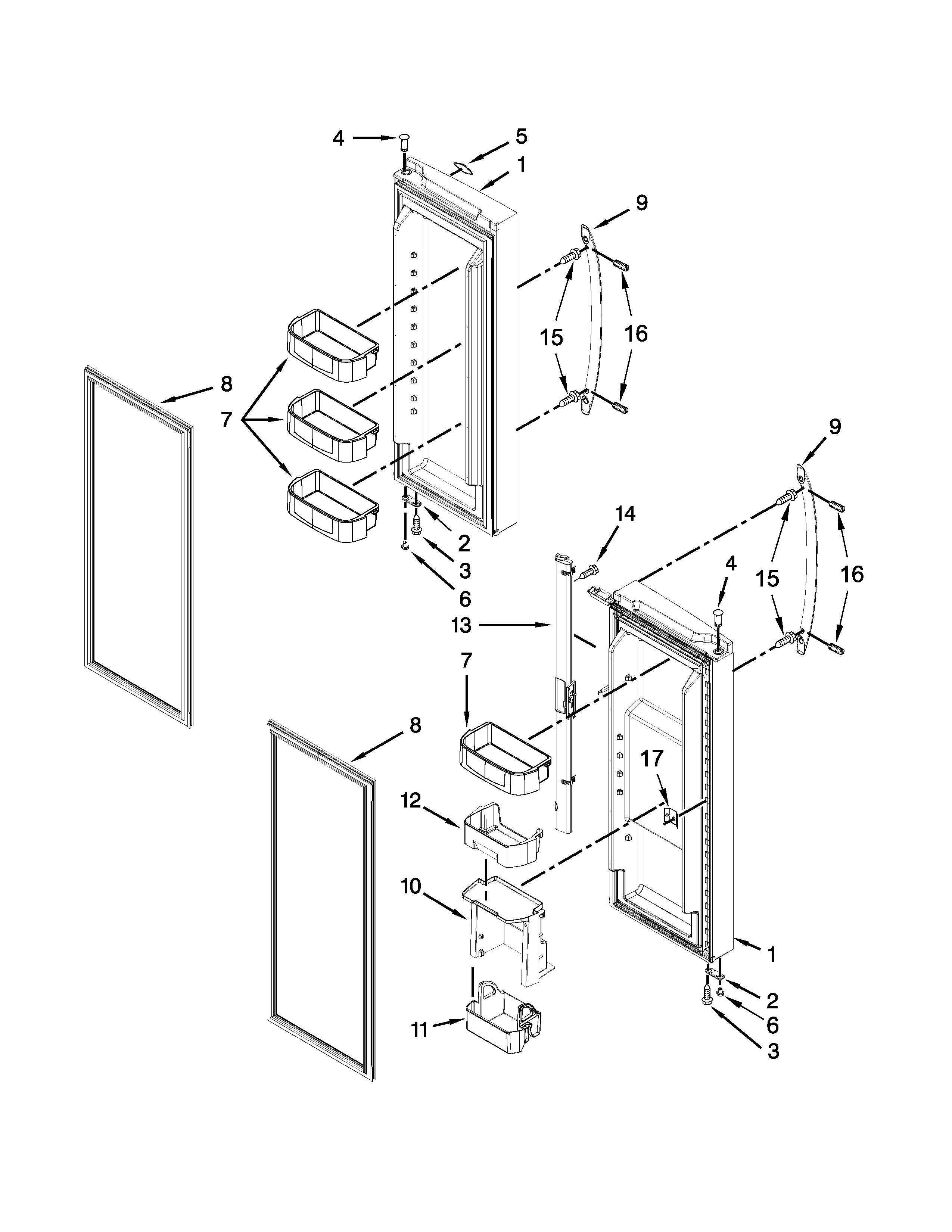

Refrigerator door parts diagram

Refrigerator door

Part #W10413519

Replaced by #LW10413519

?
Manufacturer substitution
This part replaces W10413519. Substitute parts can look different from the original.
BEST SELLER
$490.86
$10.00 OFF Phone Price : $500.86
In Stock
Refrigerator Door Stop (replaces 2183805)
#2

Refrigerator door parts diagram

Door bracket

Part #2189202

Replaced by #WP2183805

?
Manufacturer substitution
This part replaces 2189202. Substitute parts can look different from the original.
BEST SELLER
$10.00
17% OFF Phone Price : $12.00
In Stock
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)
#NI

Optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Appliance Touch-Up Paint, 0.6-oz (Black) (replaces 20001009, 72032P, 72032R, W10831982)
#NI

Optional parts diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$6.18
49% OFF MSRP : $12.00
In Stock
Refrigerator Screw
Screw

Part #489276

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 489276. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
