LG LFX31945ST/07 refrigerator

LG LFX31945ST/07 refrigerator Parts

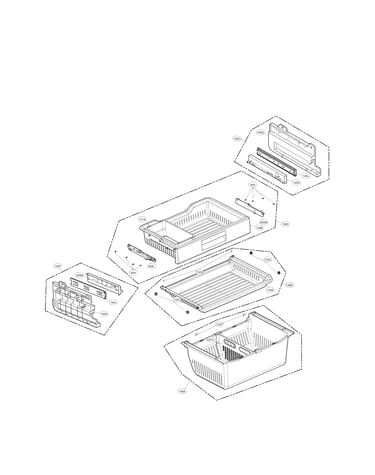

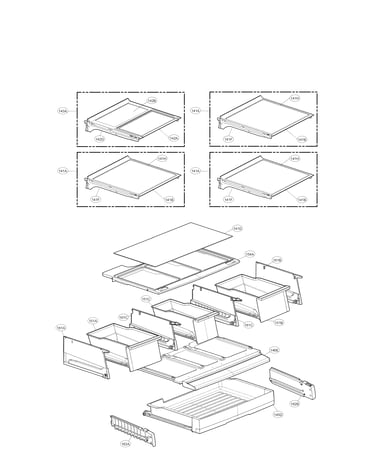

Here are the diagrams and repair parts for LG LFX31945ST/07 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for LFX31945ST/07 Refrigerators

LG Refrigerator LFX31945ST/07 FAQs

Most LG refrigerators, including the LG LFX31945ST, typically last 10 to 15 years. With consistent maintenance (clean airflow, good door sealing, and timely filter changes), it’s common to reach the upper end of that range before major sealed-system repairs become more likely.

Typical lifespan ranges (what to expect)

Refrigerator life varies most by how hard the compressor runs and how well the unit can shed heat.

  • 10 to 15 years: typical service life for modern refrigerators
  • 8 to 12 years: more likely if coils are dirty, doors don’t seal, or the unit is in a hot/closed-in space
  • 15+ years: more likely with good ventilation, stable temperatures, and routine upkeep
What you’re tracking Normal for a healthy fridge What shortens lifespan
Compressor run time Cycles on and off Runs nearly nonstop
Door sealing Even gasket contact Gaps, sweating, frost
Airflow/heat removal Warm air exits easily Dusty coils, blocked grille
Odors/air quality Neutral smell Persistent odors, stale air
Maintenance that adds years

These steps reduce compressor workload and help prevent common failures.

  • Vacuum dust from the condenser area and keep the front grille area clear
  • Keep door gaskets clean and ensure doors close without resistance
  • Set stable temps (avoid frequent warmest/coldest swings)
  • Replace the air filter on schedule to keep airflow and odors under control
  • Don’t overload shelves so air can circulate through the fresh food and freezer sections

Helpful references for this model and LG care:

Why it matters

A refrigerator usually “dies early” because it has to run too long and too hot. Keeping airflow open and seals tight lowers energy use, reduces temperature swings, and delays expensive repairs such as compressor or evaporator issues.

Last updated: February 2026

For the LG LFX31945ST refrigerator, the typical LG limited warranty includes 1 year of parts and labor coverage, plus longer coverage on the sealed system or compressor (often 5 to 10 years, commonly parts-only on the extended portion). Confirm the exact terms for your unit in the LFX31945ST owner's manual.

What’s usually covered (and what isn’t)

Warranty terms vary by region and by what component failed, so we recommend matching the failed part to the warranty section.

  • Full appliance coverage is typically limited to the first year (parts and labor)
  • Compressor or sealed system often has extended coverage beyond year 1
  • Extended coverage is commonly parts-only (labor and refrigerant handling may not be included)
  • Coverage usually requires proof of purchase and proper installation
  • Cosmetic items, normal wear, and damage from misuse are typically excluded
Quick warranty timeline (typical LG structure)
Time period What you can usually expect Notes
Year 1 Parts and labor Most comprehensive coverage window
Years 2 to 5 Sealed system or compressor coverage Often limited to specific components
Years 6 to 10 (when offered) Compressor-related parts coverage Commonly parts-only, not labor
Why it matters

If your LG bottom-mount refrigerator stops cooling, knowing whether the issue is a sealed-system/compressor problem versus a control or airflow problem helps you decide whether to pursue warranty service or a standard repair. For example, a failed refrigerator compressor TCA38091801 may fall under extended coverage, while a door sealing issue may not.

Helpful next steps

Last updated: February 2026

On an LG LFX31945ST refrigerator, the FF E (often shown as FF or FF/E) points to a freezer fan (evaporator fan) airflow problem, usually caused by ice buildup around the fan or a fan that is not running. The fastest fix is to clear the ice restriction and restore airflow.

Quick fixes we recommend first
  • Power the refrigerator off (unplug or switch off the breaker) for 5 minutes, then restore power.
  • Check that freezer drawers and bins are fully seated and not blocking the rear air vents.
  • Listen for the freezer fan: a smooth whir is normal; grinding or silence points to a fan/ice issue.
  • Do a full manual defrost if you suspect ice: move food to a cooler and leave doors open 12 to 24 hours.
  • After defrosting, set temps to typical targets: 0°F freezer and 37°F fresh food.
What usually causes FF E on this model

Most FF E events come from restricted airflow at the evaporator area.

Likely cause What you notice What to do
Ice buildup around evaporator/fan Fan noise changes, weak cooling Manual defrost; confirm vents are clear
Defrost sensing problem Repeated icing every few days Check/replace the defrost sensor
Evaporator problem affecting airflow Poor freezer cooling, frost pattern issues Have the sealed system checked
Parts that commonly relate to FF E symptoms

If the error returns soon after a full defrost, these model-matched parts are common suspects:

Why it matters

When the freezer fan cannot move air across the evaporator, temperatures rise and the refrigerator can run longer, build more frost, and struggle to keep food safely cold. Fixing airflow early prevents repeat icing and protects cooling performance.

Where to confirm the exact reset and diagnostics steps

We follow the model-specific procedures and display behavior shown in the LFX31945ST owner's manual.

Last updated: February 2026

Cooling problems are the most common issue we see with LG refrigerators like model LFX31945ST, showing up as a warm fresh food section, a warming freezer, or temperatures that swing. Many “not cold enough” complaints trace back to airflow, dirty condenser areas, or sealed-system/compressor-related failures.

What “most common” looks like in real symptoms
  • Refrigerator is warm but freezer seems closer to normal (or the reverse)
  • Food spoils faster, ice cream is soft, or ice production slows
  • Unit runs constantly or cycles oddly
  • New or louder humming, buzzing, or clicking sounds
  • Frost buildup on the back wall of the freezer
  • Water under crisper drawers or puddles near the front
Quick checks we recommend before replacing parts

Start with the basics that cause the highest number of cooling complaints:

  • Confirm temperature settings and give the unit 24 hours to stabilize
  • Make sure vents inside the compartments are not blocked by food packages
  • Clean dust from the condenser area so heat can dissipate properly
  • Check doors close fully and the gasket seals all the way around
  • Listen for the evaporator fan; a failed fan can cause warm temps and frost

For model-specific operating details (controls, airflow locations, and care steps), use the LFX31945ST owner's manual.

Common causes and the parts that often relate
Symptom Common cause Example part for LFX31945ST
Warm fridge/freezer, long run times Poor heat rejection, restricted airflow Refrigerator condenser coil (if damaged)
Frost buildup, warming temps Defrost system sensing issue Refrigerator defrost sensor assembly 6615JB2005R
Door ajar alarm, lights act odd Door not registering closed Refrigerator door switch 6600JB1010A
Bad odors linger Air filter overdue LG refrigerator air filter ADQ73214408
Why it matters

Cooling issues are time-sensitive because temperature swings affect food safety and can force the compressor to run harder than normal. Catching airflow, sealing, and maintenance problems early often prevents bigger repairs.

If you see an error code along with cooling problems, use LG bottom freezer refrigerator error codes to narrow the failure area before ordering parts.

Last updated: February 2026
