Kenmore 79090112013 electric range Parts

Yes. On the Kenmore electric range model 79090112013, you can replace a failed oven heating element (bake or broil) with basic hand tools as long as you shut off power first and let the oven fully cool. Use the steps and safety notes in the 79090112013 owner's manual.

Safety first (before you touch anything)

• Turn off power at the breaker, then unplug the range if accessible.
• Confirm the oven is cool; elements can stay hot even when they look dark.
• Wear work gloves; sheet metal edges and element terminals can be sharp.
• Do not touch the oven vent area while the oven is operating; it can cause severe burns.
• If wiring looks burned or brittle, stop and repair the connection before installing a new element.

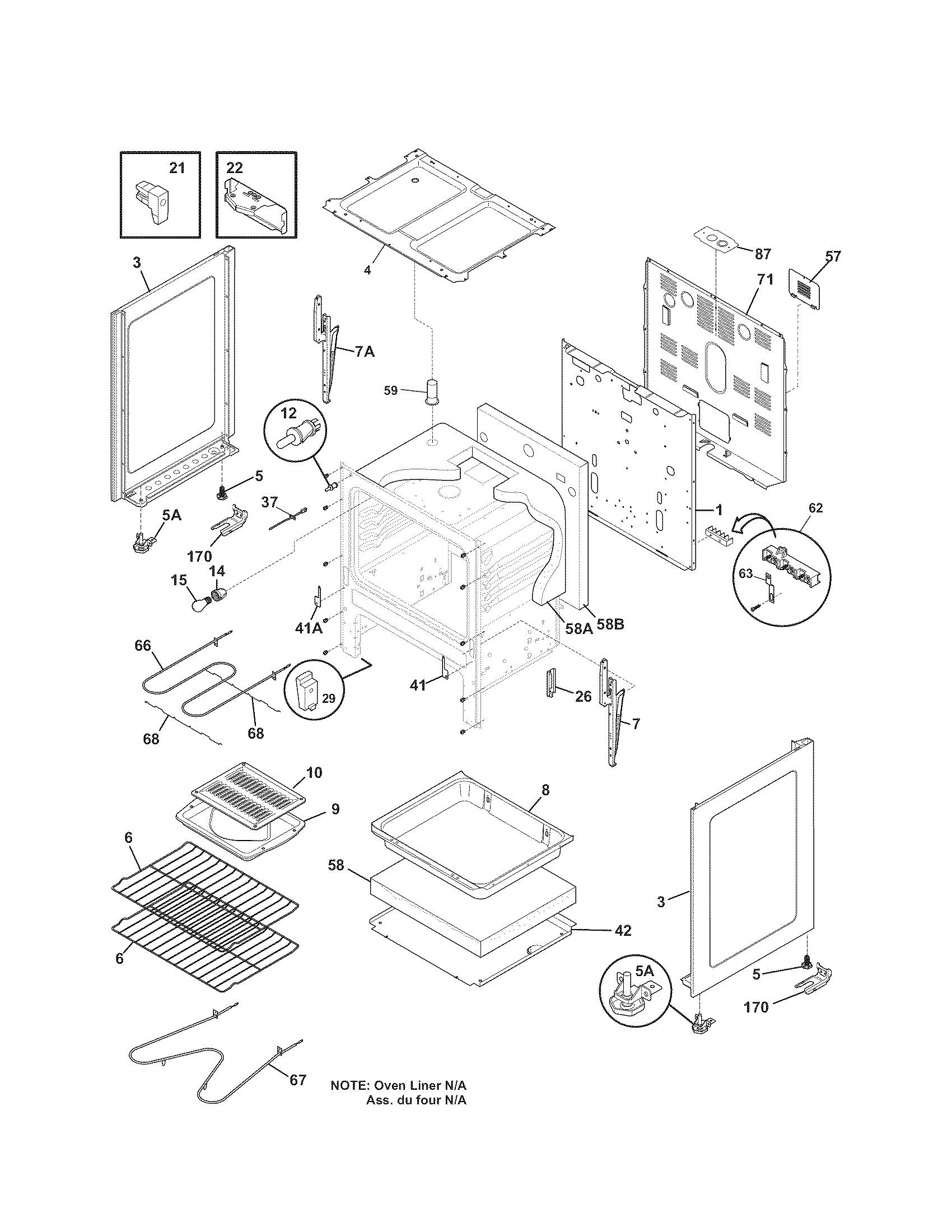

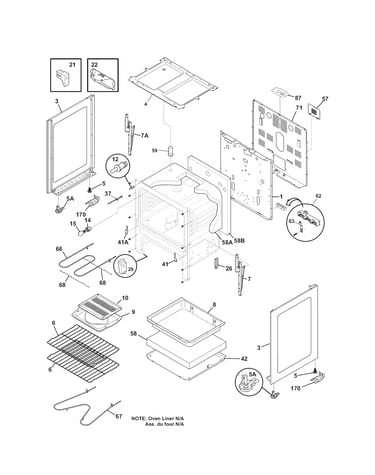

Bake vs. broil element: what you are replacing

Element	Location	Common symptom	Model-compatible example part
Bake element	Bottom of oven cavity	Oven will not heat or heats unevenly	Frigidaire range bake element 316225001
Broil element	Top of oven cavity	No broil, weak broil	Frigidaire range broil element 316203200

How we replace an oven heating element (typical process)

1. Disconnect power (breaker off).
2. Remove oven racks for working room.
3. Remove the mounting screws holding the element to the rear oven wall.
4. Carefully pull the element forward a few inches and support it.
5. Disconnect the two wires from the element terminals (note positions).
6. Connect wires to the new element terminals firmly, then remount the element.
7. Restore power and test Bake or Broil.

Why it matters

A weak or open heating element is one of the most common causes of “oven not heating” on an electric range. Replacing the correct bake or broil element restores proper temperature control and cooking performance.

Last updated: February 2026

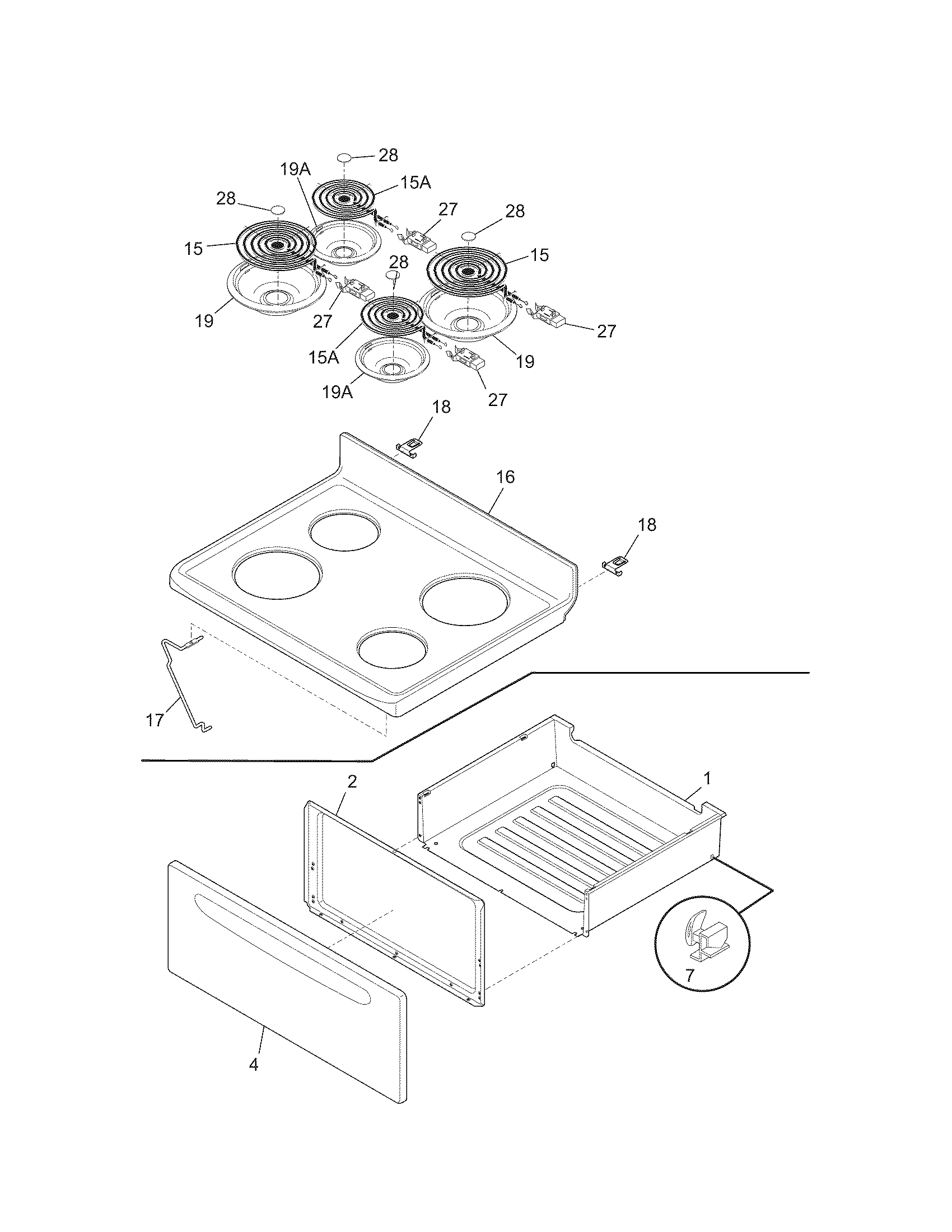

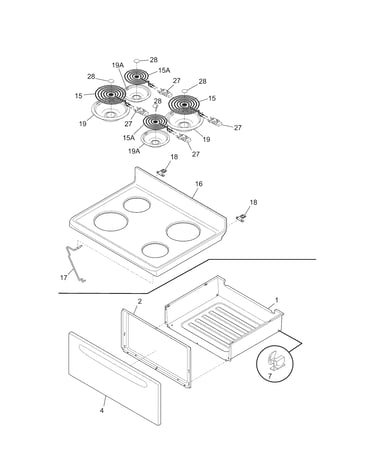

For Kenmore electric range model 79090112013, we find the model and serial number on the identification plate inside the storage drawer. Open the drawer fully; the serial plate is attached to the lower right oven frame (see the 79090112013 owner’s manual).

Where to look on this range

Check these spots in order:

• Open the storage drawer and look on the lower right oven frame (most reliable)
• Look for a silver or white identification plate with both model and serial
• Wipe the plate with a damp cloth if grease or dust makes it hard to read
• Write the full model number exactly as shown (include all digits)

What the label typically includes

Item on label	What it’s used for
Model number (example: 79090112013)	Matching parts and diagrams for your exact range
Serial number	Dating the unit and confirming production details
Electrical ratings	Verifying power requirements during service

Why it matters

We use the exact model number to match the correct Kenmore range parts (like a bake element, surface element control switch, or oven temperature sensor) and to pull the right troubleshooting steps and wiring information.

Tip if you’re seeing an error code

If the control is displaying an error, use the model-family error code reference for Kenmore 790 ranges in our Kenmore 790 self-cleaning range error codes guide to narrow down what to test next.

Last updated: February 2026

For Kenmore electric range model 79090112013, the exact oven size (capacity in cubic feet) and the full exterior dimensions are listed in the product literature for your specific configuration. The fastest way to confirm the correct measurements is to check the specifications section in the 79090112013 owner's manual.

What “size” can mean (and what to look up)

When customers ask for “oven size,” they usually mean one of these:

• Oven capacity (cubic feet): how much the oven cavity holds
• Exterior width (commonly 30 in for many freestanding ranges)
• Overall height (often adjustable with leveling legs)
• Depth (varies depending on handle and rear clearance)
• Cutout/clearance needs (space required for safe installation)

Where to find the exact dimensions for 79090112013

We recommend using the documentation because it matches your model’s frame, door handle, and rear clearance requirements.

• Check the specifications/dimensions pages in the 79090112013 installation guide
• Use the model/serial plate to confirm you are referencing the correct unit; on this series it’s typically found by opening the storage drawer and looking at the lower right oven frame
• If you are measuring for a move or replacement, measure the range in place and compare to the install specs

Quick measuring checklist (most accurate method)

Use a tape measure and record to the nearest 1/8 inch:

• Width at the widest point (often includes side panels)
• Height from floor to cooktop, then to the top of backguard (if equipped)
• Depth including the door, then including the handle
• Clearance behind the unit for cord/terminal block area

Typical freestanding electric range dimension ranges (for planning)

These ranges help with rough planning; use the manual for exact numbers.

Measurement	Typical range
Width	29 7/8 in to 30 in
Height	46 in to 48 in (often adjustable)
Depth (with handle)	25 in to 28 in

Why it matters

Correct dimensions prevent installation problems like a range that will not slide back fully, a door that hits adjacent cabinets, or inadequate clearance around the oven venting and electrical connection.

Last updated: February 2026

If your Kenmore electric range model 79090112013 oven is not working, the most common causes are a power issue, the clock not being set (which can prevent oven operation), or an oven heating failure such as a bad bake element or temperature sensor. Start with the basic control and power checks in the 79090112013 owner's manual.

Quick checks we recommend first

• Confirm the range has power; check the breaker or fuses and verify the cord is fully plugged in.
• If there was a power outage, turn the range off; when power returns, reset the clock and oven function.
• Set the time of day; on many Kenmore ranges, the oven will not operate until the clock is set.
• Verify you selected a cooking mode (Bake or Broil) and a temperature, then press Start.
• If the cooktop works but the oven does not heat, inspect the bake element for visible damage.

Most likely failed parts when the oven will not heat

If the display works and the oven runs but does not heat, these parts are common suspects:

Symptom	What it usually points to	Model-matched part to consider
No heat on Bake, Broil may still work	Failed bake element	Range bake element 316225001
Oven heats erratically or temperature is way off	Failed temperature sensor	Range oven temperature sensor 316233903
Oven functions act “glitchy” or won’t respond correctly	Control problem	Range oven control board 316455420

Why it matters

An oven that will not operate is often a simple setup issue (clock not set after a power loss). When it is a heating problem, identifying whether Bake, Broil, or both are affected helps you choose the right repair path and avoid replacing the wrong part.

Helpful troubleshooting reference

If your display shows an error code, use our Kenmore 790 self-cleaning range error codes guide to match the code to the most likely cause and next steps.

Last updated: February 2026
