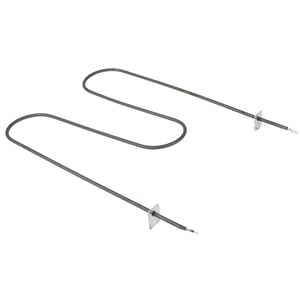

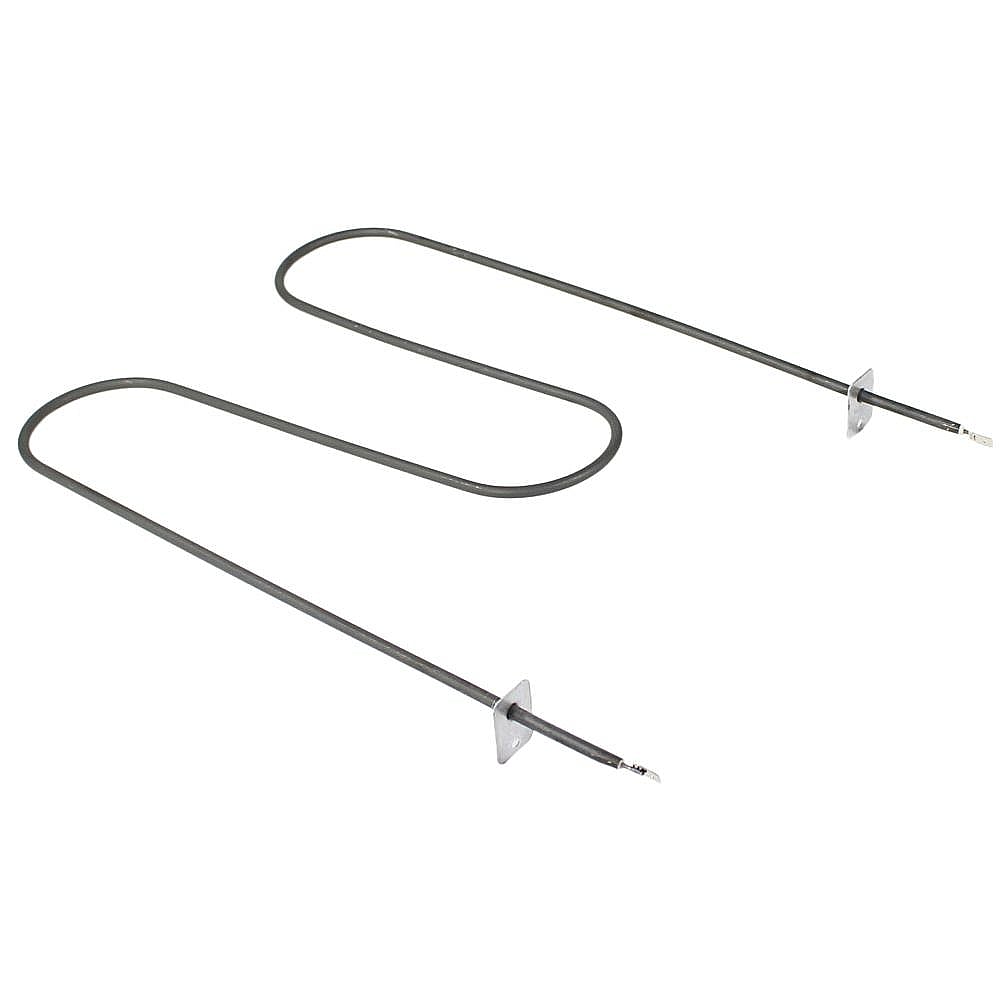

Frigidaire Range Broil Element (replaces 316199900) 316203200

Frigidaire Range Broil Element (replaces 316199900) 316203200

BEST SELLER

Part #316203200

Online Only Price
$111.35 |
10% OFF Phone Price : $123.35
In Stock
For ZIP codes near Edit
60-day return policy
This part fits
Previous part number
Part #316199900

Part Information

Basic Information

  • Part Name: Range Broil Element
  • Manufacturer: Frigidaire
  • Category: Range/Oven Part
  • Primary Function: Supplies the heat for broiling in an oven, positioned at the top of the oven cavity.

Installation & Compatibility

  • Compatible Models: Fits various Frigidaire range appliance models; please confirm this part is correct for your model before ordering.
  • Installation Difficulty: Medium — requires disconnecting electrical power to the range prior to installation.
  • Tools Required: Basic hand tools and work gloves for protection.

Additional Information

This broil element, part number 316203200, replaces the previous part number 316199900. It is essential for providing the high heat necessary for broiling food items in the oven. Before attempting to replace or install this part, ensure that the range is disconnected from its power source to avoid electrical hazards. Wearing work gloves is recommended to protect your hands during installation.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #79078509010 Kenmore Elite range79078509010
Body
Shop Parts
Model #79078503013 Kenmore Elite range79078503013
Body
Shop Parts
Model #FFEF3016VSE Frigidaire electric rangeFFEF3016VSE
Body
Shop Parts
Model #CFEF3054USC Frigidaire electric rangeCFEF3054USC
Body
Shop Parts
Model #CFEF3056TSD Frigidaire electric rangeCFEF3056TSD
Body
Shop Parts
Model #FFEF3054TBR Frigidaire electric rangeFFEF3054TBR
Body
Shop Parts
Model #FCRE3052ABE Frigidaire electric rangeFCRE3052ABE
Body
Shop Parts
Model #FCRC3012AWA Frigidaire electric rangeFCRC3012AWA
Body
Shop Parts
Model #FFIF3054TSB Frigidaire electric rangeFFIF3054TSB
Body
Shop Parts
Model #FEF336ECK Frigidaire electric rangeFEF336ECK
Body
Shop Parts

Reviews

Installed in a snap
October 16, 2020

Disconnected old one connected new one. It was a snap!

Assistant, Portland, OR

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend

Install broiler element
July 03, 2019

Replace burned out broiler element. Remove back panel and screws from inside oven. Pull the element connections away from the old element and replace in oven and push through the cotton and connect the element connections. Make sure the power is off!

Dia63, Fairfield, CA

1 person thought this review was helpful.

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour
Broil element install
December 11, 2018

Remove the back plate on oven portion. Hang the new unit. Reclasp connection clips, ensuring they are unable to slip back off. Replace the back plate. After completing, turn broil element on....note it will smoke some in burning off the newness. Turn the broil element back off. Your done.

Bob B, Hertford, NC

1 person thought this review was helpful.

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour
Installation Ease
July 30, 2018

The part was very easy to order and install. The delivery was a bit pricey.

Jcell, Florida

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes
