Samsung DV410AER/XAA dryer Parts

A bad (blown) thermal fuse in your Samsung DV410AER dryer will read open on a multimeter (no continuity). After unplugging the dryer, remove the fuse and test it; a good fuse reads near 0 ohms or beeps on continuity, and a blown fuse reads OL/infinite.

• Unplug the dryer (or switch off the breaker) before opening any panels.

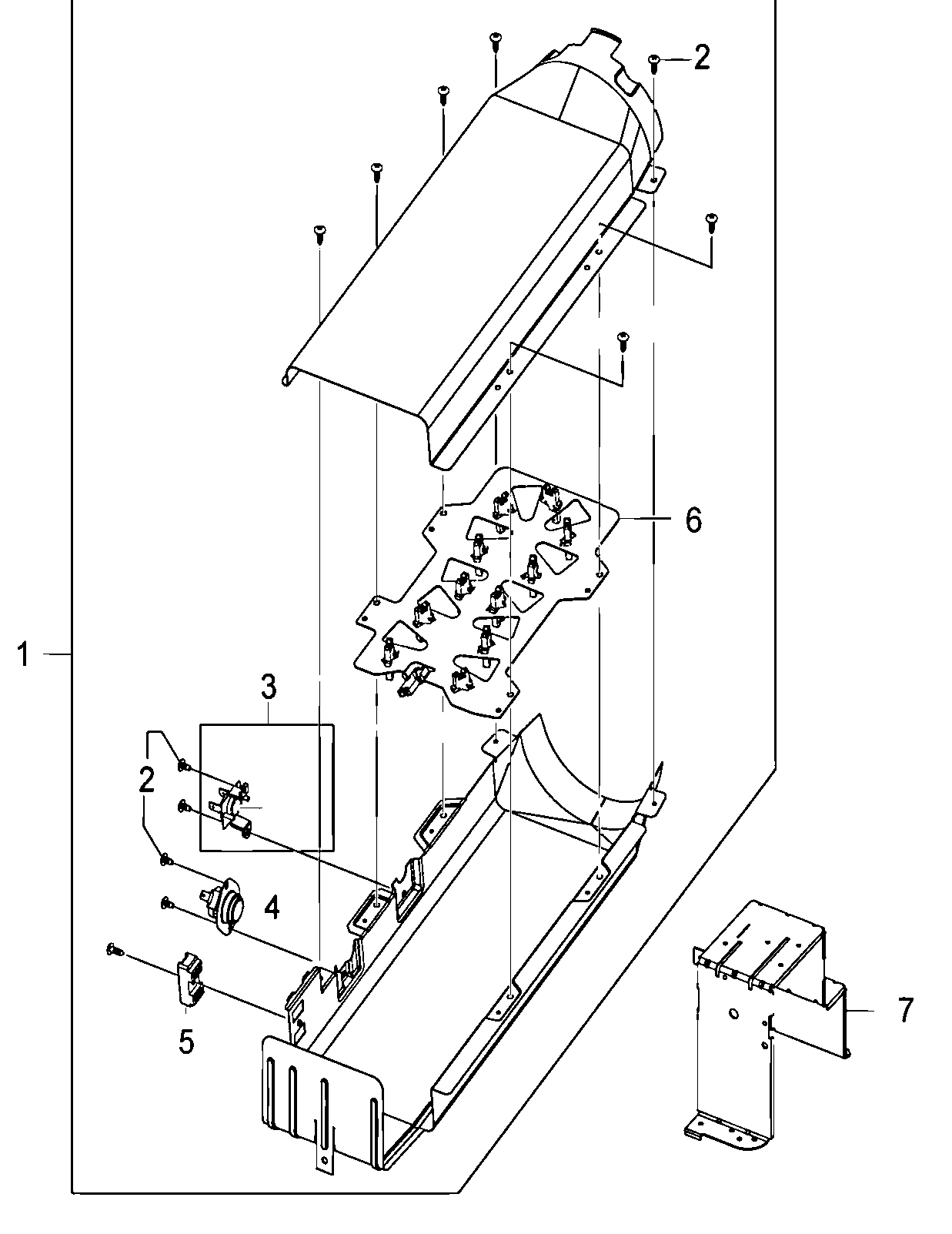

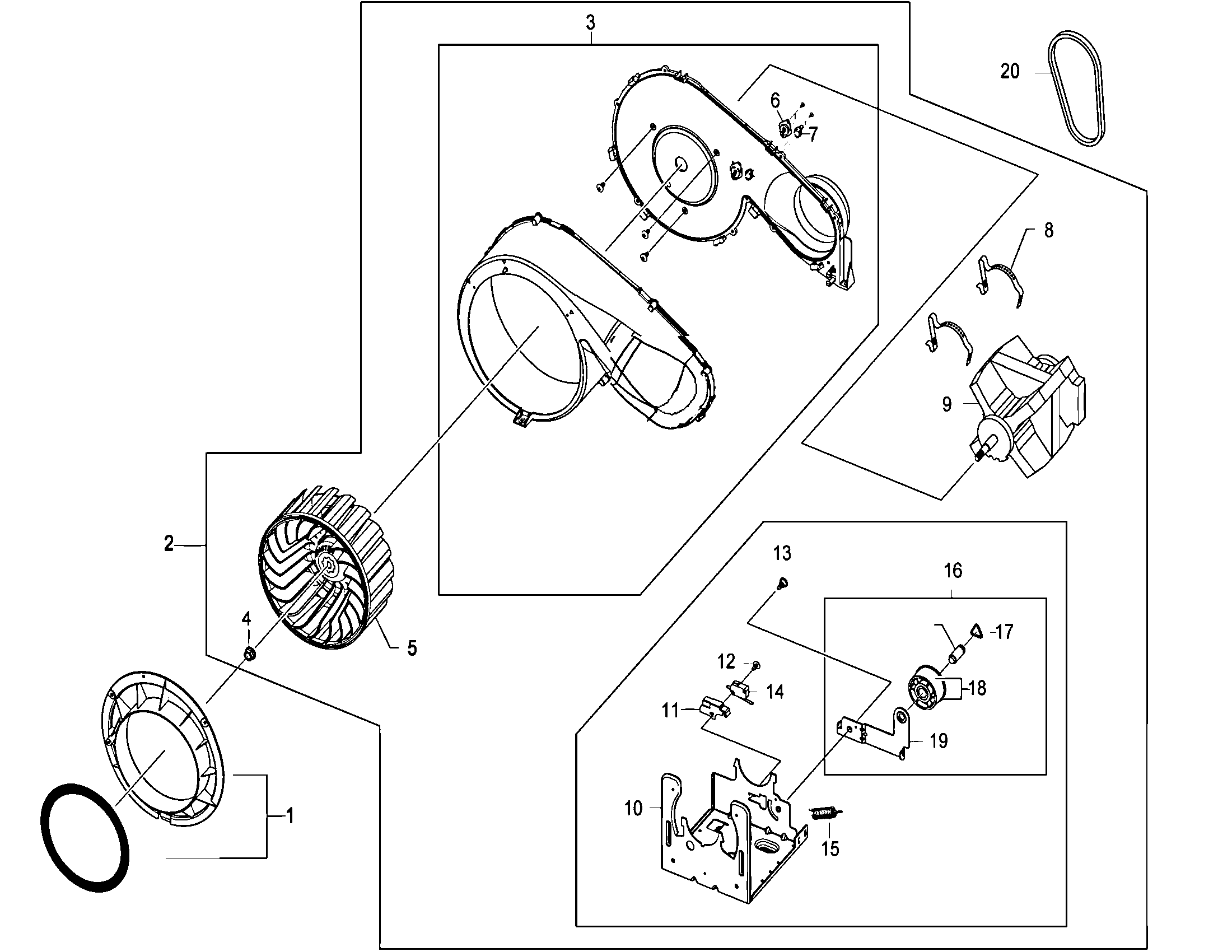

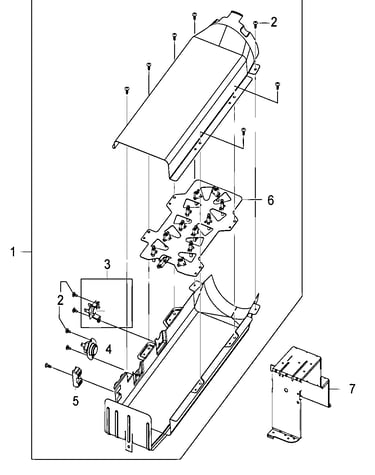

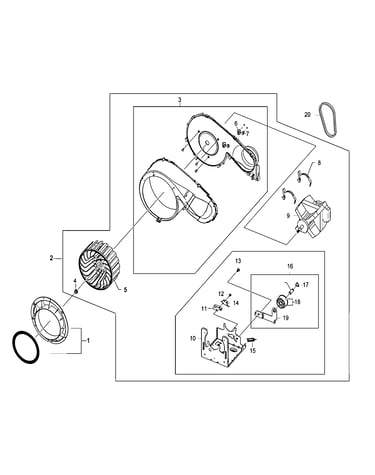

• Access the thermal fuse area (commonly on the blower housing or heater housing, depending on the design).
• Pull the wire connectors off the fuse terminals (grip the connector, not the wire).
• Set your multimeter to continuity or the lowest ohms setting.
• Touch one probe to each terminal.
• Read the result and compare it to the table below.

A thermal fuse usually blows because the dryer overheated. For DV410AER, our best first steps are airflow and lint control, which the DV410AER owner's manual emphasizes.

• Clean the lint screen before or after every load
• Check the vent hood outside; it must open and close freely
• Inspect and clean the exhaust duct; it should be cleaned periodically and inspected at least annually
• Use 4-inch rigid metal duct or stiff-walled flexible metal duct (avoid plastic flexible duct)
• Avoid crushing or kinking the vent behind the dryer

If testing shows the fuse is blown, replacement is typically paired with correcting airflow. Depending on what you find during diagnosis, these model-matched parts are common suspects:

• Dryer thermal cut-off fuse DC47-00015A
• Dryer high-limit thermostat DC47-00018A
• Dryer heating element DC47-00019A

You can order replacement parts for your Samsung DV410AER from the parts list for this model, or search by model number on Sears PartsDirect.

The thermal fuse is a one-time safety device; bypassing it can allow unsafe overheating. Replacing the fuse without fixing vent restriction often leads to repeat failures and long dry times.

Last updated: February 2026

To hard reset your Samsung dryer model DV410AER, turn the dryer off, then disconnect power for 1 to 5 minutes so the control fully clears. Restore power and run a Sensor Dry cycle again; if the issue returns, check airflow and sensor-related parts.

• Press Power to turn the dryer off.
• Unplug the dryer (or switch the dryer circuit breaker off).
• Wait 1 to 5 minutes.
• Restore power.
• Select a Sensor Dry cycle (Normal, Heavy Duty, Towels, Perm Press, Delicates, Sanitize) and press Start/Pause.
• Watch the display for END at cycle completion and confirm the cycle time behaves normally.

A reset clears a temporary control glitch. If the dryer still ends too soon, runs too long, or shows moisture-sensing related behavior, these checks fix most causes:

• Clean the lint screen and confirm strong airflow at the outside vent.
• Avoid overloading; bulky loads can confuse Sensor Dry and extend or shorten run time.
• Use the correct Dry level setting (Very Dry or More Dry for bulky loads).
• If buttons do not respond, verify Child Lock is off (Temp + Time held 3 seconds).
• If drying is inconsistent, test temperature sensing; a failed thermistor can cause poor cycle control.

If airflow is good and the reset did not help, these parts are common suspects on DV410AER:

Sensor Dry cycles on DV410AER automatically sense moisture and stop when the selected dryness level is reached. A clean vent path and accurate temperature sensing help the control estimate remaining time correctly and prevent under-drying or overheating.

For cycle and option details (Sensor Dry cycles, Dry level settings, Child Lock), follow the steps in the owner's manual. For ordering replacement parts for DV410AER, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A Samsung dryer like model DV410AER lasts 10 to 15 years with normal household use. Consistent airflow (lint control and clear venting), stable heat regulation, and replacing wear items on time are what keep you closer to the 15-year mark.

• Restricted venting and lint buildup (raises heat and stress on components)
• Overheating or poor temperature control (shortens heater and safety device life)
• Drum support wear (rollers and belt wear increase strain and noise)
• Heavy loads and frequent cycles (more motor and drum wear)
• Skipped cleaning and maintenance (more breakdowns over time)

• Clean the lint screen after every load.
• Check the vent path for kinks, crushing, or lint buildup; keep airflow strong.
• Keep the dryer level to reduce drum and support wear.
• Stop using the dryer if you notice burning smells, repeated overheating, or sudden shutoffs.
• Follow the care, venting, and safety guidance in the DV410AER owner's manual.

If the dryer is otherwise in good shape, these common wear or heat-related parts often restore performance:

A dryer that takes longer to dry or runs hotter than normal wears out faster. Keeping airflow clear and heat properly controlled reduces stress on the heating element, thermostats, motor, and drum support system.

You can order DV410AER replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
