Whirlpool WDF530PLYB7 dishwasher Parts

A Whirlpool dishwasher typically lasts 10 to 12 years with normal household use. For your Whirlpool WDF530PLYB7, consistent cleaning, correct detergent use, and fixing small issues early (drain, fill, heat, latch) are the biggest factors in reaching that lifespan.

What affects lifespan the most

• Water quality and detergent: Hard water and too much detergent increase buildup.
• Filter and spray performance: A clogged filter or blocked spray arm makes the pump work harder.
• Heating and drying: Weak heating can leave residue and increase cycle time.
• Door closing and latching: A door that is not tightly latched can stop or interrupt cycles.
• Drain health: Slow draining strains the drain pump and can leave dirty water in the sump.

Maintenance that extends life (simple routine)

• Clean the filter area regularly; replace a worn or damaged filter such as the dishwasher filter WPW10463906 when it no longer cleans up well.
• Check the spray arm holes for debris; replace a cracked or warped arm like the dishwasher spray arm WPW10491331 if it will not spin or spray evenly.
• Run a monthly cleaning cycle and wipe the door gasket area.
• Use a quality detergent; the manual notes premeasured tablets or packs are recommended for regular daily use.
• Before vacations or long periods without use, shut off water and power as outlined in the WDF530PLYB7 owner’s manual.

Quick symptom-to-part guide

Symptom	Most common area to check	Example model-matched part

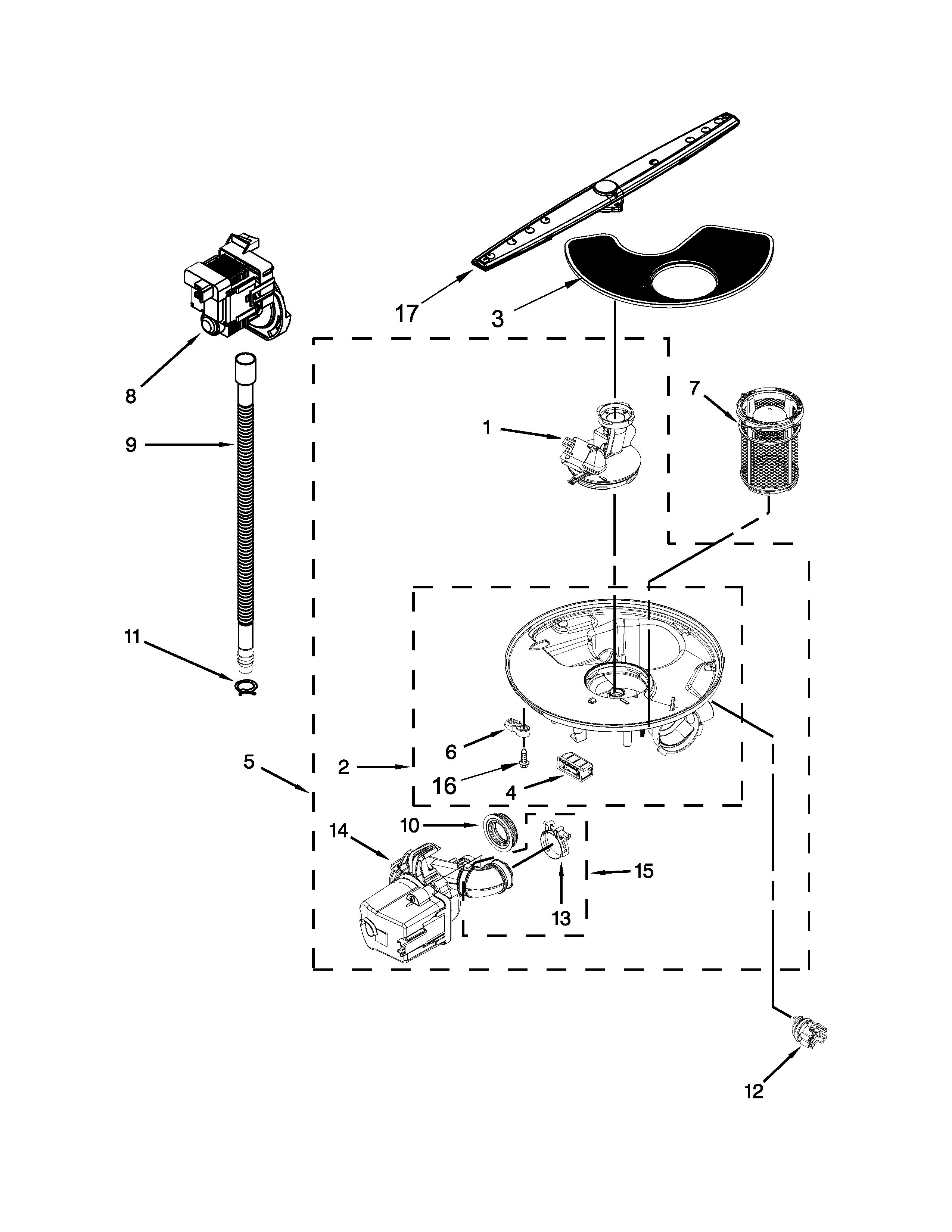

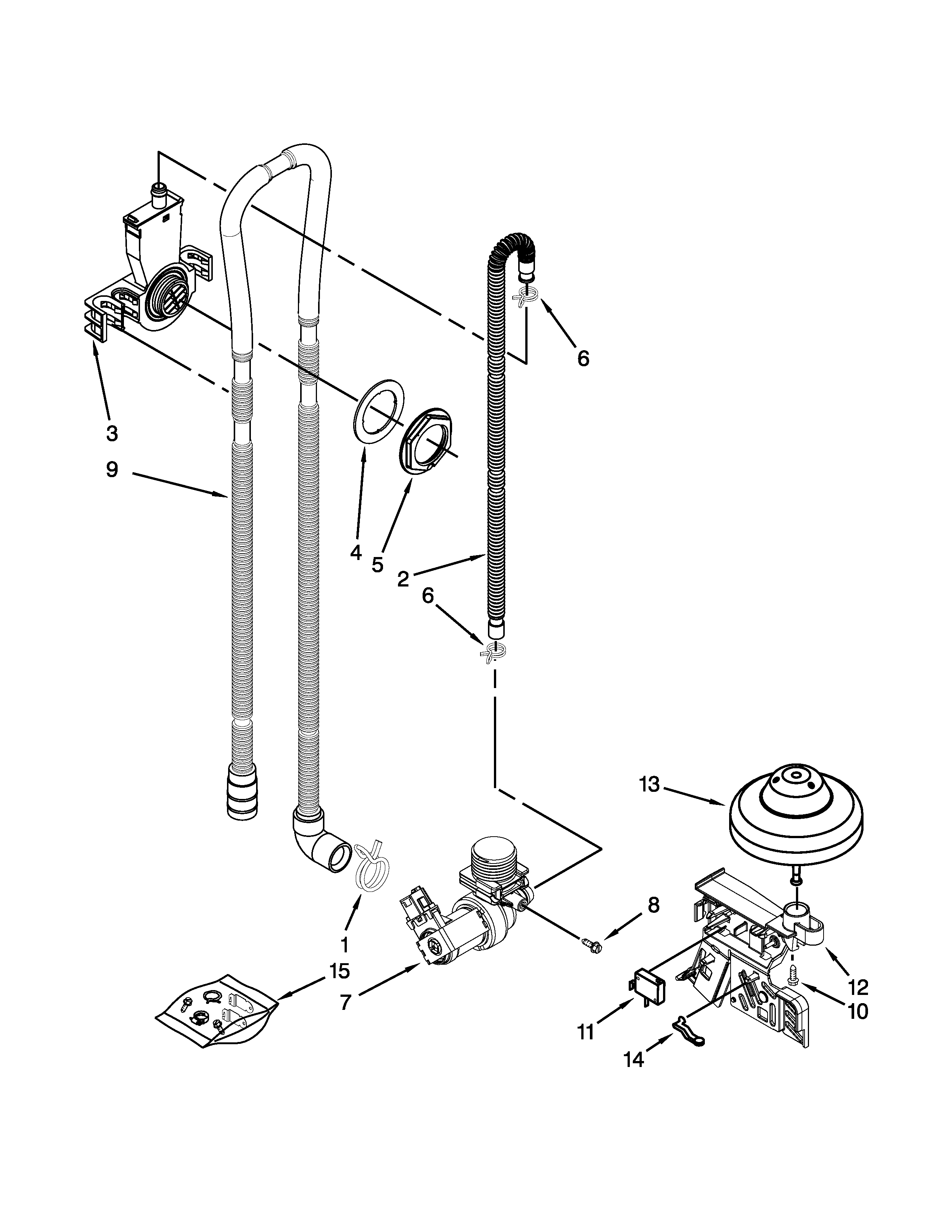

Not draining	Drain path, pump, hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A

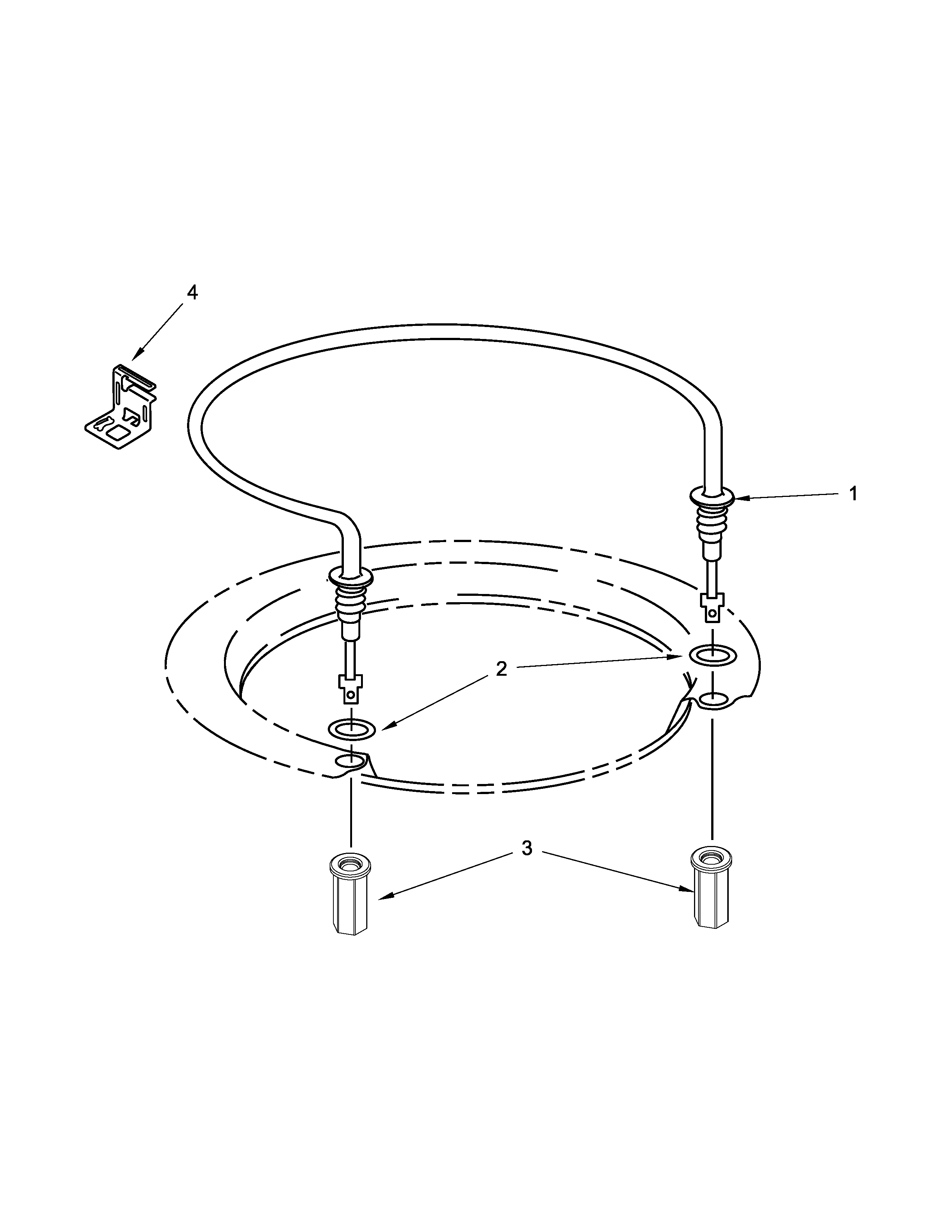

Not drying / cool water	Heating circuit	Element assembly W10518394
Stops mid-cycle	Door latch, power supply	Dishwasher door latch WPW10653840
Not filling	Water supply, inlet valve	Dishwasher water inlet valve W11175771

Why it matters

A dishwasher that is draining, filling, and heating correctly cleans faster and puts less load on the motor and seals. That reduces wear on high-cost assemblies (pump, sump, control) and helps your WDF530PLYB7 reach the normal 10 to 12 year service life.

Last updated: February 2026

Drain and fill problems are the most common issues we see on Whirlpool dishwashers like model WDF530PLYB7. In real use, that usually traces back to restricted water flow (clogged filter or spray arm), a drain restriction, or a door that is not fully latched so the cycle pauses or will not start.

Most common symptoms and what they usually mean

• Not draining or standing water: filter/sump debris, drain hose restriction, or a weak drain pump
• Poor cleaning: blocked spray arm holes, dirty filter, low water fill, or circulation problem
• Won’t start or stops mid-cycle: door not latched, power interruption, or control sensing an issue
• No fill or slow fill: water shutoff valve closed, float stuck, or inlet valve problem
• Clean light flashing: often tied to fill issues, suds/foam, or the float not moving freely

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes tightly and latches; a loose latch can stop the cycle.
2. Check the kitchen sink drain and disposer for clogs (they can affect dishwasher draining).
3. Inspect and clean the filter area; rinse away food soil and buildup.
4. Make sure the overfill protection float moves up and down freely (press down to release).
5. Verify the water shutoff valve is fully open and the dishwasher has power (breaker/fuse).

Parts that commonly solve these problems on WDF530PLYB7

If the quick checks do not fix it, these model-matched parts are frequent solutions:

Problem you notice	Part that often fixes it	What it does
Water left in tub	Dishwasher drain pump WPW10348269	Pushes water out through the drain hose
Not filling well	Dishwasher water inlet valve W11175771	Opens to let water into the dishwasher

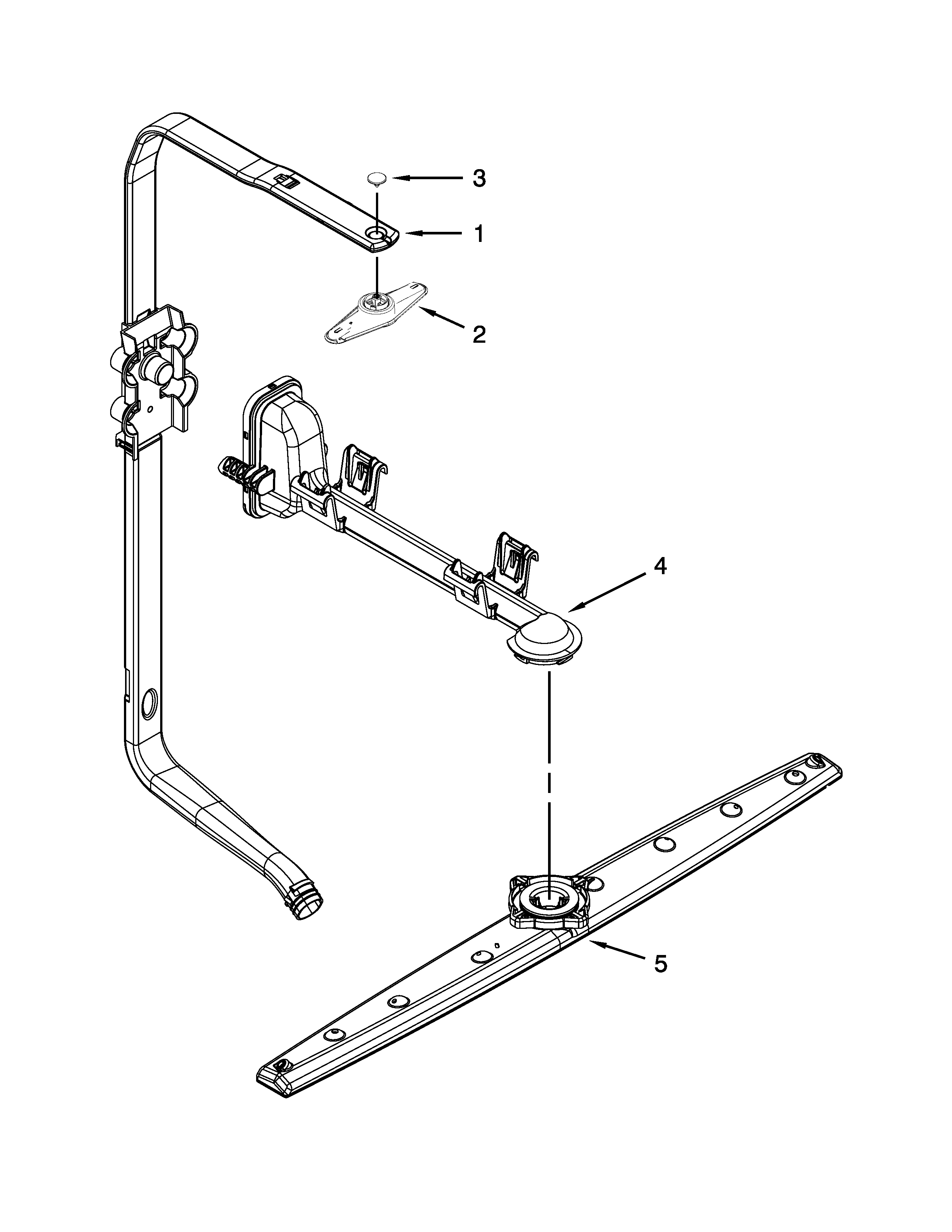

Poor wash coverage	Dishwasher spray arm WPW10491331	Spins and sprays water through the rack load
Not drying well	Element assembly W10518394	Heats water and supports drying performance

Why it matters

Drain, fill, and wash-flow issues can make cycles run longer, leave residue on dishes, and trigger flashing lights or pauses. Fixing the root cause (water flow, drainage path, or latch) restores normal cycle operation and cleaning.

For model-specific troubleshooting steps and cycle behavior, use the WDF530PLYB7 owner's manual.

Last updated: February 2026

On your Whirlpool WDF530PLYB7 dishwasher, we use the model and serial number from the rating label (inside the door area) to look up the correct replacement part number. The label is located near the door on the right-hand or left-hand side of the dishwasher interior.

Where to look on the dishwasher

Check these common label locations first:

• Open the door and look along the inner tub frame (right side or left side)
• Look near the front edge of the opening, close to the door latch area
• Wipe the area with a damp cloth; soap film can hide the print
• Use a flashlight and view from an angle to make faded text easier to read

What numbers you need (and why)

For parts ordering, the most important identifier is the model number (WDF530PLYB7). The serial number helps confirm production details when a part changed during a model run.

What you see on the label	What we use it for	Example format
Model number	Matches parts to your exact dishwasher	WDF530PLYB7
Serial number	Confirms version/date range when needed	Letters and numbers
Part number (on a component)	Identifies that specific component only	Varies by part

If you are trying to identify a specific part

Many dishwasher parts also have a number printed on the part itself, but we still match by model first to avoid ordering the wrong revision.

• Use the model number to find the correct part listing
• Compare the part name and photos to what you are replacing
• If the issue is heating or drying, the heater is commonly replaced as an assembly (see element assembly W10518394)

Why it matters

Whirlpool dishwashers can use different versions of the same component across production runs. Using the WDF530PLYB7 model number from the label ensures the replacement part fits, mounts correctly, and connects to the wiring and hoses as designed.

For diagrams and label details, use the WDF530PLYB7 owner’s manual.
