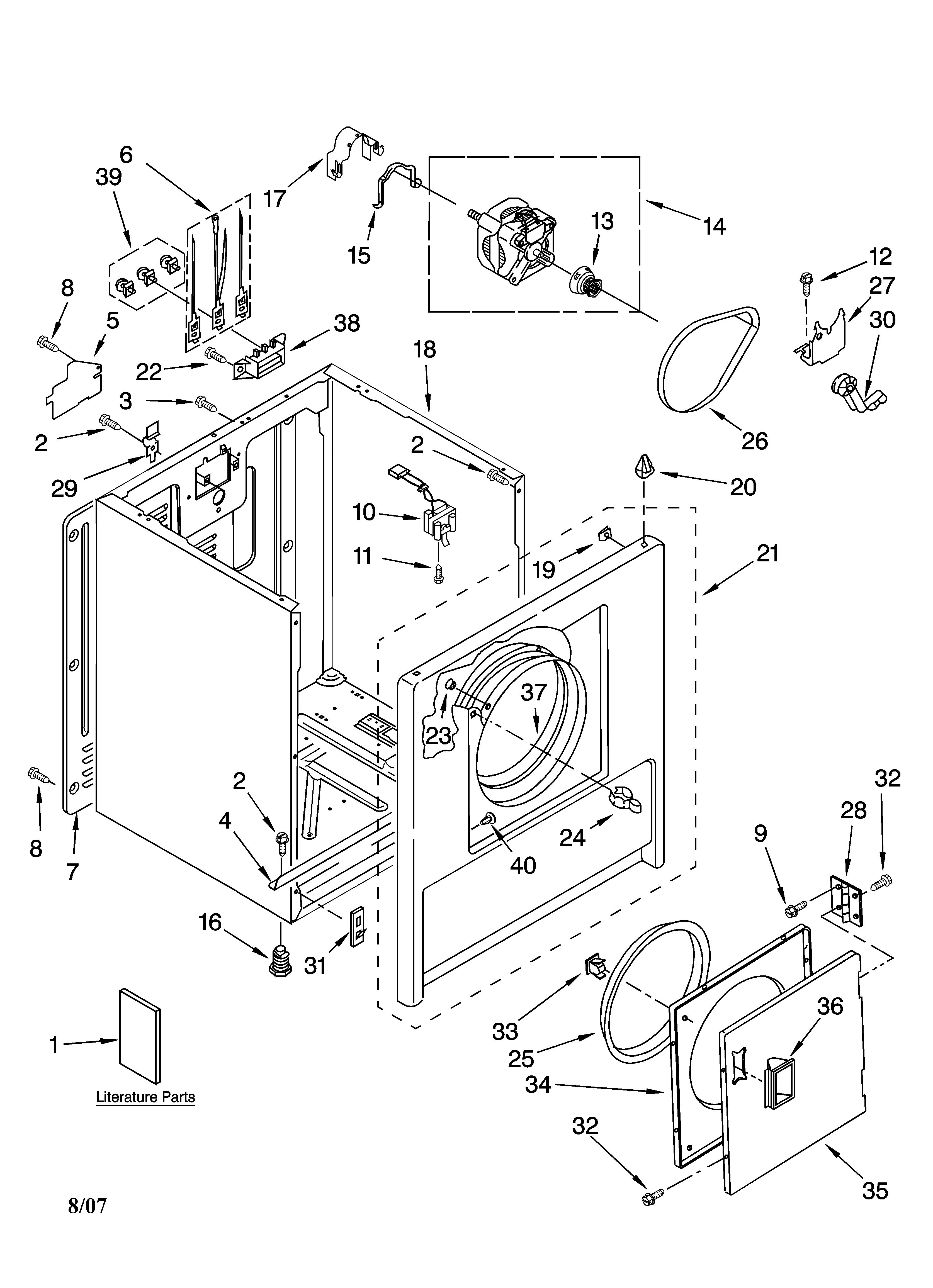

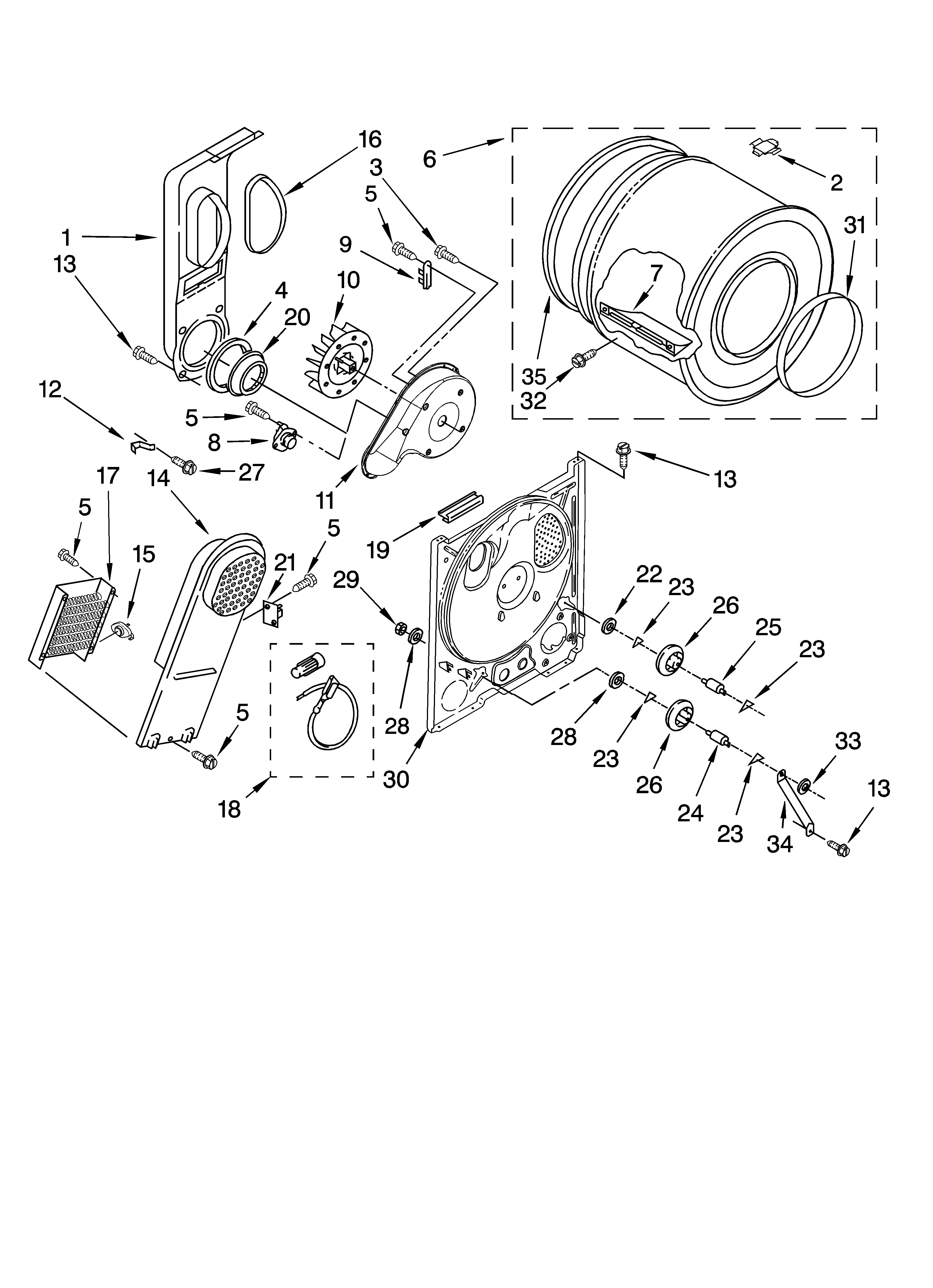

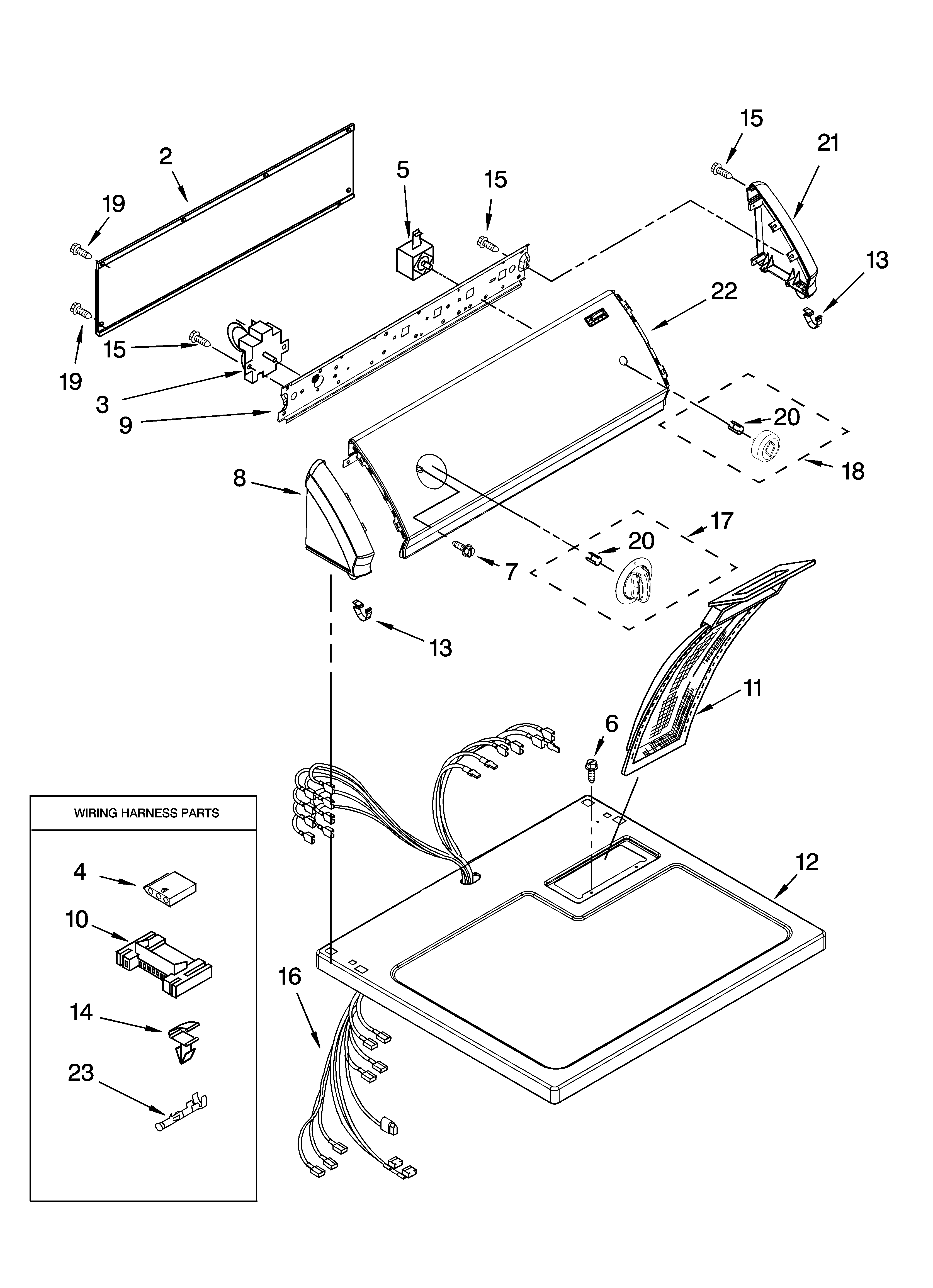

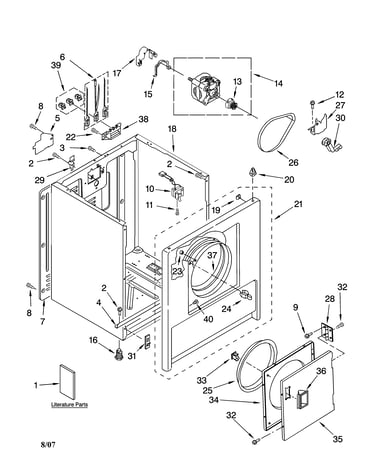

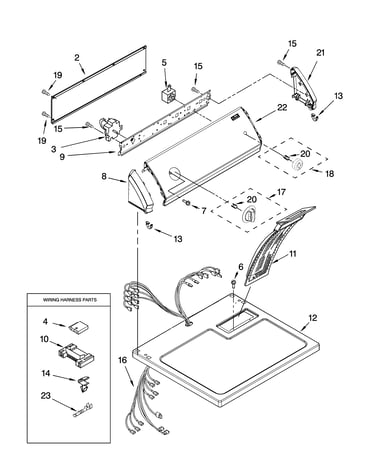

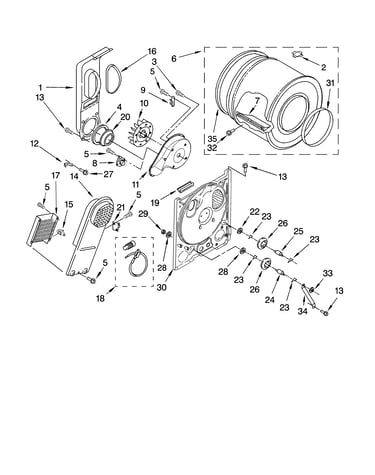

Kenmore 11068322700 dryer Parts

A blown dryer fuse usually shows up as a Kenmore dryer that will not start, or an electric dryer that runs but has no heat. On model 11068322700, confirm basic power and door checks first, then test the fuse circuit for continuity.

Quick checks first (no tools)

Before opening the cabinet, we check the same basics listed in the 11068322700 owner's manual:

• Make sure the door is fully closed and latched
• Press Start firmly and select a real cycle (not an off position)
• Confirm the dryer is plugged in and the power supply is on
• For electric dryers, check both household fuses or breakers (the drum can turn with one side out)
• If the dryer runs but does not heat, suspect a tripped breaker or a heat-safety device

How to confirm a blown fuse with a multimeter

A thermal fuse or thermal cut-off is a one-time safety device; when it opens, it stays open.

• Unplug the dryer (or shut off the breaker) before testing
• Access the fuse or thermal cut-off on the blower housing or heater box area
• Remove at least one wire from the fuse terminal so you do not read through the circuit
• Set the meter to continuity or lowest ohms
• Good fuse: continuity (beep) or near 0 ohms
• Blown fuse: no continuity (open circuit)

Common symptom-to-part direction

Symptom	Most likely area	What we check next
Dryer will not start	Safety circuit	Door switch, thermal fuse/cut-off, start switch
Runs but no heat (electric)	Power or heat circuit	Both breakers/fuses, heater circuit safeties
Stops mid-cycle, clothes damp	Airflow restriction	Venting, lint buildup, blower wheel

Why it matters

A fuse typically blows because the dryer overheated. If we replace the fuse without fixing airflow, the new fuse can blow again quickly.

• Clean the lint screen and lint chute path
• Inspect the vent for crushing, kinks, or blockage
• Check the blower wheel for looseness or lint packing

If you are already inside the cabinet for a no-heat repair, the dryer thermal cut-off fuse kit 279816 is the correct style of safety kit used on many Kenmore 110-series builds like this one.

Last updated: February 2026

If your Kenmore dryer model 11068322700 runs but has no heat, takes much longer to dry, or leaves clothes damp, the heating element is a top suspect. We confirm it by checking the element for proper resistance and making sure it is not shorted to the metal heater housing.

Quick symptoms vs. likely causes

• Drum tumbles but there is no heat
• Drying times suddenly get much longer
• Clothes feel warm at first, then go cool too soon
• Burning smell or visible scorching near the heater area
• Repeated heat-related shutdowns (often tied to airflow restrictions)

How we test the heating element (safe, reliable method)

1. Unplug the dryer (electric shock risk).
2. Access the heater assembly using the steps in the 11068322700 owner's manual.
3. Remove at least one wire from the element terminal.
4. Use a multimeter:
   • Element continuity/resistance: most electric dryer elements read roughly 10 to 50 ohms.
   • Short-to-ground test: check from an element terminal to the metal heater box; it should read OL/infinite.

What the meter results mean

Test	Normal reading	What “bad” looks like
Across element terminals	~10 to 50 ohms	OL/infinite (open element)
Terminal to metal housing	OL/infinite	Any measurable resistance (shorted)

Don’t miss these common “no heat” look-alikes

Your manual notes that many “no heat” complaints are power or supply related. Electric dryers typically use two fuses/breakers; the drum can run on 120V while the heater needs full 240V.

• Reset both breakers (or replace both fuses if applicable)
• Confirm the dryer is on a 240V supply
• Check venting for crushing/kinks and blockage (poor airflow can overheat and trip safety devices)
• Inspect the thermal safety parts if the element tests good

Parts that commonly relate to this repair

Part	What it affects
Dryer element 279838	Primary heat source for electric drying
Dryer thermal cut-off fuse kit 279816	Safety cutoff if overheating occurs
Dryer high-limit thermostat WP3977767	Limits heater temperature to prevent overheating

Why it matters

A failed element (open or shorted) stops proper heating, but restricted venting and heat-safety cutoffs can create the same symptoms. Testing the element first, then verifying power and airflow, prevents repeat failures and restores normal drying performance.

Last updated: February 2026

For Kenmore dryer model 11068322700, the model number is printed on the model and serial number label located at the top inside the dryer door well. Write down the full model number and serial number exactly as shown so we can match the correct parts, wiring, and venting requirements.

Where to look on your Kenmore dryer

On Kenmore dryers like model 11068322700, we use the model and serial label to identify the exact version.

• Open the dryer door and look inside the door opening
• Check the top inside the dryer door well (most common for this model)
• Copy the entire model number (all digits) and the serial number
• Take a clear photo of the label for reference when ordering parts
• If the label is worn, gently wipe dust off with a damp cloth and re-check

What the model number tells you (and why it matters)

The model number is the key to getting the right Kenmore dryer parts and repair instructions. Even small model changes can affect which belt, thermostat, or heating component fits.

What you record	Example for this dryer	Why we need it
Model number	11068322700	Matches the correct parts diagrams and compatible parts
Serial number	(varies)	Helps identify production variation when it matters
Purchase date (if known)	(varies)	Useful for service history and documentation

Tips to avoid ordering the wrong part

If you are troubleshooting while you identify the model, these are common parts customers replace on this Kenmore dryer.

• Squealing or thumping: consider the dryer repair kit 4392065
• Drum not turning: check the dryer drum belt 341241 and idler pulley
• No heat or overheating symptoms: inspect venting and heating circuit components
• Long dry times: clean lint screen and confirm the exhaust vent is clear and routed as straight as possible

Use the documentation for exact label location and records

We recommend using the 11068322700 owner's manual to confirm the label location and to record the model and serial number for future parts lookups.

Why it matters

Using the exact model number (not just “Kenmore 110”) prevents fit issues and repeat repairs; it ensures the correct Kenmore dryer parts, installation specs, and troubleshooting steps apply to your dryer.

Last updated: February 2026

To hard reset your Kenmore dryer model 11068322700, disconnect power (unplug the cord or switch off the breaker) for 1 minute, then restore power and start a Timed Dry heated cycle. This clears many control and cycle issues and confirms the dryer can start normally.

Hard reset steps (11068322700)

• Turn the Cycle Selector to Off.
• Unplug the dryer (or turn off the circuit breaker).
• Wait 1 minute.
• Restore power.
• Close the dryer door fully.
• Select Timed Dry with heat (do not use Air Only).
• Press Push to start.

For cycle and start details, follow the 11068322700 owner's manual.

If the dryer still will not start after the reset

Use this quick checklist from the installation diagnostic guidance in the 11068322700 installation guide:

• Confirm controls are set to a running position (not Off).
• Press the Start button firmly.
• Verify the dryer is plugged in and the household breaker is not tripped.
• Make sure the dryer door is fully closed.
• Check that the vent is not crushed or kinked (restricted airflow can trigger heat related shutdowns).

Common parts that cause “won’t start” symptoms

Symptom	Most likely area	Example part for this model
No response when pressing Start	Start circuit	Dryer push-to-start switch WP3977456
Starts only with door held shut	Door interlock	Door switch WP3406105
Runs but shuts down or overheats	Airflow and safety thermostats	Dryer thermal cut-off fuse kit 279816

Why it matters

A hard reset restores the dryer’s normal power-up state and helps separate a simple power/control glitch from a real failure (door switch, start switch, or an overheat safety opening due to vent restriction).

Last updated: February 2026

Yes, it’s usually worth replacing the heating element in your Kenmore dryer model 11068322700 when the dryer runs but has no heat, because the repair cost is typically far less than replacing the dryer and it often restores normal drying performance.

When replacing the heating element makes sense

We recommend replacing the heating element when the dryer tumbles normally and airflow is good, but clothes stay cold or take far too long to dry.

• The drum turns, but there’s no heat
• You’ve confirmed the vent is not crushed or blocked (restricted airflow can cause overheating and repeated failures)
• The dryer has otherwise been reliable (no major motor noise, no burning smell, no repeated shutdowns)
• You’re prepared to follow the safety guidance in the 11068322700 owner’s manual

Check these first (common “no heat” causes)

Before buying parts, rule out power and airflow issues that can mimic a bad element.

• Verify the dryer has the correct power supply; electric dryers require 240 volts
• Check both household fuses or breakers; an electric dryer can run but not heat if one side trips
• Confirm the door closes fully and the Start button is pressed firmly
• Inspect the vent path for crushing, lint buildup, or blockage (poor airflow can trigger heat-related cutoffs)

Parts that are commonly involved

If the element is open or grounded, replacement is the right fix. If the element failed due to overheating, we also look closely at the safety thermostats and airflow.

Symptom	Most likely part(s)	Notes
Tumbles, no heat	Dryer element 279838	Primary electric heat source
No heat after overheating/poor venting	Dryer thermal cut-off fuse kit 279816	Often trips when airflow is restricted
Overheating or cycling issues	Dryer operating thermostat, high-limit thermostat	Thermostats help regulate temperature

Why it matters

A dryer that tumbles with no heat is often a straightforward repair, but airflow and electrical supply checks prevent repeat failures and help the dryer dry faster and safer.

Last updated: February 2026

For Kenmore 80 Series dryers like model 11068322700, the most consistent “size” you can count on is the 29-inch wide full-size platform; capacity varies by exact model and drum design, but most 29-inch Kenmore 80 Series units are in the full-size (roughly 6.0 to 7.0 cu. ft.) range.

What “size” can mean (and what we use)

Dryer “size” is usually one of these:

• Width (cabinet size): the standard fit measurement for laundry rooms
• Capacity (cu. ft.): how much laundry the drum holds
• Overall dimensions: needed for closets, alcoves, and vent clearance

For 11068322700, the installation instructions identify it as a 29-inch (73.7 cm) electric dryer. See the 11068322700 installation guide.

Typical size details for Kenmore 80 Series (110-prefix) dryers

Most Kenmore 80 Series dryers built on the 29-inch platform share similar fit and clearance needs.

Spec type	What to expect	Best place to confirm
Cabinet width	29 in (73.7 cm)	11068322700 installation guide
Capacity	Typically ~6.0 to 7.0 cu. ft.	11068322700 owner's manual
Rear clearance for venting	Often needs about 5 in minimum (varies by vent elbow)	11068322700 installation guide

Why it matters

Getting the “size” right prevents install surprises. Width and depth affect whether the dryer fits a closet opening, and vent clearance affects drying performance and can shorten component life if airflow is restricted.

Quick tips before you buy parts or plan a swap

• Measure the opening width and door swing clearance.
• Plan for vent routing; longer or kinked venting increases dry time.
• Keep the dryer level; uneven floors can affect tumbling and sensor cycles.
• If dry times are long, check airflow and the lint path; a damaged blower can also reduce airflow.
• For airflow-related repairs on this model, the dryer blower wheel WP694089 is a common wear item.

Last updated: February 2026
