Model #MVWX655DW0 Maytag washer

Here are the diagrams and repair parts for Maytag MVWX655DW0 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

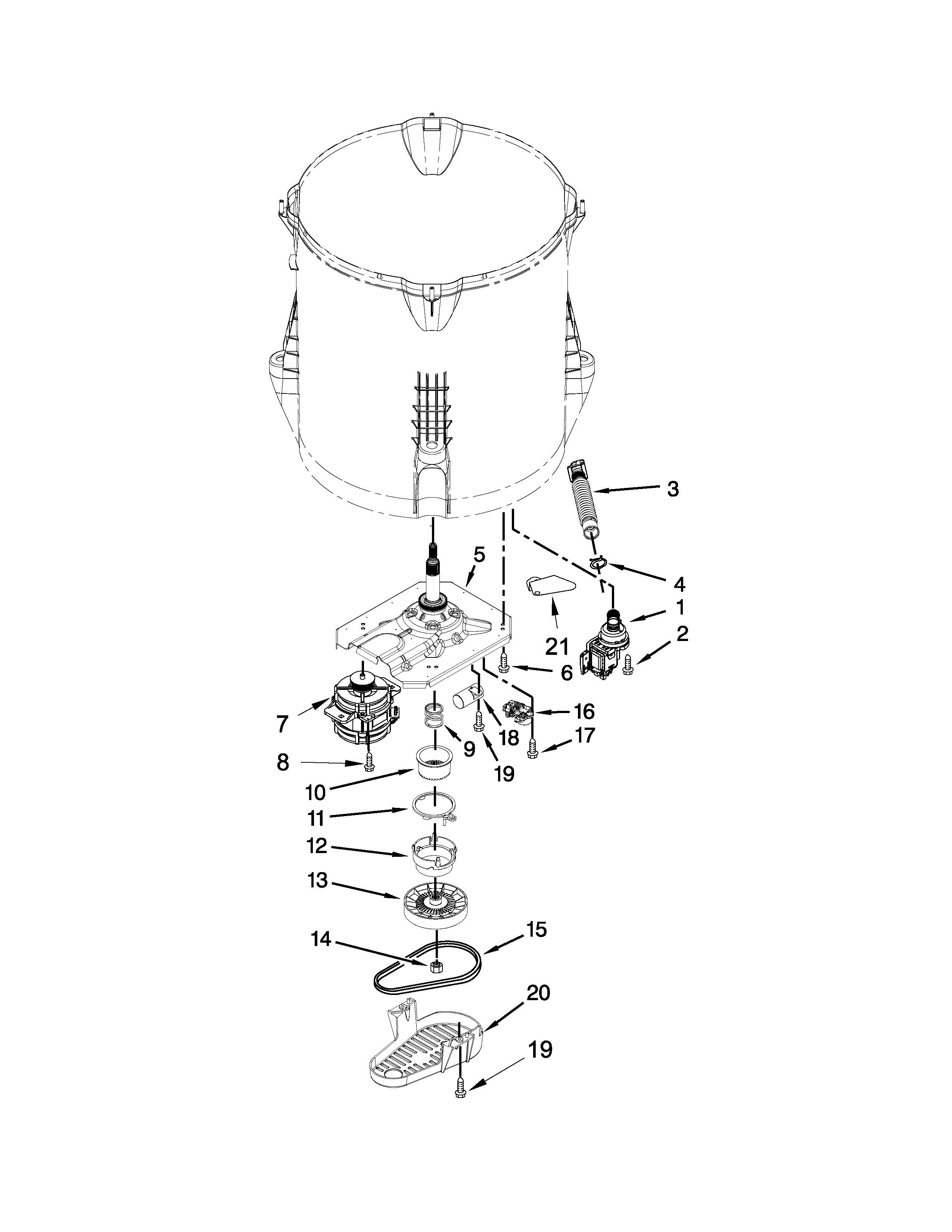

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 119 parts

    Affresh Washer Cleaner, 3-pack

    #NI

    Optional parts (not included) Diagram

    $13.61

    In Stock

    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    Optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    This item is not returnable
    $6.70 |
    11% OFF MSRP:$7.50

    In Stock

    Washer Electronic Control Board Assembly

    #6

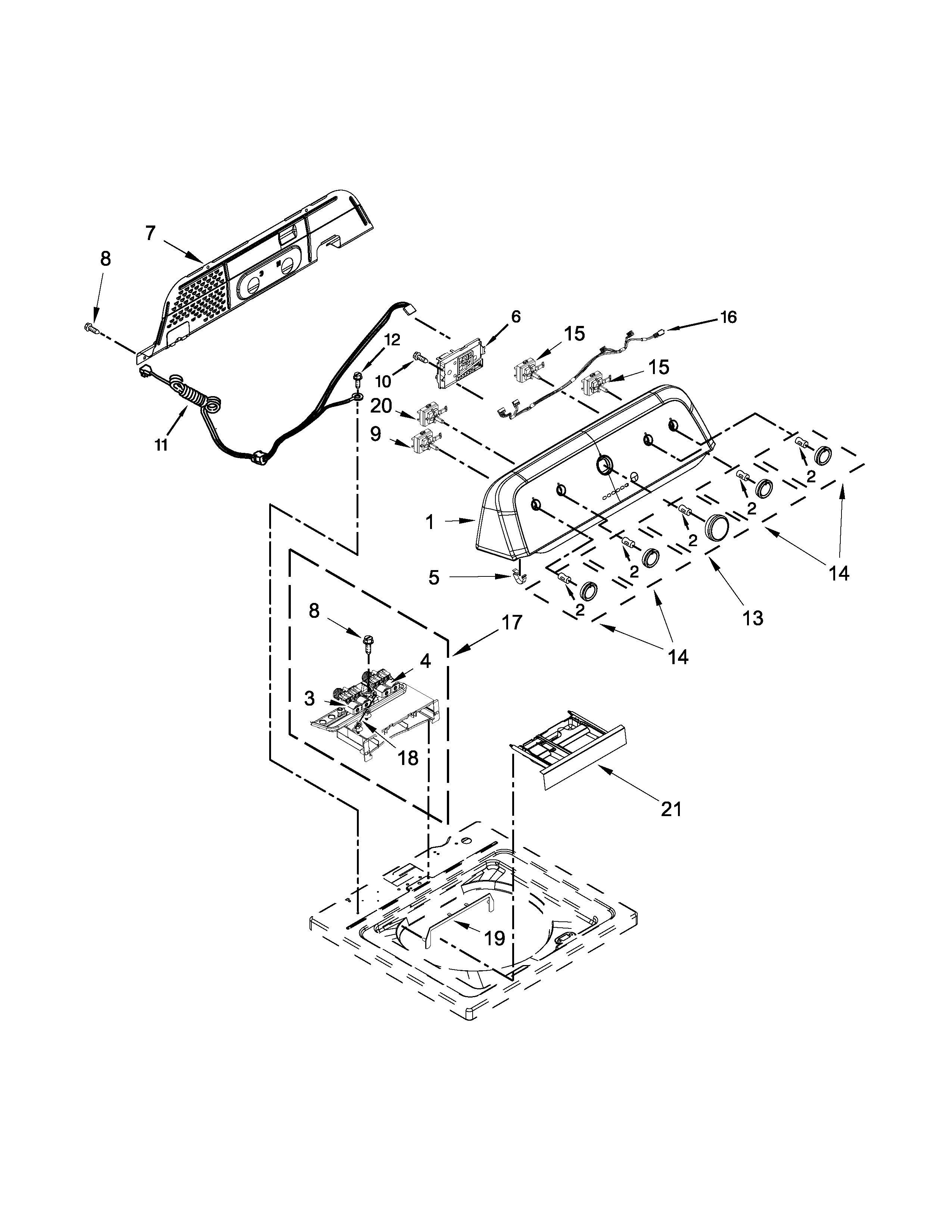

    Console and water inlet parts Diagram

    $146.05 |
    32% OFF MSRP:$214.53

    In Stock

    Washer Fill Hose Set

    #NI

    Optional parts (not included) Diagram

    Washer fill hose set

    Part #8212545RP
    $24.32

    In Stock

    Appliance Spray Paint (Gray Primer)

    #NI

    Optional parts (not included) Diagram

    $23.27

    In Stock

    Washer Fill Hose, 2-pack

    #NI

    Optional parts (not included) Diagram

    Washer fill hose, 2-pack

    Part #8212641RP
    $15.11 |
    20% OFF MSRP:$19.00

    In Stock

    Washer Cabinet (White)

    #17

    Top and cabinet parts Diagram

    Washer cabinet (white)

    Part #W10676680
    $192.60 |
    8% OFF MSRP:$210.00

    In Stock

    Clamp

    #3

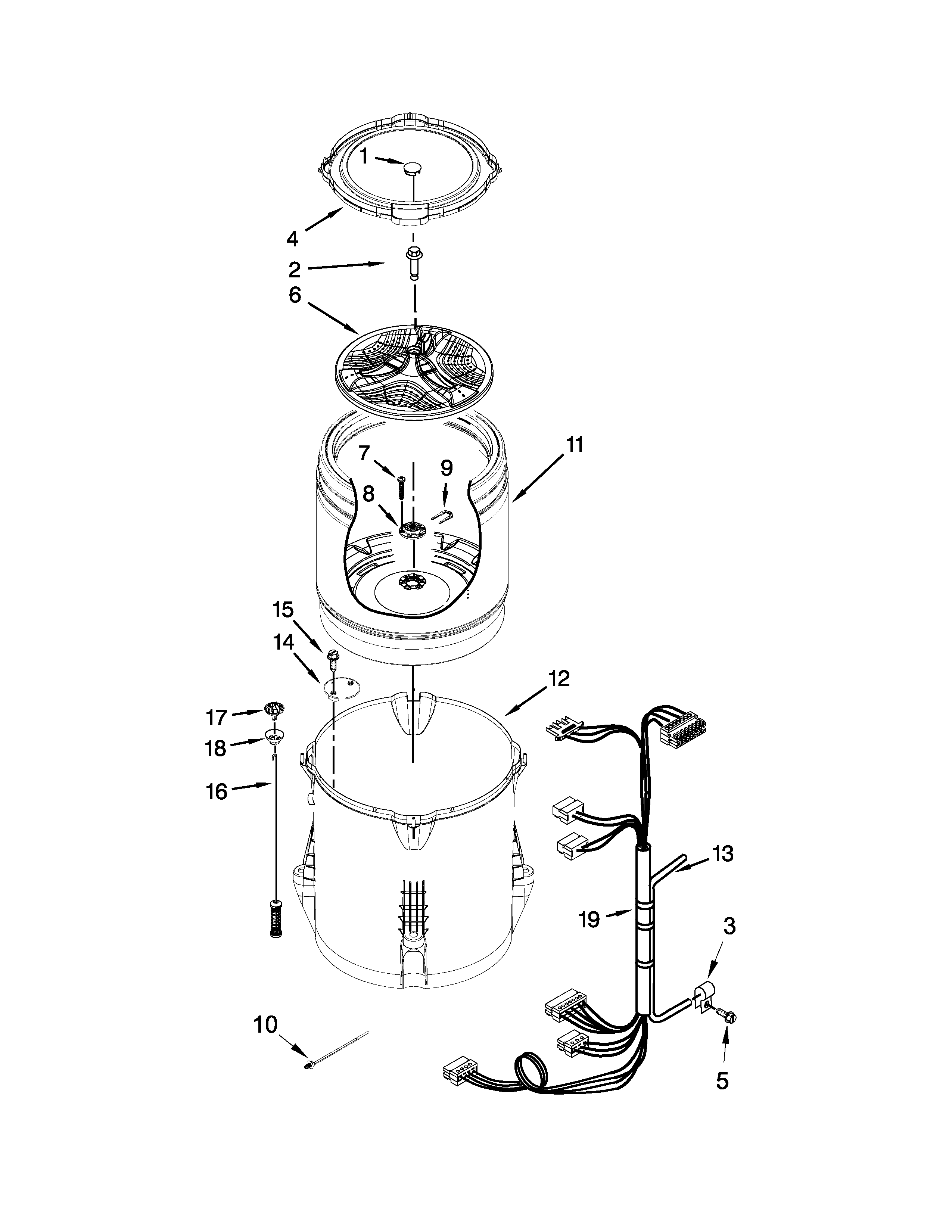

    Basket and tub parts Diagram

    Clamp

    Part #W10005430
    This item is not returnable
    $6.67 |
    10% OFF MSRP:$7.39

    In Stock

    Screw

    #9

    Top and cabinet parts Diagram

    Screw

    Part #3400061
    $12.49

    In Stock

    Harness Uppe

    #16

    Console and water inlet parts Diagram

    Harness uppe

    Part #W10579238
    $12.27

    In Stock
