What is a top mount refrigerator?
A top-mount refrigerator is a classic fridge layout where the freezer is on top and the fresh-food (refrigerator) section is below. Your Kenmore 2537184210A is a top-mount style, which typically offers straightforward storage, easy freezer access, and simple temperature control.
How a top-mount refrigerator is laid out
- Top compartment: freezer section (ice, frozen foods)
- Bottom compartment: fresh-food section (produce, dairy, beverages)
- Shared cooling system: cold air is produced at the evaporator and distributed through vents
- Door storage: bins and rails commonly hold condiments and bottles
Why people choose a top-mount design
Top-mount refrigerators are popular because they balance freezer space and refrigerator space without adding complex features.
- Usually more affordable than many specialty configurations
- Often more energy-efficient than older side-by-side designs
- More usable shelf space in the fresh-food section for everyday groceries
- Simpler service access for common items like door bins, shelves, and gaskets
Common parts you might replace over time
Even when cooling is fine, storage and sealing parts can wear or break with normal use.
| What you notice | Likely part area | Example part for this model |
|---|---|---|

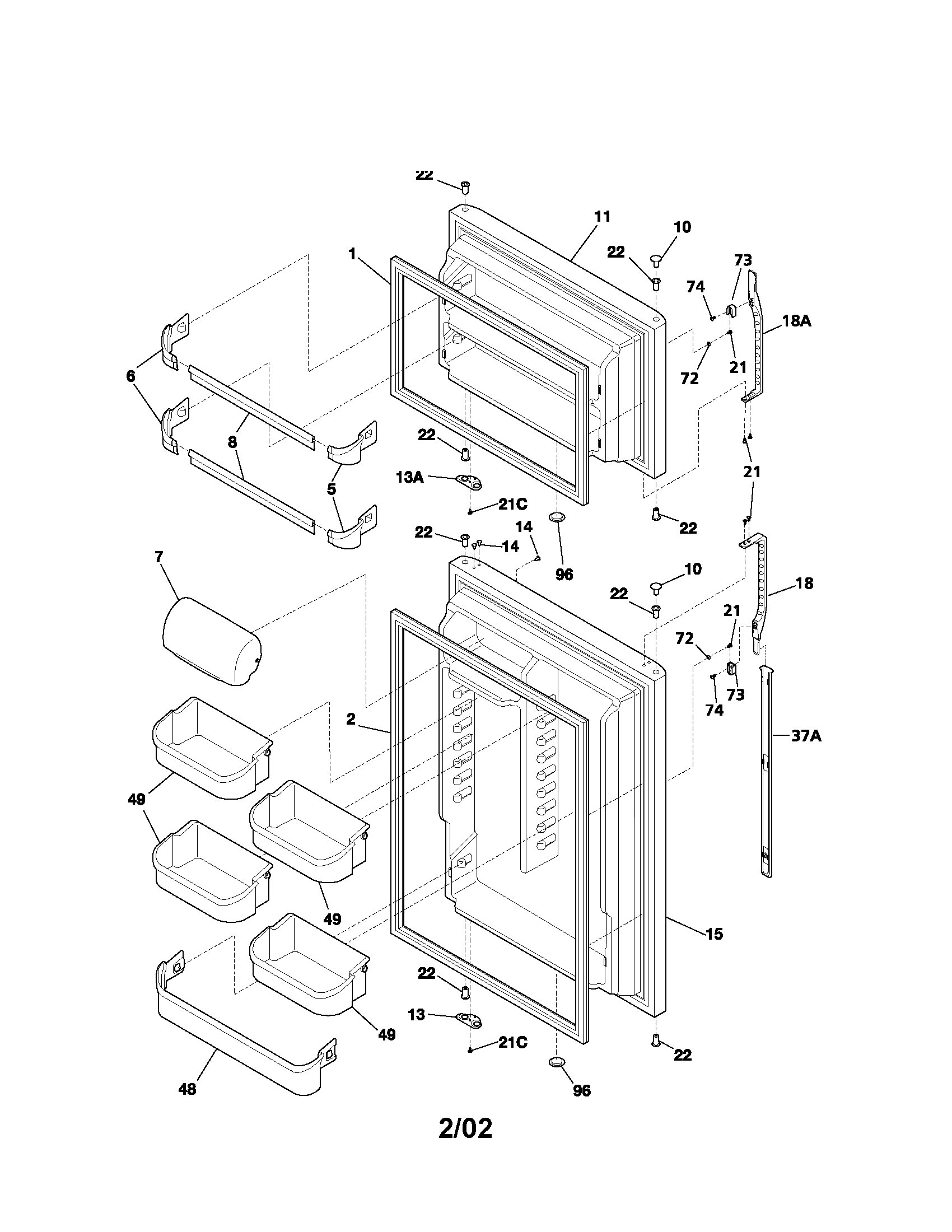

| Door not sealing, moisture, warm spots | Door gasket | Gasket-wh 242193213 |
| Broken or missing door bin | Door bin | Refrigerator door bin 240338201 |

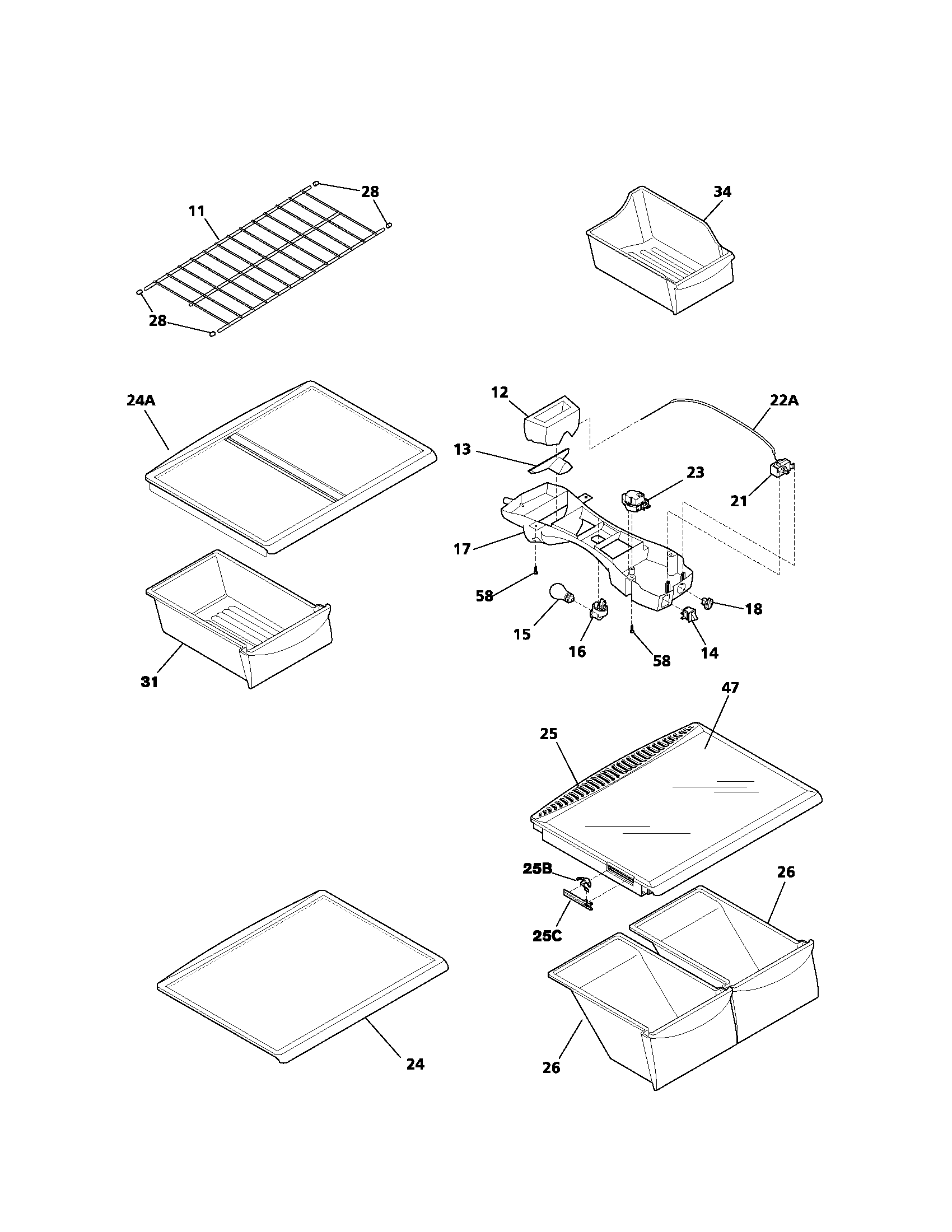

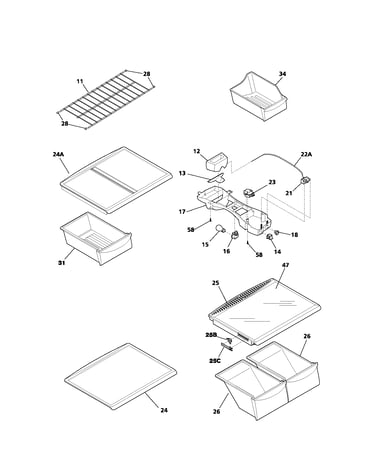

| Cracked produce drawer | Crisper drawer | Crisper drawer - refrigerator storage component by frigidaire 240337103 |
| Dim or burned-out interior light | Light bulb | Refrigerator light bulb 316538904 |
Why it matters
Knowing the configuration helps with troubleshooting and parts selection. In a top-mount refrigerator like the Kenmore 2537184210A, airflow from the freezer into the fresh-food section is critical; a door seal problem or blocked vents can affect temperatures in both compartments.
Last updated: January 2026
What is error 15 on Kenmore refrigerator?
On a Kenmore refrigerator, “Error 15” is commonly shown as Er IS or Er 15 and points to an ice maker sensor problem. For Kenmore model 2537184210A, start by checking the ice maker area for ice buildup, loose wiring, or a stalled ice maker cycle.
What to check first (fast, no parts)
- Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Ice jam: remove the ice bin and look for cubes stuck in the ejector area.
- Freezer temperature: confirm the freezer is cold enough to make ice (typically near 0°F).
- Ice maker fill area: look for frozen fill tube or frost blocking the mold.
- Door switch: make sure the freezer door switch clicks and is not stuck.
Likely causes and what they mean
| Symptom you notice | Most likely issue | What to do next |
|---|---|---|
| Error returns quickly after reset | Sensor not reading correctly | Inspect ice maker wiring and connector seating |
| No ice, mold stays dry | Water supply or fill problem | Check household water supply and inlet valve function |
| Ice maker cycles but no harvest | Ice maker mechanism or thermostat issue | Check for ice jam; consider ice maker component testing |
| Frost buildup near ice maker | Air leak or defrost issue | Check door seal and airflow; clear frost |
Parts that may be involved
If the error is tied to the ice maker assembly, these model-matched parts are commonly involved in ice maker performance issues:

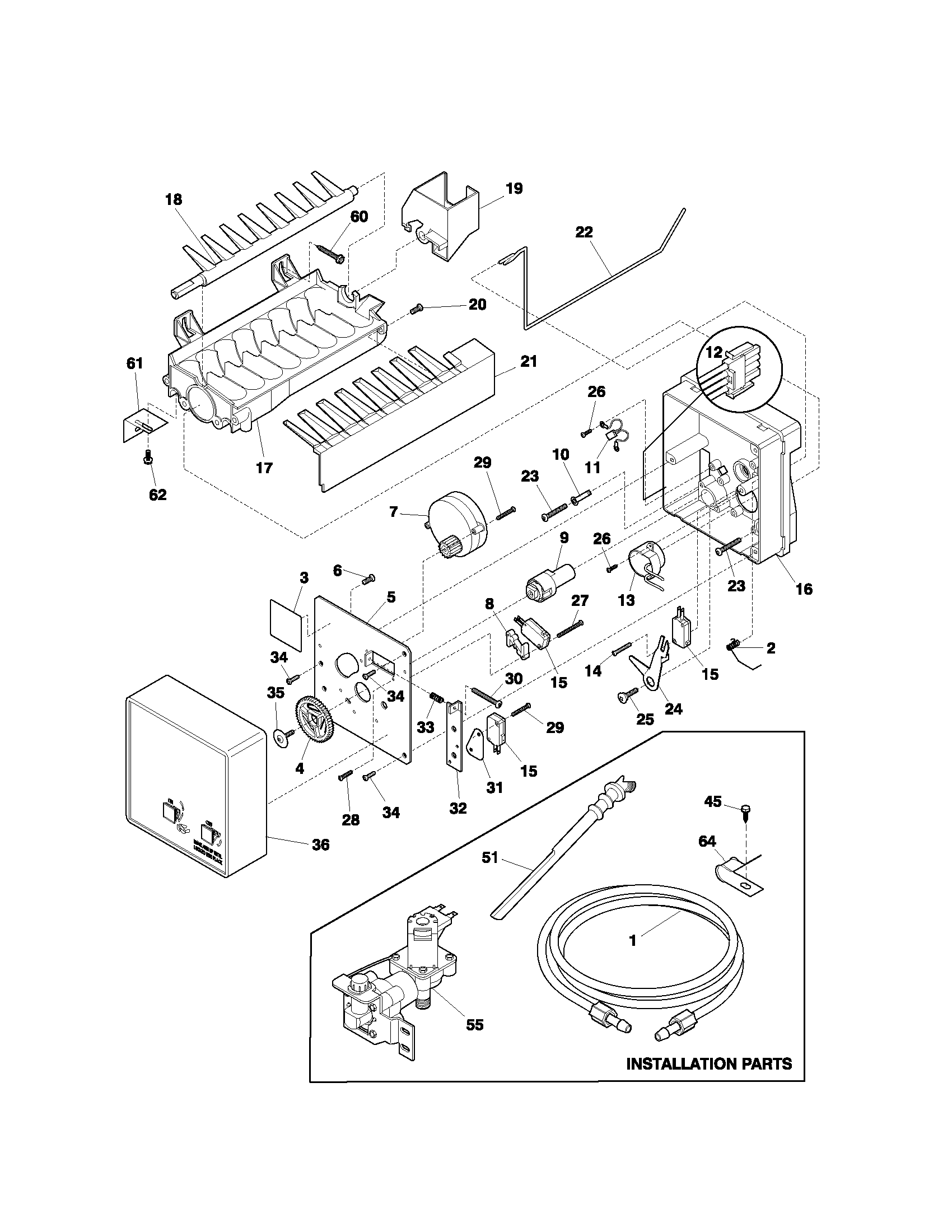

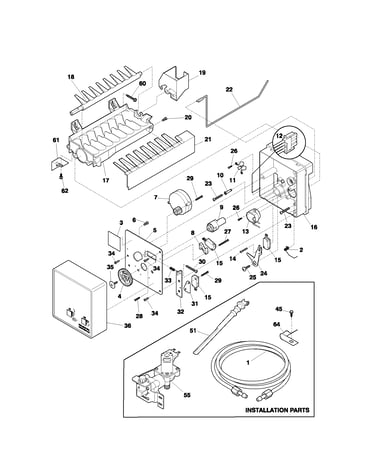

- Ice maker mold 241798231 (mold condition, ice release issues)
- Refrigerator ice maker thermostat 3206322 (harvest temperature sensing)
Why it matters
An ice maker sensor-related error can stop ice production and, in some cases, cause repeated cycling or freezing around the ice maker. Addressing ice jams, temperature, and wiring early helps prevent water leaks and ongoing no-ice problems.
For broader troubleshooting steps and code behavior across Kenmore platforms, use Kenmore 111 model top freezer refrigerator error codes.
Last updated: January 2026
What is the top part of a fridge called?
In a Kenmore top-mount refrigerator like model 2537184210A, the top compartment is the freezer. It’s the section designed to keep food frozen, and it often houses the ice maker components when your refrigerator is equipped to make ice.
What the freezer does (and what’s usually inside)
In most top-mount refrigerators, the freezer compartment is where the coldest air is produced and managed.
Common freezer features include:
- Freezer shelves or racks for frozen food storage
- An ice maker (if installed) and its related parts
- Air vents that circulate cold air to the fresh food section
- A defrost system that helps prevent heavy frost buildup
Freezer vs. refrigerator: quick comparison
| Compartment | Typical purpose | Typical temperature range |
|---|---|---|
| Freezer (top) | Long-term frozen storage, ice production | Around 0°F |
| Refrigerator (bottom) | Fresh food storage | Around 37°F to 40°F |
If you’re asking because of an ice maker issue
If the “top part” question is tied to ice production or ice quality, the freezer is the right place to focus. On model 2537184210A, common ice maker-related replacement parts can include items like the ice maker mold 241798231 (the mold is the tray area where water freezes into cubes).
Things to check first:
- Freezer temperature is near 0°F
- Ice maker is turned on (if your unit has an on/off control)
- Ice bin is seated correctly and not jammed
- No heavy frost blocking airflow in the freezer
- Water supply to the refrigerator is on (for models with an ice maker)
Why it matters
Knowing the top compartment is the freezer helps you troubleshoot correctly. Cooling, airflow, defrosting, and ice maker problems usually start in the freezer, even when symptoms show up in the refrigerator section.
Last updated: January 2026
