Kenmore 10651572200 side-by-side refrigerator Parts

On Kenmore side-by-side refrigerator model 10651572200, the model number is printed on the model and serial number label inside the refrigerator compartment, typically on an inside wall. Use that label to record the model and serial number for parts lookup and service.

• Open the fresh food (refrigerator) door, not the freezer door
• Look along the inside side walls of the refrigerator compartment
• Check near the upper walls and around the crisper/meat pan area
• Find a label that lists both Model and Serial
• Write down the full model number exactly as shown: 10651572200

The label usually includes both identifiers. Use this quick guide:

We use the model number to match the correct Kenmore parts (such as an ice maker assembly, water inlet valve, or thermostat) because similar-looking side-by-side refrigerators can use different components.

For the exact wording and “product record” section, use the 10651572200 owner’s manual.

Last updated: February 2026

To estimate the age of your Kenmore refrigerator model 10651572200, use the serial number from the model and serial label inside the fresh food compartment; the serial format encodes the manufacturing date. For the exact label location and recording details, use the 10651572200 owner's manual.

We look for the model and serial number label in the refrigerator (fresh food) compartment.

• Open the refrigerator door and check the inside wall of the refrigerator compartment
• Write down the serial number exactly as shown (letters and numbers)
• Record the purchase date too (helpful for service history)
• Take a clear photo of the label for reference

Kenmore refrigerators commonly use a serial number pattern where the leading characters identify when the unit was built. Many Kenmore serial numbers start with two letters followed by numbers, and those first letters are used to decode the month and year.

Knowing the manufacturing month and year helps us match the correct Kenmore 10651572200 side-by-side refrigerator parts (for example, ice maker, water inlet valve, or door gasket variations) and speeds up troubleshooting when performance changes over time.

Last updated: February 2026

For Kenmore model 10651572200, the model number is read left to right; the first three digits (106) identify the manufacturer family, and the remaining digits identify the specific design and feature variations. We use the complete model number to match the correct parts list, diagrams, and instructions in the 10651572200 owner's manual.

On Kenmore side-by-side refrigerators like 10651572200, the model and serial label is typically located on the inside wall of the refrigerator compartment.

• Open the fresh food (refrigerator) door and look along the side wall
• Check near the crisper area or upper interior wall
• Write down the full model number and serial number exactly as shown
• Record the purchase date for your records
• Keep the information handy when ordering parts or scheduling service

Kenmore model numbers are usually a prefix + product identifier + variation digits. For this refrigerator, the key takeaway is that 106 is the prefix that groups the unit by manufacturer family, and the rest narrows it down to the exact build.

Using the full model number prevents ordering the wrong item when similar Kenmore refrigerators use different components.

• Water system parts can vary (valves, tubing, filter housings)
• Ice maker and dispenser parts can differ by revision

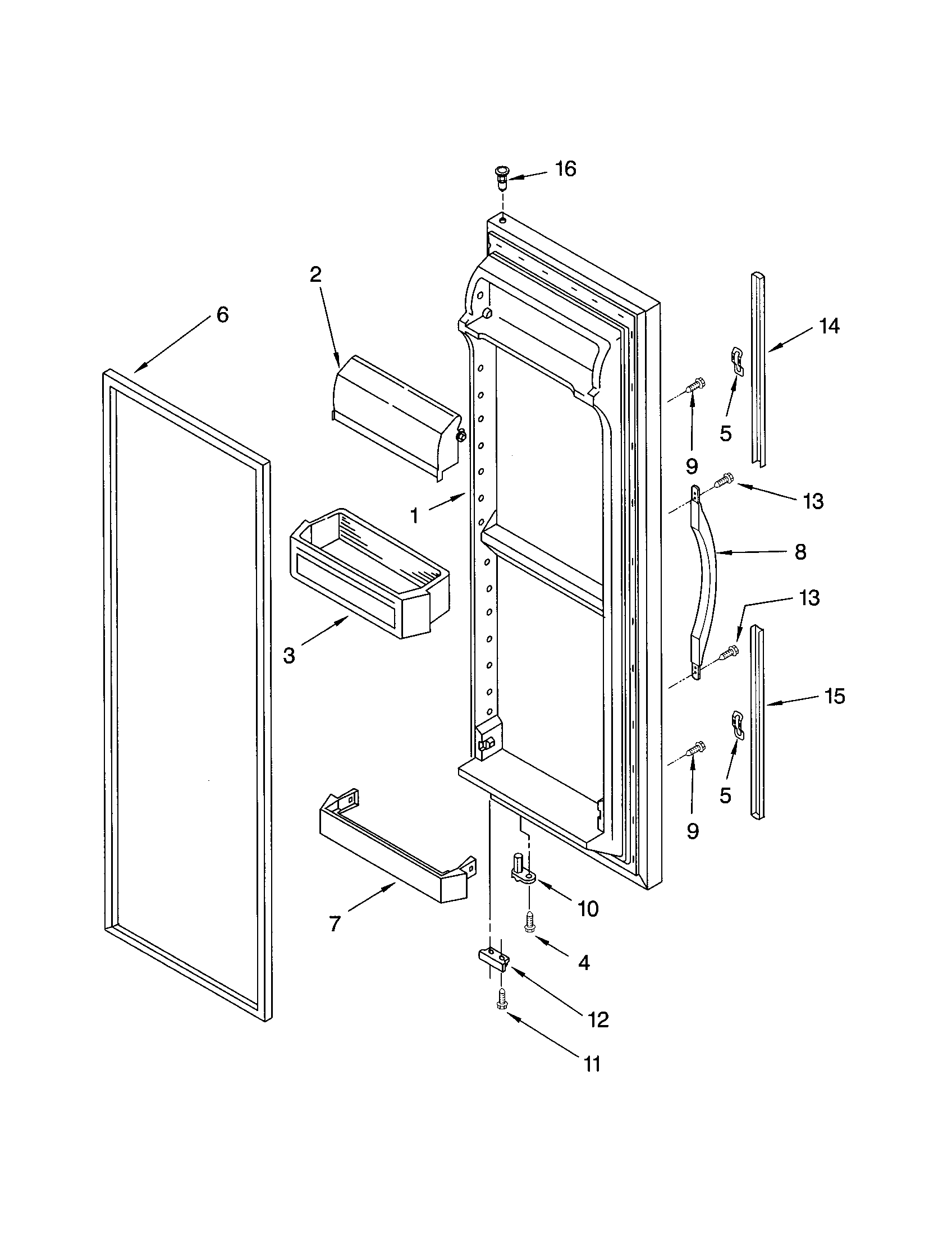

• Door hardware and gaskets can be model-specific
• Electrical parts (thermostat, harnesses) must match exactly

If you are troubleshooting ice or water issues, the Kenmore 106 model refrigerator error codes guide is a helpful starting point for what the control is reporting.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10651572200 side-by-side refrigerator often reaches the upper end of that range when the doors seal tightly, airflow stays clear, and routine cleaning is done as outlined in the 10651572200 owner's manual.

We recommend these habits because they reduce compressor run time and prevent common cooling and ice-maker problems:

• Clean condenser coils regularly (dust buildup raises operating temps)
• Keep door gaskets clean so doors close easily and seal well
• Maintain proper airflow; do not block vents with food packages
• Replace failed cooling parts promptly (fans, defrost components, thermostat)
• Keep the ice and water system healthy; change filters on schedule and fix slow fills

Use these symptoms to decide whether a repair is worth it:

• Temperatures swing even after adjusting controls
• Compressor runs almost constantly or is unusually loud
• Frost buildup returns quickly after a manual defrost
• Water leaks or recurring ice-maker/dispenser failures
• Multiple repairs needed within a short period

If cooling performance or ice production is declining, these model-compatible parts are frequent fixes:

• Refrigerator thermostat WP2198202 (temperature control and cycling)
• Refrigerator inlet valve W10408179 (water supply to ice maker and dispenser)
• Refrigerator defrost bi-metal WPW10225581 (defrost safety and frost control)

A refrigerator that seals well and defrosts correctly runs fewer hours per day, which reduces wear on the sealed refrigeration system. The Kenmore use and care guidance also emphasizes cleaning and troubleshooting steps that prevent small issues from turning into major failures.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 10651572200 are cooling problems, water or ice dispenser troubles, ice maker failures, leaks, and unusual noises. Many of these come down to airflow restrictions, defrost system trouble, or water supply and filter issues outlined in the 10651572200 owner's manual.

• Not cooling or weak cooling: dirty condenser coils, airflow blocked by frost, or a control setting issue
• Ice maker not making ice: clogged/incorrectly installed water filter, water supply problem, or ice jam at the ejector

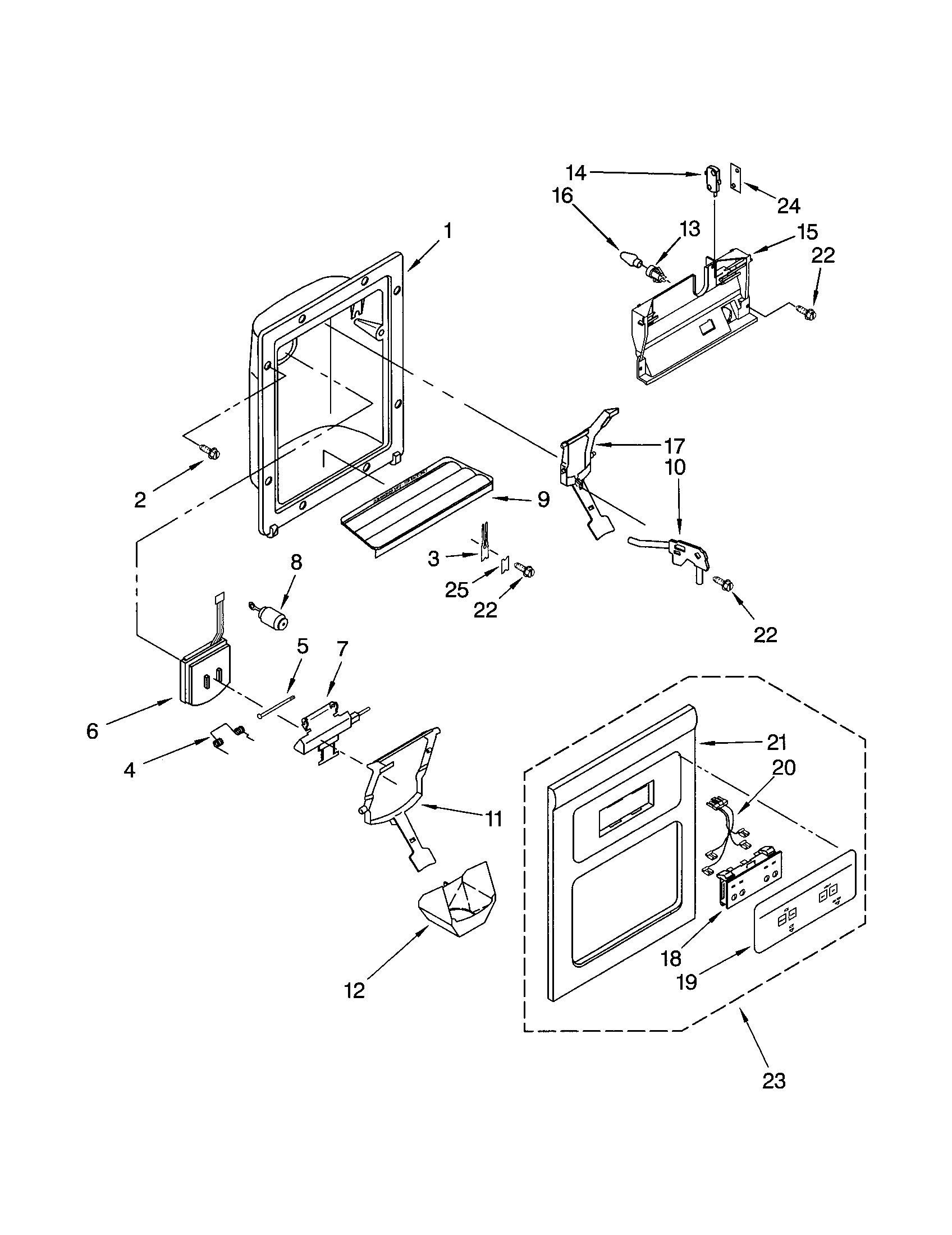

• Water or ice leaking at the dispenser: air in the water lines after filter changes, ice stuck holding the chute door open, or not holding the glass under the chute long enough
• Water in the defrost drain pan: normal during defrost, especially in humid conditions
• Lights not working: loose or burned-out bulb (see bulb section in the manual)

1. Confirm the unit has power (cord plugged in; breaker not tripped).
2. Verify controls are not set to OFF; for digital controls, cycle OFF then ON to reset.
3. If cooling is off, wait 30 minutes to rule out an automatic defrost cycle.
4. If ice production is low, allow 24 hours after heavy use or after clearing a jam.
5. If you have a water filter, reseat it and flush water to clear air from the lines.

Catching airflow, defrost, and water-supply problems early helps prevent food temperature swings, recurring ice jams, and nuisance leaks at the dispenser.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10651572200 has a total capacity of about 21.9 cubic feet. This number is the combined storage volume of the fresh food and freezer compartments, and it helps you compare usable space across similar Kenmore 106 refrigerators.

We recommend checking the capacity listing in the product literature for your specific unit, especially if your refrigerator has optional features (ice maker, in-door ice bin, filter housing) that can slightly affect usable space.

• Look for “capacity,” “total volume,” or “cubic feet” in the specs section
• Compare “total,” “refrigerator,” and “freezer” volumes (some documents list all three)
• Use the model and serial label inside the fresh food compartment to confirm the exact model
• Keep airflow clear around shelves and vents so the full space stays usable

Reference: 10651572200 owner's manual

Cubic feet is a standardized way to describe interior volume, but day-to-day storage depends on shelving layout, bins, and accessories.

Knowing the cubic feet helps when you are planning grocery storage, replacing door bins and pans, or deciding whether an ice maker or ice bin setup is taking up too much room.

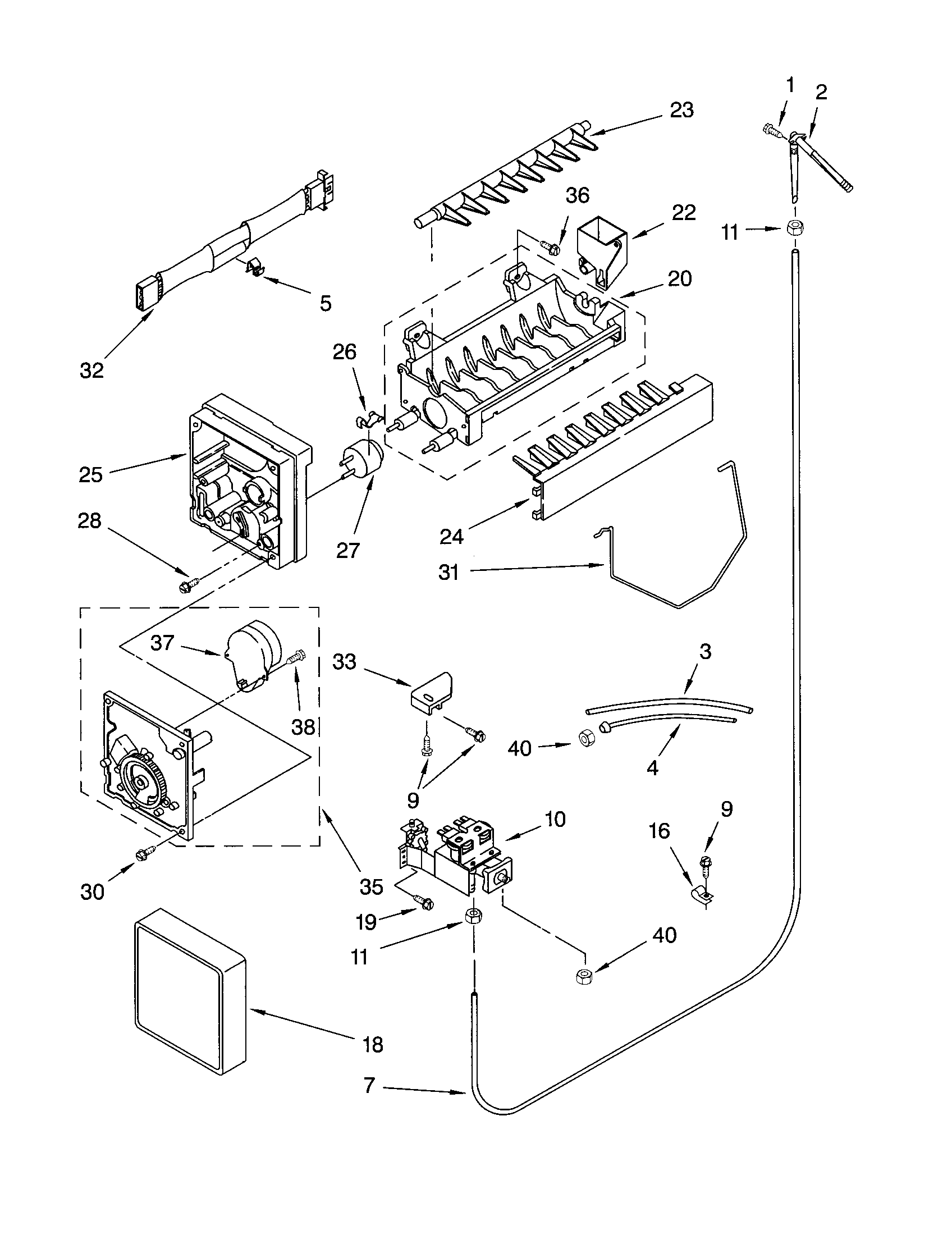

If you are troubleshooting ice storage space or ice production, the ice maker assembly 4317943 and refrigerator ice bin WPW10670845 are common capacity-related components on this model.

Last updated: February 2026

On Kenmore model 10651572200, the SY EF (often shown as SyEF) code indicates a problem in the evaporator fan circuit. The refrigerator is detecting that the freezer evaporator fan is not running as expected due to ice blockage, a fan motor issue, wiring, or a control problem. Use the 10651572200 owner's manual for model-specific checks.

• Power reset: Unplug the refrigerator for 5 minutes, then plug it back in and see if SY EF returns.
• Listen for airflow: With the compressor running, you should hear steady airflow from the freezer area.
• Look for frost buildup: Heavy frost on the freezer back panel often points to a defrost problem that can stop the fan.
• Check door sealing: A poor door seal can cause excess frost and airflow issues.
• Inspect for obstructions: If you can safely remove the freezer rear panel, check whether ice is contacting the fan blade.

If frost buildup is contributing to the fan problem, these model-compatible defrost parts are commonly involved:

• Refrigerator defrost bi-metal WPW10225581 (senses evaporator temperature for defrost control)
• Refrigerator heater WP2323198 (melts frost off the evaporator during defrost)

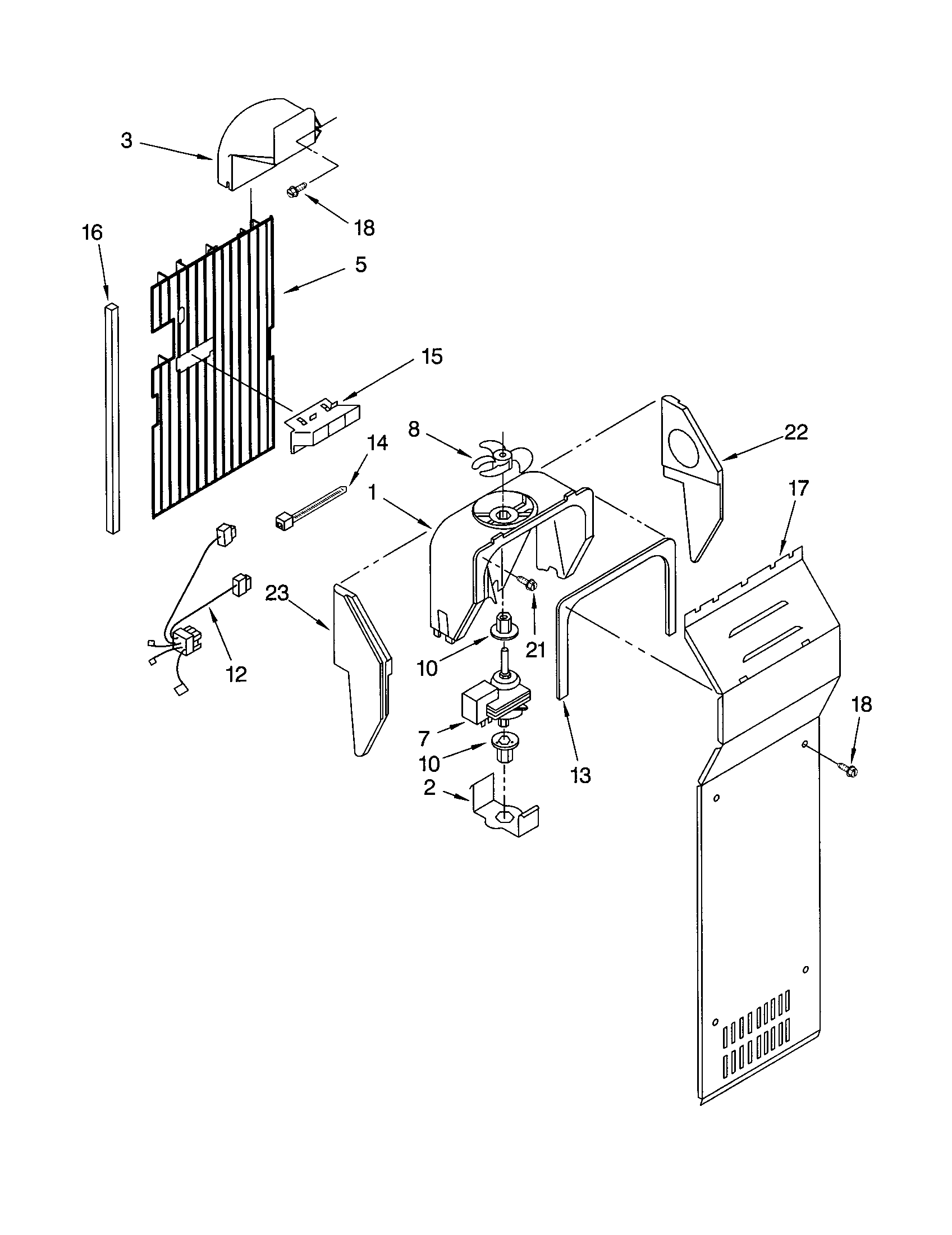

The evaporator fan moves cold air through the freezer and into the fresh food section. When the fan circuit fails, temperatures rise, food quality drops, and the compressor can run longer than normal.

Last updated: February 2026

Kenmore side-by-side refrigerators are commonly 32 to 36 inches wide; Kenmore model 10651572200 is 35 5/8 inches wide. Use that width plus the recommended clearances so the refrigerator cools properly and the doors open fully.

Measure the space before you buy or reinstall the refrigerator:

• Cabinet opening width at the top, middle, and bottom (use the smallest)
• Finished wall-to-wall width including trim or panels
• Door swing clearance if the unit sits next to a fixed wall
• Depth clearance for the water line if you have an ice maker
• Floor level (a tilted floor can change door swing and alignment)

The 10651572200 installation guidance calls for ventilation and door-swing space:

• 1/2 inch (1.25 cm) on each side and at the top for airflow
• 2 inches (5.08 cm) minimum on the wall side (as needed) so doors can swing open
• Extra space behind the refrigerator for water line connections (if equipped)

A refrigerator can fit by width but still be a problem if airflow is blocked or the doors cannot open wide enough to remove shelves, the ice bin, or drawers.

For the full placement and clearance details, follow the 10651572200 installation guide.

Last updated: February 2026
