Frigidaire LFBD2409LB0B dishwasher Parts

To identify your Frigidaire dishwasher model, open the door and look for the rating label on the inside edge of the tub, typically along the left-hand side. On LFBD2409LB0B, that label lists both the model number and the serial number.

Where to look on the dishwasher

Check these common label locations first:

• Inside the door opening on the tub frame (often left side)
• Along the top edge of the tub opening (under the counter lip)
• On the side wall of the tub near the front
• Behind the kickplate area (less common for the main rating label)

For diagrams and model-specific references, use the LFBD2409LB0B owner's manual.

What to write down (and why)

Record both numbers exactly as shown.

Item	What it’s used for	Example format
Model number	Ensures you get the correct parts and diagrams	LFBD2409LB0B
Serial number	Helps match production run details and revisions	Letters and numbers

Why it matters for parts and troubleshooting

The model number is the key to ordering the right Frigidaire dishwasher parts (like a door seal, water inlet valve, or pump and motor assembly) and following the correct installation and service steps. Even small model-number differences can change the fit of parts and wiring connections.

Quick tip if the label is hard to read

• Wipe the label gently with a damp cloth and mild soap
• Use a flashlight at an angle to reduce glare
• Take a close-up photo and zoom in

Last updated: January 2026

The most common problem we see on Frigidaire dishwashers like model LFBD2409LB0B is a drain-related issue: water left in the bottom because the drain path is restricted or the drain hose is kinked. A close second is a door that will not latch, which prevents the dishwasher from starting.

Quick checks that fix the most “common” issues

• Cancel the cycle and try a drain; listen for the drain pump running.
• Check the sink drain or garbage disposer connection for a blockage (including the disposer inlet plug on first-time hookups).
• Inspect the drain hose for kinks or crushing; routing problems are a frequent cause.
• Confirm the dishwasher is level; poor leveling can affect draining and door closing.
• If the unit fills slowly or not at all, flush the water line and check the inlet valve screen.

Parts that commonly relate to these symptoms (LFBD2409LB0B)

If troubleshooting points to a failed component, these model-matched parts are common suspects:

Symptom	Likely area	Example model-matched part
Water left in tub	Drain path or pump	Drain hose 807117001
Won’t fill or fills weakly	Water supply / valve screen	Dishwasher water inlet valve 154637401

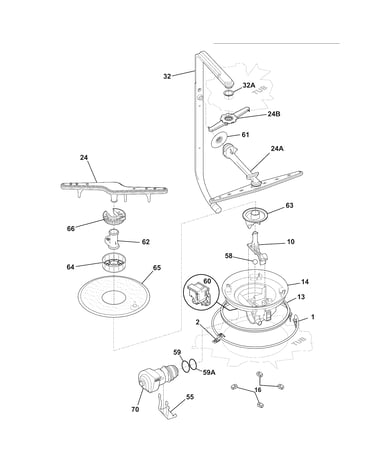

Poor wash, unusual pump noise	Wash pump / motor	Pump and motor assembly 154844301
Won’t start (door not “clicking”)	Door latch alignment or latch	Door latch and strike alignment (inspect first)

Why it matters

Drain and fill problems often look like “the dishwasher is broken,” but they are frequently caused by installation and connection issues. For example, the installation instructions call out that kinked water or drain hoses can cause problems, and that drain, water, and electrical lines should be routed correctly and the unit leveled for best performance.

Where to confirm the correct setup

We recommend using the model-specific documents to verify hose routing, leveling, and connection details for LFBD2409LB0B: LFBD2409LB0B installation guide.

Last updated: January 2026

On a Frigidaire LFBD2409LB0B dishwasher, you can typically force a drain by canceling the cycle: press and hold the Start/Cancel (or Cancel) button for about 3 to 5 seconds, then close the door so the drain pump can run.

Quick steps to force a drain

• Press and hold Start/Cancel (or Cancel) for 3 to 5 seconds.
• Watch for the cancel indicator (light or display change).
• Close the door; many models will not drain with the door open.
• Listen for the drain pump running; draining usually starts within seconds.
• If water remains after a minute or two, stop and check the drain path below.

If it still will not drain (most common causes)

A forced drain command will not help if the drain path is restricted or the dishwasher cannot pump water out.

• Kinked or pinched drain hose under the sink or behind the unit.
• Improper drain hose routing (sharp bends, hose resting under the dishwasher).
• Disposer connection still plugged (first-time hookup requires knocking out the disposer inlet plug).
• Loose hose connection at the sink drain/disposer (can leak as soon as draining starts).
• Drain pump or motor issue.

Drain hose routing checklist (installation-critical)

The installation instructions for this dishwasher call out routing and connection details that directly affect draining.

Check	What “good” looks like	What happens if it’s wrong
Hose bends	No sharp bends or kinks	Slow drain or no drain
Connection point	Connected to sink drain, disposer, or trap correctly	Backflow or leaks
Disposer inlet	Knockout plug removed (if used)	Dishwasher cannot push water out
Hose condition	Not cut, not crushed, not overtightened at clamp	Restrictions and leaks

For the exact routing method and connection options, follow the LFBD2409LB0B installation guide.

Parts that commonly relate to draining problems

If the hose is clear and correctly routed but the unit still will not drain, these model-specific parts are common suspects:

• Drain hose 807117001 (kinked, split, or restricted)
• Pump A00126401 (pump not moving water)
• Dishwasher pump and motor assembly 154844301 (motor not driving the pump)

Why it matters

Standing water can cause odors, poor cleaning, and leaks under the sink when the drain hose connection is loose. A correct drain hose setup and a working pump let the dishwasher empty quickly and reliably.

Last updated: January 2026

On a Frigidaire dishwasher such as model LFBD2409LB0B, “UO” is not a standard, widely used Frigidaire error code; it is most often a display/indicator that shows up when the control is confused by a key sequence, a door-latch interruption, or a power glitch. Use the LFBD2409LB0B owner's manual to confirm the exact indicator list for your control panel.

What to do first (quick checks)

• Reset power: turn the breaker off for 5 minutes, then restore power and start a Normal cycle.
• Confirm the door closes firmly and latches; remove any rack or tall item that can prevent a full close.
• Press Cancel/Drain (if your panel has it) and listen for the drain pump to run.
• Check the tub for standing water after canceling; water left behind can trigger odd behavior.
• If the display returns to “UO” immediately, stop using the dishwasher and troubleshoot the control/door circuit.

Common causes and what they point to

What you notice with “UO”	Most likely area	What to inspect next
Beeping, cycle will not start	Door not recognized as closed	Latch alignment, strike, wiring to door
Random lights, odd characters	Power glitch or control issue	Reset, check supply voltage, control board
Stops mid-cycle, then shows “UO”	Drain or fill interruption	Drain path, inlet flow, float/overfill system

Parts that commonly relate to these symptoms on LFBD2409LB0B

We only replace parts after the checks above point to a specific failure:

• If the dishwasher will not fill or fills weakly: inspect the dishwasher water inlet valve 154637401.
• If it will not drain or leaves water behind: inspect the drain path and the drain hose 807117001.

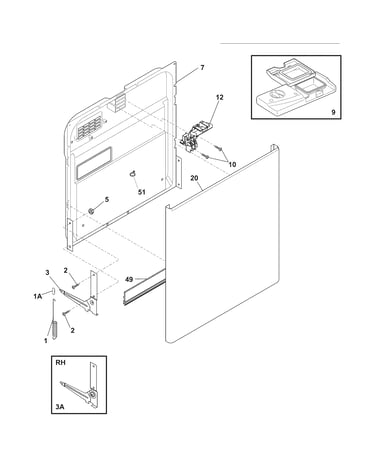

• If it will not start and the door feels loose: inspect the door latch assembly (listed in the parts diagrams for this model).

Why it matters

A door-latch interruption or control glitch can stop the wash cycle and prevent draining, which can leave water in the tub and lead to repeat shutdowns.

Helpful DIY guidance

• Follow the troubleshooting flow in our dishwasher wont start video if the unit powers on but will not run.

Last updated: January 2026
