What engine does the Craftsman 917272680 have?

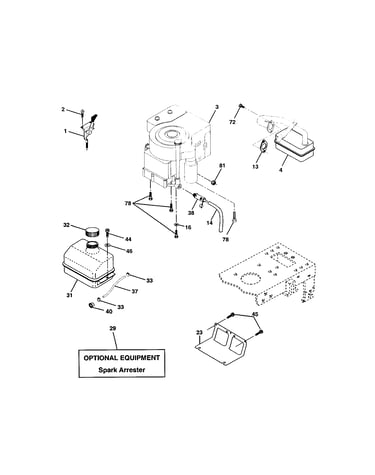

The Craftsman lawn tractor model 917.272680 uses a Briggs & Stratton engine model 31C707, type 0230-E1 (shown in the engine breakdown section of the 917272680 owner's manual).
How to confirm the engine on your tractor
We recommend verifying the engine ID on the engine itself because engines can be swapped over the life of a mower.
- Look for the Briggs & Stratton ID label on the blower housing (usually above the starter or near the spark plug)
- Match the Model and Type numbers to 31C707 and 0230-E1
- Record the Code number too; it helps identify the build date for tune-up parts
- If the label is missing, check for stamped numbers on the valve cover area or shroud
What “31C707-0230-E1” means
This is the engine’s identification format used by Briggs & Stratton.
| Label item | What it tells you | Example for this tractor |
|---|---|---|
| Model | Engine family/design | 31C707 |
| Type | Exact configuration (carb, crank, controls) | 0230-E1 |
| Code | Production date code | Varies by engine |
Why it matters
Using the correct engine model and type helps you get the right maintenance and repair parts (carburetor components, starter parts, gaskets) and follow the correct torque and service procedures for your 917.272680.
Last updated: February 2026
What is the Craftsman 917272680's deck size?

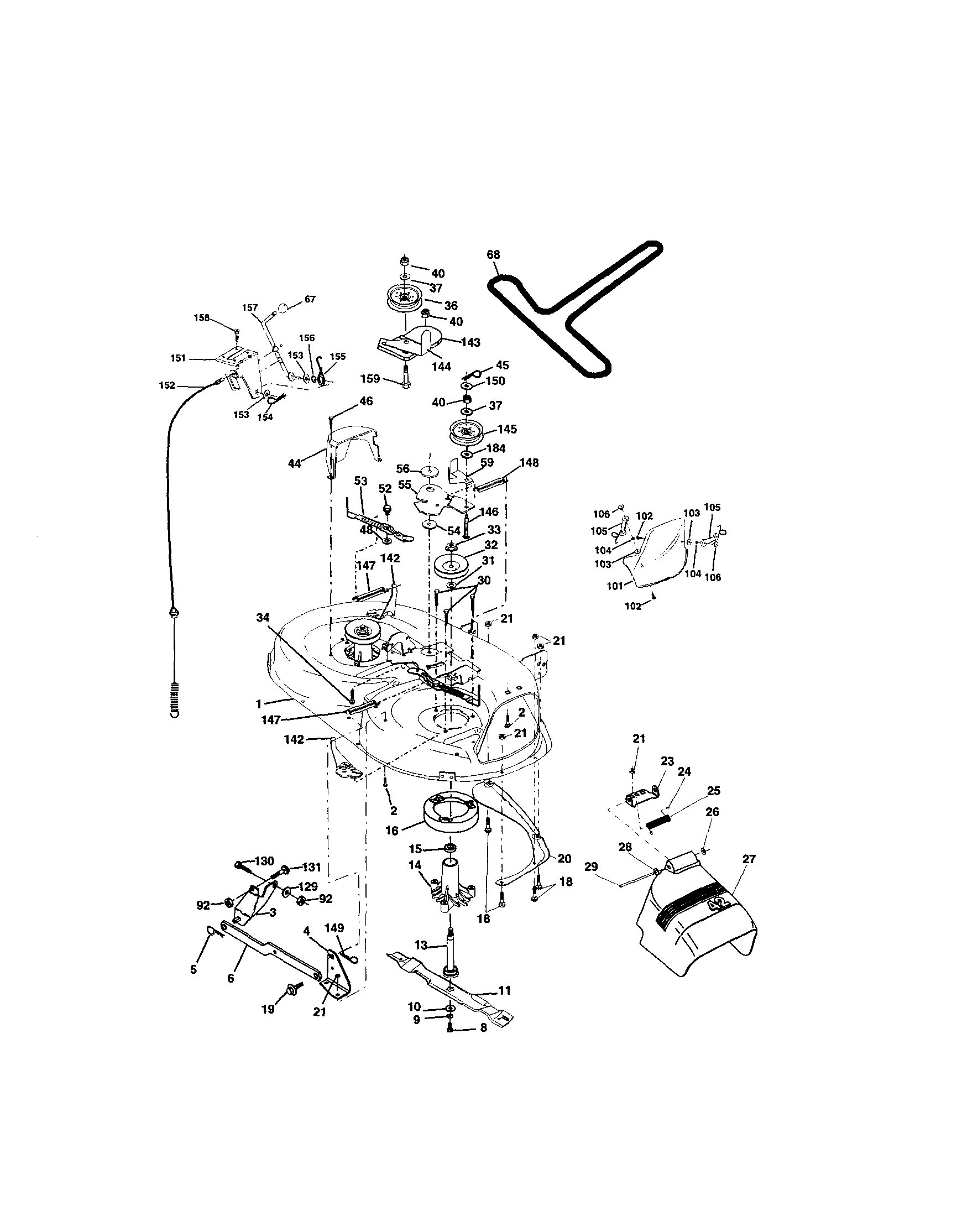

The Craftsman lawn tractor model 917272680 uses a 42-inch mower deck (a 42-inch cutting width). This matches the model’s mower deck assembly listing and the 42-inch blade options shown in the 917272680 owner's manual.
How we identify the deck size on this model
On model 917272680, the deck size is tied to the mower deck assembly and the blade length used on that deck.
- The manual lists a “Mower Deck Assembly, 42"” for this tractor.
- The blade list includes 42-inch blades used with that deck.

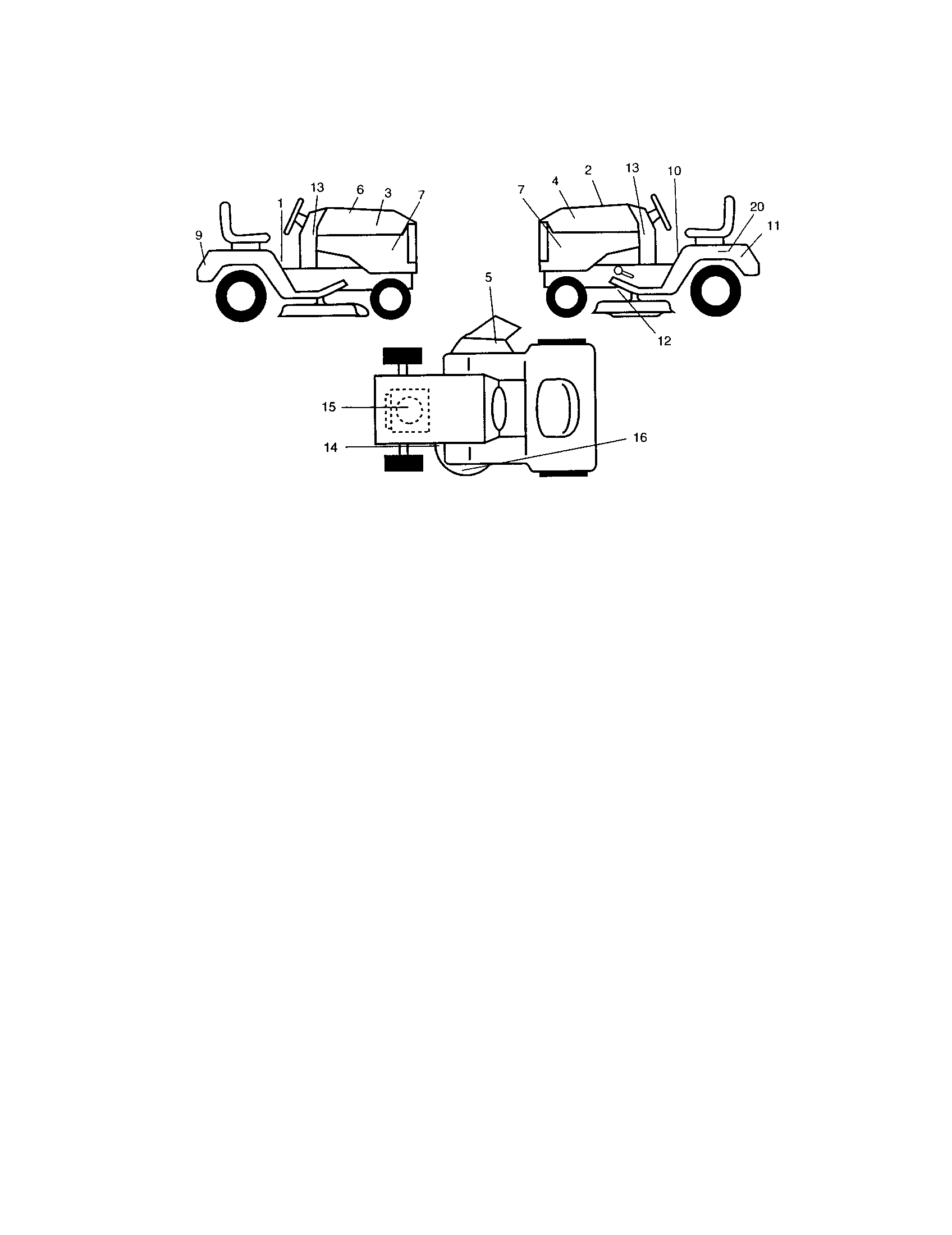

- The deck decal set also references Deck “B” 42", which aligns with the 42-inch deck family.
Parts that commonly confirm a 42-inch deck
If you are matching parts for the cutting system, these model-specific parts align with a 42-inch deck setup:
- Husqvarna lawn tractor mulching blade, 21-in 532134149 (used as a 42-inch set of two blades)
- Lawn tractor 42-in deck high-lift blade 532138971 (used as a 42-inch set of two blades)
- Lawn mower housing 548102301 (the deck shell assembly for this tractor)
- Husqvarna lawn tractor mandrel assembly 532130794 (spindle/mandrel that drives the blades)
Quick reference: deck size vs. blade setup
| Deck cutting width | Typical blade count | Typical blade length |
|---|---|---|
| 42 inches | 2 | 21 inches each |
Why it matters
Deck size affects blade selection (mulching vs. high-lift), belt routing, and leveling adjustments. Using the correct 42-inch deck parts helps prevent poor cut quality, vibration, and premature mandrel or belt wear.
Last updated: February 2026
What years were Craftsman 917272680 made?
Craftsman lawn tractor model 917272680 does not have a single published “made in” year range; this model number identifies a specific tractor configuration, and the exact build date is determined from the serial number and product ID tag on your machine. Use the 917272680 owner's manual to locate the ID tag and match the correct parts diagrams.
How to find the exact year on your tractor
Use the tractor’s identification tag first; it is the only reliable way to date a specific unit.
- Locate the model and serial number tag (commonly under the seat, on the frame rail, or near the rear fender pan)
- Write down the full serial number exactly as shown
- Record the engine model and type from the engine label (often on the blower housing)
- Compare your tractor’s decals and controls to the diagrams in the manual
- Use the parts lists to confirm major assemblies (chassis, deck, lift, steering)
Model-specific identifiers shown for 917272680
The manual for 917272680 includes detailed parts breakdowns and shows an engine listing that helps confirm you are working with the correct configuration.
| Identifier | Where to find it | How it helps |
|---|---|---|
| Model number 917272680 | Tractor ID tag | Confirms the exact Craftsman configuration |
| Engine model 31C707-0230-E1 (Briggs) | Engine label | Helps date the engine and match engine parts |

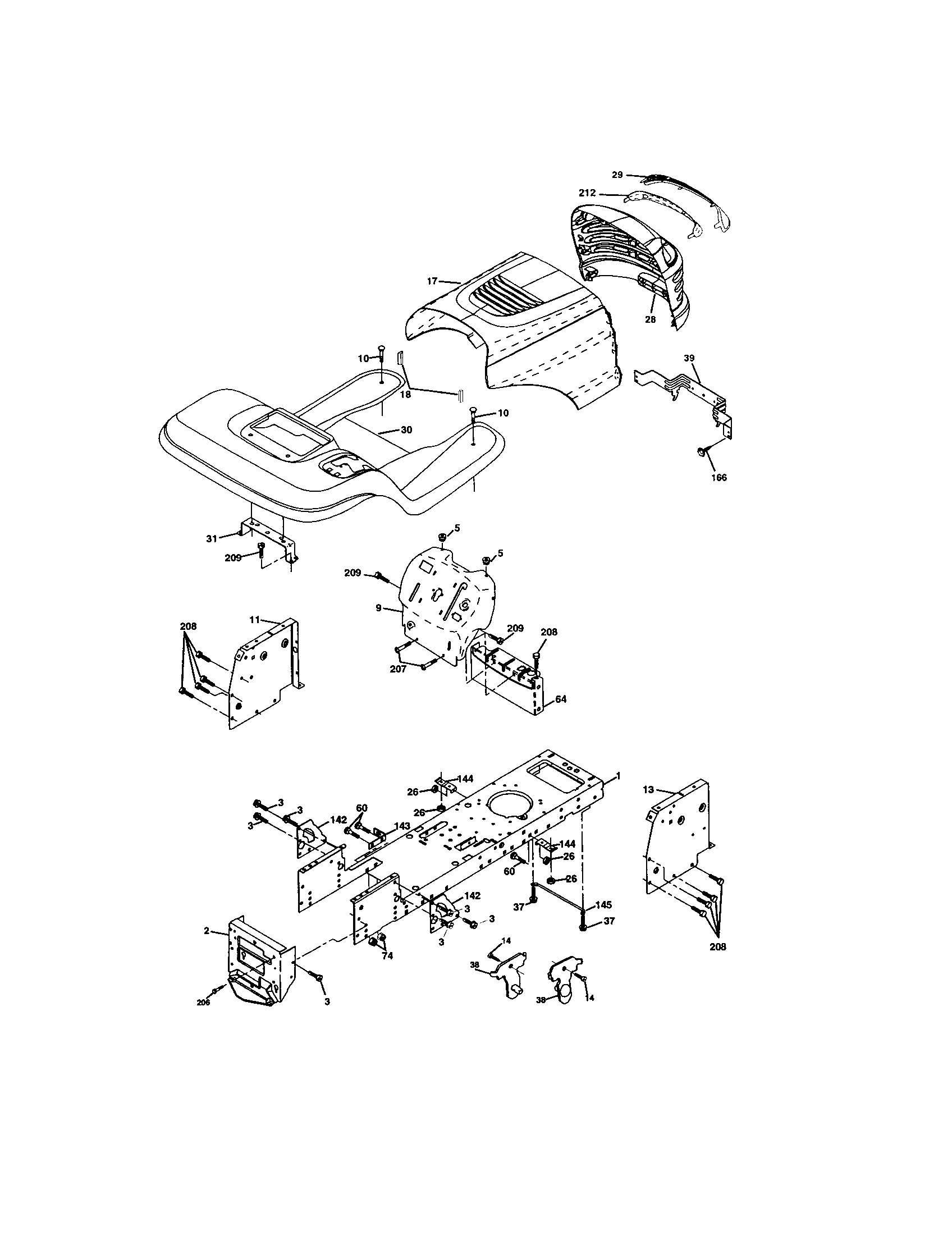

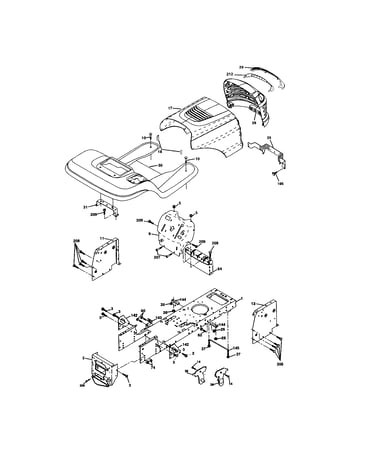

| Chassis and enclosure diagrams | Manual parts sections | Confirms frame, dash, and hood style |
Why it matters
Craftsman tractors can share similar LT-style platforms across multiple seasons; using the serial number and the 917272680 manual prevents ordering the wrong deck parts, belts, or hardware.
Last updated: February 2026
