Frigidaire FFHB2750TD3 refrigerator Parts

A bottom-mount refrigerator like the Frigidaire FFHB2750TD3 is better for many kitchens because the fresh-food section sits at eye and waist level, so the items you use most (milk, produce, leftovers) are easier to reach, while frozen foods stay organized in lower drawers.

When a bottom-mount is the better choice

• You cook often and want fresh-food items at a comfortable height
• You prefer freezer drawers/baskets for organizing frozen foods
• You want wide refrigerator shelves for platters and meal prep
• You want easier access to crisper drawers and deli storage
• You are planning a kitchen layout where doors can fully open for drawer access

What to consider before you choose (or install)

Bottom-mount designs work best when you have the right space and airflow. For the FFHB2750TD3, plan for proper clearances and full door swing so drawers and freezer baskets can open completely.

Consideration	Why it matters	What to do
Door swing and drawer clearance	Drawers need full door opening to slide out	Confirm spacing using the FFHB2750TD3 installation guide
Ventilation clearance	Airflow helps cooling performance and efficiency	Allow typical clearances (sides/top and rear) per the guide
Floor level	A refrigerator that rocks can affect door closing	Level the cabinet so it sits solid on all corners
Water supply (if used)	Ice maker and dispenser need water access	Connect water supply and check for leaks

Why it matters

Most households open the fresh-food doors far more than the freezer. With a bottom-mount, you reduce bending for everyday items, which improves convenience and can help you keep the refrigerator organized and used efficiently.

Helpful tip for owners

If you are comparing styles because of performance concerns (cooling, noises, door closing, or error codes), use the troubleshooting and operating details in the FFHB2750TD3 owner’s manual.

Last updated: January 2026

Cooling performance and ice maker or water dispenser issues are the most common problems we see on Frigidaire refrigerators like model FFHB2750TD3. In many homes, the root cause is airflow restriction (dirty coils, blocked vents, weak fan) or water supply problems (filter seating, clogs, or a kinked line).

Most common symptoms customers report

• Refrigerator section is warm but freezer seems OK
• Freezer is warm or temperatures swing
• Ice maker stops making ice or makes small cubes
• Water tastes odd or smells after sitting unused
• Doors do not close or seal consistently

Quick checks that solve many “common problems”

Use these steps first because they address the most frequent, fixable causes.

• Confirm the refrigerator is level and doors close gently; doors that do not seal well can cause temperature and moisture problems.
• Make sure the toe grille is not blocked so the unit can breathe.
• If the ice maker is not making ice, verify it is turned on and the water valve is open.
• Check the water supply line for kinks.
• Reseat or replace the water filter if water flow is slow or ice production is weak.

For model-specific operating and “before you call” troubleshooting, follow the FFHB2750TD3 owner's manual.

What to check based on the problem area

Problem area	Most common cause	What to do next
Cooling	Airflow restriction or fan issue	Clean airflow paths; if fan noise is abnormal, inspect the evaporator fan area
Ice maker	Ice maker off, kinked line, clogged or unseated filter	Turn on ice maker, straighten line, reseat or replace filter
Doors/sealing	Refrigerator not level or cabinet interference	Level the cabinet; ensure it is not touching walls or cabinets

Parts that often come up in these repairs

If troubleshooting points to a failed component, these are common replacements for FFHB2750TD3:

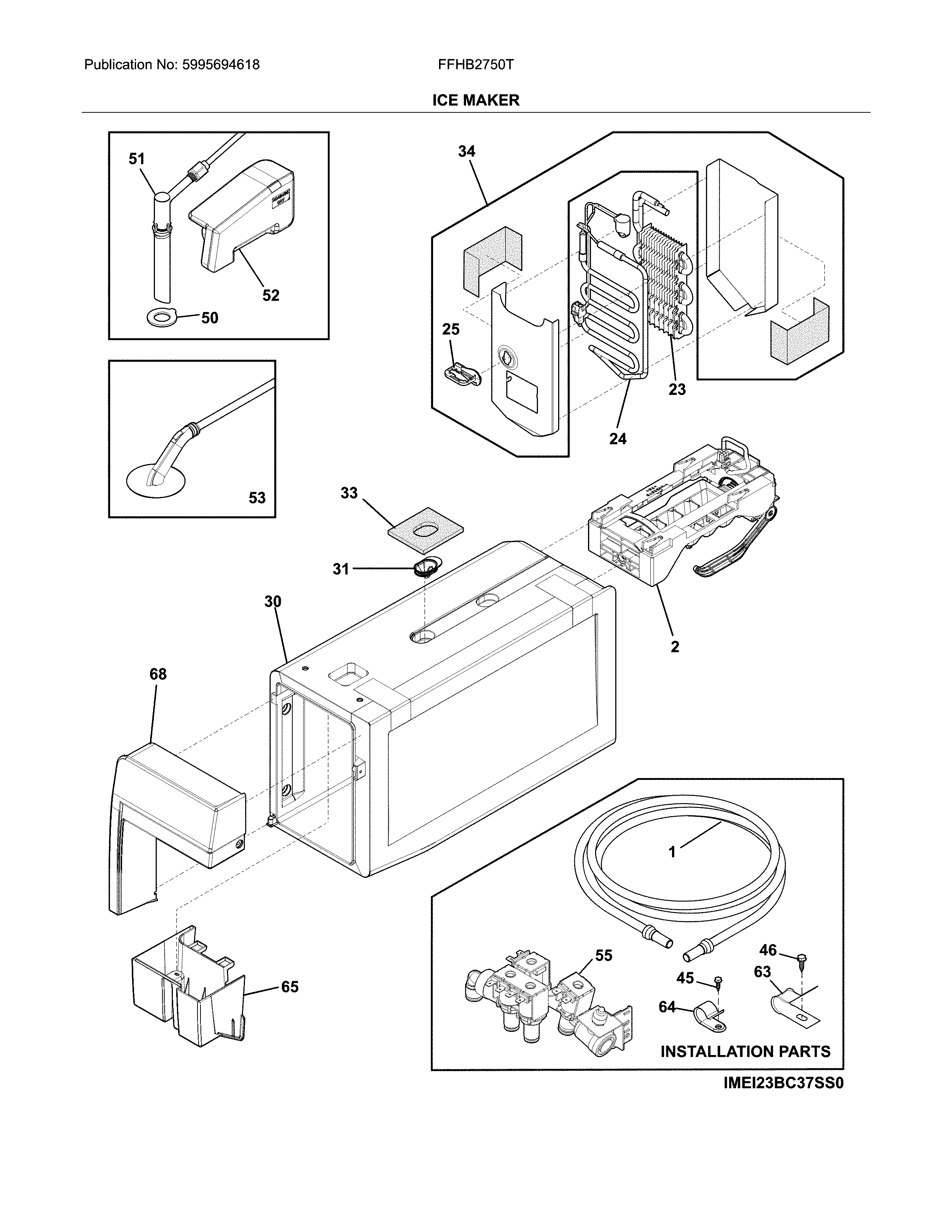

• Refrigerator ice maker 243297613 for no-ice conditions after water supply checks
• Refrigerator water inlet valve assembly 242253002 when water flow is weak and supply pressure is good
• Frigidaire refrigerator evaporator fan motor 809069206 when cooling is poor and airflow is not moving
• Frigidaire refrigerator freezer door gasket (gray) 5304537408 if the freezer door is not sealing

Why it matters

Most “common” refrigerator problems start small (a door not sealing, a kinked water line, a clogged filter) but can quickly lead to warm food temperatures, frost buildup, and low ice production. Catching airflow and water-supply issues early prevents bigger repairs.

Last updated: January 2026

A bottom-freezer refrigerator typically lasts about 13 years. With normal use and basic maintenance, your Frigidaire FFHB2750TD3 can often reach that range; keeping airflow clear, temperatures stable, and seals tight helps you get the full service life.

Typical lifespan and what affects it

Most bottom-mount (bottom-freezer) refrigerators land in a similar window, but real-world lifespan depends on how hard the sealed system and fans have to work.

• Room conditions: hot garages and tight cabinets shorten life
• Door seal condition: air leaks force longer run times
• Condenser airflow: blocked toe grille or dusty coils increase heat load
• Ice maker and water system use: low water pressure and clogs add strain
• Defrost performance: frost buildup reduces cooling efficiency

Maintenance that extends service life

We recommend these habits for FFHB2750TD3 owners:

• Keep the toe grille area unobstructed so the refrigerator can breathe
• Set and maintain proper temperatures (avoid frequent warm adjustments)
• Clean spills and interior surfaces regularly to prevent odors and corrosion
• Replace the water filter on schedule if you use the dispenser or ice maker
• Confirm doors close fully and gaskets seal all the way around

Maintenance item	How often	Why it matters
Check door gasket seal	Monthly	Prevents warm air leaks and compressor overwork
Clean condenser area and ensure airflow	Every 6 to 12 months	Improves heat rejection and efficiency
Replace water filter (if used)	About every 6 months	Helps maintain water flow and ice maker performance
Verify temps after changes	24 hours after adjustment	Stabilizes cooling and reduces cycling

When “end of life” is approaching

These symptoms often show up as a refrigerator nears the end of its useful life:

• Compressor runs much longer than it used to
• Temperatures drift even after cleaning and proper settings
• Repeated frost buildup or warm spots in the fresh food section
• Water dispensing slows or ice production drops (after filter replacement)

Why it matters

A refrigerator that is working harder than it should uses more energy and struggles to hold safe food temperatures. Simple upkeep and quick fixes (like restoring airflow or replacing a clogged filter) can add years of reliable cooling.

For model-specific care and operating guidance, follow the FFHB2750TD3 owner’s manual.

Last updated: January 2026

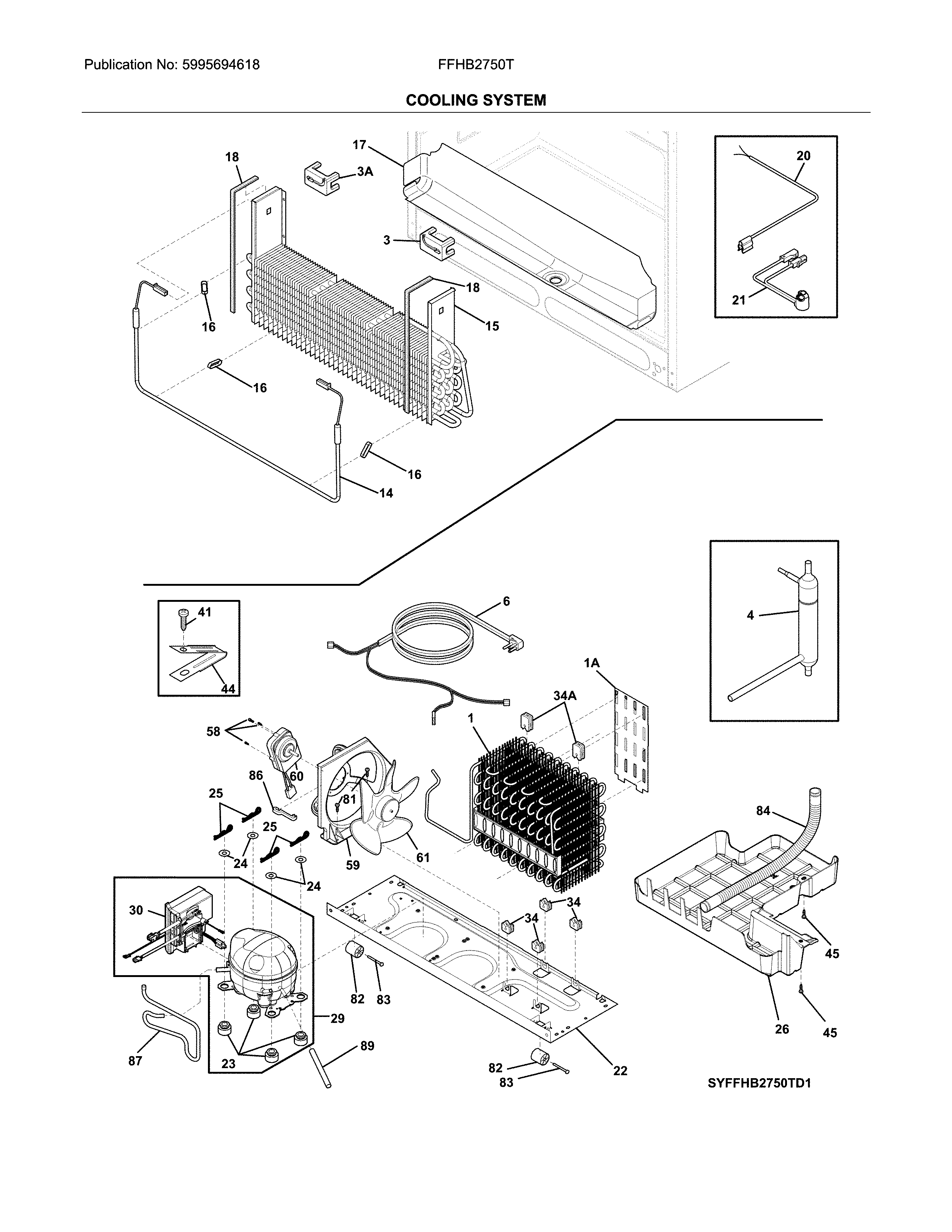

On the Frigidaire FFHB2750TD3, the bottom area is commonly called the machine compartment (or lower rear compartment). It houses major cooling-system parts like the compressor and condenser components, and the lower front opening is the toe grille, which must stay unblocked for airflow.

Common names you may hear

• Machine compartment: the lower area where the sealed-system components live
• Toe grille: the vented grille at the lower front that lets air circulate
• Base grille: another term for the toe grille
• Drain pan area: the space where the defrost drain pan sits (typically near the bottom)
• Lower rear access area: general term for the service area behind the unit

What’s typically located down there

Most bottom-mount refrigerators like the FFHB2750TD3 keep heat-producing and airflow parts low and out of the food compartments.

Bottom-area item	What it does	What you might notice when it’s involved
Compressor	Pumps refrigerant through the sealed system	Warmth, humming, longer run times
Condenser airflow path (via toe grille)	Releases heat from the system	Poor cooling if airflow is blocked
Drain pan	Collects defrost water to evaporate	Occasional water smell, light warmth

Why the toe grille matters

Your FFHB2750TD3 needs steady airflow through the toe grille for proper operation. Blocking it can reduce cooling performance and make the compressor run longer.

• Keep the toe grille clear of rugs, pet hair, and dust
• Leave the recommended clearances around the refrigerator
• Clean the grille area periodically to maintain airflow

For model-specific placement, clearances, and installation notes, use the FFHB2750TD3 owner’s manual.

Last updated: January 2026
