Model # LSDF9962ST/00 Official LG dishwasher

Here are the diagrams and repair parts for Official LG LSDF9962ST-00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

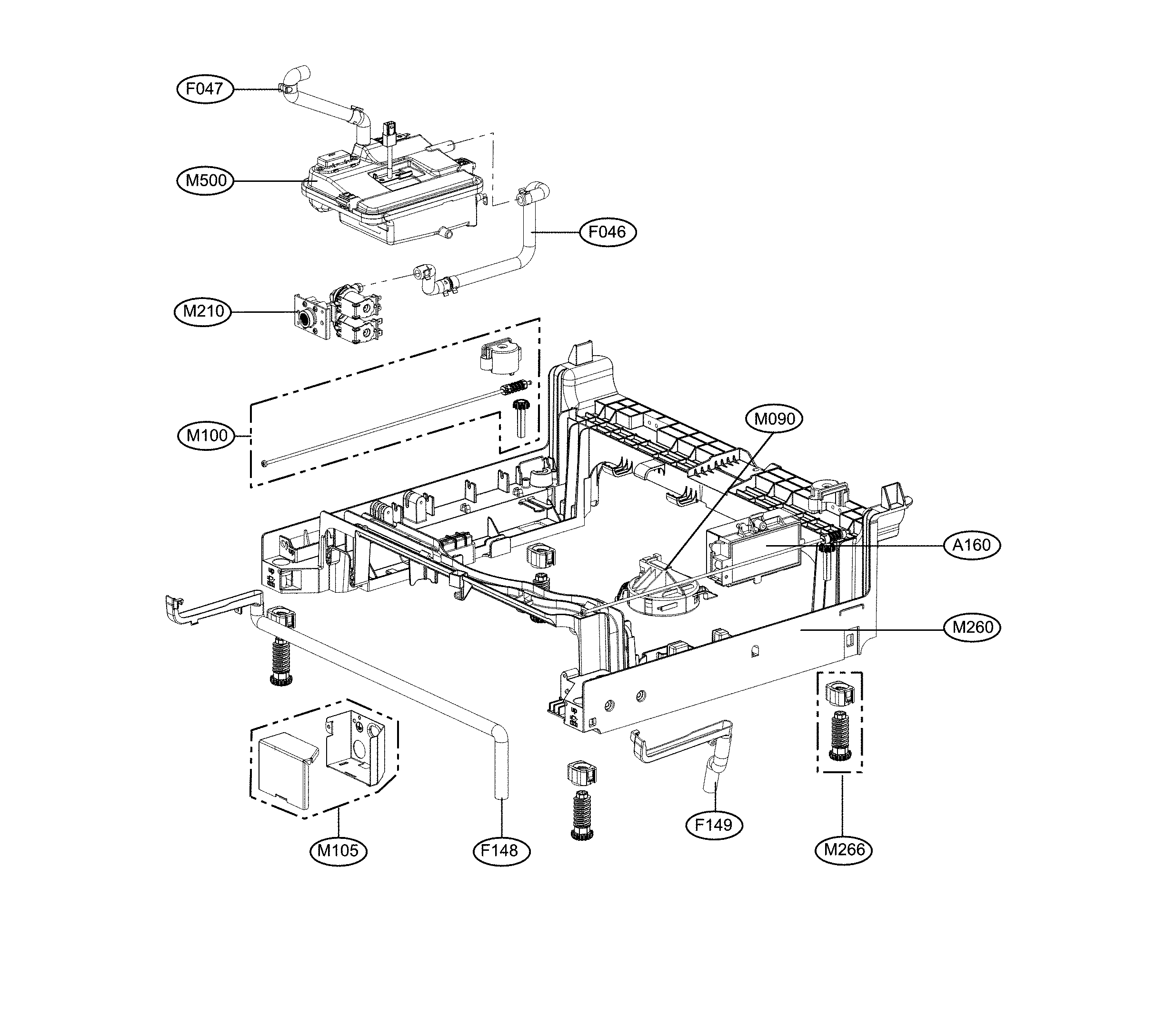

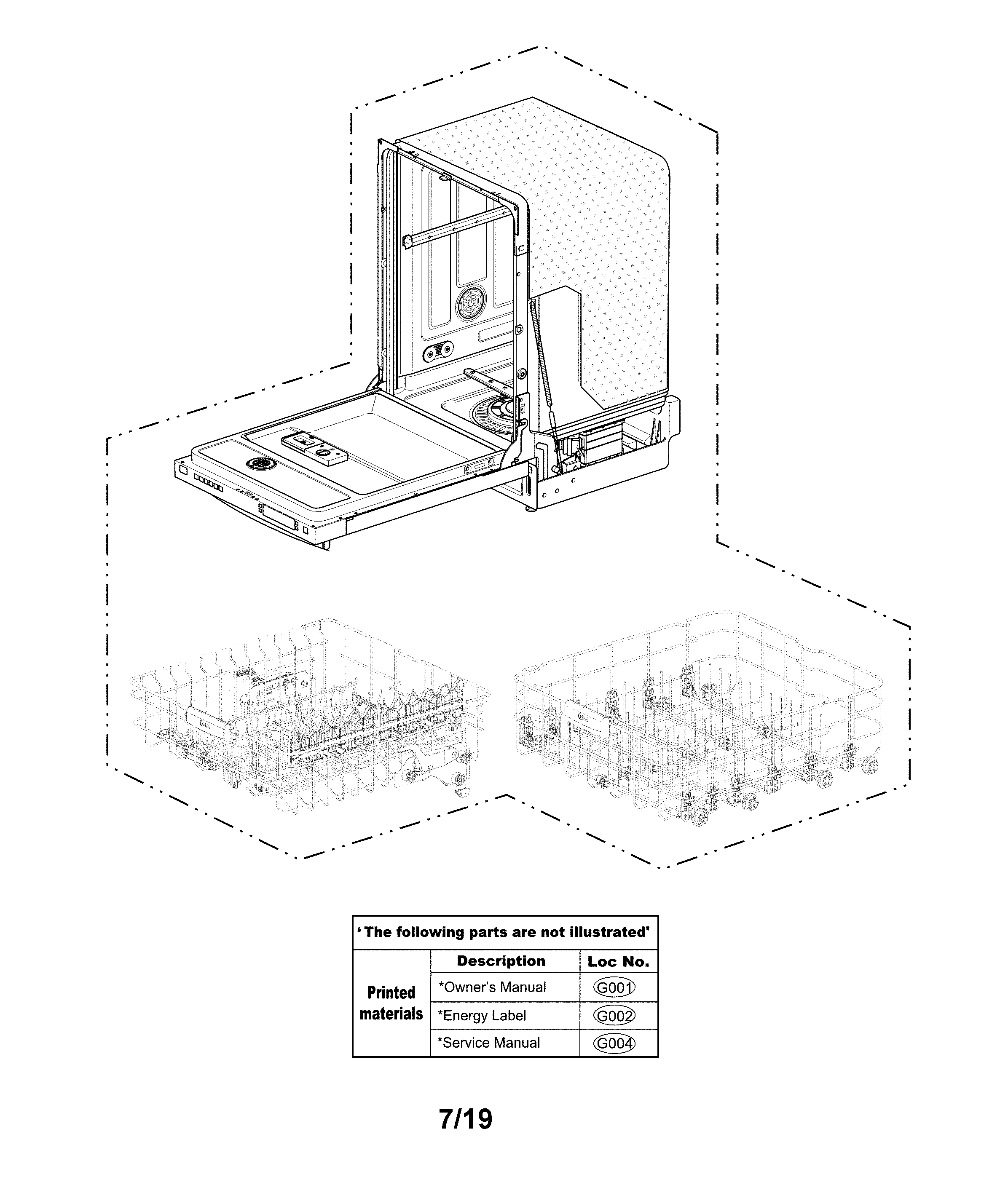

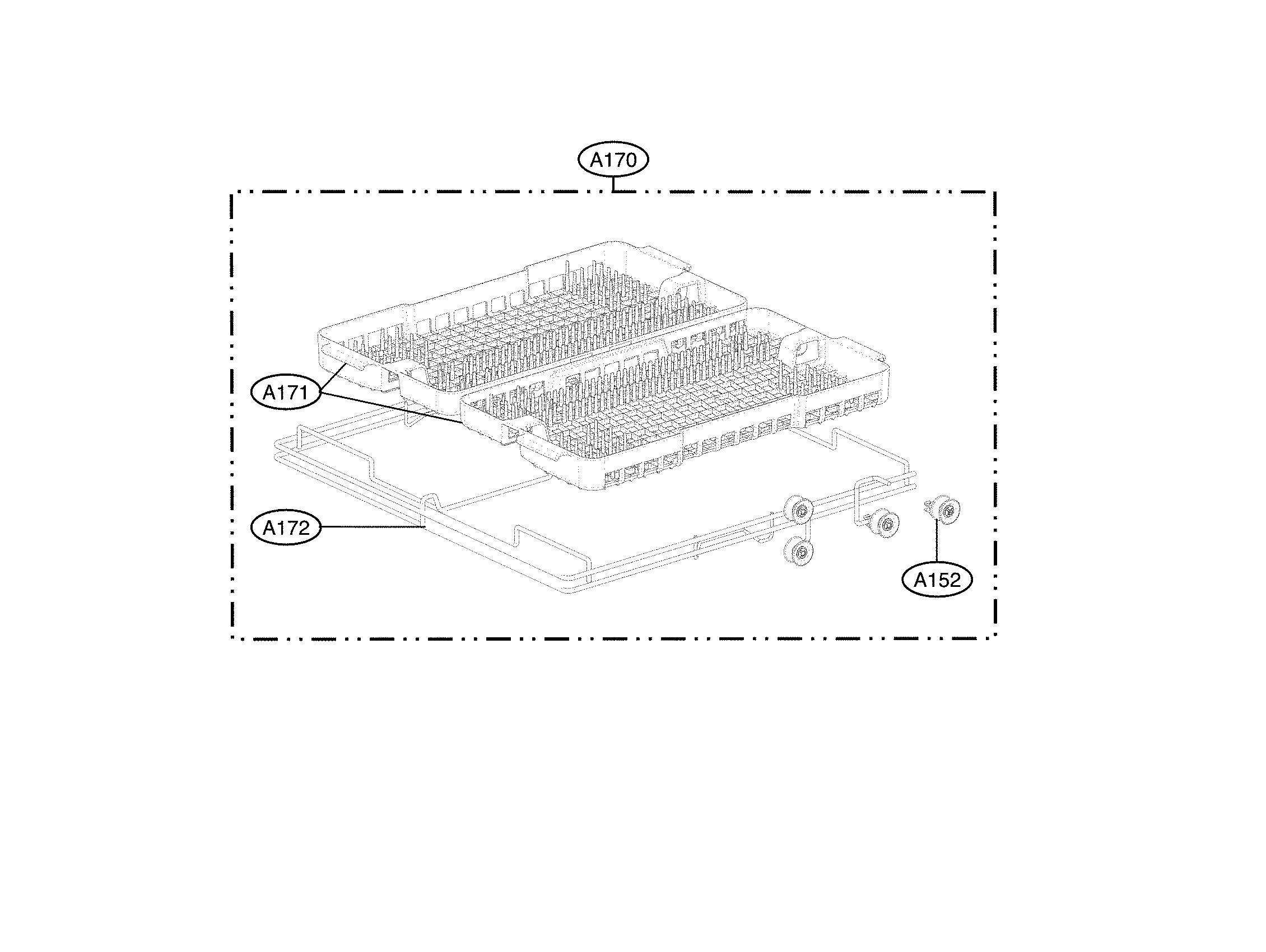

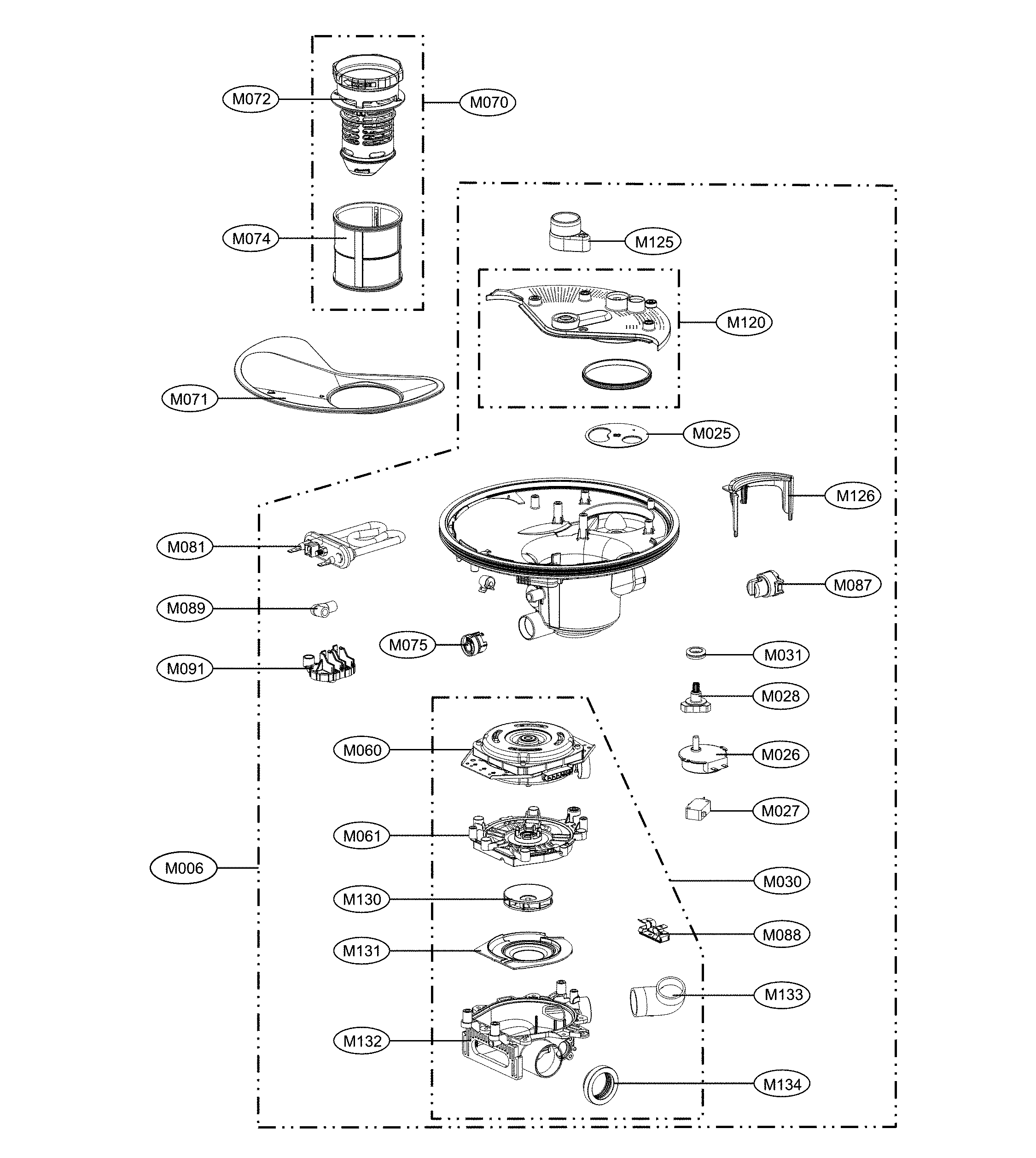

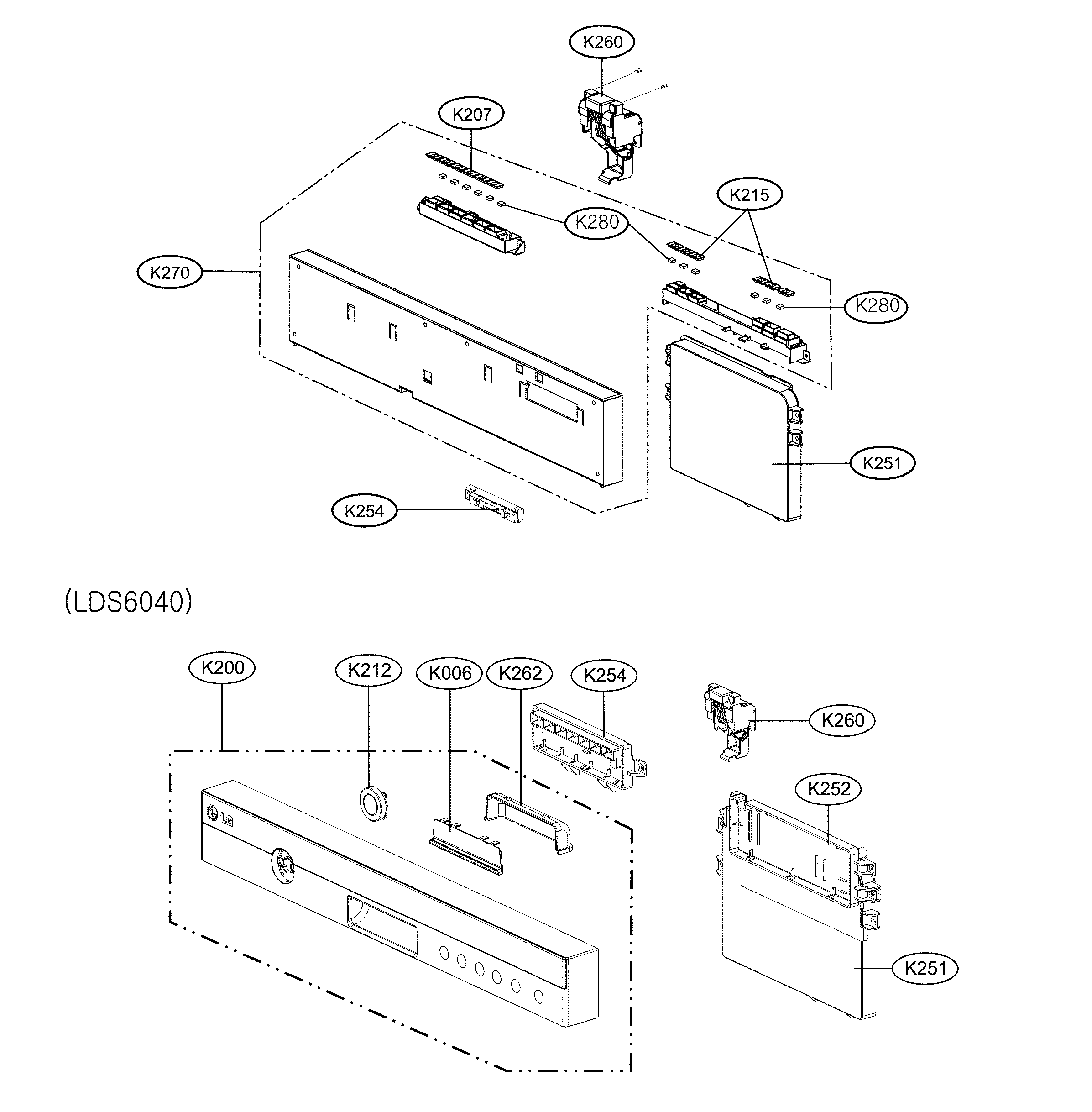

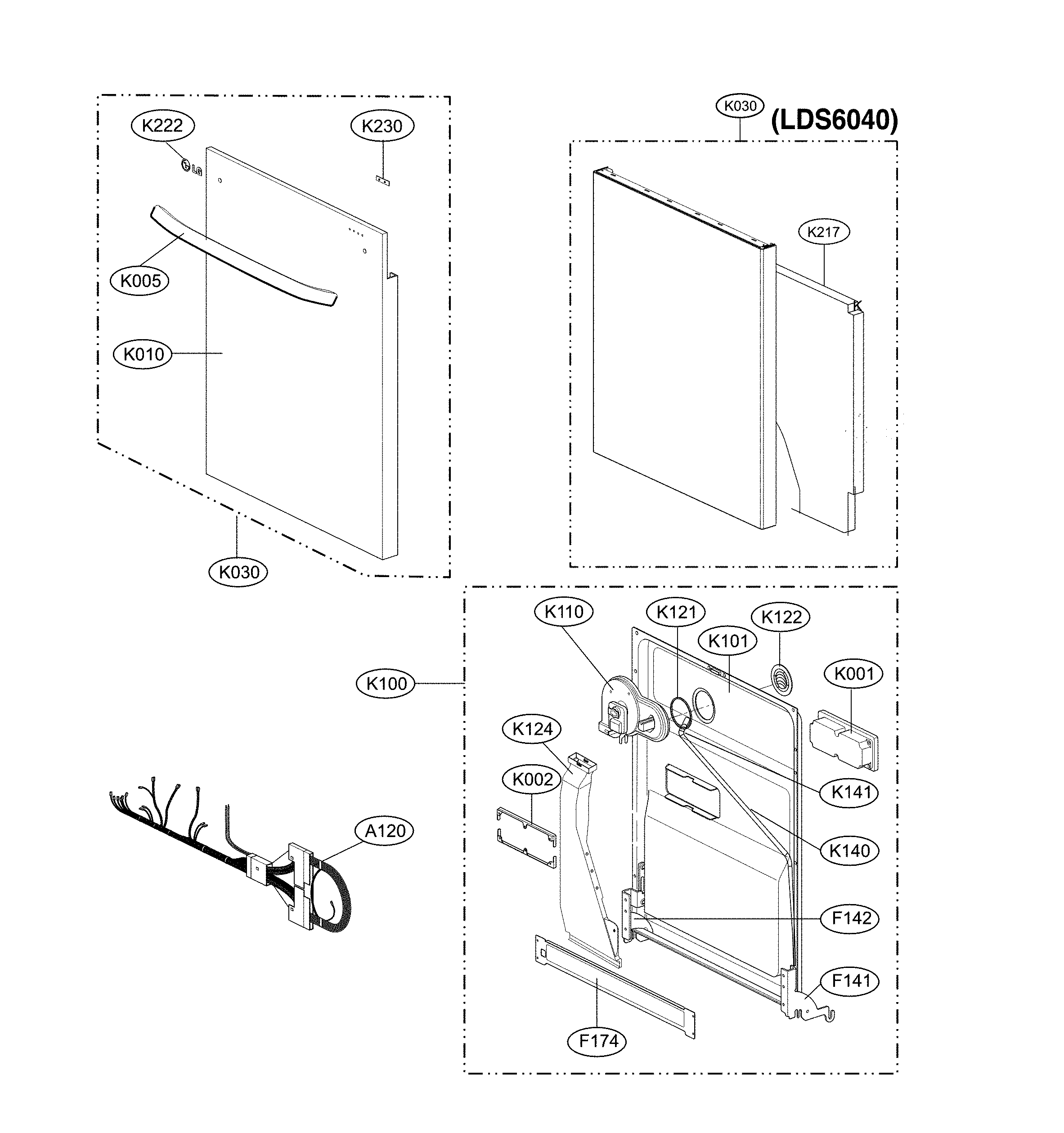

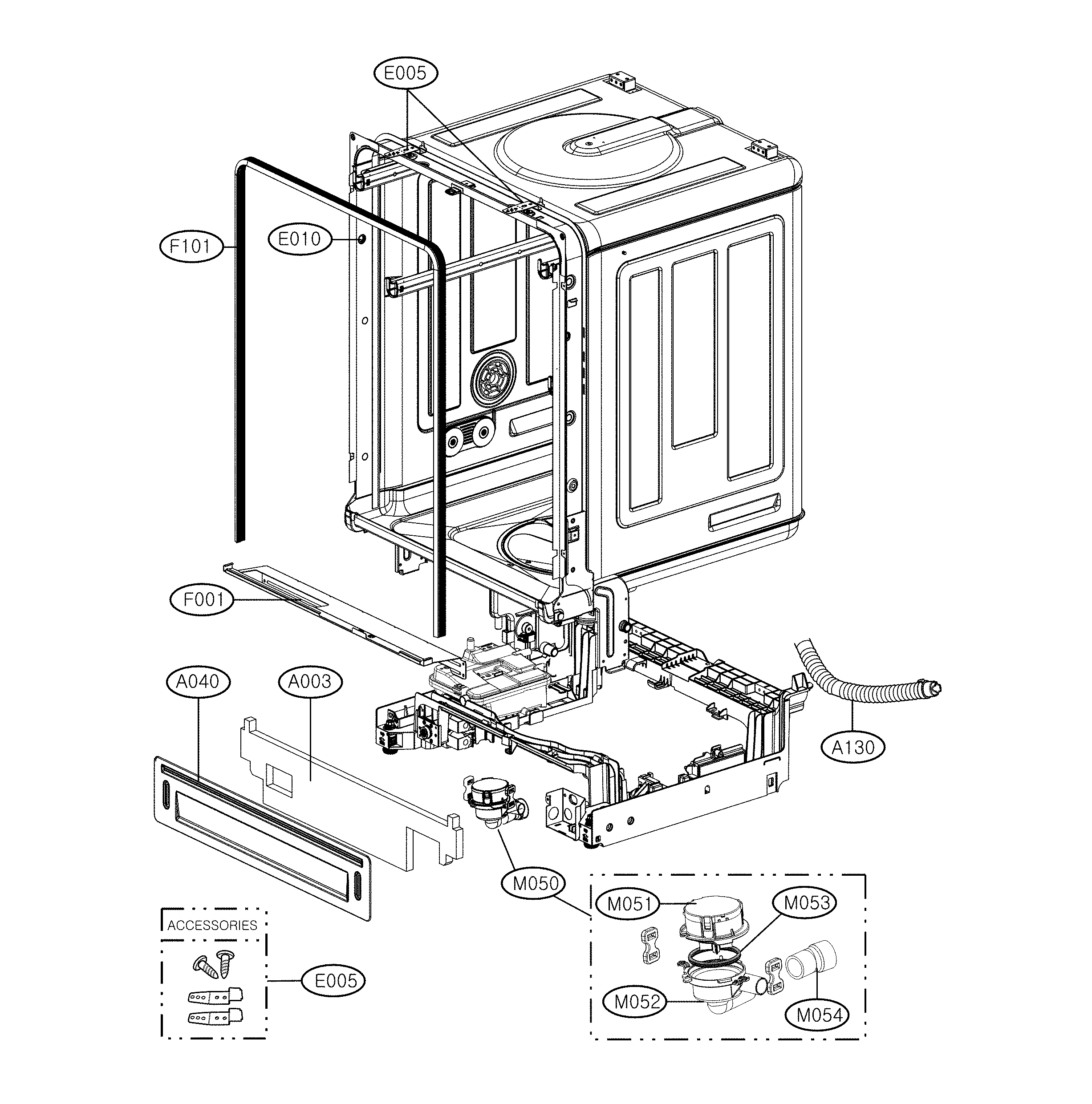

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 25 parts  |

Dishwasher Dishrack Assembly, Lower (replaces 3751DD1001B, 3751DD1001C)

#A140

All parts diagram

Dishwasher dishrack

Part #3751DD1001B

Replaced by #3751DD1001J

?
Manufacturer substitution
This part replaces 3751DD1001B. Substitute parts can look different from the original.
BEST SELLER
$150.20
6% OFF Phone Price : $160.20
In Stock
Dishwasher Dishrack Assembly, Upper

#A150

All parts diagram

Dishwasher dishrack assembly, upper

Part #AHB32983760

BEST SELLER
$227.87
$10.00 OFF Phone Price : $237.87
Back Order
Dishwasher Dishrack Roller, Lower (replaces 4581DD9002B)

#A142

All parts diagram

Dishwasher dishrack roller, lower (replaces 4581dd9002b)

Part #4581DD3003B

BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Dishwasher Dishrack, Upper

#A151

All parts diagram

Dishwasher dishrack, upper

Part #3750ED1005D

BEST SELLER
$191.60
5% OFF Phone Price : $201.60
In Stock
Washer Drain Hose (replaces AEM69493805)

#A130

All parts diagram

Dishwasher drain hose

Part #AEM69493805

Replaced by #AEM69493808

?
Manufacturer substitution
This part replaces AEM69493805. Substitute parts can look different from the original.
BEST SELLER
$70.74
7% OFF Phone Price : $75.74
In Stock
Dishwasher Dishrack Roller Assembly, Upper

#A152

All parts diagram

Dishwasher dishrack roller assembly, upper

Part #4581DD3002A

This item is not returnable
$6.27
14% OFF Phone Price : $7.27
In Stock
Dishwasher Sound Barrier

#A003

All parts diagram

Dishwasher sound barrier

Part #ACV34326902

$57.67
8% OFF Phone Price : $62.67
In Stock
Dishwasher Tine Row Positioner

#A157

All parts diagram

Dishwasher tine row positioner

Part #4930DD3003A

This item is not returnable
$6.17
14% OFF Phone Price : $7.17
In Stock
Dishwasher Wire Harness

#A120

All parts diagram

Dishwasher wire harness

Part #EAD61725001

$158.29
6% OFF Phone Price : $168.29
In Stock
Dishwasher Tine Row Retainer, Upper

#A158

All parts diagram

Dishwasher tine row retainer, upper

Part #4930DD3005A

This item is not returnable
$6.17
14% OFF Phone Price : $7.17
In Stock
