Kenmore
Canister Vacuum

Model #11624194111 Kenmore vacuum

Here are the diagrams and repair parts for Kenmore 11624194111 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 10 parts

    Vacuum Floor Brush

    #3

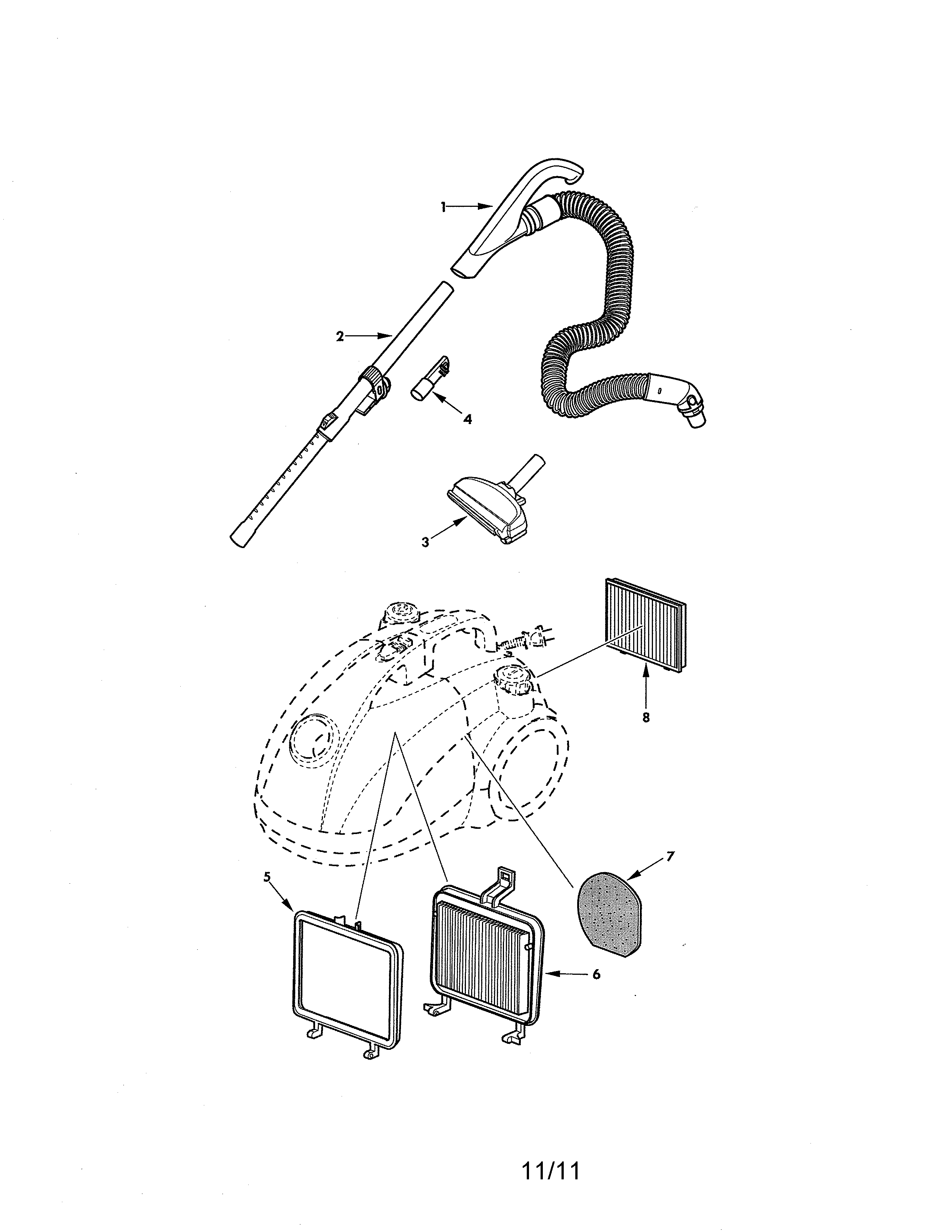

    Canister vacuum Diagram

    Vacuum floor brush

    Part #KC80SEDNZ000
    ?
    Manufacturer substitution
    This part replaces KC99RDSMZ000. Substitute parts can look different from the original.
    This part replaces KC99RDSMZ000
    $37.99

    Back Order

    Vacuum Motor Safety Filter

    #7

    Canister vacuum Diagram

    Vacuum motor safety filter

    Part #KC37KDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC37KDRDZ000. Substitute parts can look different from the original.
    This part replaces KC37KDRDZ000
    This item is not returnable

    Get free shipping with Automatic Reorder

    $3.89

    In Stock

    Vacuum Primary Filter

    #6

    Canister vacuum Diagram

    Vacuum primary filter

    Part #KC30KDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC30KDRDZ000. Substitute parts can look different from the original.
    This part replaces KC30KDRDZ000

    Get free shipping with Automatic Reorder

    $36.99

    Back Order

    Vacuum Exhaust Filter

    #8

    Canister vacuum Diagram

    Vacuum exhaust filter

    Part #KC38KDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC38KDRDZ000. Substitute parts can look different from the original.
    This part replaces KC38KDRDZ000

    Get free shipping with Automatic Reorder

    $16.99

    In Stock

    Vacuum Crevice Tool

    #4

    Canister vacuum Diagram

    Vacuum crevice tool

    Part #KC60RDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC60RDRDZ000. Substitute parts can look different from the original.
    This part replaces KC60RDRDZ000
    $8.59

    In Stock

    Use and Care Guide

    #NI01

    All parts Diagram

    Use and care guide

    Part #KC01ZDSMZ0U0
    ?
    Manufacturer substitution
    This part replaces KC01ZDSMZ0U0. Substitute parts can look different from the original.
    This part replaces KC01ZDSMZ0U0
    This item is not returnable
    $3.99

    In Stock

    REEL ASSEMBL

    #2

    Canister vacuum Diagram

    Reel assembl

    Part #KC99PDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC99PDRDZ000. Substitute parts can look different from the original.
    This part replaces KC99PDRDZ000
    $46.96

    In Stock

    Vacuum Hose Assembly

    #1

    Canister vacuum Diagram

    Vacuum hose assembly

    Part #KC94PDRDZ000
    ?
    Manufacturer substitution
    This part replaces KC94PDRDZ000. Substitute parts can look different from the original.
    This part replaces KC94PDRDZ000
    $76.92

    In Stock

    Vacuum Filter Support

    #5

    Canister vacuum Diagram

    Vacuum filter support

    Part #KC44KDSMZ000
    ?
    Manufacturer substitution
    This part replaces KC44KDSMZ000. Substitute parts can look different from the original.
    This part replaces KC44KDSMZ000
    $8.19

    In Stock

    Repair Parts List

    #NI02

    All parts Diagram

    Repair parts list

    Part #KC44ZDSMZ0U0

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all vacuum cleaners

    Choose a symptom to see related vacuum cleaner repairs.

    Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
    Main causes: lack of power, bad power cord, drive motor failure, wiring failure
    Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
    Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
