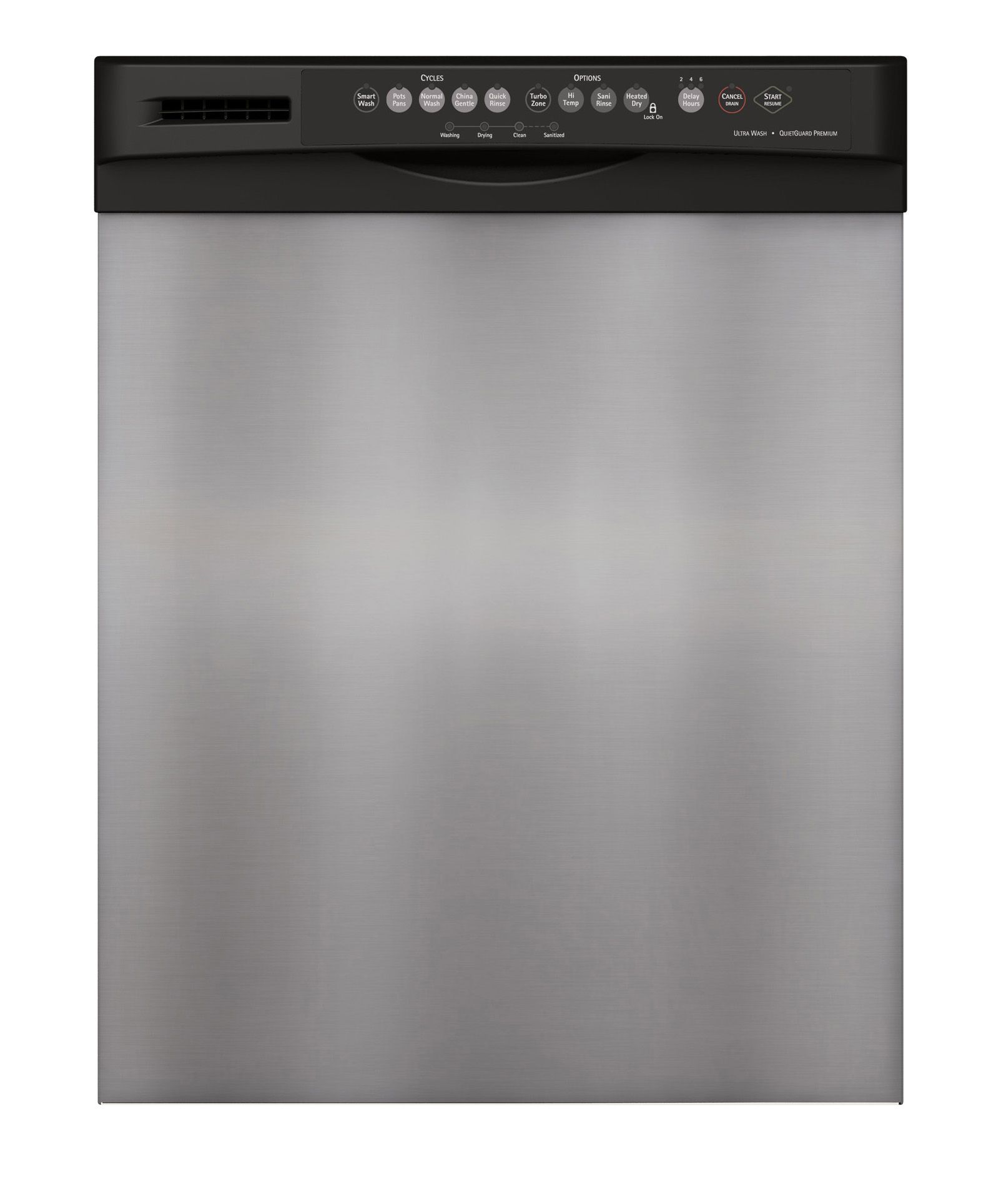

Kenmore Elite 66513753K602 dishwasher Parts

On the Kenmore Elite dishwasher model 66513753K602, the most common problems are poor cleaning, not draining, not starting or stopping mid-cycle, leaking, and control or indicator light issues. Many of these trace back to power, door latch, water supply, or a pump or valve problem; see the 66513753K602 owner's manual for model-specific checks.

Most common symptoms and what they usually mean

• Not cleaning well: spray arm blockage, overloaded racks, low water temperature, detergent or dispenser issue
• Not draining: clogged drain path, kinked drain hose, failed drain pump
• Won’t start / stops: door not fully latched, cycle not set correctly, power interruption, tripped breaker
• Leaking: door seal wear, loose hose connections, tub or inner door sealing issues
• Buttons or lights acting up: control board or user interface issue, or a cycle pause condition

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes tightly and latches.
2. Verify power: check the house fuse or reset the circuit breaker.
3. Confirm the water supply valve is turned on.
4. Start a short cycle and, after about 2 minutes, open the door and confirm water is in the bottom of the tub (a basic fill check).

Parts that commonly solve these problems on this model

Symptom	Common part to inspect/replace	Example part for 66513753K602
Not draining	Drain pump or drain hose	Dishwasher drain pump WPW10348269, Dishwasher drain hose 8269144A
Not filling	Water inlet valve	Dishwasher water inlet valve WPW10158389
Dead/no power	Fuse	Fuse W10258275
Random behavior	Electronic control board	Dishwasher electronic control board WPW10084141

Why it matters

Catching the root cause early prevents repeat wash failures and helps avoid water damage. For example, a simple door-latch or power issue can look like a “bad control,” and a kinked drain hose can mimic a failed pump.

For flashing lights or stored fault codes, use Kenmore 665 model dishwasher error codes to match the symptom to the most likely repair.

Last updated: January 2026

On Kenmore Elite dishwasher model 66513753K602, the F4E1 service code points to a wash motor or wash pump (circulation) problem. In most cases, the fix is restoring proper wash-motor operation and then clearing the stored code using the keypad sequence described in the 66513753K602 owner’s manual.

What to do first (safe, quick checks)

• Turn off power at the breaker for 1 minute, then restore power and try a cycle.
• Confirm the door fully latches; a weak latch can interrupt motor operation.
• Check for a heavy load or item blocking the spray arms.
• Clean the filter area and remove debris that can restrict water flow.
• Run a short cycle and listen: a steady hum with no wash action often indicates a circulation issue.

Clearing the code after a repair

After you replace a failed wash motor or pump assembly, clear the stored code so the control can run a fresh diagnostic state.

A common reset method on this style of Kenmore 665-series control is:

• Press any 3 keys in a 1-2-3 pattern
• Repeat the same pattern three times: 1-2-3, 1-2-3, 1-2-3

If your console layout differs, use the exact diagnostic/reset steps in the 66513753K602 owner’s manual.

Parts that commonly relate to F4E1 symptoms

If the dishwasher fills but does not wash (or washes weakly), these parts are often involved:

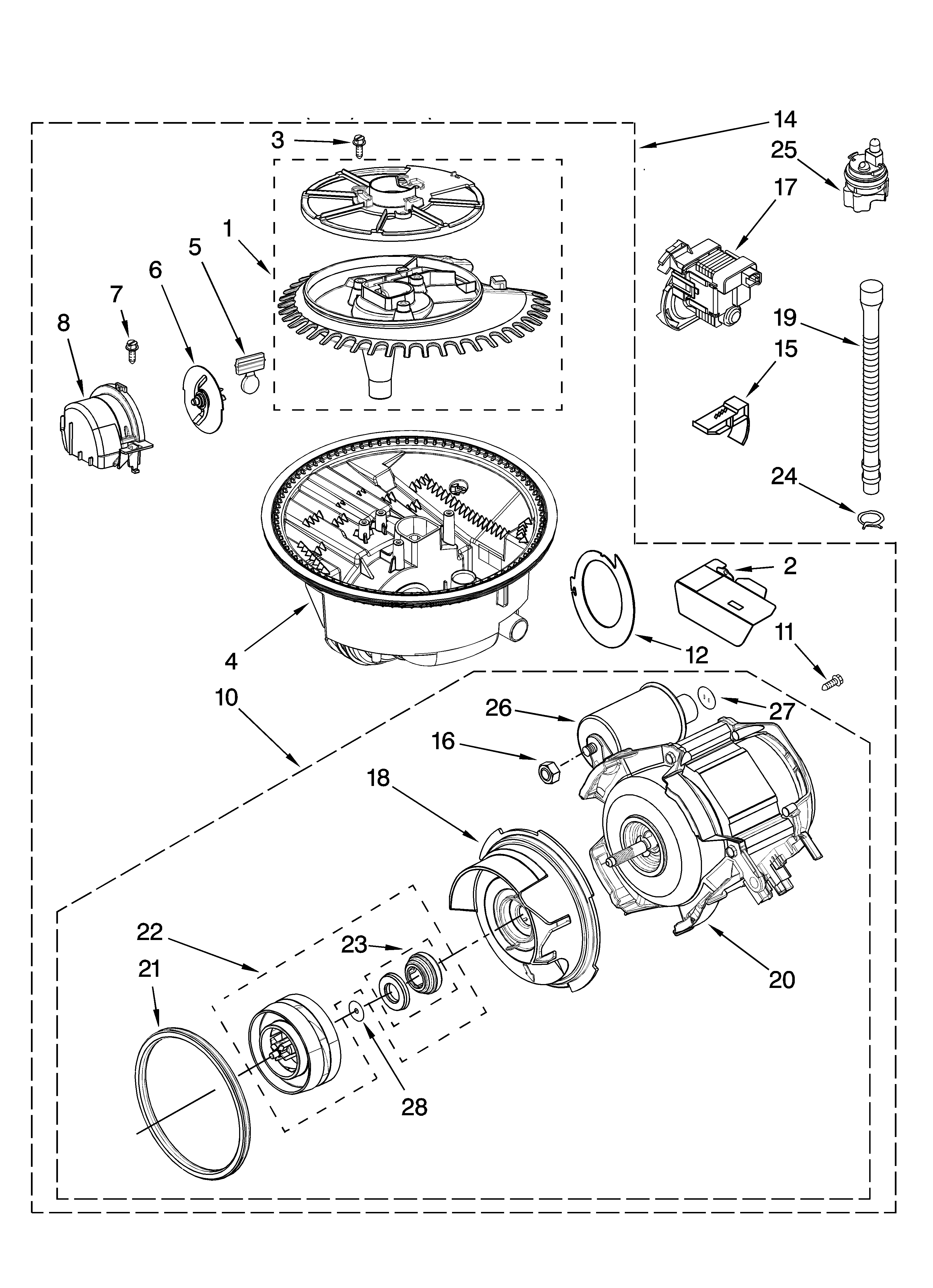

• Circulation motor or sump and motor assembly
• Control board or power supply issues
• Wiring connections to the motor
• Water inlet problems that cause low fill

Quick part comparison (common symptom match)

Symptom you notice	Most likely area	Example part for this model
Fills, drains, but no strong wash sound	Circulation motor/pump	Pump motor WPW10780877
Won’t drain at end of cycle	Drain system	Dishwasher drain pump WPW10348269
Fills slowly or not enough water	Fill system	Dishwasher water inlet valve WPW10158389

Why it matters

When the wash motor cannot circulate water, dishes stay dirty and the control may stop the cycle or store repeated faults. Clearing the code after the repair helps confirm the fix and prevents old fault history from confusing troubleshooting.

Last updated: January 2026

A Kenmore Elite dishwasher like model 66513753K602 typically lasts 10 years with normal household use and routine maintenance. Keeping the filter area clean, using the right detergent, and fixing leaks or draining issues quickly helps you reach that lifespan.

What affects lifespan most

• Water quality (hard water speeds up scale buildup on the heater and wash system)
• How often you run it (daily use wears pumps, seals, and racks faster)
• Loading habits (overloading strains the motor and spray pattern)
• Heat and drying settings (higher heat increases wear on the heater element)
• Maintenance (cleaning, checking seals, and clearing drain restrictions)

Quick maintenance checklist (high impact)

• Clean the bottom of the tub and filter area regularly (remove debris and labels)
• Run hot water at the sink before starting a cycle for better wash performance
• Inspect the door seal for splits, flattening, or gaps; replace if leaking
• Check the drain hose routing for kinks and ensure the high loop is correct
• Use rinse aid and keep the cap sealing properly to improve drying and reduce spotting

Common “end-of-life” symptoms and likely causes

Symptom	Most common cause	Parts often involved
Won’t drain	Clog or failing drain pump	Drain pump, drain hose
Poor cleaning	Wash system wear or blockage	Pump motor, chopper, sump
Not heating/drying	Heater or control issue	Heater element, control board
Leaks	Worn seals or door gasket	Door seal, other seals

If you are troubleshooting a drain problem, the dishwasher drain pump WPW10348269 is a common replacement for this model when the pump is noisy, seized, or not moving water.

Why it matters

Dishwashers often fail gradually; addressing early signs (slow draining, weak wash, small leaks) prevents secondary damage to the motor, electronic control, and tub seals. For model-specific care and cycle guidance, follow the owner's manual.

Last updated: March 2026
